Precise Square and Round Tube Chamfering Machine - Ensure Neat and Accurate Chamfers

item	value
power (kw)	4
weight (kg)	1600
warranty	1 Year
Power supply	AC380V 50HZ
Total power	8kw
Spindle power	4kw
Feed speed	0-1500mm/min
Processing pipe Dia	80-300mm
Processing square tube	80x80-300x300mm
Bevel angle	30°/37.5°/45°
Culter head Dia	100mm
Workable height	900-1000mm
Operation mode	HMI PLC touch screen

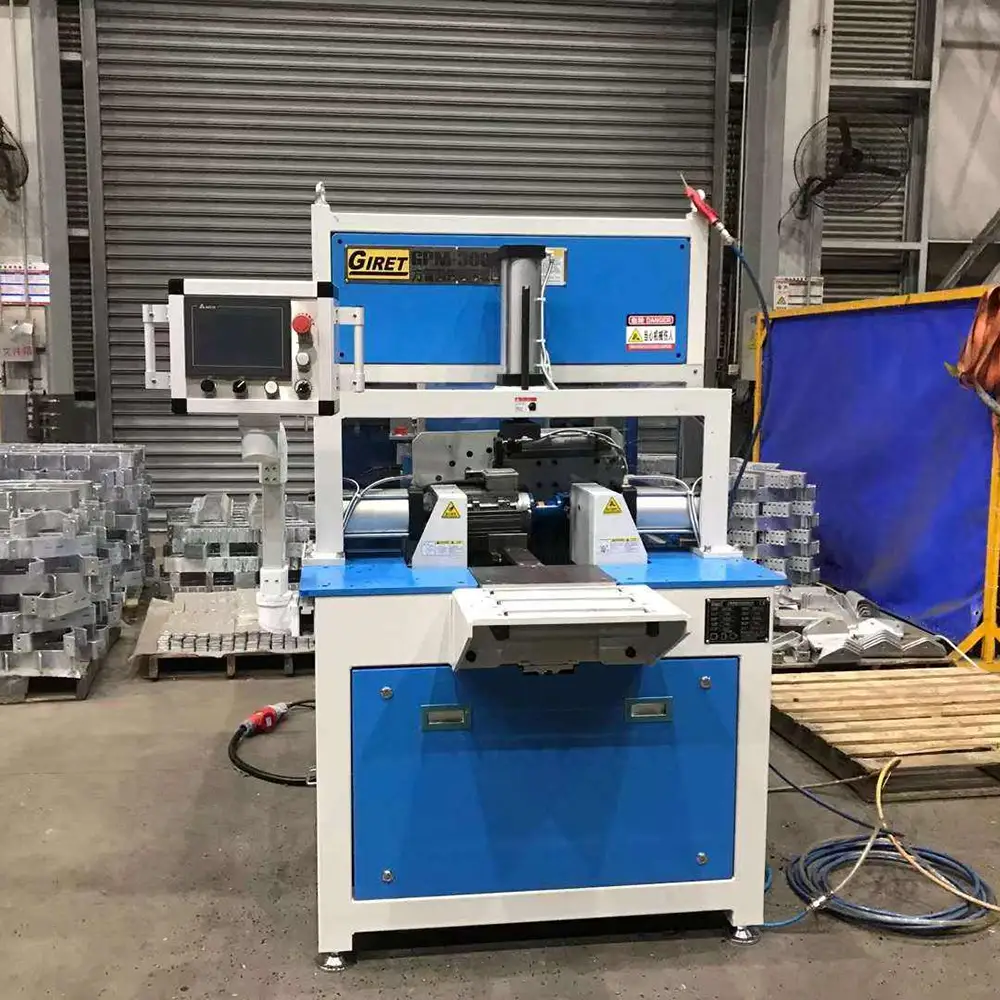

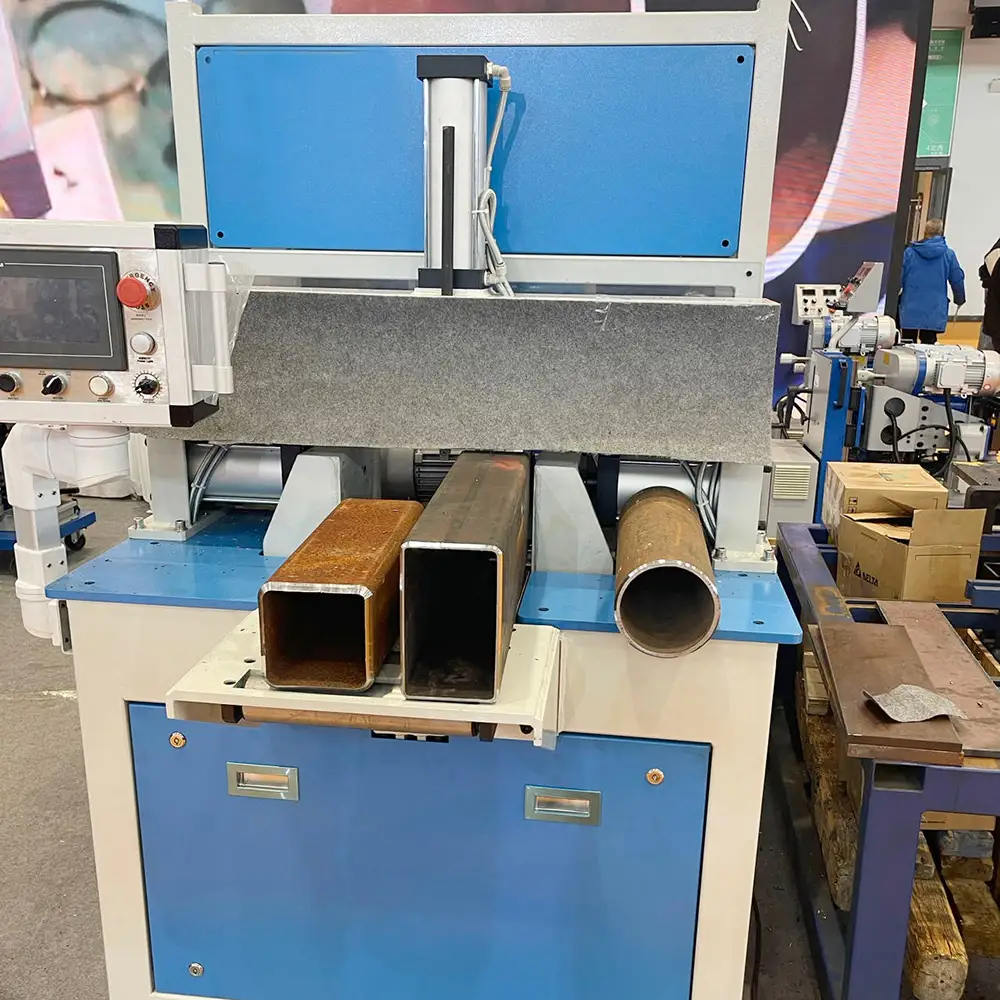

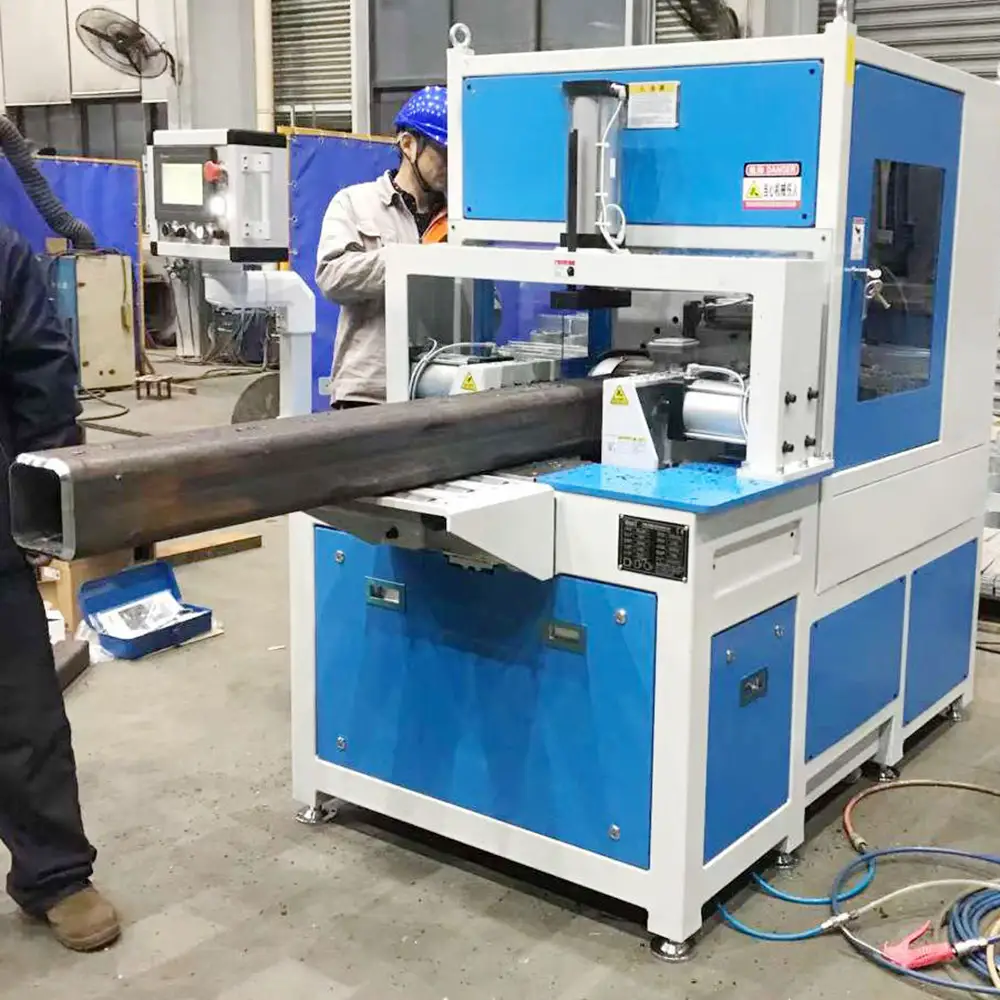

Precise Square and Round Tube Chamfering Machine

The Precise Square and Round Tube Chamfering Machine is designed for efficient and repeatable end processing of metal tubes and pipes. It can be configured for both square tube chamfering and round tube chamfering,making it a practical solution for manufacturers that process different tube profiles in the same production environment.

Chamfering removes sharp edges from the end of a tube and creates a controlled angled or finished edge. This process can improve the appearance of the workpiece,make subsequent assembly easier,and prepare the tube for welding,connecting,or other downstream operations.

For manufacturers requiring neat and consistent tube ends,the machine provides a more controlled alternative to completely manual grinding or filing. Actual chamfering capacity,angle,material range,and production speed depend on the machine configuration,tooling,and workpiece specifications.

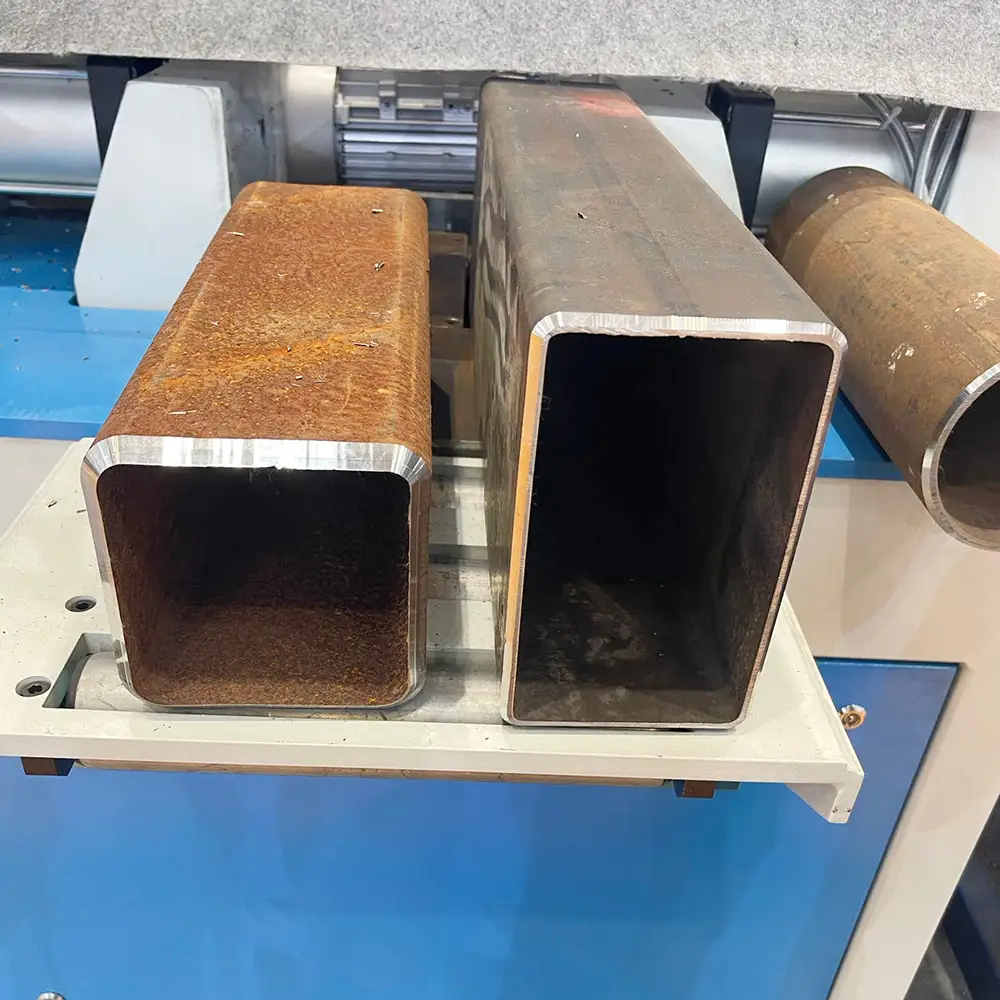

Precision Square Tube Chamfering

Square tubes require appropriate tooling and workholding because their four flat sides and corners create different cutting conditions from round tubes.

The machine can be configured to process suitable square steel tubes,stainless steel tubes,aluminum profiles,and other compatible metal sections. Proper clamping helps keep the tube stable while the cutting tool works around the end.

A controlled chamfer can help remove sharp corners and create a more uniform tube-end appearance. For applications involving frames,furniture,steel structures,racking,and fabricated assemblies,consistent end preparation can simplify subsequent production steps.

The actual square tube size range should be confirmed according to the machine model,clamping system,and tooling configuration.

Round Tube End Chamfering

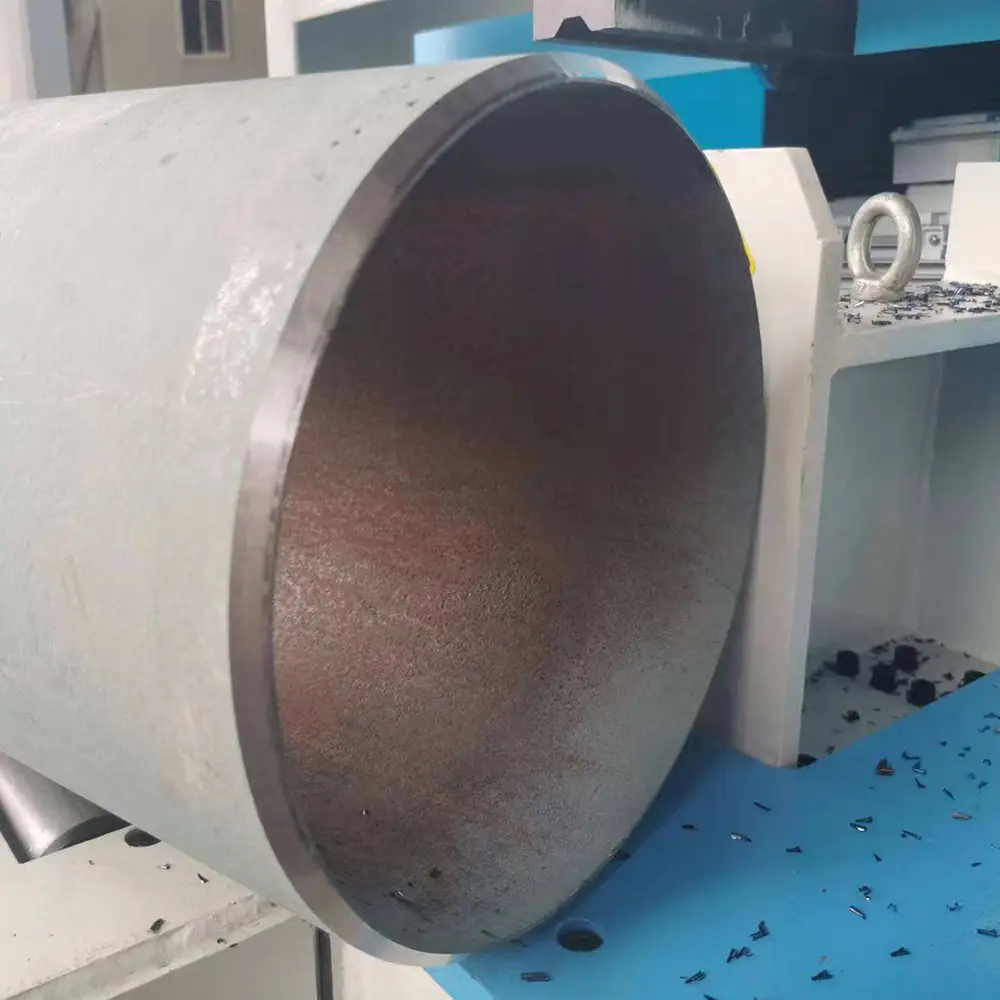

Round tube chamfering is a common metalworking operation used to prepare pipe and tube ends for assembly,welding,threading,or other fabrication processes.

The machine securely positions the round tube while the chamfering tool removes material from the selected edge. Proper alignment between the workpiece and cutting tool is important for producing a consistent chamfer around the tube circumference.

Depending on the configuration,the machine may process different tube diameters and wall thicknesses. Tool selection and cutting parameters should be matched to the material and tube dimensions.

For production environments where many similar tubes must be processed,the machine can help improve consistency compared with manual edge finishing.

Clean and Accurate Tube Ends

A major purpose of tube chamfering is to create a cleaner and more controlled tube end.

Sharp edges and burrs left after sawing,cutting,or other tube-processing operations can interfere with assembly and may create handling concerns. Chamfering can remove these unwanted edges while producing a defined transition between the tube end and outer surface.

The finished result depends on tool condition,clamping accuracy,material characteristics,cutting speed,feed rate,and machine rigidity.

For precision applications,manufacturers should confirm the required chamfer width,angle,tolerance,and surface condition before selecting the machine and tooling.

Chamfering and Deburring Functions

Tube chamfering is often combined with deburring because cutting operations can leave sharp edges or burrs around the tube end.

The machine can be used as part of a tube end-finishing process to improve the edge condition before welding,coating,painting,assembly,or further machining.

Deburring requirements vary according to the cutting method. Saw cutting,laser cutting,plasma cutting,and other processes can produce different edge conditions.

The appropriate chamfering tool should therefore be selected according to the existing tube end condition and the required finished result.

Tube Beveling Applications

Chamfering and beveling are closely related tube-end preparation processes. A chamfer generally removes or breaks an edge,while a bevel creates a more defined angled surface.

For welding applications,the required bevel geometry can be important because it affects joint preparation and the available welding area.

Depending on the machine design and tooling,the equipment may support selected beveling or angled edge-processing operations in addition to standard chamfering.

Customers should provide drawings or samples when a specific bevel angle or geometry is required.

Suitable Metal Materials

The machine can be configured for processing different metal tube materials,depending on the cutting tools and machine structure.

Typical materials may include:

Carbon steel tubes

Mild steel pipes

Stainless steel tubes

Aluminum tubes

Aluminum profiles

Galvanized steel tubes

Alloy steel tubes

Other compatible metal sections

Different materials require different tooling and processing parameters. Stainless steel may require suitable wear-resistant tooling,while aluminum may require cutting conditions designed to reduce material buildup on the tool.

The actual material compatibility should always be confirmed according to the machine and tooling configuration.

Stable Workpiece Clamping

Accurate chamfering starts with stable workpiece positioning.

The machine's clamping system is designed to hold the tube securely during the machining process. Proper clamping helps reduce movement,vibration,and misalignment that could affect the finished chamfer.

Round and square tubes require different contact conditions,and the appropriate fixture or tooling arrangement should be selected according to the tube profile.

For production involving multiple tube sizes,quick-change or adjustable clamping arrangements can help reduce setup time,depending on the machine configuration.

Efficient Production Workflow

The tube chamfering machine can be integrated into a larger tube-processing workflow.

A typical process may include tube cutting,loading,clamping,end chamfering,inspection,and unloading. When combined with other equipment,the chamfering operation can become part of a continuous production process.

For repeated workpieces,the machine can help reduce manual grinding and improve consistency between batches.

Actual production capacity depends on tube size,material,chamfer dimensions,tooling,loading method,operator workflow,and machine configuration.

Applications in Metal Fabrication

The machine can be used in a wide range of manufacturing and fabrication applications,including:

Steel tube fabrication

Furniture manufacturing

Metal frame production

Automotive components

Agricultural machinery

Construction equipment

Steel structures

Racking systems

Guardrail manufacturing

Fitness equipment

Bicycle components

Door and window production

General metal fabrication

For furniture and frame manufacturers,consistent tube ends can help improve welding and assembly efficiency. For industrial tube processing,controlled chamfering can provide a repeatable finishing operation.

Tooling and Chamfer Quality

Tooling has a direct influence on chamfer quality.

The cutting tool should be selected according to the tube material,diameter or profile size,wall thickness,and required chamfer geometry. Worn or incorrectly selected tooling can produce uneven edges,excessive burrs,poor surface finish,or inconsistent chamfer dimensions.

Regular inspection and timely tool replacement can help maintain stable production quality.

For customized tube-end requirements,customers can provide drawings,technical specifications,or sample workpieces so suitable tooling can be evaluated.

Maintenance and Safety

Regular maintenance helps keep the chamfering machine operating consistently.

Operators should inspect cutting tools,clamping components,guide systems,drive components,and electrical or pneumatic systems according to the machine configuration. Chips and metal debris should be removed from the working area regularly.

Operators should also use appropriate eye protection,protective clothing,and other personal protective equipment required for the application.

Depending on the machine configuration,safety guards,emergency stops,and other protective systems may be provided. Operators should follow the manufacturer's instructions and applicable workplace safety requirements.

Custom & OEM Tube Chamfering Solutions

Different customers may require different tube sizes,chamfer angles,production volumes,and finishing requirements.

The machine can therefore be configured around the intended application. Custom options may include clamping systems,cutting tools,fixtures,feeding arrangements,control systems,and other tube-processing components.

For OEM and ODM projects,customers can provide tube material,outer dimensions,wall thickness,chamfer angle,required tolerance,production volume,and sample parts.

This information allows the machine configuration and tooling to be matched to the actual production requirements.

Why Choose Us

Square and Round Tube Processing — Designed for suitable square and round metal tubes,providing flexible tube-end processing capabilities.

Precise Chamfering — Controlled workholding and tooling help produce neat and consistent chamfered tube ends.

Clean Edge Finishing — Helps remove sharp edges and burrs created during previous cutting operations.

Flexible Material Compatibility — Can be configured for suitable carbon steel,stainless steel,aluminum,and other metal tubes.

Stable Workpiece Clamping — Secure positioning helps reduce movement and improve processing consistency.

Production-Oriented Design — Suitable for repetitive tube processing in fabrication and manufacturing environments.

Custom Tooling Support — Chamfering tools,fixtures,and clamping systems can be selected according to tube dimensions and processing requirements.

OEM & ODM Service — Machine configurations can be developed according to customer drawings,samples,materials,and production requirements.

FAQs

1. What is a square and round tube chamfering machine?

It is a metal tube-processing machine designed to create controlled chamfers on the ends of suitable square and round tubes.

2. What is tube chamfering used for?

Tube chamfering can remove sharp edges,burrs,and unwanted material from tube ends while preparing the workpiece for welding,assembly,or other downstream operations.

3. Can the machine process both square and round tubes?

Yes. The machine can be configured for both square and round tube processing,provided the workpiece dimensions are within the machine's rated range.

4. What materials can it chamfer?

Depending on the tooling and machine configuration,it can process suitable carbon steel,stainless steel,aluminum,galvanized steel,and other compatible metals.

5. Is chamfering the same as deburring?

Not exactly. Deburring primarily removes unwanted sharp material or burrs,while chamfering creates a controlled angled edge. The two operations are often performed together.

6. Can it chamfer stainless steel tubes?

Yes,when suitable tooling and cutting parameters are selected for the stainless steel grade and tube dimensions.

7. Can aluminum tubes be processed?

Yes. Aluminum tubes and profiles can be processed when the machine and cutting tools are properly configured for aluminum.

8. Can the machine perform beveling?

Depending on the machine structure and tooling,the equipment may support selected beveling operations. The required bevel angle should be confirmed before ordering.

9. What affects chamfering accuracy?

Workpiece clamping,tool condition,machine rigidity,tube dimensions,material properties,cutting parameters,and tooling design can all affect chamfering accuracy.

10. Is the machine suitable for mass production?

It can be used for repetitive production applications. Actual output depends on tube dimensions,material,chamfer requirements,loading method,and machine configuration.

11. Can the tooling be customized?

Yes. Custom cutting tools,fixtures,clamps,and other tooling can be developed according to specific tube dimensions and chamfer requirements.

12. What information should I provide for a quotation?

Provide the tube shape,outer dimensions,wall thickness,material,chamfer angle,required tolerance,production volume,and sample drawings or workpieces if available.
