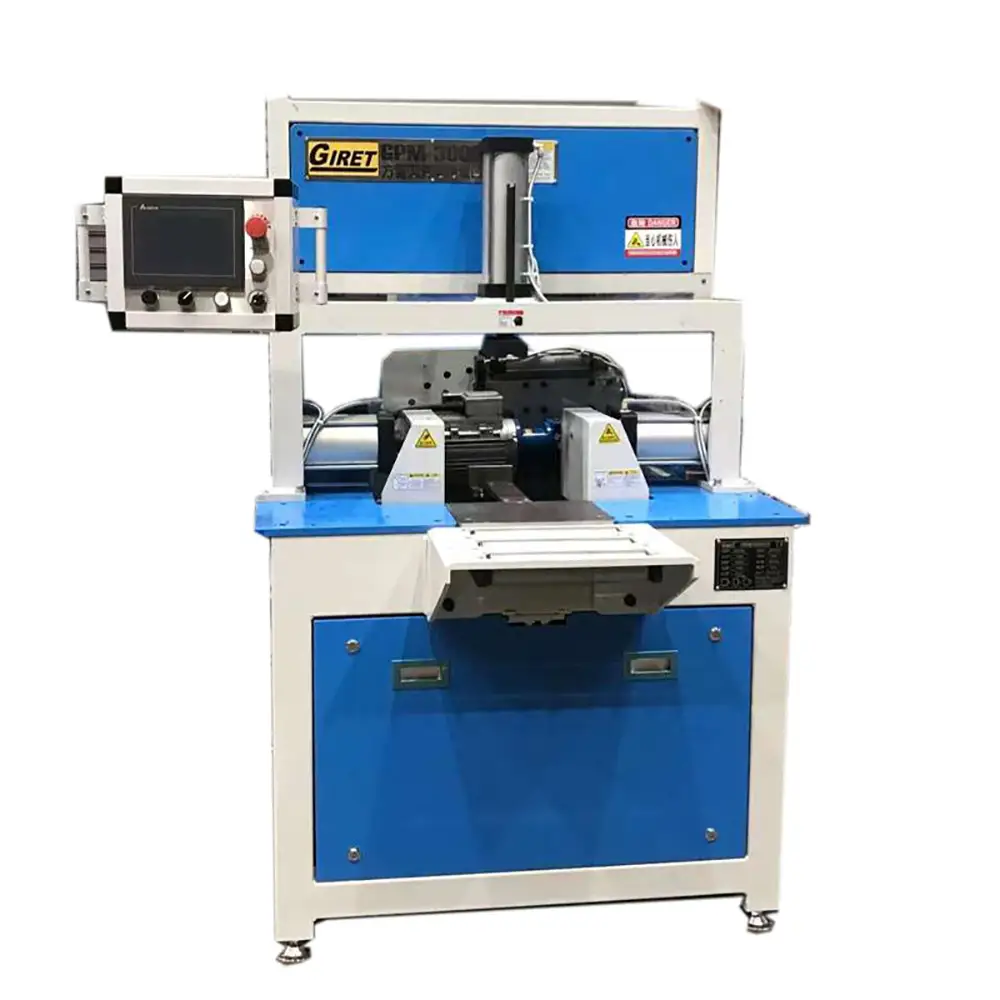

Square Rectangle Tube and Round Pipe Beveling Charmfering Machine

Square Rectangle Tube and Round Pipe Beveling & Chamfering Machine

The Square Rectangle Tube and Round Pipe Beveling & Chamfering Machine is designed for efficient end processing of different metal tube and pipe profiles. By supporting suitable square tubes,rectangular tubes,and round pipes,the machine provides a flexible solution for manufacturers that need consistent beveling,chamfering,and edge finishing in one production environment.

Tube and pipe ends often require additional processing after sawing,cutting,or other fabrication operations. Sharp edges,burrs,and uneven end conditions can make assembly,welding,and handling more difficult. Beveling and chamfering help prepare the tube end by removing unwanted material and creating a controlled edge geometry.

This type of machine is suitable for metal fabrication,furniture production,steel structure manufacturing,automotive components,construction equipment,racking systems,and other industries that process tubular metal components.

The actual tube size range,bevel angle,chamfer dimensions,material compatibility,and production capacity depend on the machine model,tooling,clamping system,and workpiece specifications.

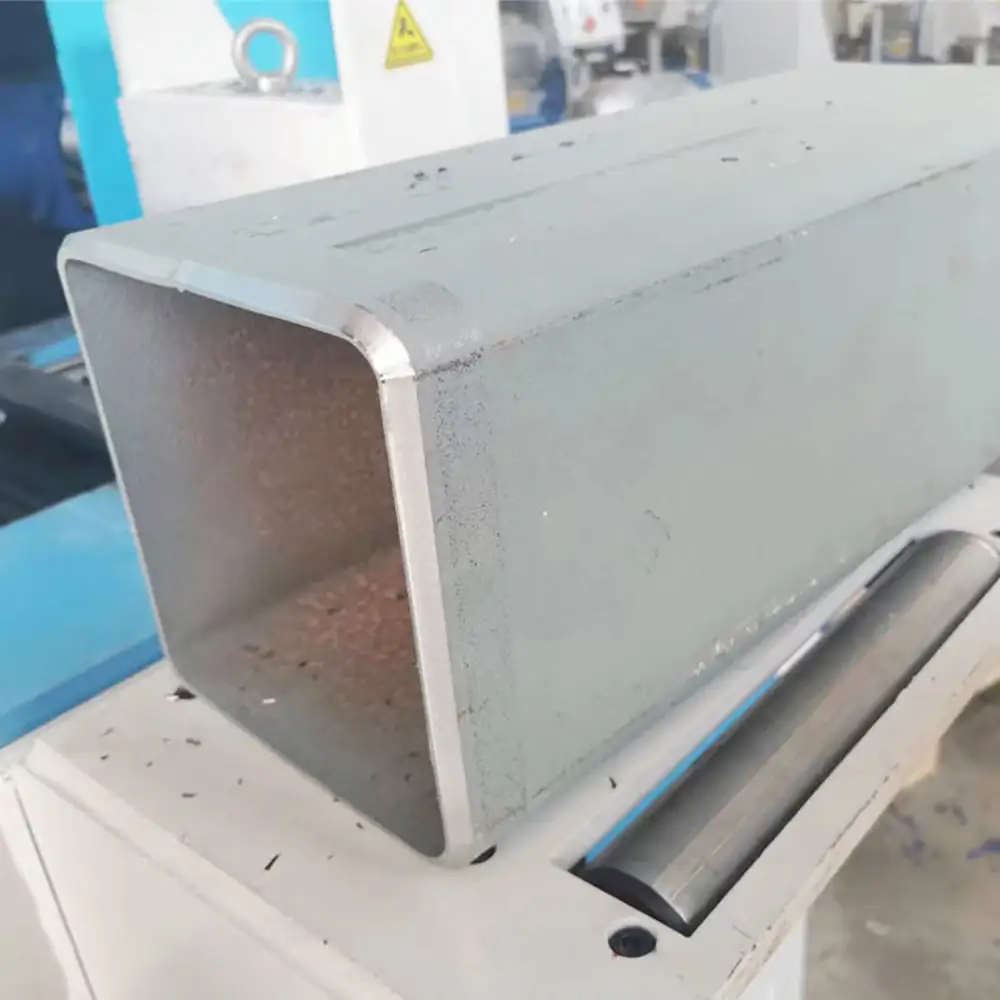

Square Tube Beveling

Square tube beveling requires stable positioning because the workpiece has four flat surfaces and defined corners.

The machine can be configured to process suitable square steel tubes,stainless steel tubes,aluminum tubes,and other compatible profiles. A suitable clamping system helps hold the tube securely while the cutting tool performs the end-processing operation.

Beveling can create an angled edge that may be useful for welding preparation or specific assembly requirements. The required bevel geometry depends on the downstream process.

For square tube applications,the tooling and fixture should be selected according to the outer dimensions,wall thickness,and required end profile.

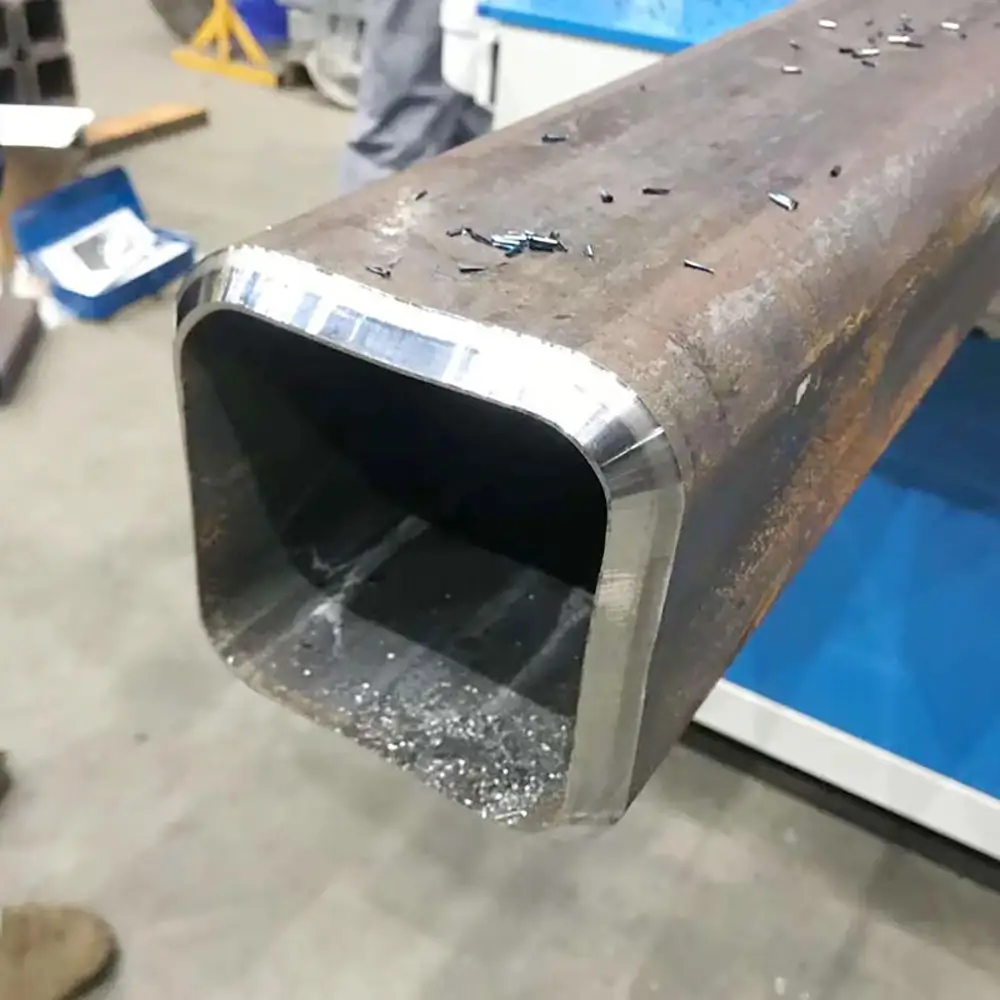

Rectangular Tube Chamfering

Rectangular tubes have different width and height dimensions,so accurate positioning is important for consistent end finishing.

The machine can process suitable rectangular tubes by using compatible fixtures and cutting tools. Chamfering can help break sharp edges and improve the appearance and handling condition of the tube end.

For applications involving frames,metal furniture,construction components,and fabricated structures,consistent rectangular tube ends can help simplify subsequent welding and assembly.

The actual processing range should be confirmed according to the machine configuration and tooling.

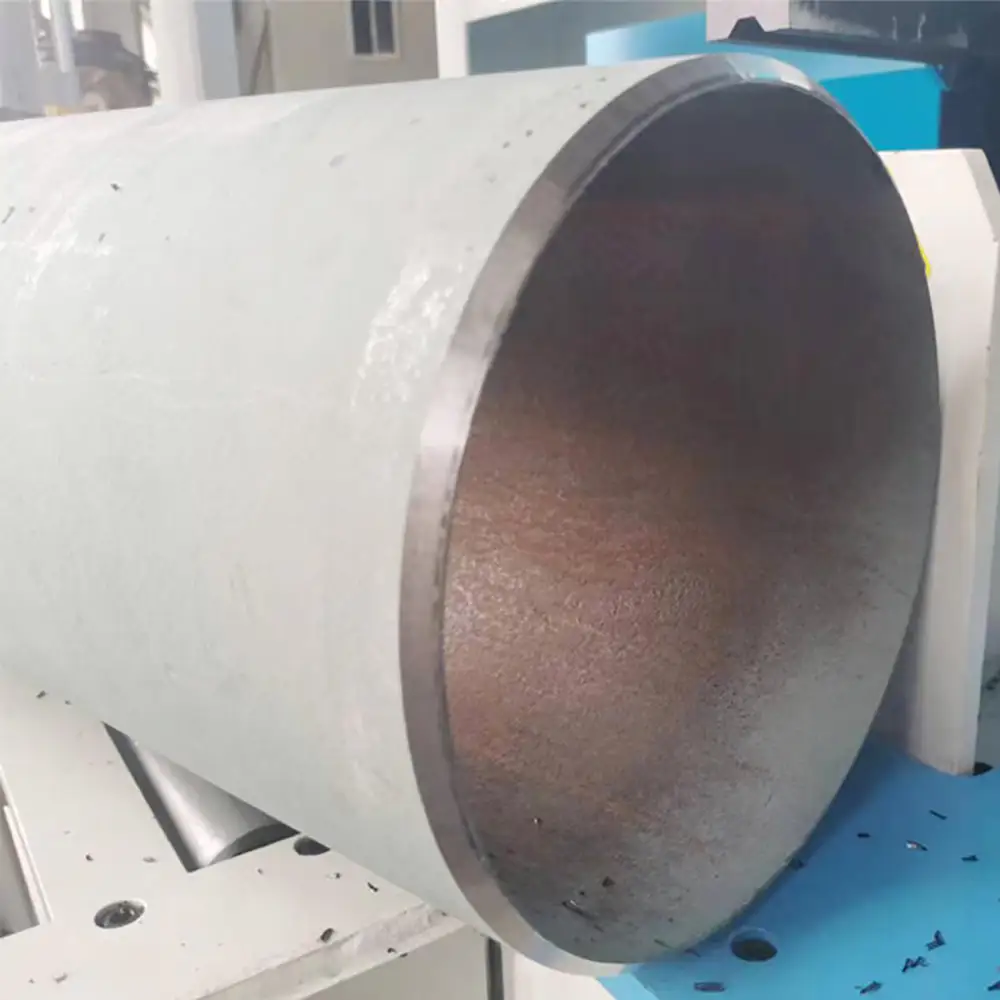

Round Pipe Beveling and Chamfering

Round pipe and tube processing is a common application for tube-end finishing equipment.

A round pipe can be securely positioned while the chamfering or beveling tool removes material around the selected edge. Proper alignment between the pipe and tool helps produce a more uniform result around the circumference.

Round pipe beveling may be required for welding preparation,while chamfering can be used to remove sharp edges and improve assembly conditions.

The suitable pipe diameter,wall thickness,and material depend on the machine's rated capacity and selected tooling.

Beveling and Chamfering Functions

Although beveling and chamfering are related operations,they are not always identical.

Chamfering generally removes or breaks an edge to create a defined angled transition. It is commonly used for deburring,edge protection,and assembly preparation.

Beveling creates a more substantial angled surface and is often associated with welding preparation or specific joint geometries.

Depending on the machine design,the equipment can be configured with appropriate cutting tools for the required end geometry.

Customers should provide drawings or samples when a specific chamfer width,bevel angle,or edge profile is required.

Tube End Deburring

Cutting operations can leave burrs and sharp edges on tube ends. These unwanted edges may interfere with assembly or create an undesirable finished appearance.

Chamfering can provide a controlled method of removing material from the edge while also creating a finished profile.

The actual deburring performance depends on the original cutting process,material,wall thickness,tool condition,and selected processing parameters.

For applications requiring a specific edge finish,testing with actual workpieces is recommended.

Suitable Metal Materials

The machine can be configured to process various metal tube and pipe materials.

Typical applications may include:

Carbon Steel

Mild Steel

Stainless Steel

Aluminum

Galvanized Steel

Alloy Steel

Copper

Other Compatible Metal Profiles

Different materials require different tooling and cutting conditions. Stainless steel may require wear-resistant cutting tools,while aluminum and copper may require suitable tool geometry and cutting parameters to minimize material buildup.

Material hardness,wall thickness,profile dimensions,and required edge quality should all be considered when selecting the machine.

Stable Clamping and Positioning

Stable workpiece clamping is essential for accurate tube-end processing.

Square,rectangular,and round tubes have different cross-sectional geometries,so the fixture should provide appropriate contact and support for each profile.

Secure clamping can help reduce vibration and movement during cutting. Accurate positioning also helps maintain consistency between workpieces in repetitive production.

For manufacturers processing several tube sizes,a flexible or adjustable clamping system can help simplify changeovers,depending on the machine configuration.

Production Efficiency

The machine can improve workflow efficiency by combining tube-end preparation with controlled mechanical processing.

A typical process may include loading the tube,positioning and clamping the workpiece,performing beveling or chamfering,and removing the finished part.

For repeated production,the machine can reduce reliance on manual grinding and handheld deburring tools.

Actual production speed depends on tube dimensions,material,chamfer or bevel geometry,tooling,feeding method,clamping time,and operator workflow.

For high-volume applications,the machine can be integrated with automatic feeding or other tube-processing equipment where appropriate.

Applications

The Square Rectangle Tube and Round Pipe Beveling & Chamfering Machine can be used in many industries,including:

Steel Tube Fabrication

Metal Furniture Manufacturing

Automotive Components

Agricultural Machinery

Construction Equipment

Steel Structure Production

Racking Systems

Guardrail Manufacturing

Fitness Equipment

Bicycle Manufacturing

Door And Window Production

Machinery Components

General Metal Fabrication

For furniture manufacturers,the machine can help prepare tube ends before welding or assembly. For steel structure applications,it can provide controlled edge preparation for tubular components.

Tooling and Processing Quality

Tool selection directly affects bevel and chamfer quality.

Cutting tools should be matched to the tube material,profile dimensions,wall thickness,and required edge geometry. Tool wear can gradually affect cutting quality and dimensional consistency.

Operators should inspect the cutting tool regularly and replace or maintain it according to operating conditions.

For special bevel angles or customized tube-end profiles,custom tooling can be developed based on technical drawings and sample workpieces.

Quality Control

Quality inspection should focus on the finished tube-end geometry and overall workpiece condition.

Depending on the application,inspection may include:

Chamfer Width

Bevel Angle

Edge Condition

End Face Quality

Tube Length

Profile Dimensions

Burr Condition

Overall Dimensional Consistency

For precision production,first-piece inspection can help verify the machine setup before processing a larger batch.

Periodic checks can also identify tooling wear,clamping problems,or parameter changes that may affect production quality.

Maintenance and Safety

Routine maintenance helps support stable machine performance.

Operators should regularly inspect cutting tools,fixtures,clamping components,guide systems,drive components,and electrical or pneumatic systems according to the machine configuration.

Metal chips should be removed from the work area to prevent interference with moving parts and workpiece positioning.

Operators should use appropriate eye protection,protective clothing,and other PPE required for the application.

Depending on the machine configuration,guards,emergency stops,and other protective features may be provided. Operators should follow the manufacturer's instructions and applicable workplace safety requirements.

Custom & OEM Tube Processing Solutions

Different customers may require different tube profiles,materials,bevel angles,chamfer dimensions,and production volumes.

The machine can therefore be customized around specific manufacturing requirements. Possible options may include adjustable fixtures,custom cutting tools,automatic feeding systems,workpiece supports,and control configurations.

For OEM and ODM projects,customers can provide tube drawings,samples,material specifications,required bevel angles,chamfer dimensions,and production quantities.

This information helps determine the appropriate machine structure,tooling,and processing configuration.

Why Choose Us

Multiple Tube Profiles — Designed for suitable square,rectangular,and round metal tubes and pipes.

Beveling & Chamfering — Supports controlled tube-end preparation for welding,assembly,and edge finishing applications.

Precision End Processing — Stable clamping and suitable tooling help produce consistent tube ends.

Deburring Capability — Helps remove sharp edges and burrs generated by previous tube-cutting operations.

Flexible Material Options — Can be configured for suitable carbon steel,stainless steel,aluminum,and other metal profiles.

Production-Oriented Design — Suitable for repetitive tube processing in fabrication and manufacturing environments.

Custom Tooling Support — Cutting tools,fixtures,and workholding systems can be selected according to specific tube dimensions.

OEM & ODM Service — Machine configurations can be developed according to customer drawings,samples,and production requirements.

FAQs

1. What is a tube beveling and chamfering machine?

It is a metal-processing machine designed to prepare tube and pipe ends by creating controlled bevels or chamfers and removing unwanted sharp edges.

2. Can it process square tubes?

Yes. Suitable square tubes can be processed when their dimensions are within the machine's rated range and compatible tooling is installed.

3. Can it process rectangular tubes?

Yes. The machine can be configured for suitable rectangular tubes using appropriate fixtures and cutting tools.

4. Can it process round pipes?

Yes. Suitable round pipes and tubes can be beveled or chamfered according to the machine configuration.

5. What is the difference between beveling and chamfering?

Chamfering generally breaks or removes an edge to create a smaller angled transition,while beveling creates a larger angled surface that is often used for welding preparation.

6. What materials can be processed?

Depending on the machine and tooling,it can process carbon steel,mild steel,stainless steel,aluminum,galvanized steel,alloy steel,and other compatible metals.

7. Can it remove burrs?

Yes. Chamfering can help remove sharp edges and certain burrs from tube ends. The final result depends on the original cutting condition and tooling.

8. Is it suitable for welding preparation?

Yes. Beveling can be used to prepare suitable tube and pipe ends for welding. The required bevel angle and geometry should be confirmed for the specific welding process.

9. What affects chamfering accuracy?

Clamping stability,tool condition,machine rigidity,tube dimensions,material properties,cutting parameters,and tooling design can all affect the finished result.

10. Can different tube sizes be processed?

Yes,within the machine's configured operating range. Adjustable fixtures or tooling may be available for different workpiece sizes.

11. Can the machine be equipped with automatic feeding?

Depending on the model,automatic feeding and other material-handling functions may be available or customized for repetitive production.

12. What information is needed for a quotation?

Provide the tube shape,square or rectangular dimensions,round pipe diameter,wall thickness,material,required chamfer or bevel angle,production volume,and sample drawings if available.
