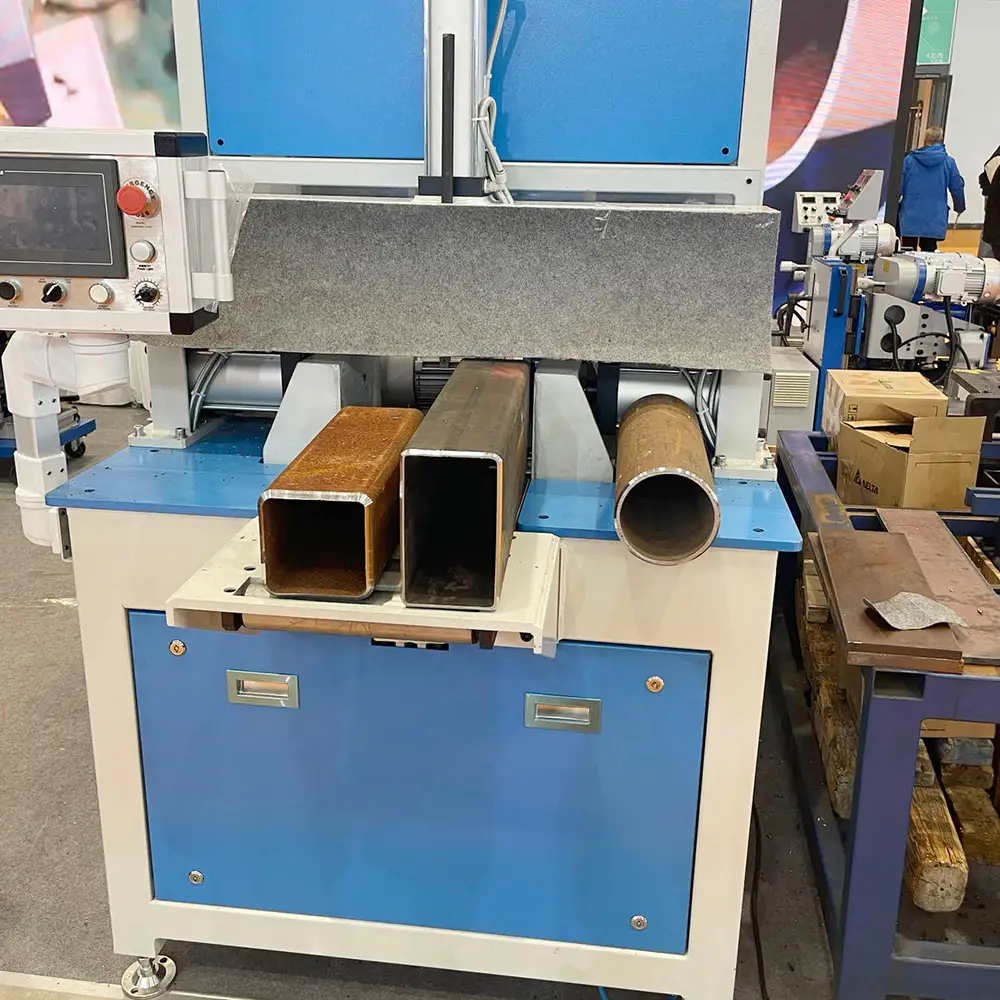

Chamfering Round & Square Tube Machine - Craft Neat, Precision Chamfers

Chamfering Round & Square Tube Machine for Precision Tube Ends

The Chamfering Round & Square Tube Machine is designed for efficient end chamfering of round and square metal tubes and pipes. It provides a dedicated solution for manufacturers that need clean,consistent,and repeatable chamfers before welding,assembly,machining,coating,or other downstream operations.

Tube chamfering is an important preparation process in metal fabrication. Removing sharp edges and creating a controlled bevel can improve the appearance of the tube end,facilitate assembly,and prepare the workpiece for subsequent manufacturing processes.

The machine can be configured for suitable carbon steel,stainless steel,aluminum,copper,and other compatible metal tubes. Different cutting tools,fixtures,and workholding systems can be selected according to the tube shape,dimensions,material,and required chamfer profile.

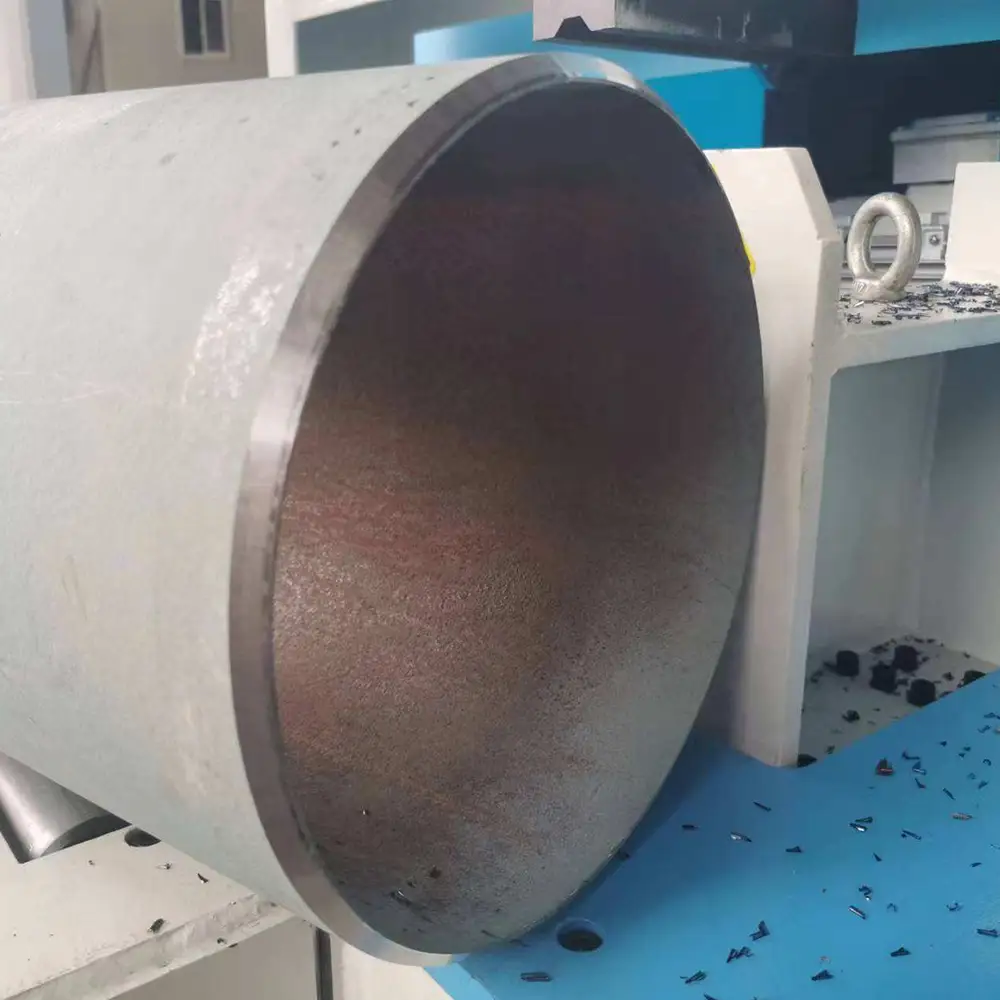

Round Tube Chamfering

Round tubes and pipes are widely used in machinery,automotive components,furniture,construction,agricultural equipment,industrial structures,and general metal fabrication.

A round tube chamfering machine is designed to position the circular tube correctly while the cutting tool removes material from the tube end.

A consistent chamfer can help remove sharp edges and provide a smoother transition at the end of the tube.

The actual chamfer diameter,angle,depth,and processing speed depend on the machine configuration,tooling,material,and tube dimensions.

For production applications,customers should specify the tube outside diameter,wall thickness,and required chamfer dimensions when selecting the machine.

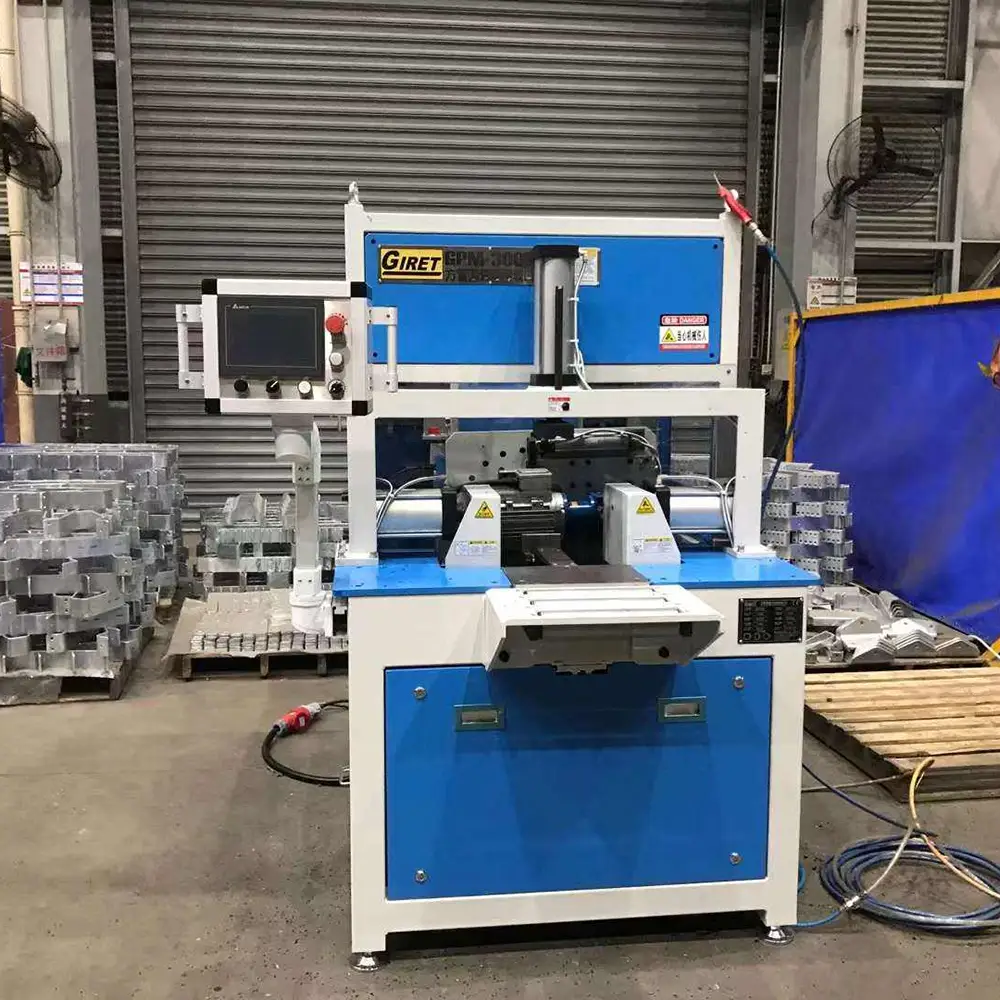

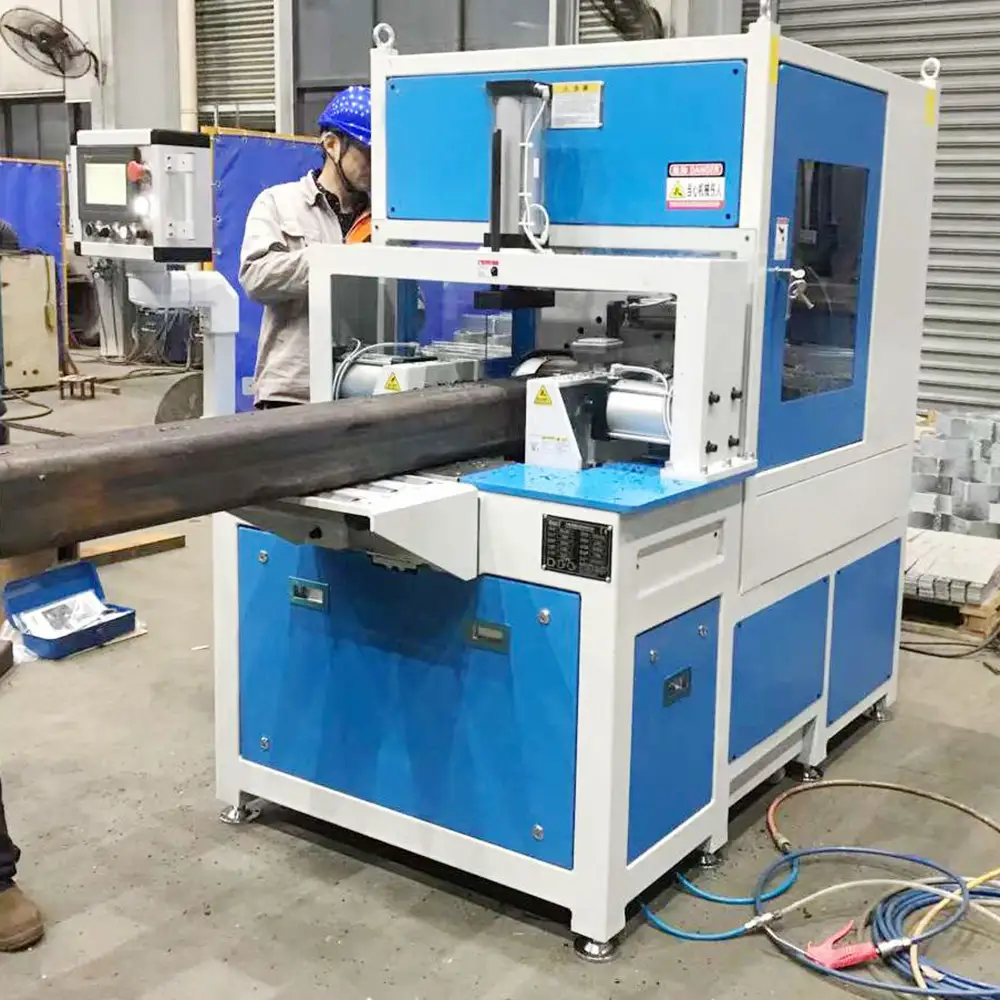

Square Tube Chamfering

Square tubes require different workholding and cutting considerations because their cross-section has four flat sides and four corners.

The machine can be configured with suitable fixtures and tooling for square tube end chamfering.

A properly controlled chamfer can improve the appearance of square tube ends and help prepare the workpiece for welding,assembly,or further fabrication.

For square and rectangular tubes,the tooling and clamping method should be matched to the tube dimensions to maintain stable positioning during processing.

The actual applicable tube size depends on the selected machine model and tooling configuration.

Precision Tube End Chamfering

Precision chamfering is useful when tube ends need to meet specific dimensional or assembly requirements.

The finished chamfer may be evaluated according to:

Chamfer Diameter

Chamfer Angle

Chamfer Depth

Tube Length

End Flatness

Edge Condition

Surface Finish

Dimensional Consistency

Machine rigidity,tool condition,workpiece clamping,cutting speed,and material characteristics all influence the final result.

For applications with strict tolerances,the required specifications should be provided before purchasing so the appropriate machine and tooling can be selected.

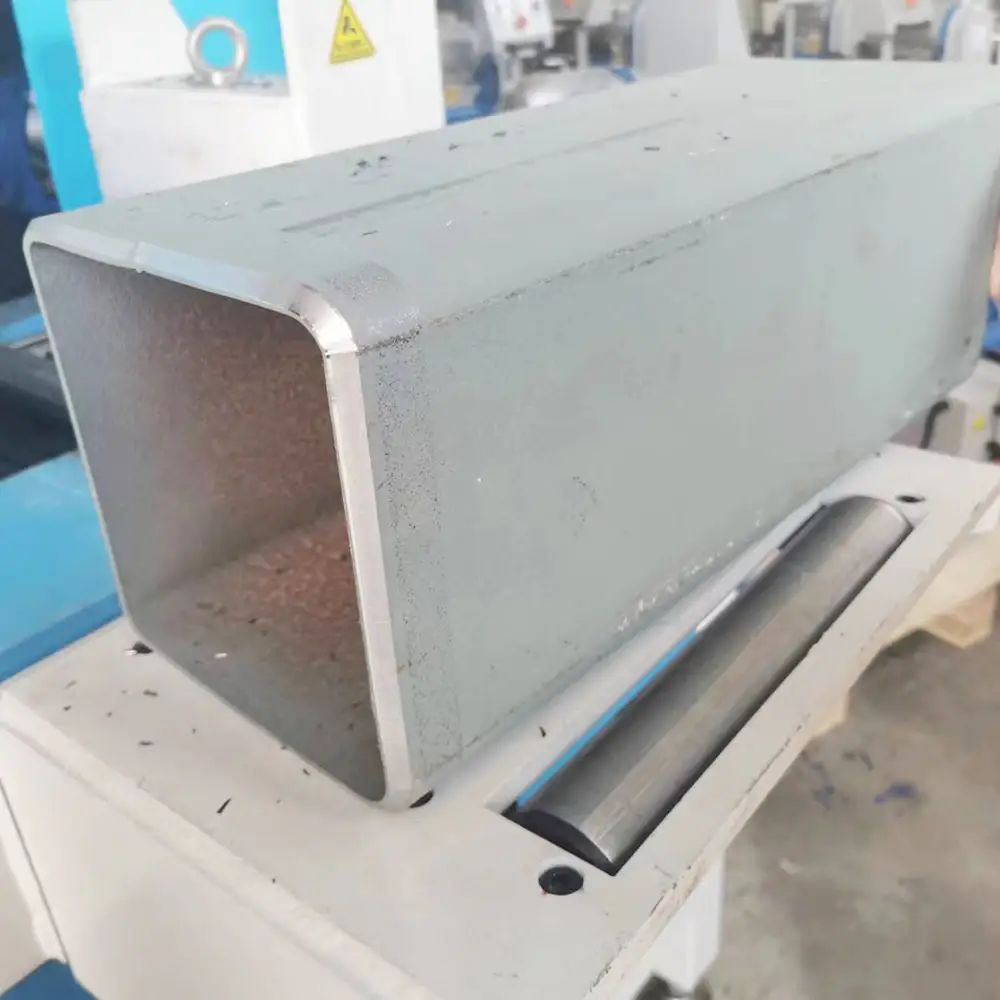

Clean and Consistent Tube Ends

A properly chamfered tube can have a cleaner edge than an untreated cut end. Chamfering can also help remove burrs or sharp edges created during tube cutting.

For manufacturers producing large quantities of tube components,the ability to repeat the same chamfer geometry across multiple workpieces can improve production consistency.

The final surface condition depends on the cutting tool,material,cutting parameters,and machine setup. Additional deburring or finishing may still be required for certain applications.

Suitable Metal Materials

The machine can be configured for various metal tube materials,including:

Carbon Steel

Mild Steel

Stainless Steel

Aluminum

Copper

Brass

Alloy Steel

Galvanized Steel

Other Compatible Metals

Different materials have different machining characteristics.

Stainless steel may require suitable cutting tools and controlled cutting conditions because of its strength and work-hardening characteristics. Aluminum may require tooling designed to reduce material buildup on the cutting edge.

Tool selection should therefore be based on the material,wall thickness,tube geometry,and desired chamfer quality.

Automatic Tube Chamfering

An automatic tube chamfering configuration can help reduce repetitive manual edge preparation.

A typical processing cycle may involve loading the tube,positioning it against a stop,clamping the workpiece,performing the chamfering operation,and releasing the finished tube.

Depending on the machine design,automatic functions may include workpiece feeding,clamping,tool movement,cycle control,and positioning.

The actual degree of automation depends on the selected model and production configuration.

For high-volume tube processing,automatic loading and feeding systems may also be evaluated as part of a customized production line.

CNC Tube Chamfering Options

Some tube chamfering machines can be configured with CNC or programmable control systems.

CNC-assisted control can be useful when different tube dimensions or processing programs need to be handled within the same production environment.

Depending on the control system,the machine may allow operators to manage processing positions,tool movement,cycle parameters,and other programmable functions.

CNC control does not automatically guarantee a specific chamfer tolerance. Actual precision depends on machine structure,tooling,workholding,program settings,and material conditions.

Workholding and Positioning

Stable workpiece positioning is essential for producing consistent chamfers.

Round tubes may require suitable V-blocks,collets,chucks,or other clamping systems to prevent rotation during machining.

Square tubes generally require fixtures that securely locate the flat surfaces and maintain alignment with the cutting tool.

The workholding system can be selected according to tube size,shape,wall thickness,and production requirements.

For customized applications,dedicated fixtures can be developed around the customer's tube specifications.

Applications

The round and square tube chamfering machine can be used in a variety of manufacturing industries,including:

Metal Furniture Manufacturing

Automotive Components

Bicycle Manufacturing

Fitness Equipment

Steel Structures

Construction Equipment

Agricultural Machinery

Machinery Manufacturing

Handrails And Guardrails

Metal Frames

Racking Systems

General Metal Fabrication

Tube chamfering can be performed before welding,coating,assembly,machining,or other secondary operations.

For furniture manufacturing,for example,clean tube ends can improve the appearance and preparation of chair legs,table frames,bed frames,and other tubular components.

Production Efficiency

Dedicated tube chamfering equipment can reduce the labor required for manual edge finishing.

For repeated production,the machine can provide a standardized processing sequence that helps operators maintain consistent workpiece preparation.

Production output depends on tube size,material,chamfer dimensions,tooling,loading method,and cycle time.

When evaluating productivity,buyers should consider the complete processing cycle rather than machine speed alone.

For larger production volumes,the machine may be integrated with tube cutting,deburring,welding,and other fabrication processes.

Tooling and Maintenance

The cutting tool is a critical component of tube chamfering equipment. Tool geometry and material should be selected according to the workpiece material and required chamfer.

Regular inspection can help identify worn or damaged tools before they negatively affect chamfer quality.

Maintenance may include cleaning metal chips,checking clamps and fixtures,inspecting cutting tools,lubricating moving components where required,and checking electrical and mechanical systems.

Operators should follow the manufacturer's recommended maintenance schedule.

Safety and Operation

Tube chamfering involves rotating or moving cutting tools and metal workpieces. Operators should receive appropriate training and follow safe operating procedures.

Hands should be kept away from the cutting area while the machine is running. Appropriate protective equipment should be used according to the machine configuration and workplace requirements.

Depending on the model,the machine may include protective guards,emergency-stop controls,and other safety-oriented features.

The actual safety configuration should be confirmed for the selected machine before purchase and installation.

OEM and Custom Tube Chamfering Solutions

Different manufacturers require different tube sizes,chamfer profiles,materials,and production volumes.

The machine can be customized with suitable tooling,fixtures,clamping systems,feeding arrangements,and control configurations.

For an accurate quotation,customers should provide:

Tube Shape

Tube Outside Dimensions

Wall Thickness

Material

Chamfer Diameter

Chamfer Angle

Chamfer Depth

Tube Length

Production Volume

Product Drawings Or Samples

OEM and ODM solutions can be developed for manufacturers,distributors,wholesalers,and industrial purchasing agents.

Why Choose Us

Round & Square Tube Processing – Designed for chamfering suitable round and square metal tubes and pipes.

Precision End Chamfering – Produces controlled tube-end chamfers according to the selected tooling and process configuration.

Clean Tube Preparation – Helps remove sharp edges and prepare tube ends for welding,assembly,and downstream processing.

Multiple Material Options – Suitable configurations are available for carbon steel,stainless steel,aluminum,copper,and other compatible metals.

Automatic Processing Options – Automatic feeding,clamping,and cycle-control functions can be evaluated according to production requirements.

Custom Workholding – Fixtures,clamps,and tooling can be developed for different tube shapes and dimensions.

Wide Industrial Applications – Suitable for furniture,automotive,bicycle,construction,agricultural,and general metal fabrication.

OEM & ODM Support – Machine configuration and tooling can be developed according to customer drawings,samples,and production requirements.

FAQs

1. What is a tube chamfering machine?

A tube chamfering machine is equipment designed to remove material from the edge of a metal tube or pipe to create a controlled bevel or chamfer.

2. Can it chamfer round tubes?

Yes. Suitable round metal tubes and pipes can be processed according to the machine's rated dimensions and tooling configuration.

3. Can it chamfer square tubes?

Yes. The machine can be configured for suitable square tubes with appropriate workholding and cutting tools.

4. Can it process rectangular tubes?

Depending on the machine design and tooling,rectangular tubes may also be processed. The applicable dimensions should be confirmed before purchase.

5. What materials can be chamfered?

Suitable configurations may process carbon steel,mild steel,stainless steel,aluminum,copper,brass,and other compatible metals.

6. Why chamfer a tube end?

Chamfering can remove sharp edges,improve the finished appearance,and prepare the tube end for welding,assembly,or other downstream operations.

7. Can the machine remove burrs?

Chamfering can remove or reduce certain edge burrs,although the exact deburring effect depends on the cutting method,material,and original tube-cutting condition.

8. Is the machine automatic?

The machine can be configured for automatic or semi-automatic operation depending on the selected model,feeding method,clamping system,and control configuration.

9. Can it be equipped with CNC control?

Depending on the model,CNC or programmable control may be available for positioning,processing parameters,and production sequences.

10. Can custom fixtures be supplied?

Yes. Dedicated fixtures,clamps,and workholding systems can be designed around the tube shape,size,material,and production requirements.

11. What affects chamfer quality?

Tool condition,machine rigidity,workpiece positioning,clamping,cutting speed,material properties,tube dimensions,and chamfer-tool geometry all affect the finished result.

12. What information is needed for a quotation?

Please provide tube shape,outer dimensions,wall thickness,material,tube length,required chamfer size and angle,production volume,and product drawings or samples.
