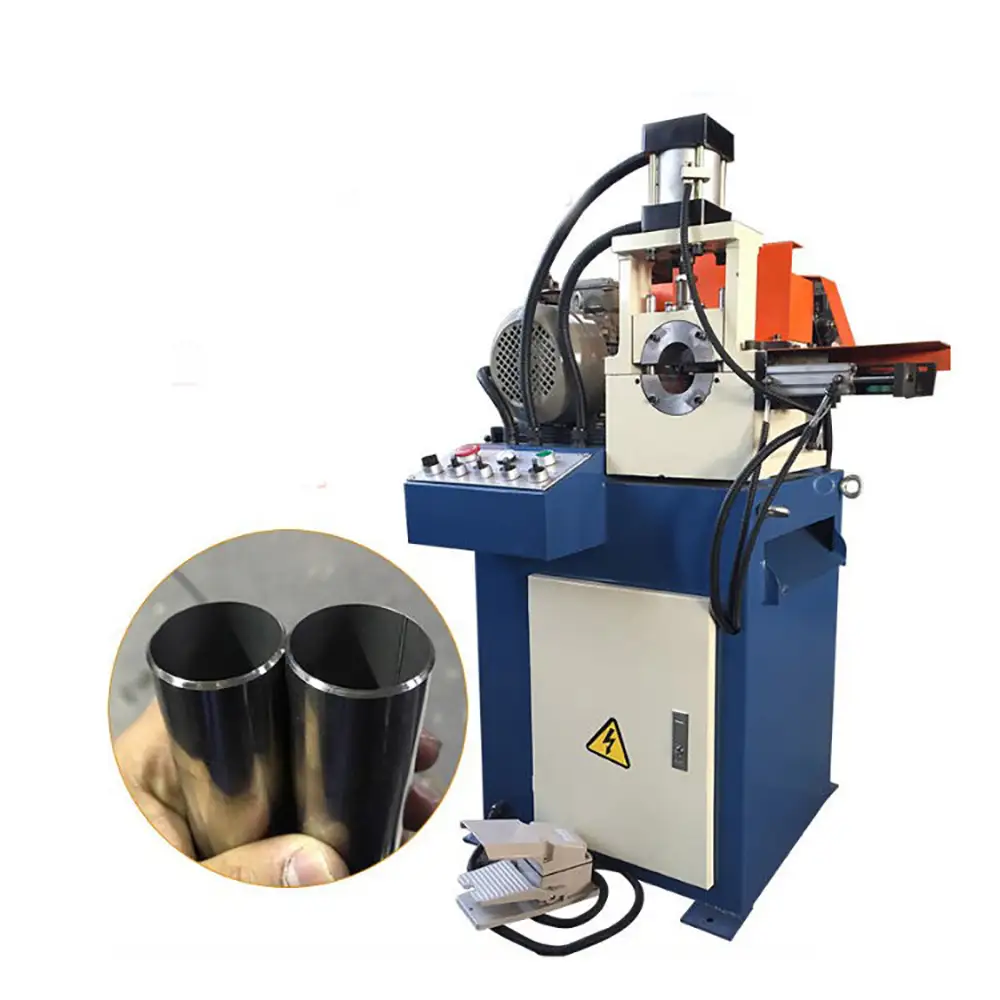

Semi Automatic Hydraulic Single Head Large Diameter Pipe Tube bar Chamfering Machine

Semi Automatic Hydraulic Single Head Large Diameter Pipe Tube Bar Chamfering Machine

The Semi Automatic Hydraulic Single Head Large Diameter Pipe Tube Bar Chamfering Machine is designed for end processing of large diameter metal pipes,tubes,bars,and other suitable cylindrical workpieces. Combining hydraulic actuation with a single-head chamfering structure,the machine provides a practical solution for manufacturers that need controlled and repeatable pipe-end chamfering,beveling,and deburring.

Large diameter pipes can be difficult to process manually because of their weight,size,and handling requirements. A dedicated chamfering machine can provide a more controlled processing position and reduce reliance on manual grinding or handheld cutting tools.

The semi-automatic operating concept allows the operator to load and position the workpiece while the machine performs the programmed or controlled chamfering operation. The exact workflow depends on the machine configuration.

Actual processing capacity depends on the machine model,pipe diameter,wall thickness,material grade,workpiece length,tooling,and required chamfer geometry.

Hydraulic Chamfering Technology

The hydraulic system provides controlled force for clamping,feeding,positioning,or other machine functions according to the equipment configuration. Hydraulic actuation is commonly used in industrial metalworking equipment where stable mechanical force is required.

For large diameter pipes,secure workpiece positioning is especially important. Hydraulic clamping or positioning can help stabilize the workpiece during the chamfering process when properly configured.

Hydraulic power should not be interpreted as the direct measure of cutting capacity. Actual chamfering performance depends on the cutting head,tool geometry,drive system,machine rigidity,material characteristics,and processing parameters.

The hydraulic system should be maintained according to the manufacturer's recommended oil,pressure,and maintenance procedures.

Single Head Chamfering Design

The single-head structure uses one primary chamfering head to process the selected pipe,tube,or bar end.

This design is suitable for applications where both ends of a workpiece do not need to be processed simultaneously. It can also provide flexibility when different workpiece sizes or chamfer requirements are handled in the same production area.

A typical cycle may include loading the workpiece,aligning it with the machine centerline,clamping it,starting the chamfering operation,and unloading the finished component.

The exact sequence depends on the machine's hydraulic system,control method,and workholding arrangement.

For applications requiring simultaneous processing of both ends,a double-head or double-end chamfering system may be considered.

Large Diameter Pipe Chamfering

Large diameter pipe processing requires appropriate machine structure,clamping,and tooling. Large pipes may be used in construction,energy infrastructure,industrial equipment,water systems,steel structures,and other heavy-duty applications.

The chamfering process can create a controlled angled edge at the pipe end. This may be useful for welding preparation,pipe joining,assembly,or subsequent machining.

Potential workpieces include:

Large Diameter Steel Pipes

Carbon Steel Pipes

Stainless Steel Pipes

Industrial Metal Tubes

Structural Steel Tubes

Heavy Wall Pipes

Steel Bars

Large Cylindrical Components

The actual diameter range should always be confirmed according to the machine's technical specification.

Tube and Bar Chamfering

Although designed with large pipe applications in mind,the machine can also be configured for suitable metal tubes and bar materials.

Tube chamfering can help remove sharp edges after cutting and prepare the end for assembly or welding. Solid bar chamfering is often used before turning,threading,drilling,or other machining operations.

For solid bars,the cutting load may be higher because the tool engages with a larger cross-sectional area. Tool geometry,feed rate,and machine capacity should therefore be matched to the bar diameter and material.

Suitable materials may include carbon steel,mild steel,stainless steel,alloy steel,and other compatible metals.

Pipe End Chamfering and Beveling

Chamfering and beveling are related end-finishing operations,although the exact geometry and terminology can vary according to the application.

A chamfer generally removes a portion of the sharp edge at a controlled angle. A pipe bevel may create a larger angled preparation surface for welding or joining.

The machine can be equipped with suitable tooling according to the desired end profile. Customers should provide the required chamfer angle,bevel angle,depth,and width when selecting the machine.

For welding preparation,the required bevel geometry should be determined according to the applicable welding procedure and joint design.

Hydraulic Clamping and Workpiece Stability

Large diameter pipes can be heavy and difficult to stabilize. Proper clamping is therefore an important part of the chamfering process.

The machine can be configured with suitable hydraulic or mechanical workholding components depending on its design. Proper support can reduce unwanted movement and help maintain alignment between the pipe and cutting head.

Round pipes must be secured against rotation during cutting. Long workpieces may also require additional supports to prevent excessive movement or sagging.

Customers should provide pipe length,diameter,wall thickness,and weight when evaluating the workholding configuration.

Semi Automatic Operation

The semi-automatic design provides a balance between operator control and machine-assisted processing.

The operator typically handles workpiece loading,alignment,setup,and unloading,while the hydraulic chamfering system performs the main processing operation.

This workflow can be useful for manufacturers that require repeatable production but also need flexibility for different pipe sizes and products.

Semi-automatic operation can reduce repetitive manual cutting work while allowing operators to make adjustments when changing workpiece specifications.

Actual cycle time depends on loading method,workpiece size,clamping time,chamfer dimensions,tool condition,and machine configuration.

Deburring and Edge Finishing

Pipe cutting can leave burrs and sharp edges that may need to be removed before welding,assembly,painting,coating,or handling.

The chamfering process can combine controlled edge removal with end finishing. This can reduce the need for separate manual grinding for suitable workpieces.

The final edge condition depends on the original pipe-cutting method,material,tool geometry,cutting parameters,and tool condition.

Severe or irregular burrs may require additional finishing after chamfering.

Materials and Applications

The machine can be configured for various compatible metal materials,including:

Carbon Steel

Mild Steel

Stainless Steel

Alloy Steel

Structural Steel

Other Compatible Metal Materials

Typical industries and applications include:

Steel Pipe Manufacturing

Pipeline Component Production

Heavy Equipment Manufacturing

Construction Equipment

Steel Structure Fabrication

Industrial Machinery

Energy Equipment

Water Infrastructure

Automotive Components

Agricultural Machinery

General Metal Fabrication

The actual material range depends on machine capacity and tooling.

Tooling and Chamfer Profiles

The cutting tool determines much of the finished chamfer profile. Different materials,diameters,and chamfer requirements may require different tool geometries.

For large diameter pipes,the cutting head and machine structure should be sufficiently matched to the workpiece size and cutting load.

Custom tooling can be developed for special chamfer angles,bevel profiles,edge dimensions,and production requirements.

Customers should provide drawings,samples,and technical specifications for customized applications.

Production Efficiency

A dedicated hydraulic chamfering machine can improve workflow efficiency by reducing manual edge grinding and providing a repeatable processing station.

For repeated production,the same clamping position,tooling,and processing parameters can be used for similar workpieces.

Actual productivity depends on pipe dimensions,material,wall thickness,chamfer size,loading method,operator workflow,tool changes,and required inspection.

For higher-volume production,the machine can potentially be integrated with material handling or feeding equipment where supported by the configuration.

Quality Control

Quality inspection should include chamfer angle,chamfer width,pipe-end dimensions,edge condition,and overall workpiece alignment.

For welding preparation,the finished bevel should be checked against the required welding specification.

First-piece inspection is recommended when introducing a new pipe size or changing tooling. Periodic inspection can help identify tool wear or alignment changes during production.

Maintenance and Safety

Routine maintenance should include inspection of hydraulic oil,hoses,fittings,cylinders,clamping components,cutting tools,and electrical systems according to the manufacturer's instructions.

Metal chips should be removed from the working area regularly.

Operators should be trained in machine operation and use appropriate personal protective equipment. Guards,emergency-stop systems,and other safety features depend on the actual machine configuration and applicable local requirements.

Large pipe handling also requires suitable lifting and material-handling procedures because workpieces can be heavy.

Custom & OEM Solutions

Different customers may require different large pipe diameters,wall thicknesses,materials,chamfer profiles,and automation levels.

OEM and ODM configurations can be developed around these requirements. Custom options may include hydraulic clamping,workpiece supports,cutting tools,fixtures,positioning systems,control functions,and material handling.

For quotation,customers should provide pipe material,outer diameter,wall thickness,length,weight,required chamfer or bevel geometry,production volume,and desired automation level.

Why Choose Us

Large Diameter Pipe Processing — Designed for suitable large pipes,tubes,and cylindrical metal workpieces.

Hydraulic Operation — Hydraulic systems provide controlled force for relevant machine functions and workpiece handling.

Single Head Configuration — Provides a dedicated chamfering station for individual pipe or bar end processing.

Semi Automatic Workflow — Balances operator flexibility with machine-assisted chamfering operations.

Pipe,Tube & Bar Applications — Suitable configurations can process compatible pipes,tubes,and solid bar materials.

End Chamfering & Deburring — Helps prepare suitable workpieces for welding,assembly,machining,and downstream fabrication.

Custom Tooling Support — Cutting tools,fixtures,and workholding can be selected according to workpiece requirements.

OEM & ODM Service — Machine configuration can be adapted according to customer drawings,samples,materials,and production requirements.

FAQs

1. What is a large diameter pipe chamfering machine?

It is a dedicated metalworking machine designed to chamfer,bevel,and deburr suitable large diameter pipes,tubes,bars,and cylindrical workpieces.

2. Is this machine fully automatic?

The described configuration is semi-automatic. Operators may still be responsible for loading,alignment,setup,and unloading depending on the machine design.

3. What does single head mean?

Single head means the machine uses one primary chamfering head to process the selected workpiece end rather than processing both ends simultaneously.

4. Can it process stainless steel pipes?

Yes. Stainless steel pipes can be processed when suitable cutting tools and parameters are selected for the specific grade,diameter,and wall thickness.

5. Can it process carbon steel pipes?

Yes. Compatible carbon steel and mild steel pipes are common applications for this type of chamfering equipment.

6. Can it process solid bars?

Yes. Suitable solid steel or stainless steel bars can be processed when their dimensions and material properties are within the machine's rated capacity.

7. What is the advantage of hydraulic operation?

Hydraulic systems can provide controlled mechanical force for clamping,positioning,or other machine functions and can be useful for large workpieces.

8. Can the machine perform pipe deburring?

Yes. Chamfering can remove many sharp edges and burrs created during pipe cutting. Severe burrs may require additional finishing.

9. Can it make a welding bevel?

Depending on the machine tooling and configuration,it can be used for suitable pipe-end beveling and welding preparation. The required bevel geometry should be specified before ordering.

10. What affects the chamfering quality?

Material,pipe diameter,wall thickness,tool geometry,cutting speed,feed rate,workpiece alignment,clamping stability,and tool condition all affect the finished result.

11. Can the machine be customized?

Yes. Hydraulic clamping,workpiece supports,fixtures,cutting tools,control functions,and other configuration options can be evaluated for specific applications.

12. What information is needed for a quotation?

Provide pipe material,outer diameter,wall thickness,length,weight,required chamfer or bevel dimensions,production volume,and desired automation level. Drawings or samples are recommended.
