Pig, Cattle and Sheep Breeding Sewage Treatment Equipment Efficient Air Float Machine

Pig, Cattle and Sheep Breeding Sewage Treatment Equipment | Efficient Air Float Machine

Modern livestock farms generate wastewater from animal housing, manure collection, washing, equipment cleaning, feed areas, and other daily operations. Wastewater from pig, cattle, and sheep breeding facilities can contain high concentrations of suspended solids, manure particles, organic matter, nutrients, grease, and other contaminants. Effective pretreatment and wastewater treatment are therefore important for environmental protection, water reuse, and stable operation of downstream treatment systems.

The Pig Cattle Sheep Breeding Sewage Treatment Equipment Efficient Air Float Machine is designed around dissolved air flotation technology to separate suspended and floatable contaminants from livestock wastewater. Dissolved air flotation, commonly called DAF, is widely used as a primary treatment technology because fine air bubbles can attach to suspended particles and carry them to the water surface for mechanical removal. EPA technical documentation describes DAF as an effective primary treatment process for wastewater containing suspended solids and other floatable materials.

In terms of water supply and drainage, the pre-treatment water quality, except for some raw water bodies with high sand content and sewage with heavy mechanical impurities, is mostly composed of lightweight suspended particles. For example, algae in lakes, reservoirs, and some rivers; Plant residues and small colloidal impurities; Dye particles in the printing and dyeing industry; Short fibers in the papermaking and chemical fiber industries; Microdroplets of petroleum and organic solvents in the refining and chemical industries; Heavy metal ions in electroplating and pickling wastewater; Electrophoretic paint wastewater, etc; They are lightweight particles with a specific gravity very close to that of water. For these raw water, if traditional sedimentation methods are used, the effect will inevitably be poor, especially in low temperature winter conditions, where coagulation and hydraulic conditions deteriorate, making it more difficult to ensure the treatment effect. It can be imagined that if it is difficult to settle flocs, forcing them to sink will inevitably result in half the effort. Instead, it is better to use the situation to artificially introduce bubbles into the water body, making them adhere to the flocs, thereby greatly reducing the overall density of the flocs, and using the speed of bubble rise to force them to float up, thus achieving rapid solid-liquid separation. In this sense, the emergence of air flotation technology is a revolution in the gravity sedimentation method, which has opened up new fields of solid-liquid separation technology.

Working Principle of the Efficient Air Float Machine

The wastewater first enters the pretreatment section, where coarse solids should normally be removed through screening or another suitable solid separation process. Pretreatment helps protect pumps, pipelines, valves, and flotation equipment from large debris.

A portion of treated water can then be pressurized and mixed with compressed air. Under pressure, air dissolves into the recycle water. When this pressurized stream enters the flotation tank and the pressure is released, the dissolved air forms a large number of fine bubbles.

These microbubbles attach to suspended particles, organic flocs, manure-related solids, grease, and other floatable materials. The combined bubble-particle aggregates become less dense and rise toward the surface. A mechanical skimmer then continuously removes the floating layer into a collection trough or sludge tank. EPA describes this bubble-particle attachment and surface skimming mechanism as the basic operating principle of DAF.

Any heavier solids that settle to the bottom can be collected through a bottom sludge discharge system.

Livestock Wastewater Treatment Applications

The equipment can be used for wastewater generated by different types of animal breeding operations, including:

Pig farms
Swine farms
Cattle farms
Dairy farms
Beef cattle operations
Sheep farms
Goat and livestock farms
Animal breeding facilities
Livestock slaughtering and processing facilities
Manure collection and treatment systems
Agricultural wastewater treatment plants
Farm wastewater recycling systems

Wastewater characteristics can vary substantially between different farms. Pig manure wastewater, cattle farm wastewater, and sheep breeding wastewater may have different concentrations of solids, organic matter, nutrients, fats, and other pollutants. Therefore, equipment sizing and process configuration should be based on actual wastewater analysis.

Main Contaminants Removed

The Livestock Wastewater Treatment Equipment can be used as a pretreatment or primary separation stage for removing or reducing:

Suspended solids
Manure particles
Floating organic matter
Fine animal waste particles
Grease and fats
Floatable solids
Turbidity
Some particulate organic matter
Some phosphorus associated with suspended solids

DAF is particularly useful for small or lightweight particles that may not settle efficiently through conventional gravity sedimentation. EPA notes that DAF can remove very small or light particles, including grease, more effectively and rapidly than gravity settling in appropriate applications.

Coagulation and Flocculation

Livestock wastewater can contain very fine particles that are difficult to separate directly. In these cases, coagulation and flocculation can be incorporated before the air flotation stage.

A chemical coagulant destabilizes fine particles, while a flocculant promotes aggregation into larger flocs. The resulting flocs have improved flotation characteristics and can be more easily separated by the microbubbles.

Chemical dosage should be determined according to wastewater characteristics and preferably confirmed through laboratory or pilot testing. EPA documentation for meat and poultry wastewater notes that polymers or flocculants are often used with DAF to improve treatment performance.

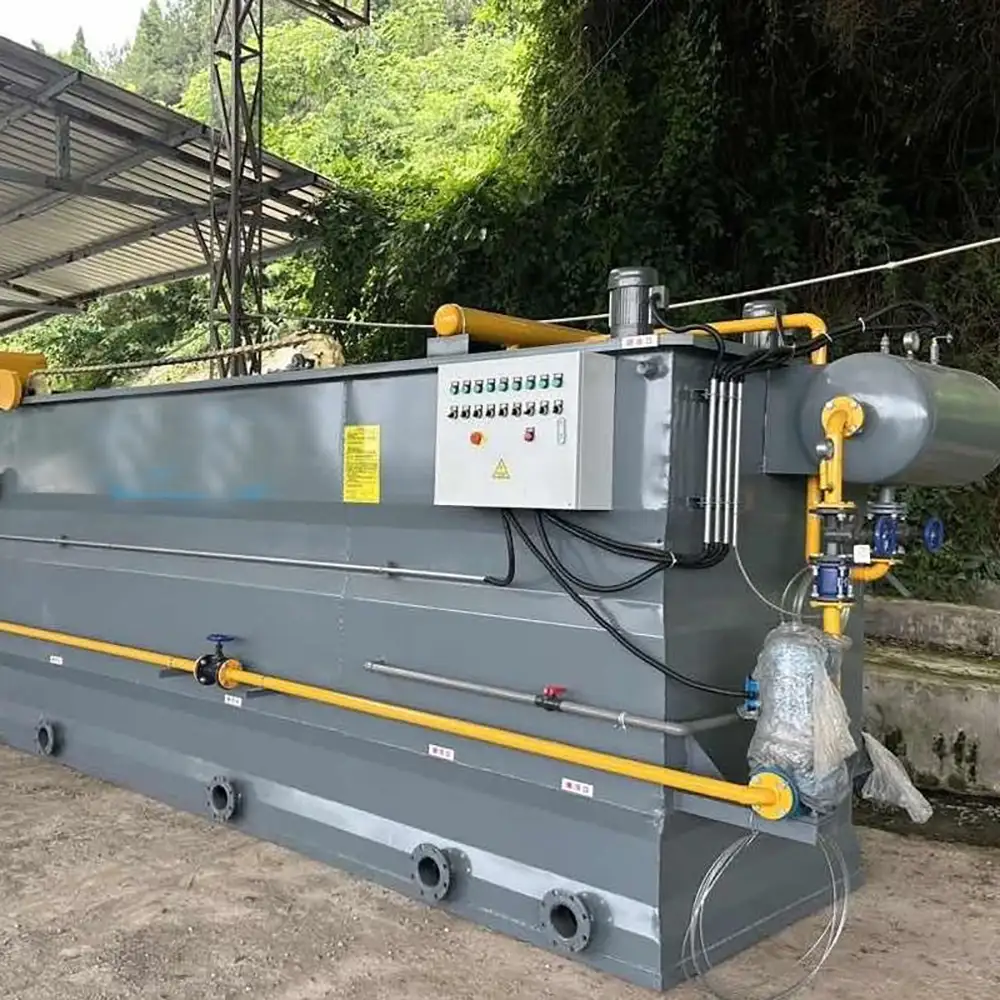

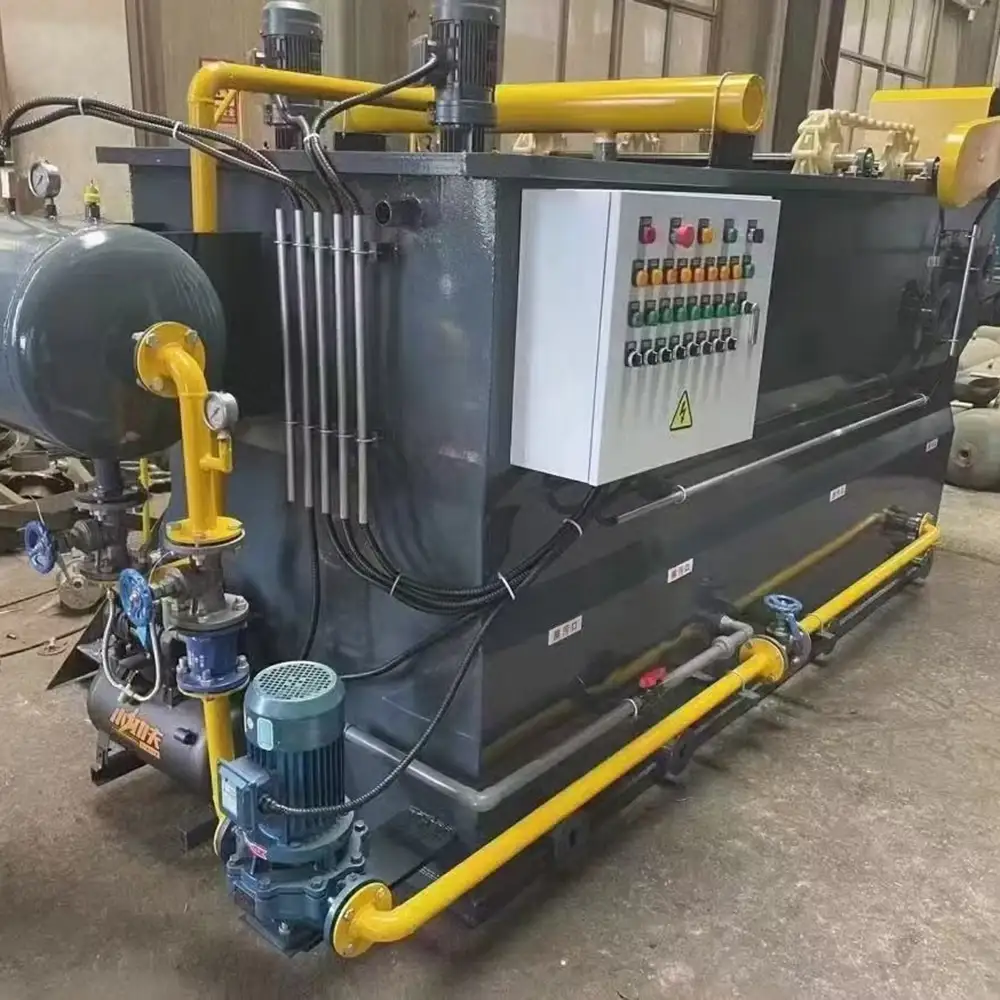

Efficient DAF Equipment Configuration

A complete DAF Air Float Machine generally consists of several key components.

Flotation Tank:
Provides the controlled environment where microbubbles contact wastewater contaminants and float them to the surface.

Recycle Pump:
Circulates a portion of clarified water through the pressurization system.

Air Dissolution System:
Combines pressurized water with air to create the dissolved-air recycle stream.

Pressure Release System:
Rapidly releases pressure so dissolved air forms fine bubbles inside the flotation tank.

Surface Skimmer:
Continuously removes the floating solids and concentrated sludge layer from the water surface.

Bottom Sludge Collection:
Removes heavier particles that settle instead of floating.

Chemical Dosing System:
Can be added for coagulants, polymers, pH adjustment chemicals, or other treatment reagents when required.

Control Cabinet:
PLC-based automatic control can coordinate pumps, skimmers, chemical dosing, valves, alarms, and operating parameters.

Benefits for Pig, Cattle and Sheep Farms
Efficient Solid-Liquid Separation

DAF provides an efficient method for separating suspended and floatable material from livestock wastewater. It can significantly reduce the solids loading entering biological treatment or other downstream processes when correctly designed and operated.

Compact Equipment Design

Compared with large conventional settling structures, a properly designed DAF system can provide rapid flotation and clarification within a relatively compact footprint.

Reduced Downstream Loading

Removing a portion of suspended solids and particulate organic matter before biological treatment can help reduce the loading on subsequent treatment units.

Flexible Integration

The air flotation machine can be combined with screening, equalization, anaerobic digestion, biological treatment, sedimentation, filtration, disinfection, sludge dewatering, or water reuse systems.

Suitable for Variable Wastewater

Livestock wastewater flow and pollutant concentrations can fluctuate due to animal numbers, cleaning schedules, rainfall, manure handling, and production activities. An equalization tank can therefore be incorporated upstream to improve process stability.

Complete Livestock Wastewater Treatment Process

A typical treatment process may be arranged as:

Coarse Screening → Equalization → pH Adjustment → Coagulation → Flocculation → DAF Air Flotation → Biological Treatment → Filtration → Disinfection → Water Reuse or Discharge

The exact configuration depends on the wastewater quality and final treatment target.

For wastewater containing high organic loading, DAF should generally be viewed as a separation or pretreatment stage rather than a complete treatment solution. Biological treatment, anaerobic digestion, membrane filtration, nutrient removal, or other processes may be required for dissolved organic matter, nitrogen, phosphorus, and other pollutants.

DAF can also be combined with manure management and sludge treatment systems. Research indexed by EPA has examined DAF sludge from swine-processing applications together with manure in anaerobic digestion systems.

Operation and Maintenance

Regular maintenance is important for stable DAF performance. Operators should monitor wastewater flow, recycle flow, pressure, air supply, chemical dosage, pH, sludge accumulation, and effluent quality.

The surface skimmer should operate smoothly and remove floating solids before excessive accumulation occurs. Pumps, valves, pressure-release components, air systems, sensors, and control equipment should be inspected according to the operating schedule.

Screening equipment should also be maintained because large manure particles, fibers, bedding material, and other debris can interfere with downstream equipment.

Sludge should be removed regularly according to actual accumulation. Depending on the overall treatment process, flotation sludge may be sent to sludge thickening, dewatering, composting, anaerobic digestion, or another appropriate solids-management process.

System Selection

Before selecting a Pig Farm Wastewater Treatment System, Cattle Farm Wastewater Treatment System, or Sheep Farm Wastewater Treatment System, the following information should be evaluated:

Daily wastewater flow
Peak wastewater flow
Suspended solids concentration
COD and BOD
Ammonia nitrogen
Total nitrogen
Total phosphorus
Grease and fats
pH
Manure concentration
Wastewater temperature
Required discharge or reuse quality

Pilot testing or laboratory testing can help determine whether chemical conditioning is necessary and establish suitable operating parameters.

Why Choose Us?

We provide integrated Livestock Wastewater Treatment Equipment designed for demanding agricultural and industrial wastewater applications. Our DAF solutions can be configured according to livestock type, wastewater flow, solids concentration, treatment objectives, installation space, and downstream process requirements.

The system can be integrated with screening, equalization, coagulation and flocculation, biological treatment, sludge dewatering, filtration, disinfection, and water recycling equipment.

Our focus is on efficient solid-liquid separation, compact equipment configuration, stable operation, convenient sludge removal, and practical integration into complete livestock wastewater treatment plants.

FAQs

1. What is a DAF air float machine?
A DAF air float machine uses dissolved air and fine bubbles to float suspended and other suitable contaminants to the water surface for mechanical removal.

2. Can this equipment treat pig farm wastewater?
Yes. It can be used as a pretreatment or primary separation stage for swine and pig farm wastewater containing suspended solids, manure particles, organic solids, and other floatable materials.

3. Can it be used for cattle wastewater?
Yes. The equipment can be configured for cattle farm, dairy, beef cattle, and other livestock wastewater applications.

4. Can it treat sheep breeding wastewater?
Yes. Sheep breeding wastewater can be treated with DAF when its suspended and floatable contaminants are suitable for flotation separation.

5. Does DAF remove manure?
DAF can remove suspended and floatable manure-related particles, but complete manure and nutrient treatment normally requires additional treatment stages.

6. Can chemicals be added before flotation?
Yes. Coagulants and flocculants can be used to improve the formation and flotation of fine particles when wastewater characteristics require chemical conditioning.

7. What contaminants can the DAF system remove?
It can target suspended solids, fine organic particles, grease, fats, floatable solids, and other contaminants that respond well to flotation.

8. Is DAF a complete livestock wastewater treatment system?
Usually not. DAF is commonly used as pretreatment or primary treatment. Biological and other downstream processes may be required for dissolved organic matter, nitrogen, phosphorus, and other pollutants.

9. Can the system be automated?
Yes. PLC control, automatic skimming, pump control, chemical dosing, pressure monitoring, alarms, and other automation functions can be integrated.

10. How should DAF capacity be selected?
Capacity should be determined from average and peak wastewater flow, suspended solids concentration, contaminant characteristics, required treatment performance, and downstream process requirements.

11. What pretreatment is recommended?
Coarse screening and flow equalization are commonly useful before DAF. Screening protects pumps and downstream equipment from large solids.

12. Can DAF sludge be further treated?
Yes. Depending on its characteristics and local requirements, flotation sludge can be sent to thickening, dewatering, anaerobic digestion, composting, or other appropriate solids-management processes.
