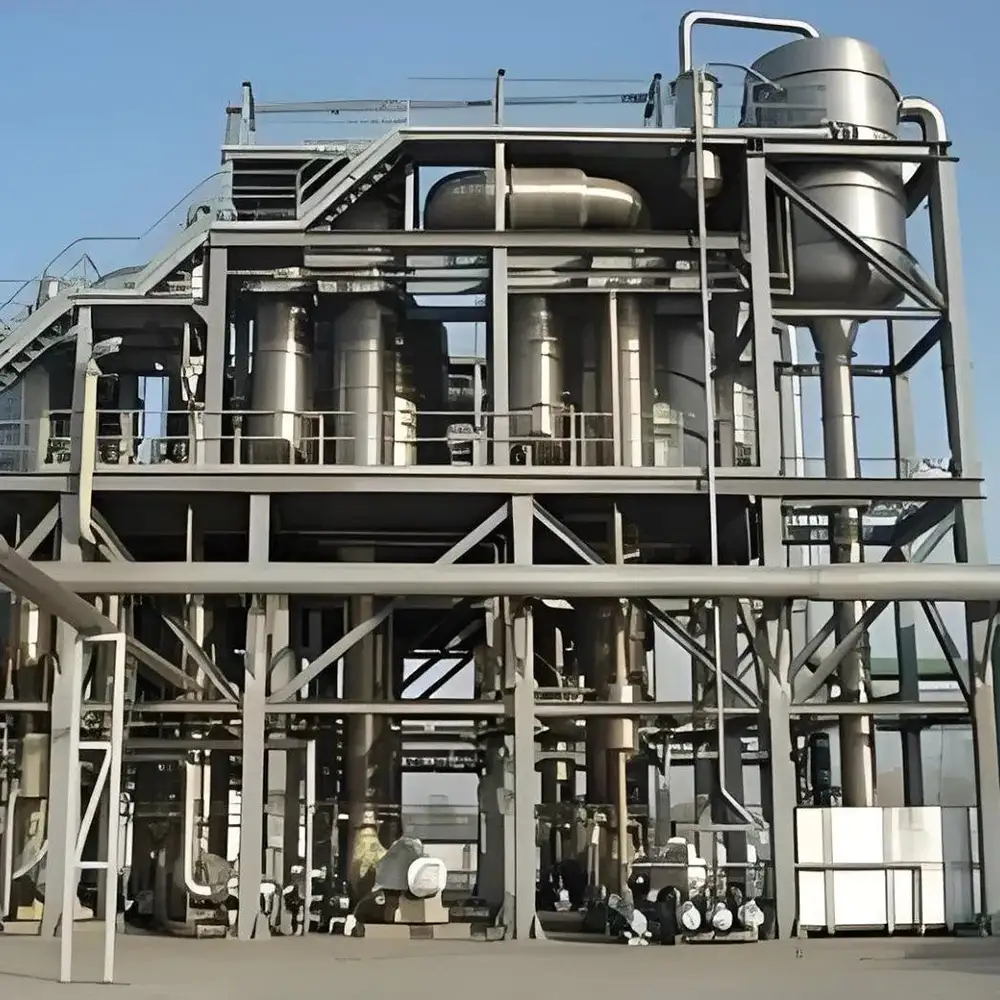

Mvr Mechanical Vapor Recompression Evaporator Water Treatment Plant

  Main principle:
Mechanical vapor recompression (MVR) evaporator utilizes the secondary steam generated in the evaporator, which is compressed by a compressor to increase pressure, temperature, and enthalpy. It is then sent to the heating chamber of the evaporator as heating steam, maintaining the boiling state of the feed liquid, while the heating steam itself condenses into water. In this way, the steam that was originally intended to be discarded is fully utilized, latent heat is recovered, and thermal efficiency is improved. The economy of steam production is equivalent to 20 effects of multi effect evaporation, reducing the demand for external heating and cooling resources, energy consumption, and pollution.

The MVR evaporator increases the energy of the secondary steam through the compressor and reuses it to heat the material, realizing the recycling of steam heat energy.

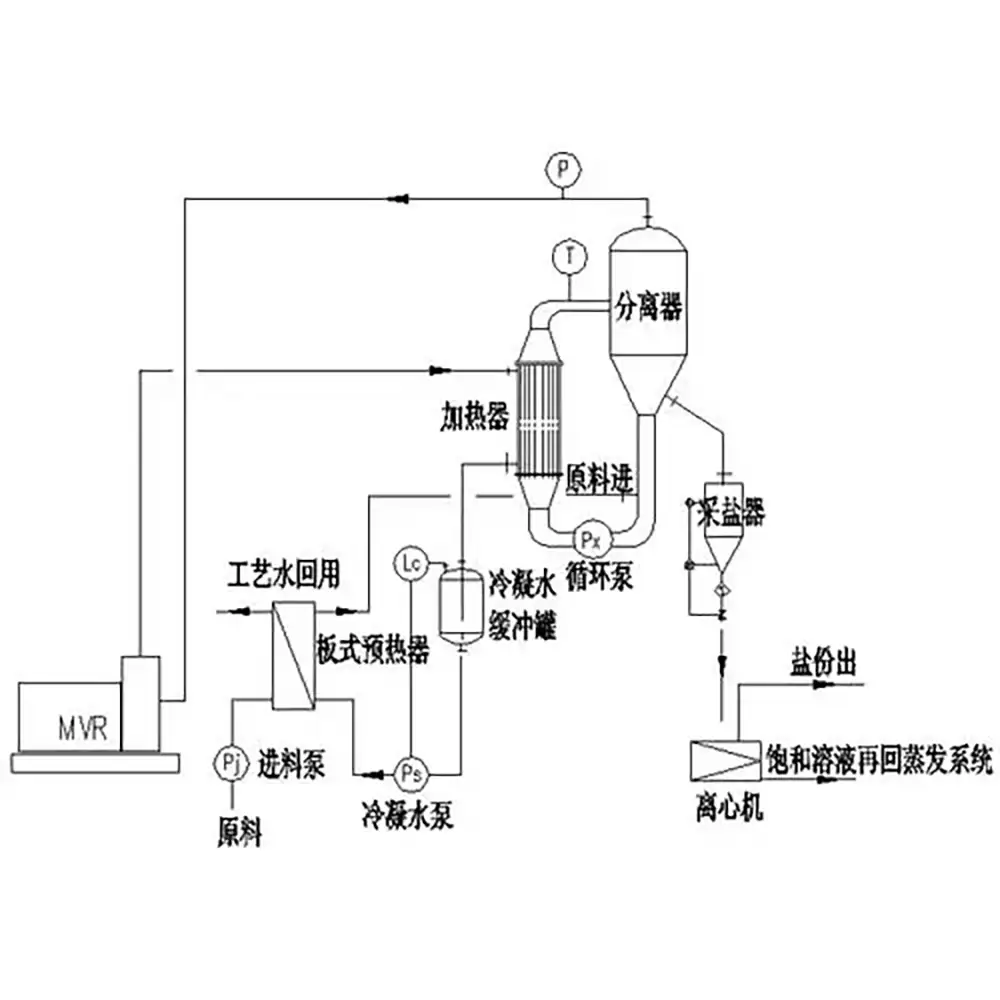

The specific process is as follows:
1. Evaporation process: The material is heated and evaporated inside the evaporator, and the generated steam is compressed by the compressor, and the pressure and temperature increase.
2. Steam compression: The high-pressure steam enters the evaporator again through the compressor as a heat source to continue heating the material.
3. Condensation separation: The mixture of evaporated steam and material is separated by the gas-liquid separator, the steam returns to the compressor, and the material is collected.
Mvr Mechanical Vapor Recompression Evaporator Water Treatment Plant
Mvr Mechanical Vapor Recompression Evaporator Water Treatment Plant
Structural composition The MVR evaporator is mainly composed of the following parts:
1. Evaporator body: It is the place where the material is concentrated. It is usually composed of a shell and tube heat exchanger to increase the heat transfer area.
2. Compressor: Compress the secondary steam to increase its energy for reheating the material.
3. Gas-liquid separator: Separate the steam from the concentrated liquid to ensure efficient operation.
4. Control system: Real-time monitoring and adjustment of temperature, pressure and other parameters to ensure that the equipment operates in the best state.
Mvr Mechanical Vapor Recompression Evaporator Water Treatment Plant
Mvr Mechanical Vapor Recompression Evaporator Water Treatment Plant
Advantages and application areas
Mvr Mechanical Vapor Recompression Evaporator Water Treatment Plant
MVR evaporator has the following advantages:
1. High efficiency and energy saving: By recovering steam heat energy and reducing the use of fresh steam, it can greatly save energy and reduce costs by 30%-80%.
2. High heat transfer efficiency: The tubular heat exchanger design increases the heat transfer area and improves the evaporation efficiency.
3. Wide range of applications: Suitable for evaporation and crystallization of various inorganic salts, evaporation of solutions with higher hardness, evaporation and concentration of garbage filtrate, and solution concentration in food, fermentation, pharmaceutical and other industries.
Operation precautions and maintenance
When operating the MVR evaporator, pay attention to the following points:
1. Temperature control: Ensure that the material temperature is within the appropriate range to avoid overheating or overcooling.
2. Pressure regulation: Keep the system pressure stable to ensure the steam compression effect.

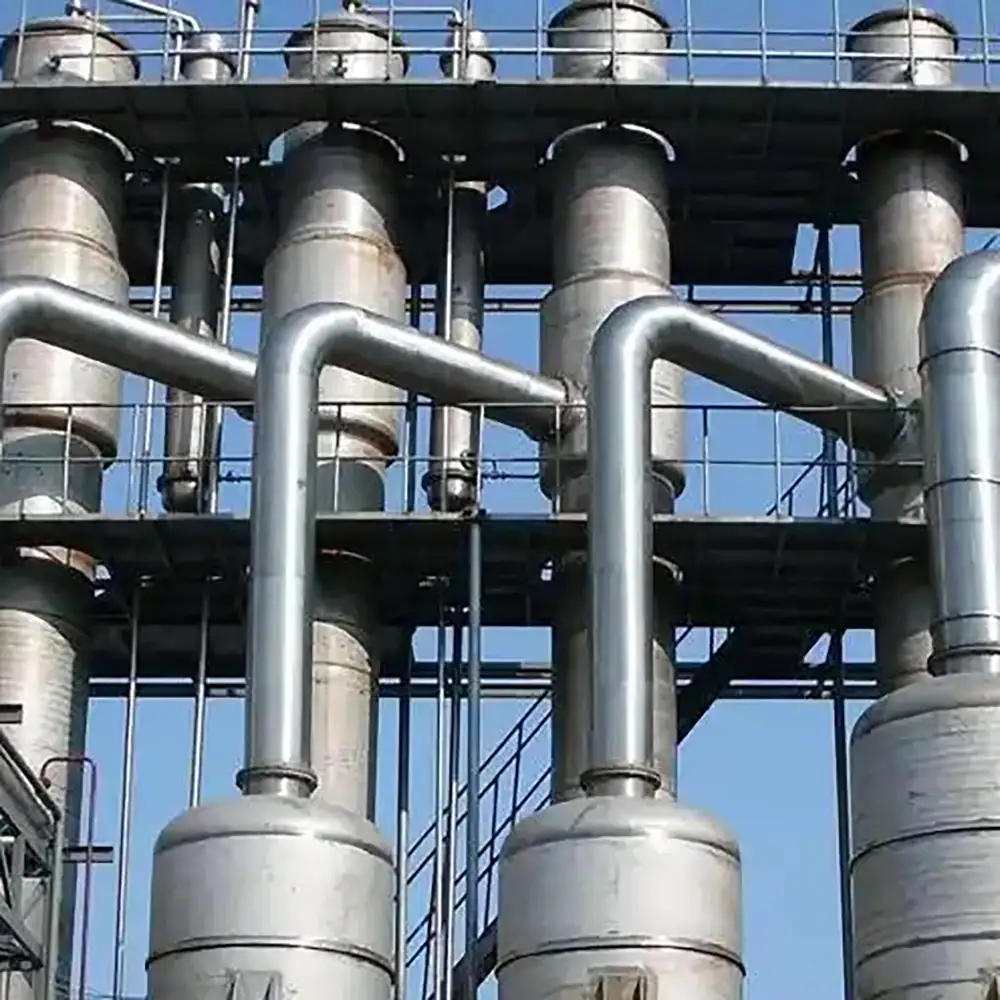

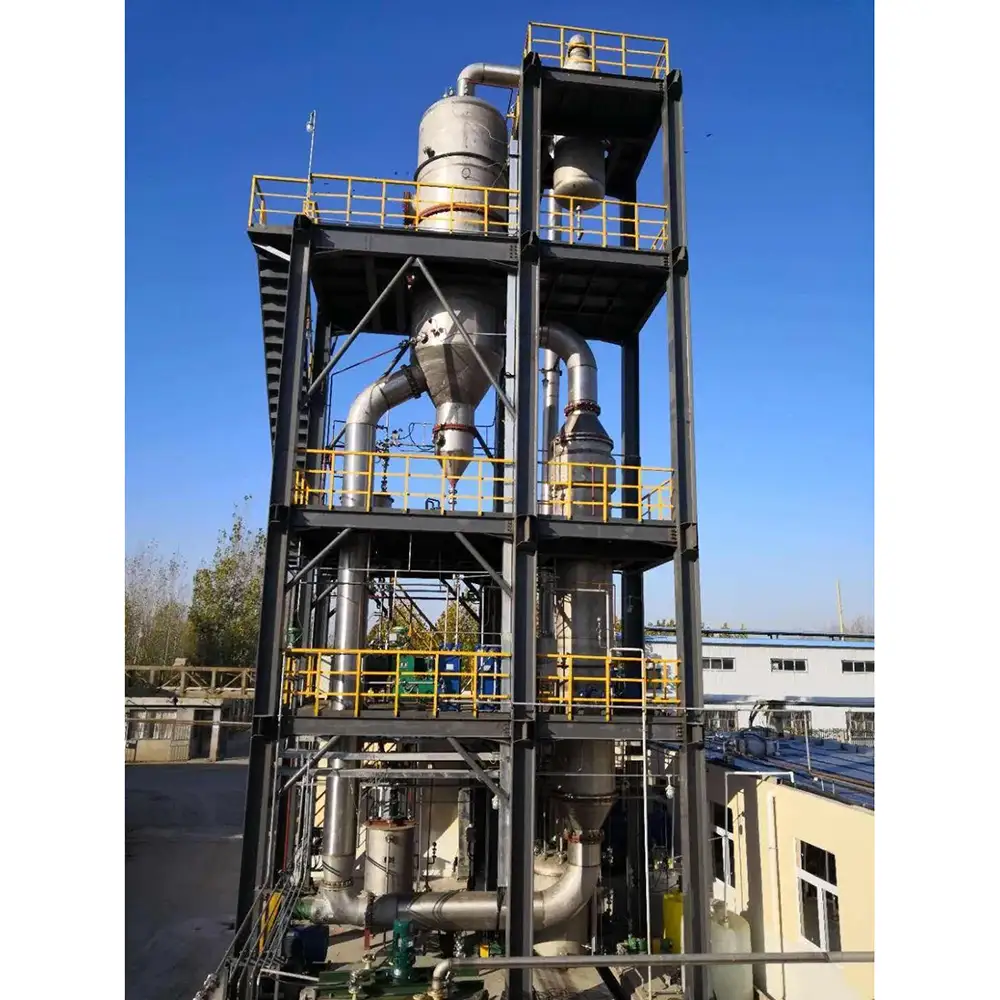

High-Salinity Wastewater Treatment

High-salinity wastewater can be difficult to treat with conventional biological processes because excessive dissolved solids may inhibit microorganisms. MVR provides a thermal separation route in which water is evaporated while non-volatile dissolved substances remain in the concentrate.

For suitable applications, the recovered condensate can be collected for additional polishing or reuse, while the concentrated stream can be sent to crystallization or other downstream treatment.

A forced-circulation MVR system can be particularly useful for wastewater with high solids, scaling potential, or concentration requirements. System configuration should be selected according to salt composition, viscosity, scaling tendency, corrosion potential, boiling-point elevation, and final concentration target.

MVR for Zero Liquid Discharge

For facilities targeting Zero Liquid Discharge (ZLD), an MVR evaporator can function as a major concentration stage. The system reduces liquid wastewater volume by evaporating water and concentrating dissolved materials.

In a complete ZLD process, MVR evaporation may be followed by crystallization, centrifugation, filter separation, drying, or other solids-handling equipment. The actual process depends on the chemical composition and crystallization behavior of the wastewater.

MVR should therefore be considered as part of an integrated water-management system rather than automatically assuming that every MVR plant achieves ZLD by itself.

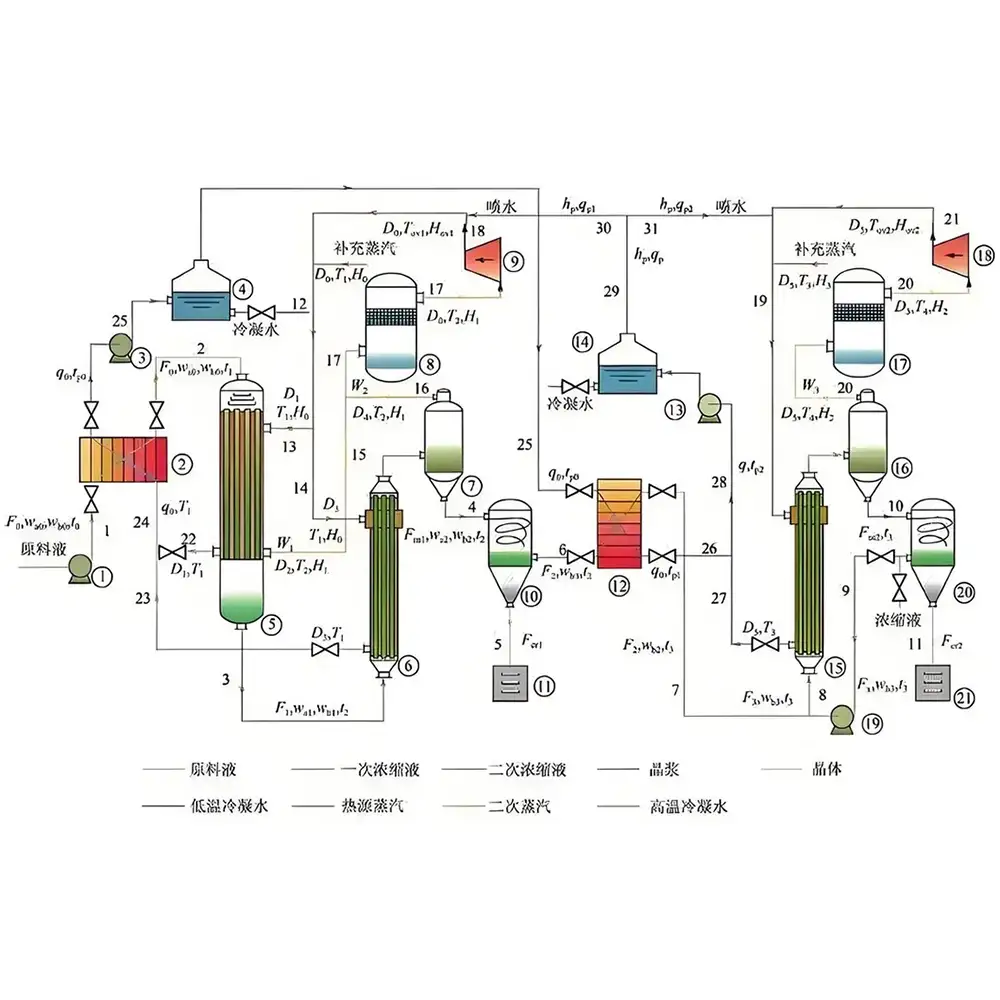

Main Equipment Components

A complete MVR wastewater treatment plant may include:

Feed Tank
Feed Pump
Preheater
Evaporator
Vapor-Liquid Separator
MVR Vapor Compressor
Heat Exchanger
Circulation Pump
Condensate Tank
Vacuum System
Concentrate Pump
Automatic Valves
Temperature Sensors
Pressure Sensors
Flow Meters
PLC Control Cabinet
CIP Cleaning System

Depending on wastewater characteristics, the system may use falling-film, forced-circulation, natural-circulation, or combined evaporation configurations. Different configurations can be selected according to solids content, viscosity, fouling behavior, and heat-transfer requirements.

Key Advantages
Energy Recovery

The main advantage of MVR is internal vapor energy recovery. Instead of discarding secondary vapor, the system compresses and reuses it as a heating medium.

Reduced External Steam Demand

Because the system recycles evaporation vapor, it can significantly reduce dependence on fresh heating steam during normal operation. Electricity is primarily used by the vapor compressor and supporting pumps and equipment.

Wastewater Volume Reduction

Evaporation removes water from the wastewater stream and produces a smaller-volume concentrate. This can reduce the amount of wastewater requiring downstream disposal or further treatment.

Water Recovery

The condensed vapor can provide a recovered water stream. Depending on feed composition and required quality, additional polishing may be used before process reuse.

Continuous Operation

Industrial MVR systems can be designed for continuous operation and integrated with automatic control systems for stable production conditions.

ZLD Integration

MVR technology can be combined with crystallization and solids separation to support demanding ZLD projects.

Design and Material Selection

MVR equipment must be engineered according to the actual wastewater rather than simply selecting a nominal evaporation capacity. Important design parameters include feed flow, TDS, COD, chloride concentration, pH, temperature, viscosity, suspended solids, scaling tendency, foaming characteristics, boiling-point elevation, corrosion risk, and desired concentrate concentration.

Material selection is also important. Depending on the wastewater chemistry, stainless steel or specialized corrosion-resistant materials may be required for wetted components. High-chloride or aggressive wastewater may require more corrosion-resistant alloys or duplex stainless steel in selected areas.

Operation and Maintenance

Regular inspection of the vapor compressor, pumps, heat-transfer surfaces, separators, valves, sensors, and condensate system helps maintain stable operation. Fouling and scaling should be monitored because deposits can reduce heat-transfer efficiency and increase energy consumption.

The MVR compressor is one of the most important components and should be operated within its designed pressure, temperature, flow, and vibration ranges. Cleaning procedures should be selected according to the actual deposits and equipment materials.

Feed pretreatment can also improve reliability. Removing excessive suspended solids, oil, grease, or easily precipitated contaminants before evaporation can help reduce fouling and operational problems.

Why Choose Us?

We provide integrated MVR wastewater evaporation and water treatment solutions for industrial customers handling high-salinity, high-TDS, concentrated, or difficult-to-treat wastewater.

Our engineering approach considers the complete wastewater profile instead of focusing only on evaporation capacity. Feed analysis, evaporation rate, energy balance, material selection, scaling potential, condensate quality, concentrate characteristics, and downstream treatment requirements are considered during system design.

The MVR plant can be configured with pretreatment, evaporation, condensate recovery, concentrate discharge, crystallization, sludge or salt separation, PLC automation, and other process equipment. This makes the system suitable for industrial wastewater minimization, water reuse, brine concentration, and ZLD projects.

FAQs

1. What does MVR stand for?
MVR stands for Mechanical Vapor Recompression. It is an evaporation technology that compresses secondary vapor and reuses it as heating energy.

2. How does an MVR evaporator work?
Wastewater is evaporated to generate vapor. The vapor is compressed to increase its pressure and temperature, then reused to provide heat for continued evaporation.

3. Can MVR treat high-salinity wastewater?
Yes. MVR is commonly considered for high-TDS and high-salinity wastewater concentration, provided the system is properly designed for the specific salts and fouling characteristics.

4. Can MVR be used for ZLD?
Yes. MVR can serve as a concentration stage in a ZLD system and may be combined with crystallization and solids separation.

5. Does an MVR system require steam?
During stable operation, MVR primarily uses electrical energy for the vapor compressor and auxiliary equipment. Startup or special operating conditions may require supplementary heat depending on the design.

6. Can MVR recover water from wastewater?
Yes. Evaporated water condenses into a distillate stream that can potentially be reused after appropriate quality verification and polishing.

7. What wastewater is suitable for MVR treatment?
Applications include high-TDS wastewater, brine, RO concentrate, chemical wastewater, pharmaceutical wastewater, metal-processing wastewater, and other difficult-to-treat industrial streams.

8. Can MVR remove dissolved salts?
MVR separates water from non-volatile dissolved substances by evaporation. The salts generally remain in the concentrate and may subsequently require crystallization or solids separation.

9. What is the difference between MVR and conventional evaporation?
Conventional evaporation may continuously consume external steam or another heat source, while MVR recycles generated vapor through mechanical compression to recover its thermal energy.

10. How can scaling be controlled?
Feed pretreatment, appropriate circulation, controlled concentration, suitable evaporation conditions, material selection, and scheduled cleaning can help manage scaling.

11. Can the MVR plant be customized?
Yes. Capacity, evaporator configuration, compressor selection, materials, automation, pretreatment, condensate handling, and downstream crystallization can be designed according to project requirements.

12. What information is needed for MVR system design?
Key information includes wastewater flow rate, TDS, salt composition, COD, pH, temperature, suspended solids, viscosity, desired evaporation capacity, final concentrate concentration, condensate requirements, and operating schedule.
