High Efficiency Centrifugal Fan/High Temperature Resistance/Explosion Proof/Smoke Exhaust/Industrial Equipment

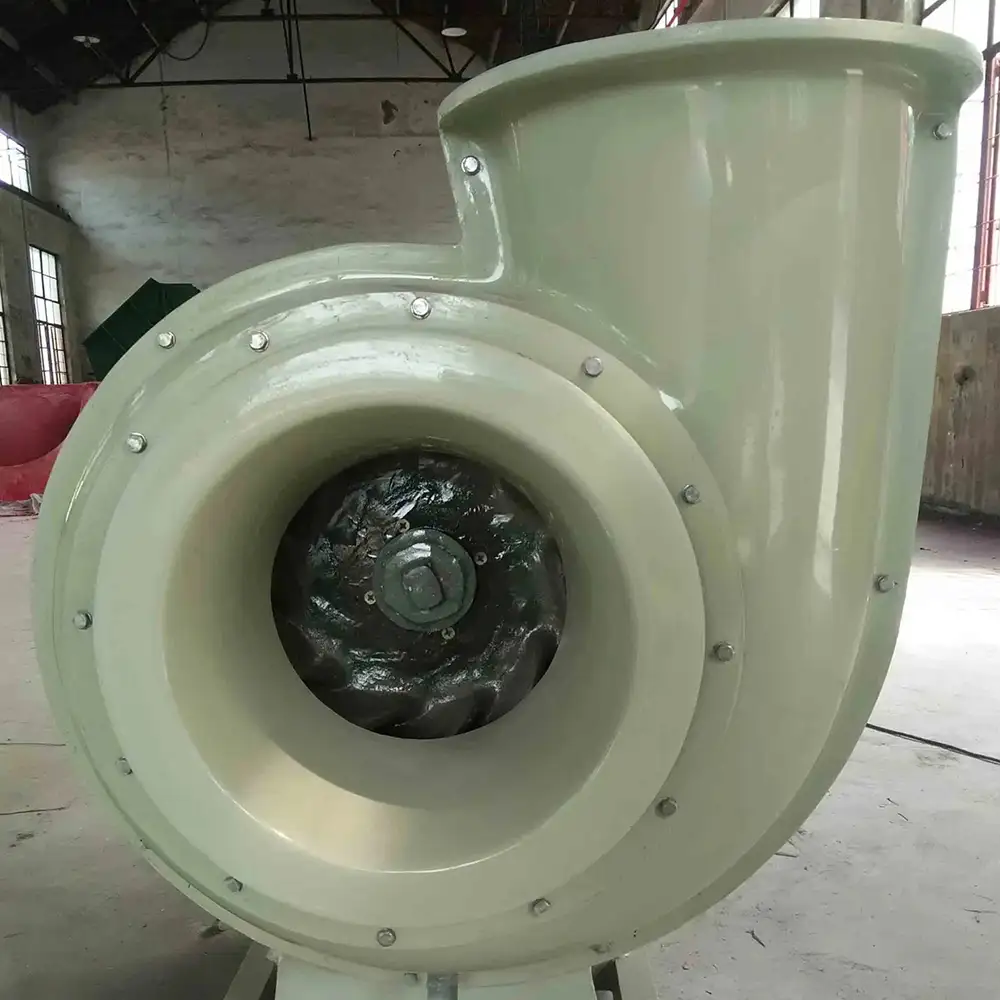

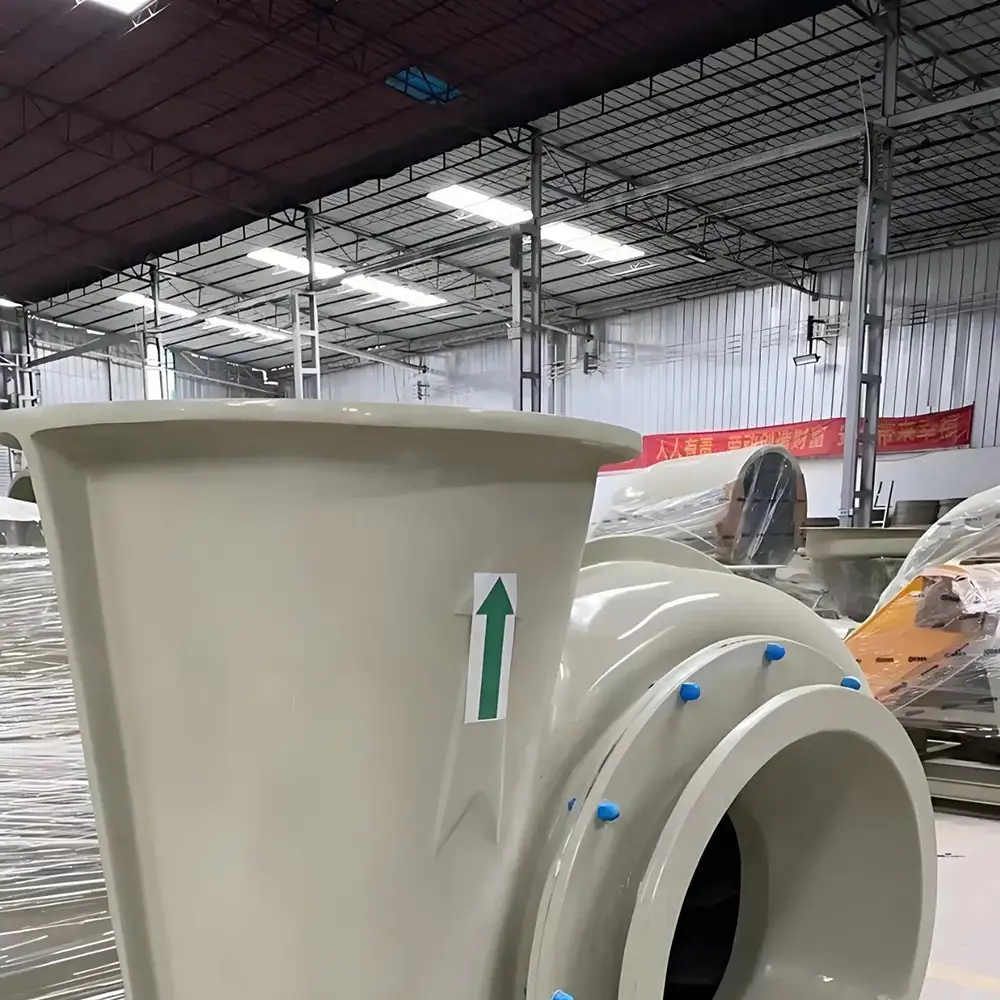

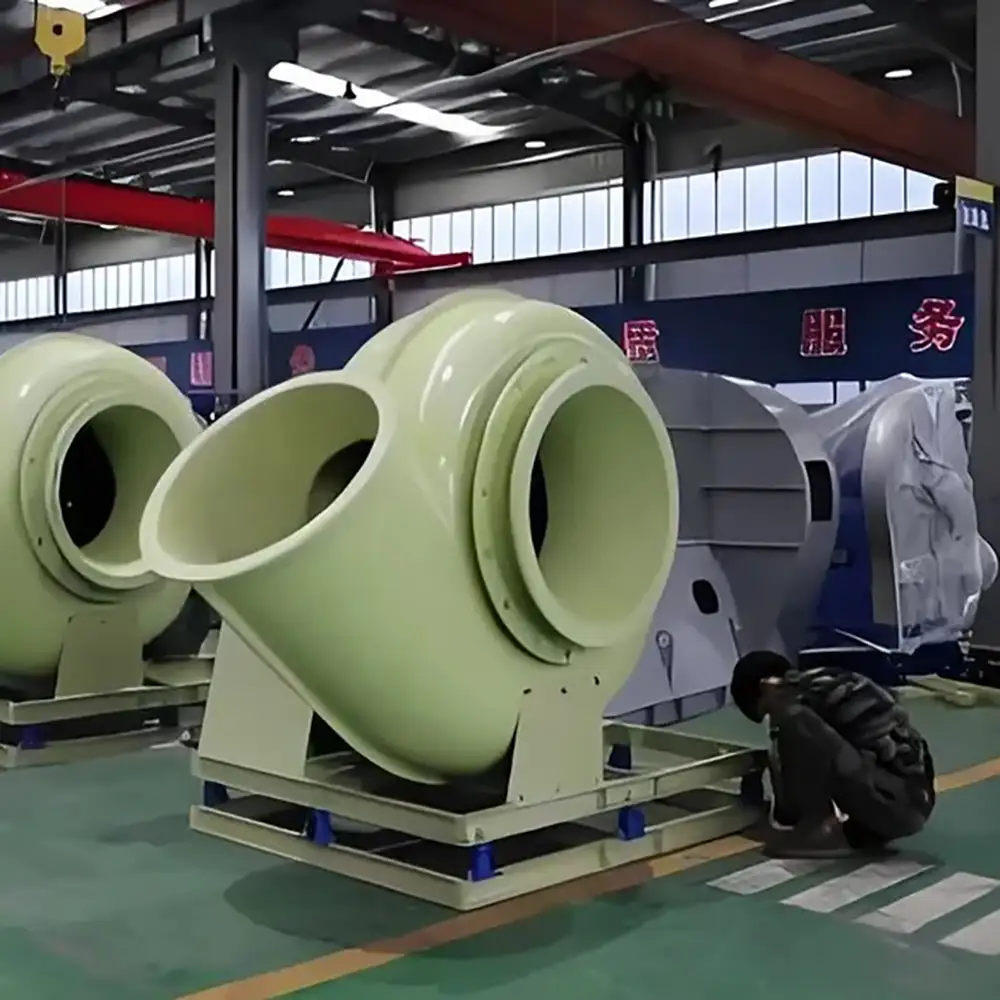

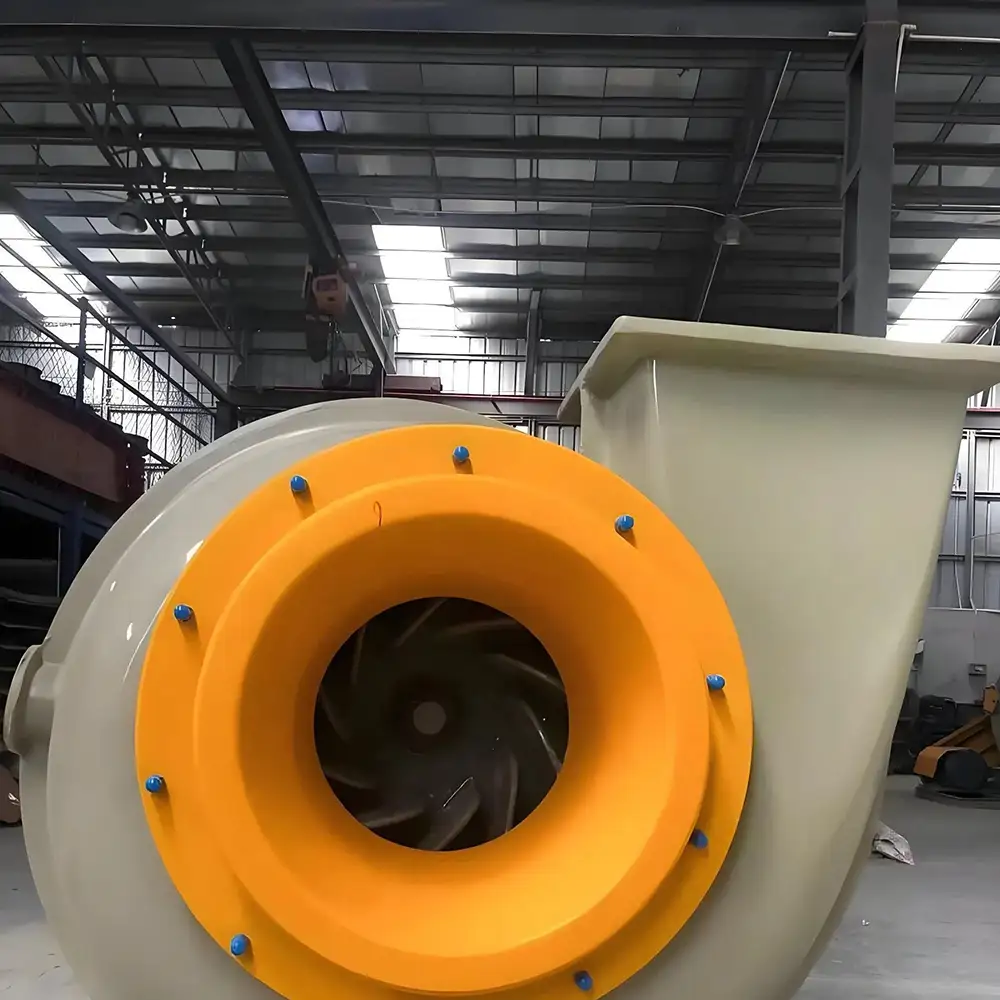

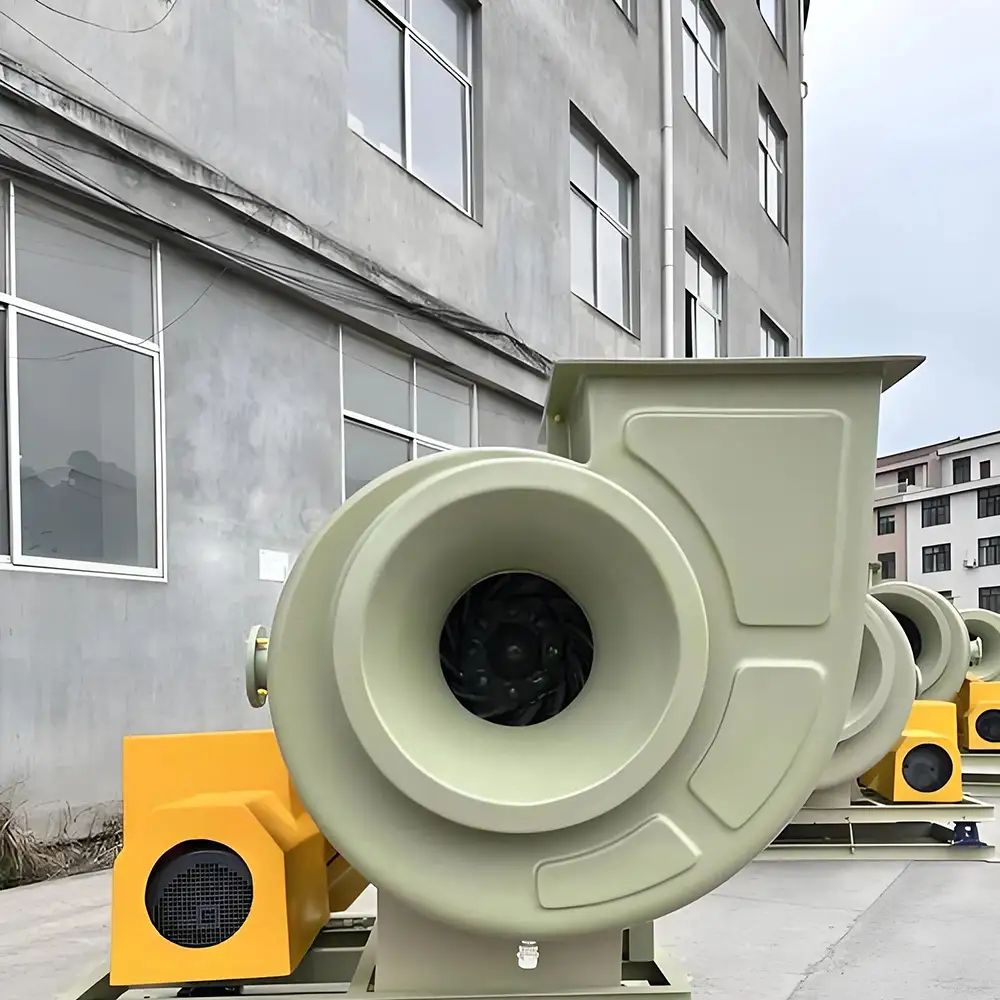

FRP centrifugal fan
Product Features
Impeller: The impeller is made of resin glass fiber composite (frp), which has good corrosion resistance, strength and light weight. It can be flexibly proportioned for different gas environments. Through three
-dimensional design and the use of relevant software strength mechanical analysis , it has excellent quality. 802 and 806 resins are used in combination through multiple processes to achieve better strength.

High Efficiency High Temperature Explosion Proof Smoke Exhaust Centrifugal Fan

The High Efficiency Centrifugal Fan with High Temperature Resistance, Explosion Proof and Smoke Exhaust capabilities is designed for demanding industrial ventilation and air-handling applications where conventional ventilation equipment may not provide the required temperature resistance, pressure performance or safety configuration.

This industrial centrifugal fan can be configured for high-temperature gas transportation, furnace exhaust, process ventilation, industrial smoke removal and hazardous-area applications. Depending on the design, material, motor and drive arrangement, the fan may be used in steel plants, chemical facilities, power plants, industrial furnaces, ceramic factories, glass production, warehouses, workshops and other industrial environments.

Casing: Made of resin glass fiber composite (frp), it has good corrosion resistance, light weight, and can be flexibly proportioned for different gas environments. It is designed and molded through three-dimensional design, and the strength and mechanical analysis of related software are carried out. It has excellent quality, and the surface is sprayed with anti-UV gel coat, which is durable.

High Efficiency Centrifugal Fan/High Temperature Resistance/Explosion Proof/Smoke Exhaust/Industrial EquipmentBearing box: The cast oil bath bearing seat can effectively lubricate and cool the axis bearing. Simple and easy maintenance is the guarantee of long-term operation of the fan.

Bearings : High-quality self-aligning rolling bearings, C&U brand guarantee, NSK and other well-known brand bearings can be configured according to customer needs

Spindle: Made of high-quality 45# steel, precision-machined to ensure spindle size and shape tolerances, durable

Balance : Each impeller is dynamically balanced before assembly. The balance accuracy meets the G2.5 standard of ISO1940 and AMCA standards.


Industrial high-temperature centrifugal fans are used for applications such as furnace smoke exhaust, hot-air circulation, reactor gas transportation, boiler flue-gas exhaust and industrial process ventilation. Available configurations vary substantially according to airflow, pressure, temperature and application requirements.

High-Efficiency Centrifugal Fan Design

A centrifugal fan converts mechanical energy from the motor into air pressure and airflow through a rotating impeller. The air enters through the fan inlet and is accelerated radially before leaving through the discharge outlet.

This configuration is suitable for systems where the fan must overcome resistance from:

Long Duct Networks
Industrial Filters
Scrubbers
Heat Exchangers
Dampers
Dust Collectors
Furnace Systems
Exhaust Stacks
Smoke Extraction Ducts
Process Equipment

High-efficiency operation depends on proper matching of the fan operating point to the actual system requirements.

Important selection parameters include:

Airflow
Static Pressure
Total Pressure
Gas Temperature
Gas Composition
Fan Speed
Motor Power
Impeller Design
System Resistance
Operating Schedule

The airflow rating alone should not be used to select the final fan. The required airflow and pressure must be considered together at the design operating point. Explosion-proof fan manufacturers similarly emphasize selecting the final model according to the required pressure and duty point rather than nominal airflow alone.

High Temperature Resistance

High-temperature centrifugal fans are designed for applications involving hot air, furnace gases, process gases and smoke exhaust.

Depending on the fan design, high-temperature construction may include:

Heat-Resistant Steel
Stainless Steel
High-Temperature Bearings
Cooling Bearing Housing
Heat-Resistant Shaft Seals
External Motor Arrangement
Thermal Insulation
Special Surface Coatings
High-Temperature Lubrication
Cooling Discs or Cooling Structures

The motor and bearings may be positioned away from the hottest portion of the airflow when required.

This design approach helps protect critical mechanical and electrical components from excessive heat.

High-temperature industrial centrifugal fans are used in steelmaking, industrial furnaces, chemical reactors, boiler systems, ceramic production and glass manufacturing. Specific temperature capabilities are model-dependent and should be confirmed from the fan's technical documentation.

Industrial Smoke Exhaust

Smoke exhaust is an important application for centrifugal ventilation equipment.

The fan can be designed to extract:

Hot Smoke
Furnace Exhaust
Industrial Flue Gas
Process Fumes
Combustion Gas
Hot Air
Industrial Waste Gas
Emergency Smoke

For fire-life-safety applications, the fan must use an appropriately tested and certified smoke-exhaust configuration. Emergency smoke fans can have specific temperature/time ratings, such as operation at a specified high temperature for a defined duration. These ratings are product-specific and should not be confused with continuous process-gas temperature ratings.

For industrial process exhaust, the fan is normally selected according to the continuous gas temperature and process conditions rather than a building fire-rating standard.

Explosion-Proof Industrial Configuration

For hazardous industrial environments, an Explosion Proof Centrifugal Fan can be configured with appropriate explosion-resistant electrical components and spark-resistant airflow construction.

Potential applications include:

Chemical Plants
Petrochemical Facilities
Solvent Processing
Pharmaceutical Production
Paint Facilities
Oil And Gas Facilities
Flammable Gas Exhaust
Hazardous Material Storage
Industrial Workshops
Explosive Atmosphere Ventilation

An explosion-proof motor alone does not automatically make the complete fan system explosion-proof.

The complete installation should consider:

Hazardous-Area Classification
Motor Protection
Electrical Certification
Fan Construction
Spark-Resistant Components
Grounding
Static Electricity
Inlet Cone Design
Impeller Material
Shaft Arrangement
Installation Requirements

Explosion-proof centrifugal fan systems may use certified motors and spark-reduction construction for hazardous environments. Some ATEX-configured centrifugal fans are specifically designed for explosive-area ventilation and use spark-risk-reducing inlet components.

Industrial Furnace Exhaust

Industrial furnaces generate high-temperature air and process gases that require controlled extraction.

A high-temperature centrifugal fan can be installed in systems serving:

Steel Furnaces
Heat Treatment Furnaces
Ceramic Kilns
Glass Furnaces
Drying Ovens
Industrial Boilers
Thermal Processing Equipment
Chemical Reactors
Incineration Systems

The fan must be selected according to the actual gas temperature, flow rate, pressure, dust concentration and chemical composition.

For example, high-temperature furnace systems can require water-cooled bearing housings, high-temperature seals, special shaft arrangements and heat-resistant materials. Some commercially available industrial furnace fan configurations are designed for continuous gas transportation at several hundred degrees Celsius, but exact limits are model-specific.

Heavy-Duty Industrial Exhaust

Industrial exhaust systems frequently operate continuously and may experience high pressure, elevated temperature, dust loading or corrosive gases.

A heavy-duty centrifugal fan can be engineered with:

Reinforced Fan Casing
Dynamically Balanced Impeller
Heavy-Duty Shaft
Industrial Bearings
Reinforced Base Frame
High-Efficiency Motor
Belt Drive
Coupling Drive
Direct Drive
VFD Control
Vibration Monitoring

Dynamic balancing is particularly important for high-speed centrifugal fans because imbalance can increase vibration, bearing loads and mechanical stress. Some industrial fan designs specify ISO 1940 G2.5 balancing for the impeller.

Variable Frequency Drive Control

The centrifugal fan can be equipped with a Variable Frequency Drive (VFD) where the motor and application are suitable for variable-speed operation.

VFD control allows the fan speed to be adjusted according to:

Airflow Demand
Duct Pressure
Furnace Load
Production Rate
Smoke Extraction Requirements
Process Conditions
Automatic Ventilation Signals

Variable-speed operation can help avoid running the fan at maximum speed when the system does not require full airflow.

For industrial systems, VFD control can also be connected with PLC, pressure sensors, temperature sensors, airflow sensors and SCADA systems.

The actual energy savings depend on the fan curve, system resistance, operating schedule, motor efficiency and control strategy.

High-Temperature Motor and Bearing Protection

Temperature management is essential for high-temperature fan applications.

If hot gas is transported directly through the fan, heat can travel through the shaft and housing toward bearings and motor components. Engineering solutions can therefore include external motors, shaft cooling, bearing housings, thermal barriers and suitable sealing arrangements.

The correct configuration depends on the actual gas temperature and fan structure.

For very high-temperature applications, the motor may be isolated from the hot gas path, while the shaft and bearing assembly uses specialized cooling or heat-dissipation arrangements.

Applications in Power and Energy Systems

Industrial centrifugal fans are used throughout power and energy facilities for combustion air, flue-gas exhaust, ventilation and process air handling.

Potential applications include:

Boiler Exhaust
Flue Gas Extraction
Furnace Air Supply
Thermal Power Systems
Waste Heat Systems
Industrial Boiler Rooms
Flue Gas Treatment
Desulfurization Systems
Denitrification Systems
Dust Collection Systems

The fan can be integrated with filters, scrubbers, heat exchangers and other environmental-control equipment.

Smoke Exhaust and Fire Safety Applications

Centrifugal smoke exhaust fans can also be used in emergency smoke-control systems when designed and certified specifically for that purpose.

Applications can include:

Industrial Buildings
Warehouses
Parking Structures
Factory Buildings
Utility Areas
Equipment Rooms
Commercial Buildings
Emergency Smoke Extraction

Fire-rated smoke fans have specific test conditions and temperature-duration ratings. For example, some commercial high-temperature smoke exhaust models are certified for defined emergency operating conditions such as 260°C for six hours or 300°C for two hours. These ratings are specific to the certified product and should not be applied to general industrial fans.

Fan Materials and Configuration

Depending on the application, the fan can be manufactured from carbon steel, stainless steel or other engineered materials.

Material selection depends on:

Temperature
Corrosion
Abrasion
Dust
Gas Composition
Moisture
Pressure
Operating Environment

For corrosive gases, stainless steel or specialized protective coatings may be appropriate. For high-temperature and abrasive applications, wear-resistant construction may be required.

For hazardous environments, spark-resistant materials and certified electrical equipment may be necessary.

Maintenance and Reliability

Regular maintenance helps maintain stable fan performance.

Recommended inspections include:

Check impeller balance and vibration.
Inspect bearings and lubrication.
Check shaft alignment.
Inspect belts and pulleys where applicable.
Check motor temperature.
Inspect electrical connections.
Check fan casing and welds.
Inspect seals and expansion joints.
Remove excessive dust deposits.
Verify airflow and pressure.
Check temperature sensors.
Inspect VFD alarms and control signals.

Maintenance intervals should be based on operating temperature, dust concentration, running hours, vibration level and the manufacturer's maintenance requirements.

Why Choose Us

The High Efficiency High Temperature Explosion Proof Smoke Exhaust Centrifugal Fan is designed for industrial applications where airflow performance, temperature resistance and operational safety must be considered together.

Key advantages include:

High-Efficiency Centrifugal Design: Optimized impeller configurations support efficient airflow and pressure performance.
High-Temperature Options: Specialized structures can be selected for hot air and process-gas applications.
Explosion-Proof Configurations: Suitable electrical and spark-resistant options can be selected for applicable hazardous areas.
Industrial Smoke Exhaust: Designed for industrial smoke, hot gas and process exhaust applications.
Heavy-Duty Construction: Reinforced structures support demanding continuous-duty environments.
Flexible Drive Options: Direct drive, belt drive and coupling arrangements can be selected according to requirements.
VFD Compatibility: Variable-speed operation can be used for systems with changing airflow requirements.
Multiple Material Options: Carbon steel, stainless steel and specialized materials can be considered according to operating conditions.
System Integration: Compatible with ducts, filters, scrubbers, furnaces, boilers and exhaust-treatment systems.
Application-Based Engineering: Fan selection can be based on airflow, pressure, temperature, gas composition, dust concentration and safety requirements.
FAQs
1. What Is a High-Temperature Centrifugal Fan?

A high-temperature centrifugal fan is designed to transport hot air or process gases while protecting the fan's mechanical components through appropriate materials, cooling, sealing and drive configurations.

2. What Is an Explosion-Proof Centrifugal Fan?

It is a centrifugal fan configured for hazardous environments with appropriate explosion-resistant electrical components and, where required, spark-resistant airflow construction.

3. Can This Fan Be Used for Smoke Exhaust?

Yes, when the selected model is designed and rated for the intended smoke-exhaust application. Emergency fire smoke exhaust and continuous industrial hot-gas exhaust have different requirements.

4. What Temperature Can the Fan Handle?

There is no single temperature rating for all high-temperature centrifugal fans. The allowable temperature depends on the model, materials, bearings, shaft design, cooling system and operating mode. Some industrial models are designed for several-hundred-degree process gases, while fire-smoke models have separate temperature-duration ratings.

5. Can the Fan Be Used for Industrial Furnaces?

Yes. High-temperature centrifugal fans are used for furnace exhaust, combustion-air supply, hot-air circulation and process-gas transportation.

6. Can an Explosion-Proof Motor Be Used With a VFD?

It can be possible, but the motor, VFD and hazardous-area certification must be compatible. The complete electrical configuration should be selected for the specific application and applicable standards.

7. What Industries Use High-Temperature Centrifugal Fans?

Common applications include steel, metallurgy, chemical processing, power generation, ceramics, glass, thermal treatment, industrial boilers and waste-gas treatment.

8. What Is the Difference Between Smoke Exhaust and Normal Exhaust?

Smoke exhaust may require certified emergency high-temperature performance for a specified duration, while normal industrial exhaust is generally selected for the continuous operating temperature and process conditions.

9. Can the Fan Handle Dusty Hot Gas?

It can be designed for certain dusty-gas applications, but the dust concentration, particle size, abrasiveness and temperature must be evaluated. A cyclone, filter or other dust collector may be required upstream.

10. Can the Fan Be Used With a Scrubber?

Yes. Centrifugal fans are commonly integrated with scrubbers and other flue-gas treatment systems. The fan must be selected to overcome the complete system pressure loss.

11. Which Drive Arrangement Is Better?

Direct drive, belt drive and coupling drive each have different advantages. Selection depends on speed, motor power, temperature, installation arrangement and maintenance requirements.

12. What Information Is Needed for Fan Selection?

Provide airflow, static pressure, gas temperature, gas composition, dust concentration, operating schedule, motor voltage, hazardous-area classification and installation requirements. These parameters are used to determine the appropriate fan configuration.
