Exhaust Bender Pipe Bending Machine

The Exhaust Bender Pipe Bending Machine is designed for efficient and repeatable bending of metal tubes used in automotive exhaust systems,mufflers,and other tubular components. By providing controlled tube bending in a dedicated machine,the equipment helps manufacturers produce exhaust pipes with consistent bend locations,angles,and overall geometry.

Exhaust pipes often need to follow complex routing paths around engines,vehicle chassis,and other components. A suitable exhaust tube bender allows manufacturers to form straight metal tubes into the required shapes while maintaining the dimensional requirements of the finished component.

This type of machine is suitable for automotive exhaust manufacturers,muffler suppliers,custom exhaust fabricators,metalworking companies,and industrial tube-processing businesses.

Features of Manual Hydraulic Exhaust Pipe Bender

BENDER SPECIFICATIONS
Bending Capacity	1/2’’ OD 2-1/2 /(3”)
Maximum Bending Diameter	2-1/2 /(3”)
Swaging Capacity	1/2” OD 1’’ OD to 3’’OD
Motor/power Supply	7.5HP/Single or 3 Hpase-220,380,or 440V,Optional single phase
Hydraulic Pump Output	3A-8R(4200PS)
Operation Mode	Dutton and Foot operated Controls
Hydraulic Filter	Canister Type
Maximum Bending Force	3,500PSI
Depth-of-bend Plate	Preset to Stop Any Desired Bend Depth
Measurement(cm)	180×80×108
Special Radius Dies and Power Supplier are Available

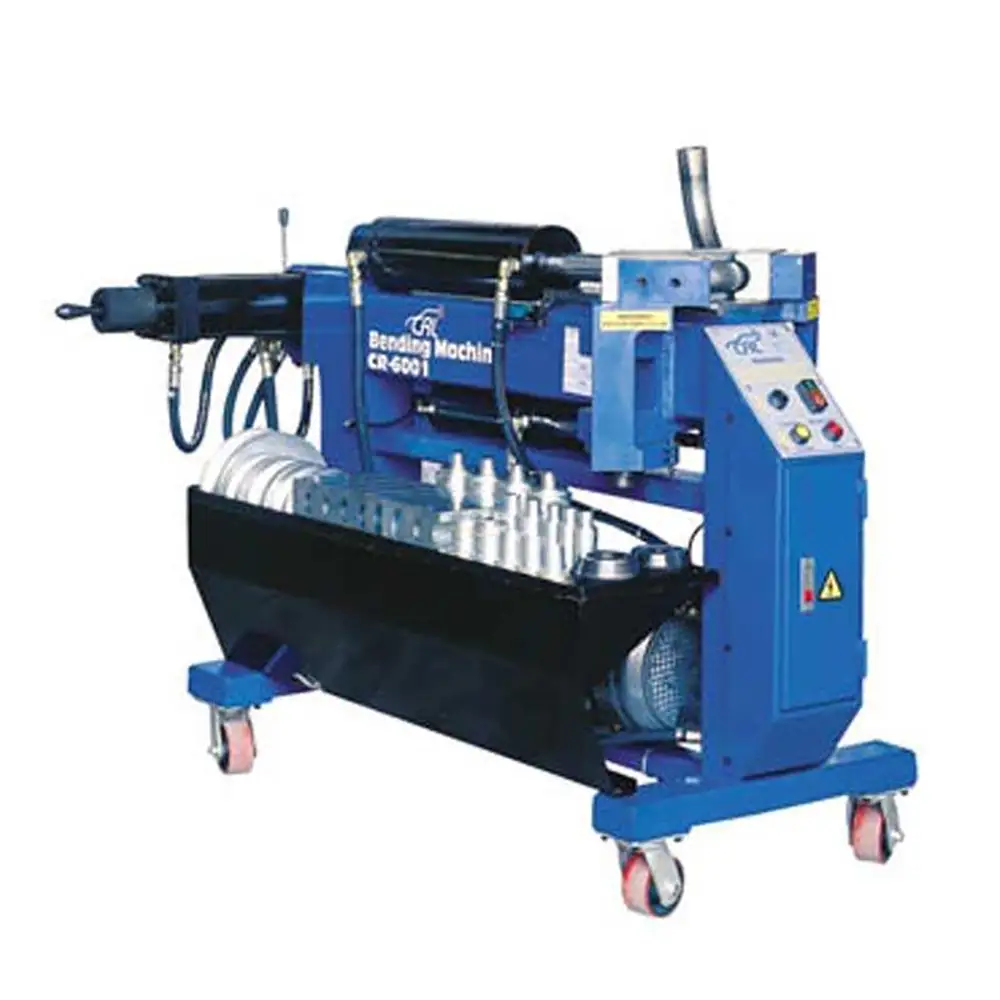

The CR-6001 tube bender is supplied with standard tooling pack 3A
4 size of bending dies	112-158-200-212-134
5 sizes of back shoe sets	112-158-134-200-212
5 sizes of half shoes	112-158-134-200-212
4size of bend plugs	112-158-134-200-212
3 sizes of reducing tools	134-178-200
5 sizes expander dies	112-158-134-200-212
5 sizes adaptor collars	112-158-134-200-212
5 sizes segment expander sets	112-158-134-200-212
1  segment expander arbor
1 rotation gauge

Automotive Exhaust Pipe Bending

Automotive exhaust pipes are commonly manufactured from stainless steel,carbon steel,mild steel,and other suitable metal tubing. The tube must be bent according to the exhaust system design while maintaining an appropriate internal passage and avoiding excessive deformation.

The exhaust bender uses dedicated bending tooling to support the tube during forming. Depending on the machine configuration,the bending process may use hydraulic,mechanical,electromechanical,or CNC-controlled systems.

The actual bending capacity depends on tube diameter,wall thickness,material strength,bending radius,tooling,and machine configuration. Customers should provide detailed tube specifications and bending drawings when selecting equipment.

Exhaust Tube Bending Process

A typical bending process begins with loading and positioning the tube. The workpiece is then secured in the appropriate fixture before the bending operation starts. The machine forms the tube according to the selected bending parameters and tooling.

For repetitive production,the use of consistent positioning references and dedicated tooling can help reduce variation between parts. Depending on the configuration,the machine may support multiple bending operations on the same tube.

Proper process sequencing is important when producing exhaust tubes with several bends. The distance between bends,rotation orientation,bend angle,and final tube length all influence the finished geometry.

Multi-Bend Exhaust Components

Many exhaust systems require more than one bend. The pipe may need to change direction several times before reaching the muffler,catalytic converter,tailpipe,or other exhaust component.

A suitable exhaust tube bending machine can be configured for multi-bend applications according to its control system and tooling. CNC-controlled models may offer programmable positioning and rotation functions,while simpler machines may rely on manual or semi-automatic positioning.

The appropriate configuration depends on production volume,part complexity,required repeatability,and budget.

Exhaust Muffler Pipe Bending

Muffler pipes and connecting tubes frequently require precise bends to achieve the correct installation geometry. Incorrect bending can result in dimensional problems during assembly or interference with surrounding components.

The exhaust bender can be used for suitable muffler inlet pipes,outlet pipes,connecting tubes,and other tubular exhaust components. Dedicated fixtures and bending dies can be developed according to the required tube diameter and bending radius.

For custom muffler production,the machine can help manufacturers produce different tube geometries without relying entirely on manual bending processes.

Stainless Steel Exhaust Tube Bending

Stainless steel is widely used in performance and replacement exhaust systems because of its corrosion resistance and appearance. However,stainless steel can require carefully controlled bending conditions because of its material strength and work-hardening behavior.

Appropriate tooling and bending parameters should be selected according to the specific stainless steel grade,tube wall thickness,and diameter. Testing sample tubes before production can help verify the selected tooling and process.

Carbon Steel Exhaust Tube Bending

Carbon steel and mild steel tubing are also commonly used in exhaust manufacturing. These materials can be suitable for a variety of standard exhaust components when the machine's capacity matches the tube specifications.

The bending process should be selected based on the required radius,wall thickness,and final geometry. Proper tube support helps reduce excessive flattening or deformation during bending.

Bending Tooling and Dies

Bending dies are critical to the quality of the finished exhaust tube. The die should match the tube diameter and required bending geometry. Different tube sizes and bending radii may require different tooling sets.

Custom bending dies can be supplied for specific exhaust components. For manufacturers producing multiple exhaust models,interchangeable tooling can provide greater flexibility when supported by the machine design.

Tooling should be inspected regularly for wear or damage. Proper maintenance can help maintain consistent bending results and extend tool service life.

Production Efficiency

An exhaust pipe bender can help reduce manual tube-forming work and improve production consistency. For repetitive manufacturing,dedicated fixtures and preset parameters can make the bending process easier to repeat.

Automatic or CNC configurations can further reduce repetitive positioning and measurement tasks. However,actual production speed depends on tube dimensions,number of bends,bending angle,tool changes,loading and unloading,and machine configuration.

Manufacturers should evaluate the complete production cycle when estimating output.

Applications

The Exhaust Bender Pipe Bending Machine can be used for automotive exhaust pipes,muffler tubes,tailpipes,connecting tubes,and other metal tube components.

It can also be used in motorcycle exhaust production,commercial vehicle exhaust systems,off-road equipment,agricultural machinery,industrial engines,and custom exhaust fabrication.

Beyond exhaust applications,the same type of tube bending technology may be suitable for selected metal frames,handrails,automotive components,and other tubular products when the tube dimensions and tooling are compatible.

Quality Control

Quality inspection should include bend angle,bend location,bending radius,overall length,tube diameter,and cross-sectional deformation. For multi-bend components,the rotational orientation between bends is also important.

Fixtures and gauges can be used to verify critical dimensions. Production samples should be tested when introducing a new tube material,diameter,or bending geometry.

Maintenance and Safety

Routine maintenance should include inspection of bending dies,fixtures,drive components,hydraulic systems,and other machine-specific components. Lubrication should be performed according to the manufacturer's recommendations.

Operators should be trained in correct loading,tool setup,and machine operation. Hands should remain clear of moving components during bending,and guards,emergency stops,and other safety devices should be used where provided.

The machine should be installed and operated according to applicable workplace safety requirements.

Custom & OEM Solutions

Exhaust pipe designs vary between vehicle models and manufacturers. We can support OEM and ODM requirements involving custom bending dies,fixtures,positioning systems,controls,and machine configurations.

Customers can provide tube drawings,sample components,tube material,outer diameter,wall thickness,bending radius,bend angles,and production volume. These details help determine the appropriate bending method and tooling.

Why Choose Us

Dedicated Exhaust Bending Solution – Designed specifically for automotive exhaust tubes,muffler pipes,and related tubular components.

Flexible Tube Processing – Suitable for selected stainless steel,carbon steel,and other metal tubes.

Repeatable Bending – Proper tooling and workholding help maintain consistent bend geometry.

Multi-Bend Capability – Suitable configurations can support components requiring multiple bends.

Custom Tooling Support – Bending dies,fixtures,and positioning systems can be customized for specific exhaust parts.

Production Efficiency – Helps reduce repetitive manual bending,measurement,and material handling.

OEM & ODM Service – Machine configurations can be adapted to customer drawings,samples,and production requirements.

B2B Manufacturing Support – Suitable for exhaust manufacturers,muffler suppliers,automotive suppliers,and custom fabrication businesses.

FAQs

1. What is an exhaust bender?

An exhaust bender is a tube bending machine designed to form metal pipes used in automotive exhaust systems,mufflers,and related tubular components.

2. What materials can the exhaust bender process?

Depending on the machine configuration,it can process suitable stainless steel,carbon steel,mild steel,and other metal tubes.

3. Can it bend stainless steel exhaust pipes?

Yes. Suitable stainless steel exhaust tubes can be bent when the tube diameter,wall thickness,material grade,and bending radius are within the machine's capabilities.

4. Can it bend multiple times on one pipe?

Suitable machine configurations can support multi-bend exhaust components. The actual number and complexity of bends depend on the machine design and tooling.

5. Can the bending angle be customized?

Yes. The required bending angle can be configured according to the machine's control system and tooling capabilities.

6. Can it produce custom exhaust pipes?

Yes. Custom exhaust components can be produced when the required tube dimensions,bending geometry,and tooling are compatible with the machine.

7. Does the machine support CNC control?

CNC control is available on certain machine configurations. The specific control functions should be confirmed according to the selected model.

8. Can the machine bend different tube diameters?

Yes,within the applicable machine range. Different tube diameters may require different bending dies and fixtures.

9. What affects bending quality?

Tube material,diameter,wall thickness,bending radius,tooling,bending speed,and machine setup can all affect the final bending result.

10. Can custom bending dies be supplied?

Yes. Custom bending dies can be designed according to the tube diameter,bending radius,and exhaust component geometry.

11. Is this machine suitable for muffler manufacturing?

Yes. It can be used for suitable muffler inlet pipes,outlet pipes,connecting tubes,and other tubular components requiring bending.

12. What information is needed to select the machine?

Provide tube material,outer diameter,wall thickness,bending radius,bending angle,number of bends,part drawing,and expected production volume.
