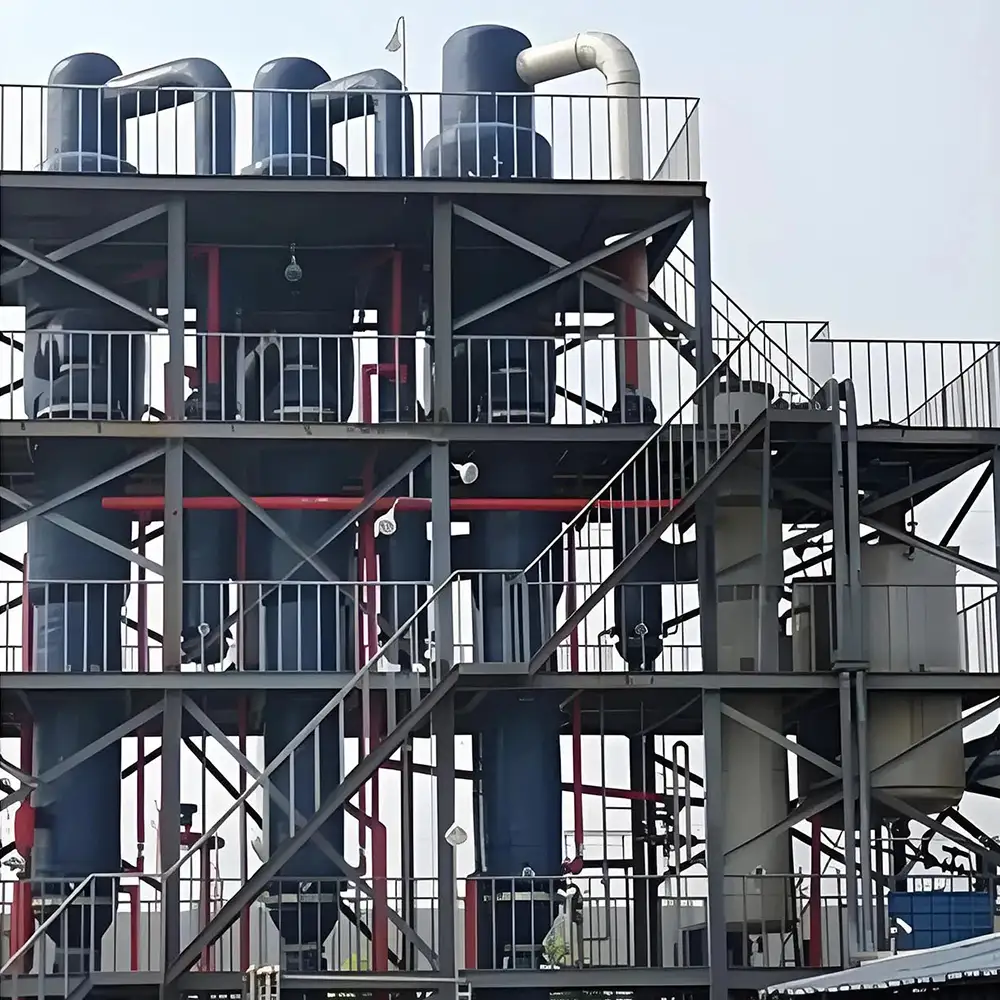

Vacuum Industrial Multi Effect Mvr Evaporator for Waste Water Treatment

The MVR evaporator increases the energy of the secondary steam through the compressor and reuses it to heat the material, realizing the recycling of steam heat energy.
The specific process is as follows:
1. Evaporation process: The material is heated and evaporated inside the evaporator, and the generated steam is compressed by the compressor, and the pressure and temperature increase.
2. Steam compression: The high-pressure steam enters the evaporator again through the compressor as a heat source to continue heating the material.
3. Condensation separation: The mixture of evaporated steam and material is separated by the gas-liquid separator, the steam returns to the compressor, and the material is collected.

Vacuum Industrial Multi Effect MVR Evaporator for Wastewater Treatment

The Vacuum Industrial Multi Effect MVR Evaporator is an advanced evaporation system designed for industrial wastewater treatment, wastewater concentration, water recovery, and high-salt wastewater processing. By combining vacuum evaporation technology with mechanical vapor recompression (MVR) and multi-effect evaporation principles, the system can significantly reduce wastewater volume while recovering valuable water and concentrating dissolved solids.

Industrial wastewater often contains high concentrations of salts, organic compounds, minerals, chemicals, and other dissolved substances that are difficult to remove using conventional biological or membrane treatment alone. An industrial evaporator provides an effective solution for applications where wastewater must be concentrated, reused, or treated before final disposal.

The MVR evaporator uses mechanical vapor recompression to recycle secondary steam generated during the evaporation process. Instead of continuously requiring large quantities of fresh steam, the system compresses and reuses vapor as a heat source. This can substantially reduce steam consumption and improve overall energy efficiency compared with conventional evaporation systems.

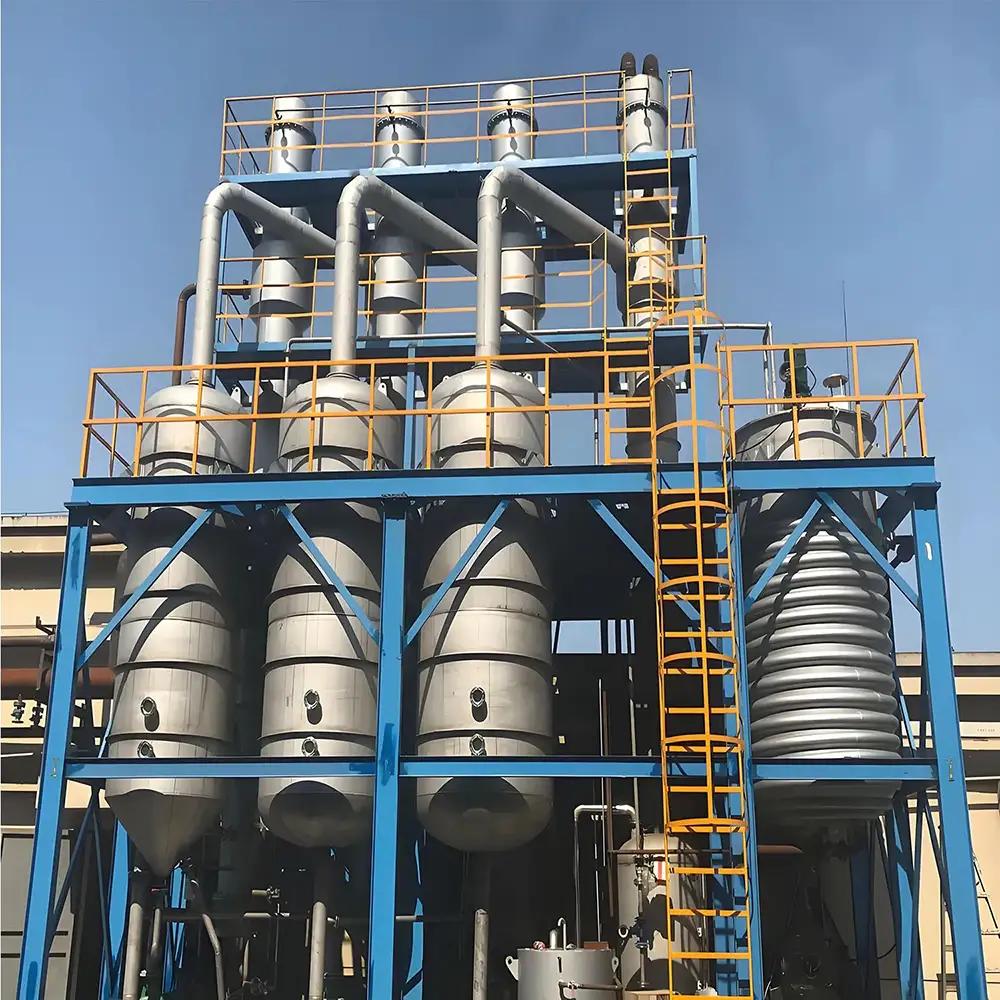

Vacuum Evaporation Technology

Vacuum operation allows wastewater to evaporate at a lower boiling temperature. This is particularly useful when treating heat-sensitive wastewater or liquids containing components that may degrade at higher temperatures.

The vacuum environment also helps reduce thermal stress on the equipment and can improve process stability. Depending on the wastewater characteristics, the system can be configured with appropriate heating surfaces, condensers, circulation systems, vacuum equipment, pumps, and automatic control components.

The evaporation process separates water from dissolved contaminants. The generated vapor is condensed into recovered water, while salts and other non-volatile substances become concentrated in the residual liquid.

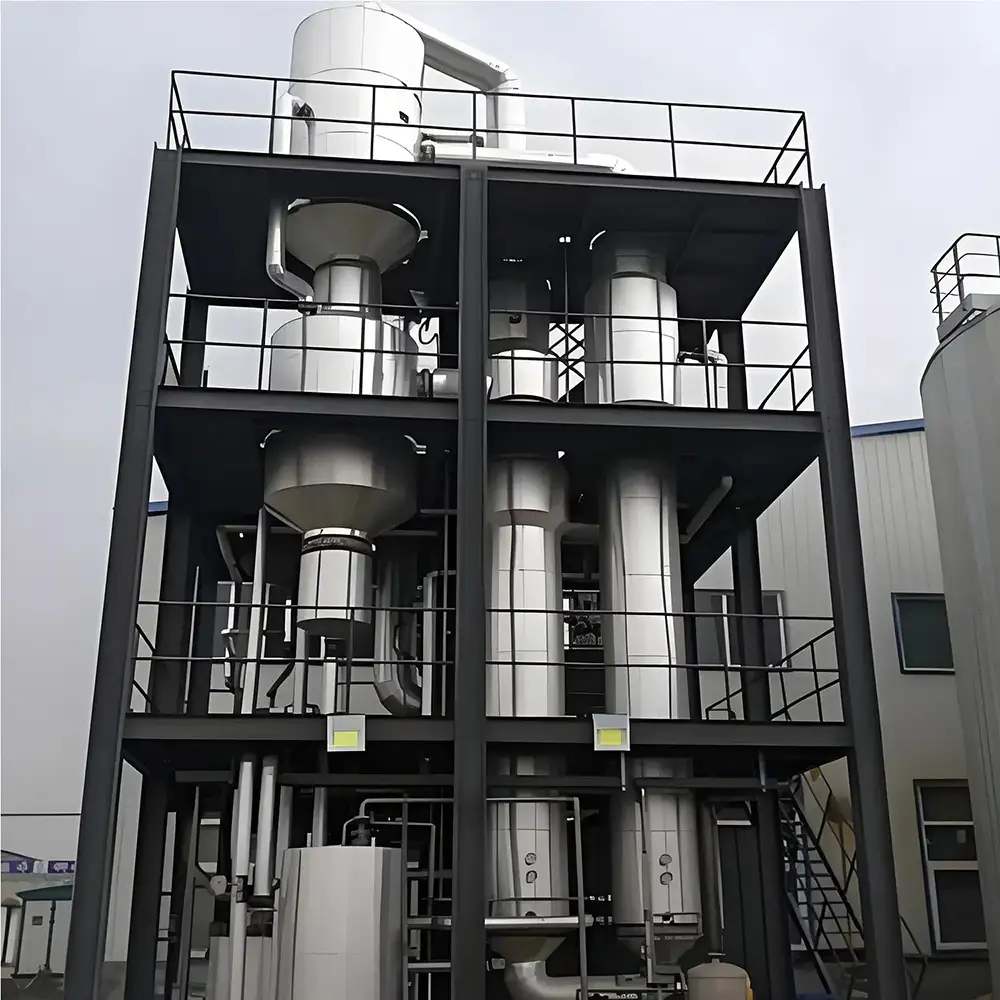

Multi Effect Evaporation System

The multi effect configuration uses multiple evaporation stages to improve heat utilization. Vapor generated in one effect can be used as a heating source for another effect, allowing thermal energy to be reused through different stages.

When combined with MVR technology, the system can provide an efficient evaporation solution for industrial facilities that need continuous wastewater concentration. Multi effect MVR evaporators are suitable for both relatively low-concentration wastewater and challenging high-TDS or high-salt wastewater, depending on the selected configuration.

The number of effects, evaporation capacity, operating temperature, heating area, and circulation method can be selected according to wastewater composition and required treatment capacity.

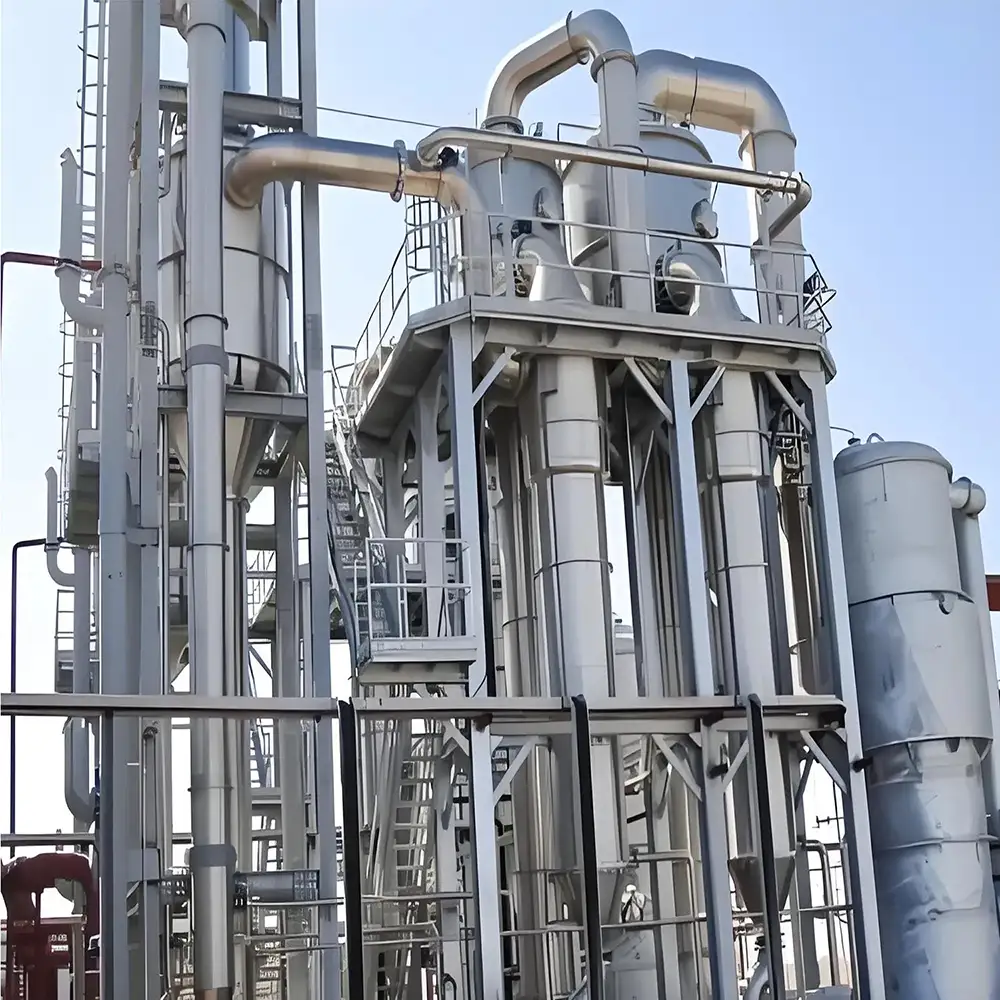

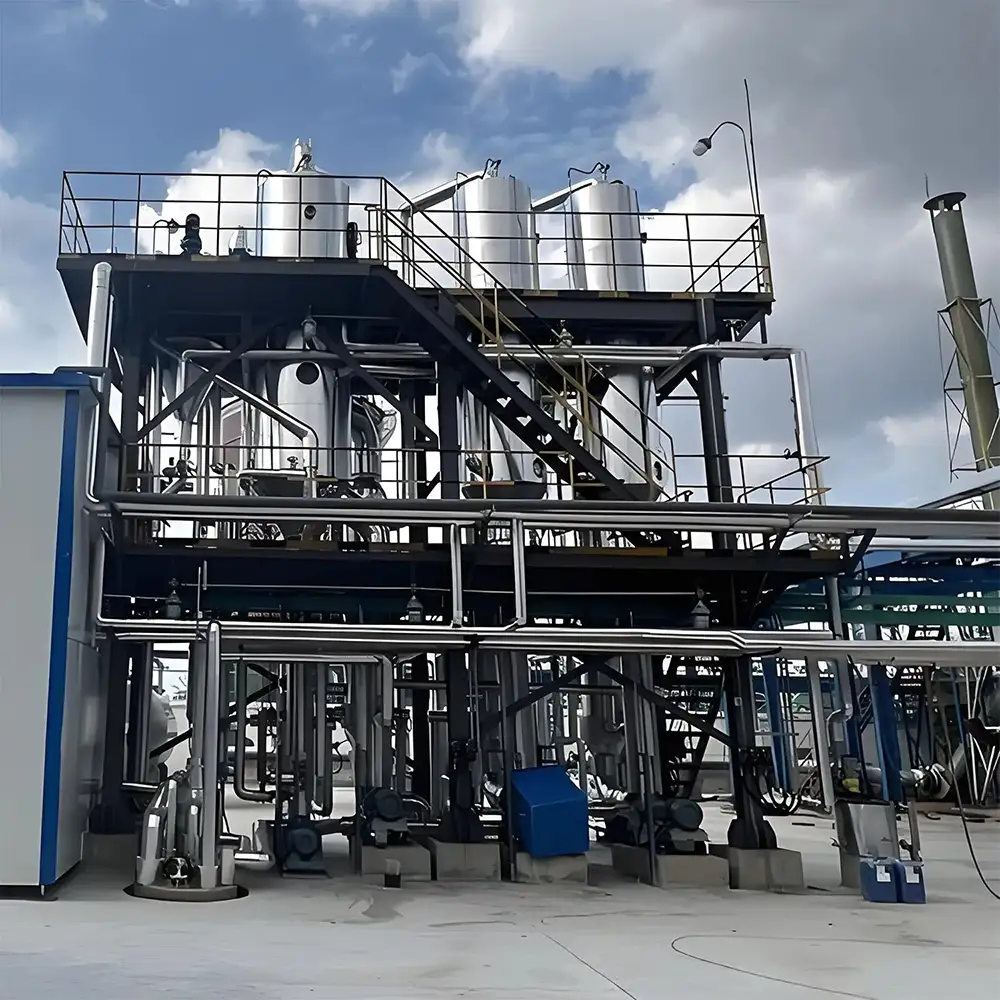

Industrial Wastewater Treatment Applications

This industrial MVR evaporator can be used in many industries where wastewater contains high concentrations of dissolved solids or requires substantial volume reduction.

Typical applications include chemical wastewater, pharmaceutical wastewater, food processing wastewater, fermentation wastewater, biotechnology wastewater, electroplating wastewater, textile wastewater, landfill leachate, industrial brine, and other high-salt wastewater streams.

For facilities pursuing water reuse or zero liquid discharge strategies, the evaporator can be integrated with pretreatment, reverse osmosis, crystallization, filtration, or other treatment technologies.

Wastewater Concentration and Volume Reduction

One of the major advantages of industrial evaporation is the ability to dramatically reduce the volume of wastewater requiring final treatment or disposal. During operation, water is evaporated and recovered, while dissolved solids remain in the concentrated stream.

This makes the system particularly useful for wastewater containing high levels of total dissolved solids (TDS), inorganic salts, and other non-volatile contaminants.

By reducing wastewater volume, companies can potentially lower transportation, storage, disposal, and downstream treatment costs. The concentrated residue can then be handled according to the specific characteristics of the wastewater and local disposal requirements.

Water Recovery and Reuse

The vapor produced during evaporation can be condensed into treated water. Depending on the wastewater composition and process configuration, the recovered condensate may be suitable for reuse after additional polishing or treatment.

Recovered water can potentially be reused for process water, equipment cleaning, cooling systems, or other industrial applications after meeting the required water-quality specifications.

This makes MVR evaporation an important technology for industrial water conservation and wastewater minimization.

Energy-Efficient MVR Operation

Mechanical vapor recompression is one of the key technologies used to improve evaporation efficiency. The MVR compressor increases the pressure and temperature of secondary vapor so that it can be reused as a heating medium.

This vapor recycling reduces the need for continuous external steam input. Compared with traditional single-effect evaporation, an MVR system can provide significant energy-saving potential, although actual energy consumption depends on wastewater properties, evaporation capacity, operating conditions, concentration ratio, and system configuration.

Automatic control of temperature, pressure, liquid level, vacuum, flow rate, and other operating parameters can further improve process stability.

Automatic Industrial Operation

The vacuum industrial multi effect MVR evaporator can be equipped with an automatic control system for continuous industrial operation. Sensors and control devices can monitor critical operating parameters and coordinate pumps, valves, compressors, heaters, vacuum systems, and condensate discharge.

The control system can help operators maintain stable evaporation conditions while reducing manual intervention. It can also support alarm management, process monitoring, and operating data collection.

Flexible System Configuration

Different wastewater streams require different evaporation technologies. The MVR evaporator can therefore be configured according to wastewater characteristics, including concentration, viscosity, temperature, corrosiveness, scaling tendency, foaming behavior, and solids content.

The system can be combined with pretreatment equipment such as filters, clarifiers, chemical treatment units, or membrane systems. For advanced wastewater treatment projects, it can also operate as part of a larger ZLD system together with crystallizers and solid-liquid separation equipment.

Reliable Industrial Construction

Industrial wastewater treatment equipment must operate reliably under demanding conditions. Proper selection of construction materials, heat exchanger design, pumps, seals, valves, piping, and instrumentation is essential for long-term performance.

For corrosive wastewater or high-salt applications, suitable corrosion-resistant materials and protective configurations can be selected according to the actual chemical composition of the wastewater.

Regular cleaning and maintenance help control scaling and fouling, maintain heat transfer performance, and extend equipment service life.

Why Choose Us

Choosing the right wastewater evaporator requires more than simply selecting an evaporation capacity. The system must match the wastewater composition, treatment objectives, energy requirements, operating conditions, and downstream disposal or reuse strategy.

Our vacuum industrial multi effect MVR evaporator solutions focus on practical industrial performance, stable operation, efficient energy utilization, and flexible process integration.

We can provide evaporation system configurations based on wastewater characteristics, including high-TDS wastewater, high-salt wastewater, chemical wastewater, pharmaceutical wastewater, fermentation wastewater, and other challenging industrial streams.

Key advantages include:

MVR technology for efficient vapor recycling
Vacuum evaporation for lower-temperature operation
Multi-effect configuration for improved heat utilization
Wastewater volume reduction and concentration
Condensate recovery for potential water reuse
Flexible capacity and process configuration
Automatic monitoring and control options
Compatibility with ZLD treatment systems
Suitable for continuous industrial operation
Engineering-oriented solutions for different wastewater conditions
FAQs
1. What is an MVR evaporator?

An MVR evaporator is an evaporation system that uses mechanical vapor recompression to recycle secondary vapor as a heating source, reducing the requirement for fresh steam.

2. What wastewater can be treated by an MVR evaporator?

MVR evaporators can be used for many industrial wastewater streams, including high-salt, high-TDS, chemical, pharmaceutical, food, fermentation, textile, and other concentrated wastewater.

3. What is the purpose of vacuum evaporation?

Vacuum evaporation lowers the boiling temperature of the wastewater, which can help improve thermal efficiency and make lower-temperature evaporation possible.

4. Can an MVR evaporator recover water?

Yes. During evaporation, water is converted into vapor and then condensed. The recovered condensate may be reused after meeting the required water-quality standards.

5. Is an MVR evaporator suitable for high-salt wastewater?

Yes. MVR evaporation is commonly used for high-salt and high-TDS wastewater concentration. If solid salt recovery is required, a crystallization stage can be added.

6. What is a multi-effect evaporator?

A multi-effect evaporator uses multiple evaporation stages so that vapor and thermal energy can be reused between effects, improving energy utilization.

7. Can the system be integrated into a ZLD process?

Yes. An MVR evaporator can be integrated with pretreatment, RO, crystallization, filtration, and other equipment to create a complete zero liquid discharge system.

8. How is evaporation capacity selected?

Capacity depends on wastewater flow rate, inlet concentration, required outlet concentration, evaporation temperature, wastewater properties, and desired water recovery rate.

9. Does wastewater pretreatment matter?

Yes. Pretreatment can help control suspended solids, scaling, fouling, corrosion, and other issues, improving evaporator stability and maintenance performance.

10. Can the MVR evaporator be customized for different wastewater?

Yes. The evaporation process, materials, heating area, number of effects, circulation method, compressor, pumps, controls, and auxiliary equipment can be configured according to project requirements.
