MVR Evaporator High Salt Wastewater Equipment Pharmaceutical Factory Evaporation Crystallization

MVR Evaporator for High-Salt Wastewater Evaporation and Crystallization

The MVR Evaporator for High-Salt Wastewater is an advanced industrial evaporation and crystallization solution designed for pharmaceutical factories and other industries that generate high-salt, high-TDS, and concentrated wastewater. By combining Mechanical Vapor Recompression (MVR) evaporation with controlled concentration and crystallization processes, the system can significantly reduce wastewater volume, recover water, concentrate dissolved salts, and support Zero Liquid Discharge (ZLD) treatment strategies.

Pharmaceutical manufacturing wastewater can contain high concentrations of inorganic salts, organic compounds, process residues, cleaning chemicals, and other dissolved substances. Depending on the manufacturing process, wastewater may also have elevated COD, high TDS, variable pH, corrosive components, or compounds that are difficult to treat through conventional biological processes.

When wastewater reaches a high concentration after pretreatment or membrane treatment, evaporation and crystallization can provide an effective advanced treatment stage.

Model NO.	GSRF	Handling method	physicochemical treatment
Usage	Cutting fluid wastewater, sodium sulfate wastewater, corn pulp wastewater, electroplating wastewater, pharmaceutical industry, fine chemical industry, non-ferrous metal industry, electronics industry, petrochemical industry, automotive industry	Trademark
Types	Package, Compact, Small, Mini	Applications	Industrial, Municipal, Domestic, Medical, Ship
Craft	Flocculation sedimentation method	Features	Water Clarification, Filtration, Purification
Service Life	20 Years	Operation	Automatic
Steel Plate Thickness	>8mm	Function	Remove Suspended solids
Voltage	220V/ 380V/ Customerized	Installation Type	Onground
Colour	Grey/Silver/Blue/Balck/Customerized	Use for	Mineral, Printing, Chemical, Dyeing, Starch
Material	Carbon Steel, Stain Steel, FRP, PE, PP	Certificate	SGS, ISO
Transport Package	Container Standard Packing	Specification	Carbon steel anti-corrosion
Production Capacity	5000 Sets/Year	Origin	China

MVR stands for Mechanical Vapor Recovery. MVR is a technology that reuses the energy generated by its own secondary steam to reduce the demand for external energy. This technology is applied in industries such as chemical, pharmaceutical, papermaking, sewage treatment, and seawater desalination.
The working process involves the compression of low-temperature steam by a compressor, which increases the temperature and pressure, increases the enthalpy, and then enters a heat exchanger for condensation to fully utilize the latent heat of the steam. Except for starting the car, only a small amount of steam is required during the entire evaporation process.
In the process of multi effect evaporation, the secondary steam of one effect of the evaporator cannot be directly used as the heat source of the main effect, but can only be used as the heat source of the secondary effect or several secondary effects. As a heat source for this effect, additional energy must be provided to increase its temperature (pressure). The steam jet pump can only compress a portion of the secondary steam, while the MVR evaporator can compress all the secondary steam in the evaporator The solution is circulated in a falling film evaporator through a material circulation pump in the heating tube. The initial steam is heated by fresh steam outside the tube, which heats and boils the solution to produce secondary steam. The generated secondary steam is sucked in by a turbocharged fan, and after being pressurized, the temperature of the secondary steam increases and enters the heating chamber as a heating source for circulating evaporation. After normal start-up, the turbo compressor sucks in secondary steam, which is then pressurized and converted into heated steam. This continuously circulates and evaporates, and the evaporated water is eventually discharged as condensed water.
Main principle:
Mechanical vapor recompression (MVR) evaporator utilizes the secondary steam generated in the evaporator, which is compressed by a compressor to increase pressure, temperature, and enthalpy. It is then sent to the heating chamber of the evaporator as heating steam, maintaining the boiling state of the feed liquid, while the heating steam itself condenses into water. In this way, the steam that was originally intended to be discarded is fully utilized, latent heat is recovered, and thermal efficiency is improved. The economy of steam production is equivalent to 20 effects of multi effect evaporation, reducing the demand for external heating and cooling resources, energy consumption, and pollution.

MVR Mechanical Vapor Recompression Technology

MVR, or Mechanical Vapor Recompression, is an energy-efficient evaporation technology that recycles secondary vapor generated during the evaporation process.

During operation, wastewater is heated and partially evaporated. The generated secondary vapor is compressed by a mechanical vapor compressor, increasing its pressure and temperature. The compressed vapor is then reused as a heating medium for the evaporation process.

This vapor recycling reduces the need for continuous external steam input compared with conventional evaporation technologies. It also allows the system to continuously reuse thermal energy within the evaporation cycle.

Actual energy consumption depends on wastewater characteristics, evaporation capacity, operating temperature, concentration ratio, boiling point elevation, and system configuration. Proper process engineering is essential for optimizing the overall performance.

High-Salt Wastewater Treatment

High-salt wastewater is particularly challenging because increasing dissolved solids can limit conventional biological treatment and create high osmotic pressure in membrane systems.

MVR evaporation provides a thermal separation process that removes water while retaining most non-volatile dissolved substances in the concentrated liquid.

As evaporation continues, the concentration of salts and other dissolved solids increases. Once the solution approaches the required concentration or saturation condition, the process can transition to crystallization or downstream solid-liquid separation.

This makes the MVR system suitable for wastewater streams where high TDS reduction and substantial volume reduction are required.

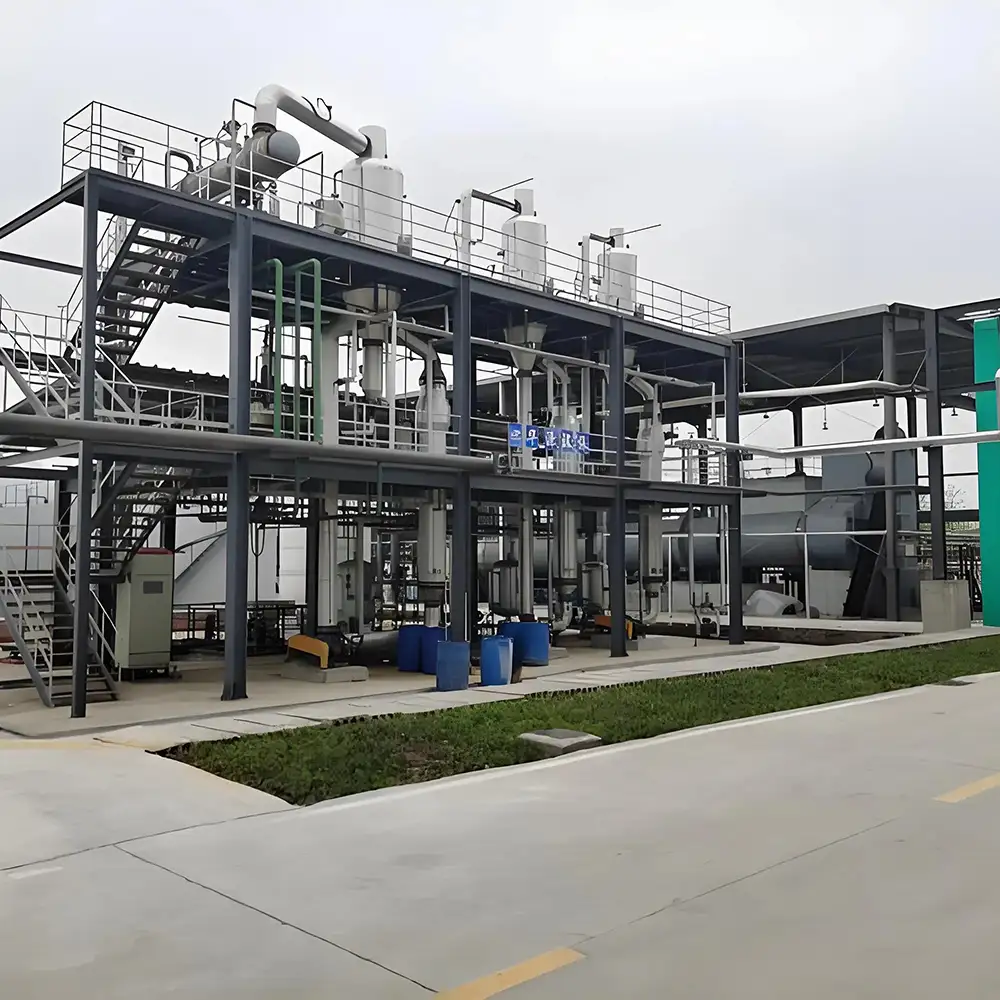

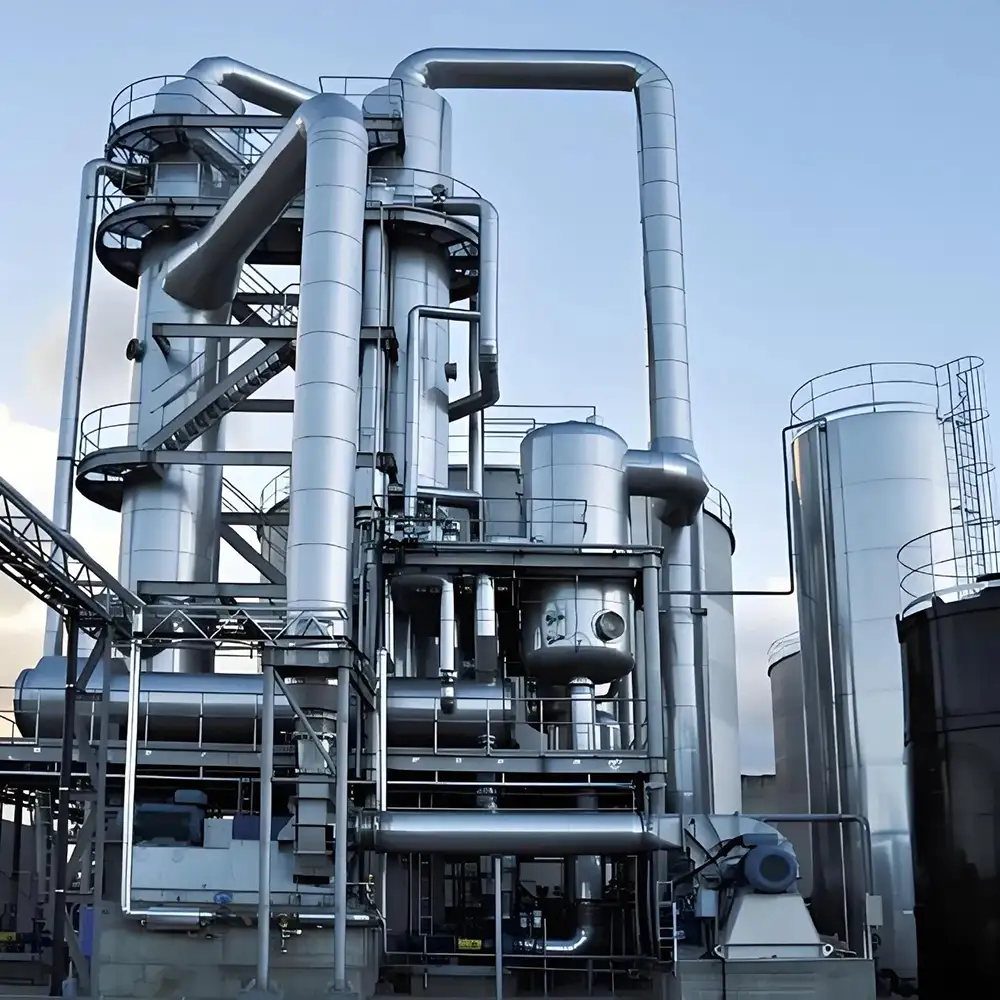

Pharmaceutical Factory Wastewater Treatment

Pharmaceutical factories generate wastewater from production processes, equipment cleaning, raw material handling, formulation, fermentation, extraction, and other operations.

The composition of pharmaceutical wastewater can vary significantly. It may contain inorganic salts, organic compounds, solvents, residual chemicals, active pharmaceutical ingredients, and cleaning agents.

An MVR evaporator can be used as part of an integrated pharmaceutical wastewater treatment system. Depending on wastewater characteristics, it can be installed after pretreatment, biological treatment, membrane concentration, or other treatment processes.

Before equipment selection, wastewater analysis should be performed to evaluate TDS, COD, chloride, sulfate, pH, viscosity, boiling point elevation, scaling tendency, foaming behavior, volatile compounds, and corrosiveness.

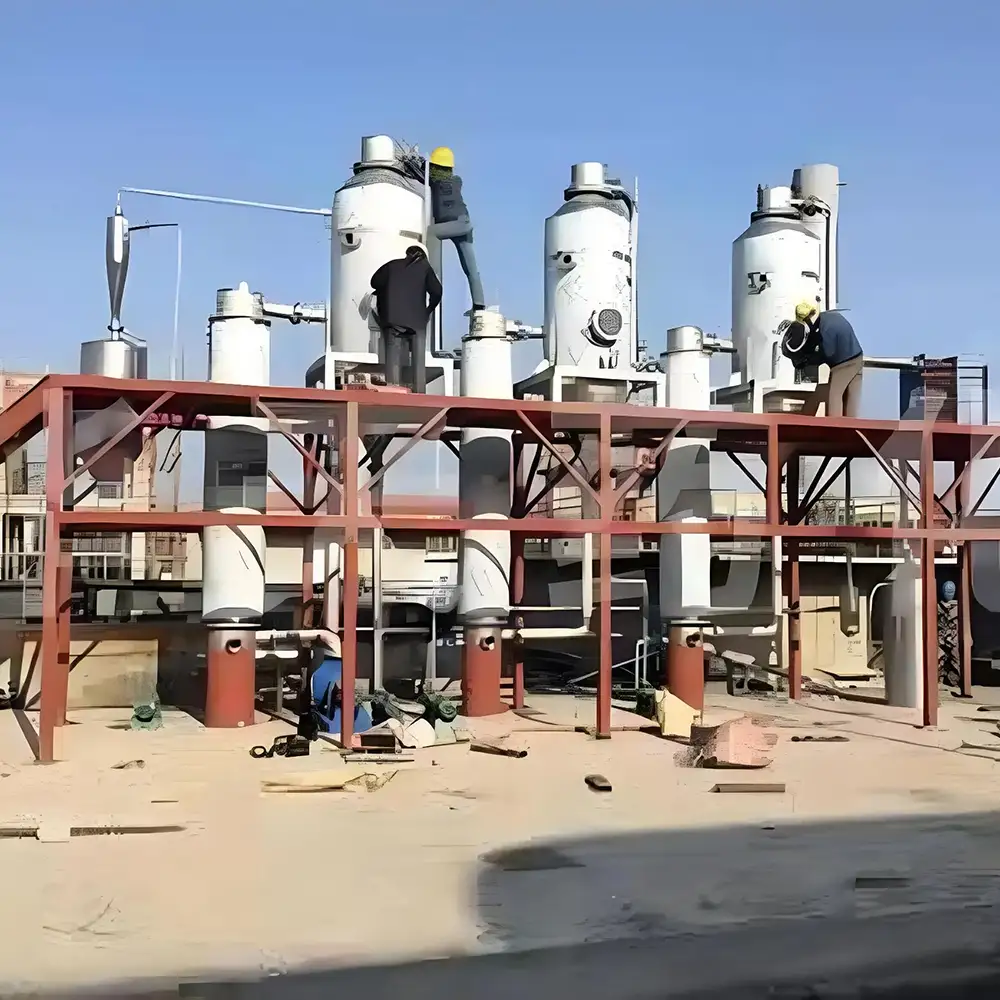

Evaporation and Crystallization Process

The combination of evaporation and crystallization is especially useful for high-salt wastewater.

During the evaporation stage, water is continuously removed as vapor and then condensed into recovered water. Dissolved salts remain in the concentrated solution.

As the concentration increases, certain salts may reach their solubility limits and begin forming crystals. A crystallization stage can then separate solid salts from the remaining liquid.

The exact crystallization behavior depends on wastewater chemistry, salt composition, concentration, temperature, residence time, and operating conditions. Process testing is recommended when precise salt recovery or crystallization performance is required.

Water Recovery

Water recovery is one of the primary objectives of industrial wastewater evaporation.

The water contained in the wastewater is converted into vapor during evaporation. The vapor is subsequently condensed to form a separate condensate stream.

Depending on condensate quality, the recovered water may be suitable for selected industrial reuse applications after additional treatment or polishing.

Potential reuse applications may include equipment washing, cooling systems, utility water, or selected production processes where the required quality standards can be achieved.

Recovering water can reduce freshwater consumption and decrease the amount of wastewater requiring final disposal.

Zero Liquid Discharge Applications

The MVR evaporator can serve as a core concentration unit in a Zero Liquid Discharge system.

A typical ZLD process may include pretreatment, filtration, biological treatment, RO or other membrane concentration, MVR evaporation, crystallization, filtration, and solid handling.

The membrane system can first recover a significant portion of water while concentrating the dissolved solids. The concentrated brine is then transferred to the MVR evaporator.

The MVR system further removes water and concentrates the brine. When the solution reaches the required saturation level, crystallization equipment can produce solid salts or other concentrated solids.

This integrated approach can minimize or eliminate liquid wastewater discharge while maximizing water recovery.

Vacuum Evaporation Operation

Vacuum operation can be incorporated into the evaporation system to lower the boiling temperature of the wastewater.

Operating under reduced pressure may be advantageous for certain pharmaceutical wastewater streams containing heat-sensitive or temperature-sensitive substances. It can also help maintain controlled evaporation conditions.

The vacuum system works together with the evaporator, compressor, condenser, circulation system, pumps, valves, sensors, and automatic control equipment.

Stable pressure and temperature control are important for maintaining consistent evaporation performance.

Automatic Process Control

The MVR evaporation crystallization system can be equipped with an automatic control system for continuous industrial operation.

Key operating parameters such as feed flow, temperature, pressure, vacuum level, liquid level, evaporation rate, compressor operation, condensate flow, and discharge conditions can be monitored.

Automated control can coordinate pumps, valves, compressor operation, heating systems, vacuum equipment, and discharge systems.

Alarm and monitoring functions can help operators identify abnormal conditions and maintain stable operation.

Scaling and Fouling Control

High-salt wastewater can create scaling risks as dissolved salts become concentrated during evaporation. Proper process design is therefore important.

Scaling control may involve suitable pretreatment, optimized circulation, temperature control, concentration management, cleaning procedures, and appropriate heat-transfer surface selection.

The actual scaling mechanism depends on the salt composition and wastewater chemistry. Common contributors can include calcium salts, sulfate compounds, silica, and other low-solubility substances.

Regular inspection and cleaning can help maintain heat-transfer performance and improve long-term operating reliability.

Flexible Industrial Configuration

The MVR evaporator can be configured according to wastewater flow rate, salt concentration, TDS, viscosity, density, COD, corrosiveness, scaling tendency, required evaporation capacity, and desired water recovery rate.

The system can operate as an independent evaporation unit or be integrated with RO, pretreatment, crystallization, filtration, and other wastewater treatment equipment.

Material selection can also be considered according to the chemical composition and corrosiveness of the wastewater.

Why Choose Us

Selecting an MVR evaporator for pharmaceutical high-salt wastewater requires more than choosing a standard evaporation capacity. The system must be designed around wastewater chemistry, evaporation requirements, energy utilization, scaling behavior, condensate quality, and final disposal or reuse objectives.

Our MVR evaporation and crystallization solutions focus on reliable industrial operation, efficient vapor recycling, flexible configuration, and integration with advanced wastewater treatment processes.

Key Advantages
MVR technology for efficient vapor recycling
Designed for high-salt and high-TDS wastewater
Suitable for pharmaceutical factory wastewater applications
Integrated evaporation and crystallization capabilities
Vacuum evaporation for controlled operation
Significant wastewater volume reduction
Water recovery through vapor condensation
Compatible with RO and membrane pretreatment
Suitable for Zero Liquid Discharge systems
Automatic process monitoring and control options
Flexible configuration for different wastewater characteristics
Support for downstream crystallization and solid separation

A properly engineered MVR evaporation crystallization system can help pharmaceutical factories reduce wastewater volume, recover water, concentrate salts, and improve overall wastewater management efficiency.

FAQs
1. What is an MVR evaporator?

An MVR evaporator uses mechanical vapor recompression to recycle secondary vapor as a heating source, improving thermal energy utilization and reducing the need for external steam.

2. Can an MVR evaporator treat high-salt wastewater?

Yes. MVR evaporation is particularly useful for concentrating high-salt and high-TDS wastewater while recovering water.

3. Is this system suitable for pharmaceutical factories?

Yes. It can be used for selected pharmaceutical wastewater streams after evaluating the specific wastewater composition and treatment requirements.

4. What is evaporation crystallization?

Evaporation removes water and concentrates dissolved substances. When the solution reaches suitable saturation conditions, dissolved salts can form crystals that can then be separated from the remaining liquid.

5. Can the system recover salt?

Potentially, yes. Salt recovery depends on the chemical composition of the wastewater, salt solubility, concentration, and crystallization conditions.

6. Can the MVR evaporator recover water?

Yes. Vapor generated during evaporation can be condensed into a separate condensate stream. The condensate can potentially be reused after quality evaluation and additional treatment when necessary.

7. Can this equipment be used for ZLD?

Yes. MVR evaporation and crystallization can form important stages of a complete ZLD system together with pretreatment, RO, filtration, and solid handling equipment.

8. How is scaling controlled in high-salt wastewater?

Scaling can be managed through wastewater pretreatment, optimized temperature and concentration control, adequate circulation, appropriate heat-transfer design, and regular cleaning.

9. Does pharmaceutical wastewater require pretreatment?

Depending on the wastewater characteristics, pretreatment may be necessary to remove suspended solids, oils, volatile compounds, or other substances that could affect evaporation performance.

10. How is MVR evaporation capacity determined?

Capacity depends on wastewater flow rate, inlet and outlet concentration, evaporation rate, TDS, salt composition, temperature, water recovery target, and operating conditions.

11. Can the MVR crystallization system be integrated with RO?

Yes. RO can be used upstream to recover water and concentrate the wastewater, while MVR evaporation and crystallization can further process the concentrated brine.
