Three-Roll Stainless Steel Plate Rolling Machine Bending Conveyor Roller Drums Includes Bending Services

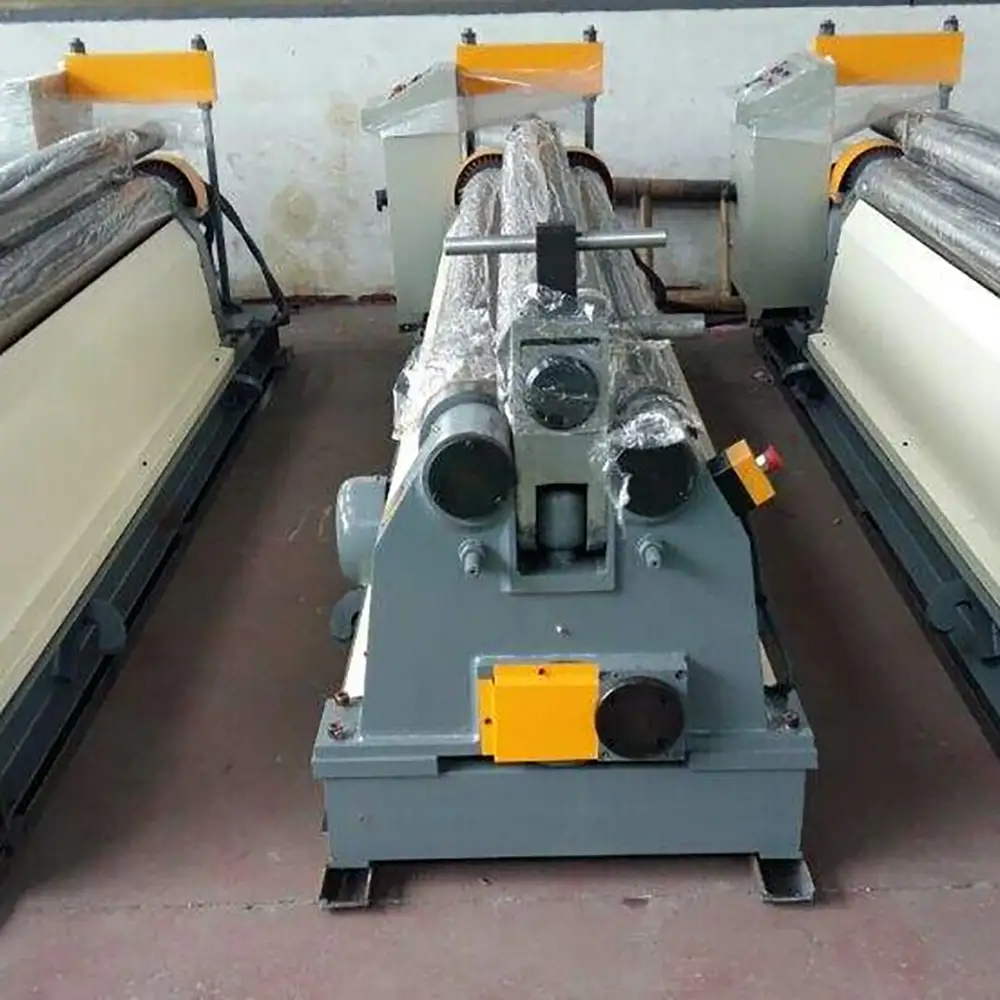

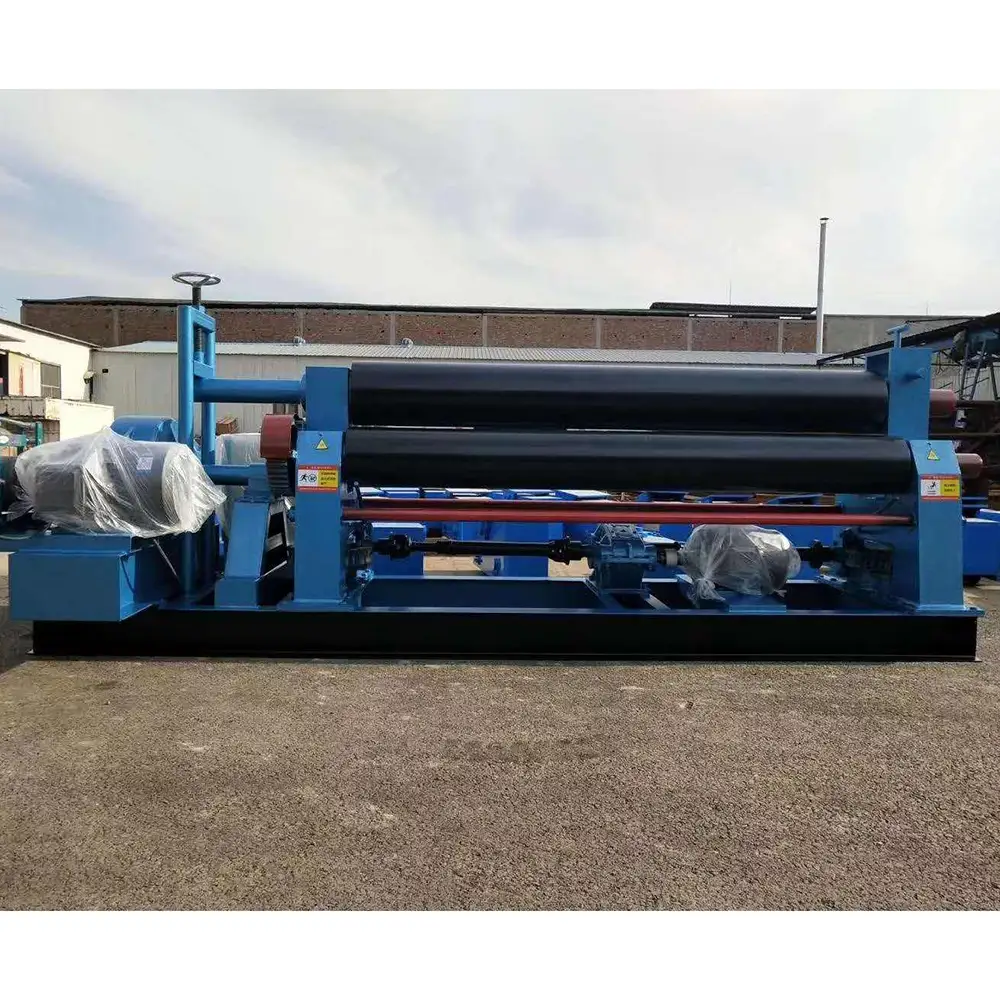

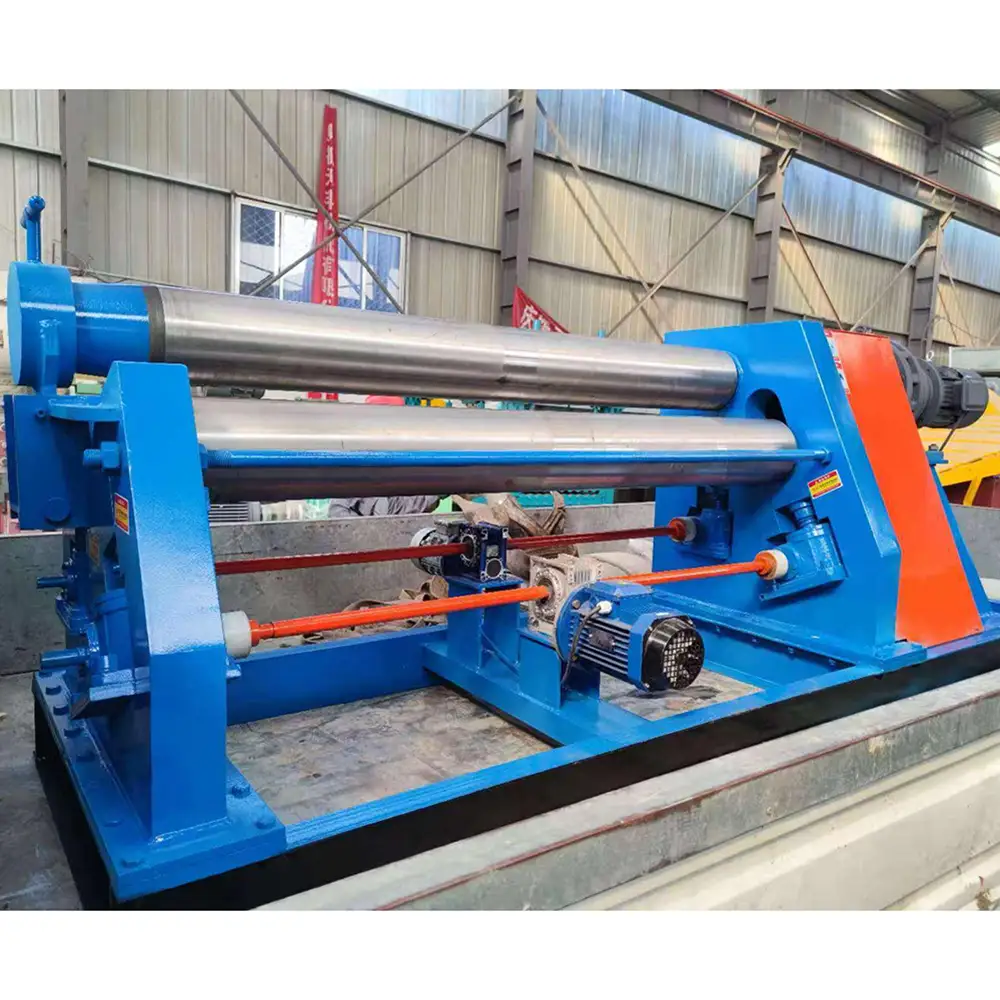

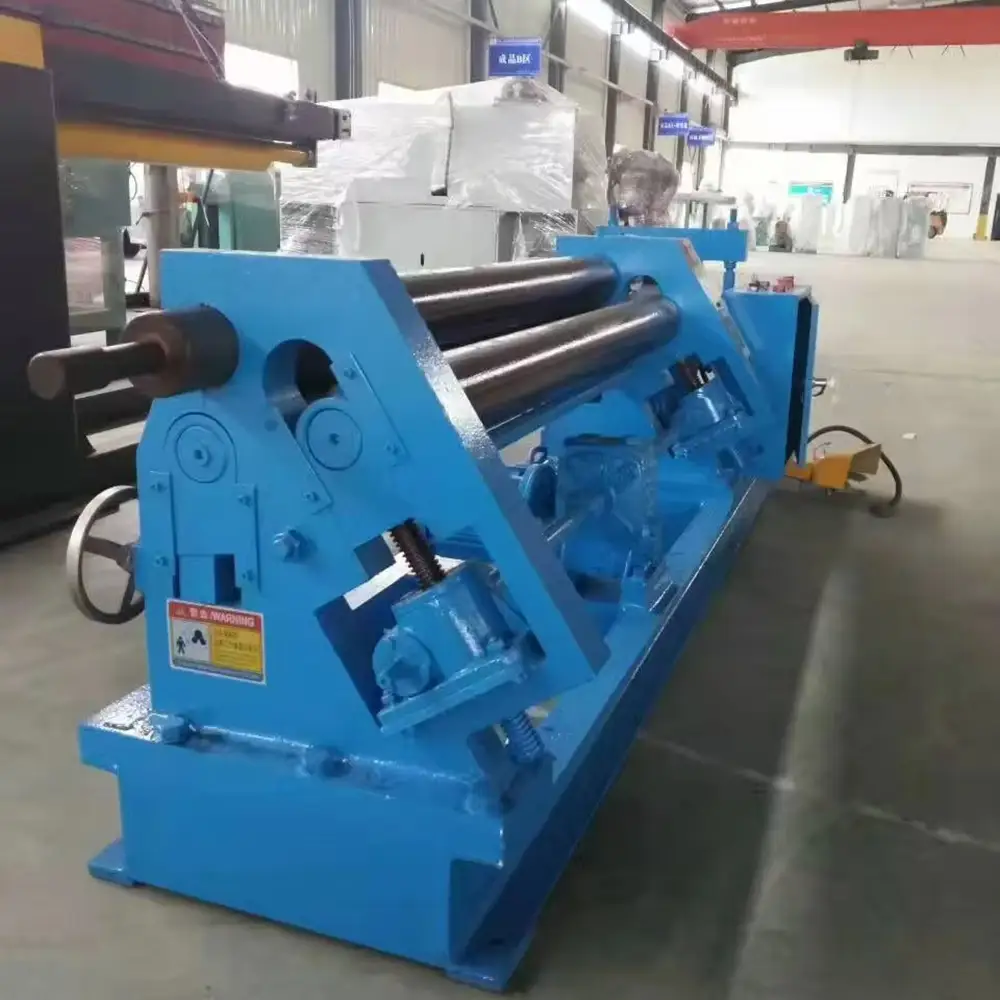

Three-Roll Plate Rolling Technology

The three-roll plate rolling machine uses an upper roll and two lower or side forming rolls to gradually shape the workpiece. Roller positioning and forming pressure are adjusted according to material thickness, plate width, material strength, and the desired rolling diameter.

The rolling process can be performed progressively to achieve a controlled cylindrical or curved profile. For applications requiring accurate roller drums, correct plate preparation, roller alignment, forming sequence, and dimensional inspection are important.

The actual rolling capacity depends on the machine configuration and material characteristics. Stainless steel, carbon steel, aluminum, and other metals may require different forming parameters because of differences in strength and springback.

Stainless Steel Plate Bending

Stainless steel is widely used for conveyor systems and industrial equipment because of its corrosion resistance, durability, and clean surface appearance. However, stainless steel can have different forming characteristics compared with mild steel.

The three-roll rolling process can be configured for suitable stainless steel grades and thicknesses. Appropriate forming pressure and rolling parameters help control springback and maintain the required cylindrical geometry.

For applications involving polished or decorative stainless steel, proper handling of the plate surface is also important to minimize scratches and other cosmetic damage during forming.

Conveyor Roller Drum Manufacturing

Conveyor roller drums are commonly used in material handling systems, belt conveyors, mining equipment, bulk material transportation, logistics systems, and industrial production lines.

The roller drum shell is typically formed from a flat metal plate and then welded into a cylindrical structure. After rolling, the workpiece may undergo longitudinal seam welding, machining, shaft installation, balancing, surface treatment, and final inspection.

The plate rolling machine provides the forming stage required to convert the flat plate into the cylindrical shell. Depending on the customer's production process, additional fabrication operations can be completed in-house or supplied as part of a custom manufacturing service.

Custom Roller Drum Bending Services

For customers that do not need to purchase a complete plate rolling machine, custom bending services provide an alternative solution. Customers can provide drawings, CAD files, material information, plate dimensions, roller diameter, and other technical requirements.

Based on the supplied information, the metal plate can be rolled to the requested cylindrical or curved geometry. Service capability depends on the available machine capacity, material, dimensions, and production requirements.

Custom bending can be useful for prototype development, replacement conveyor components, small-batch manufacturing, OEM production, and projects where purchasing dedicated forming equipment is not practical.

Suitable for Different Industrial Materials

Although this machine is especially suitable for stainless steel plate forming, it can also be configured for other formable materials. Common applications include carbon steel, mild steel, aluminum, and selected alloy materials.

Material strength has a direct influence on forming force and springback. Therefore, machine selection should be based on the actual material grade and thickness rather than relying only on nominal plate thickness.

For higher-strength materials, a machine with appropriate roller diameter, structural rigidity, forming force, and drive capacity may be required.

Conveyor and Industrial Applications

The machine and related bending services can support many industrial applications, including:

Conveyor roller drums

Conveyor belt components

Stainless steel rollers

Industrial roller shells

Material handling equipment

Mining conveyor components

Bulk material handling systems

Food processing equipment

Chemical equipment

Storage tanks

Cylindrical shells

Pipe and duct components

Custom metal fabrication

OEM roller components

The final application determines the required material, dimensions, surface finish, rolling diameter, and post-rolling processing.

Production Efficiency

Three-roll plate rolling technology provides a practical solution for manufacturers that need consistent cylindrical forming without relying entirely on manual fabrication methods.

For repeated production, properly established roller settings can help reduce setup variation. Operators can process similar plates using a repeatable forming sequence, improving workflow consistency.

Production efficiency also depends on plate loading, pre-bending requirements, rolling speed, welding capacity, material handling, inspection, and downstream machining. For high-volume conveyor roller production, the plate rolling machine can form part of a complete manufacturing line.

Precision and Quality Control

The dimensional accuracy of a finished roller drum depends on several factors, including plate thickness, material properties, plate cutting accuracy, roller alignment, machine rigidity, forming parameters, welding deformation, and post-processing.

For conveyor roller applications, dimensional inspection is particularly important because the cylindrical shell may need to interface with shafts, bearings, end plates, conveyor frames, or other components.

Depending on the project, inspection may include outside diameter measurement, roundness checks, plate thickness verification, weld inspection, surface inspection, and final dimensional verification.

Bending Services for OEM Projects

Custom bending services can support OEM buyers, distributors, engineering companies, fabricators, and conveyor equipment manufacturers.

Customers can submit technical drawings or project specifications for evaluation. The production process can then be organized around material selection, plate preparation, rolling, welding, finishing, and inspection as required.

OEM and custom production can be especially useful when customers require non-standard roller diameters, special materials, customized lengths, or specific surface finishes.

Safety and Maintenance

Plate rolling involves substantial mechanical force, so operators should receive appropriate training and follow the manufacturer's operating instructions. Depending on configuration, safety-oriented features may include emergency stop controls, protective devices, electrical protection, and controlled roller movement.

Routine maintenance should include inspection of rollers, bearings, drive components, lubrication systems, hydraulic components where applicable, and electrical systems. Keeping forming surfaces clean and properly maintained helps support stable rolling performance.

Why Choose Us?

Three-Roll Forming Technology – Designed for reliable cylindrical and curved plate forming across a wide range of industrial applications.

Stainless Steel Capability – Suitable for stainless steel plate rolling when the machine is correctly configured for the material grade and thickness.

Conveyor Roller Expertise – Designed for forming cylindrical shells used in conveyor roller drums and material handling equipment.

Custom Bending Services – Finished bending services are available for customers who need formed components rather than a complete machine.

OEM & Custom Production – Supports custom dimensions, materials, quantities, and production requirements.

Flexible Industrial Applications – Suitable for rollers, tanks, pipes, cylindrical shells, ducts, and general metal fabrication.

Quality-Focused Production – Forming, inspection, welding, finishing, and dimensional control can be organized according to project requirements.

B2B Export Support – We provide technical consultation, machine configuration, custom fabrication, OEM/ODM support, and international business services.

FAQs

1. What is a three-roll plate rolling machine?

A three-roll plate rolling machine is a metal forming machine that uses three rollers to gradually bend flat plates into cylindrical or curved shapes.

2. Can it roll stainless steel?

Yes. The machine can be configured for suitable stainless steel grades and thicknesses. The required capacity depends on material strength, plate dimensions, and target diameter.

3. Can it manufacture conveyor roller drums?

Yes. It can form the cylindrical shell used for conveyor roller drums. Additional operations such as seam welding, machining, shaft installation, and balancing may follow the rolling process.

4. Do you provide conveyor roller bending services?

Yes. Custom bending services can be provided depending on material, dimensions, quantity, machine capacity, and project requirements.

5. What information is required for a bending service quotation?

Typically, customers should provide material grade, plate thickness, plate width and length, finished roller diameter, component length, quantity, drawings if available, and any surface or dimensional requirements.

6. Can you bend polished stainless steel?

Yes, depending on the material and project requirements. Surface protection and appropriate handling procedures may be required to minimize cosmetic damage during forming.

7. What materials can the machine roll?

Depending on configuration, the machine can process stainless steel, carbon steel, mild steel, aluminum, and other suitable formable metals.

8. Can it make different roller diameters?

Yes. The achievable diameter range depends on roller dimensions, machine design, plate thickness, material properties, and forming requirements.

9. Does rolling include welding?

Rolling itself forms the plate into a cylindrical shape. Welding is a separate operation and can be performed after rolling when a closed roller shell is required.

10. Can the machine be customized?

Yes. Working width, forming capacity, roller diameter, drive configuration, controls, and other machine specifications can be selected according to customer requirements.

11. Is this machine suitable for mass production?

It can be used for repeated industrial production, provided that the machine capacity and production workflow match the required output. Additional material handling and welding equipment may be integrated for higher-volume manufacturing.

12. How do I choose the correct machine?

Provide the material type, material thickness, maximum plate width, required roller diameter range, production volume, and whether the application involves cylindrical or special curved forming. These details allow the appropriate machine configuration to be determined.
