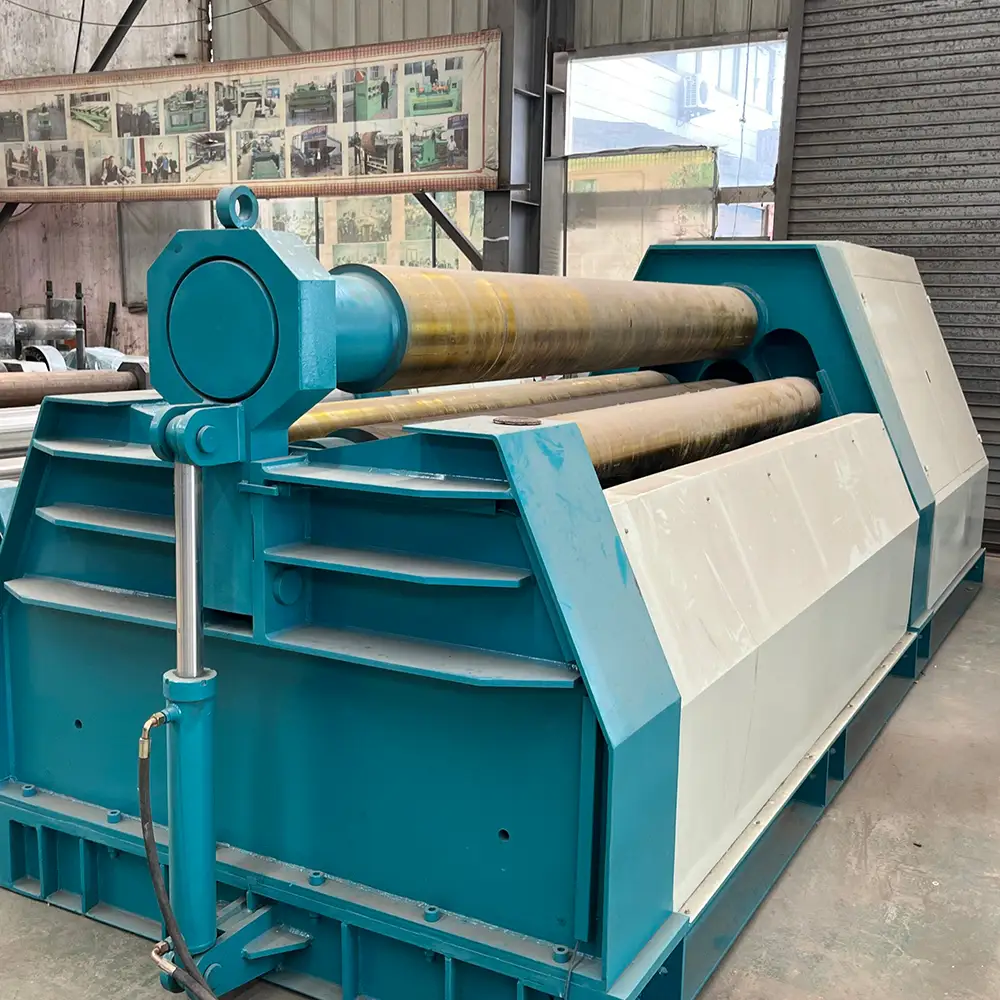

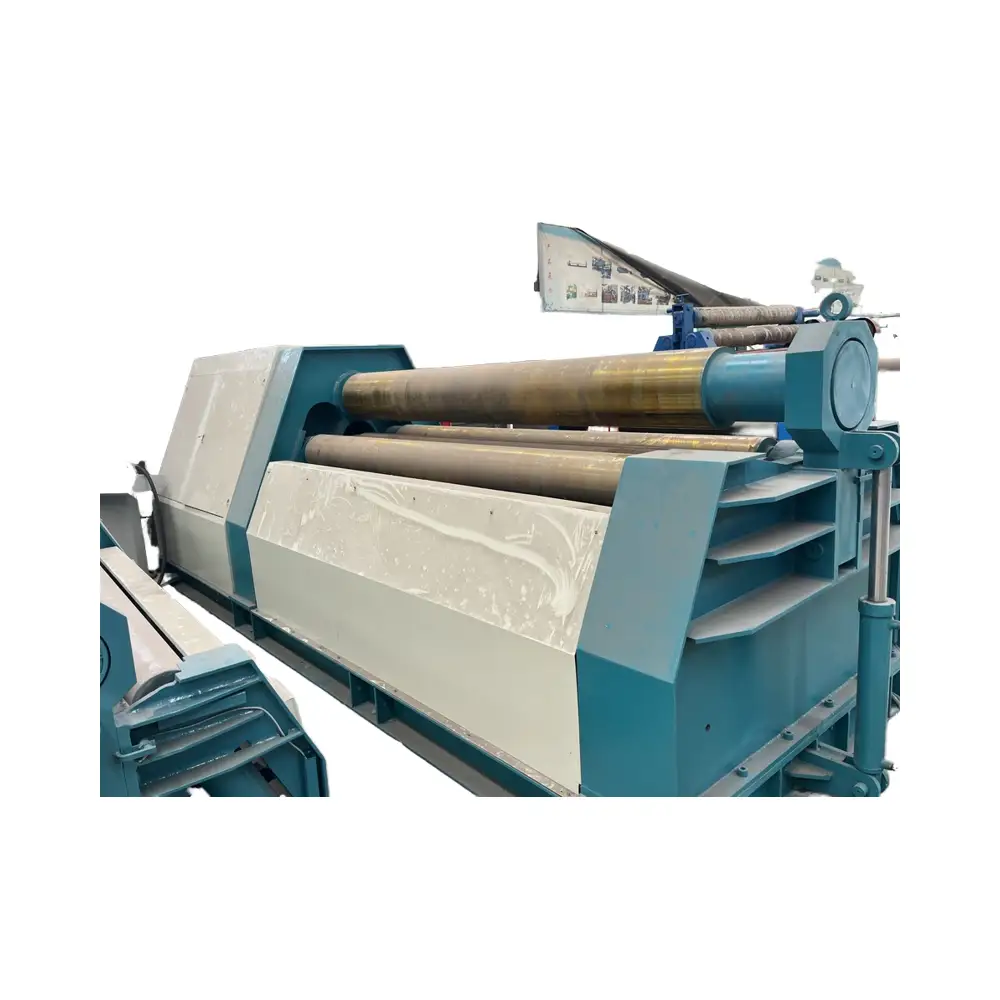

4 Rolls Plate Auto Iron Cnc Cone Rolled Steel Machine Cold Automatic Hydraulic Rolling Machines

 The 4-Roll CNC Hydraulic Plate Rolling Machine is an advanced metal forming solution designed for efficient and repeatable rolling of iron, carbon steel, stainless steel, and other formable metal plates. Combining four-roll forming technology, CNC control, and hydraulic adjustment, this automatic plate rolling machine is suitable for producing cylindrical shells, cones, curved sections, tanks, pipes, and other fabricated metal components.

Four-roll plate rolling technology provides controlled positioning of the workpiece during the forming process. Compared with conventional manual rolling equipment, a CNC hydraulic configuration can simplify setup, improve repeatability, and provide more consistent results for production environments. The machine can be configured for different plate thicknesses, working widths, materials, and target diameters according to customer requirements.

4-Roll Plate Rolling Technology

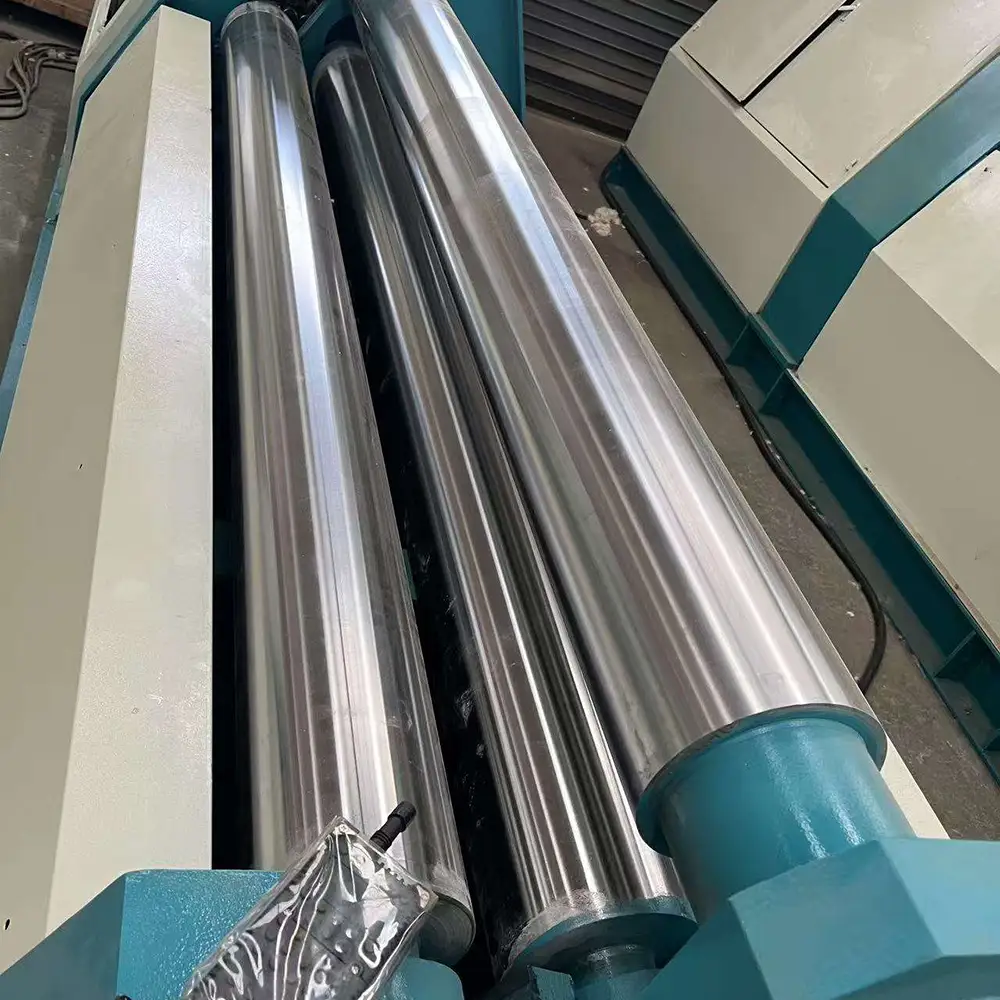

The four-roll configuration uses an upper roll, lower roll, and side rolls to control the position and forming of the metal plate. The plate can be clamped and positioned more effectively during the rolling operation, helping reduce unnecessary repositioning and improve production efficiency.

The hydraulic system controls the movement of the forming components, while the CNC system coordinates machine operation according to programmed or selected parameters. This combination makes the machine suitable for both cylindrical and specialized curved forming applications.

Actual forming capacity and finished geometry depend on material grade, plate thickness, plate width, tensile strength, roller dimensions, target diameter, and machine configuration.

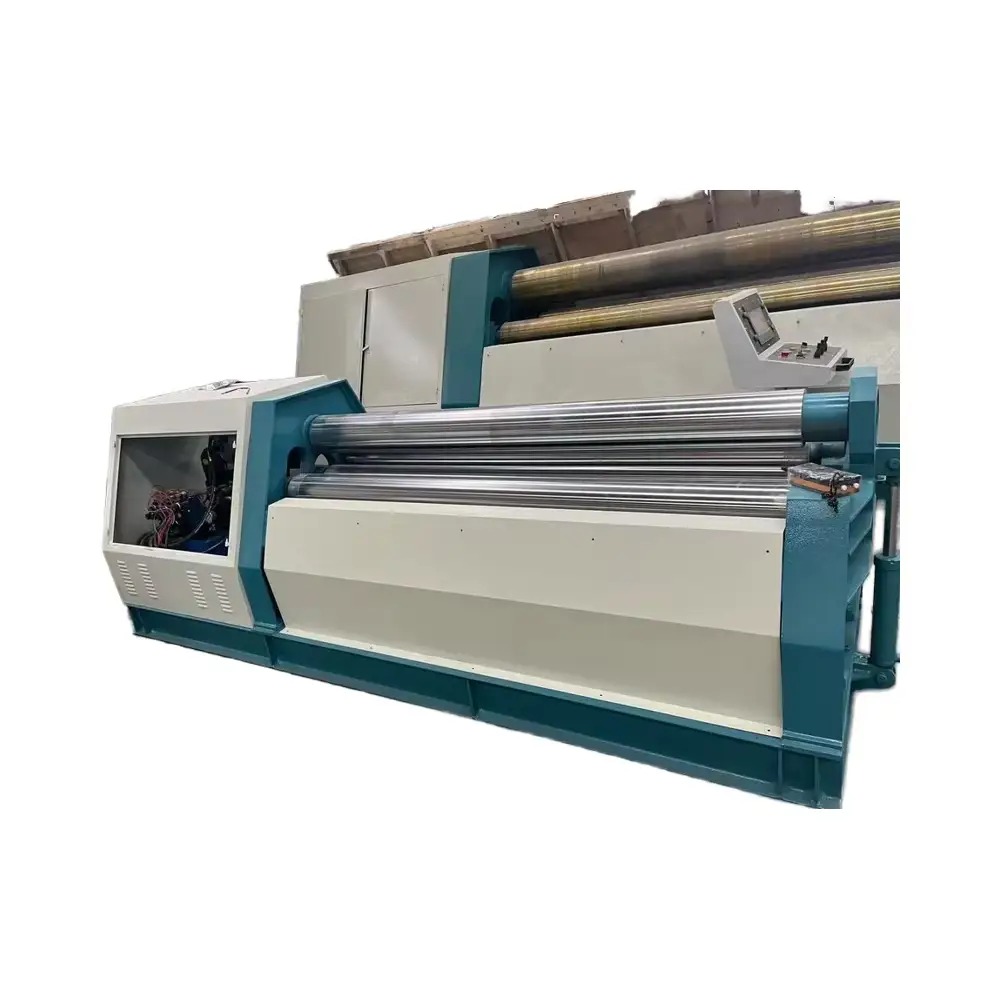

CNC Cone Rolling Capability

One important application of this machine is cone rolling. Conical workpieces require different forming behavior across the width of the plate because the inside and outside edges follow different circumferences.

A properly configured CNC four-roll machine can coordinate roller movement to support controlled cone forming. This makes it suitable for manufacturing conical shells, reducers, hoppers, transition sections, funnels, duct components, and other tapered metal structures.

Cone rolling parameters should be established according to the required cone angle, large and small diameters, plate thickness, material characteristics, and machine capacity. Proper plate preparation and alignment are also important for achieving consistent results.

Hydraulic Rolling for Heavy-Duty Fabrication

The hydraulic system provides controlled roller positioning and forming force for industrial plate rolling applications. Hydraulic operation is particularly useful when processing heavier plates or materials that require substantial forming force.

Depending on the machine configuration, hydraulic controls can be used for roller adjustment, clamping, lifting, and other forming movements. The system should be selected according to the required material thickness and production workload.

For heavy-duty applications, machine selection should consider not only nominal maximum thickness but also material strength and minimum rolling diameter. A machine rated for a specific thickness in mild steel may have a lower effective capacity when processing higher-strength materials.

Automatic Steel and Iron Plate Forming

The machine can process various steel and iron-based materials when configured within the appropriate capacity. Common applications include carbon steel plate, stainless steel plate, and other formable metals.

Automatic CNC operation helps reduce repetitive manual adjustment during production. Once the appropriate rolling parameters have been established and verified, similar workpieces can be processed using a more consistent forming sequence.

Automation does not mean that every production process is completely unmanned. Operators still need to monitor material loading, machine conditions, workpiece alignment, forming parameters, and final dimensions.

Cold Plate Rolling Applications

Cold rolling and cold forming of plate materials are widely used in metal fabrication because the material can be formed without heating the entire workpiece. The actual suitability of cold rolling depends on the material grade, thickness, forming radius, required deformation, and machine capacity.

This four-roll hydraulic machine can be used for cold forming applications involving cylindrical and conical metal components. Proper process parameters help control deformation and springback, especially when working with stainless steel or higher-strength materials.

Wide Industrial Applications

The 4-roll CNC hydraulic plate rolling machine can be used in many manufacturing sectors, including:

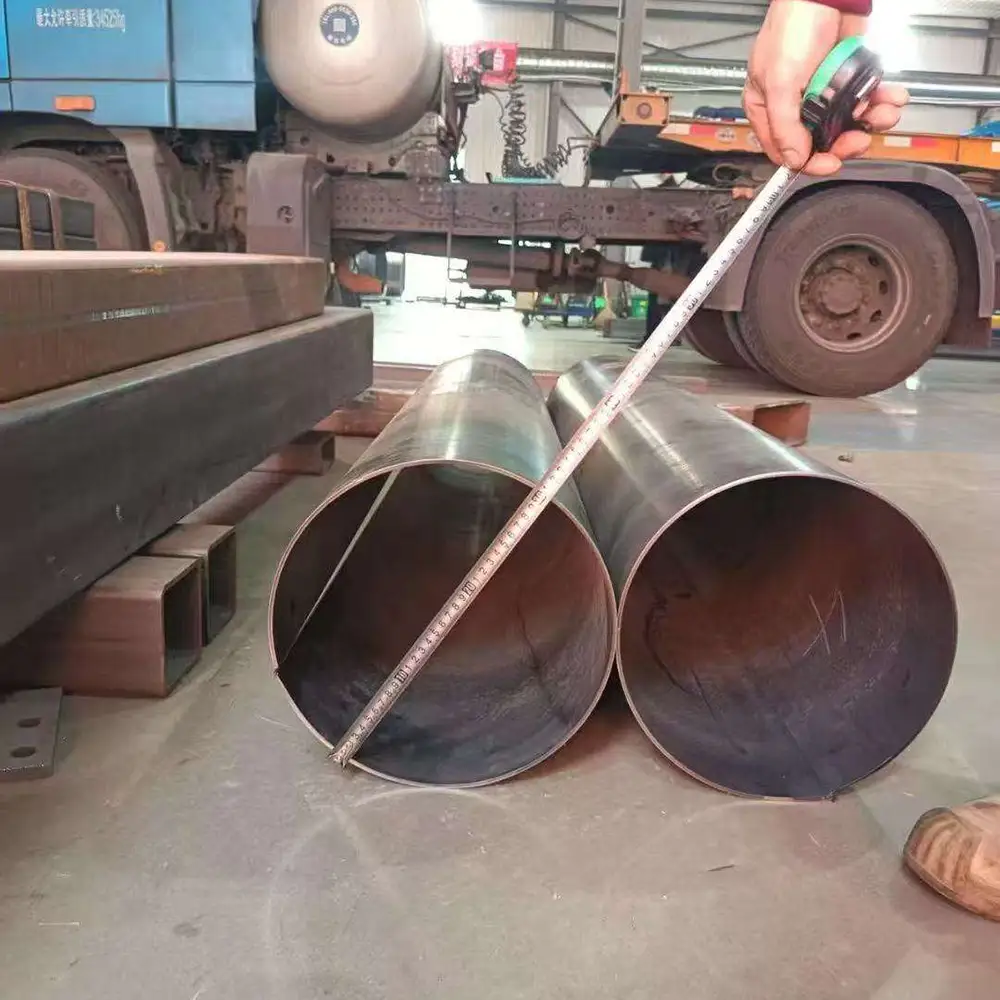

Steel cylinder production

Storage tank manufacturing

Pressure vessel fabrication

Industrial tank production

Pipe and duct fabrication

Conical hopper manufacturing

Reducer and transition section production

HVAC duct forming

Chemical equipment manufacturing

Petroleum and energy equipment

Boiler components

Wind tower fabrication

General steel fabrication

Custom metal forming

After rolling, workpieces can proceed to welding, grinding, machining, inspection, coating, or assembly depending on the final product.

CNC Control and Production Efficiency

CNC control provides a structured method for managing roller movement and forming parameters. For repetitive production, this can help reduce setup variation and improve consistency between workpieces.

The operator can establish suitable parameters according to the plate dimensions, material properties, target diameter, and forming sequence. The control system can then assist with repeat production after the process has been verified.

For manufacturers producing multiple cylinders or cones with similar dimensions, repeatable CNC operation can reduce unnecessary adjustment and support a more efficient workflow.

Precision and Finished Quality

Achieving accurate cylindrical or conical components depends on several factors, including plate flatness, cutting accuracy, material springback, roller alignment, forming sequence, tooling condition, and machine rigidity.

The four-roll design provides controlled plate positioning during forming, while CNC and hydraulic systems provide coordinated machine movement. For applications requiring close dimensional tolerances, the rolling process should be followed by appropriate dimensional inspection and correction procedures.

Safety-Oriented Hydraulic Design

Plate rolling involves significant mechanical forces, so safe operation is essential. Depending on the configuration, the machine may include emergency stop controls, protective devices, hydraulic safeguards, controlled roller movement, and electrical protection.

Operators should be trained before using the machine and should follow the manufacturer's operating instructions and applicable local workplace safety requirements. Proper procedures should be established for loading, positioning, rolling, unloading, maintenance, and emergency operation.

Maintenance and Long-Term Operation

Regular maintenance helps maintain stable rolling performance and extend machine service life. Hydraulic oil, seals, lubrication points, electrical components, roller surfaces, bearings, and mechanical connections should be inspected according to the manufacturer's maintenance schedule.

Keeping the rollers clean and properly aligned is particularly important for consistent forming quality. Any abnormal vibration, hydraulic leakage, unusual noise, or unexpected movement should be investigated before continuing production.

Why Choose Us?

4-Roll CNC Technology – Four-roll forming provides controlled plate positioning and efficient cylindrical and cone rolling.

Hydraulic Forming System – Hydraulic roller movement provides controlled forming force for demanding metal fabrication applications.

CNC Precision Control – Programmable operation helps improve repeatability for similar production jobs.

Cone Rolling Capability – Suitable for tapered shells, reducers, hoppers, transition sections, and other conical components.

Steel and Iron Processing – Designed for carbon steel, stainless steel, and other suitable metal plates according to machine configuration.

Automatic Production Support – Reduces repetitive manual roller adjustment and helps streamline production workflows.

Industrial Applications – Suitable for tanks, cylinders, pressure vessel components, ducts, pipes, and general metal fabrication.

OEM & Custom Solutions – We provide machine configuration, OEM/ODM support, technical consultation, and B2B export services based on customer requirements.

FAQs

1. What is a 4-roll plate rolling machine?

A 4-roll plate rolling machine uses four forming rolls to control and bend metal plates into cylindrical, conical, and other curved shapes. CNC and hydraulic systems can provide coordinated control of the rolling process.

2. Can this machine roll steel cones?

Yes. With the appropriate CNC configuration and forming parameters, the machine can be used to produce conical steel shells, reducers, hoppers, funnels, and other tapered components.

3. What materials can it process?

Depending on the machine configuration, it can process carbon steel, iron-based materials, stainless steel, and other formable metal plates.

4. What is the advantage of four-roll technology?

Four-roll technology provides improved plate positioning and clamping during forming. It can also simplify certain pre-bending and rolling operations compared with some conventional three-roll systems.

5. Is this a cold rolling machine?

It can be used for cold plate forming applications when the material, thickness, diameter, and required deformation are within the machine's rated capacity.

6. Is the machine fully automatic?

The CNC and hydraulic systems can automate many roller movements and forming operations, but actual automation level depends on the machine configuration and production process. Operator supervision is still required.

7. Can it roll stainless steel?

Yes, when the machine is properly configured for the required stainless steel grade and thickness. Stainless steel may require different forming parameters because of its strength and springback.

8. Can it produce cylinders and cones?

Yes. The machine can be configured for both cylindrical and conical rolling applications, subject to the specified machine capacity and forming requirements.

9. What information is needed to select the right machine?

Important information includes material type and grade, maximum plate thickness, maximum plate width, minimum and maximum rolling diameter, cone dimensions if applicable, production volume, and required automation level.

10. Can the machine be customized?

Yes. Working width, rolling capacity, roller dimensions, hydraulic system, CNC control, electrical components, and other specifications can be customized according to production requirements.

11. What industries use four-roll plate rollers?

Typical industries include pressure vessels, tanks, steel fabrication, petroleum equipment, chemical machinery, HVAC, energy equipment, pipe fabrication, and general industrial manufacturing.

12. How can rolling accuracy be maintained?

Correct material preparation, accurate plate cutting, proper roller alignment, suitable forming parameters, regular maintenance, and dimensional inspection all contribute to consistent rolling quality.
