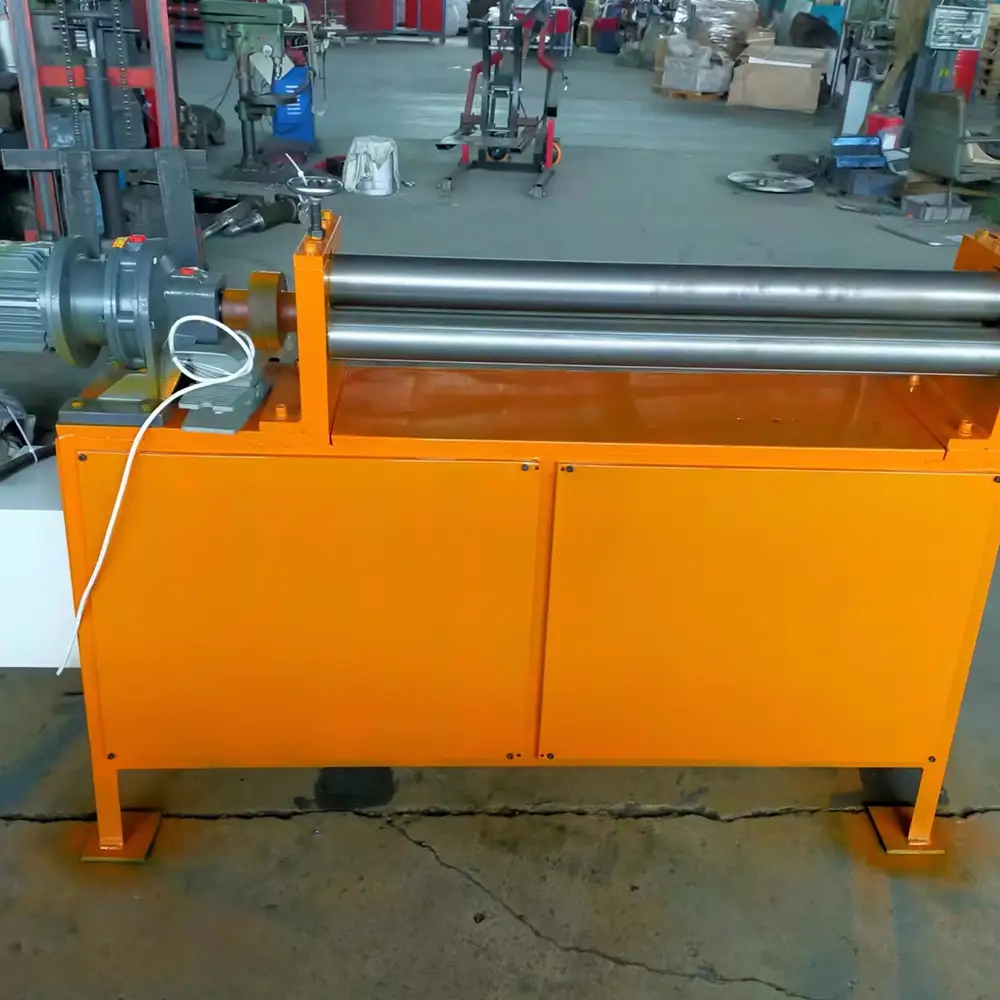

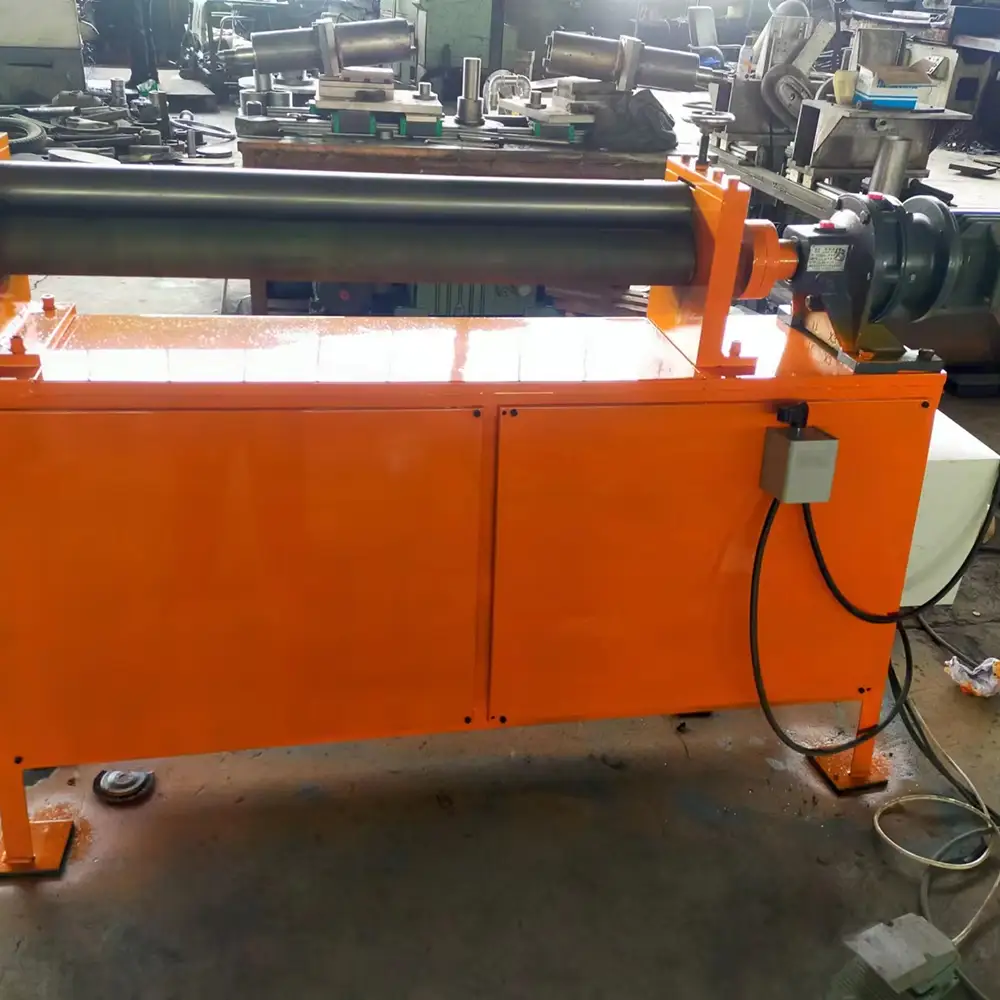

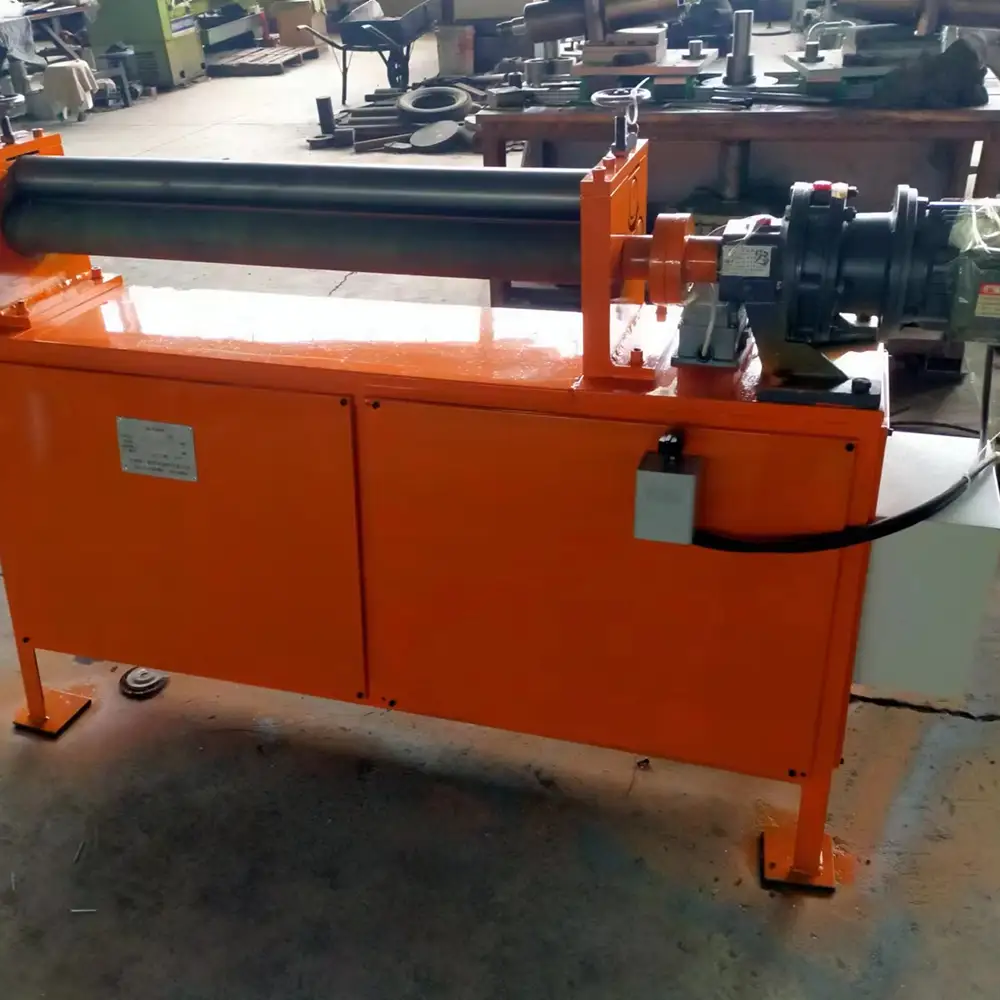

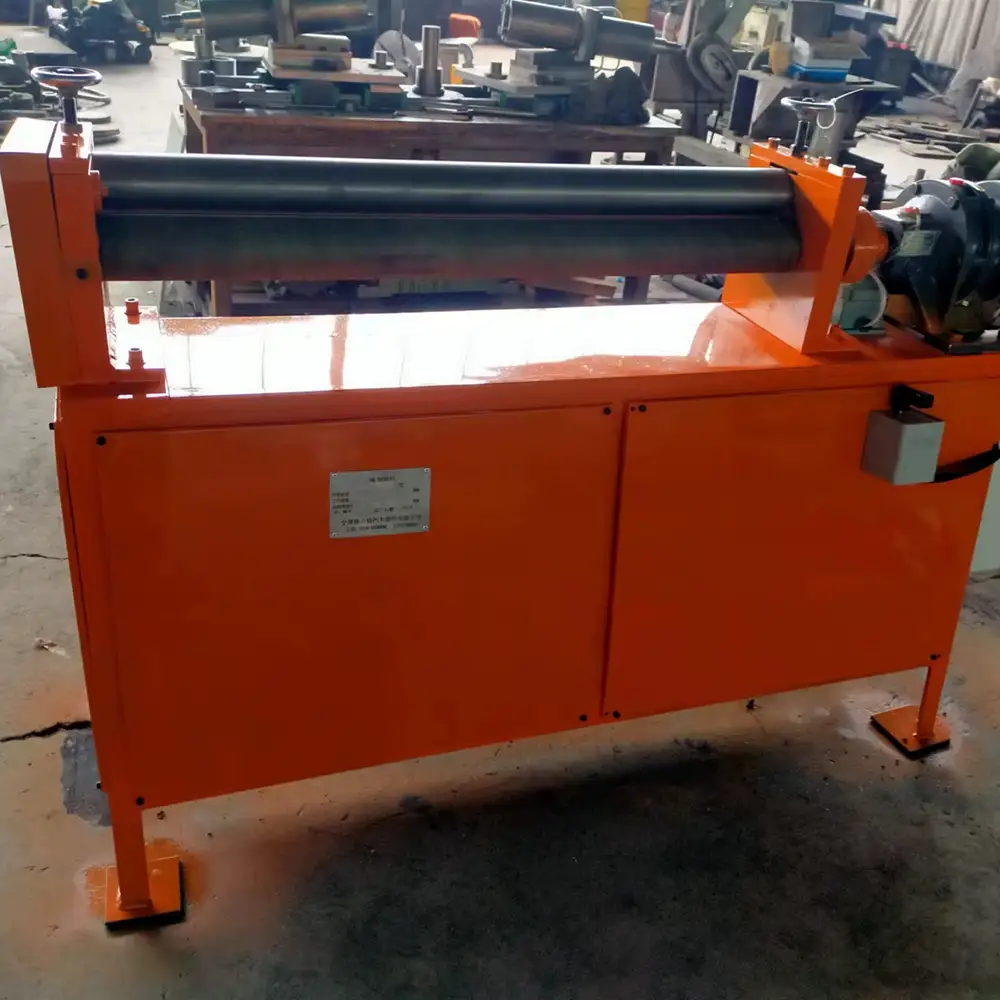

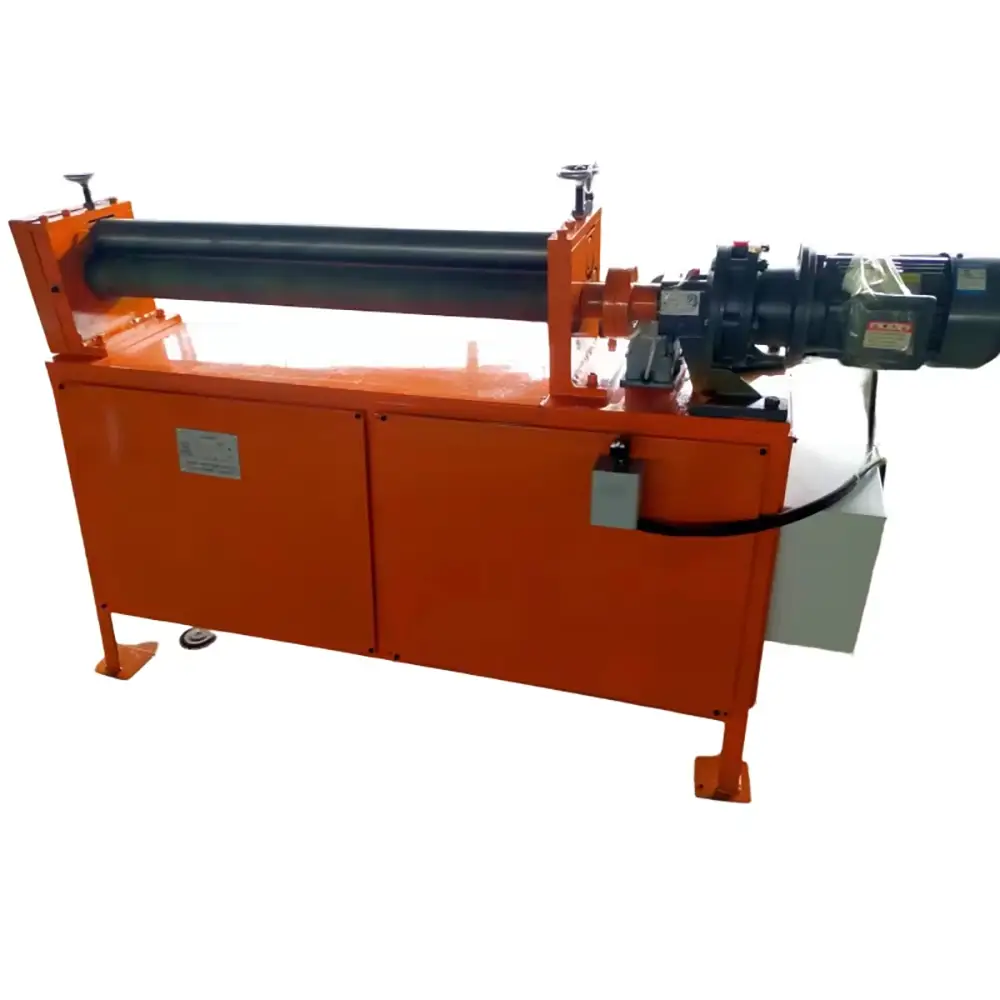

3 Rolls Automatic CNC Cone Rolling Machine for Iron & Stainless Steel High Safety Equipment for Exhaust Production Line

Overall dimensions: 1700*600*1200mm
The equipment features a compact structure. The frame is integrally welded with 50*50 angle iron, free from welding defects such as incomplete penetration or slag inclusion.
The worktable plate thickness is 20 mm, and the wall plate thickness is 30 mm. Both have undergone stress relief treatment to eliminate residual internal stress, ensuring sufficient strength and stability of the equipment.
Roller material: 45# carbon steel, quenched and tempered to guarantee the strength and toughness of the roller shafts.
Roller specifications: diameter 70 mm, length L≥750 mm; quantity: 3 pieces, all identical. 1.2 The equipment operates smoothly without abnormal noise.

The 3 Rolls Automatic CNC Cone Rolling Machine for Iron & Stainless Steel is a specialized metal forming solution designed for producing conical and tapered components from sheet metal. With a three-roll configuration and CNC-controlled operation, the machine is suitable for manufacturers that require repeatable cone rolling for exhaust components, ducts, pipes, hoppers, transition sections, and other tapered metal products.

Cone rolling is more demanding than conventional cylindrical rolling because the workpiece must be formed with different circumferential speeds across its width. Proper roller geometry, workpiece positioning, machine adjustment, and forming parameters are important for achieving the required conical shape.

This machine is designed to support automated and repeatable cone-forming processes while helping manufacturers organize production more efficiently. It can be configured for suitable iron, carbon steel, stainless steel, and other compatible sheet materials according to machine capacity.

The actual rolling thickness, width, minimum cone diameter, maximum cone diameter, cone angle, and production speed depend on the specific machine model, material properties, tooling, and CNC configuration.

Three-Roll Cone Forming Technology

The three-roll configuration provides controlled forming through multiple rollers. The sheet is positioned between the rolls and progressively formed into a tapered or conical shape.

Compared with conventional manual cone forming, CNC-controlled operation can help standardize important production parameters. This is particularly useful when manufacturers need to produce repeated batches of exhaust cones or other tapered components.

The forming process may include pre-bending, rolling, adjustment, and final shaping depending on the workpiece design and machine configuration.

Automatic CNC Control

The CNC system is designed to simplify parameter management and improve repeatability between production cycles. Depending on the configuration, operators can set relevant rolling parameters according to the workpiece dimensions and production requirements.

CNC control can help reduce manual adjustment during repetitive production and make it easier to reproduce established processing parameters.

However, actual dimensional accuracy depends on the machine structure, CNC system, material characteristics, tooling, workpiece preparation, and operator setup. For demanding applications, sample testing with the actual material is recommended.

Designed for Iron and Stainless Steel

The machine can be configured for processing suitable iron-based and steel sheet materials, including carbon steel and stainless steel.

Iron and carbon steel are widely used for exhaust components, industrial ducts, structural cones, and general fabricated parts. Stainless steel is commonly selected for applications where corrosion resistance, heat resistance, appearance, or long-term durability is important.

Stainless steel generally requires different forming parameters from mild steel because of its higher strength and springback characteristics. Machine capacity should therefore be selected according to the actual stainless steel grade and sheet thickness.

For special alloys or high-strength materials, technical evaluation should be completed before production.

Exhaust Production Line Applications

One important application of the machine is cone forming for exhaust manufacturing.

Exhaust systems may contain tapered transition sections, cones, reducers, collectors, adapters, and other components that connect pipes or sections with different diameters. These parts require consistent forming geometry to support downstream welding and assembly.

The cone rolling machine can be used as part of an exhaust production workflow such as:

Sheet Cutting → Edge Preparation → Cone Rolling → Seam Welding → Grinding → Inspection → Assembly

The exact production sequence depends on the exhaust component design and factory process.

For exhaust manufacturing, accurate cone geometry can help simplify subsequent welding, fitting, and assembly operations.

Other Applications

Beyond exhaust production, the machine can be used for a wide range of tapered metal components, including:

Exhaust Cones

Exhaust Reducers

Conical Ducts

Transition Sections

Metal Hoppers

Industrial Funnels

Conical Tanks

Ventilation Components

Dust Collection Components

Chimney Components

Pressure Vessel Components

Custom Tapered Metal Parts

The machine's suitability depends on material dimensions, cone geometry, forming capacity, and required tolerances.

High-Safety Production Design

The phrase high safety equipment in the product description refers to a machine designed with safety-oriented operating features and production procedures rather than an automatic guarantee of compliance with every country's regulations.

Depending on the configuration, safety-related features may include emergency stop functions, protective guards, controlled operating procedures, electrical protection, and operator controls.

Manufacturers should operate the equipment according to the supplied manual and applicable workplace regulations. Safety features and certifications vary by machine configuration and destination market.

Operators should keep hands, clothing, and other objects away from moving rolls and forming areas. Proper training and personal protective equipment should be used according to the application.

Production Efficiency

Automatic CNC cone rolling can help improve efficiency in repetitive production because operators can establish standard processing parameters for commonly manufactured components.

Compared with repeated manual forming, controlled rolling can help reduce variation and simplify production management. This can be particularly useful when manufacturing large quantities of similar exhaust components.

Actual cycle time depends on sheet dimensions, material thickness, cone geometry, loading method, CNC settings, operator workflow, and production requirements.

Material Preparation and Edge Quality

The quality of the initial sheet blank is important for cone rolling. Accurate blank dimensions and appropriate edge preparation can help improve the final cone geometry.

Before rolling, manufacturers should ensure that the sheet is free from excessive deformation and that the blank matches the required development dimensions.

For stainless steel, protecting the surface from unnecessary scratching or contamination may also be important when appearance and corrosion resistance are critical.

Machine Capacity and Customization

Different cone products require different machine capacities. When selecting equipment, buyers should consider:

Maximum Rolling Width

Maximum Rolling Thickness

Minimum Cone Diameter

Maximum Cone Diameter

Cone Angle

Material Grade

Material Yield Strength

Production Volume

CNC Control Requirements

Exhaust Component Dimensions

Providing detailed drawings is especially helpful for cone rolling projects because the required cone angle, small-end diameter, large-end diameter, material thickness, and blank dimensions directly affect machine selection.

Customized machine configurations may be available according to production requirements.

Quality Control

Consistent cone rolling requires control of both machine parameters and workpiece preparation. Production inspection may include checking cone diameter, cone angle, seam alignment, roundness, edge position, and overall dimensions.

For exhaust components, dimensional inspection is particularly useful because the rolled cone may later need to connect with pipes, mufflers, catalytic components, flanges, or other assemblies.

Manufacturers can establish inspection procedures based on the required product drawings and production tolerances.

Maintenance

Routine maintenance helps maintain stable machine performance. Operators should inspect rollers, bearings, drive components, hydraulic or mechanical systems where applicable, electrical connections, CNC controls, fasteners, and protective devices.

Roll surfaces should be kept clean and free from material buildup. Lubrication should be performed according to the manufacturer's instructions.

CNC parameters and electrical components should be maintained by qualified personnel when required. Preventive maintenance can help reduce unexpected downtime and support long-term production reliability.

OEM and B2B Manufacturing Support

For exhaust manufacturers and industrial fabricators, machine selection should be based on the actual products being produced rather than general machine specifications.

OEM and customized configurations can be discussed according to material, cone dimensions, production volume, automation requirements, CNC functions, and factory workflow.

Customers can provide product drawings, material specifications, photographs, or sample components for technical evaluation.

The 3 Rolls Automatic CNC Cone Rolling Machine for Iron & Stainless Steel provides a specialized solution for tapered sheet metal forming. With three-roll forming technology, CNC control, and applications in exhaust manufacturing, ducts, reducers, hoppers, and other conical components, it is suitable for industrial manufacturers seeking repeatable and efficient cone rolling production.

FAQs

1. What is a three-roll cone rolling machine?

A three-roll cone rolling machine uses three forming rolls to transform flat sheet metal into tapered or conical components.

2. What materials can it process?

Depending on the machine configuration, it can process suitable iron, carbon steel, stainless steel, and other compatible sheet materials.

3. Is the machine suitable for exhaust production?

Yes. It can be used to form exhaust cones, reducers, transition sections, collectors, and other tapered exhaust components when their dimensions are within the machine's working range.

4. What does CNC control provide?

CNC control can help operators manage rolling parameters and improve repeatability for repeated production jobs.

5. Can it roll stainless steel?

Yes, when the machine has sufficient capacity for the selected stainless steel grade, thickness, and width.

6. Can the machine make different cone sizes?

Yes. Cone dimensions depend on the machine's working range and CNC configuration. Specific cone requirements should be provided when selecting the machine.

7. Can it produce exhaust reducers?

Yes. Suitable tapered reducers can be produced when their material dimensions and geometry are within the machine's forming capability.

8. What determines the minimum cone diameter?

The minimum diameter depends on roller geometry, machine structure, material thickness, material strength, tooling, and forming configuration.

9. Can the machine be integrated into an exhaust production line?

Yes. It can be incorporated into a production workflow with cutting, welding, grinding, inspection, and assembly equipment.

10. What safety features are available?

Depending on configuration, safety features may include emergency stops, protective devices, operator controls, and electrical protection. Specific features should be confirmed for the selected model.

11. Can the machine be customized?

Yes. Machine specifications and CNC configurations can be discussed according to material, cone dimensions, production volume, and application requirements.

12. What information is needed for a quotation?

Provide material type and grade, sheet thickness, sheet width, cone small-end and large-end diameters, cone angle, production volume, and product drawings if available.

Why Choose Us

Three-Roll Cone Forming – Designed specifically for forming tapered and conical sheet metal components.

CNC-Controlled Production – Helps standardize rolling parameters and improve repeatability for recurring production.

Iron & Stainless Steel Applications – Suitable for compatible iron, carbon steel, stainless steel, and other materials within rated capacity.

Exhaust Production Support – Suitable for exhaust cones, reducers, transition sections, and other tapered exhaust components.

Flexible Industrial Applications – Can also be used for ducts, hoppers, tanks, funnels, ventilation components, and custom cones.

Safety-Oriented Operation – Can include emergency stops, operator controls, protective devices, and other safety features depending on configuration.

Custom Machine Configuration – Specifications can be evaluated according to material thickness, cone dimensions, production volume, and CNC requirements.

OEM & B2B Support – Technical consultation, machine configuration, sample testing, documentation, and project-specific support can be provided according to requirements.
