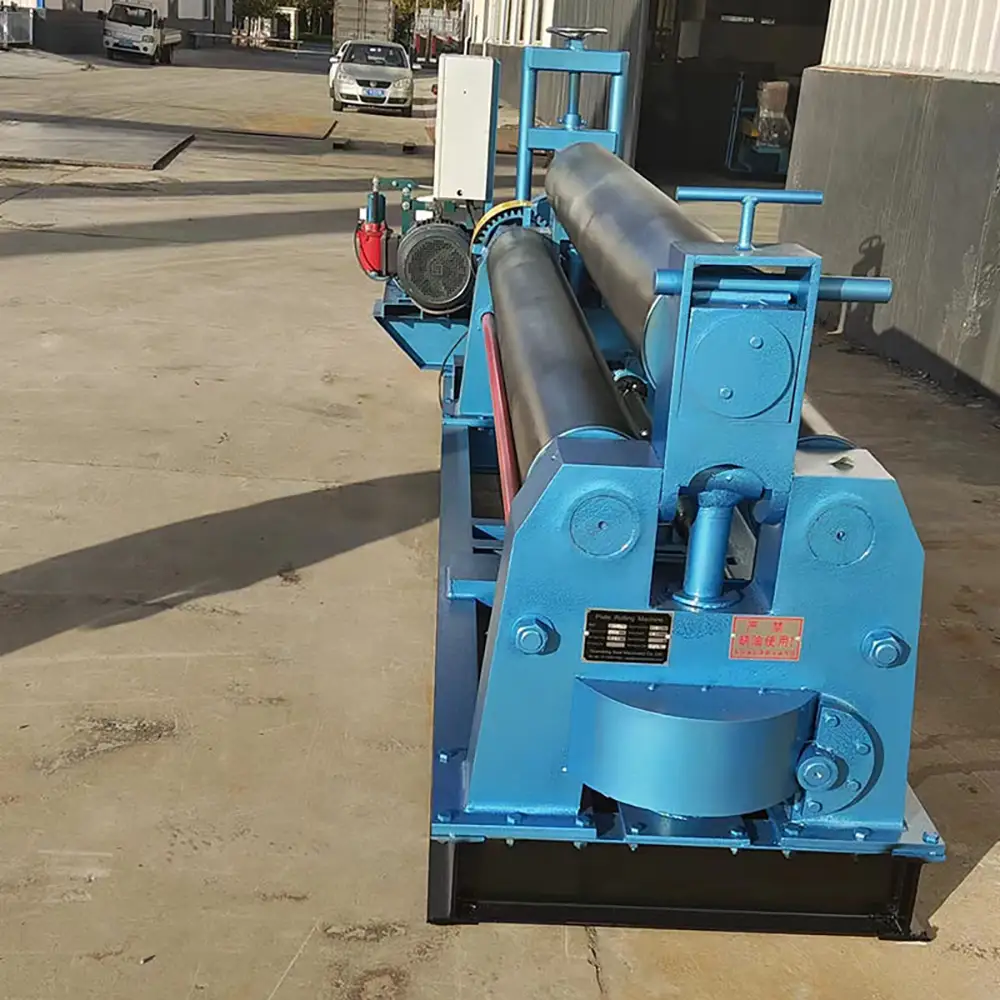

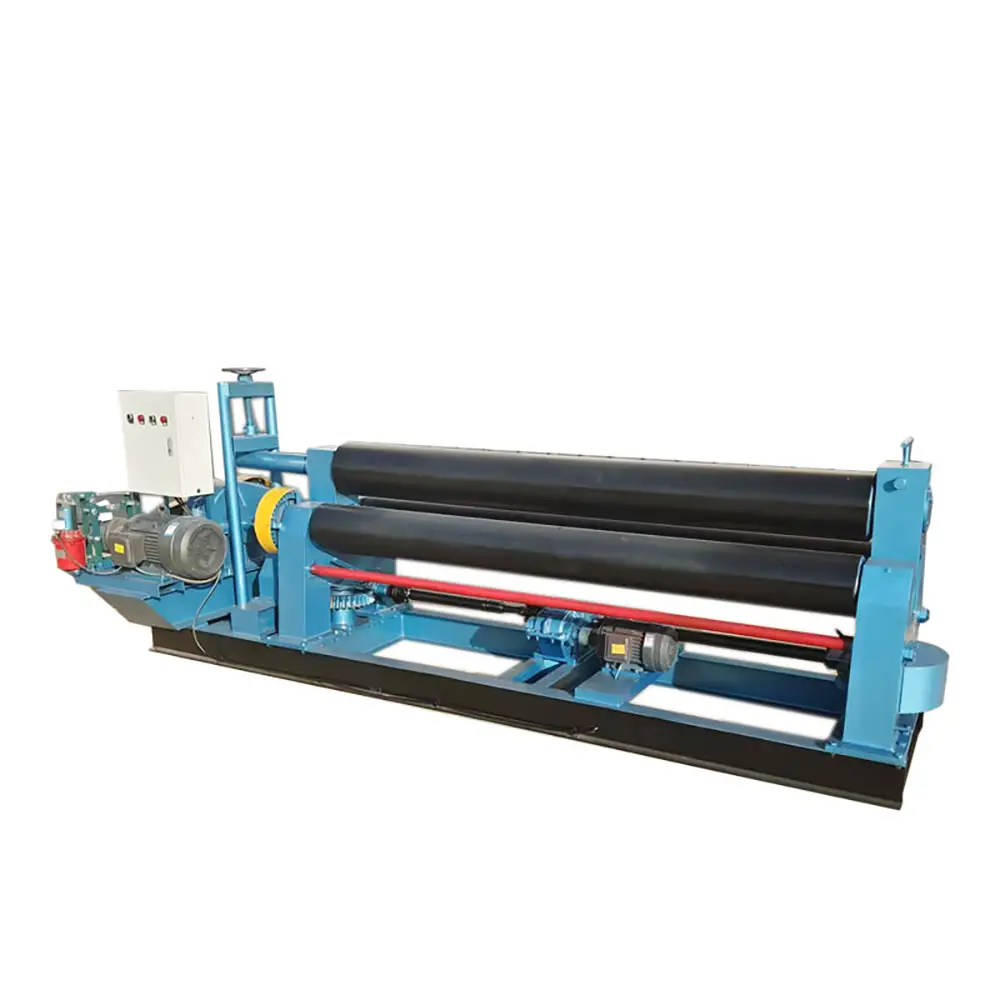

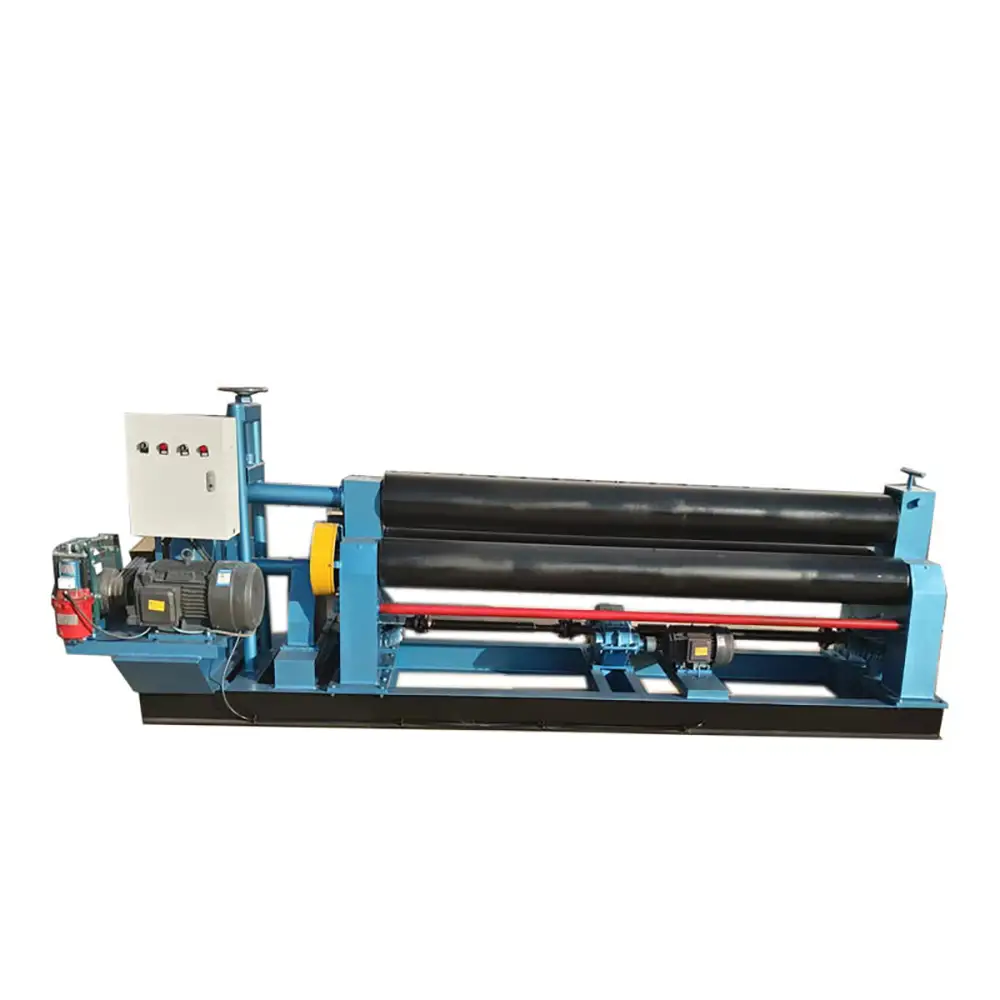

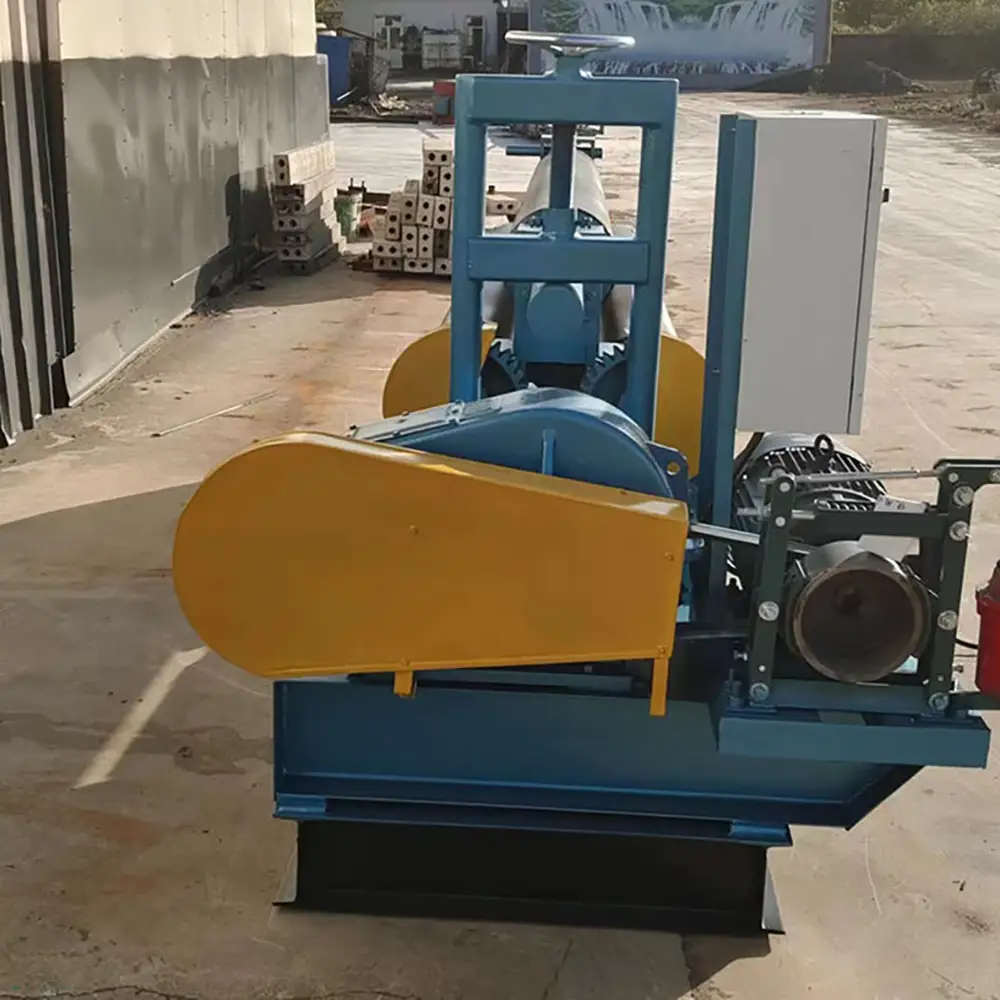

3-roller Rolling Machine Multifunction Rolling Machine

The 3-Roller Multifunction Rolling Machine is a versatile metal forming solution designed for bending and rolling steel, stainless steel, aluminum, and other suitable metal sheets and plates. With a three-roller forming structure, the machine can progressively shape flat metal materials into cylindrical, curved, and other rounded profiles for industrial fabrication.

Also known as a three-roll plate rolling machine, this equipment is suitable for workshops, metal fabrication companies, machinery manufacturers, maintenance departments, and industrial production facilities. Its multifunctional design allows it to support different workpiece dimensions and forming requirements, making it a practical choice for businesses that handle a variety of metal bending projects.

The machine can be configured according to the required plate thickness, working width, material characteristics, roller diameter, rolling diameter, and production requirements.

Maximum coil width	2500mm
Maximum plate thickness	16mm(235)
Upper roll diameter	255mm
Lower roll diameter	205mm
Coiling speed	About 4.5m/min
Main reducer	400
Sub-reducer	250
Main motor power	11KW
Sub-motor power	4KW
Machine size	4400*1600*1700mm
weight	4000kg

Three-Roller Rolling Technology

The three-roller configuration uses three forming rollers to gradually deform the workpiece as it passes through the machine. By adjusting the relative position of the rollers, operators can control the forming process and achieve the desired curved or cylindrical profile.

The rolling process can be performed through multiple passes when necessary. This gradual forming approach can help reduce excessive deformation and provide better control over the finished shape.

Actual forming capability depends on machine design, roller dimensions, plate thickness, material strength, working width, and target rolling diameter.

Multifunctional Metal Forming

The multifunctional design allows the machine to handle different metal forming requirements within its rated capacity. It can be used for cylindrical shells, curved plates, tank sections, ducts, pipe components, machine housings, and other fabricated parts.

For workshops that regularly receive different custom orders, a multifunction rolling machine can provide greater flexibility than equipment designed for only one specific component.

The same machine can be used for different materials and workpiece sizes after the appropriate roller settings and forming parameters have been established.

Steel and Stainless Steel Rolling

Carbon steel and stainless steel are common materials for plate rolling applications. Carbon steel is widely used for tanks, structural components, machinery, ducts, and industrial equipment.

Stainless steel is frequently selected for applications requiring corrosion resistance, hygiene, or an attractive surface finish. Because stainless steel can have higher strength and different springback characteristics, suitable forming parameters should be established according to the specific grade and thickness.

For polished stainless steel, appropriate material handling and surface protection can help reduce scratches during the rolling process.

Aluminum Plate Rolling

The machine can also be configured for suitable aluminum plate and sheet applications. Aluminum offers a lightweight solution for many fabricated structures but can be more sensitive to surface marking and local deformation.

When rolling aluminum, operators should select appropriate forming parameters and handling procedures based on the alloy, thickness, width, and desired radius.

The machine's actual aluminum processing capacity should be confirmed according to the required material and dimensions.

Cylindrical and Curved Component Production

One of the primary uses of a three-roller rolling machine is cylindrical forming. Flat metal plate can be progressively rolled into cylindrical shells for subsequent welding or fabrication.

Typical products include:

Industrial tanks

Storage tanks

Cylindrical housings

Metal ducts

Pipe sections

Boiler components

Chemical equipment shells

Conveyor components

Machine covers

Structural metal sections

Custom curved components

After rolling, workpieces can proceed to welding, machining, grinding, inspection, painting, or assembly according to the final application.

Flexible Workshop Production

The multifunctional design makes this rolling machine suitable for workshops that process different materials and dimensions. Instead of requiring a separate machine for every forming application, one three-roll system can support multiple types of workpieces within its rated capacity.

This makes it suitable for prototype production, repair projects, custom fabrication, small-batch manufacturing, and general industrial production.

For high-volume applications requiring highly repeatable automatic cycles, CNC or hydraulic plate rolling machines may provide additional automation and process control.

Production Efficiency

Three-roller forming can reduce the manual effort required to create cylindrical and curved components from flat metal plates. The rotating rollers continuously guide the workpiece through the forming zone while the operator manages roller adjustment and material positioning.

Production efficiency depends on material thickness, plate width, target diameter, number of forming passes, loading method, operator experience, and downstream operations.

For businesses producing tanks, cylinders, ducts, and other curved components, the rolling machine can become an important part of an integrated fabrication workflow.

Forming Accuracy

Finished dimensional accuracy depends on machine rigidity, roller alignment, material characteristics, plate preparation, forming sequence, and springback.

Before production, operators should verify plate dimensions and ensure that the workpiece is properly aligned with the rollers. For applications requiring tighter dimensional control, the finished component should be measured after rolling.

Stainless steel and high-strength materials may require additional attention to springback. The forming process should be adjusted according to the actual material rather than relying solely on nominal thickness.

Practical Operation

Depending on configuration, the three-roller multifunction machine can use mechanical, powered, or hydraulic roller adjustment. The appropriate configuration depends on plate capacity and the intended production environment.

Operators should be trained in material loading, roller adjustment, alignment, forming passes, workpiece removal, and emergency procedures.

The machine should be installed on a suitable foundation and operated according to the manufacturer's technical instructions.

Industrial Applications

The 3-roller multifunction rolling machine can support applications across many industries, including:

General metal fabrication

Steel structure manufacturing

Tank production

Chemical equipment

Petroleum equipment

HVAC duct fabrication

Boiler manufacturing

Machinery manufacturing

Agricultural equipment

Conveyor systems

Automotive fabrication

Architectural metalwork

Custom industrial components

Its flexible design makes it suitable for manufacturers and fabricators that need one machine capable of handling multiple rolling applications.

Maintenance and Safety

Regular maintenance helps maintain reliable forming performance. Rollers, bearings, gears, adjustment mechanisms, drive components, lubrication points, and other mechanical parts should be inspected according to the manufacturer's recommendations.

Plate rolling involves moving mechanical components and pinch points. Operators should keep hands, tools, and loose clothing away from the rollers during operation.

Depending on the machine configuration, safety-oriented features may include emergency stop controls, protective guards, mechanical locking mechanisms, and other protective devices.

Why Choose Us?

Three-Roller Forming Design – Provides practical and controlled rolling for a wide range of metal plates and sheets.

Multifunctional Applications – Suitable for cylinders, tanks, ducts, curved plates, housings, and custom metal components.

Multi-Material Capability – Can be configured for steel, stainless steel, aluminum, and other suitable formable metals.

Flexible Workshop Solution – Suitable for custom fabrication, prototypes, repairs, small batches, and industrial production.

Efficient Cylindrical Forming – Progressive rolling helps transform flat metal plates into consistent cylindrical and curved shapes.

Configurable Machine Design – Working width, plate capacity, roller dimensions, drive system, and other features can be selected according to requirements.

Industrial Construction – Designed for demanding fabrication environments and repeated metal forming operations.

OEM & B2B Support – We provide technical consultation, customized machine solutions, OEM/ODM services, and international export support.

FAQs

1. What is a 3-roller rolling machine?

A 3-roller rolling machine is a metal forming machine that uses three rollers to gradually bend flat metal sheets or plates into cylindrical and curved shapes.

2. Why is it called a multifunction rolling machine?

It is called multifunction because it can support different metal forming applications, materials, workpiece dimensions, and curved or cylindrical profiles within the machine's rated capacity.

3. Can it roll steel plate?

Yes. Carbon steel and other suitable steel plates are common applications for three-roller rolling machines.

4. Can it roll stainless steel?

Yes. The machine can be configured for suitable stainless steel grades and thicknesses. Stainless steel may require different forming parameters because of springback and material strength.

5. Can it roll aluminum?

Yes. Suitable aluminum sheets and plates can be formed when their dimensions and material characteristics are within the machine's capabilities.

6. What products can be manufactured?

Typical products include tanks, cylinders, ducts, pipes, machine housings, covers, boiler components, conveyor parts, and custom curved metal structures.

7. Can it produce complete cylinders?

Yes. Flat plate can be rolled into a cylindrical shell. The longitudinal seam can then be welded if a closed cylinder is required.

8. What determines the minimum rolling diameter?

The minimum diameter depends on roller diameter, machine structure, material thickness, material strength, working width, and the required forming method.

9. Is this machine suitable for small workshops?

Yes. Its flexible three-roller configuration makes it suitable for workshops handling custom orders, prototypes, repairs, and small-batch production.

10. Does the machine require CNC control?

No. A multifunction three-roller machine can operate with manual or powered controls. CNC is mainly beneficial when automated repeatability and more advanced process control are required.

11. How do I select the right rolling machine?

Provide the material type, maximum thickness, working width, required rolling diameter, production volume, and desired automation level. These specifications help determine the appropriate configuration.

12. Can the rolling machine be customized?

Yes. Roller dimensions, working width, forming capacity, drive system, controls, and other machine specifications can be customized according to the application.

Prev：Sorry, no information

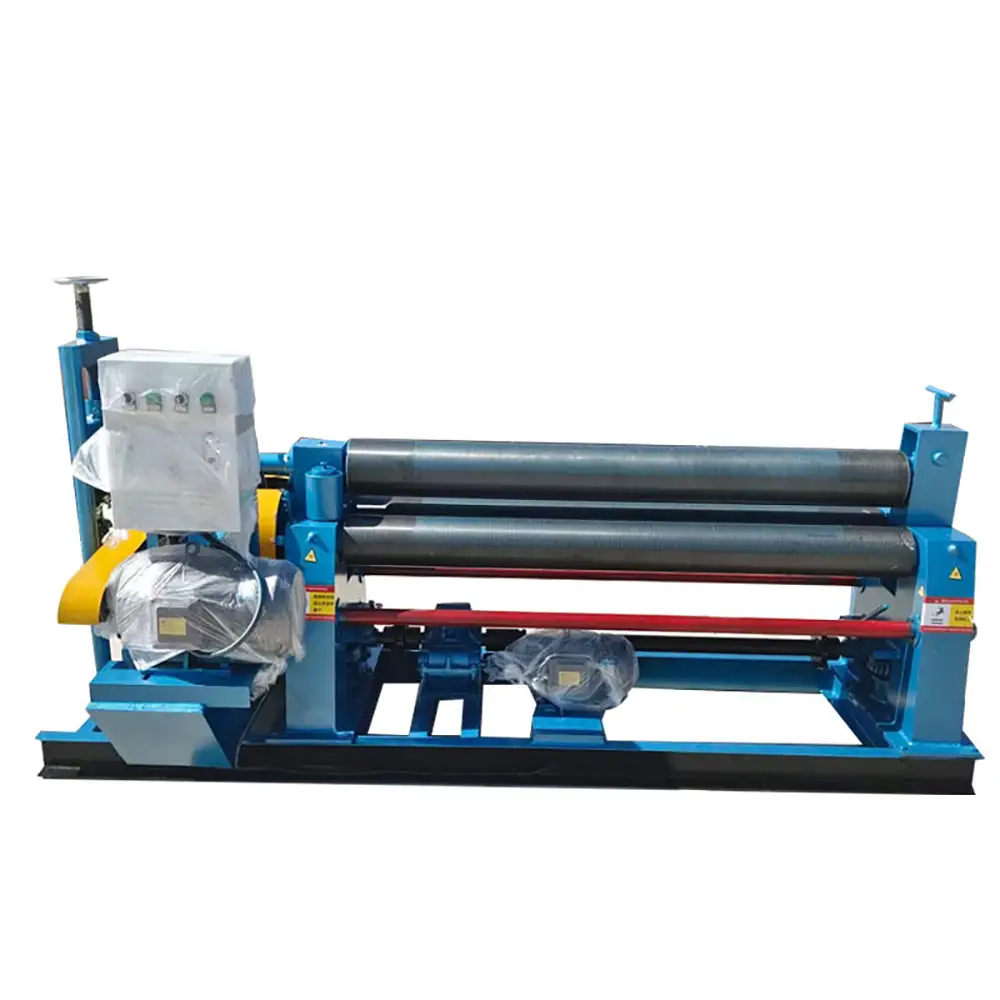

Next：Iron Sheet Bender 3 Roller Metal Sheet Bending Machine Plate Rolling Machine
