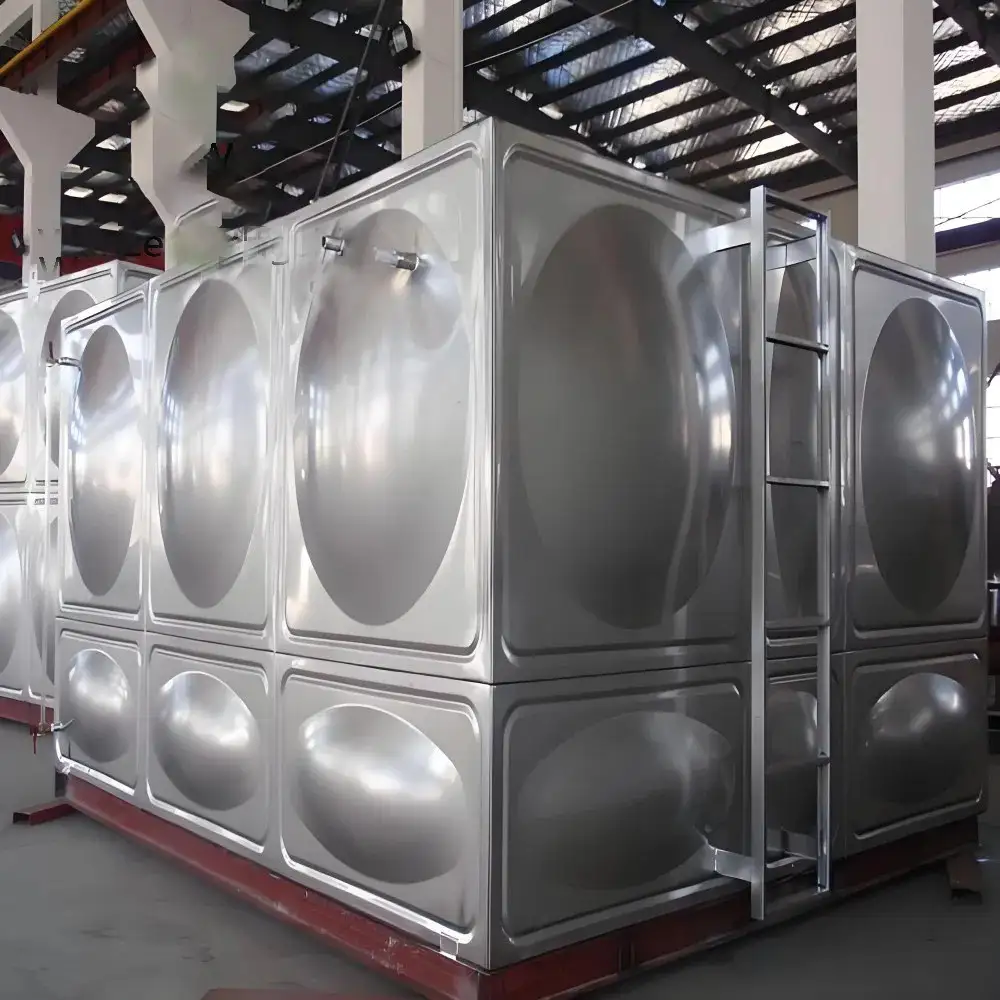

Stainless Steel Square Fire-Fighting Insulated Water Tank

Insulation materials (optional):
The insulation materials of stainless steel insulated water tanks are divided into two layers: surface layer and core layer;

Surface layer: can be made of general stainless steel plate, galvanized plate, aluminum plate or color steel plate;

Core layer: usually made of rubber-plastic sponge and polyurethane foam;
Insulation principle:

This insulated water tank is made of stainless steel plate, color steel plate, etc. as the surface layer, and polyurethane as the core layer. Through the optimized combination, the inner and outer layers can achieve the best insulation effect. The water tank has beautiful appearance, high mechanical strength and excellent performance; the temperature drops within 3-4 degrees within 24 hours at normal temperature;

Stainless Steel Square Fire-Fighting Insulated Water Tank

The Stainless Steel Square Fire-Fighting Insulated Water Tank is a durable water storage solution designed to provide a dedicated reserve for fire protection, fire suppression, sprinkler systems, emergency water supply, and other critical applications. Manufactured from stainless steel and available with thermal insulation, the tank is designed for projects where corrosion resistance, hygienic construction, space-efficient installation, and dependable water storage are important.

Unlike ordinary domestic water tanks, a dedicated fire-fighting water tank is designed around emergency water demand. The required capacity is determined by the hydraulic demand and required duration of the fire protection system rather than normal daily water consumption. NFPA 22 provides requirements for water tanks used for private fire protection in the United States.

The square or rectangular configuration makes this type of tank particularly useful where installation space is limited or where modular sectional construction is preferred. Stainless steel panels can be assembled into different tank dimensions, allowing the overall length, width, height, and storage volume to be adapted to the available site.

What Is a Stainless Steel Fire-Fighting Water Tank?

A stainless steel fire-fighting water tank is a dedicated storage vessel that maintains an available water reserve for fire sprinkler systems, fire pumps, hydrants, hose systems, or other approved fire protection equipment.

A typical system can be arranged as:

Municipal Water Supply → Filling System → Stainless Steel Fire Water Tank → Fire Pump → Sprinkler / Hydrant / Fire Protection Network

The tank normally includes an inlet, outlet, overflow, drain, ventilation, access manway, level monitoring, and fire pump suction connection. Depending on the project, additional accessories such as anti-vortex devices, heating equipment, temperature sensors, ladders, inspection ports, and automatic level controls can be provided.

Fire protection tanks must be designed as part of the complete fire protection system rather than treated as ordinary water storage vessels.

Stainless Steel Construction

Stainless steel provides a durable tank structure with strong resistance to corrosion in many water-storage environments. Common stainless steel grades may include 304 and 316/316L, with the appropriate material selected according to water chemistry, environmental exposure, chloride concentration, temperature, and project requirements.

For industrial or coastal environments where chloride exposure may be a concern, a higher corrosion-resistance grade may be considered during engineering.

The stainless steel surface also provides a clean appearance and can be advantageous for applications where corrosion control and easy inspection are important.

Depending on the project design, the tank can be manufactured as a welded tank or modular sectional tank. Sectional construction is especially useful for projects where the tank must be transported through restricted access areas and assembled on site.

Square and Rectangular Tank Design

The square or rectangular design provides excellent flexibility for buildings and facilities with limited installation space.

Compared with a conventional cylindrical tank, a sectional square tank can be configured to make better use of available floor area, especially inside equipment rooms, basements, rooftops, commercial buildings, and industrial facilities.

The tank can be customized according to:

Tank Length
Tank Width
Tank Height
Storage Capacity
Panel Dimensions
Inlet And Outlet Size
Fire Pump Connection
Overflow Connection
Drain Connection
Manway Size
Insulation Thickness
Support Structure
Level Monitoring System

This flexibility makes square stainless steel water tanks suitable for both new construction and replacement projects.

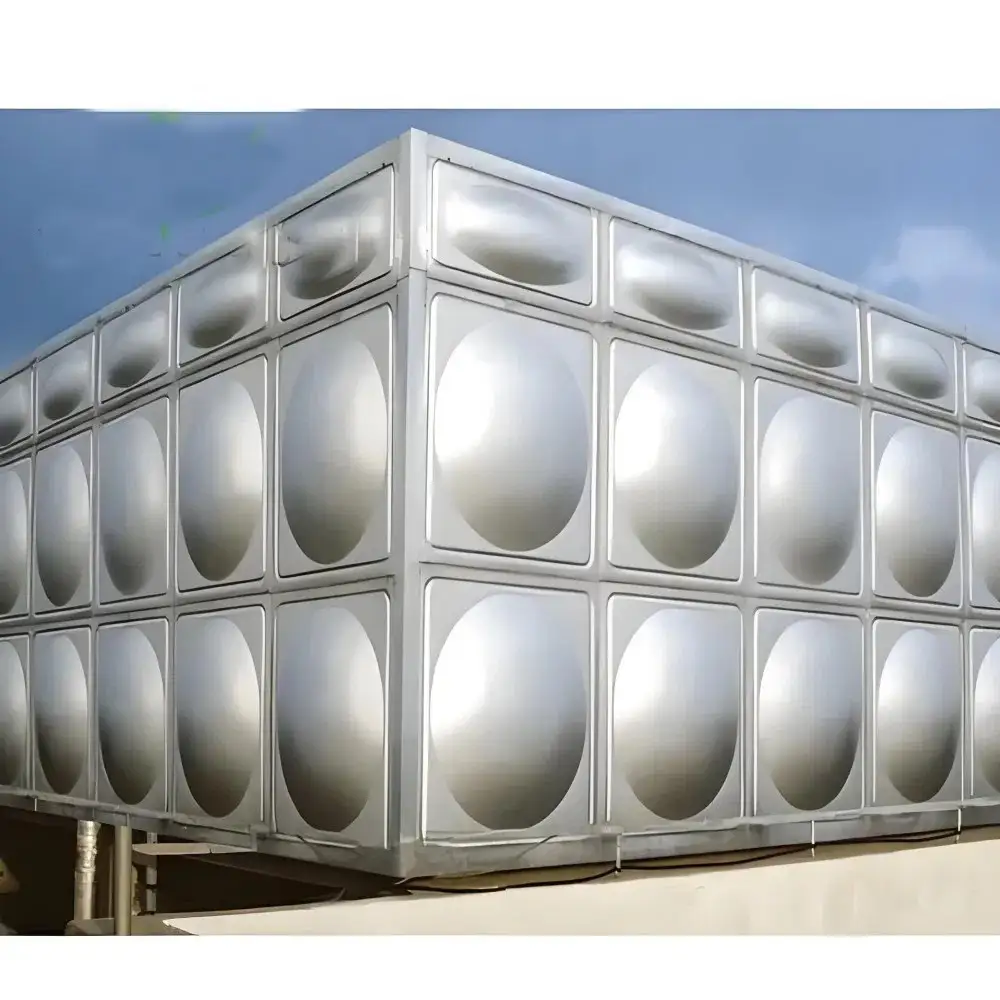

Insulated Fire Water Tank

The insulated design helps reduce heat transfer between the stored water and the surrounding environment. This can be particularly important in cold climates where freezing of stored fire-protection water must be prevented.

NFPA 22 includes provisions concerning tank heating for tanks subject to freezing and also permits insulation where allowed by the authority having jurisdiction. The specific heating and insulation design must be based on the project climate, tank configuration, water temperature requirements, and applicable code.

A typical insulated tank may include:

External Thermal Insulation
Protective Outer Cladding
Temperature Monitoring
Electric Immersion Heater
Water Circulation Heating
Thermostatic Control
Frost Protection Equipment

The insulation itself does not automatically make a tank freeze-proof. In severe climates, heating may also be required to maintain the required minimum water temperature.

Fire Protection Applications

The primary application of this tank is dedicated fire protection water storage.

Depending on the project, it can provide water for:

Fire Sprinkler Systems

The tank supplies a reserve for automatic sprinkler systems when required by the fire protection design.

Fire Pump Systems

The tank can be connected directly to a fire pump suction system to provide an available water source during an emergency.

Fire Hydrant Systems

It can provide stored water for dedicated hydrant networks and related firefighting equipment.

Emergency Fire Water Storage

Industrial plants, warehouses, commercial buildings, logistics centers, factories, and other facilities can use dedicated fire water storage to maintain emergency reserves.

Combined Fire Protection Systems

The tank can be integrated with sprinkler, hydrant, fire pump, jockey pump, alarm, and control systems according to the project design.

Fire water tank capacity should be established from the required fire flow and duration. For example, the basic engineering relationship is required water volume = design flow rate × required duration, with additional project-specific requirements considered by the fire protection engineer.

Key Features
1. Stainless Steel Construction

Stainless steel provides corrosion resistance and durable structural performance for many commercial and industrial environments.

2. Space-Efficient Square Design

The rectangular configuration can make efficient use of restricted installation areas.

3. Thermal Insulation

Insulation can reduce heat loss and help maintain the stored water temperature in appropriate applications.

4. Fire Protection Ready

The tank can be configured with fire pump suction, sprinkler supply, hydrant connections, overflow, drain, vent, and other fire-system accessories.

5. Custom Capacity

Storage volume can be customized according to fire demand, site dimensions, hydraulic calculations, and applicable standards.

6. Modular Installation

Sectional stainless steel panels can be transported individually and assembled at the installation site where required.

7. Easy Inspection

Manways, inspection openings, level indicators, and accessible fittings can simplify inspection and maintenance.

8. Optional Heating System

For freezing environments, heating and temperature-control equipment can be integrated according to the approved design.

Applications

The Stainless Steel Square Fire-Fighting Insulated Water Tank is suitable for:

Commercial Buildings
Industrial Plants
Manufacturing Facilities
Warehouses
Logistics Centers
Shopping Centers
Hotels
Hospitals
Schools
Apartment Buildings
Data Centers
Chemical Plants
Food Processing Facilities
Power Plants
Municipal Facilities
Fire Sprinkler Systems
Fire Hydrant Systems
Fire Pump Systems
Emergency Fire Water Storage

For projects in the United States, the tank configuration should be coordinated with the applicable NFPA requirements, building/fire codes, structural requirements, and the authority having jurisdiction.

Installation and Maintenance

The foundation must be capable of supporting the fully loaded tank. A tank containing water can become extremely heavy, so structural calculations are important for rooftop, elevated, basement, and other specialized installations.

After installation, operators should periodically inspect:

Tank panels and seams
Inlet and outlet connections
Fire pump suction
Valves
Overflow system
Drain system
Ventilation
Water level
Temperature
Insulation
Heating equipment
Access manways

For fire protection systems, inspection and maintenance should follow the applicable fire protection standard and approved system design.

In cold regions, temperature monitoring and freeze protection should receive particular attention. Insulation can reduce heat loss, while approved heating equipment may be required where freezing conditions exist.

Why Choose Us?

As an experienced Stainless Steel Water Tank Manufacturer and Fire Protection Water Storage Supplier, we provide customized tanks for commercial, industrial, municipal, and fire protection projects.

Our advantages include:

Custom Stainless Steel Tank Design
Square And Rectangular Configurations
304 / 316 Stainless Steel Options
Customized Fire Water Capacity
Thermal Insulation Options
Freeze Protection And Heating Options
Fire Pump Suction Connections
Sprinkler And Hydrant Connections
Level Monitoring Systems
Manways, Vents, Drains And Overflow Connections
Modular Sectional Assembly
OEM And ODM Manufacturing
Project-Specific Engineering Support
Export Packaging And International Delivery

We can manufacture the tank according to project capacity, installation dimensions, water temperature, local climate, connection requirements, structural conditions, and applicable fire protection standards.

Frequently Asked Questions
1. What is a stainless steel fire-fighting water tank?

It is a dedicated water storage tank designed to maintain a reserve for fire sprinkler systems, fire pumps, hydrants, or other approved fire protection equipment.

2. Why use stainless steel for a fire water tank?

Stainless steel provides corrosion resistance and durable construction, making it suitable for many commercial, industrial, and demanding water-storage environments.

3. What is the advantage of a square water tank?

A square or rectangular tank can make efficient use of available floor space and can be customized to fit restricted installation areas.

4. Why does a fire water tank need insulation?

Insulation can reduce heat loss and help protect stored water from freezing in cold climates. The exact insulation and heating requirements depend on the project and applicable codes.

5. Does an insulated tank also need a heater?

Not necessarily in every climate. Where freezing conditions exist, the complete system should be evaluated to determine whether heating is required in addition to insulation.

6. Can this tank be connected to a fire pump?

Yes. The tank can be manufactured with suitable suction and outlet connections for integration with a fire pump system.

7. Can it be used for sprinkler systems?

Yes, when properly engineered and approved as part of the complete fire protection system.

8. How is fire water tank capacity calculated?

Capacity is generally based on the required fire flow and duration, with project-specific requirements and code provisions also considered.

9. Can the tank be customized?

Yes. Dimensions, capacity, stainless steel grade, fittings, insulation, heating equipment, access openings, and control accessories can be customized.

10. Can the tank be installed indoors?

Yes. Square sectional tanks can be particularly suitable for indoor installation where site access and available floor area are limited.

11. What stainless steel grades are available?

304 stainless steel is commonly used for many applications, while 316/316L may be considered for environments with higher chloride exposure or more demanding corrosion conditions.

12. Can the tank be used in cold climates?

Yes. The tank can be configured with insulation and, where required, heating and temperature-control equipment for freeze protection.

13. Is the tank NFPA 22 certified?

NFPA 22 is the relevant U.S. standard for water tanks used for private fire protection. Whether a specific tank configuration is certified, listed, or approved must be confirmed for the exact manufacturer, model, components, and project requirements. The tank should be coordinated with the fire protection engineer and AHJ rather than assuming compliance based only on the product description.
