Food and Medical Water Machine / Pure Water Equipment / Water Purification Enhanced Filtration Equipment

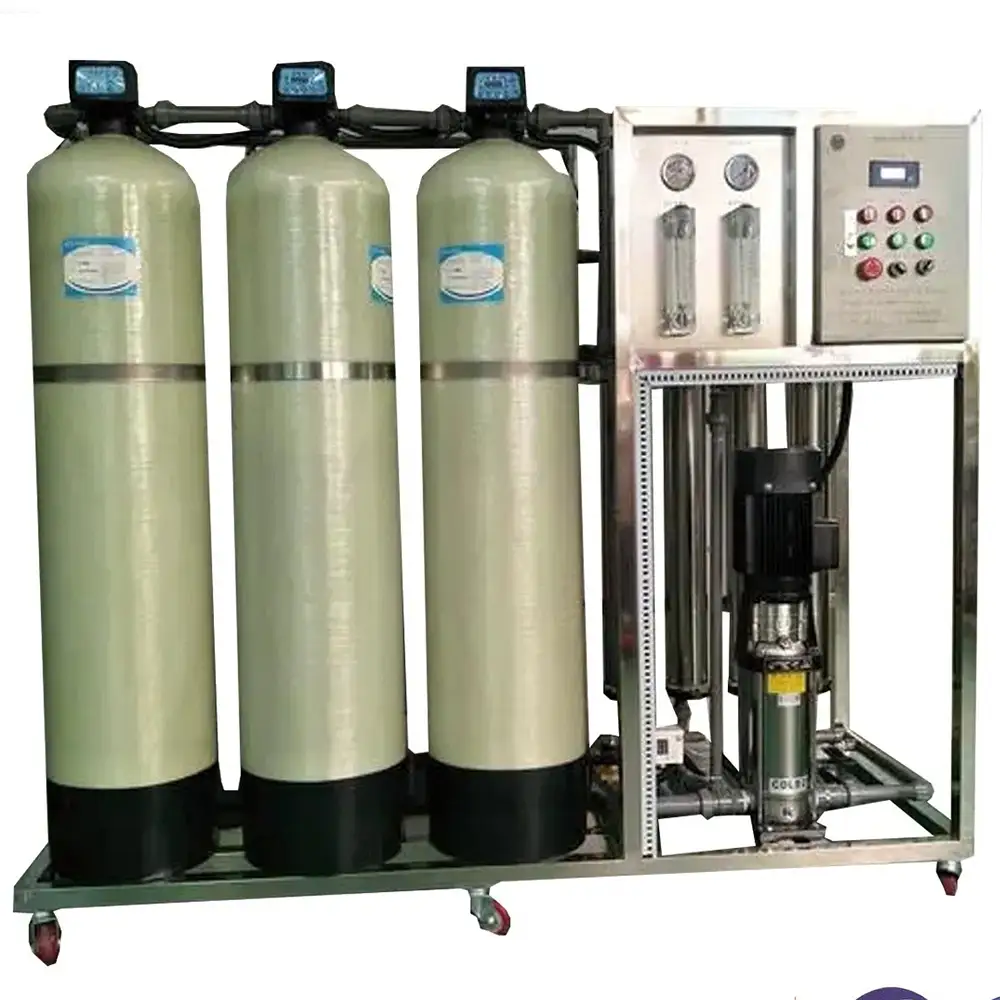

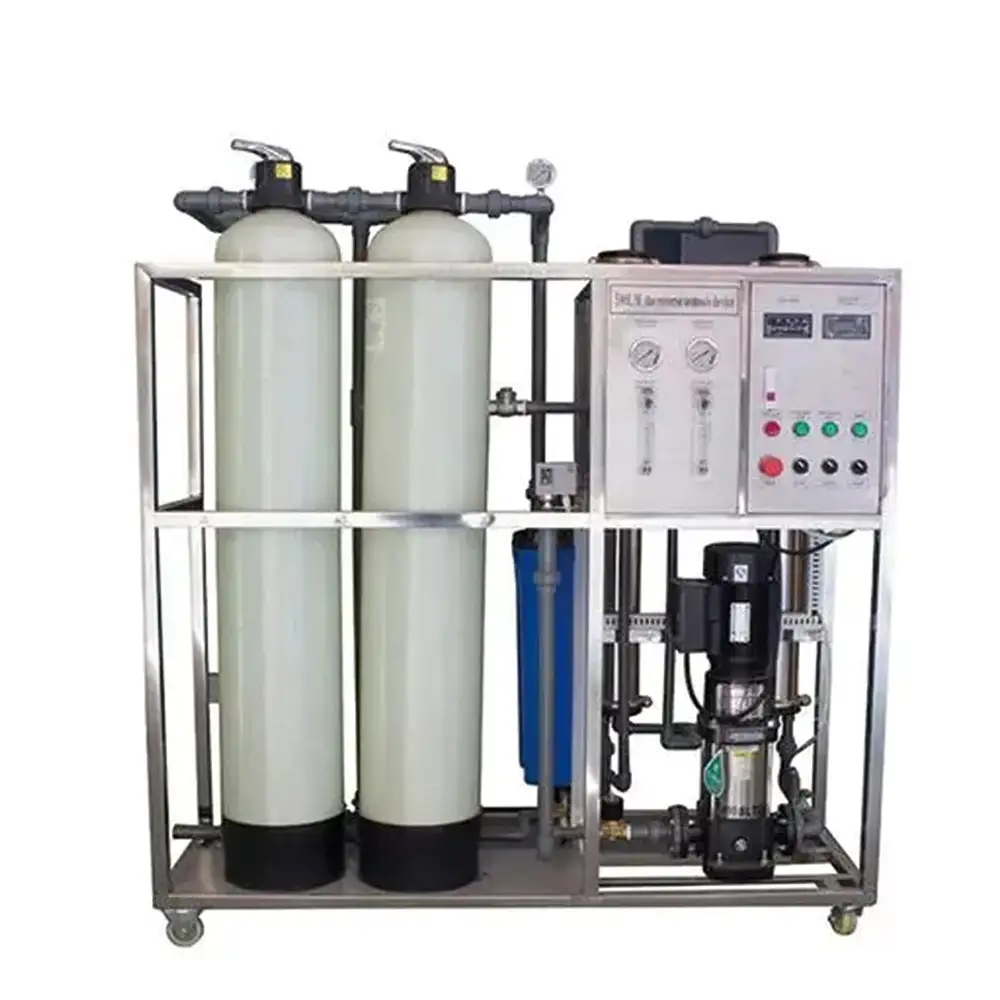

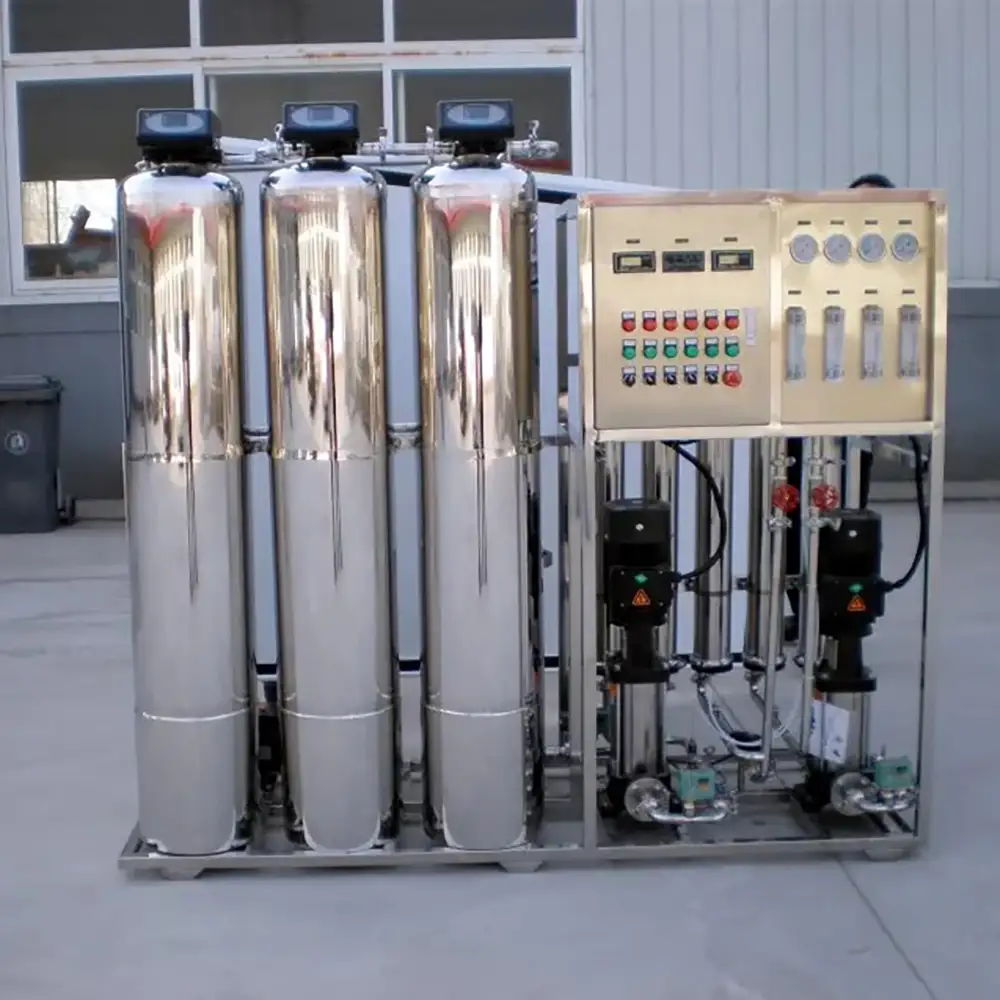

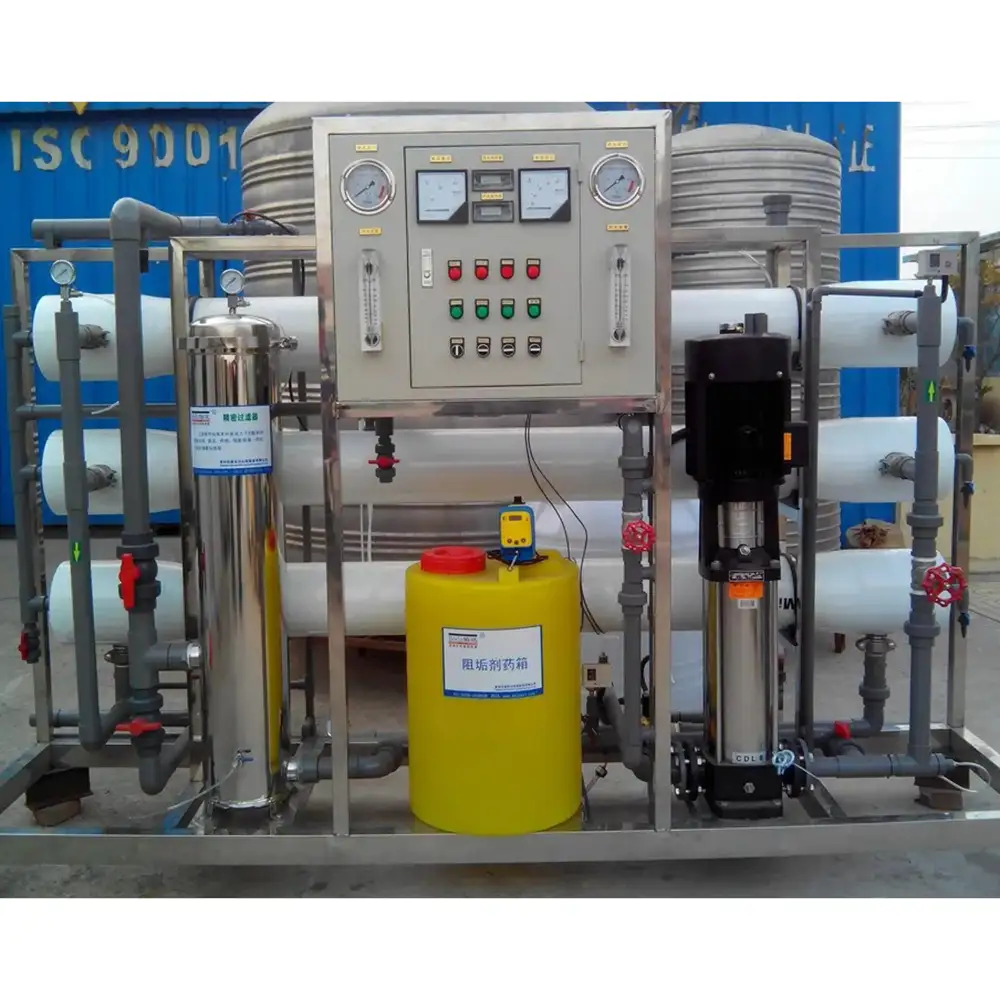

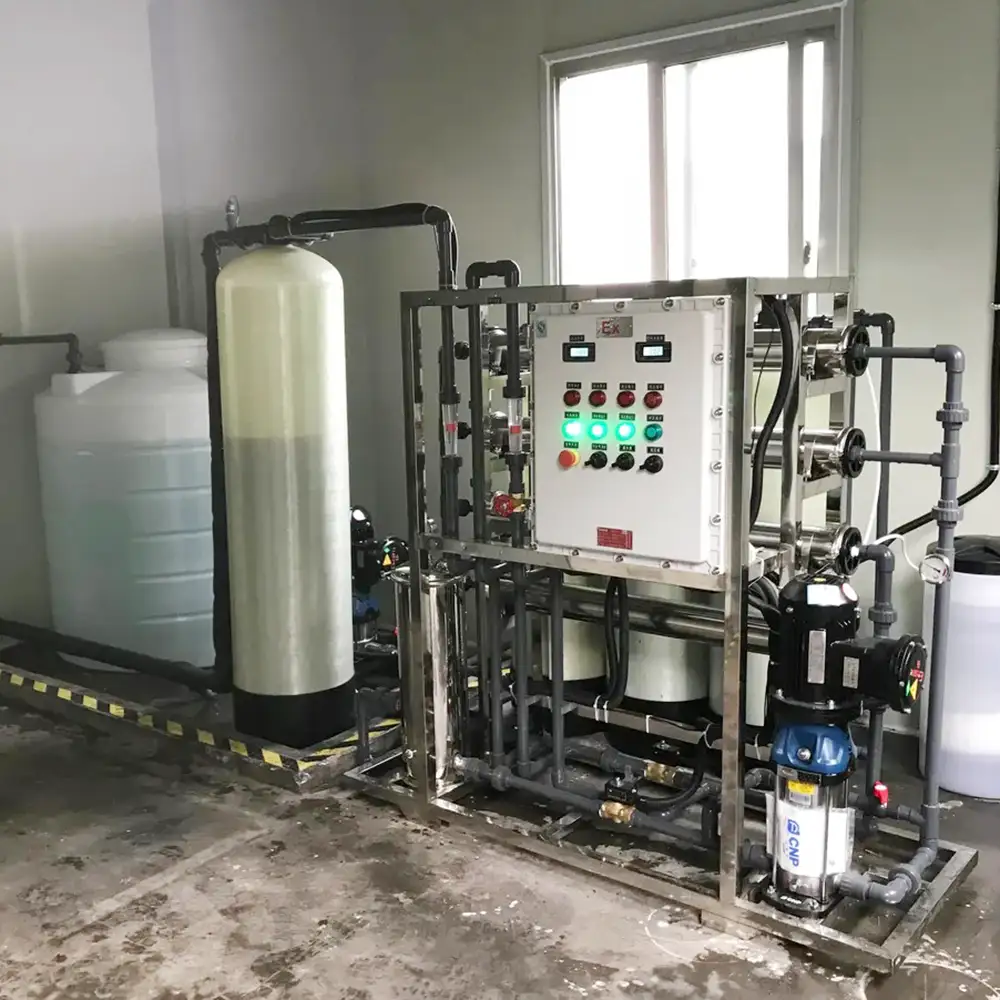

Food and Medical Pure Water Equipment with Enhanced Filtration

The Food and Medical Pure Water Equipment with Enhanced Filtration is an advanced water purification solution designed for food processing, beverage production, medical facilities, pharmaceutical manufacturing, laboratories, healthcare applications, and other industries requiring reliable high-quality process water.

The system can combine multiple purification technologies, including multimedia filtration, activated carbon filtration, cartridge filtration, ultrafiltration (UF), reverse osmosis (RO), UV disinfection, ozone treatment, deionization, and electrodeionization (EDI). The exact process configuration is selected according to the raw-water characteristics and the quality requirements of the final application.

Modern purified-water systems for pharmaceutical and healthcare applications commonly combine membrane technologies such as RO and UF with additional purification and sanitization technologies. Food-processing water systems similarly use staged pretreatment and membrane purification to provide consistent process water.

Model NO.	wzss	Handling method	Physical Treatment
Usage	Industrial, Home, Agriculture, Hospital, Urban	Trademark
Types	Package, Compact, Small, Mini	Applications	Industrial, Municipal, Domestic, Medical, Ship
Transport Package	Container Standard Packing	Features	Remove Cod BOD
Material	Remove Cod BOD	Function	Removing Escherichia coli, harmful bacteria
Voltage	220V/ 380V/ Customerized	Installation Type	Underground / Onground
Colour	white	Use for	Mineral, Printing, Chemical, Dyeing, Starch
Production Capacity	2000 Sets/Year	Origin	China


       The meaning of filtering. In the process of water treatment, filtration generally refers to the process of using quartz sand, Anthracite and other filter material layers to intercept suspended impurities in water to make water clear. The porous material used for filtration is called filtration material, and quartz sand is the most common filtration material. There are various types of filter materials, including granular, powdered, and fibrous. Common filter materials include quartz sand, Anthracite, activated carbon, Magnetite, garnet, porous ceramics, plastic balls, etc.

What Is Food and Medical Pure Water Equipment?

Food and medical water purification equipment is an integrated treatment system that converts municipal water, groundwater, or other qualified raw water into purified process water.

Unlike a simple household water filter, an industrial pure-water system is engineered for continuous operation, controlled water quality, stable flow, and specific production requirements.

A typical system may include:

Raw Water → Multimedia Filter → Activated Carbon Filter → Softener → Cartridge Filter → RO → UF/EDI → UV/Ozone → Pure Water Tank → Sanitary Distribution

Not every project requires all of these stages. For example, a food-processing plant may primarily require pretreatment and RO, while a pharmaceutical or medical application may require additional polishing, sanitization, monitoring, and sanitary distribution.

Commercial pharmaceutical water systems can use combinations of pretreatment, RO, UF, EDI, storage, and distribution according to the required purified-water specification.

Enhanced Filtration System

The enhanced filtration section is designed to protect downstream purification equipment and improve overall water quality.

Multimedia Filtration

A multimedia filter can remove suspended solids, sediment, turbidity, and larger particulate matter from incoming water. This protects downstream membrane equipment from excessive solids loading.

Activated Carbon Filtration

Activated carbon can reduce chlorine, certain organic compounds, taste, and odor. Chlorine control is particularly important when the downstream RO membrane is sensitive to oxidizing agents.

Water Softening

A softener can reduce hardness-forming ions before the RO stage. This helps control scaling and supports more stable membrane operation.

Cartridge Filtration

Fine cartridge filters provide an additional particulate barrier before high-pressure membrane equipment. The filter rating can be selected according to the system design.

Reverse Osmosis Water Purification

Reverse Osmosis (RO) is one of the most important technologies used in industrial pure-water production.

RO uses pressure to force water through a semipermeable membrane. The membrane allows water molecules to pass while rejecting a large portion of dissolved salts and other contaminants.

RO systems are used in food, beverage, healthcare, pharmaceutical, laboratory, and industrial water purification. The FDA also recognizes RO as a water purification technology used in pharmaceutical and medical applications, while emphasizing appropriate pretreatment, monitoring, sanitization, and system maintenance.

For a customized system, RO may be configured as single-pass, double-pass, or as part of a larger RO-EDI purification train.

Ultrafiltration for Pure Water Treatment

Ultrafiltration (UF) provides another membrane barrier for water purification. UF membranes can remove suspended particles, colloids, microorganisms, and other larger contaminants depending on membrane characteristics and operating conditions.

UF can be installed before or after other purification stages depending on the process objective.

For pharmaceutical water systems, UF can be incorporated into a multi-stage purification process alongside RO and other technologies.

EDI and High-Purity Water

When a project requires lower ionic contamination and higher water purity, Electrodeionization (EDI) can be integrated after RO.

EDI uses electricity and ion-exchange technology to continuously remove ionic contaminants without conventional chemical regeneration of mixed-bed ion-exchange resin.

An RO + EDI configuration is commonly used for high-purity water production in pharmaceutical, biotechnology, laboratory, medical, and other demanding industrial applications.

The appropriate purification train depends on the required water specification rather than simply adding more filtration stages.

Sanitary Design for Food and Medical Applications

Food and medical water systems require more than basic filtration performance. Equipment design should also consider hygiene, cleanability, material compatibility, microbial control, and prevention of stagnant water.

For sanitary applications, wetted components may be manufactured using stainless steel such as 304 or 316L according to project requirements. Sanitary piping, appropriate valves, drainability, hygienic connections, and controlled circulation can help reduce contamination risks.

In pharmaceutical purified-water systems, sanitary design and controlled distribution are important considerations because water quality can deteriorate after generation if the storage and distribution system is poorly designed. Pharmaceutical water systems may therefore incorporate closed-loop circulation, sanitization, online monitoring, and other measures.

Applications of Food Pure Water Equipment

The system can be configured for many food and beverage applications, including:

Beverage Production
Bottled Water Plants
Dairy Processing
Food Processing
Fruit and Vegetable Processing
Brewing and Fermentation
Meat and Seafood Processing
Sauce and Condiment Production
Food Ingredient Manufacturing
Bakery Production
Beverage Bottling
CIP Process Water
Production Equipment Rinsing

Water quality can affect product consistency, equipment performance, cleaning operations, and production hygiene. A properly designed treatment system helps provide a controlled water source for production processes.

Applications of Medical and Pharmaceutical Water Systems

Medical and pharmaceutical applications may include:

Pharmaceutical Manufacturing
Biopharmaceutical Production
Medical Device Manufacturing
Hospital Water Treatment
Laboratory Water Purification
Research and Development
Pharmaceutical Equipment Cleaning
Drug Formulation
Cosmetic Manufacturing
Healthcare Facilities
Dialysis-Related Water Treatment

The required water grade varies significantly by application. Purified Water and Water for Injection are not interchangeable terms, and the treatment system must be designed around the applicable pharmacopeial and regulatory requirements.
