Water Filtration System / Water Purification System / Reverse Osmosis System

Water Filtration System, Water Purification System and Reverse Osmosis System

A modern Water Filtration System, Water Purification System, and Reverse Osmosis System can combine multiple treatment technologies to improve water quality for residential, commercial, industrial, and process-water applications. By integrating pretreatment, membrane filtration, purification, monitoring, and optional post-treatment, the system can be configured according to the characteristics of the incoming water and the required treated-water quality.

Water filtration and water purification are broad terms covering different treatment technologies. A filtration system may primarily remove suspended particles, sediment, turbidity, chlorine, or other targeted impurities, while a more advanced purification system can combine filtration with membrane separation, ion exchange, UV, ozone, or other processes.

Reverse osmosis is a pressure-driven membrane process. Feed water is forced through a semipermeable membrane, producing a permeate stream while many dissolved substances remain in the concentrate stream. RO is therefore particularly useful when dissolved solids and a broad range of contaminants need to be reduced.

In the process of water treatment, filtration generally refers to the process of using quartz sand, Anthracite and other filter material layers to intercept suspended impurities in water to make water clear. The porous material used for filtration is called filtration material, and quartz sand is the most common filtration material. There are various types of filter materials, including granular, powdered, and fibrous. Common filter materials include quartz sand, Anthracite, activated carbon, Magnetite, garnet, porous ceramics, plastic balls, etc.

Model NO.	wzss	Handling method	Physical Treatment
Usage	Industrial, Home, Agriculture, Hospital, Urban	Trademark
Types	Package, Compact, Small, Mini	Applications	Industrial, Municipal, Domestic, Medical, Ship
Transport Package	Container Standard Packing	Features	Remove Cod BOD
Service Life	10 Years	Operation	Automatic
Material	Remove Cod BOD	Function	Removing Escherichia coli, harmful bacteria
Voltage	220V/ 380V/ Customerized	Installation Type	Underground / Onground
Colour	white	Use for	Mineral, Printing, Chemical, Dyeing, Starch
Production Capacity	2000 Sets/Year	Origin	China

How a Water Filtration and Purification System Works

A typical multi-stage system can use the following process:

Raw Water → Sediment Filtration → Activated Carbon → Softening or Pretreatment → Cartridge Filter → RO Membrane → Post-Treatment → Purified Water

The exact process varies according to the water source and application.

The first stage can use a sediment or multimedia filter to reduce suspended solids, sand, rust, silt, and turbidity. This protects downstream components from excessive particulate loading.

Activated carbon can then be used for adsorption-related treatment, including reduction of chlorine, taste, odor, and selected organic compounds depending on the carbon type and water chemistry.

If the feed water has significant hardness, a softener or antiscalant system may be used to reduce the risk of mineral scaling on RO membranes.

A cartridge filter provides finer particulate protection immediately before the RO membrane.

The RO unit then performs the primary membrane separation. The treated permeate can subsequently pass through polishing or disinfection stages depending on the intended application.

EPA notes that RO systems frequently require pretreatment to prevent membrane fouling or plugging, making upstream water conditioning an important part of overall system design.

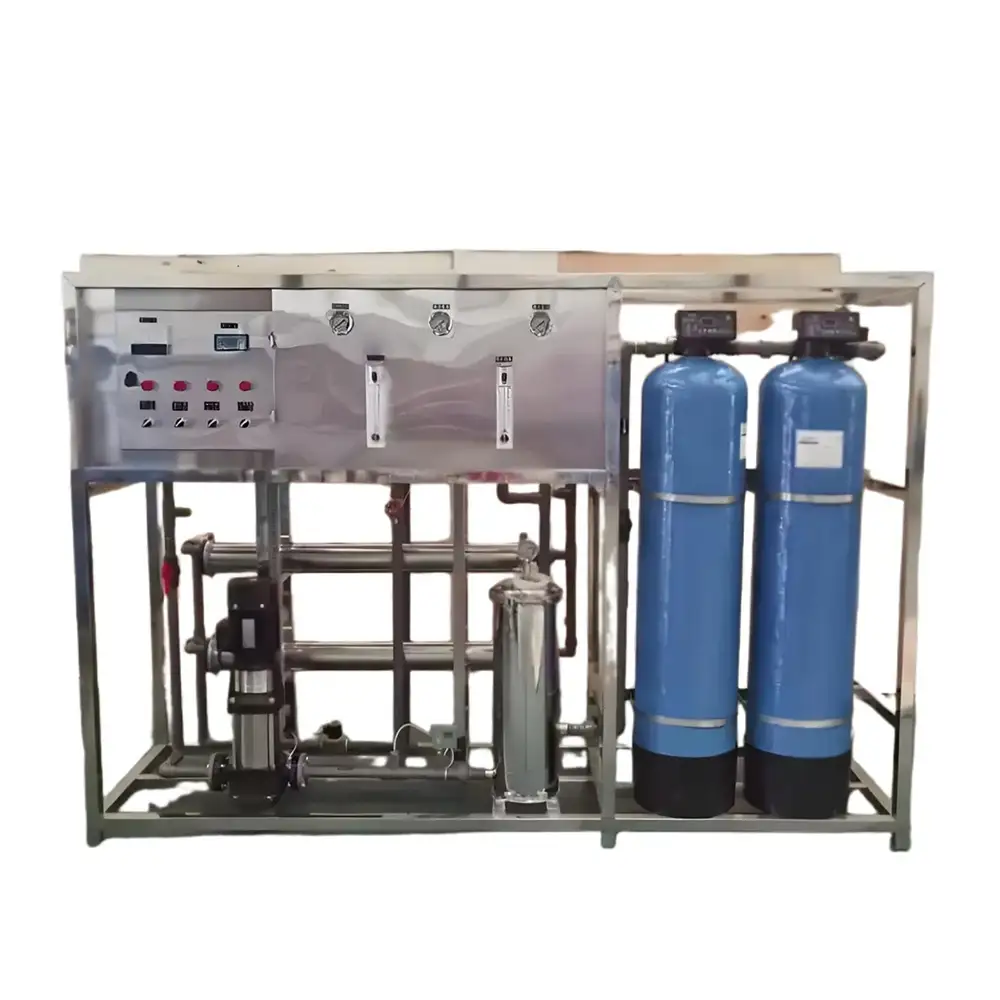

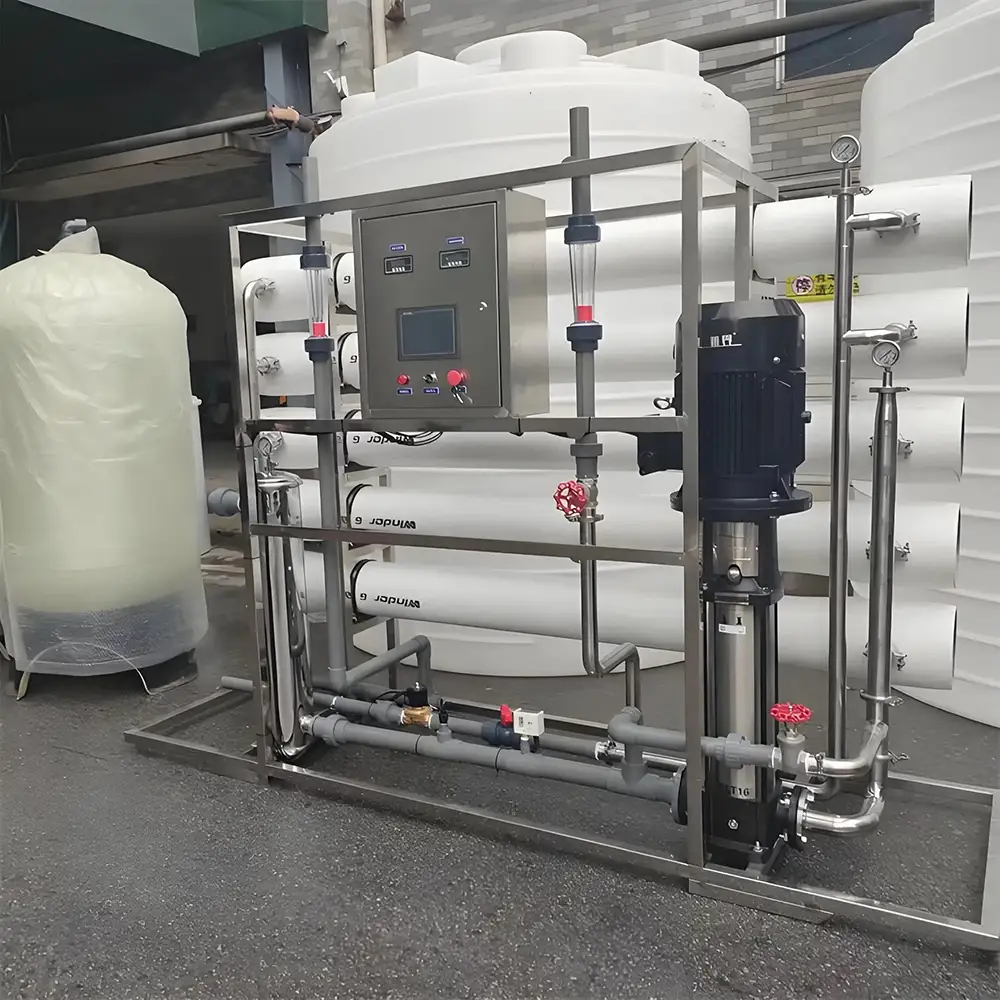

Reverse Osmosis System Technology

The Reverse Osmosis System is the core advanced purification stage in many modern water treatment plants.

During operation, a high-pressure pump supplies feed water to the RO membrane. The membrane separates the incoming water into two streams:

Permeate: Treated water passing through the membrane
Concentrate: Water carrying a higher concentration of retained contaminants

The RO membrane can reduce many dissolved solids and a broad range of contaminants. Depending on the membrane and system design, RO can be applied to municipal water, well water, brackish water, process water, and other suitable feed streams.

RO is not simply a filter cartridge. It is a membrane separation process requiring appropriate pressure, pretreatment, flow control, membrane cleaning, and concentrate management.

For commercial and industrial installations, system recovery, energy consumption, membrane configuration, feed-water chemistry, and reject-water handling should all be considered during equipment selection.

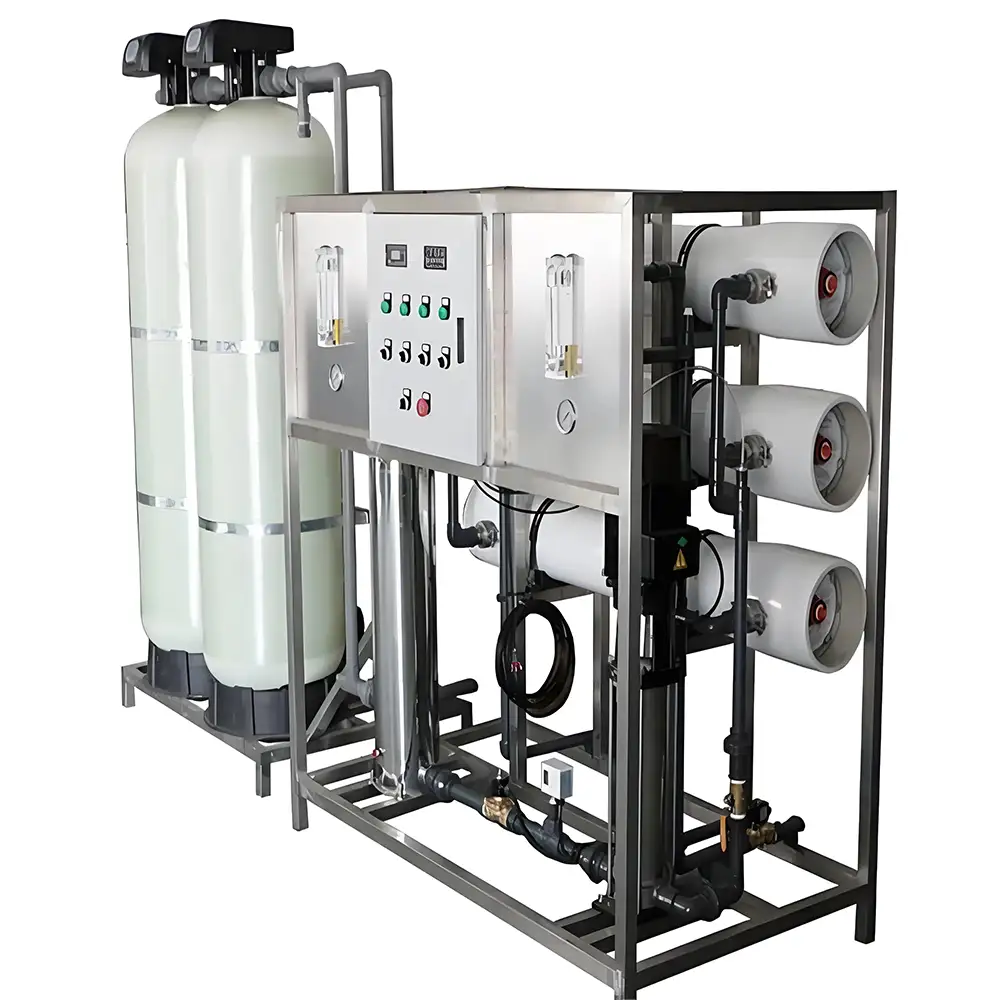

Multi-Stage Water Filtration

A high-quality Water Filtration System should use each treatment stage for a specific purpose.

Sediment Filtration

Sediment filtration reduces larger particulate contaminants such as sand, dirt, rust, and suspended solids.

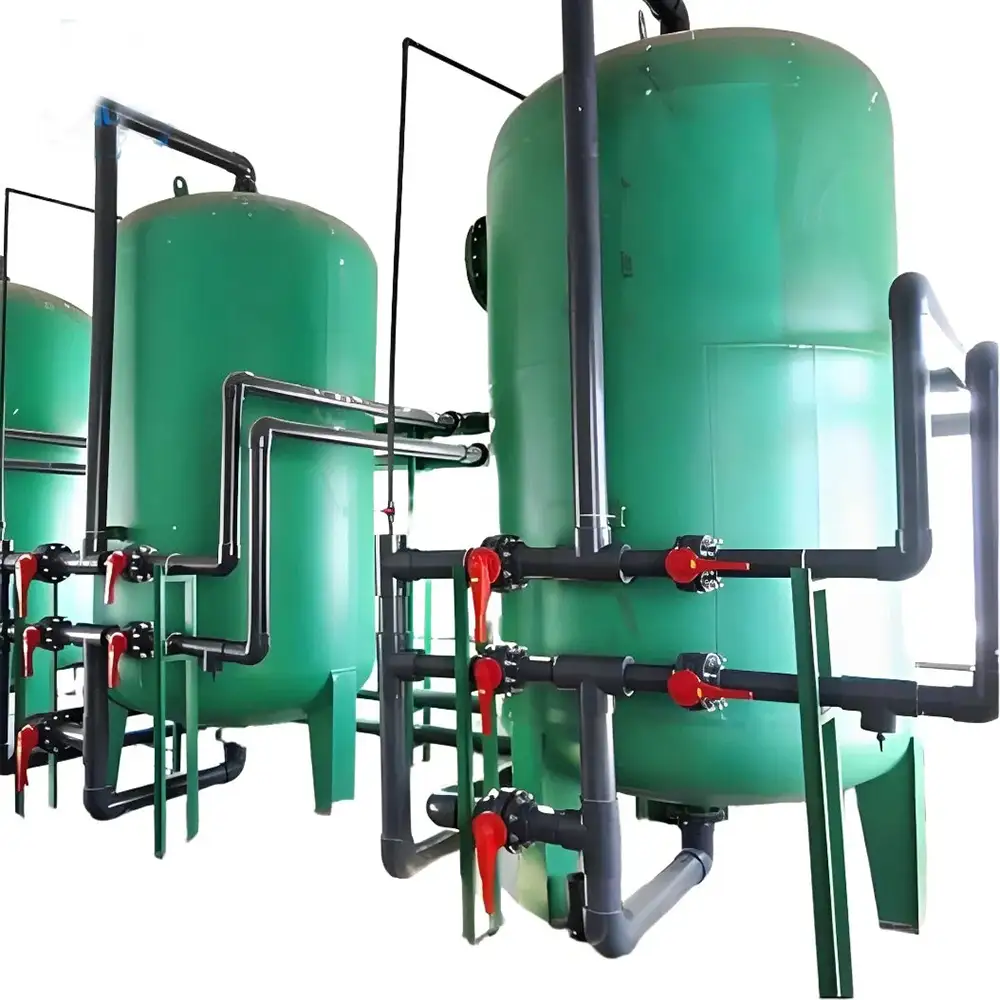

Multimedia Filtration

Multimedia filters can provide depth filtration for turbidity and suspended solids and are often used as industrial pretreatment.

Activated Carbon Filtration

Activated carbon is commonly used for adsorption of chlorine, taste, odor, and selected organic contaminants.

Water Softening

A softener can reduce hardness ions such as calcium and magnesium, helping control scaling in downstream equipment.

Cartridge Filtration

Fine cartridge filtration provides an additional barrier against particulate matter before sensitive membrane equipment.

Reverse Osmosis

RO provides pressure-driven membrane separation for reducing dissolved contaminants and salts.

Post-Treatment

Depending on the application, purified water may pass through UV, ozone, remineralization, polishing filters, EDI, or other treatment technologies.

The combination should be selected according to water analysis rather than simply increasing the number of filtration stages.

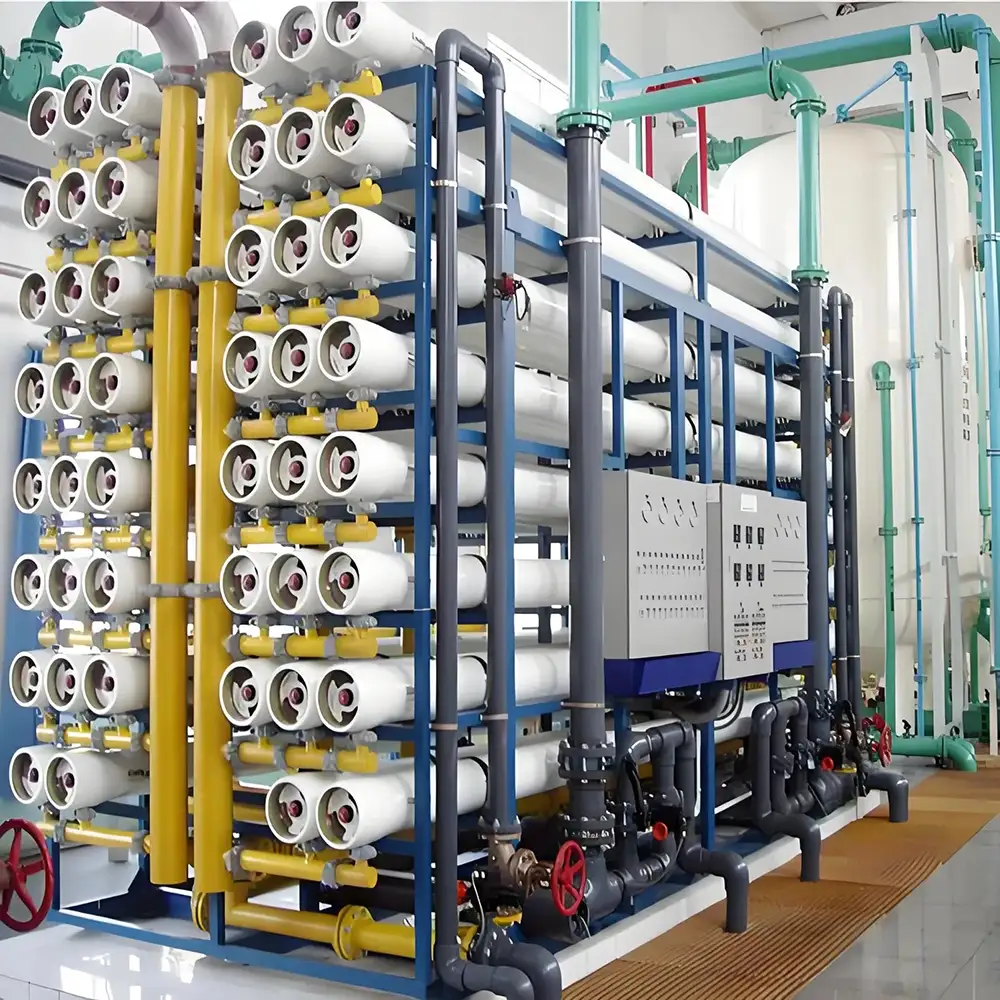

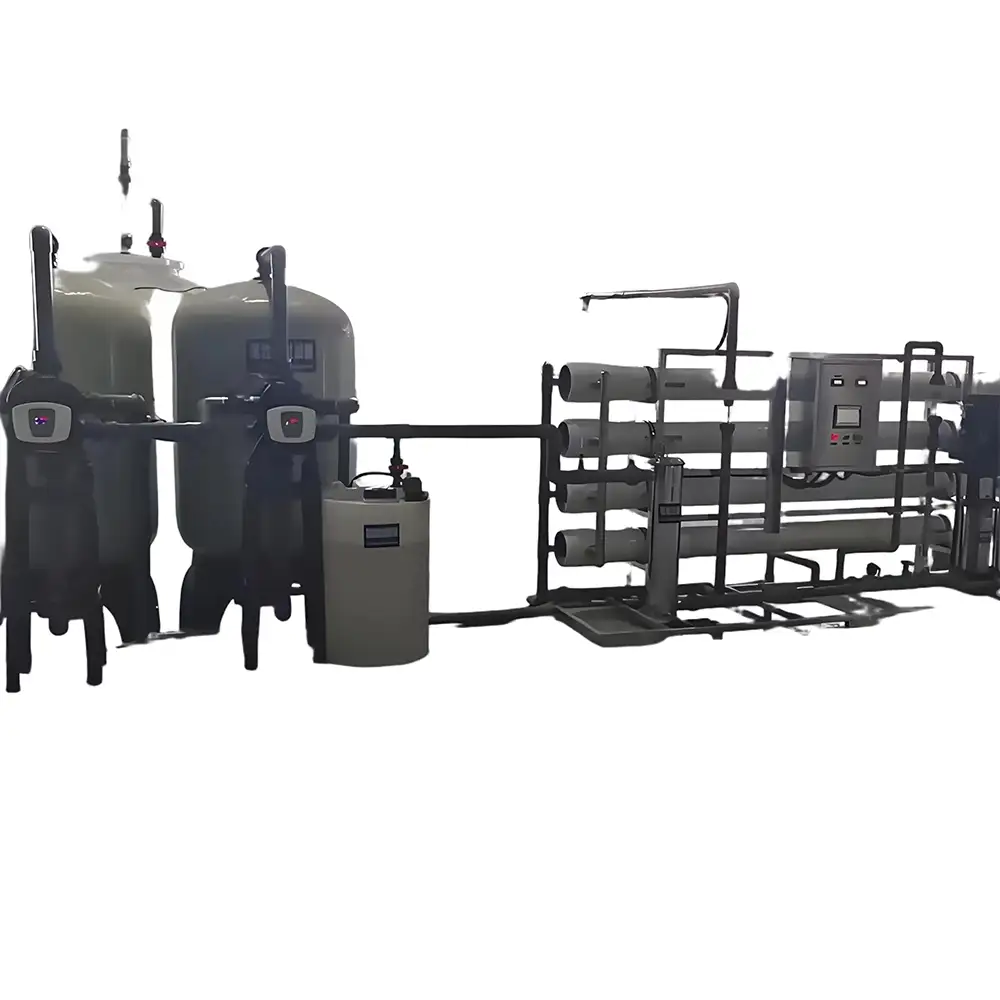

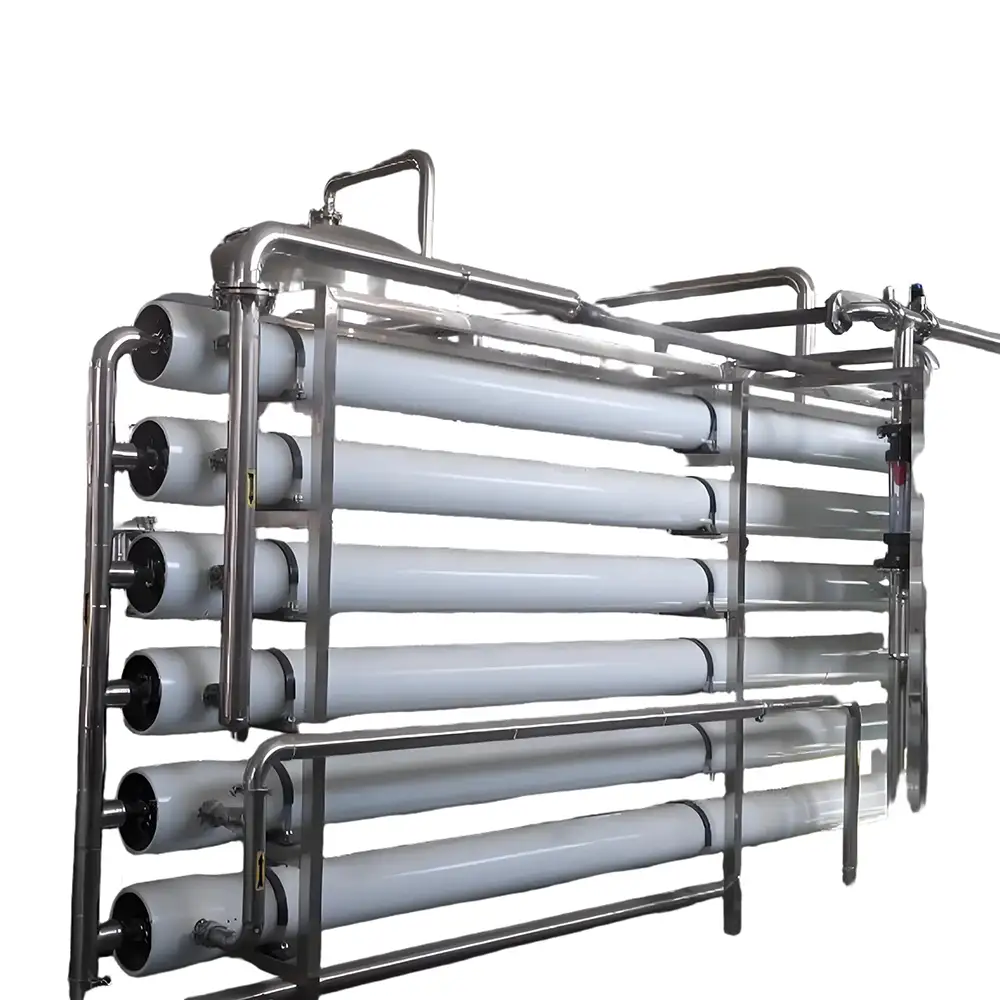

Industrial Water Purification System

Industrial Water Purification Systems are commonly designed as complete treatment trains rather than individual machines.

A typical industrial process may be:

Raw Water → Multimedia Filter → Activated Carbon → Softener → Cartridge Filter → RO → EDI/DI → UV → Storage → Distribution

This type of configuration can be adapted for electronics, pharmaceutical, food and beverage, chemical, laboratory, power-generation, metal finishing, and other industrial applications.

For high-purity applications, additional treatment stages may be required. The final water specification should be established before equipment selection.

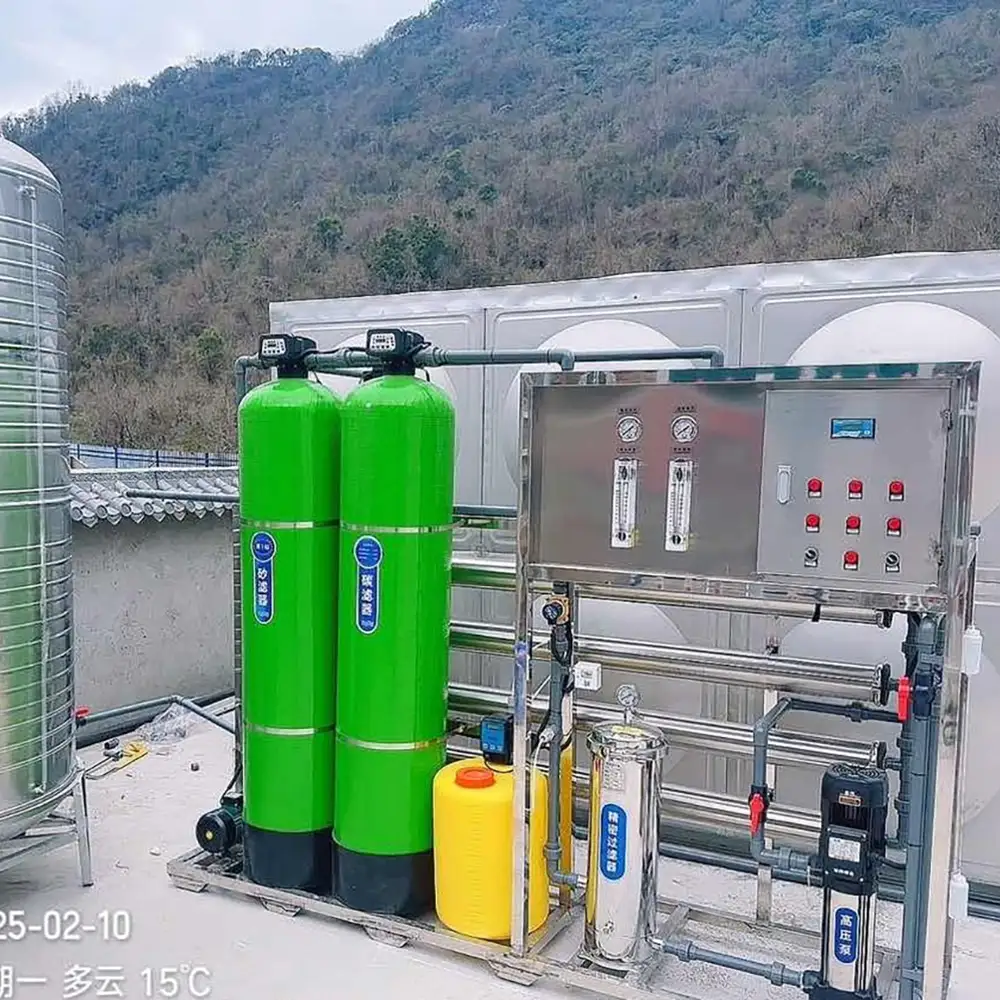

Residential and Commercial RO Systems

For residential and commercial drinking-water applications, compact RO systems can be configured as point-of-use equipment.

Under-sink systems treat water at a dedicated faucet, while countertop and tankless configurations provide alternative installation options.

EPA's WaterSense specification defines point-of-use RO as a system used to treat drinking and/or cooking water at one or more taps rather than the majority of a building's non-consumption water.

Commercial RO systems can provide higher production capacities for restaurants, offices, hotels, schools, laboratories, and other facilities.

For drinking-water applications in the United States, NSF/ANSI 58 addresses RO system requirements including structural integrity, TDS reduction, efficiency, recovery, and verified contaminant-reduction claims.

Industrial Applications

The Water Purification System can be customized for a broad range of applications.

Food and Beverage

RO and multi-stage filtration can be used for ingredient water, process water, equipment washing, beverage production, and other applications where controlled water quality is required.

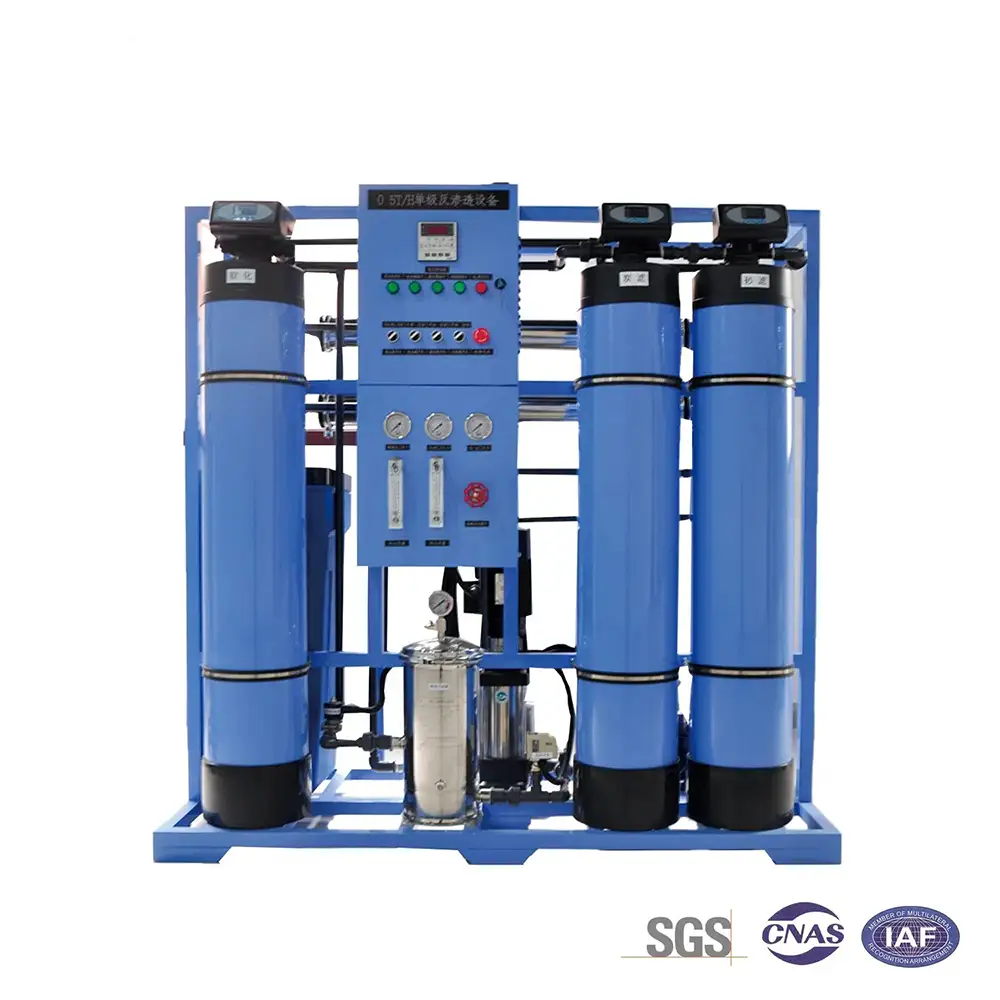

Pharmaceutical and Medical

Advanced purification systems can combine RO, UF, EDI, UV, and other technologies according to the required water-quality specification.

Electronics and Semiconductor

Low-TDS and high-purity water can be required for manufacturing, rinsing, and cleaning processes. Additional polishing stages can be incorporated where necessary.

Boiler Feedwater

RO can reduce dissolved solids in feed water before demineralization or boiler treatment.

Industrial Process Water

Manufacturing facilities can use customized filtration and RO systems to prepare process water for production equipment.

Water Reuse

Treated wastewater can be further processed using UF, RO, disinfection, or other technologies when the water-quality requirements make reuse technically appropriate.

Advantages of a Reverse Osmosis Water Treatment System
Multi-Stage Protection

Pretreatment protects the RO membrane and can improve overall system reliability.

Broad Contaminant Reduction

RO can reduce many dissolved solids and a broad range of contaminants depending on membrane selection and operating conditions.

Flexible Capacity

Systems can be designed for small point-of-use applications or much larger commercial and industrial production capacities.

Modular Configuration

Filters, pumps, membrane vessels, control panels, tanks, UV units, EDI systems, and other components can be integrated into a modular skid.

Automated Operation

Industrial systems can use PLC control, automatic valves, pressure sensors, flow meters, conductivity meters, alarms, and remote monitoring.

Custom Water Quality

The system can be engineered according to the desired conductivity, TDS, hardness, turbidity, flow rate, and application requirements.

Water Recovery and Concentrate Management

One important consideration in RO system design is water recovery.

Not all feed water becomes permeate. A portion leaves the system as concentrate containing a higher concentration of retained dissolved substances.

Recovery depends on membrane configuration, feed-water chemistry, scaling potential, system pressure, and design objectives.

For commercial and industrial projects, concentrate can sometimes be recycled, reused for suitable non-potable applications, or managed through an appropriate wastewater-discharge process.

EPA's commercial water-purification guidance recommends considering system recovery and concentrate management when designing RO installations.

Automatic Control System

A PLC-controlled Water Purification System can automate normal operation and treatment cycles.

Typical monitoring functions include:

Feed-water pressure
RO inlet pressure
RO outlet pressure
Flow rate
Permeate conductivity
Feed-water conductivity
Tank level
Pump status
Filter differential pressure
System alarms
Automatic flushing
CIP control where applicable

Conductivity monitoring is especially useful for evaluating RO performance. A significant change in permeate conductivity can indicate membrane fouling, scaling, damage, or changes in feed-water conditions.

Maintenance

Regular maintenance is essential for long-term performance.

Sediment and carbon filters should be replaced according to actual loading and manufacturer recommendations.

RO membranes should be monitored through permeate flow, conductivity, pressure, and recovery. Cleaning may be required when normalized performance declines.

Pretreatment equipment should also be maintained because poor pretreatment can accelerate membrane fouling.

For industrial systems, maintenance programs may include routine water analysis, pressure monitoring, membrane cleaning, pump inspection, valve maintenance, instrument calibration, and replacement of consumable components.

System Customization

Every Water Filtration System should be designed around the feed-water conditions.

Important design information includes:

Water source
Flow rate
Daily production
Peak demand
TDS
Conductivity
Hardness
Silica
Iron and manganese
Turbidity
Chlorine or chloramine
Organic loading
Water temperature
Required permeate quality
Installation space
Power supply
Automatic or manual operation

Based on these parameters, the system can be configured with multimedia filtration, activated carbon, softening, cartridge filtration, RO, EDI, UV, ozone, storage, and distribution equipment.

Why Choose Us?

We provide complete and customized Water Filtration Systems, Water Purification Systems, and Reverse Osmosis Systems for industrial, commercial, municipal, and residential applications.

As a professional Water Treatment Equipment Manufacturer and Factory, we can supply individual RO units as well as complete integrated treatment plants.

Our engineering team can customize membrane capacity, pretreatment, pump configuration, membrane stages, pressure vessels, storage tanks, piping, valves, instrumentation, electrical control cabinets, PLC systems, UV equipment, EDI polishing, and skid structures.

For international B2B customers, distributors, engineering contractors, water-treatment companies, OEM brands, and industrial end users, we support OEM/ODM and Custom solutions.

Rather than using a standard configuration for every project, we recommend equipment according to actual raw-water quality, required production capacity, final water specification, installation conditions, and operating objectives.

FAQs
1. What Is a Water Filtration System?

A Water Filtration System uses one or more filtration technologies to reduce specific contaminants such as sediment, suspended solids, turbidity, chlorine, or other target substances.

2. What Is a Water Purification System?

A Water Purification System is a broader treatment system that can combine filtration, RO, ion exchange, UV, ozone, EDI, or other technologies to achieve a defined water-quality target.

3. What Is a Reverse Osmosis System?

An RO System uses pressure to force water through a semipermeable membrane. The membrane separates the feed water into permeate and concentrate streams.

4. Does RO Remove TDS?

Yes. RO is specifically capable of reducing many dissolved solids. The actual reduction depends on membrane type, feed-water conditions, pressure, recovery, and system design.

5. Why Does an RO System Need Pretreatment?

Pretreatment can reduce suspended solids, chlorine, hardness, and other substances that could cause membrane fouling, plugging, scaling, or degradation.

6. What Is the Difference Between RO and Regular Filtration?

Conventional filtration generally targets particles or specific adsorbable contaminants, while RO uses membrane separation to reduce many dissolved contaminants and salts.

7. Can RO Treat Well Water?

Yes, but well-water quality should be analyzed first. Additional pretreatment may be required for hardness, iron, manganese, turbidity, sulfur, microorganisms, or other contaminants.

8. Can the System Be Used for Industrial Water?

Yes. Industrial RO and water purification systems can be designed for process water, boiler feedwater, food and beverage production, electronics, laboratories, pharmaceutical applications, and many other industries.

9. Does an RO System Produce Wastewater?

Yes. RO generates a concentrate or reject stream. The quantity depends on the system's recovery and operating configuration. Concentrate management should be considered during system design.

10. Can the RO System Be Fully Automatic?

Yes. PLC control, automatic valves, conductivity monitoring, pressure sensors, flow meters, tank-level controls, alarms, and automatic flushing can be integrated.

11. Can UV Be Added to an RO System?

Yes. UV can be incorporated as an additional treatment or disinfection stage when appropriate for the application.

12. How Often Should RO Membranes Be Replaced?

There is no universal replacement interval. Membrane life depends on feed-water quality, pretreatment, operating conditions, cleaning frequency, temperature, recovery, and maintenance. Performance should be monitored rather than relying only on a fixed calendar interval.

13. Can You Customize a Water Purification System?

Yes. Flow rate, filtration stages, RO membrane configuration, pumps, tanks, valves, control panels, monitoring instruments, UV/EDI equipment, skid structure, and piping can all be customized according to project requirements.

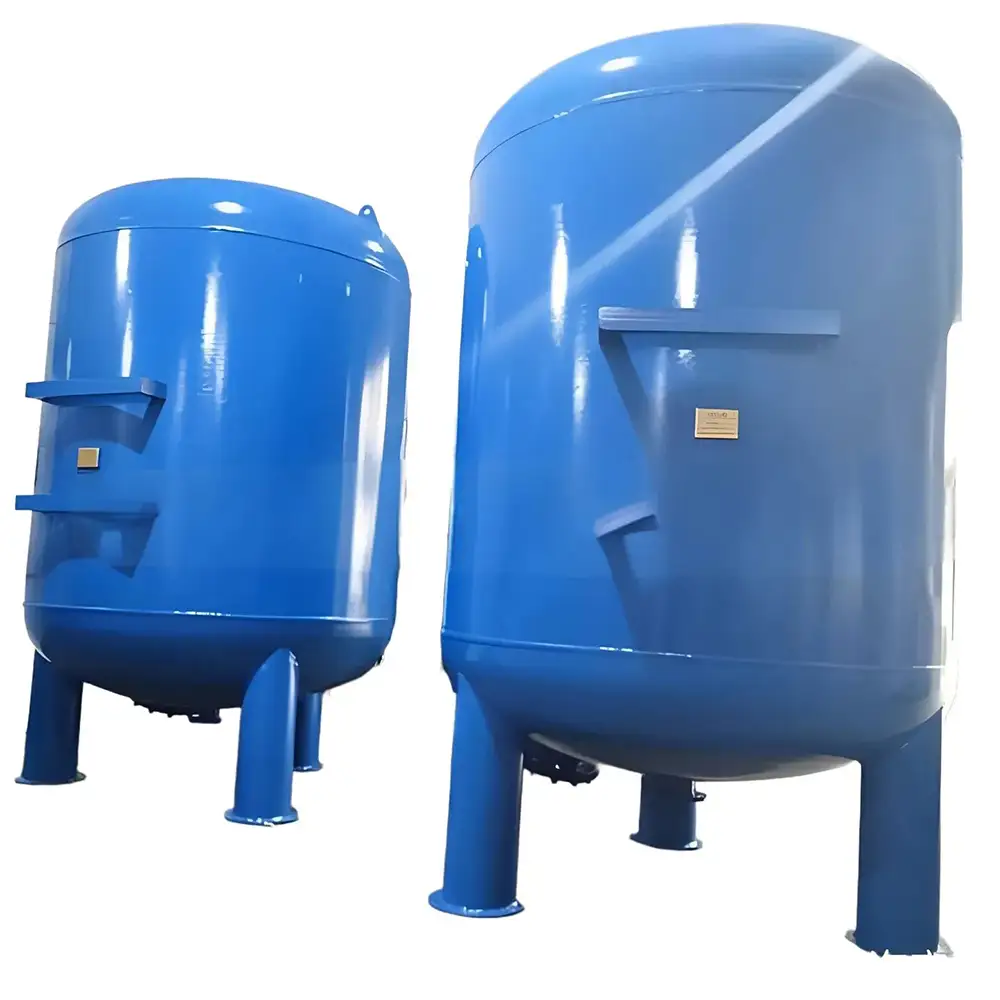

Prev：Water Purification Pretreatment Link/Multi-Media Filter

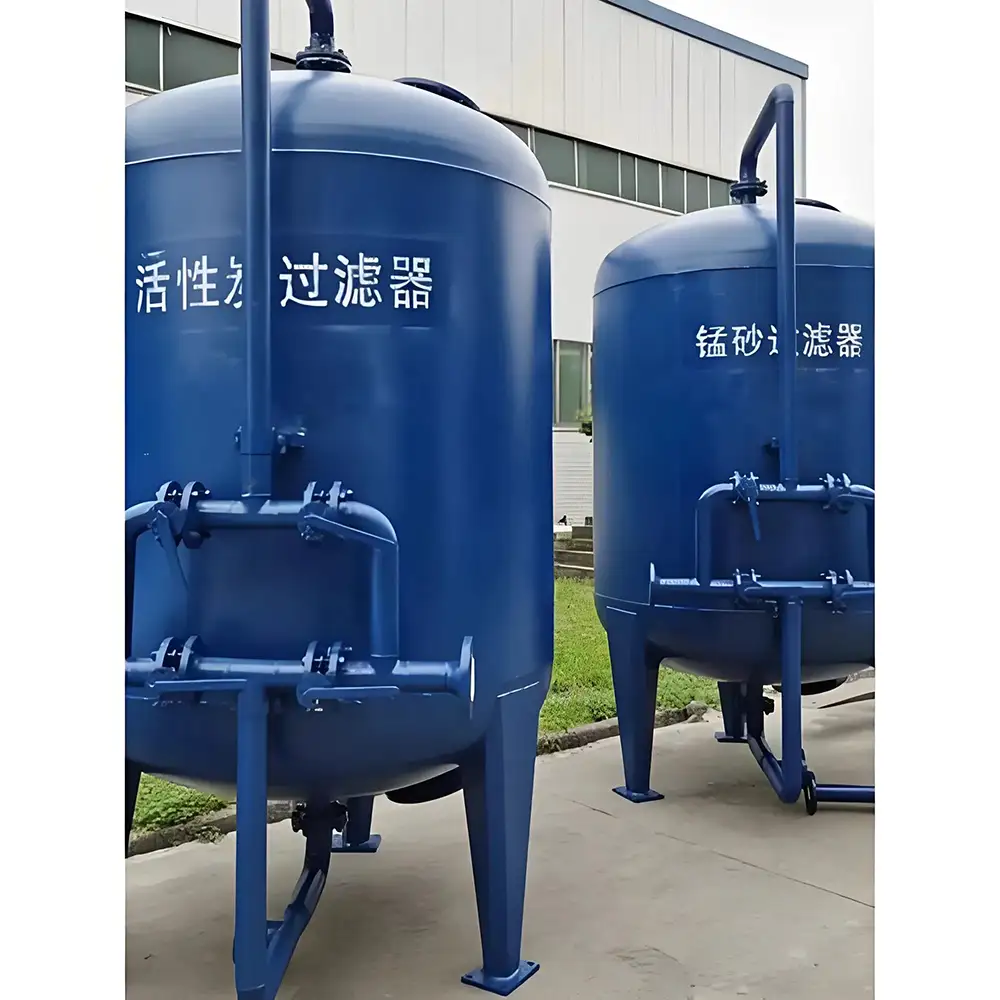

Next：Quartz Sand/Activated Carbon/High Efficiency Impurity Interception/Multi-Media Filter
