Quartz Sand/Activated Carbon/High Efficiency Impurity Interception/Multi-Media Filter

Quartz Sand and Activated Carbon High-Efficiency Multi-Media Filter

The Quartz Sand and Activated Carbon Multi-Media Filter is an advanced water filtration solution designed to combine physical impurity interception with adsorption-based treatment in a coordinated filtration system. By using quartz sand, activated carbon, and optional additional filter media, the system can address different types of contaminants through multiple treatment mechanisms.

Quartz sand is primarily used for physical filtration. As raw water passes through the granular media bed, suspended solids, sediment, turbidity, silt, rust particles, and other particulate impurities can be captured throughout the depth of the filter. Activated carbon works through adsorption and can be used to reduce chlorine, certain organic compounds, odors, tastes, and other target contaminants depending on the carbon type and water chemistry.

This combination makes the Multi-Media Filter particularly useful as a pretreatment system for reverse osmosis, ultrafiltration, ion exchange, deionization, and other advanced water purification technologies. Proper pretreatment can reduce the particulate load reaching downstream equipment and help improve overall system stability.

The meaning of filtration. In the process of water treatment, filtration generally refers to the process of using quartz sand, Anthracite and other filter material layers to intercept suspended impurities in water, so as to make water clear. The porous material used for filtration is called filter material, and quartz sand is the most common filter material. There are various types of filter materials, including granular, powdered, and fibrous. Common filter materials include quartz sand, Anthracite, activated carbon, Magnetite, garnet, porous ceramics, plastic balls, etc.
Multi medium filter (filter bed) is a medium filter that uses two or more types of media as the filter layer. In industrial circulating water treatment systems, it is used to remove impurities, adsorbed oil, etc. from wastewater, so that the water quality meets the requirements of recycling. The function of filtration is mainly to remove suspended or colloidal impurities in water, especially small particles and bacteria that cannot be removed by sedimentation technology. BOD5 and COD also have a certain degree of removal effect

How the Multi-Media Filter Works

A typical filtration process can be configured as:

Raw Water → Quartz Sand Filtration → Activated Carbon Filtration → Cartridge Filtration → RO/UF/DI → Final Treatment

Depending on the water source and treatment objective, quartz sand and activated carbon may be installed in separate vessels or incorporated into a customized multi-media treatment train.

During the filtration stage, water flows through the media bed under pressure. Larger suspended particles can be retained in the upper or coarser layers, while smaller particles penetrate deeper into the filtration bed.

This depth-filtration principle allows the available media volume to participate in impurity interception rather than relying only on surface filtration. Multi-media systems can therefore handle a broader range of particle sizes than a simple single-media configuration when properly designed.

After the media accumulates contaminants, the filter can be backwashed. During backwashing, water flows in the reverse direction to loosen the media bed and carry trapped solids out of the vessel. Automatic systems can use time schedules or differential-pressure signals to initiate the cleaning cycle.

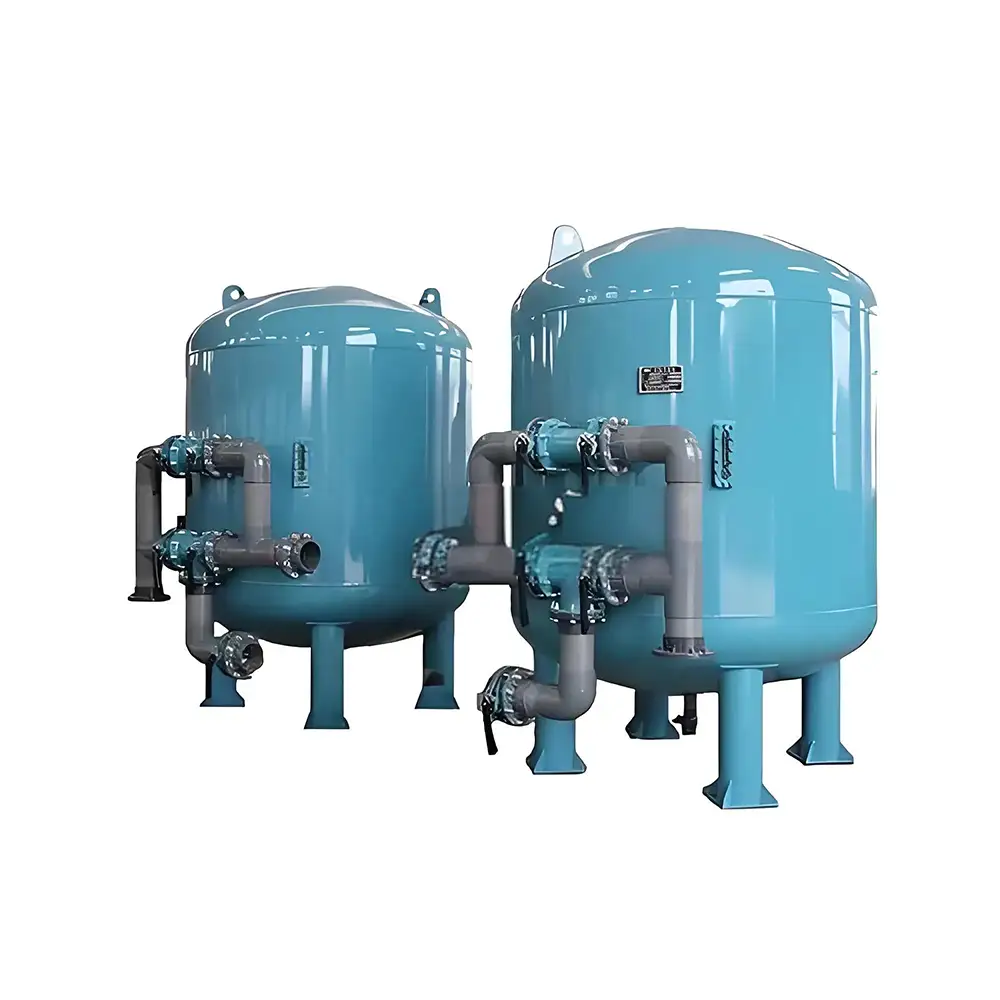

Quartz Sand Filtration

Quartz sand is one of the most common granular filtration media used in industrial water treatment.

Its primary function is the removal of:

Suspended solids
Sediment
Silt
Rust particles
Turbidity
Fine particulate matter
Some colloidal particles under suitable conditions

Quartz sand provides a durable filtration medium with good mechanical strength and can be repeatedly cleaned through backwashing.

In a multi-media configuration, quartz sand can be positioned below a lighter, coarser medium such as anthracite or combined with other graded media. The exact layer arrangement depends on the filter design and target water quality.

Quartz sand filtration is especially useful when the primary objective is to reduce particulate loading before sensitive downstream treatment equipment.

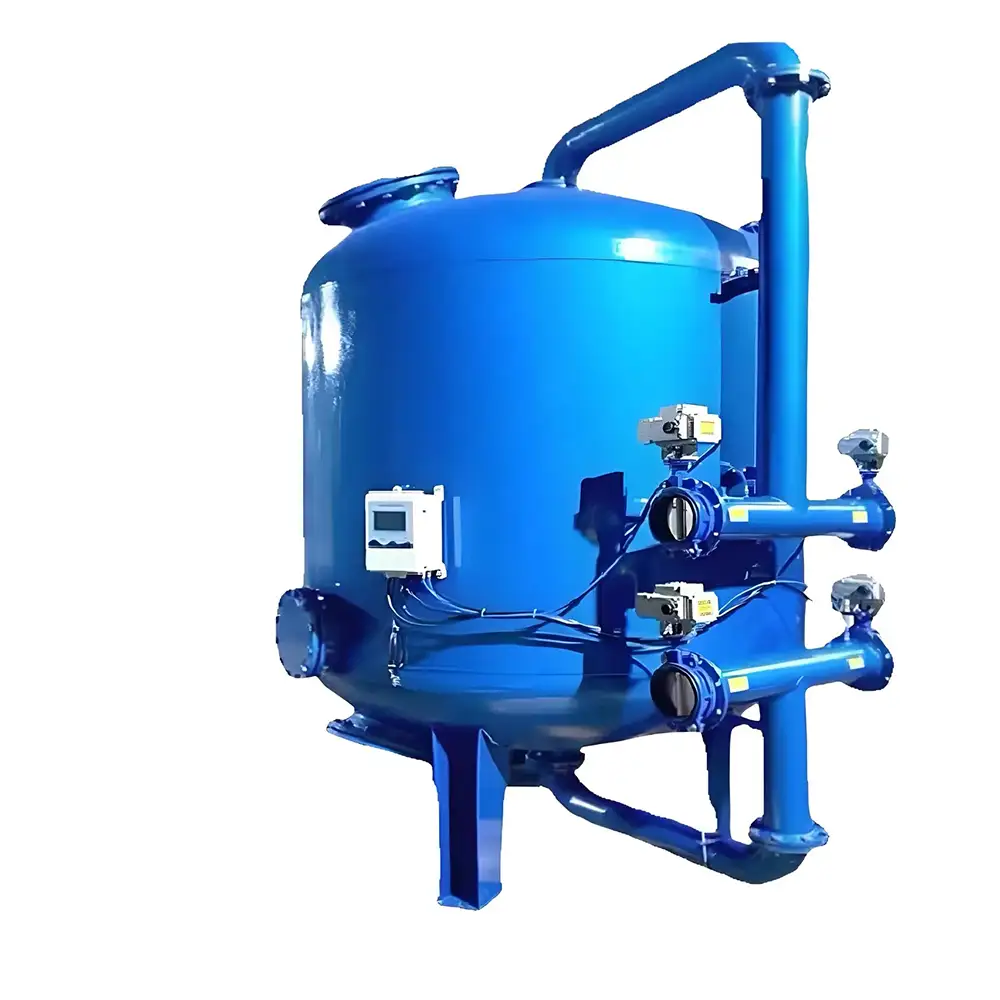

Activated Carbon Filtration

Activated carbon performs a different function from quartz sand.

Rather than relying primarily on mechanical particle interception, activated carbon provides a highly porous surface for adsorption. It is commonly used for reducing chlorine, certain organic compounds, taste, odor, and color-causing substances, depending on the feed-water characteristics and carbon specification.

Activated carbon can be supplied in different grades, including coal-based, coconut-shell, wood-based, and other specialty carbons.

The appropriate carbon should be selected according to the contaminants that need to be treated. Carbon capacity is not unlimited, so the media eventually becomes exhausted and requires replacement or regeneration where applicable.

High-Efficiency Impurity Interception

The phrase “High-Efficiency Impurity Interception” describes the system's ability to capture particulate contaminants through a properly designed multi-layer media bed.

Different media can target different particle sizes and contaminant characteristics.

For example:

Coarse Media → Larger Suspended Particles

Quartz Sand → Fine Suspended Solids and Turbidity

Activated Carbon → Adsorption of Selected Dissolved Contaminants

Fine Cartridge Filter → Final Particulate Protection

This staged approach can provide more comprehensive pretreatment than relying on a single filter medium.

However, filtration performance always depends on feed-water quality, media selection, bed depth, flow velocity, pressure, particle characteristics, and operating conditions. Actual removal rates should therefore be determined from water analysis and system testing rather than assumed from the number of media layers.

Multi-Media Filter Configuration

A Multi-Media Filter can use two or more filtration media selected for the intended application.

Common media include:

Quartz sand
Anthracite
Activated carbon
Garnet
Manganese sand
Gravel support media
Specialty adsorption media

A conventional multi-media filter may use anthracite and quartz sand as the main filtration layers, while activated carbon can be installed as a dedicated adsorption stage when chlorine, organic contaminants, taste, or odor are important treatment targets.

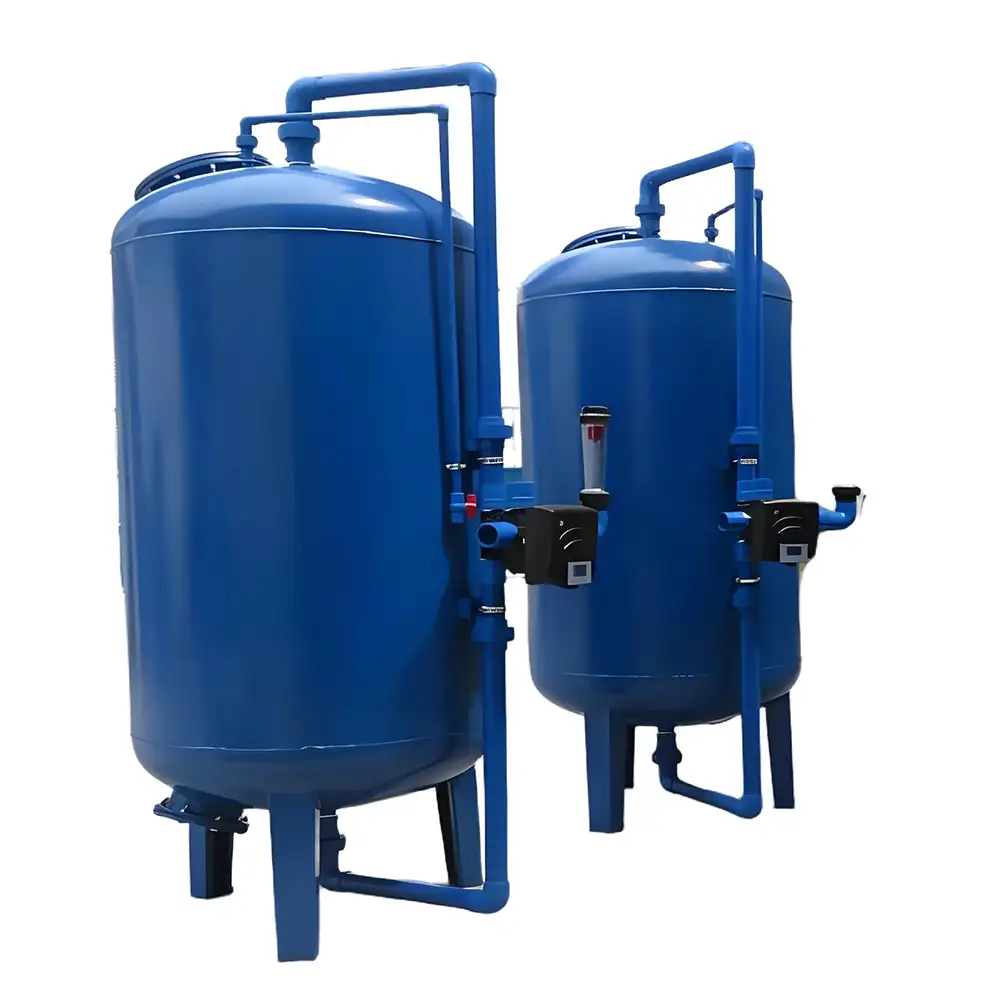

For this reason, a complete industrial system may use a Quartz Sand Filter + Activated Carbon Filter arrangement instead of placing every medium inside one vessel. This allows each vessel to be optimized for its specific treatment function.

Applications

The Quartz Sand and Activated Carbon Multi-Media Filter can be used in many industrial and commercial water treatment applications.

RO Pretreatment

Multi-media filtration is widely used upstream of RO systems to reduce suspended solids and turbidity. Activated carbon can provide additional pretreatment when chlorine or certain organic contaminants need to be controlled.

Industrial Process Water

Manufacturing plants can use multi-media filtration to improve process-water quality and protect downstream equipment.

Municipal Water Treatment

The system can be used for raw-water pretreatment, turbidity reduction, and other filtration requirements depending on the source water.

Groundwater Treatment

For groundwater containing sediment, turbidity, or selected contaminants, the filtration configuration can be customized according to laboratory analysis.

Wastewater Polishing

After biological treatment or clarification, filtration can provide additional particulate and turbidity reduction before disinfection, reuse, or another advanced treatment stage.

Cooling Water Treatment

Multi-media filtration can be used in side-stream filtration systems to reduce suspended solids and help maintain circulating-water quality.

Boiler Feedwater Pretreatment

The system can provide physical pretreatment before softening, demineralization, RO, or other boiler-feedwater processes.

Advantages of the System
Dual Treatment Mechanisms

Quartz sand provides physical filtration while activated carbon provides adsorption. Combining these technologies creates a broader pretreatment solution.

High Dirt-Holding Capacity

A properly designed depth-filtration bed can retain particles throughout the media rather than concentrating all solids at the surface.

Backwashable Filtration

Granular filter media can normally be cleaned through backwashing, allowing repeated filtration cycles.

Protection of Downstream Equipment

Reducing suspended solids and turbidity before RO, UF, or other advanced treatment equipment can help reduce particulate fouling and improve pretreatment performance.

Flexible Design

The system can be supplied as individual pressure vessels, multiple parallel filters, skid-mounted equipment, or a complete automated water pretreatment line.

Automatic Control and Backwashing

For industrial applications, automatic control can significantly simplify operation.

A PLC control cabinet can coordinate:

Filtration
Backwashing
Rinsing
Valve switching
Pressure monitoring
Flow monitoring
Differential-pressure monitoring
Alarm functions
Pump control

A differential-pressure sensor can monitor the pressure difference between the inlet and outlet. As the filter bed becomes loaded with suspended solids, pressure differential increases. When the programmed trigger point is reached, the system can initiate a backwash cycle.

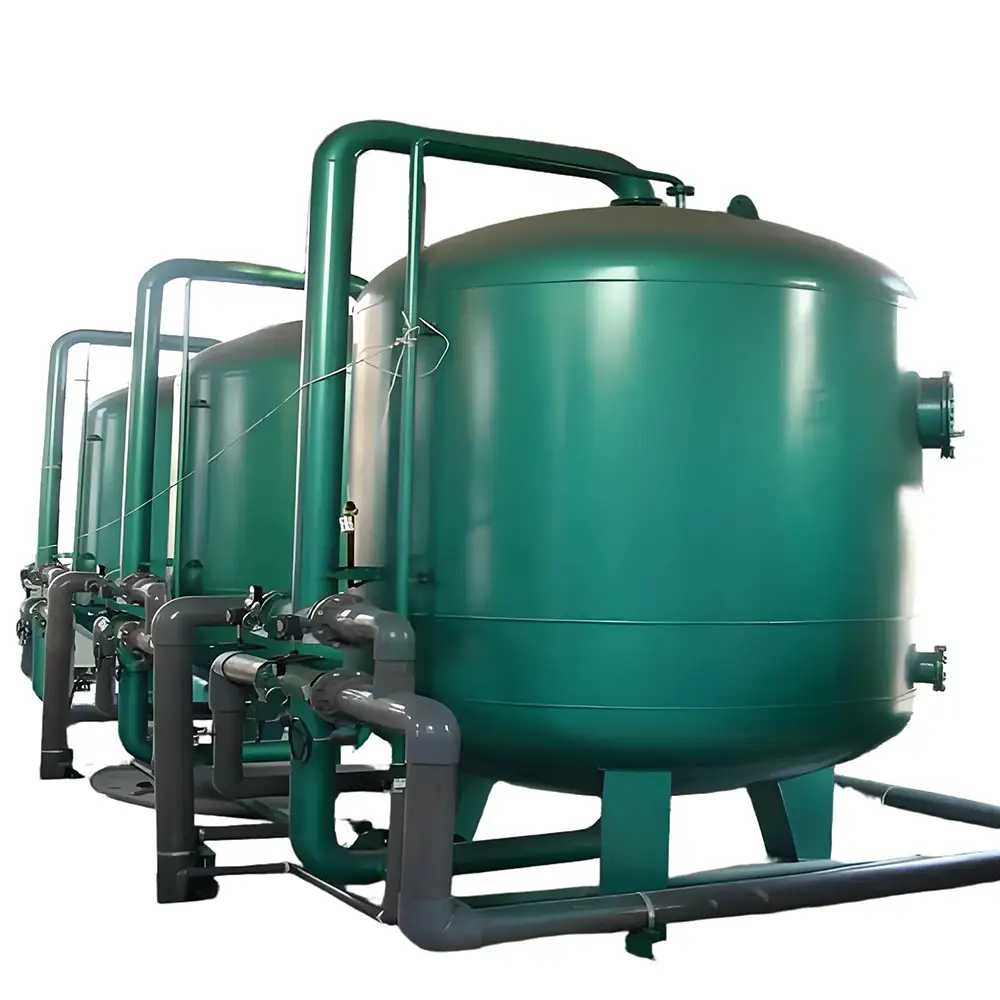

For larger installations, multiple filter vessels can operate in parallel so that one vessel can be backwashed while other vessels continue supplying filtered water.

Equipment Materials

Depending on the application, filter vessels can be manufactured from:

FRP
Carbon steel
Epoxy-lined carbon steel
Stainless Steel 304
Stainless Steel 316
Other customized materials

The appropriate material depends on water chemistry, pressure, temperature, installation environment, and customer requirements.

Internal distributors, collectors, valves, piping, gauges, flow meters, and control components can also be customized.

System Design and Customization

A professional Multi-Media Filter should be designed around the actual feed-water conditions.

Important parameters include:

Raw-water source
Flow rate
Peak flow
Turbidity
TSS
Particle characteristics
Chlorine
Organic loading
Iron and manganese
pH
Temperature
Required outlet quality
Downstream RO or UF requirements

For difficult industrial wastewater, pilot testing or laboratory analysis may be recommended before final equipment selection.

The system can be customized with different media combinations, vessel diameters, filtration areas, media depths, operating pressures, automatic valves, pumps, instrumentation, and PLC controls.

Maintenance

Routine maintenance helps maintain stable filtration efficiency.

Operators should monitor:

Inlet pressure
Outlet pressure
Differential pressure
Filtered-water turbidity
Carbon performance
Backwash effectiveness
Valve operation
Media condition
Leakage
Control-system alarms

Quartz sand media should be checked periodically for media loss, channeling, compaction, or excessive contamination.

Activated carbon should be monitored for exhaustion. Replacement timing depends on chlorine loading, organic contaminants, water flow, contact time, carbon capacity, and actual operating conditions.

Why Choose Us?

We provide customized water filtration and pretreatment solutions for industrial, municipal, commercial, and engineering projects.

As a professional Water Treatment Equipment Manufacturer and Factory, we can supply Quartz Sand Filters, Activated Carbon Filters, Multi-Media Filters, RO Pretreatment Systems, and complete water purification equipment.

Instead of using the same media configuration for every project, we design the filtration process around the customer's water quality, flow capacity, treatment objective, and downstream equipment.

Our solutions can include FRP, carbon steel, stainless steel, manual or automatic valves, differential-pressure monitoring, PLC control, automatic backwashing, skid-mounted systems, and customized piping.

For B2B customers, distributors, engineering contractors, system integrators, and OEM brands, we also support OEM/ODM and Custom filtration equipment according to project specifications, local standards, installation requirements, and target market needs.

FAQs
1. What Is a Quartz Sand and Activated Carbon Filter?

It is a water filtration solution combining quartz sand for physical particle interception with activated carbon for adsorption of selected contaminants such as chlorine, certain organic compounds, taste, and odor.

2. What Is a Multi-Media Filter?

A Multi-Media Filter uses two or more types of granular media arranged in layers to improve depth filtration and capture particles of different sizes throughout the filter bed.

3. What Does Quartz Sand Remove?

Quartz sand primarily removes suspended solids, sediment, turbidity, silt, rust, and other particulate contaminants.

4. What Does Activated Carbon Remove?

Activated carbon is commonly used for adsorption of chlorine, certain organic compounds, odors, tastes, and color-causing substances. Its effectiveness depends on carbon type and feed-water chemistry.

5. Can Quartz Sand and Activated Carbon Be Used Together?

Yes. They can be used as complementary treatment stages. Quartz sand provides physical filtration, while activated carbon provides adsorption.

6. Is a Multi-Media Filter Suitable for RO Pretreatment?

Yes. Multi-media filtration is commonly used to reduce suspended solids and turbidity before RO. Additional cartridge filtration and other pretreatment may be required according to RO feed-water requirements.

7. Does a Multi-Media Filter Remove TDS?

No. Conventional media filtration is not designed to significantly remove dissolved salts or TDS. RO, ion exchange, or other advanced technologies may be required for dissolved-solids reduction.

8. Can Activated Carbon Be Placed in the Same Tank as Quartz Sand?

It can be possible in certain specially designed systems, but separate vessels are often preferred when quartz sand and activated carbon have different operating or backwash requirements.

9. How Is the Filter Cleaned?

Quartz sand and other granular filtration media are generally cleaned by backwashing. Activated carbon systems can also require backwashing depending on design, followed by media replacement when the carbon becomes exhausted.

10. Can the System Be Fully Automatic?

Yes. PLC control, automatic valves, differential-pressure monitoring, automatic backwash, flow monitoring, and alarm functions can be integrated.

11. What Vessel Materials Are Available?

FRP, carbon steel, epoxy-lined steel, stainless steel 304, and stainless steel 316 are common options. Material selection depends on the application and water chemistry.

12. Can This Equipment Treat Wastewater?

Yes. It can be used for wastewater pretreatment or polishing when the wastewater characteristics are suitable. Biological treatment, clarification, membrane treatment, or disinfection may be required for other contaminants.

13. Can You Customize the Multi-Media Filter?

Yes. Media type, vessel size, flow capacity, filtration stages, valve configuration, automation, control panel, piping, instrumentation, and skid structure can all be customized according to project requirements.
