Industrial Deionized Water Systems / Enhanced Filtration Equipment / Quartz Sand Filtration Machines

Industrial Deionized Water Systems with Enhanced Filtration and Quartz Sand Filtration Machines

Industrial Deionized Water Systems are engineered to remove dissolved ions, minerals, and unwanted impurities from feed water for applications requiring controlled conductivity and improved water quality. When combined with Enhanced Filtration Equipment and Quartz Sand Filtration Machines, a complete water treatment line can provide effective pretreatment before deionization, reverse osmosis, ultrafiltration, or other polishing processes.

Model NO.	wzss	Handling method	Physical Treatment
Usage	Industrial, Home, Agriculture, Hospital, Urban	Trademark
Types	Package, Compact, Small, Mini	Applications	Industrial, Municipal, Domestic, Medical, Ship
Transport Package	Container Standard Packing	Features	Remove Cod BOD
Material	Remove Cod BOD	Function	Removing Escherichia coli, harmful bacteria
Voltage	220V/ 380V/ Customerized	Installation Type	Underground / Onground
Colour	white	Use for	Mineral, Printing, Chemical, Dyeing, Starch
Production Capacity	2000 Sets/Year	Origin	China

For industrial applications, deionization is rarely considered as an isolated treatment step. Raw water may contain suspended solids, turbidity, hardness, iron, manganese, chlorine, organic matter, and dissolved salts. These contaminants can reduce the service life and performance of downstream membranes and ion exchange resins. A properly designed pretreatment train can therefore improve overall system stability and reduce maintenance requirements.

Quartz sand filtration is commonly used as a physical pretreatment process. Water passes through a graded bed of quartz sand or other suitable media, where suspended particles and turbidity are retained within the filter bed. Industrial quartz sand filters can be configured as pressure vessels or integrated into skid-mounted treatment systems. Depending on feed-water characteristics, multimedia filtration may also combine different media layers to improve particle removal and hydraulic performance.

Industrial Deionized Water System Working Principle

A typical Industrial Deionized Water System can include several treatment stages selected according to raw-water chemistry and the required final water quality.

A representative process may be:

Raw Water → Quartz Sand Filter → Activated Carbon Filter → Softener → Cartridge Filter → RO → Deionization → Polishing → Storage and Distribution

The exact configuration is customized according to feed-water TDS, hardness, silica, alkalinity, suspended solids, organic content, required flow rate, outlet conductivity, and application requirements.

The Quartz Sand Filtration Machine is normally positioned near the beginning of the treatment process. Its main function is to reduce suspended solids and turbidity before water reaches more sensitive downstream equipment.

Activated carbon filtration may be added when chlorine, chloramine, taste, odor, or certain organic contaminants need to be controlled. Softening can be used to reduce hardness and help control scaling in downstream equipment.

For higher-purity applications, RO can be installed before the deionization stage. RO reduces a large portion of dissolved salts and other contaminants, while ion exchange or EDI can provide additional deionization and polishing. Integrated RO and deionization systems are widely used when low conductivity or high-purity process water is required.

Enhanced Filtration Equipment

Enhanced Filtration Equipment is designed to improve the quality of feed water before advanced purification stages. Depending on the application, an enhanced filtration system can include quartz sand filters, multimedia filters, activated carbon filters, cartridge filters, bag filters, iron removal filters, or other specialized media.

The objective is not simply to add more filtration stages. Each stage should have a defined treatment purpose.

Quartz sand filtration focuses primarily on suspended solids and turbidity. Activated carbon is used for adsorption-related applications. Cartridge filtration provides finer particulate protection before membrane or ion exchange equipment. Additional treatment technologies can be integrated when raw-water conditions require them.

This staged approach helps protect sensitive components and can improve the operating stability of the complete water purification system. Industrial pretreatment systems commonly combine filtration, ion exchange, softening, and RO technologies according to the application.

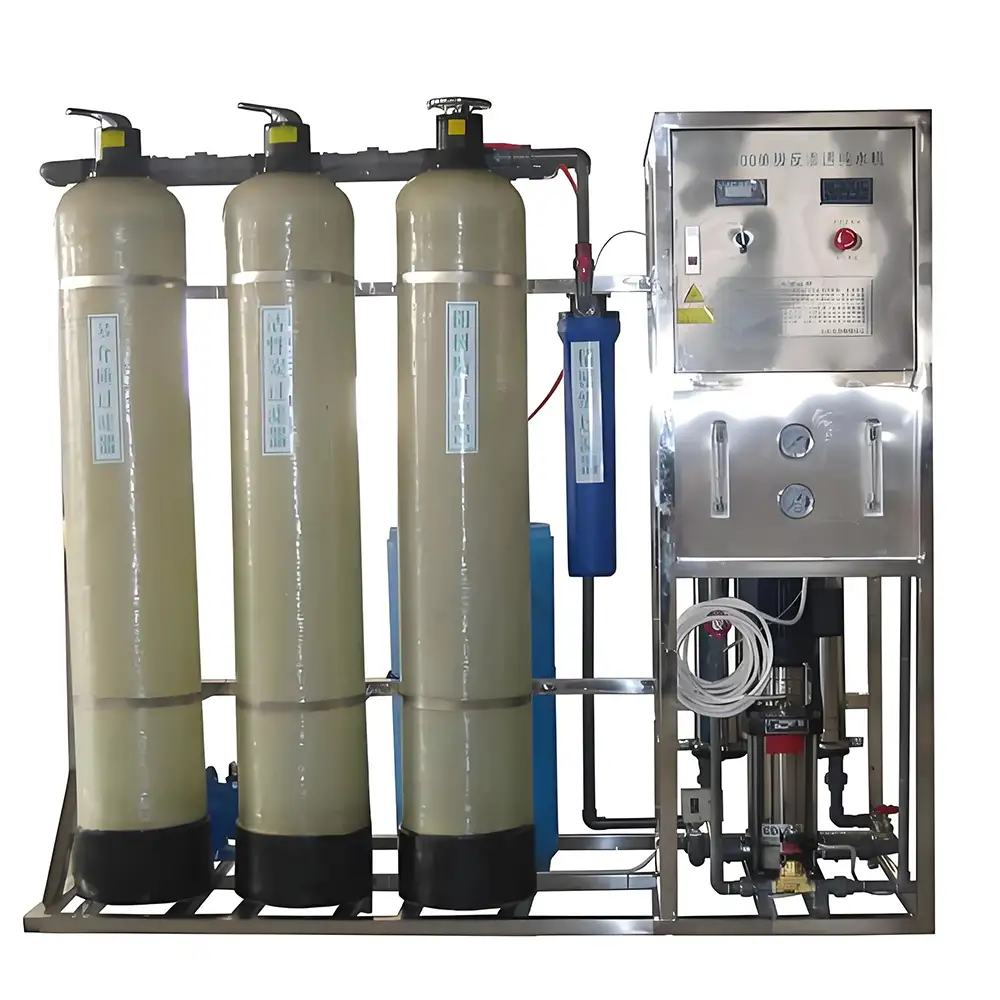

Quartz Sand Filtration Machines

Quartz Sand Filtration Machines are pressure filtration systems containing specially selected quartz sand media. During normal operation, feed water enters the filter vessel and passes through the media bed. Suspended particles are captured within the depth of the filter rather than simply accumulating on the surface.

When the pressure differential increases or the filter reaches its operating loading condition, a backwash cycle can be performed. Backwashing reverses the water flow and loosens accumulated contaminants from the media bed so they can be discharged.

Depending on the project, the filtration machine can use manual valves, automatic multi-port valves, pneumatic valves, or PLC-controlled automatic backwashing. Industrial systems can also be equipped with pressure gauges, flow meters, differential-pressure monitoring, sampling points, and automatic control panels.

Quartz sand filters are especially useful as pretreatment for RO, UF, ion exchange, and other downstream purification technologies because excessive suspended solids can contribute to fouling or interfere with downstream treatment.

Deionization and Demineralization

Deionized water is produced by removing dissolved ionic contaminants from water. Conventional ion exchange systems can use cation and anion resin beds, while mixed-bed systems can provide additional polishing.

In a two-bed deionization system, cation exchange resin removes positively charged ions such as calcium, magnesium, sodium, and other cations. Anion exchange resin then removes negatively charged ions such as chloride, sulfate, bicarbonate, and nitrate. The final water has substantially lower ionic content and electrical conductivity.

For demanding applications, RO can be used before deionization to reduce the ionic load entering the resin beds. Electrodeionization can also be considered for suitable applications where continuous high-purity water production is desired.

Key Features
Industrial-grade water treatment configuration
Quartz sand or multimedia pretreatment
Enhanced filtration for suspended solids and turbidity reduction
Optional activated carbon filtration
Optional water softening
Cartridge filtration for downstream protection
RO and deionization integration
Ion exchange or mixed-bed polishing options
Automatic or manual control configurations
PLC-based monitoring and operation options
Skid-mounted or separate-vessel installation
FRP, carbon steel, stainless steel, or other vessel options according to application
Custom flow rate and water-quality requirements
Suitable for continuous industrial operation
Industrial Applications

Industrial Deionized Water Systems can be configured for a wide variety of applications where dissolved mineral ions or conductivity need to be controlled.

Common applications include electronics manufacturing, semiconductor-related processes, metal finishing, electroplating, laboratories, pharmaceutical production, chemical processing, power generation, boiler feedwater preparation, battery manufacturing, photovoltaic production, industrial cleaning, and process-water recycling.

Deionized water may also be used for equipment rinsing, surface preparation, product washing, cooling-related processes, and other applications where dissolved minerals could cause scaling, spotting, corrosion, or process-quality problems.

The required water quality should always be defined according to the actual process. A DI system designed for general industrial rinsing may have very different specifications from a system intended for high-purity manufacturing.

System Customization

A reliable industrial water treatment system should be sized according to actual water chemistry rather than capacity alone.

Important design parameters include:

Raw water source
Flow rate and peak demand
TDS and conductivity
Hardness
Silica concentration
Iron and manganese
Turbidity and suspended solids
Chlorine or chloramine
Organic loading
Required treated-water conductivity
Daily operating hours
Regeneration requirements
Installation space
Automation level

Based on these parameters, the system can be configured with quartz sand filtration, activated carbon, softening, cartridge filtration, RO, ion exchange, EDI, UV, or other treatment stages.

Operation and Maintenance

Regular maintenance is essential for stable performance. Quartz sand filters require periodic backwashing to remove accumulated solids. Differential pressure monitoring can help operators identify when a filter requires cleaning.

Ion exchange systems require monitoring of outlet conductivity and resin capacity. Resin eventually becomes exhausted and must be regenerated or replaced depending on the system design.

RO systems require appropriate pretreatment and membrane cleaning when necessary. Cartridge filters should also be inspected and replaced according to pressure differential and operating conditions.

Routine monitoring allows operators to identify changes in raw-water quality before they cause significant problems downstream.

Why Choose Us?

We provide complete industrial water treatment solutions rather than treating filtration equipment as a standalone product. Our engineering approach allows Quartz Sand Filtration Machines, Enhanced Filtration Equipment, RO systems, ion exchange units, and polishing equipment to be combined into a coordinated treatment line.

As an industrial water treatment equipment Manufacturer and Factory, we can customize vessel size, filtration media, flow capacity, piping, valve configuration, control system, instrumentation, skid structure, and treatment stages according to project requirements.

Our B2B solutions are suitable for distributors, engineering companies, water treatment contractors, industrial plants, OEM projects, and turnkey water treatment applications. From individual quartz sand filter vessels to complete Industrial Deionized Water Systems, we can provide equipment configurations designed around the customer's water quality and process objectives.

FAQs
1. What Is an Industrial Deionized Water System?

An Industrial Deionized Water System removes dissolved ionic contaminants from water using ion exchange, RO combined with ion exchange, EDI, or related demineralization technologies.

2. What Does a Quartz Sand Filter Remove?

Quartz sand filtration primarily reduces suspended solids, turbidity, sediment, and particulate contaminants. It is generally used as a pretreatment stage rather than as a complete dissolved-salt removal process.

3. Can a Quartz Sand Filter Be Used Before RO?

Yes. Quartz sand filtration is commonly used as pretreatment to reduce suspended solids and turbidity before RO, helping protect downstream membrane equipment.

4. Is Deionized Water the Same as RO Water?

No. RO and deionization use different treatment mechanisms. RO uses a semipermeable membrane to reduce dissolved contaminants, while deionization primarily removes ionic species through ion exchange or electrodeionization.

5. Why Use RO Before Deionization?

RO can reduce the dissolved contaminant load entering the deionization stage. This can help reduce resin consumption and extend the operating cycle of conventional DI equipment.

6. How Often Should a Quartz Sand Filter Be Backwashed?

The interval depends on feed-water quality, filtration loading, media depth, flow rate, and pressure differential. Automatic systems can initiate backwashing based on differential pressure or a programmed schedule.

7. Can the System Be Fully Automatic?

Yes. PLC control, automatic valves, conductivity monitoring, pressure monitoring, flow measurement, automatic backwash, and alarm functions can be integrated according to project requirements.

8. What Materials Are Available for Filter Vessels?

Common options include FRP, carbon steel, lined steel, and stainless steel. The appropriate material depends on water chemistry, pressure, temperature, installation conditions, and application requirements.

9. Can the System Produce High-Purity Water?

Yes, when the system is designed with appropriate pretreatment and purification stages such as RO, ion exchange, mixed-bed polishing, or EDI. The final specification should be based on the required conductivity and water-quality targets.

10. What Information Is Needed for System Design?

Useful information includes raw-water analysis, flow rate, operating hours, water source, required outlet quality, installation conditions, and intended application.

11. Can You Supply Quartz Sand Filtration Equipment Separately?

Yes. Quartz sand filter vessels and complete filtration skids can be supplied as standalone equipment or integrated into a larger industrial water purification system.

12. Can the Deionized Water System Be Customized?

Yes. Capacity, filtration stages, vessel materials, resin type, RO configuration, control system, piping, instrumentation, skid structure, and polishing stages can be customized.

13. Is This Equipment Suitable for OEM Projects?

Yes. OEM and customized industrial water treatment configurations can be developed for distributors, engineering contractors, water treatment companies, and industrial end users.
