Single Head Hydraulic Riveting with Machine,New Condition for Pallet Collars SS Rivets Punching Riveting Motor

In the field of modern industrial manufacturing, the riveting process, as a crucial connection technology, is widely applied in numerous industries. Today, we bring you an innovative device that revolutionizes the traditional riveting experience - the hydraulic riveting machine. This hydraulic riveting machine adopts an advanced full hydraulic drive and control system. With a strong and stable output pressure, it can directly achieve the cold riveting process, significantly improving the riveting quality and injecting a higher quality guarantee into your production process. Compared with the traditional pneumatic riveting method, it has many remarkable advantages: 1. Excellent Adaptability to the Working Environment: It operates without annoying noise interference, creating a quiet and comfortable working atmosphere for operators and effectively reducing the impact of noise pollution on the working environment. 2. Flexible and Convenient Operation: Operators can easily control the device. The operation process is agile and smooth, greatly reducing the labor intensity. Even if working for a long time, it is not easy to feel tired. 3. High Production Capacity: The riveting speed is extremely fast, and it can complete a large number of riveting tasks in a short time, significantly improving production efficiency and helping enterprises gain the upper hand in market competition.

Machine Type	hydraulic riveting machine
warranty	1 Year
weight	350kg
spindle stroke	42MM
motor	0.5HP-1*2HP
Model	S-152
Working times	0.5-10 seconds
working pressure	20-70kg/cm cubic meters
MPA	430-1650
Riveting length	230mm
riveting RMP	1400/1720
After-sales Service Provided	1 year

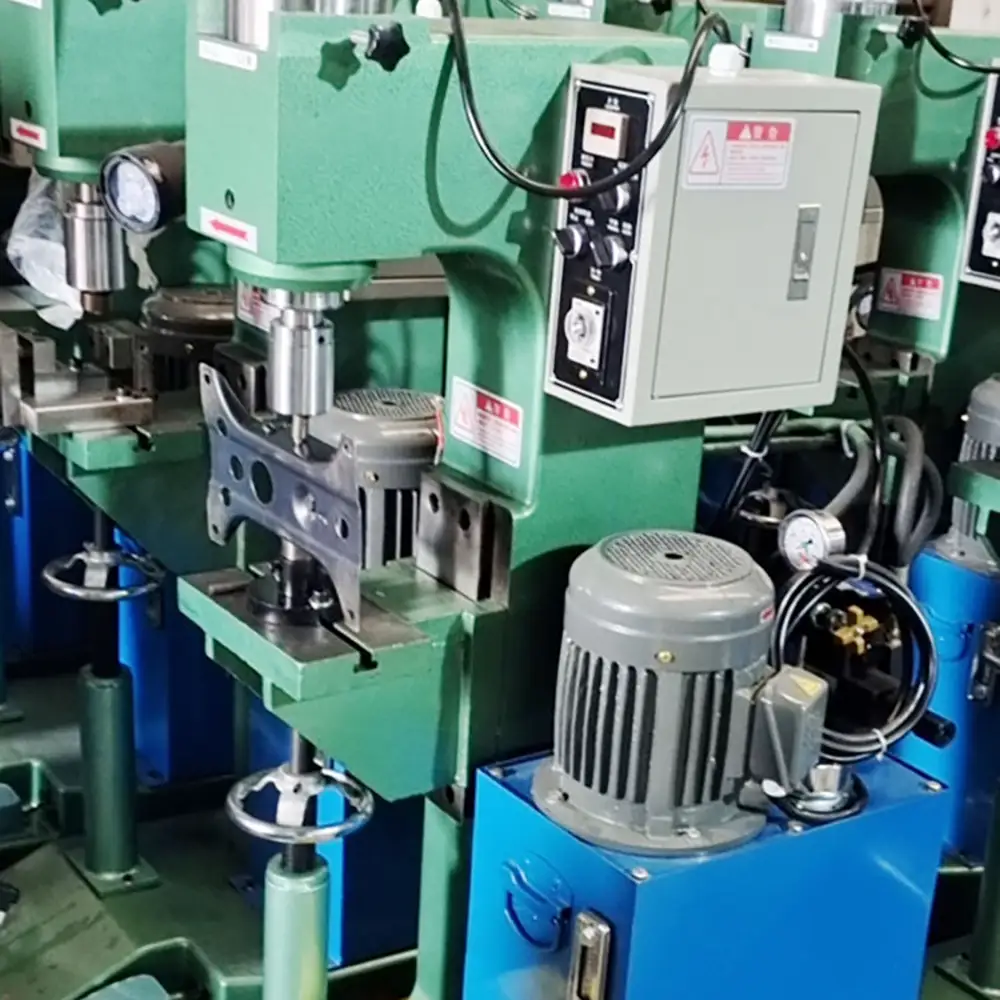

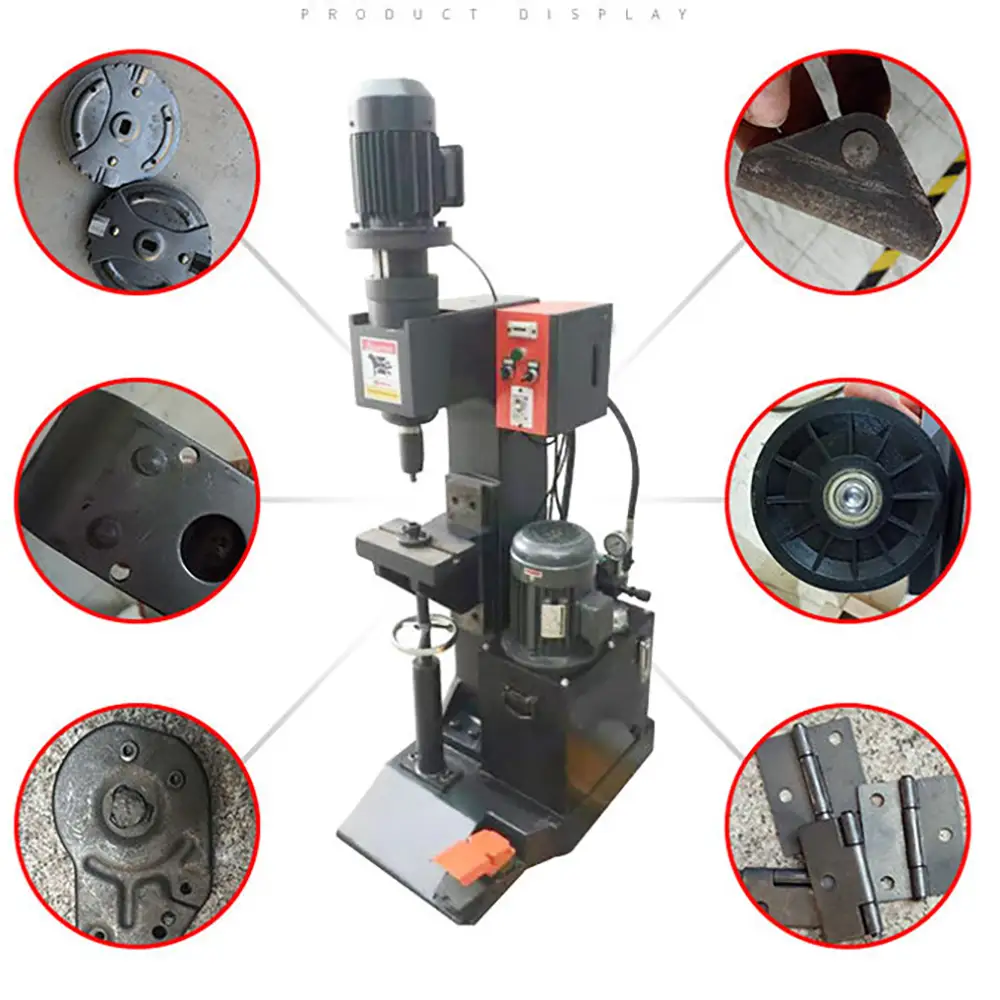

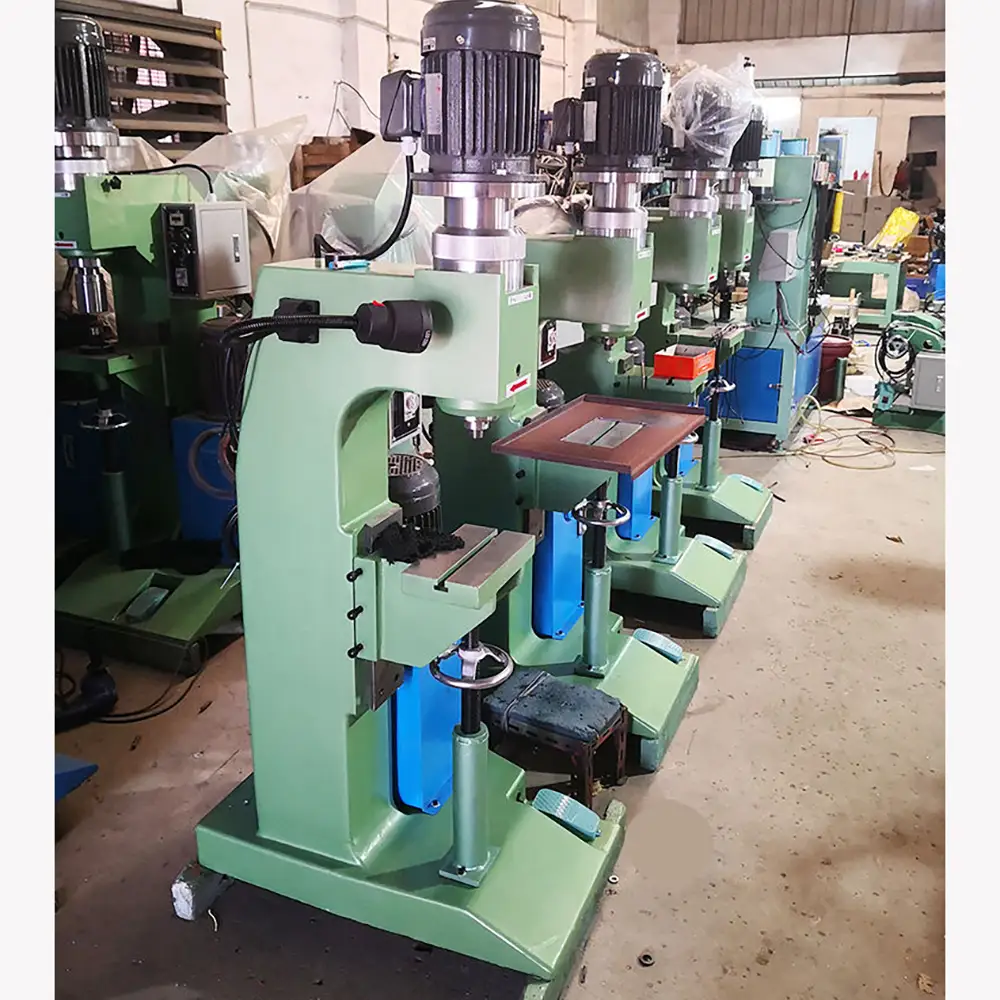

Single Head Hydraulic Riveting Machine for Pallet Collars

The Single Head Hydraulic Riveting Machine is an industrial fastening and assembly solution designed for pallet collars, stainless steel rivets, metal components, and other applications requiring reliable punching and riveting operations. With a hydraulic driving system and single-head riveting structure, the machine provides controlled mechanical force for consistent rivet installation in industrial production environments.

Pallet collars are commonly used to create flexible and reusable pallet boxes for material handling, warehousing, logistics, manufacturing, and storage applications. The production of pallet collars often requires secure fastening of metal hinges, brackets, corner components, or other hardware. A dedicated hydraulic riveting machine can help manufacturers improve assembly efficiency and achieve more repeatable fastening results.

The machine can be configured with suitable dies, fixtures, and riveting tooling according to the customer's pallet collar design, rivet specifications, material thickness, and production requirements.

Hydraulic Riveting and Punching System

Hydraulic drive technology provides controlled force for punching and riveting operations. The hydraulic system can support stable force application while the workpiece is positioned under the riveting head.

The punching and riveting process can be configured according to the production application. Depending on the tooling arrangement, the machine can be used for preparing holes, positioning rivets, or completing mechanical fastening operations on compatible components.

Compared with manual riveting tools, a hydraulic riveting machine provides a more structured production process. It can reduce repetitive manual force requirements and help improve consistency between individual workpieces.

Actual machine performance depends on the hydraulic configuration, rivet type, workpiece material, thickness, tooling, and application requirements.

Single Head Riveting Design

The single-head configuration provides a straightforward solution for applications where riveting positions can be processed individually.

A single riveting head can be particularly useful for manufacturers that require flexible positioning of different pallet collar components. Operators can position the workpiece according to the required fastening location and then perform the riveting operation.

This configuration can also be suitable for manufacturers handling different product sizes or designs, because tooling and fixtures can be developed around specific workpieces without requiring a complex multi-head system.

Pallet Collar Riveting Applications

Pallet collars require reliable connections between their structural components and hardware. Depending on the product design, riveting may be required for hinges, brackets, corner fittings, reinforcement components, or other metal hardware.

The machine can be considered for pallet collar manufacturing applications involving:

Wooden pallet collars
Foldable pallet collars
Reusable pallet boxes

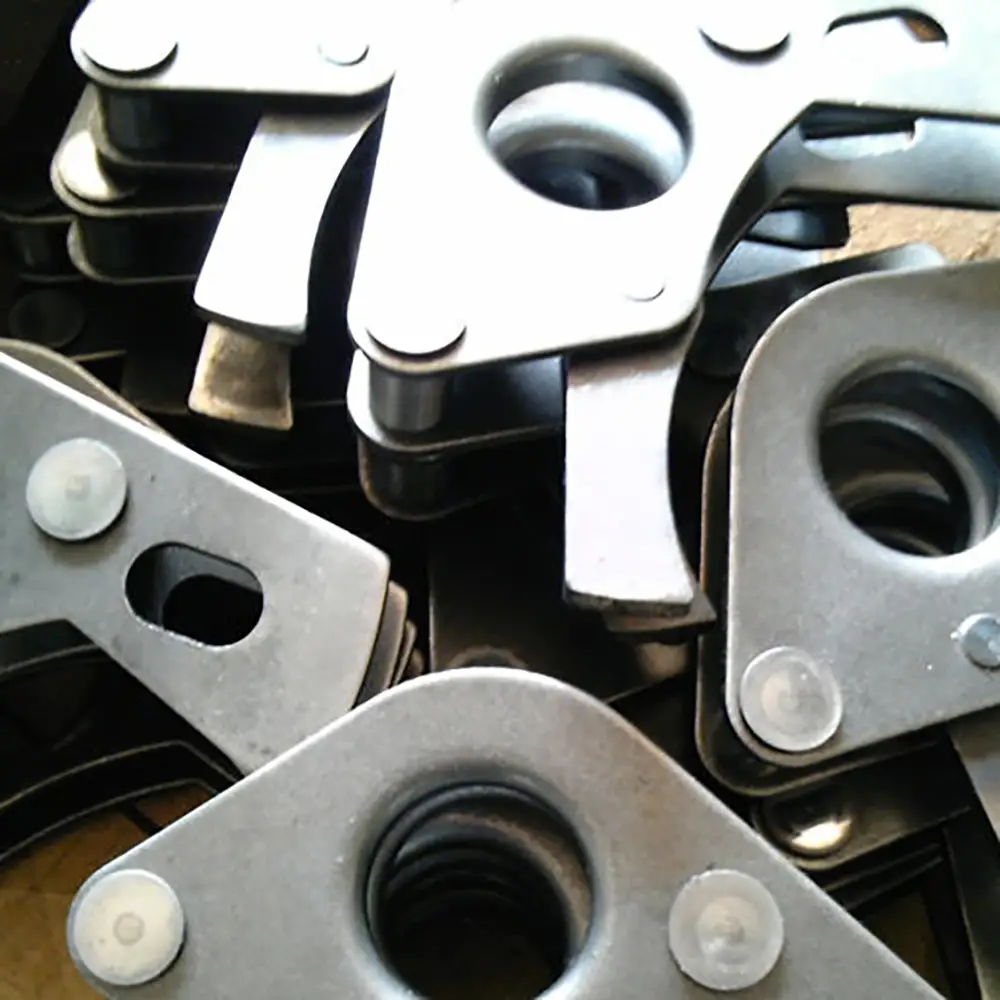

Metal pallet hardware
Pallet hinges
Corner brackets
Reinforcement components
Packaging hardware
Industrial storage components

The exact riveting process should be selected according to the pallet collar construction and the type of rivet being used.

Stainless Steel Rivet Applications

The machine is suitable for applications involving compatible stainless steel rivets, subject to the selected tooling and hydraulic configuration.

Stainless steel rivets are commonly selected when corrosion resistance, durability, and long service life are important. They can be used in industrial hardware, packaging equipment, pallet components, metal assemblies, and other applications.

The rivet material, diameter, length, head design, and workpiece thickness should be considered when selecting the appropriate riveting tooling.

Controlled Riveting Force

Consistent rivet forming requires appropriate force and correctly matched tooling. Excessive or insufficient force may affect the finished joint, while poor positioning can lead to inconsistent results.

The hydraulic system provides controlled mechanical force during the riveting process. With a properly designed die and fixture, the machine can help maintain consistent rivet forming across repeated production cycles.

For pallet collar manufacturing, stable riveting is especially important when the finished components are intended for repeated folding, assembly, handling, transportation, and storage.

Stable Workpiece Positioning

Proper positioning is one of the most important factors in a reliable riveting process. The pallet collar or metal component must remain stable while the riveting head applies force.

Application-specific fixtures can be designed to support the workpiece and maintain the correct riveting location. Depending on the product structure, fixtures may be fixed, interchangeable, or customized for different models.

Customized positioning solutions can also help reduce operator adjustment time and improve repeatability during batch production.

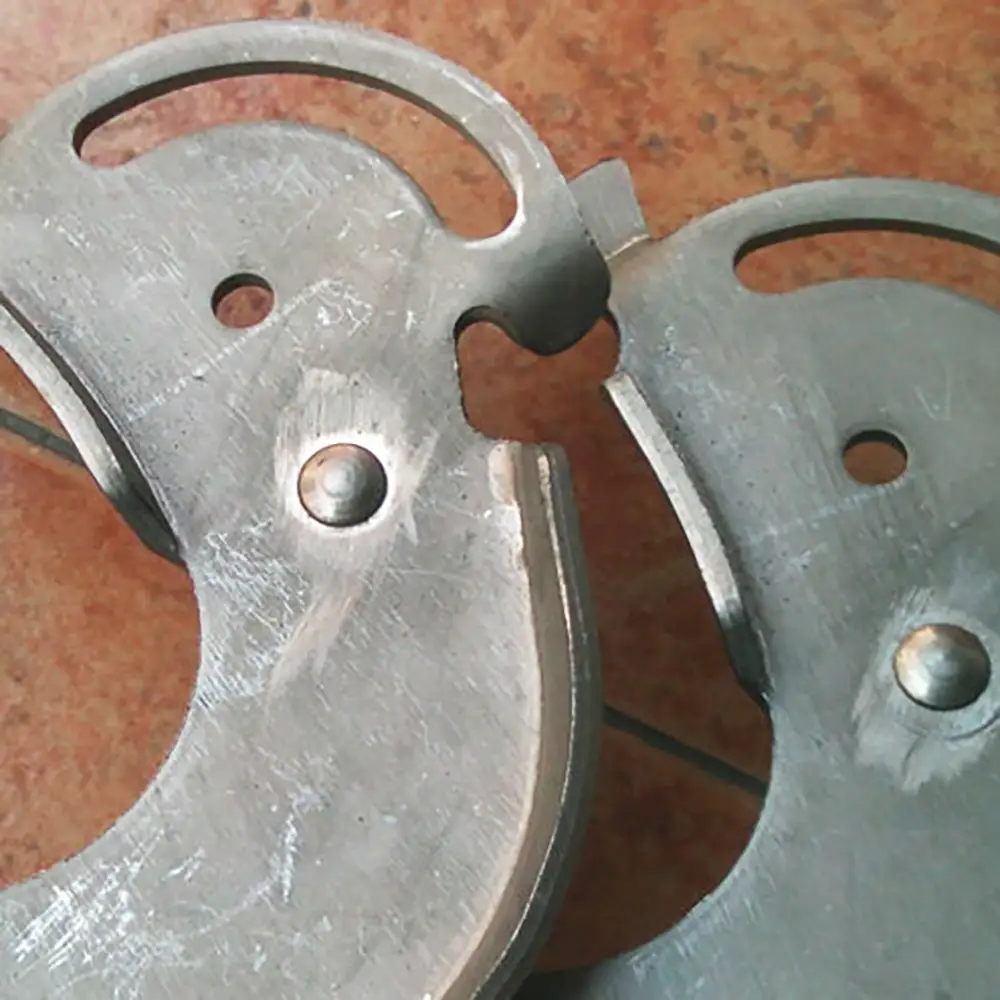

Metal Component Riveting

In addition to pallet collars, the machine can be evaluated for a broad range of metal component applications. Suitable workpieces may include steel, stainless steel, aluminum, and other compatible materials depending on the machine configuration and riveting tooling.

Potential applications include metal brackets, hinges, panels, hardware components, structural fittings, industrial enclosures, and fabricated assemblies.

The machine provides a flexible platform for manufacturers that need a hydraulic riveting process without investing in a highly specialized automated production line.

Improve Production Efficiency

Manual punching and riveting operations can require significant operator effort, particularly when production quantities increase.

A hydraulic riveting machine can help standardize repetitive operations by providing a controlled mechanical process. With appropriate fixtures, operators can position the workpiece, perform the riveting cycle, and repeat the process with less physical effort.

For higher production volumes, the machine can also be integrated into a broader workflow with material handling, feeding, positioning, and inspection processes.

Flexible Tooling and Customization

Every pallet collar manufacturer may use different materials, dimensions, hinge structures, and rivet designs. Therefore, tooling should be selected according to the actual application.

The machine can be evaluated for customized:

Riveting dies
Punching tools
Workpiece fixtures
Positioning systems
Riveting heads
Product supports
Interchangeable tooling

Customers can provide drawings, photographs, samples, and rivet information so the appropriate machine configuration can be evaluated.

Suitable for OEM Production

The Single Head Hydraulic Riveting Machine is suitable for OEM manufacturers, pallet component suppliers, packaging hardware producers, metal fabricators, and industrial fastening companies.

For customized production, machine selection can consider the workpiece size, rivet specifications, required cycle time, production quantity, automation requirements, and available workshop space.

This makes the equipment suitable for both general industrial riveting and dedicated pallet collar production.

Why Choose Our Single Head Hydraulic Riveting Machine?
1. Hydraulic Driving System

Provides controlled mechanical force for consistent industrial riveting operations.

2. Single Head Configuration

A practical structure for applications requiring flexible individual riveting positions.

3. Pallet Collar Applications

Suitable for pallet collars, pallet hardware, hinges, brackets, and related packaging components.

4. Stainless Steel Rivet Compatibility

Can be configured for compatible SS rivets according to tooling and application requirements.

5. Punching and Riveting Capability

Supports industrial applications requiring coordinated punching and riveting operations.

6. Stable Workpiece Positioning

Customized fixtures can help maintain accurate workpiece positioning during riveting.

7. Flexible Tooling

Dies, punches, fixtures, and riveting components can be adapted to different products.

8. OEM and Custom Solutions

Suitable for manufacturers requiring application-specific machine and tooling configurations.

Main Applications

The machine can be used for:

Pallet Collar Manufacturing
Pallet Hinge Riveting
Pallet Hardware Riveting
Wooden Pallet Collar Assembly
Foldable Pallet Production
Reusable Pallet Box Manufacturing
Packaging Hardware Riveting
Stainless Steel Riveting
Metal Component Assembly
Industrial Hardware Riveting
Metal Bracket Riveting
Hinge Riveting
General Metal Fastening
How to Choose the Right Pallet Collar Riveting Machine?

When selecting a hydraulic pallet collar riveter, manufacturers should consider the pallet collar structure, rivet type, rivet diameter, material thickness, riveting position, production volume, and required automation level.

The tooling should match the shape and dimensions of the workpiece. For products with unusual hinge or bracket configurations, customized fixtures and dies may improve positioning and riveting consistency.

For an accurate machine recommendation, customers should provide workpiece drawings or samples, rivet specifications, material information, production quantity, and photographs of the existing assembly process.

FAQS
Q1: What is a single-head hydraulic riveting machine?

It is an industrial riveting machine using hydraulic power to apply controlled force through a single riveting head for fastening compatible components.

Q2: Can this machine be used for pallet collars?

Yes. It can be configured for suitable pallet collar components, hinges, brackets, and other compatible hardware.

Q3: Can it work with stainless steel rivets?

Yes, compatible stainless steel rivets can be considered. The final tooling and machine configuration should match the rivet dimensions and workpiece materials.

Q4: Does the machine perform punching and riveting?

The machine can be configured for applications involving punching and riveting, depending on the tooling and production process.

Q5: Can the riveting head be customized?

Yes. Customized riveting heads and dies can be developed or configured according to the workpiece and rivet requirements.

Q6: Can the machine be used for different pallet collar sizes?

Potentially, yes. Different fixtures or adjustable tooling can be considered depending on the range of product sizes.

Q7: Is this machine suitable for mass production?

It is suitable for repetitive industrial riveting operations. The appropriate configuration depends on production volume and required cycle time.

Q8: What materials can be processed?

Compatible steel, stainless steel, aluminum, and other materials can be considered depending on the machine configuration and tooling.

Q9: Can you customize the machine for our pallet design?

Yes. Customers can provide product drawings or samples so the riveting head, die, fixture, and positioning system can be evaluated.

Q10: What information is needed for a quotation?

Please provide pallet collar dimensions, workpiece material, rivet type and size, riveting locations, production quantity, and any available drawings or samples.
