Three-Head Riveting Machine for Fan Blade Riveting with Efficiency, Precision, and Durability

 Three-Head Riveting Machine for Fan Blade Riveting

The Three-Head Riveting Machine for Fan Blade Riveting is designed for manufacturers that need an efficient, stable, and repeatable solution for fan blade assembly. By combining three riveting heads into one production system, the machine can perform multiple riveting operations efficiently while helping improve consistency across fan blade assemblies.

Fan blades are important components in ventilation fans, industrial fans, cooling equipment, exhaust systems, and other air-moving products. During manufacturing, reliable fastening between fan blades, hubs, brackets, supports, or other metal components is essential for maintaining structural stability and assembly quality. A suitable riveting process can help reduce manual operations, improve production consistency, and support higher-volume manufacturing.

This three-head riveting machine is developed around the requirements of industrial fan blade riveting. Its multi-head configuration provides an efficient approach to repetitive fastening operations, while dedicated tooling and fixtures can be configured according to the workpiece structure and riveting position.

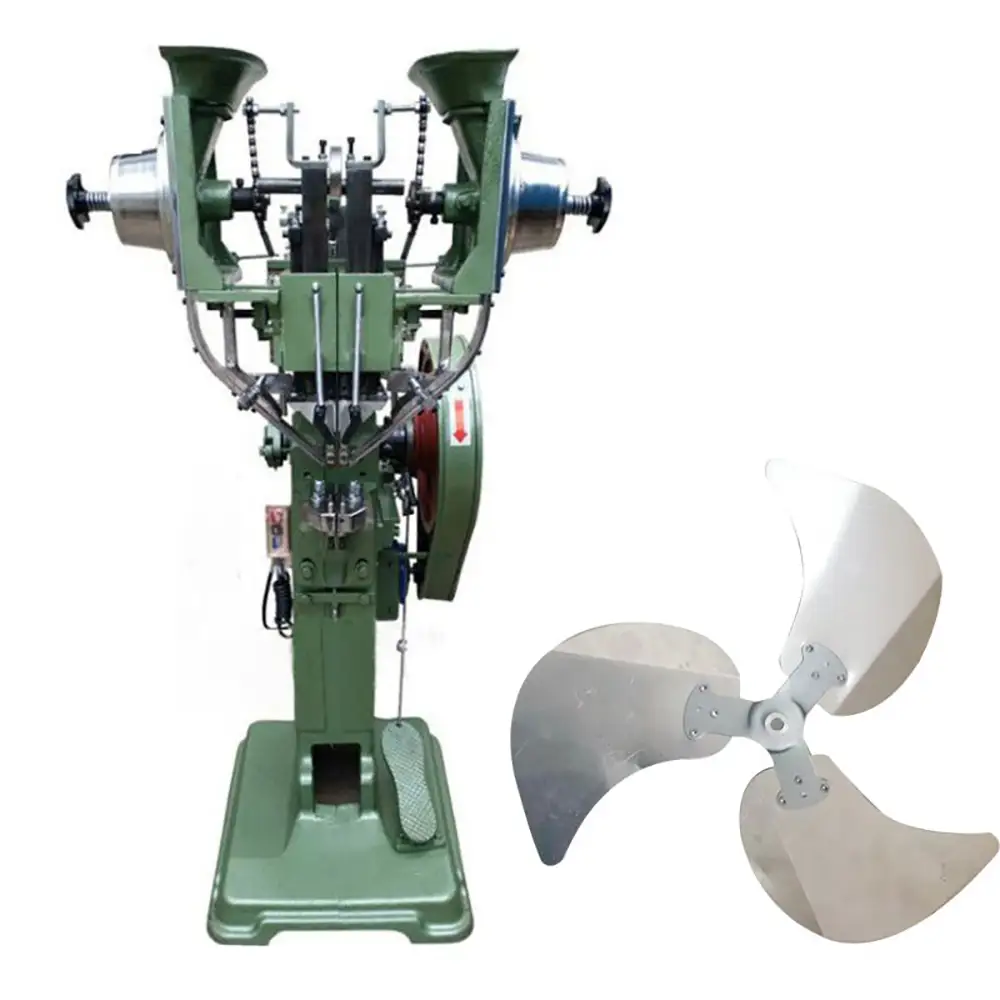

Three-Head Fan Blade Riveting Machine

The three-head design is one of the key features of this riveting solution. Compared with a single-head riveting machine, a three-head configuration can support multiple riveting points within one production cycle, depending on the workpiece design and machine configuration.

For fan manufacturers, this can help simplify the assembly process and reduce repeated positioning operations. The workpiece can be positioned using a suitable fixture, allowing the riveting heads to operate at predetermined locations.

The actual riveting sequence, head arrangement, tooling, and operating method can be customized according to the fan blade structure and production requirements.

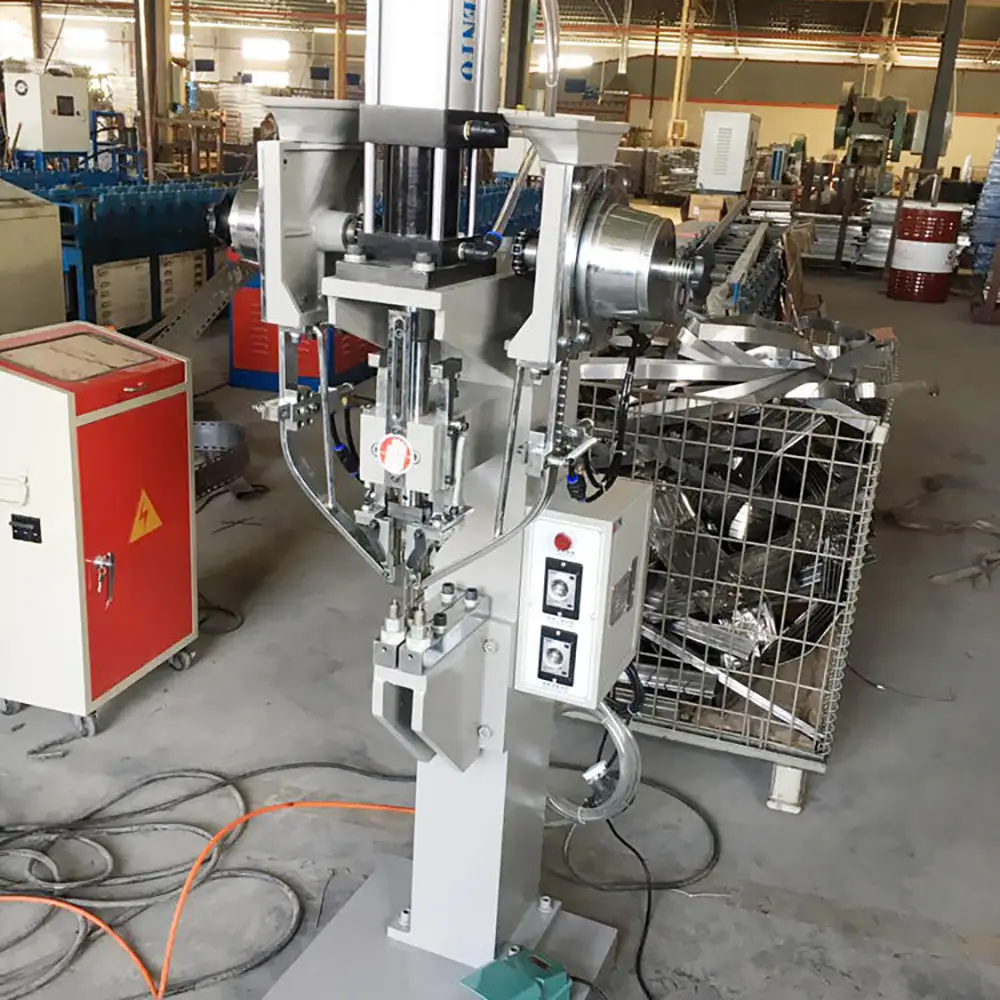

Fan Blade Riveting Equipment for Industrial Production

Fan blade manufacturing often involves repetitive fastening operations. Manual riveting may require operators to repeatedly position components, align holes, insert rivets, and complete fastening. Variations in positioning or operating force can affect the consistency of finished products.

A dedicated fan blade riveting machine provides a more controlled production process. With appropriate fixtures and tooling, each workpiece can be positioned consistently before riveting. This helps manufacturers establish a repeatable assembly workflow.

The machine can be integrated into production lines or used as an independent workstation, depending on factory layout and automation requirements.

Precision Fan Blade Riveting

Precision is important when assembling rotating components such as fan blades. Uneven positioning or inconsistent fastening can affect the overall assembly quality and may require additional inspection or adjustment.

The three-head riveting configuration is designed to support controlled and repeatable riveting operations. Proper tooling helps keep the fan blade and related components in the correct position during the fastening process.

For different fan models, the riveting machine can be equipped with suitable dies, fixtures, positioning components, and other tooling according to the application.

Efficient Multi-Point Riveting

One major advantage of multi-head riveting is production efficiency. Instead of completing every riveting point separately with a single-head machine, multiple riveting heads can be arranged to address several fastening positions.

This can reduce repetitive handling and positioning operations, making the production process more streamlined.

For manufacturers producing large quantities of similar fan blades, multi-head riveting can be particularly useful because the same operating sequence can be repeated across multiple workpieces.

The actual production capacity depends on factors such as fan blade design, rivet type, riveting positions, material thickness, machine configuration, and operator workflow.

Durable Industrial Riveting Construction

Industrial production equipment needs to withstand repetitive operation. A fan blade riveting machine should therefore be designed for stable operation under continuous manufacturing conditions.

The machine structure, riveting mechanism, tooling, fixtures, and drive system can be selected according to the required production environment. Proper maintenance and regular inspection of wear components can also help maintain consistent performance over the service life of the equipment.

For production environments with different workload requirements, machine configuration can be discussed according to the expected production volume and workpiece characteristics.

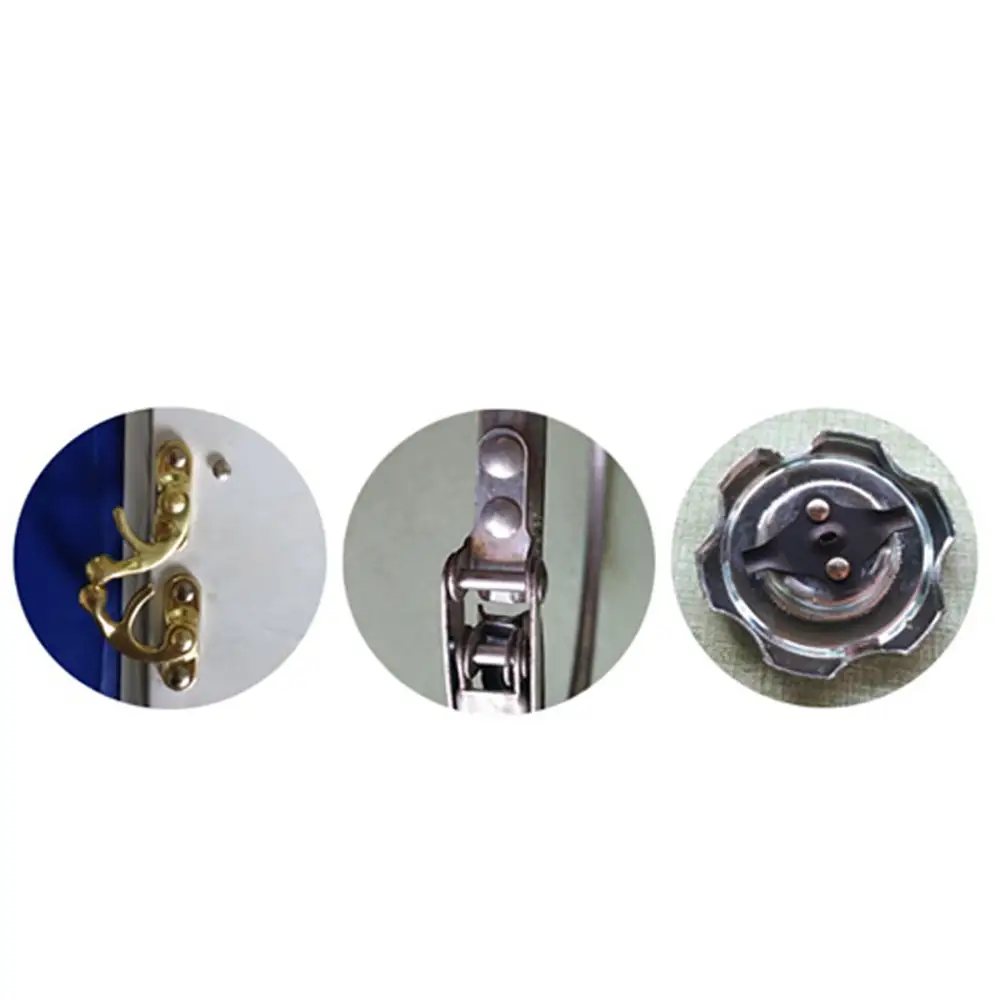

Fan Blade Assembly Machine

In addition to riveting, this equipment can form part of a broader fan blade assembly process.

A typical workflow may include:

Preparing fan blades and related components.
Positioning the components in the dedicated fixture.
Aligning the riveting holes and fastening points.
Feeding or positioning the required rivets.
Performing the riveting operation.
Checking the finished fastening points.
Removing the completed fan blade assembly.

This workflow can help standardize repetitive assembly tasks and provide manufacturers with a more organized production process.

Suitable Fan Manufacturing Applications

The machine can be considered for different fan and ventilation equipment applications where multiple riveting points are required.

Potential applications include:

Industrial fan blade assembly
Ventilation fan manufacturing
Exhaust fan production
Cooling fan assembly
Electric fan component production
Air circulation equipment
Metal fan blade assembly
Fan hub and blade fastening
Fan support component riveting
Customized fan hardware assembly

The exact application depends on the structure of the workpiece and the riveting requirements.

Flexible Tooling and Fixtures

Different fan blades can have different shapes, dimensions, hole arrangements, and fastening positions. Therefore, tooling is an important part of a multi-head riveting solution.

Customized fixtures can help position fan blades accurately and maintain stable alignment during riveting. Different dies and tooling arrangements can also be considered for different rivet types and workpiece configurations.

For OEM projects, manufacturers can provide workpiece drawings, samples, riveting requirements, and production information so that the appropriate machine configuration can be evaluated.

Improve Production Efficiency and Consistency

For manufacturers moving from manual riveting toward semi-automatic or automatic production, a three-head riveting machine can help establish a more standardized fastening process.

The benefits may include:

Multi-point riveting capability
Reduced repetitive manual operations
Consistent workpiece positioning
Improved riveting repeatability
Better production organization
Reduced handling between riveting operations
Support for higher-volume production
Flexible tooling for different fan designs

These advantages can make the machine suitable for factories looking to improve their fan blade manufacturing workflow.

Quality Control in Fan Blade Riveting

Consistent riveting quality depends on more than the riveting machine itself. Rivet dimensions, material thickness, hole quality, component alignment, tooling condition, and machine settings all affect the final result.

Manufacturers should establish appropriate inspection procedures for finished riveting points. Regular checks can help identify problems such as improper positioning, incomplete forming, loose fastening, or component deformation.

A properly configured riveting machine combined with suitable tooling and process control can provide a stable foundation for repeatable production.

OEM and Custom Fan Blade Riveting Solutions

Different fan manufacturers may require different riveting arrangements. Some products may need three simultaneous riveting points, while others may require different head spacing, fixture designs, or tooling.

For this reason, the machine can be evaluated according to the specific product rather than using one standard configuration for every application.

OEM and custom solutions may include customized fixtures, riveting heads, dies, positioning systems, feeding systems, and machine layouts according to the workpiece and production process.

Why Choose Our Three-Head Fan Blade Riveting Machine?

Choosing the right riveting equipment is important for maintaining production efficiency and assembly consistency. Our three-head riveting solution is designed with industrial fan blade applications in mind.

Three-Head Riveting Configuration: Multiple riveting heads can support efficient multi-point fastening operations.

Production Efficiency: The machine is designed to reduce repetitive positioning and handling during fan blade riveting.

Consistent Positioning: Dedicated fixtures can help maintain stable workpiece positioning throughout the riveting process.

Flexible Tooling: Dies and fixtures can be configured according to different fan blade designs and riveting requirements.

Industrial Application: Suitable for repetitive manufacturing environments and fan component assembly.

OEM Customization: Machine configuration can be adapted according to product drawings, samples, rivet specifications, and production requirements.

Process Stability: A standardized riveting process can help manufacturers achieve more consistent assembly results.

Main Applications

The Three-Head Fan Blade Riveting Machine can be used for:

Industrial Fan Blade Riveting
Ventilation Fan Assembly
Exhaust Fan Manufacturing
Cooling Fan Production
Electric Fan Component Assembly
Metal Fan Blade Fastening
Fan Hub Assembly
Fan Bracket Riveting
Air-Moving Equipment Manufacturing
Customized Fan Component Production
How to Choose the Right Fan Blade Riveting Machine?

Before selecting a machine, manufacturers should consider the fan blade material, workpiece dimensions, rivet type, rivet diameter, number of riveting points, riveting position, required production capacity, and desired automation level.

The fixture and tooling requirements are also important. Providing workpiece drawings or samples can help determine the appropriate riveting head arrangement and tooling configuration.

For high-volume production, manufacturers may also consider automatic feeding, customized positioning systems, production-line integration, and other automation options.

FAQS

1. What is a three-head riveting machine?
A three-head riveting machine is an industrial riveting system equipped with three riveting heads. It is designed to perform multiple riveting operations efficiently according to the workpiece and tooling configuration.

2. What is this machine used for?
It is primarily designed for fan blade riveting and other applications requiring multiple fastening points on fan components.

3. Can it be used for different fan blade designs?
Yes. Suitable fixtures, dies, and tooling can be configured according to different fan blade structures and riveting positions.

4. Can the riveting heads be customized?
The head arrangement and tooling can be evaluated and customized according to the workpiece, riveting points, and production requirements.

5. Is automatic rivet feeding available?
Automatic feeding can be considered depending on the rivet type, machine configuration, and production requirements.

6. Can the machine be used for other products?
Potentially yes. If other products have compatible riveting requirements, suitable tooling and fixtures may allow the machine to be adapted for additional applications.

7. How does three-head riveting improve production efficiency?
Multiple riveting heads can process several fastening points within an organized production cycle, reducing repeated positioning and handling operations.

8. Can you provide OEM solutions?
Yes. OEM and customized solutions can be developed according to product drawings, samples, riveting specifications, and factory production requirements.

9. What information should I provide when requesting a machine?
Useful information includes product drawings or samples, material, rivet type and size, riveting positions, required production capacity, and desired automation level.

10. How can I ensure consistent riveting quality?
Proper fixture design, accurate positioning, suitable tooling, correct machine settings, and regular quality inspection are important for consistent riveting results.
