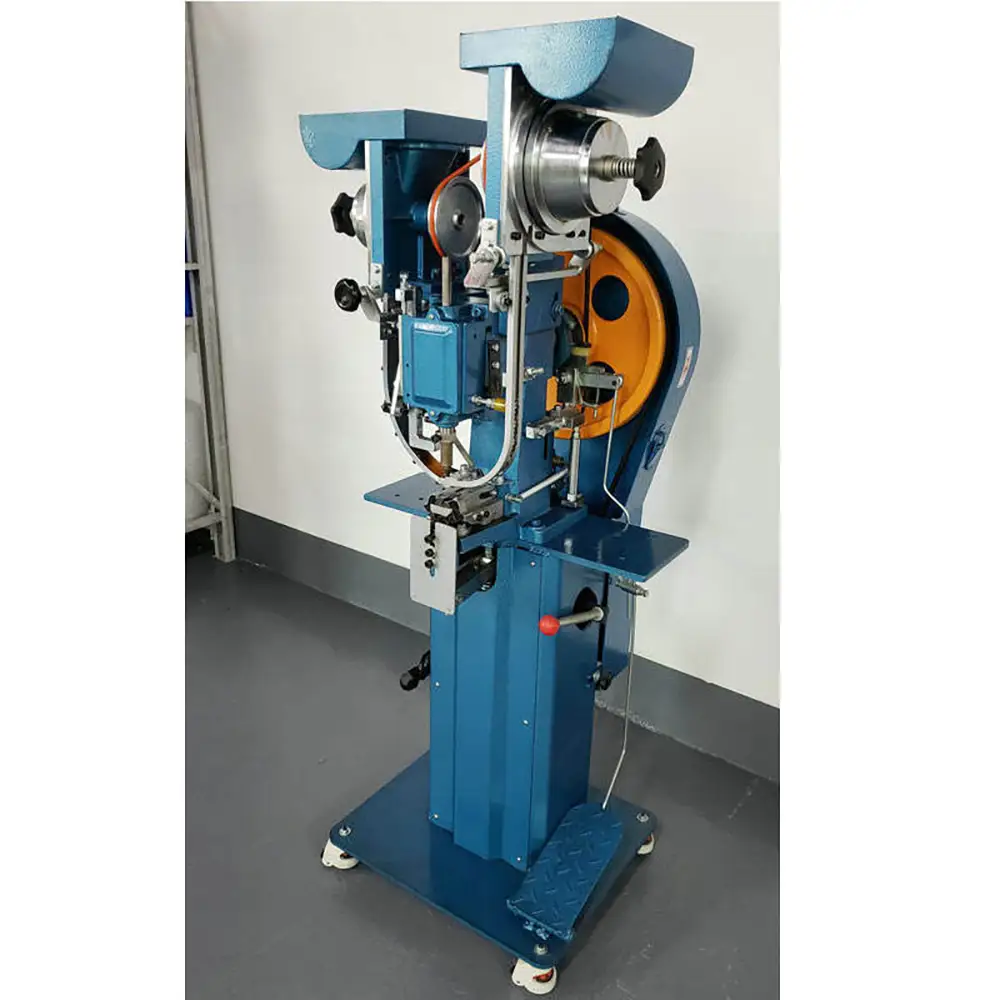

Automatic Riveting Machine for Shoe and Clothe Double Nails Riveting Machine

Function of riveting machine
1 Fit for riveting the spherical head, half-hollow rivets
2 With automatic feeding device, which can rivet continuously
3 The clamp and punch of high-performance is of a high riveting capability
4 Can rivet clinch of various specifications if the die is changed
Application: Used for fixing rivets on helmets, belts, tags, toys, etc.

usage	Suitable for  shos clothe and some soft workpiece
riveting diameter	Φ1.5-5mm
power	60w
Machine throat depth	135mm
size	680*750*1680mm
N W	150kg
G W	165kg

Automatic Double Nail Riveting Machine for Shoes and Clothing

The Automatic Double Nail Riveting Machine for Shoes and Clothing is an industrial fastening solution designed for manufacturers that need to install two nails, rivets, or complementary fastening components simultaneously or in a controlled sequence. By integrating automatic feeding, positioning, and riveting operations, the machine helps improve production efficiency and maintain consistent fastening quality.

Double nails and small rivet fasteners are commonly used in footwear, clothing, leather goods, bags, accessories, and other consumer products. These small hardware components can serve both functional and decorative purposes, providing secure attachment while contributing to the finished appearance of the product.

Manual installation of small nails can be repetitive and time-consuming, particularly when production volumes are high. Operators may also experience variations in nail positioning, insertion depth, spacing, or fastening pressure. An Automatic Double Nail Riveting Machine is designed to standardize these operations and provide a repeatable production cycle.

Automatic Double Nail Feeding

The machine can be equipped with automatic feeding systems designed to supply two nail or rivet components to the working station. Depending on the fastener design, separate feeding mechanisms may be used to control the two components.

Automatic feeding reduces the need for operators to manually pick and position small hardware pieces. This can improve production workflow and reduce repetitive handling.

The feeding system should be matched to the physical characteristics of the nails or rivets. Diameter, length, head shape, material, surface finish, and overall geometry can all affect feeding performance.

For special-shaped double nails, customized feeding tracks, guides, and positioning components can be developed based on samples.

Shoe Riveting Machine

Footwear manufacturing frequently involves small metal hardware components. Rivets and nails may be used to attach decorative elements, straps, reinforcement components, labels, buckles, eyelets, or other accessories.

The Shoe Riveting Machine can be configured with specialized fixtures for different shoe shapes and riveting locations.

Because shoe uppers may be made from leather, synthetic leather, fabric, mesh, or composite materials, the workpiece fixture should provide appropriate support during the riveting operation.

Customized fixtures can help maintain consistent nail spacing and positioning between production cycles.

Clothing and Garment Applications

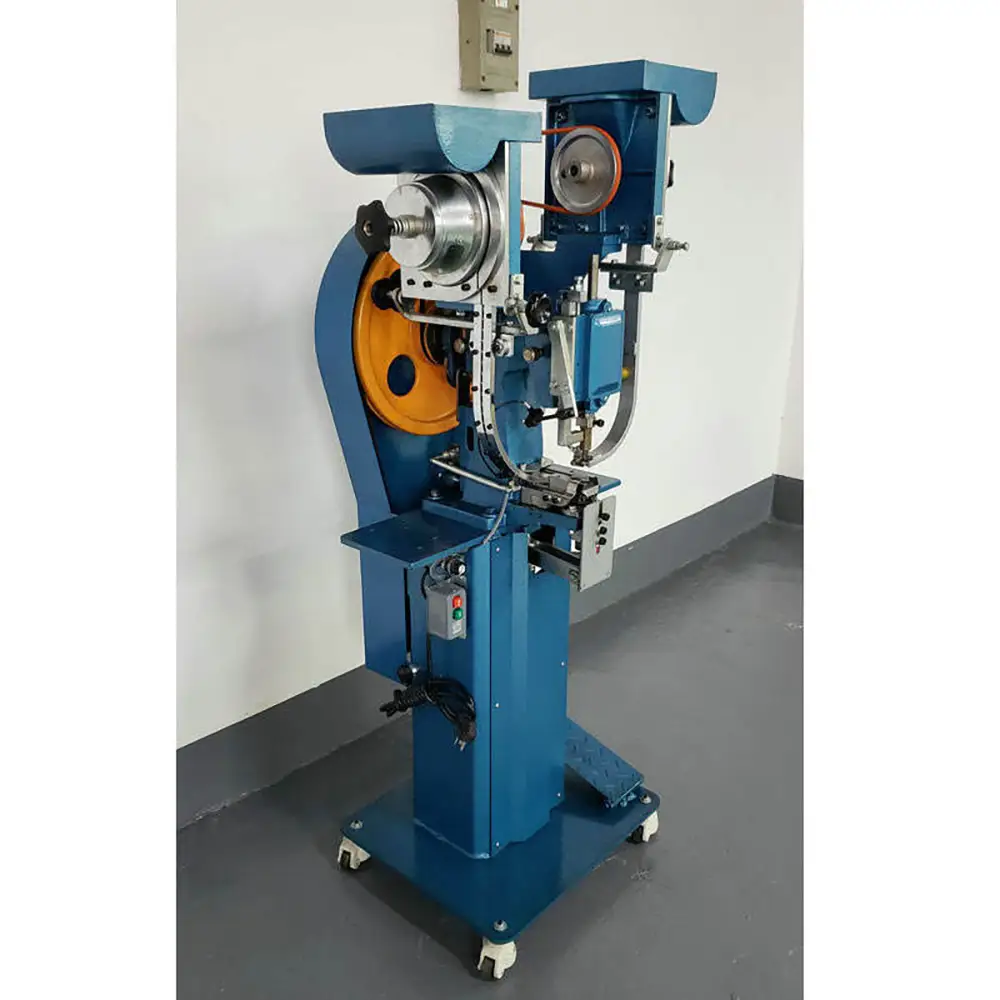

The Clothing Riveting Machine can be used for suitable garments and textile products that incorporate metal nails, rivets, studs, or decorative hardware.

Potential applications include:

Jeans
Jackets
Workwear
Fashion Garments
Leather Clothing
Textile Accessories
Bags
Belts
Hats
Garment Accessories

Double nails may be used for decorative fastening or for securing specific components to the garment material.

The machine's tooling and riveting force should be selected according to the thickness and characteristics of the fabric or other substrate.

Double Nail Riveting Process

The double nail riveting process is designed to place two fasteners in the required position and then form or secure them to the workpiece.

A typical operating sequence may involve automatic nail feeding, workpiece positioning, nail alignment, riveting, and finished-product release.

The exact sequence depends on the customer's fastener design and product structure.

For high-volume production, automating these steps can help create a more consistent production rhythm and reduce manual handling.

Consistent Fastener Positioning

Positioning accuracy is particularly important for footwear and clothing because the finished hardware is often visible.

Inconsistent spacing or alignment can affect the appearance of the final product. A properly designed fixture can hold the shoe, garment, leather component, or textile product in a repeatable position.

The riveting head and tooling are then aligned with the required fastening location.

For products with multiple riveting patterns, customized fixtures can be designed according to the customer's product drawings or samples.

Automatic Nail and Rivet Feeding

The Automatic Rivet Feeding Machine uses a feeding mechanism to separate and deliver individual fasteners to the riveting station.

The feeding system may incorporate a vibrating bowl, linear track, guide rail, sensors, or other components depending on the nail design.

Fasteners with unusual shapes or dimensions may require customized feeding solutions. Sample testing is recommended to confirm reliable feeding before mass production.

The feeding system can also be designed to minimize incorrect orientation and reduce interruptions caused by improperly positioned fasteners.

Applications for Leather Goods

In addition to shoes and clothing, the machine can be used for various leather and synthetic leather products.

Potential applications include:

Leather Bags
Handbags
Backpacks
Wallets
Belts
Leather Accessories
Travel Bags
Tool Bags
Fashion Accessories

For leather products, controlling the riveting force is important to avoid unnecessary deformation or damage around the fastening area.

Suitable dies and fixtures can help produce a clean and consistent finished result.

Improved Production Efficiency

Manual double-nail installation requires operators to repeatedly select, position, and fasten small components. This can increase labor requirements and make production speed dependent on operator experience.

The Automatic Riveting Machine for Shoes and Clothing automates key parts of this process.

Automatic feeding and controlled riveting can help reduce repetitive work and improve production consistency.

The actual output depends on the fastener type, product structure, machine cycle, feeding system, operator loading time, and automation level. Therefore, production capacity should be confirmed using the customer's actual samples.

Customized Tooling and Fixtures

Different footwear and clothing products require different fastening positions. Customized tooling allows the machine to be adapted to the customer's specific product.

Fixtures can be designed to hold shoe uppers, soles, leather components, fabric products, bags, or other workpieces.

Customized riveting dies can also be developed for different nail head shapes and finished fastening requirements.

Customers can provide:

Product Samples
Fastener Samples
Product Drawings
Fastener Dimensions
Material Specifications
Desired Production Capacity

This information helps determine the appropriate machine configuration.

Stable Automatic Operation

The machine is designed for repeated production cycles. Automatic feeding and controlled riveting can provide a consistent operating sequence.

Sensors and control components can be incorporated to monitor fastener feeding and machine operation depending on the selected configuration.

This can help reduce production interruptions caused by missing fasteners or incorrect feeding.

Regular inspection and maintenance of the feeding mechanism, riveting head, fixtures, sensors, and moving parts are recommended.

Quality Control

Quality control for double nail riveting should include inspection of nail position, spacing, fastening condition, head deformation, and finished appearance.

For shoes and clothing, visual appearance is often particularly important because the hardware may be part of the product's design.

Mechanical fastening strength can also be tested when required by the application.

Before mass production, sample testing allows the machine parameters and tooling to be adjusted according to the actual material and fastener.

Why Choose Our Automatic Double Nail Riveting Machine?

1. Automatic Double Nail Feeding
Designed to automatically feed and position two nail or rivet components for efficient assembly.

2. Designed for Shoes and Clothing
Suitable for footwear, garments, leather goods, bags, belts, and related products.

3. Consistent Riveting
Controlled riveting cycles help provide repeatable fastening results.

4. Reduced Manual Handling
Automatic feeding reduces repetitive handling of small nails and rivets.

5. Customized Fixtures
Fixtures can be developed according to the shape and riveting position of the customer's product.

6. Customized Feeding System
Feeding tracks and components can be adapted to different fastener designs.

7. Wide Application Range
Suitable for footwear, garments, leather products, bags, accessories, and other consumer products.

8. OEM & Custom Solutions
Complete machine configurations can be customized according to product samples, drawings, and production requirements.

FAQ
1. What is an Automatic Double Nail Riveting Machine?

It is an automated machine designed to feed, position, and rivet two nail or fastener components during one controlled production process.

2. Can this machine be used for shoes?

Yes. It can be configured for suitable shoe uppers, leather components, footwear accessories, and other shoe-related applications.

3. Can it be used for clothing?

Yes. The machine can be used for suitable garments, denim, jackets, workwear, leather clothing, and textile products requiring nail or rivet fastening.

4. What are double nails?

Double nails generally refer to a fastening configuration involving two nail or rivet components used together in a product assembly. The exact design depends on the customer's fastener.

5. Can the two nails be fed automatically?

Yes. Separate or coordinated automatic feeding systems can be configured according to the fastener design.

6. What materials can be processed?

Potential materials include leather, synthetic leather, denim, fabric, textile, canvas, and other compatible materials. The correct riveting parameters depend on the specific substrate.

7. Can the machine process different nail sizes?

Different fastener sizes may require different feeding components and tooling. The applicable range should be confirmed according to the machine configuration.

8. Can the fixture be customized?

Yes. Customized fixtures can be designed according to the shoe, garment, bag, leather product, or other workpiece.

9. How fast is the machine?

Production speed depends on the fastener type, feeding system, riveting cycle, workpiece design, and loading method. Actual output should be confirmed through sample testing.

10. Can you test my nails and products?

Yes. Customers can provide fastener samples and product samples for testing and tooling evaluation.

11. Is the machine suitable for high-volume production?

Yes. It is designed for repetitive production applications. The actual production capacity depends on the machine configuration and product requirements.

12. Do you offer customized and OEM machines?

Yes. Customized feeding systems, riveting dies, fixtures, controls, and complete machine configurations can be developed according to customer requirements.
