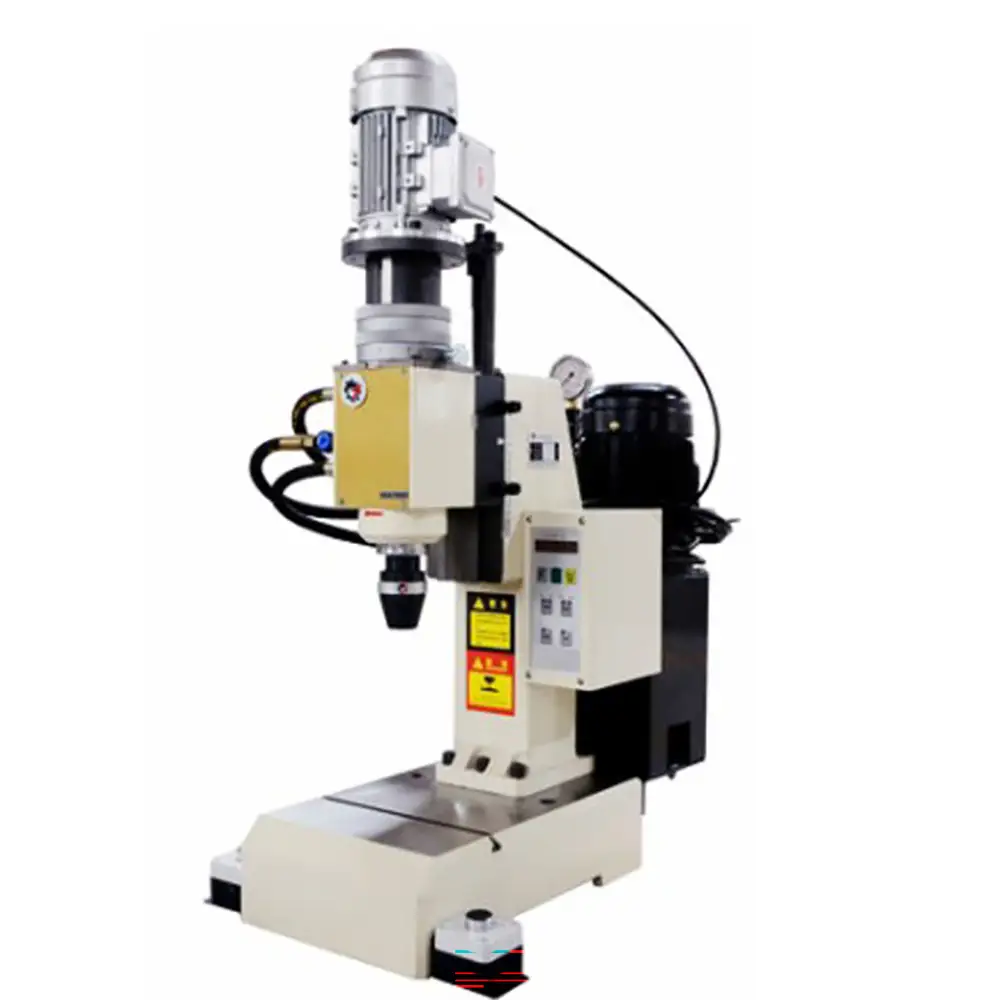

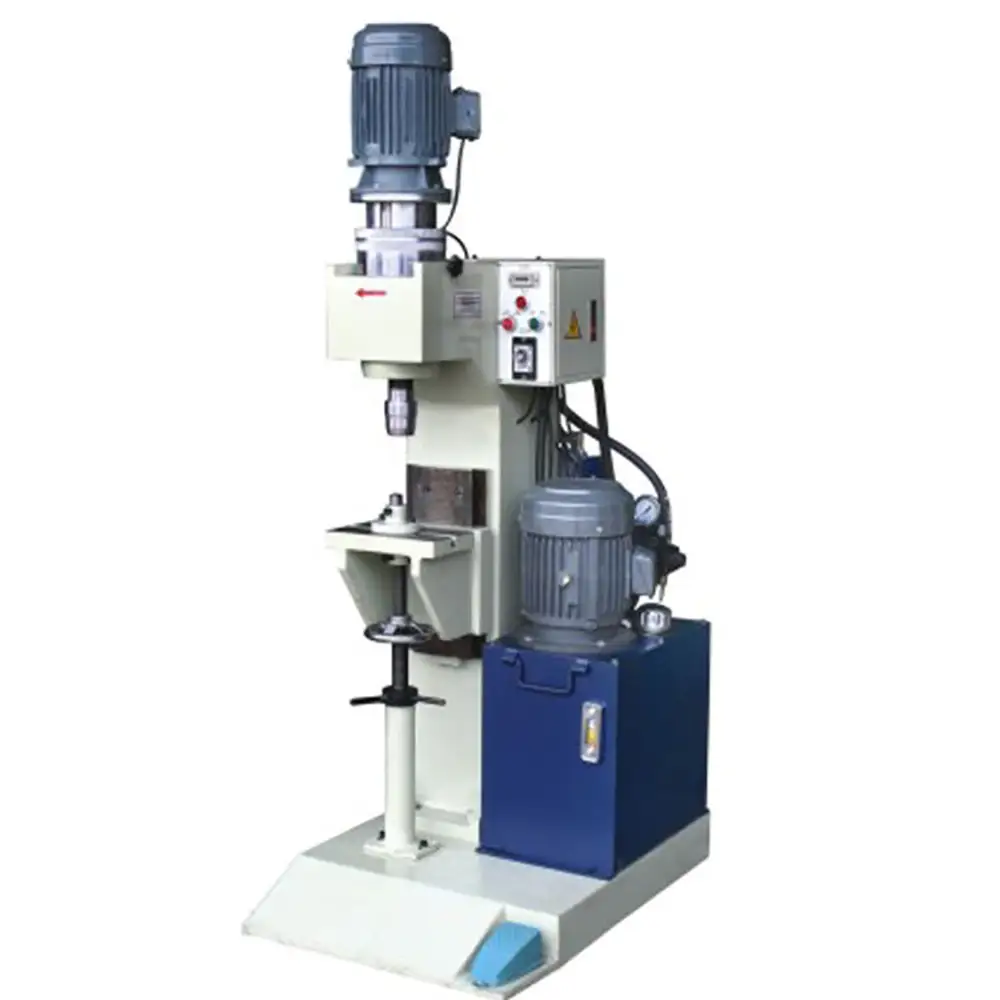

Hydraulic Riveting Machine for Large Solid Nails

Hydraulic Riveting Machine for Large Solid Nails

The Hydraulic Riveting Machine for Large Solid Nails is a heavy-duty fastening solution designed for applications that require strong, reliable, and repeatable riveting of large solid nails and solid rivets. Compared with conventional manual riveting methods, a hydraulic riveting machine provides controlled forming force and stable operation, making it suitable for demanding industrial assembly applications.

Large solid nails and heavy-duty rivets are commonly used in metal fabrication, machinery manufacturing, agricultural equipment, construction hardware, transportation components, brackets, frames, hinges, structural parts, and other products where a secure mechanical connection is required. When the fastening material is relatively large or requires significant forming force, hydraulic riveting technology provides an efficient alternative to manual hammering, pneumatic hand tools, and less powerful riveting equipment.

This machine is designed around a hydraulic power system that generates substantial and controllable riveting force. Depending on the machine configuration, tooling, material, and rivet dimensions, the hydraulic system can provide the pressure required to deform and form the end of a solid rivet or large nail into a secure fastening head.

Heavy-Duty Hydraulic Riveting Performance

One of the main advantages of a hydraulic riveting machine is its ability to handle demanding fastening applications. Large solid nails and rivets require sufficient force to achieve proper deformation without damaging the workpiece. Hydraulic operation allows the riveting force to be applied in a controlled manner, helping improve consistency between individual fastening operations.

The Hydraulic Riveting Machine for Large Solid Nails can be configured with suitable dies, punches, fixtures, and tooling according to the customer's specific application. The tooling determines how the rivet or nail is formed and plays an important role in achieving the required finished-head shape.

For production applications, the machine can also be integrated with positioning fixtures or other feeding and handling systems. This allows manufacturers to create a more efficient workstation for repeated riveting operations.

1 Progressive design:
Low center of gravity, strong rigidity, simple structure, no noise, no impact, no vibration, two-stage weight adjustment, small size and no space.
2 Easy operation:
Strong working pressure, strong safety, easy operation, can be operated without experience, fast and convenient tool replacement, high work efficiency, good riveting effect
3 Standard configuration:
Standard electronic accessories are used for each model. When using automatic operation, the timer can be adjusted to the appropriate time at will
4 Usage

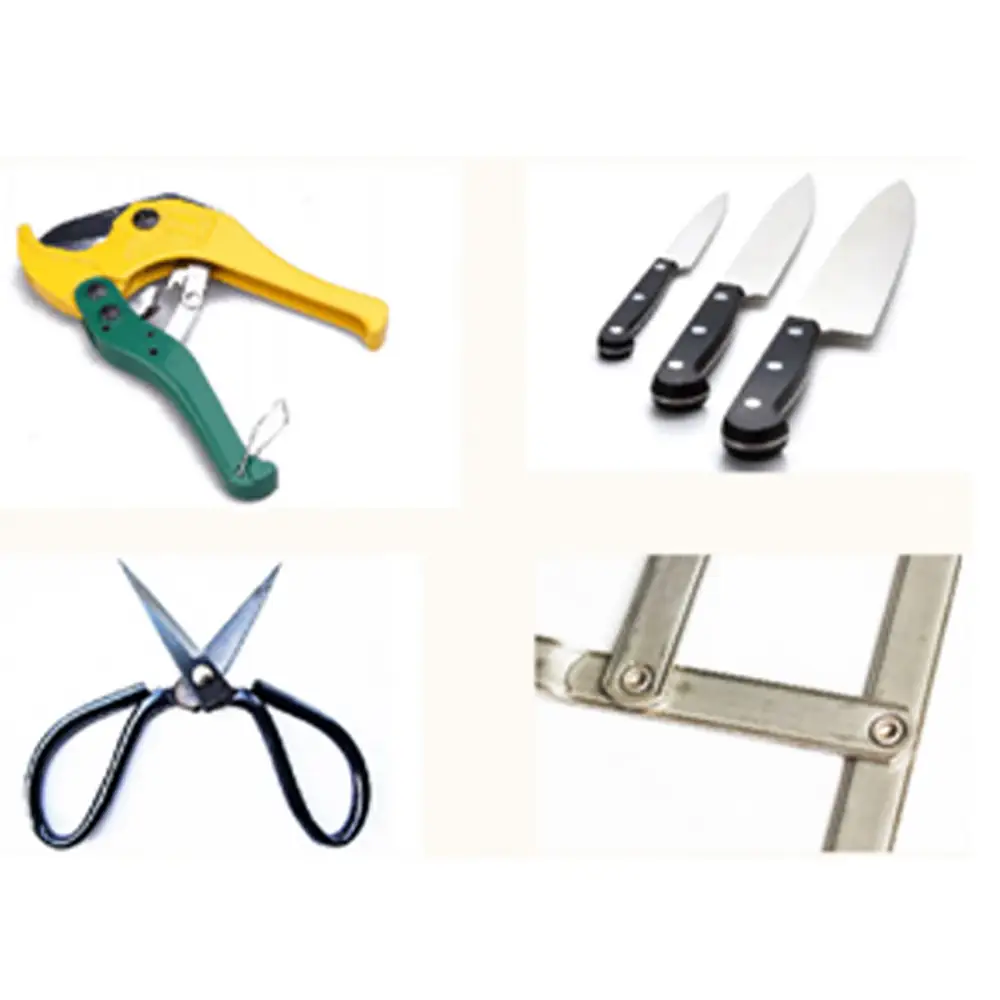

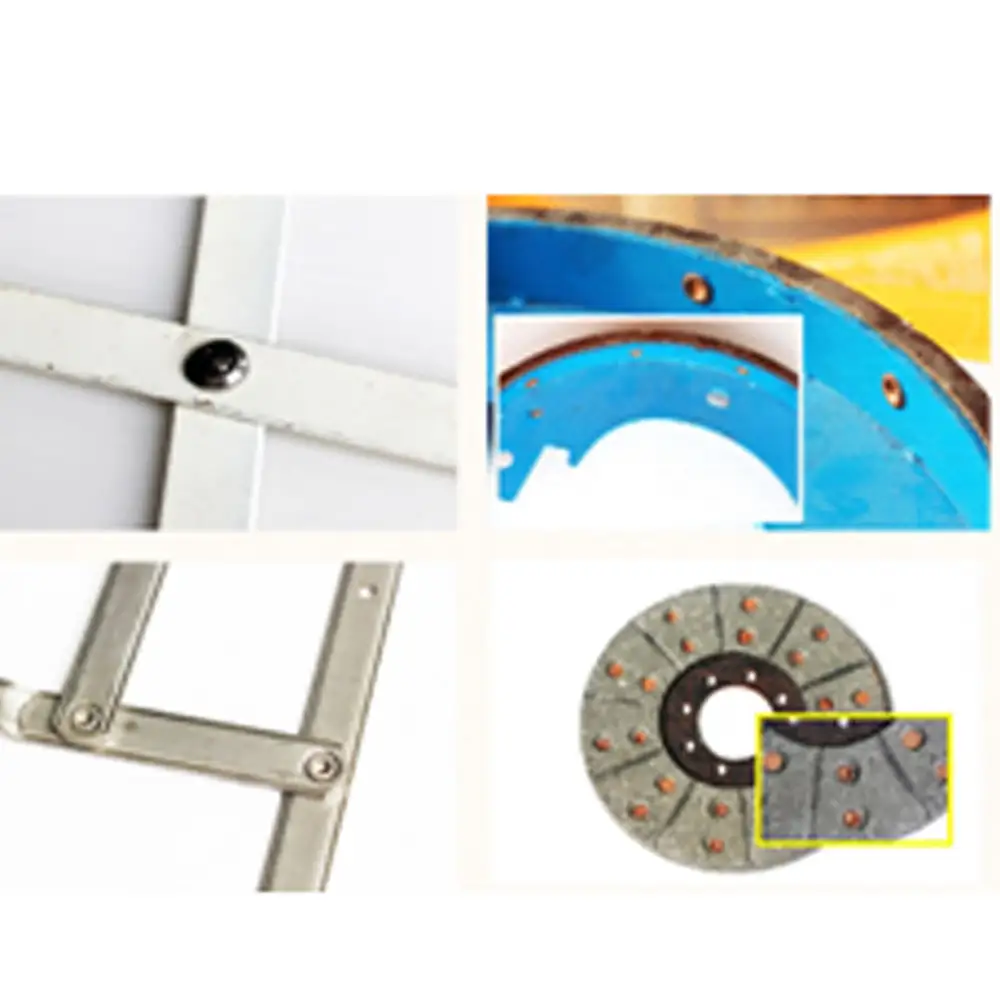

Suitable for riveting of solid rivets such as scissors, pliers, juicer blades, notebook shafts, LCD shafts, gas springs, piston rods, etc.



Model	Motor	Spindle stroke(mm)	Riveting capacity( soft material )	Working time(s)	working pressure kg/cm²	·         MPA kg/cm²	Riveting length(mm)	Weight(kg)	Riveting RMP
S-150	1/2×HP 1×2HP	42	Solid river:3~12 hollow river:1~25	0.5~10	20~70	430~1650	180	300	1400/1720
S-152	1/2×HP 1×2HP	42	Solid river:3~12 river:1~25	0.5~10	20~70	430~1650	230	350	1400/1720
S-155	3×3HP 2×3HP	45	Solid river:1~25 river:1~40	0.5~10	20~100	1400~5500	300	450	1400/1720

Designed for Large Solid Rivets and Nails

Large solid nails and heavy-duty rivets are different from small decorative or light-duty fasteners. They often require greater forming force and more robust tooling. A properly configured hydraulic riveting machine can provide the mechanical power required for these applications.

Typical workpieces may include:

Heavy-duty metal brackets
Machinery frames
Agricultural equipment components
Construction hardware
Steel structures and assemblies
Hinges and pivot components
Trailer and transportation parts
Industrial hardware
Metal support components
Heavy-duty mechanical assemblies
Large sheet metal components
Custom fabricated metal products

The actual application range depends on the rivet diameter, rivet material, workpiece material, joint design, tooling configuration, and required forming process.

Hydraulic System for Controlled Riveting

The hydraulic system is a key component of the machine. It provides the force needed for heavy-duty riveting while allowing the machine to operate with controlled pressing and forming movement.

Compared with manual impact riveting, hydraulic riveting can offer a more consistent fastening process. The operator can position the workpiece, align the solid nail or rivet with the tooling, and activate the riveting cycle according to the machine configuration.

Controlled hydraulic force can also help reduce inconsistent deformation caused by variations in manual operation. For manufacturers producing the same or similar components repeatedly, this can contribute to more uniform fastening quality.

Custom Tooling for Different Applications

Different solid nails and rivets require different forming tools. The diameter, length, material, head design, workpiece thickness, and desired finished rivet head all influence tooling selection.

The machine can be supplied with customized riveting dies and punches to match the customer's fastening requirements. Custom fixtures can also be developed to hold irregular or large workpieces securely during the riveting operation.

Before production, manufacturers should provide rivet samples, drawings, workpiece dimensions, material information, and required finished-rivet specifications. Sample testing can then be used to determine suitable tooling and process parameters.

Suitable for Industrial Manufacturing

The Hydraulic Riveting Machine for Large Solid Nails is suitable for manufacturers that require reliable fastening equipment for medium- and heavy-duty components.

It can be used in workshops, metal fabrication facilities, machinery factories, agricultural equipment plants, hardware manufacturing facilities, and other industrial production environments.

For companies that currently rely on manual riveting, hydraulic riveting can help create a more standardized production process. Operators can use dedicated fixtures and tooling rather than repeatedly applying manual impact force to each fastening point.

For higher-volume production, the machine can also be incorporated into a production line or dedicated assembly station depending on the customer's requirements.

Strong and Repeatable Mechanical Fastening

Solid riveting creates a permanent mechanical connection by deforming the end of a solid fastener. Unlike threaded fastening, the finished rivet does not depend on a nut or thread to maintain the joint.

This makes solid riveting useful for applications where vibration resistance, mechanical strength, and long-term fastening reliability are important considerations.

The hydraulic machine helps apply the required forming force consistently, while the correct tooling determines the final shape and quality of the riveted joint.

Proper alignment is especially important when working with large solid nails. The workpiece, rivet, punch, and die should be correctly positioned before the riveting cycle begins.

Easy Integration Into Production Workflows

The machine can be used as a standalone riveting station or configured as part of a larger manufacturing process. Depending on production requirements, optional components may include custom workholding fixtures, safety guards, foot controls, hydraulic controls, positioning systems, and other accessories.

For manufacturers producing different products, interchangeable tooling can make it possible to adapt the machine to multiple riveting applications.

A dedicated hydraulic riveting workstation can also help organize the production process by establishing consistent workpiece positioning and repeatable riveting procedures.

Quality Control and Riveting Accuracy

Consistent riveting quality depends on several factors, including rivet dimensions, material hardness, workpiece thickness, tooling design, hydraulic pressure, alignment, and operating procedure.

For this reason, customers should evaluate the finished rivet head and joint condition during machine testing. A suitable riveting process should produce a properly formed fastening head without excessive deformation, cracks, surface damage, or misalignment.

Our engineering team can work with customers to evaluate samples and determine an appropriate machine and tooling configuration for their application.

OEM and Custom Riveting Solutions

Every heavy-duty riveting application can have different requirements. Rivet dimensions, workpiece shape, production volume, fastening position, and available workspace can all affect machine configuration.

We support customized hydraulic riveting solutions based on customer requirements. Custom tooling, fixtures, working arrangements, and other machine configurations can be discussed for specialized applications.

For OEM manufacturers, equipment can also be developed around specific production processes to improve workflow efficiency and fastening consistency.

Applications

The Hydraulic Riveting Machine for Large Solid Nails can be used in many industrial sectors, including:

Agricultural Machinery Manufacturing
Construction Equipment Manufacturing
Metal Hardware Production
Automotive Component Manufacturing
Trailer and Transportation Equipment
Machinery Manufacturing
Steel Fabrication
Industrial Equipment Assembly
Heavy-Duty Hardware Production
Custom Metal Fabrication

It is particularly useful for applications where large solid nails or rivets must be permanently formed under substantial mechanical force.

Why Choose Our Hydraulic Riveting Machine?
1. Heavy-Duty Hydraulic Force

Designed for demanding solid riveting applications that require substantially more forming force than light-duty riveting equipment.

2. Suitable for Large Solid Fasteners

Developed for applications involving large solid nails, solid rivets, and heavy-duty metal fastening components.

3. Customized Tooling

Riveting dies, punches, and workholding fixtures can be customized according to the fastener and workpiece requirements.

4. Stable Riveting Process

Hydraulic operation provides controlled forming force and supports consistent riveting performance.

5. Industrial Construction

The machine is designed for industrial production environments and repeated heavy-duty riveting applications.

6. Flexible Application

Suitable for machinery, agricultural equipment, construction hardware, metal fabrication, transportation components, and other industrial products.

7. OEM Support

We can discuss customized machine configurations for specific production processes and special fastening requirements.

8. Sample Testing Support

Sample testing can help determine the appropriate tooling and riveting process before customers move into regular production.

FAQ
1. What is a Hydraulic Riveting Machine for Large Solid Nails?

It is an industrial hydraulic riveting machine designed to apply controlled forming force to large solid nails or solid rivets, creating permanent mechanical connections between metal components.

2. What types of fasteners can this machine handle?

Depending on the machine configuration and tooling, it can be used for large solid nails, solid rivets, and other heavy-duty solid fastening components.

3. What materials can be riveted?

The machine can be configured for various metal materials. The actual capability depends on the fastener material, workpiece material, thickness, rivet diameter, and required forming process.

4. Can the machine handle large-diameter solid rivets?

Yes. The machine is specifically intended for heavy-duty applications involving large solid fasteners. The appropriate machine force and tooling should be selected according to the actual rivet dimensions.

5. Can the riveting tooling be customized?

Yes. Riveting dies, punches, fixtures, and other tooling can be customized according to the customer's rivet and workpiece requirements.

6. Is sample testing available?

Sample testing can be arranged for applications where the required riveting force, tooling, or finished rivet shape needs to be evaluated before production.

7. What industries use hydraulic solid riveting machines?

Common applications include agricultural machinery, construction equipment, metal hardware, machinery manufacturing, transportation equipment, industrial components, and custom metal fabrication.

8. Can this machine be used for repeated production?

Yes. Its hydraulic operating system is suitable for repeated riveting operations, particularly when combined with dedicated fixtures and customized tooling.

9. Can the machine be integrated into an automated production line?

Depending on the application, the machine can be configured or integrated with positioning, feeding, handling, or other production systems.

10. How do I select the right hydraulic riveting machine?

Important information includes rivet diameter, rivet length, rivet material, workpiece material and thickness, required riveting position, finished rivet-head shape, production volume, and available workspace.

11. Can the machine rivet irregular-shaped workpieces?

Yes, with suitable custom fixtures and tooling. The workpiece geometry should be reviewed before selecting the final machine configuration.

12. What information should I provide for a quotation?

Customers should provide product drawings or photos, solid nail or rivet dimensions, materials, workpiece dimensions, required production capacity, and any specific riveting requirements. Samples are also helpful for machine and tooling evaluation.
