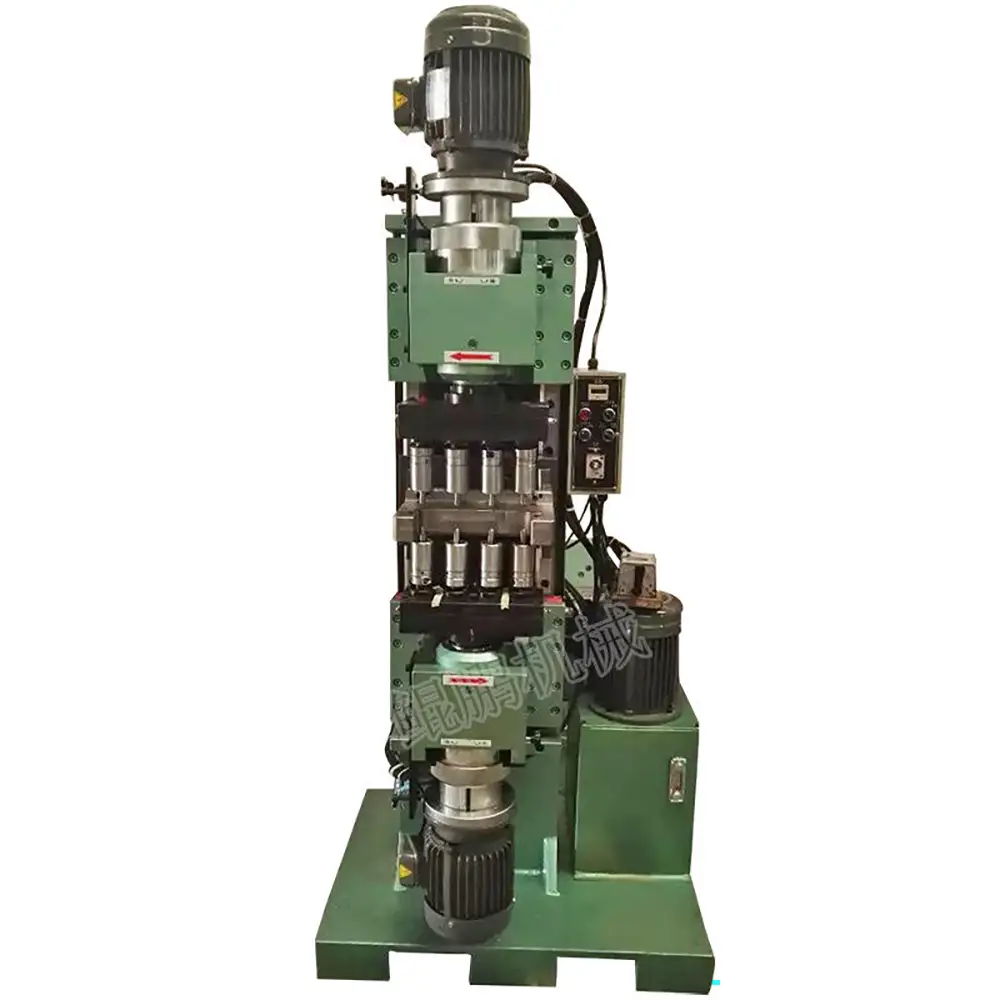

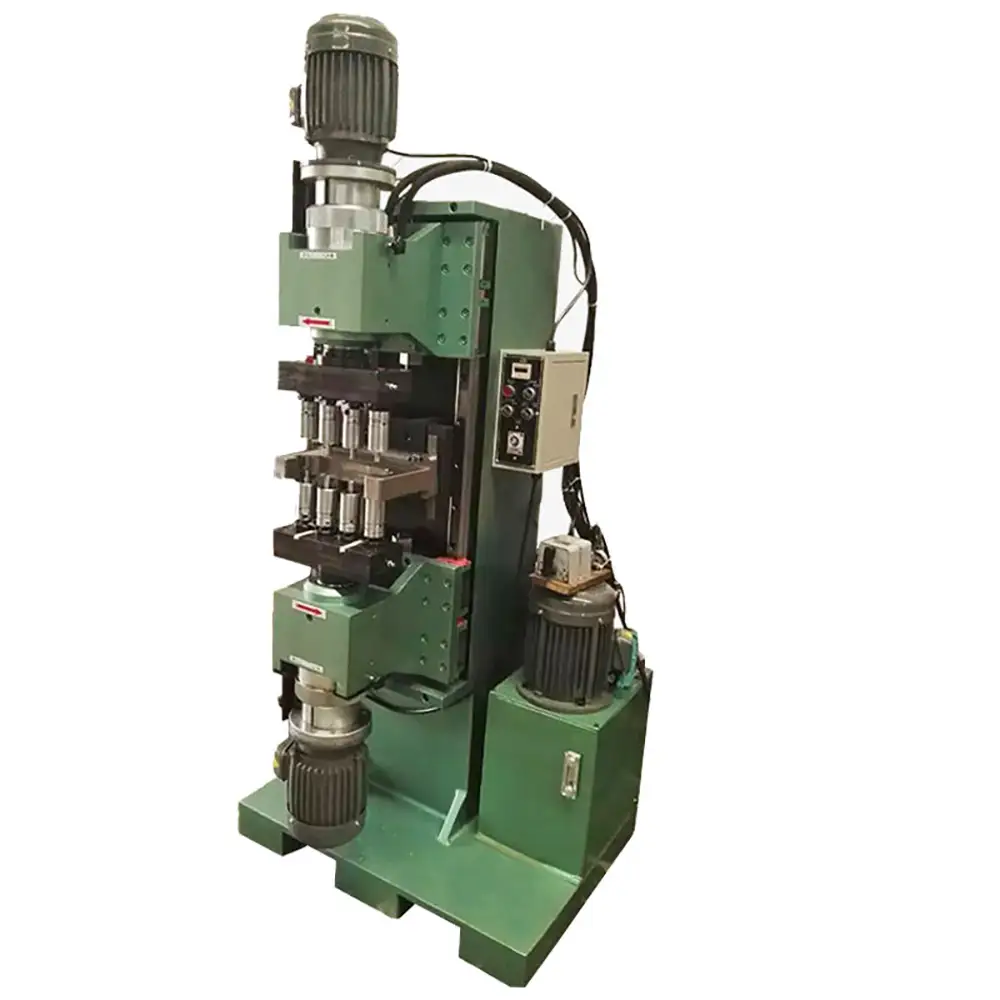

Multi-head Hydraulic Radial Orbital Rotary Riveting Machine for Solid Rivet Hardware

 1 Progressive design:
Low center of gravity, strong rigidity, simple structure, no noise, no impact, no vibration, two-stage weight adjustment, small size and no space.
2 Easy operation:
Strong working pressure, strong safety, easy operation, can be operated without experience, fast and convenient tool replacement, high work efficiency, good riveting effect
3 Standard configuration:
Standard electronic accessories are used for each model. When using automatic operation, the timer can be adjusted to the appropriate time at will
4 Usage

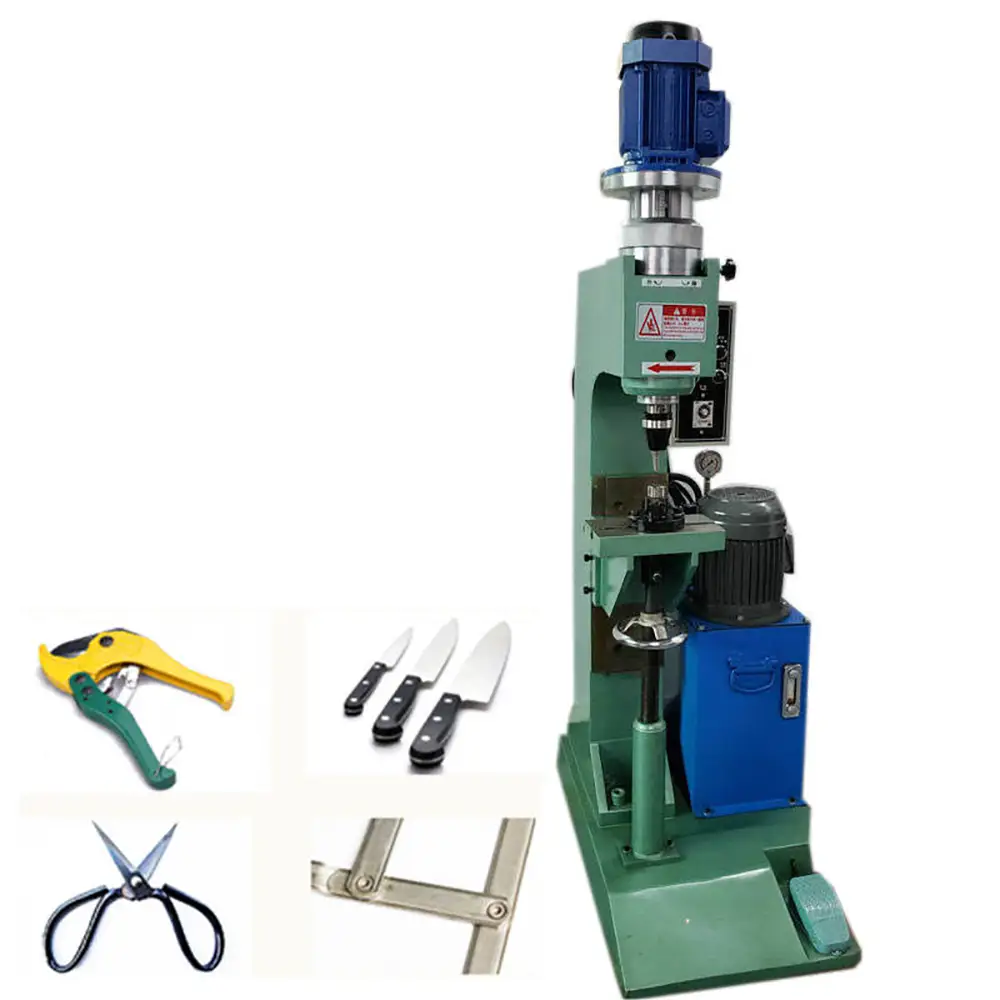

Suitable for riveting of solid rivets such as scissors, pliers, juicer blades, notebook shafts, LCD shafts, gas springs, piston rods, etc.



Model	Motor	Spindle stroke(mm)	Riveting capacity( soft material )	Working time(s)	working pressure kg/cm²	·         MPA kg/cm²	Riveting length(mm)	Weight(kg)	Riveting RMP
S-150	1/2×HP 1×2HP	42	Solid river:3~12 hollow river:1~25	0.5~10	20~70	430~1650	180	300	1400/1720
S-152	1/2×HP 1×2HP	42	Solid river:3~12 river:1~25	0.5~10	20~70	430~1650	230	350	1400/1720
S-155	3×3HP 2×3HP	45	Solid river:1~25 river:1~40	0.5~10	20~100	1400~5500	300	450	1400/1720

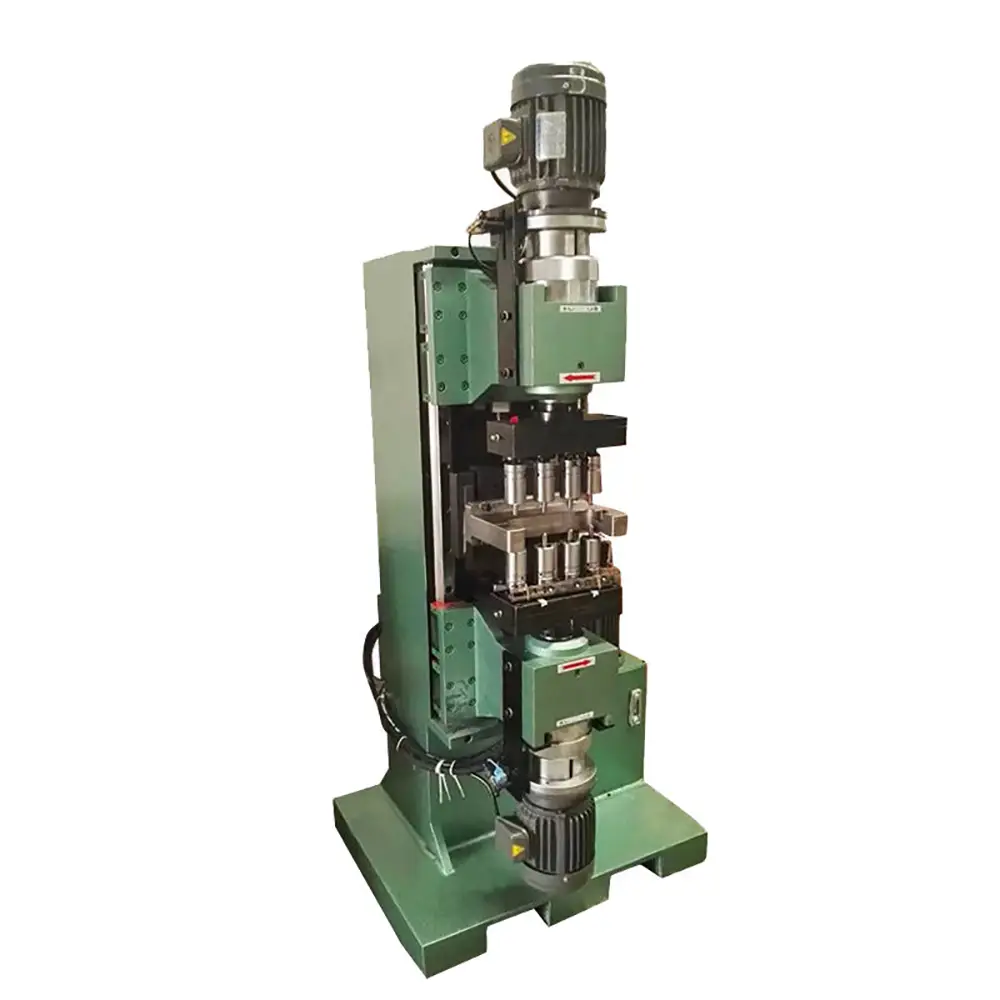

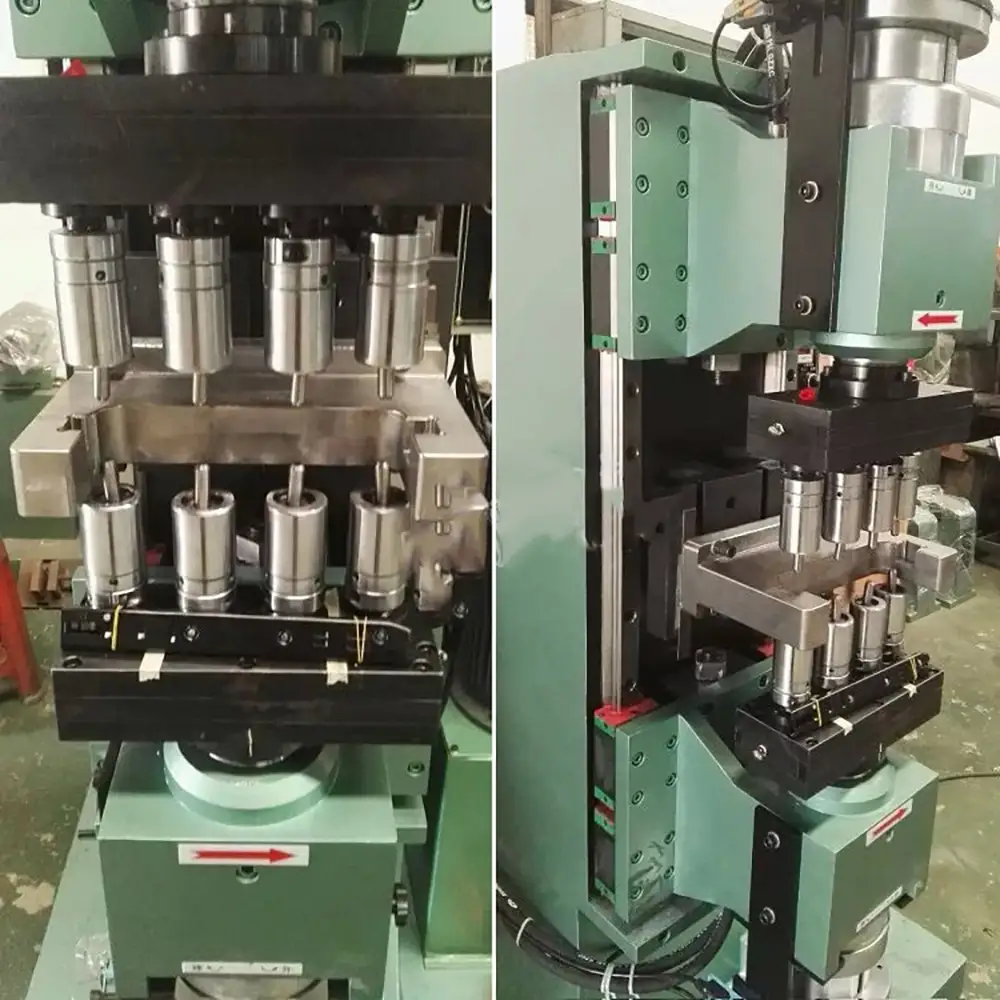

Multi-Head Riveting Design

The machine uses multiple riveting heads to process suitable rivets or fastening points according to the product configuration. Multi-head operation can help improve production efficiency when several riveting points need to be processed on the same workpiece.

The number and arrangement of riveting heads can be configured according to the product structure, rivet positions, and production requirements. Dedicated fixtures help maintain consistent positioning throughout the riveting cycle.

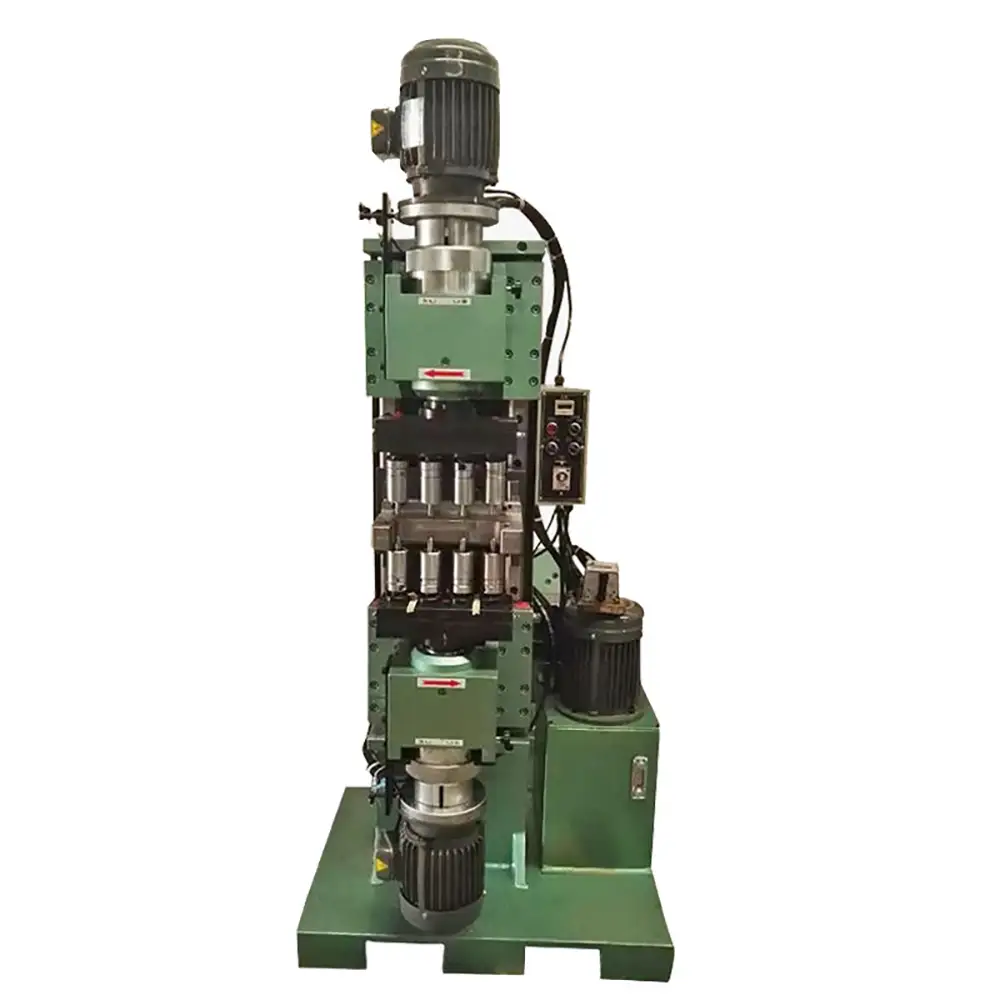

Hydraulic Riveting System

Hydraulic power provides strong and controlled riveting force for suitable solid rivet applications. The hydraulic system can deliver stable pressure to the riveting heads, helping produce repeatable rivet deformation and secure fastening.

Hydraulic parameters should be selected according to rivet diameter, rivet material, workpiece material, and joint construction.

Radial Riveting Technology

Radial riveting forms the rivet by applying controlled forming force through a radial movement pattern. This can provide smooth and consistent deformation of compatible rivet materials while minimizing unnecessary impact on the surrounding workpiece.

Radial riveting is suitable for applications where controlled forming and repeatable riveting quality are important.

Orbital Riveting Process

Orbital riveting uses an orbital motion of the riveting tool to gradually form the rivet head. Compared with conventional impact riveting, orbital forming can provide controlled deformation and help reduce stress transmitted to the workpiece.

The process is suitable for precision metal assembly applications where stable riveting quality and controlled forming are required.

Rotary Riveting Operation

The Rotary Riveting Machine uses controlled rotary or forming movement to process compatible rivets. The rotary forming process can support consistent rivet head formation and reliable fastening for suitable industrial components.

Tooling design and machine parameters should be selected according to the specific solid rivet and workpiece structure.

Solid Rivet Hardware Applications

The machine is designed for compatible solid rivet hardware applications. Solid rivets are commonly used for permanent mechanical fastening where a strong and durable connection is required.

Applications may include metal brackets, hardware components, industrial fittings, automotive parts, machinery components, furniture hardware, tools, and other metal assemblies.

Accurate Rivet Positioning

Correct positioning is essential for multi-head riveting. The workpiece must remain stable while multiple riveting heads perform their forming operations.

Customized fixtures, locating pins, clamps, guides, and positioning plates can be used to maintain accurate rivet alignment and repeatable production results.

Consistent Rivet Forming

The radial and orbital riveting processes are designed to gradually form compatible rivets under controlled force. This can help produce consistent rivet heads and reduce variations between individual workpieces.

Consistent tooling condition and correct machine parameter settings are important for maintaining stable production quality.

High Production Efficiency

Multi-head riveting can reduce the number of individual machine cycles required when several riveting points are processed on the same component.

Instead of moving a workpiece between multiple riveting stations, suitable products can be processed at several positions during one coordinated production cycle. This can help streamline production for high-volume manufacturing.

Reduced Material Stress

Orbital and radial riveting processes can apply forming force in a controlled manner. For suitable applications, this can reduce unnecessary impact and help protect sensitive components surrounding the rivet.

The actual result depends on rivet material, workpiece construction, tooling design, and machine parameters.

Flexible Tooling

Different solid rivets and hardware components require different forming tools. The machine can be equipped with customized riveting heads, dies, fixtures, locating systems, and workpiece supports.

Tooling should be selected according to rivet diameter, head shape, material, workpiece geometry, and required finished rivet profile.

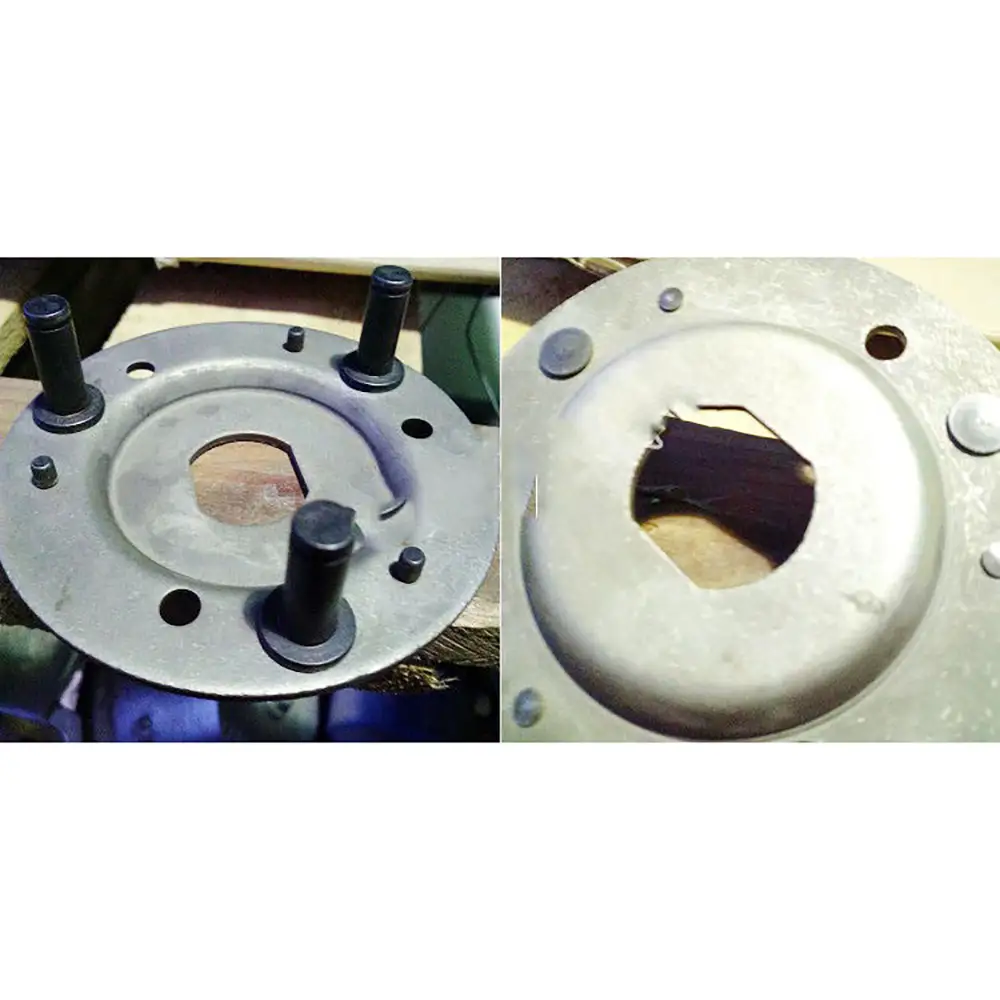

Suitable for Metal Hardware

The machine can be used for suitable steel, stainless steel, aluminum, copper, and other compatible metal hardware applications. The actual material compatibility depends on the machine's hydraulic capacity and tooling configuration.

Testing with actual rivet and workpiece samples is recommended before mass production.

Industrial Production Applications

Multi-head radial and orbital riveting is suitable for repetitive manufacturing environments where consistent fastening quality and production efficiency are important.

Potential applications include automotive hardware, machinery components, electrical hardware, metal fittings, furniture components, tools, hinges, brackets, and other industrial products.

Customized Multi-Head Configuration

Different products may require different numbers and arrangements of riveting points. The machine can therefore be configured with suitable riveting head layouts according to the customer's workpiece.

Customers can provide product drawings, rivet specifications, samples, riveting positions, and required production capacity for technical evaluation.

Stable Production Performance

A rigid machine structure, stable hydraulic system, accurate positioning fixture, and properly designed riveting tools all contribute to consistent production.

Regular maintenance of hydraulic components, riveting heads, dies, fixtures, and other wear parts helps maintain reliable long-term operation.

Practical Factory Operation

The machine is designed for industrial production environments. After the workpiece is correctly positioned and the appropriate tooling and parameters are set, the riveting cycle can be initiated according to the machine's operating procedure.

Operators can focus on workpiece loading, unloading, quality inspection, and production monitoring.

B2B OEM Manufacturing Solution

For manufacturers producing solid rivet hardware and metal assemblies, a customized multi-head hydraulic radial or orbital riveting machine can provide a scalable solution for repetitive fastening operations.

Customers can provide product samples, drawings, rivet dimensions, material information, riveting point locations, and production volume. These details help determine suitable machine configuration and tooling.

Key Features
Multi-Head Hydraulic Riveting
Radial Riveting Technology
Orbital Riveting Technology
Rotary Riveting Process
Solid Rivet Compatibility
Controlled Hydraulic Force
Multi-Point Riveting
Accurate Workpiece Positioning
Customized Riveting Heads
Customized Dies And Fixtures
Consistent Rivet Forming
Reduced Production Labor
High Production Efficiency
Main Applications
Solid Rivet Hardware
Automotive Components
Metal Brackets
Machinery Components
Furniture Hardware
Electrical Hardware
Industrial Fittings
Metal Hinges
Tools And Hardware
Metal Assemblies
Structural Components
OEM Hardware Production
FAQs
1. What is a Multi-Head Hydraulic Radial Orbital Riveting Machine?

It is an industrial riveting machine that uses multiple riveting heads and hydraulic force with radial, orbital, or rotary forming technology to process compatible solid rivets.

2. What is solid rivet hardware?

Solid rivet hardware refers to metal components using solid rivets as permanent mechanical fasteners. They are commonly used in industrial hardware, machinery, automotive, and metal assembly applications.

3. What is the advantage of multi-head riveting?

Multi-head riveting allows multiple suitable riveting points to be processed in a coordinated cycle, which can reduce handling and improve production efficiency.

4. What is radial riveting?

Radial riveting forms a compatible rivet through controlled radial movement of the riveting tool, helping achieve consistent rivet deformation.

5. What is orbital riveting?

Orbital riveting forms the rivet through controlled orbital movement of the forming tool. It can provide gradual rivet deformation and stable fastening for suitable applications.

6. Can the machine process solid rivets?

Yes. The machine is specifically designed for compatible solid rivet applications, provided the rivet dimensions, material, and workpiece are within the machine's operating range.

7. What materials can be riveted?

Depending on the machine configuration, suitable applications may include steel, stainless steel, aluminum, copper, and other compatible metal materials.

8. Can the number of riveting heads be customized?

Yes. The number and arrangement of riveting heads can be configured according to the number and location of riveting points on the customer's workpiece.

9. Can the tooling be customized?

Yes. Riveting heads, dies, fixtures, locating pins, clamps, and workpiece supports can be customized according to product drawings and samples.

10. What information is needed for machine selection?

Provide product drawings or samples, solid rivet dimensions, rivet material, workpiece material and thickness, riveting point locations, required rivet head shape, and production capacity.

Why Choose Us
Professional Industrial Riveting Equipment

We provide hydraulic, radial, orbital, and multi-head riveting solutions for industrial hardware and metal component manufacturers.

Multi-Head Customized Solutions

The riveting head quantity and layout can be evaluated according to the customer's workpiece structure and riveting points.

Precision Tooling Support

We provide application-based recommendations for riveting heads, dies, fixtures, clamps, and positioning components.

Factory Direct B2B Supply

We provide direct technical communication, machine configuration assistance, export packaging, shipping coordination, and after-sales support.

Sample-Based Technical Evaluation

Customers can provide rivet samples, workpiece samples, technical drawings, and production requirements for machine and tooling evaluation.

International Export Service

We support overseas customers with technical documentation, operating guidance, spare parts assistance, packaging, shipping coordination, and after-sales service.
