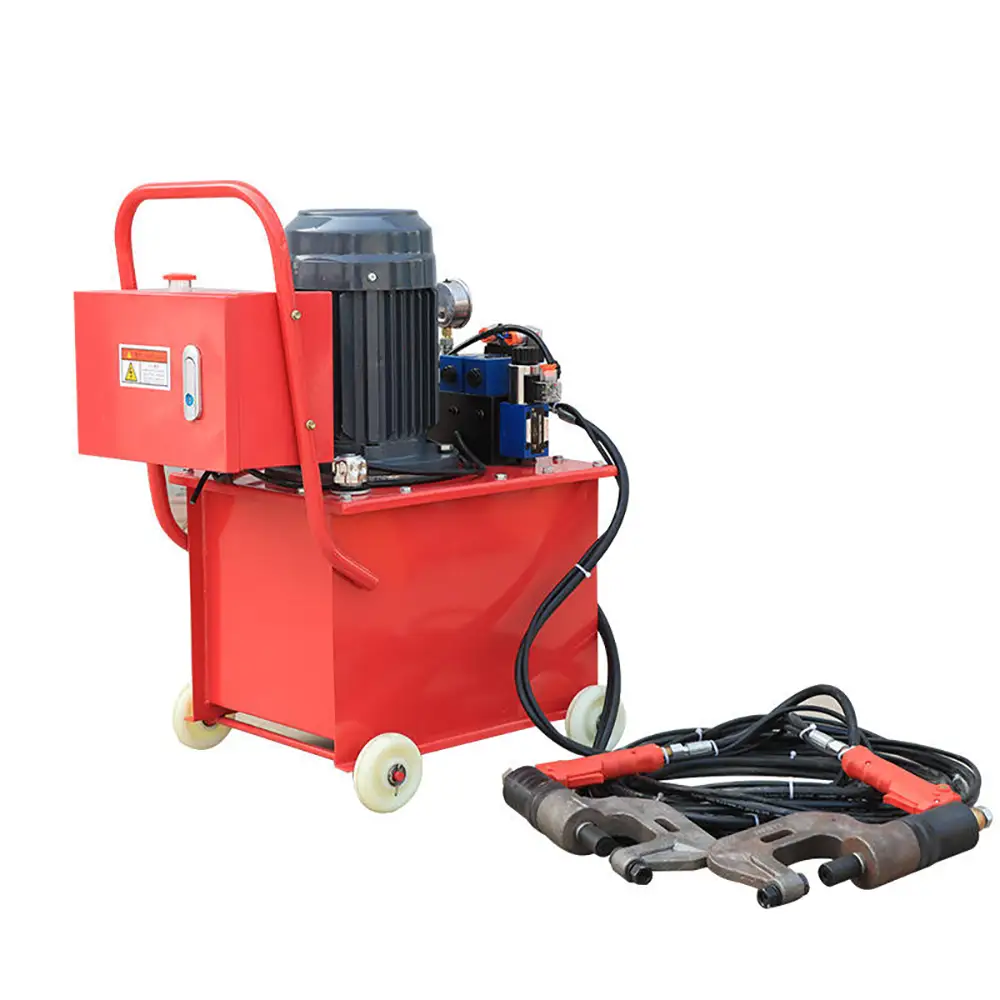

Single and Double Guns Handheld Hydraulic Riveting Machine with Motor for Flue Pipe

The Single and Double Guns Handheld Hydraulic Riveting Machine with Motor for Flue Pipe is a portable hydraulic riveting solution designed for efficient riveting of flue pipes, ducts, sheet metal components, ventilation systems, and other metal fabrication applications. Available in single-gun and double-gun configurations, the machine provides flexible riveting options for manufacturers and contractors working with cylindrical, curved, or sheet metal structures.

Flue pipe manufacturing and installation often require reliable fastening of overlapping metal sections, joints, brackets, and related components. A handheld hydraulic riveting machine can provide controlled riveting force while allowing operators to work directly on large or assembled products that may be difficult to process with fixed riveting equipment.

Name	Single gun	Double gun
Power	1.5kw	2.2kw
Weight	48kg	80kg
Measure	560x350x600mm	600x400x750mm
Hydrail oil	46# antiwear hydraulic oil/ 16L
Voltage	Single or 3 phase
Pressure	14MPA
Riveting capacity	Rivet diameter 4mm length 8/10/12mm, or customized

Handheld Hydraulic Riveting

The machine combines hydraulic riveting technology with a handheld operating structure. Hydraulic power provides strong and controlled riveting force, while the handheld design allows operators to position the riveting gun directly at the required fastening location.

This makes the equipment suitable for large workpieces, assembled flue pipes, duct sections, ventilation components, and other products where moving the entire workpiece to a stationary machine would be inconvenient.

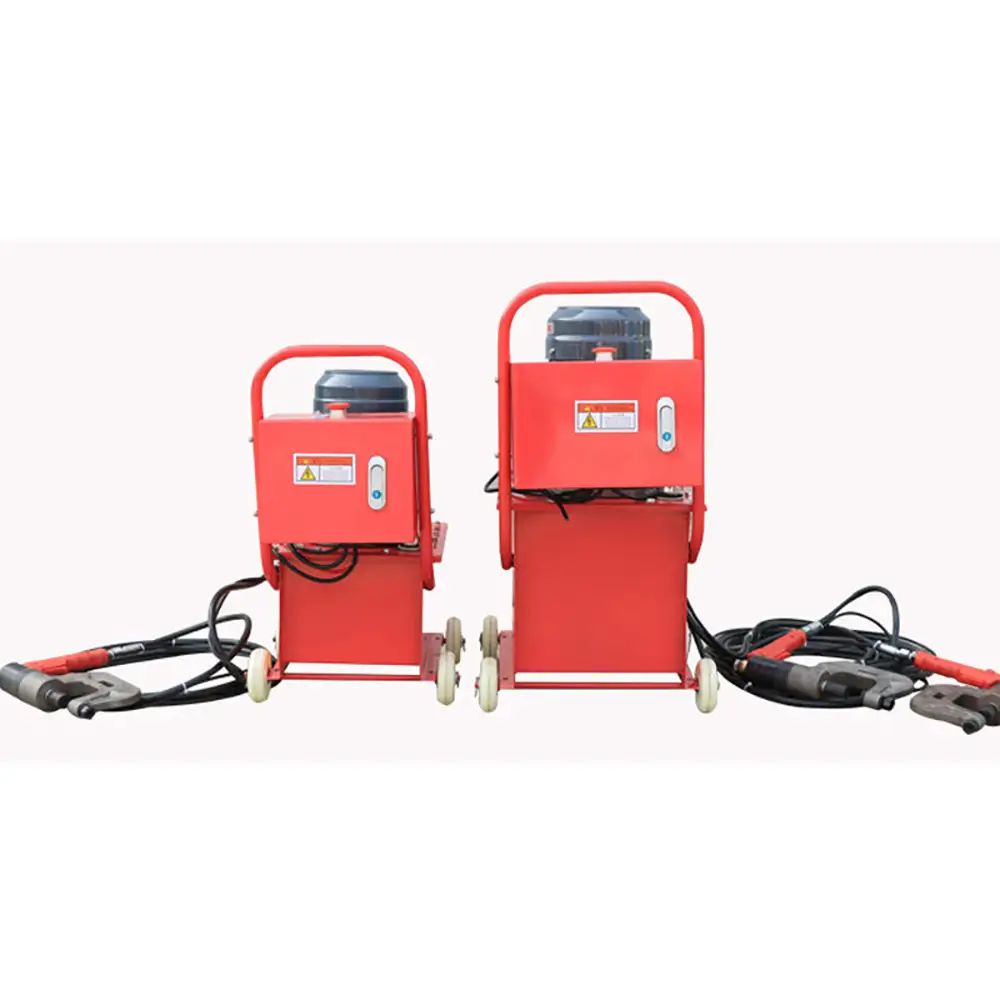

Single Gun Configuration

The single-gun configuration is suitable for production and installation applications where one riveting point is processed at a time. It provides a flexible solution for manufacturers and contractors handling different workpiece sizes and riveting positions.

The operator can move the riveting gun to different areas of the flue pipe or sheet metal structure without requiring a fixed work position.

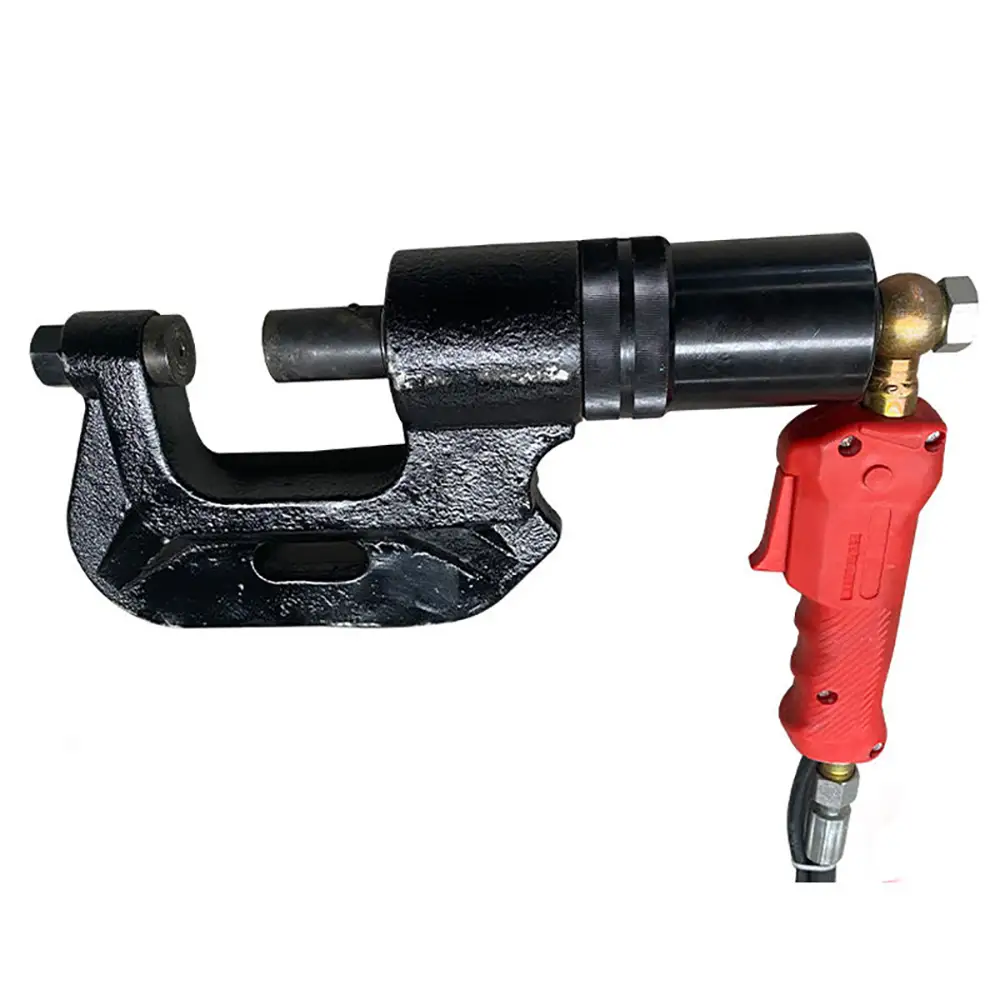

Double Gun Configuration

The double-gun configuration can be used for applications requiring two riveting guns or coordinated riveting operations. This configuration may help improve workflow efficiency when the production process requires repeated riveting operations at multiple positions.

The actual operating method depends on the machine configuration and workpiece requirements. Customers can select the appropriate gun configuration according to production volume and riveting application.

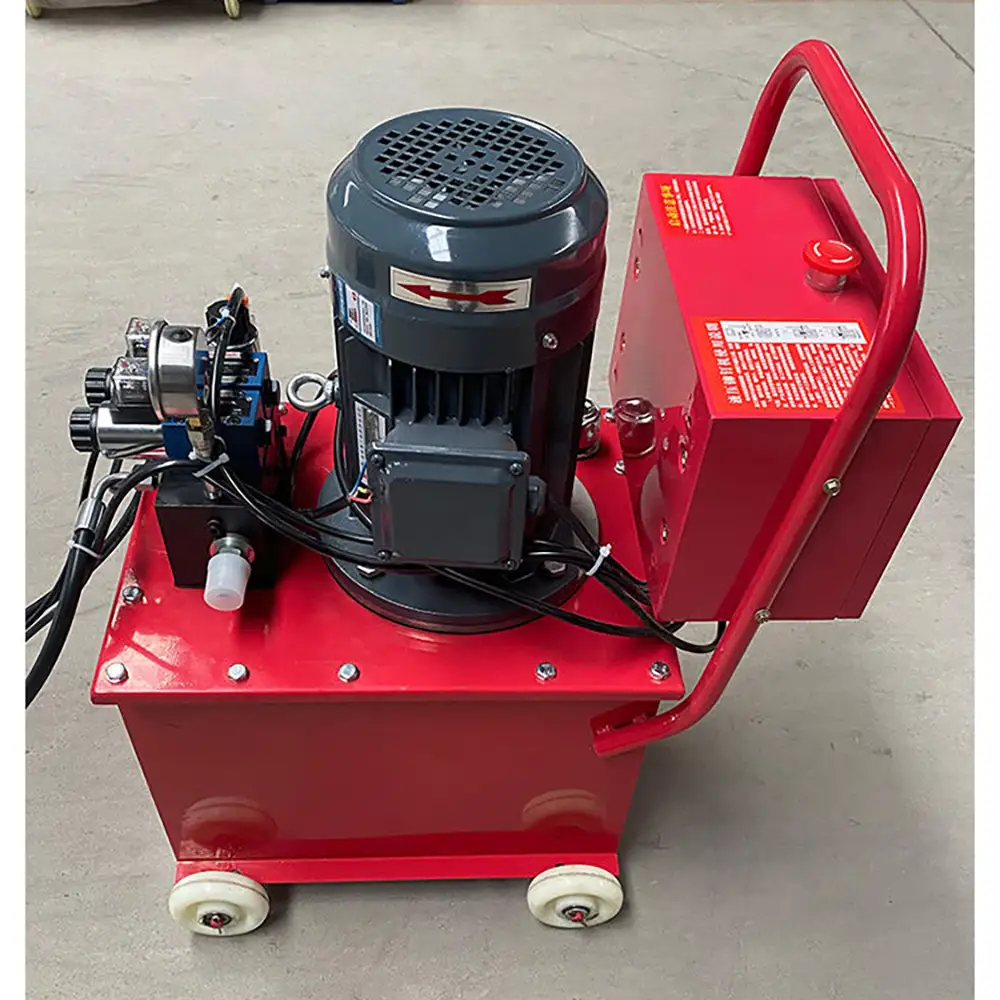

Designed for Flue Pipe Riveting

The Flue Pipe Riveting Machine is designed for suitable metal flue and pipe fabrication applications. Flue pipes may have cylindrical, conical, or other formed structures, making flexible riveting equipment useful during production and assembly.

The handheld riveting gun can be positioned around the workpiece to reach suitable riveting locations. Appropriate rivets, dies, and hydraulic parameters should be selected according to the pipe material and construction.

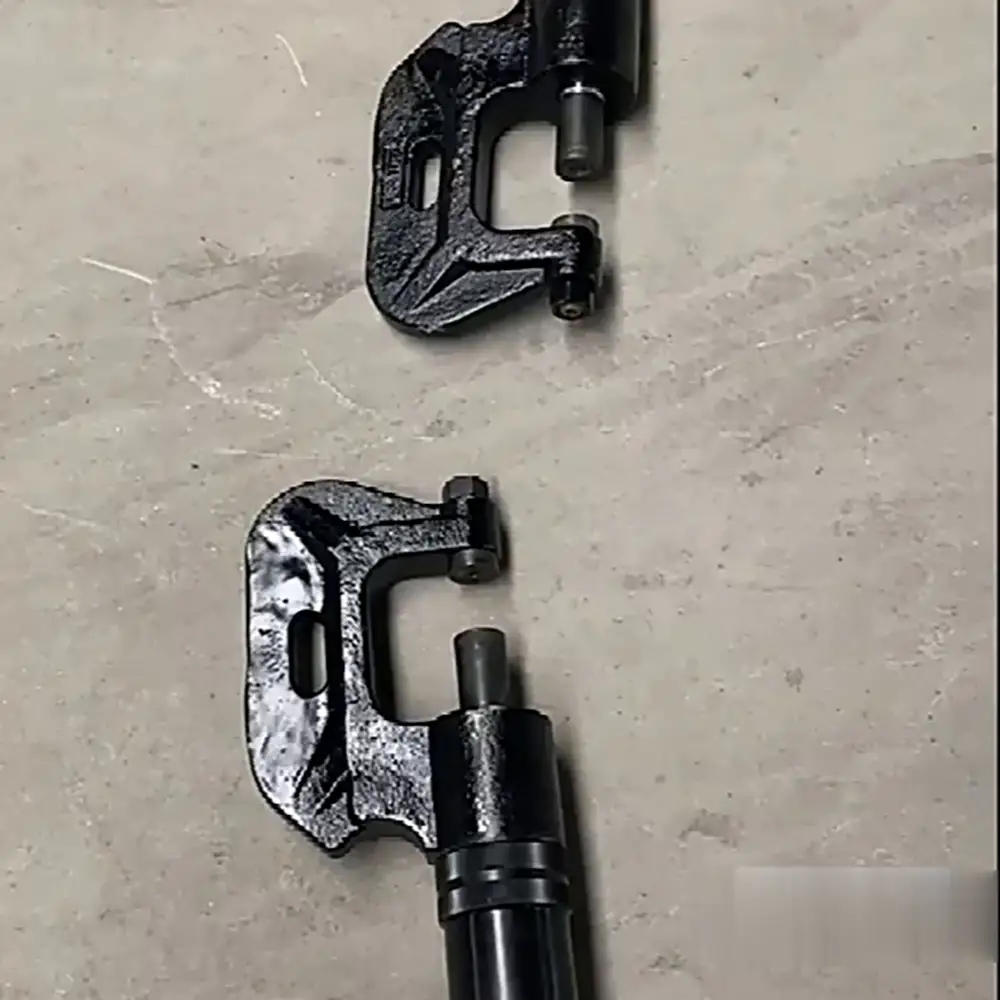

Suitable for Sheet Metal

The machine can also be used for compatible sheet metal riveting applications. Sheet metal components are widely used in ducts, ventilation systems, exhaust systems, heating equipment, industrial enclosures, and metal fabrication.

The hydraulic riveting process provides controlled mechanical force to form or secure compatible rivet connections.

Hydraulic Power System

Hydraulic operation provides high riveting force in a relatively compact handheld tool. The hydraulic system transfers pressure to the riveting mechanism to perform the fastening operation.

A motor-driven hydraulic power source provides the energy required for repeated riveting cycles. Hydraulic pressure and tooling should be configured according to the rivet type and workpiece requirements.

Motorized Operation

The motorized design eliminates the need for operators to manually generate riveting force. The hydraulic motor or power unit supplies the required pressure to the riveting mechanism.

This can help reduce operator fatigue during repeated riveting operations and provide a more consistent fastening process.

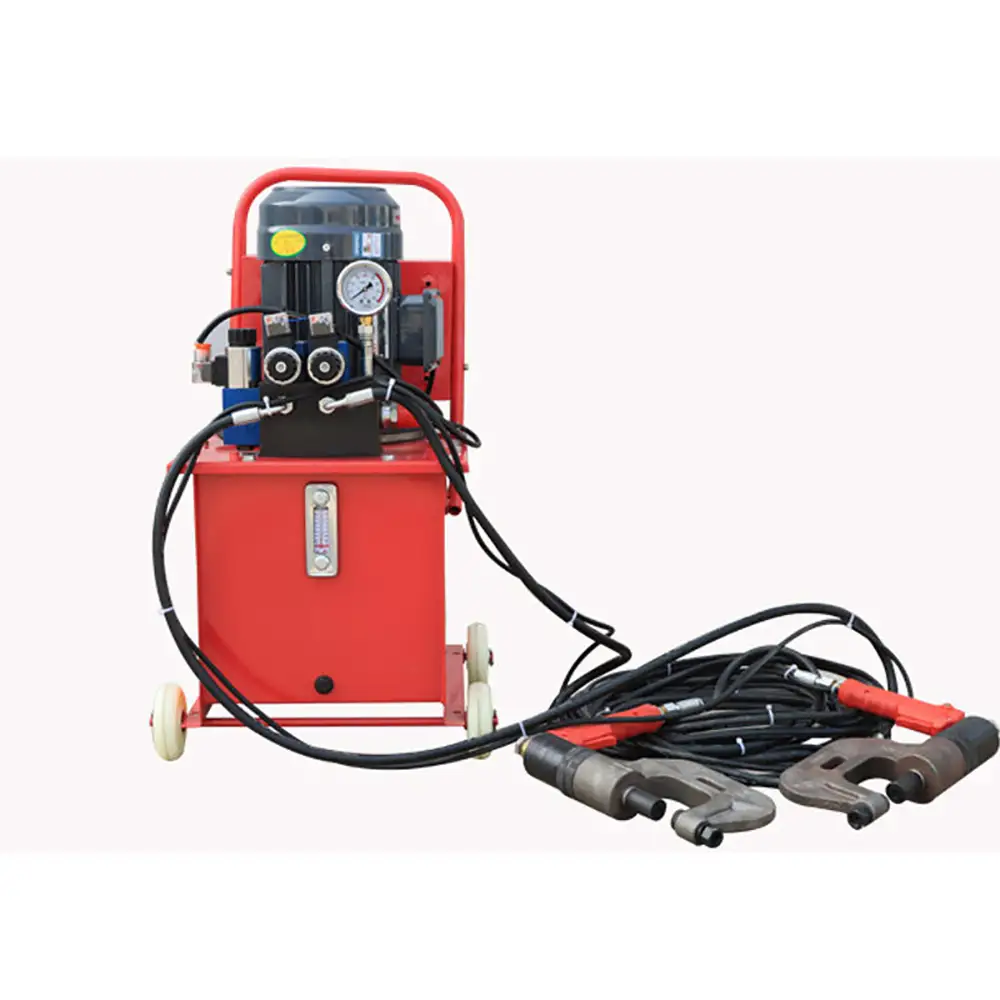

Portable Riveting Solution

The handheld structure makes the machine suitable for workpieces that are large, heavy, or difficult to move. Instead of bringing the entire flue pipe or duct to a fixed riveting station, operators can bring the riveting equipment directly to the workpiece.

This feature is particularly useful for large-diameter pipes, duct assemblies, ventilation components, and on-site metal fabrication.

Flexible Riveting Positions

Flue pipes and ducts may require riveting around curved surfaces and in different orientations. A handheld riveting gun provides greater flexibility than many fixed-position machines.

Operators can approach the workpiece from different directions while maintaining the required riveting position.

Consistent Riveting Force

Stable hydraulic pressure helps provide controlled riveting force during repeated production cycles. Consistent force can contribute to more uniform rivet formation and fastening quality.

The correct riveting pressure depends on rivet material, rivet diameter, sheet thickness, and the specific joint structure. Production parameters should be tested and adjusted before continuous operation.

Improved Production Efficiency

Manual riveting can be physically demanding and time-consuming, especially when many fastening points are required. A motorized hydraulic riveter can reduce repetitive manual effort and streamline the riveting process.

For flue pipe and duct manufacturers, improved riveting efficiency can help shorten production cycles and support higher output.

Suitable for HVAC and Ventilation Components

Metal ducts and flue systems often require reliable connections between formed sheet metal sections. The machine can be used for suitable HVAC duct, ventilation, exhaust, and pipe fabrication applications.

The actual suitability depends on material thickness, rivet specifications, joint construction, and machine configuration.

Applications in Exhaust and Industrial Pipes

Compatible metal pipe and exhaust system components may also require riveting during fabrication or assembly. The portable nature of the machine allows operators to work on larger components without moving them to a dedicated stationary machine.

This can be useful in industrial fabrication workshops, maintenance operations, and specialized pipe production.

Easy Operation

The machine is designed for practical industrial operation. Operators position the riveting gun at the designated fastening point, activate the hydraulic riveting cycle, and release the tool after the rivet has been properly formed.

Training and operating procedures should follow the machine manufacturer's instructions, particularly for hydraulic pressure, tooling installation, and safety requirements.

Durable Industrial Construction

The machine is designed for repetitive industrial riveting applications and can incorporate a robust hydraulic system, motor, riveting gun, hose assembly, control components, and metal housing.

Regular inspection of hydraulic hoses, fittings, riveting heads, dies, electrical components, and wear parts can help maintain reliable operation.

Single and Double Gun Options

Offering both single-gun and double-gun configurations allows manufacturers to select a setup appropriate for their production process.

Single-gun models provide flexibility for varied applications, while double-gun configurations can be considered for production environments requiring multiple riveting tools or more specialized workflows.

Customized Riveting Solutions

Different flue pipes and sheet metal products may use different materials, thicknesses, rivet types, and joint designs. Customized tooling and machine configurations can therefore be considered for specialized applications.

Customers can provide pipe drawings, material specifications, rivet samples, sheet thickness, and production requirements for technical evaluation.

B2B Manufacturing and Export Solution

For flue pipe manufacturers, HVAC duct factories, sheet metal fabricators, exhaust system producers, ventilation equipment suppliers, and industrial contractors, this handheld hydraulic riveting machine provides a flexible fastening solution.

The equipment can be supplied with technical documentation, operating guidance, suitable tooling, export packaging, and after-sales support according to customer requirements.

Key Features
Handheld Hydraulic Riveting Design
Single Gun Configuration
Double Gun Configuration
Motorized Hydraulic Power
Suitable For Flue Pipe Riveting
Sheet Metal Riveting Capability
Portable Operation
High Hydraulic Riveting Force
Flexible Riveting Positions
Reduced Operator Fatigue
Improved Production Efficiency
Industrial Metal Fabrication Applications
Customized Tooling Available
Main Applications
Flue Pipe Manufacturing
Flue Pipe Assembly
HVAC Duct Fabrication
Ventilation Ducts
Exhaust Pipe Manufacturing
Sheet Metal Fabrication
Industrial Pipe Assembly
Metal Enclosures
Heating Equipment
Ventilation Systems
Industrial Metal Products
On-Site Metal Riveting
FAQs
1. What is a Handheld Hydraulic Riveting Machine?

It is a portable riveting machine that uses hydraulic power to generate controlled force for fastening suitable rivets in metal fabrication and assembly applications.

2. What is the machine mainly used for?

It is designed for suitable flue pipe, duct, sheet metal, ventilation, exhaust, and other metal riveting applications.

3. What is the difference between the single-gun and double-gun versions?

The single-gun version provides one riveting gun for flexible operation, while the double-gun configuration provides two guns for applications requiring multiple riveting tools or a specialized production workflow.

4. Can it be used for flue pipes?

Yes. The machine is specifically suitable for compatible flue pipe riveting applications, including cylindrical and formed sheet metal structures.

5. Can it rivet sheet metal?

Yes. Suitable sheet metal applications can be processed when the correct rivets, dies, hydraulic pressure, and tooling are selected.

6. Why use hydraulic power for riveting?

Hydraulic power provides strong and controlled riveting force and can reduce the physical effort required from operators during repetitive riveting.

7. Is the machine portable?

Yes. The handheld riveting gun allows operators to move the riveting tool directly to the required fastening position.

8. Can the machine be customized?

Yes. Riveting guns, dies, tooling, hydraulic configurations, and other components can be evaluated according to the customer's application.

9. What information is needed to select the right machine?

Provide the pipe or sheet metal material, thickness, rivet type and dimensions, workpiece size, riveting locations, production volume, and required gun configuration.

10. Is it suitable for high-volume production?

Yes. The motorized hydraulic system is suitable for repetitive riveting applications. Production efficiency depends on workpiece design, riveting points, material, rivet specifications, and machine configuration.

Why Choose Us
Professional Hydraulic Riveting Equipment

We provide industrial hydraulic riveting solutions for flue pipes, sheet metal, ducts, ventilation systems, exhaust components, and other metal fabrication applications.

Single And Double Gun Options

Customers can select single-gun or double-gun configurations according to their production process and riveting requirements.

Application-Based Configuration

We evaluate pipe dimensions, material thickness, rivet specifications, and production requirements to recommend suitable machine configurations and tooling.

Portable Industrial Design

The handheld riveting structure allows operators to work directly on large or assembled metal components, providing greater flexibility than fixed-position equipment.

Factory Direct B2B Service

We provide technical communication, machine configuration assistance, export packaging, shipping coordination, operating documentation, and after-sales support.

Customized Technical Solutions

Customers can provide drawings, samples, material specifications, and riveting requirements for customized tooling and application evaluation.
