Hydraulic Rotated Head Riveting Machine Hard Solid Rivets Punching Machine SS MS Radial Riveter

In the field of modern industrial manufacturing, the riveting process, as a crucial connection technology, is widely applied in numerous industries. Today, we bring you an innovative device that revolutionizes the traditional riveting experience - the hydraulic riveting machine.

This hydraulic riveting machine adopts an advanced full hydraulic drive and control system. With a strong and stable output pressure, it can directly achieve the cold riveting process, significantly improving the riveting quality and injecting a higher quality guarantee into your production process. Compared with the traditional pneumatic riveting method, it has many remarkable advantages:

1. Excellent Adaptability to the Working Environment: It operates without annoying noise interference, creating a quiet and comfortable working atmosphere for operators and effectively reducing the impact of noise pollution on the working environment.

2. Flexible and Convenient Operation: Operators can easily control the device. The operation process is agile and smooth, greatly reducing the labor intensity. Even if working for a long time, it is not easy to feel tired.

3. High Production Capacity: The riveting speed is extremely fast, and it can complete a large number of riveting tasks in a short time, significantly improving production efficiency and helping enterprises gain the upper hand in market competition.

Machine Type	hydraulic riveting machine
warranty	1 Year
weight	350kg
spindle stroke	42MM
motor	0.5HP-1*2HP
Model	S-152
Working times	0.5-10 seconds
working pressure	20-70kg/cm cubic meters
MPA	430-1650
Riveting length	230mm
riveting RMP	1400/1720
After-sales Service Provided	1 year

Hydraulic Rotated Head Riveting Machine for Solid Rivets

The Hydraulic Rotated Head Riveting Machine is an industrial fastening solution designed for applications involving hard solid rivets, stainless steel (SS) rivets, mild steel (MS) components, and other demanding metal riveting operations. Combining hydraulic driving power with a rotated riveting head and radial riveting structure, the machine provides manufacturers with a flexible solution for controlled and repeatable solid rivet installation.

Solid riveting remains an important joining method in many industrial applications where a strong mechanical connection is required. Unlike temporary fastening methods, a properly formed solid rivet creates a permanent mechanical joint between compatible components. This makes solid rivet equipment useful for heavy-duty machinery, metal fabrication, construction hardware, transportation components, industrial assemblies, and other applications.

The rotated-head design allows the riveting head to be positioned according to the workpiece geometry and riveting location. This can be particularly valuable when components have different orientations or when direct access from a fixed riveting position is difficult.

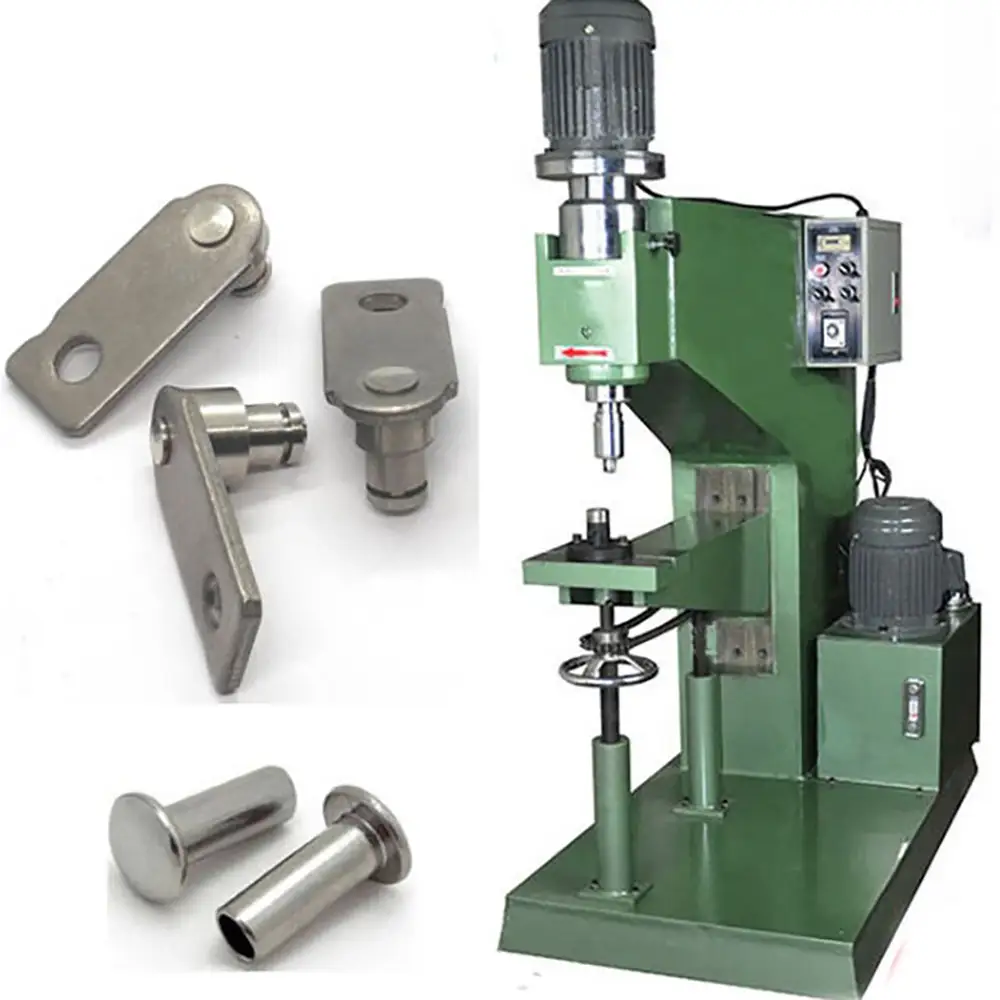

Hydraulic Radial Riveting System

The hydraulic driving system provides controlled force for the riveting process. Hydraulic operation is suitable for industrial applications where stable force application and repeatable rivet forming are important.

The radial riveting principle forms the rivet through controlled movement of the riveting tool rather than relying solely on a simple direct pressing action. This can help distribute forming action around the rivet and support a consistent finished rivet head when the tooling and process are correctly matched.

The actual riveting force, cycle characteristics, and compatible rivet dimensions depend on the specific machine configuration, tooling, rivet material, and workpiece requirements.

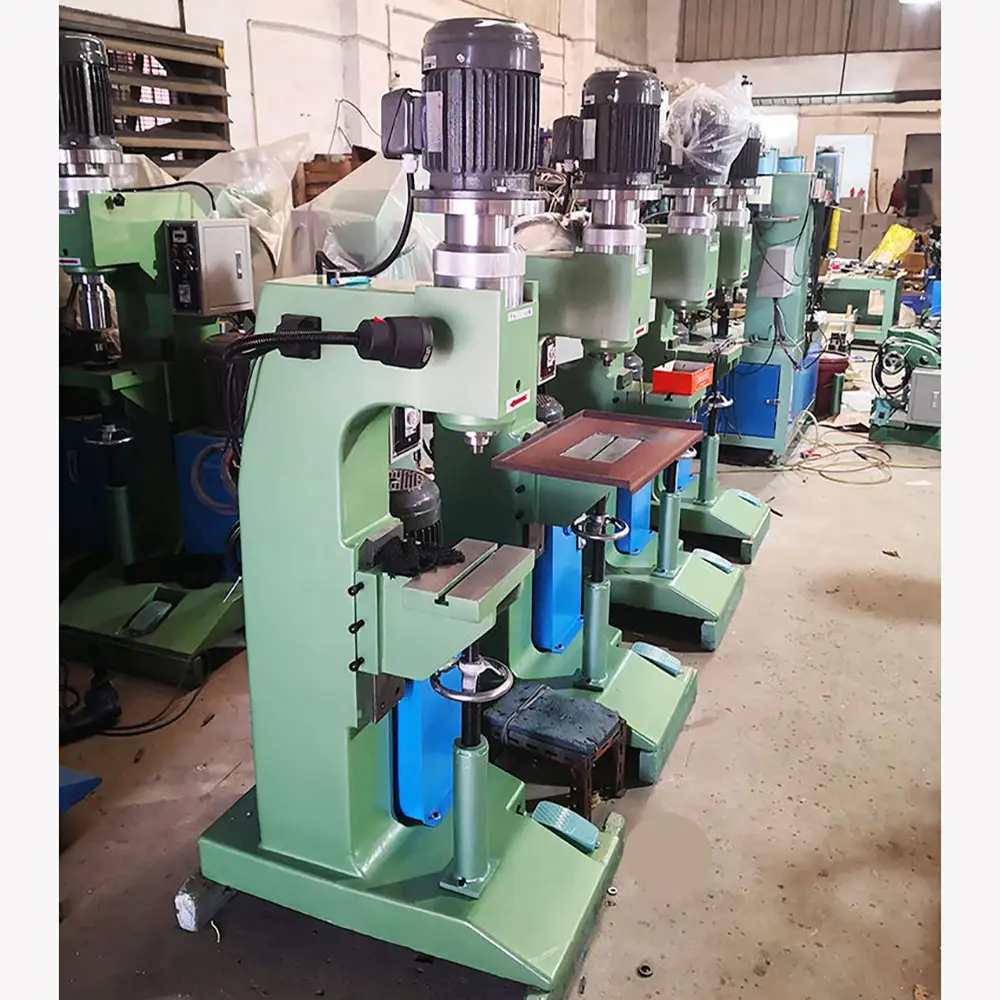

Rotated Riveting Head

A major feature of this equipment is the rotated riveting head. Different workpieces may have complex shapes, angled surfaces, recessed areas, or multiple riveting positions. A rotatable head can provide greater flexibility when positioning the riveting tool.

This configuration is useful for manufacturers who need to process different products or components on the same machine platform. Depending on the application, the head orientation and associated tooling can be selected according to the required riveting position.

For OEM production, customized fixtures and tooling can also be considered to improve workpiece positioning and access.

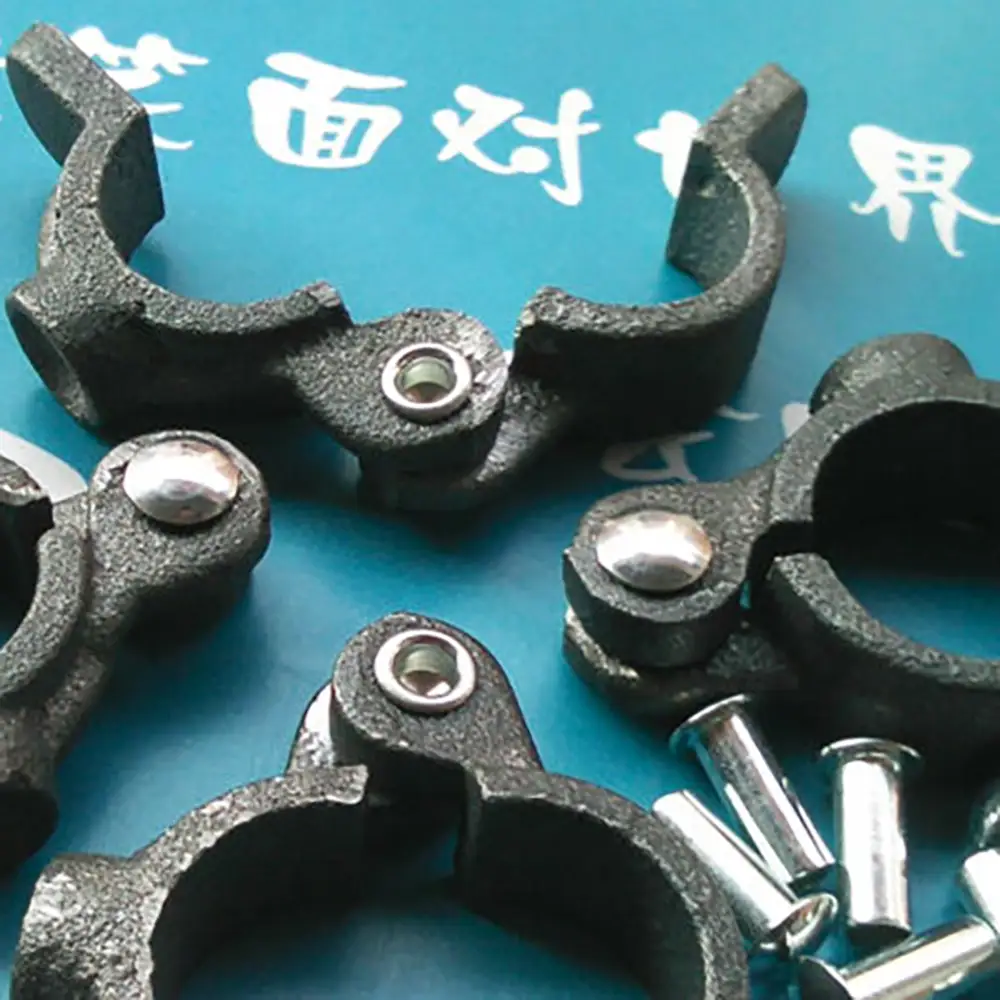

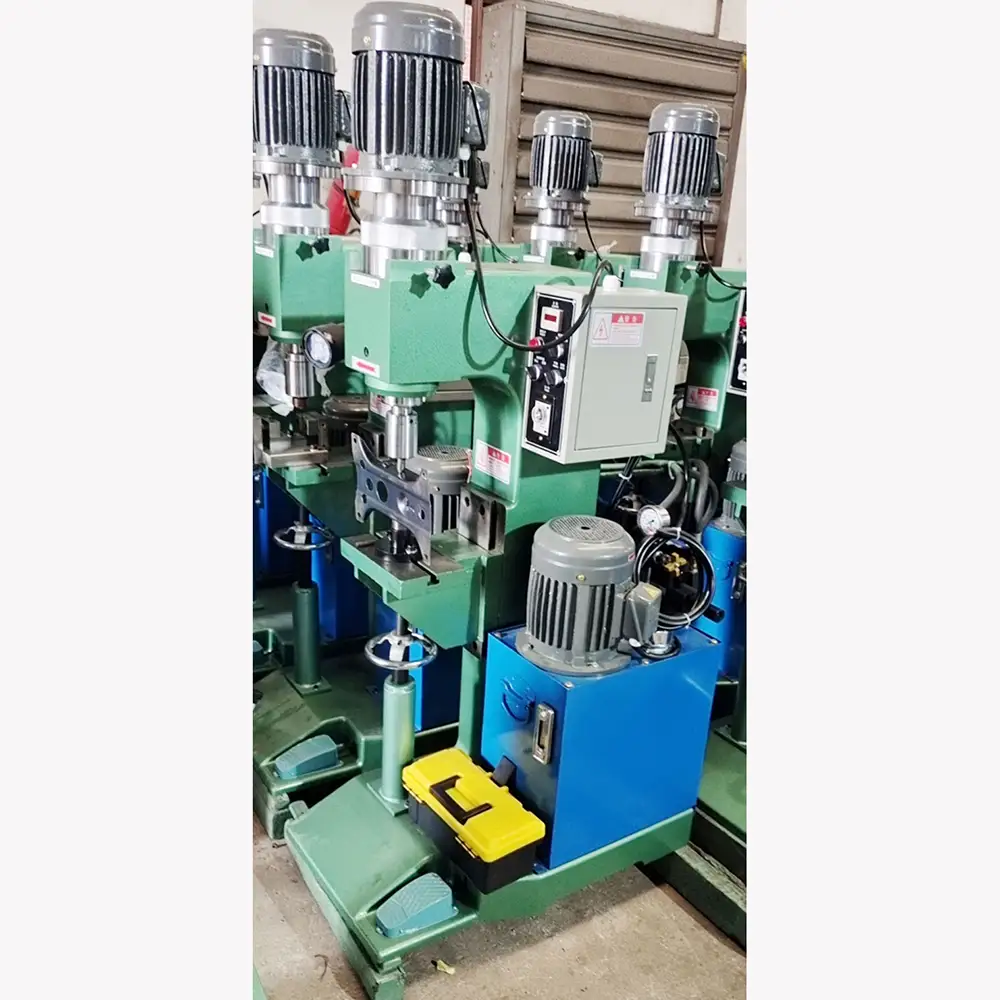

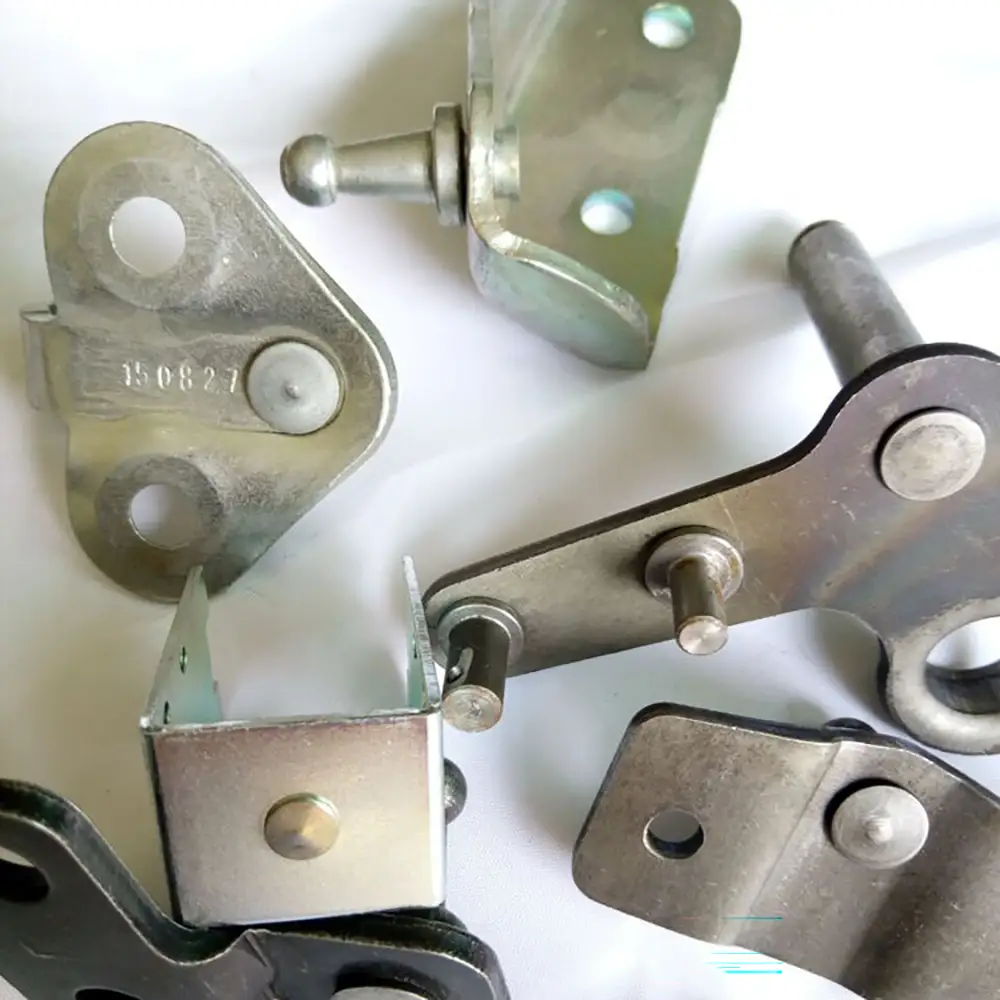

Hard Solid Rivet Applications

Hard solid rivets require an appropriate riveting process because their material properties can influence forming behavior and required force. The machine can be evaluated for compatible solid rivets according to their material, dimensions, hardness, and application.

Potential applications include:

Solid steel rivets
Stainless steel rivets
Mild steel rivets
Industrial solid rivets
Heavy-duty mechanical fasteners
Metal structural rivets
Machinery component rivets

The correct combination of rivet, die, riveting head, and machine configuration is important for achieving a reliable finished connection.

SS and MS Riveting

The machine is designed for applications involving SS and MS components, subject to the selected tooling and machine configuration.

Stainless steel components are often used where corrosion resistance and durability are important. Mild steel components are widely used in machinery, fabrication, structural hardware, and general industrial manufacturing.

When working with different metals, the riveting process should be selected according to the specific material characteristics, rivet properties, component thickness, and required joint configuration.

Punching and Riveting Applications

In addition to solid rivet forming, the machine can be configured or used in applications requiring punching-related operations, depending on the tooling arrangement.

Punching may be required to prepare holes before rivet installation, particularly when components are supplied without pre-formed holes. A suitable punching tool can help create consistent openings for subsequent riveting.

The punching and riveting process should be designed around the actual workpiece material and thickness. Proper tooling selection is essential for maintaining hole quality and accurate rivet alignment.

Heavy-Duty Metal Riveting

Industrial metal assemblies can require stronger and more reliable fastening methods than lightweight consumer applications. Hydraulic radial riveting provides a practical solution for heavy-duty riveting tasks where solid rivets are preferred.

The machine can be considered for metal brackets, structural components, machinery assemblies, hinges, supports, frames, and other compatible industrial products.

For demanding production environments, machine rigidity, tooling stability, workpiece positioning, and maintenance should all be considered when selecting equipment.

Accurate Rivet Positioning

Accurate positioning is essential for producing consistent solid-riveted joints. If the rivet and workpiece are not properly aligned, the finished rivet may be uneven or the component may be damaged.

The machine can be used with dedicated fixtures designed to hold the workpiece securely during the riveting cycle. Customized fixtures can be especially useful for components with irregular shapes or multiple riveting locations.

For repeated production, fixtures can reduce operator positioning variation and help maintain consistent results from one workpiece to another.

Consistent Solid Rivet Forming

A reliable riveting process depends on matching the machine's force, tooling geometry, rivet dimensions, and workpiece characteristics.

The hydraulic radial riveting system is designed to provide controlled mechanical forming of the rivet. With appropriate tooling, the process can support repeatable rivet head formation and consistent fastening quality.

Manufacturers should validate the finished joint using their actual rivets and workpieces before establishing production parameters.

Flexible Tooling Configuration

Industrial manufacturers often work with different rivet sizes and product designs. Flexible tooling can make a riveting machine more useful across multiple applications.

Depending on the production requirement, tooling may include:

Radial riveting heads
Riveting dies
Solid rivet forming tools
Punching tools
Workpiece fixtures
Positioning supports
Customized dies
Interchangeable tooling

Tooling can be evaluated according to the customer's actual component drawings, rivet samples, and production process.

Improve Industrial Production Efficiency

Manual solid riveting can be physically demanding and difficult to maintain consistently over long production cycles. A hydraulic riveting machine can help standardize the fastening process and reduce repetitive operator effort.

For batch production, a stable machine cycle can help improve production organization and reduce variations between operators.

The equipment can be incorporated into different manufacturing workflows, from manually loaded workpieces to more automated production systems, depending on the desired level of automation.

OEM and Custom Riveting Solutions

The Hydraulic Rotated Head Riveting Machine can be adapted for OEM manufacturing applications where standard riveting equipment may not provide sufficient flexibility.

Customization can focus on:

Riveting head orientation
Riveting dies
Punching tooling
Workpiece fixtures
Product positioning
Rivet specifications
Machine configuration
Production workflow

Customers can provide product drawings, samples, rivet information, and production requirements so the appropriate machine and tooling configuration can be evaluated.

Why Choose Our Hydraulic Rotated Head Riveting Machine?
1. Hydraulic Driving

Provides controlled riveting force for demanding industrial fastening applications.

2. Rotated Riveting Head

Provides greater flexibility for accessing different workpiece orientations and riveting locations.

3. Radial Riveting Technology

Designed for controlled solid rivet forming and repeatable industrial riveting.

4. Solid Rivet Compatibility

Suitable for applications using compatible hard solid rivets, depending on tooling and machine configuration.

5. SS and MS Applications

Can be evaluated for stainless steel and mild steel components.

6. Punching Capability

Can support applications requiring punching and riveting processes when appropriate tooling is installed.

7. Flexible Tooling

Customized dies, fixtures, and riveting tools can be developed around specific products.

8. OEM Customization

Suitable for manufacturers requiring application-specific industrial riveting solutions.

Main Applications

This hydraulic radial riveter can be considered for:

Heavy-Duty Metal Riveting
Solid Rivet Installation
Stainless Steel Component Riveting
Mild Steel Component Riveting
Construction Hardware
Machinery Components
Structural Metal Assemblies
Industrial Brackets
Metal Frames
Hinges and Supports
Transportation Components
Industrial Equipment Manufacturing
General Metal Fabrication
How to Choose the Right Hydraulic Radial Riveter?

When selecting a hydraulic radial riveting machine, manufacturers should consider the rivet material, rivet diameter, rivet length, workpiece material, component thickness, riveting location, and required production volume.

For applications involving hard solid rivets, it is particularly important to match the machine and tooling to the rivet material and forming requirements.

The rotated head should also be evaluated according to the workpiece geometry. If the component contains recessed or angled riveting positions, the head orientation and fixture design can significantly affect production efficiency.

For customized projects, customers should provide workpiece drawings or samples, rivet samples, material information, hole dimensions, and production requirements.

FAQS
Q1: What is a hydraulic radial riveting machine?

A hydraulic radial riveting machine uses hydraulic power and radial riveting motion to form and install rivets on compatible industrial components.

Q2: What is the advantage of a rotated riveting head?

A rotated head provides greater flexibility for accessing different riveting positions and workpiece orientations.

Q3: Can this machine process solid rivets?

Yes. The machine is designed for compatible solid riveting applications. Rivet size, material, hardness, and tooling should be evaluated before production.

Q4: Can it work with stainless steel rivets?

Yes. Stainless steel rivet applications can be considered when the machine and tooling are correctly matched to the rivet specifications.

Q5: What does SS and MS mean?

SS generally refers to stainless steel, while MS commonly refers to mild steel. The machine can be evaluated for compatible components made from these materials.

Q6: Can the machine perform punching?

It can be configured for applications involving punching and riveting, depending on the selected tooling and production process.

Q7: Can the riveting head be customized?

Yes. Riveting head configurations, dies, fixtures, and other tooling can be customized or selected according to the workpiece.

Q8: Is this machine suitable for heavy-duty riveting?

Yes. Hydraulic radial riveting is suitable for many industrial solid riveting applications. The actual capability depends on the machine configuration and rivet requirements.

Q9: Can one machine process different rivet sizes?

Different tooling configurations may be used for different rivet sizes. The compatible range depends on the specific machine and tooling configuration.

Q10: What information is needed for a quotation?

Please provide rivet material and dimensions, workpiece material and thickness, riveting locations, product drawings or samples, production volume, and any punching requirements.
