PVDF Material Mbr Membrane for Sewage Treatment Plant

MBR, abbreviated as Membrane Bio Reactor, is a new water treatment technology that organically combines membrane separation technology with biotechnology. It uses membrane separation equipment to trap activated sludge and macromolecular organic matter in the biochemical reaction tank, eliminating the need for a secondary sedimentation tank. The membrane bioreactor process greatly enhances the function of the bioreactor through membrane separation technology, greatly increasing the concentration of activated sludge. Its hydraulic retention time (HRT) and sludge retention time (SRT) can be controlled separately.
In traditional sewage biological treatment technology, sludge water separation is completed by gravity in a secondary sedimentation tank, and its separation efficiency depends on the settling performance of activated sludge. The better the settling performance, the higher the sludge water separation efficiency. The settling ability of sludge depends on the operating conditions of the aeration tank, and improving the settling ability of sludge requires strict control of the operating conditions of the aeration tank, which limits the applicability of this method. Due to the requirements for solid-liquid separation in the secondary sedimentation tank, the sludge in the aeration tank cannot maintain a high concentration, usually around 1.5-3.5g/L, which limits the biochemical reaction rate. The hydraulic retention time (HRT) and sludge age (SRT) are interdependent, and there is often a contradiction between increasing volumetric load and reducing sludge load. During the operation of the system, a large amount of excess sludge is generated, and its disposal cost accounts for 25% to 40% of the operating cost of the sewage treatment plant. The traditional activated sludge treatment system is also prone to sludge bulking. The effluent contains Suspended solids, and the effluent quality deteriorates.

PVDF MBR Membrane for Sewage Treatment Plant

The PVDF MBR Membrane for Sewage Treatment Plant is a membrane separation component designed for membrane bioreactor systems used in municipal sewage treatment, industrial wastewater treatment, and water reuse applications. Made from polyvinylidene fluoride (PVDF), the membrane combines mechanical strength, chemical resistance, and filtration performance for demanding wastewater environments.

Membrane bioreactor technology integrates biological treatment with membrane filtration. Instead of relying entirely on a conventional secondary sedimentation tank to separate biological sludge from treated water, the MBR membrane acts as a physical separation barrier. This allows the biological process and solid-liquid separation process to be closely integrated in one treatment system. MBR technology is widely studied and applied for municipal and industrial wastewater treatment.

PVDF is widely used in wastewater membrane applications because of its mechanical and chemical properties. PVDF membrane structures can be manufactured in hollow fiber or flat-sheet configurations, depending on the treatment system and project requirements. Commercial PVDF MBR products are available for municipal sewage, industrial wastewater, landfill leachate, and water reuse applications.

What Is a PVDF MBR Membrane?

A PVDF MBR membrane is a porous filtration membrane installed in a membrane bioreactor. In a submerged MBR system, membrane modules are immersed directly in the biological tank or a dedicated membrane tank. Wastewater passes through the membrane under a pressure difference, while suspended solids, activated sludge, and microorganisms are retained within the bioreactor.

PVDF MBR membranes can be supplied as hollow fiber membrane modules or flat-sheet membrane modules. The appropriate configuration depends on treatment capacity, tank design, membrane area, operating conditions, cleaning method, and customer requirements.

For example, commercial PVDF hollow fiber MBR modules are available with reinforced structures and are designed for submerged wastewater treatment. Flat-sheet PVDF MBR modules are also used in sewage and industrial wastewater systems where a panel-style membrane configuration is preferred.

How Does the PVDF MBR Membrane Work?

The MBR process generally combines biological degradation with membrane filtration.

First, wastewater enters the biological treatment section. Microorganisms consume and break down biodegradable organic pollutants under controlled aerobic or anoxic conditions. The biological treatment process can also be designed for nitrogen and phosphorus removal depending on the overall plant configuration.

After biological treatment, the mixed liquor enters the membrane separation stage. In a submerged MBR, the membrane module is placed in the activated sludge mixture. A suction pump or other suitable pressure differential draws treated water through the membrane pores.

The membrane retains suspended solids and biomass while allowing water and appropriately sized dissolved substances to pass through. This produces a low-turbidity permeate suitable for discharge or further treatment and reuse, depending on the complete treatment process and applicable water-quality requirements.

Air scouring is commonly used around submerged membrane modules to reduce solids accumulation and help control membrane fouling. Specific aeration requirements depend on membrane design and operating conditions.

Key Features of PVDF MBR Membrane
1. PVDF Membrane Material

PVDF provides a combination of chemical resistance, mechanical strength, and thermal stability that makes it suitable for many wastewater membrane applications. PVDF is one of the commonly used polymeric materials in water and wastewater membranes.

2. Hollow Fiber or Flat Sheet Configuration

Depending on the project, PVDF membranes can be supplied as reinforced hollow fiber modules or flat-sheet modules. This provides flexibility for new MBR plants, equipment upgrades, and membrane replacement projects.

3. Efficient Solid-Liquid Separation

The membrane provides a physical barrier for suspended solids and biomass. This helps separate treated water from activated sludge without relying solely on conventional gravity clarification.

4. Compact Treatment System

Because biological treatment and membrane separation are integrated, MBR systems can achieve high treatment performance within a relatively compact plant configuration. MBR technology is particularly useful where treatment capacity must be combined with limited available space.

5. Suitable for Water Reuse

Depending on the complete treatment process and local water-quality requirements, MBR permeate can be used as a feed for additional polishing processes or water reuse systems. MBR membranes are also used as pretreatment for reverse osmosis in some water-reuse applications.

6. Chemical Cleaning Compatibility

Membrane cleaning procedures can be incorporated into MBR operation to control fouling and maintain membrane permeability. Cleaning chemicals and procedures should always follow the membrane manufacturer's recommended limits.

Applications of PVDF MBR Membrane

PVDF MBR membrane modules can be used in a wide range of wastewater treatment projects, including:

Municipal Sewage Treatment Plants
Industrial Wastewater Treatment Plants
Domestic Sewage Treatment
Food Processing Wastewater
Textile and Dyeing Wastewater
Pharmaceutical Wastewater
Chemical Industry Wastewater
Petrochemical Wastewater
Electronics Industry Wastewater
Landfill Leachate Treatment
Hospital Wastewater Treatment
Commercial Building Wastewater
Decentralized Sewage Treatment
Water Reuse Systems
RO Pretreatment Systems

PVDF hollow fiber MBR membranes have been used for municipal sewage treatment and industrial wastewater treatment, as well as applications involving recycled water and landfill wastewater.

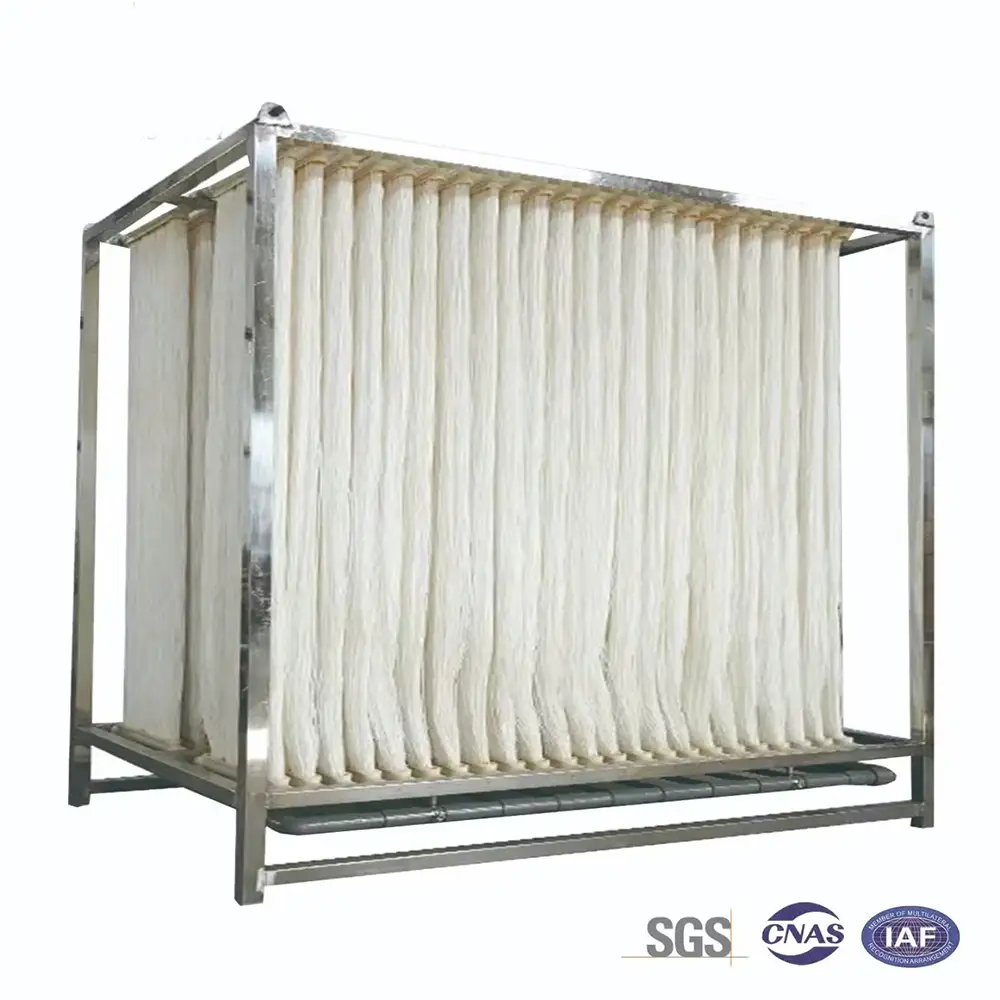

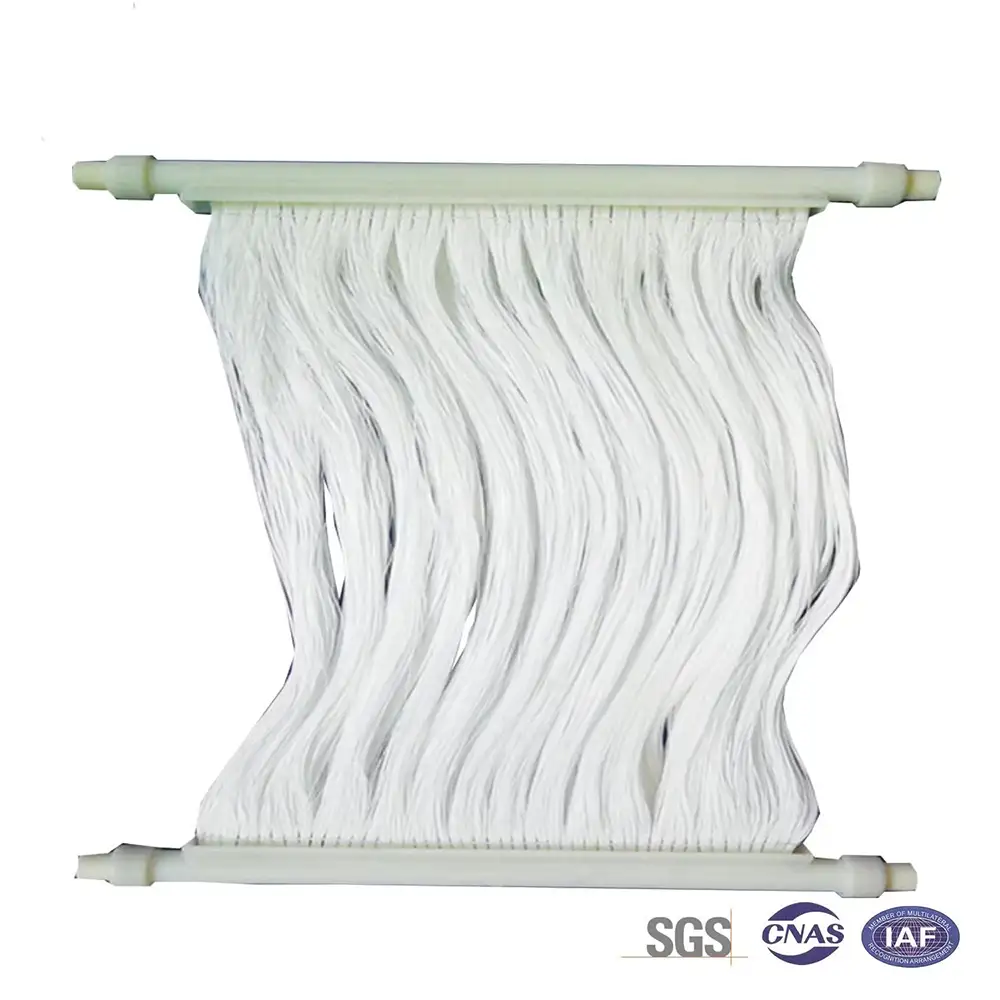

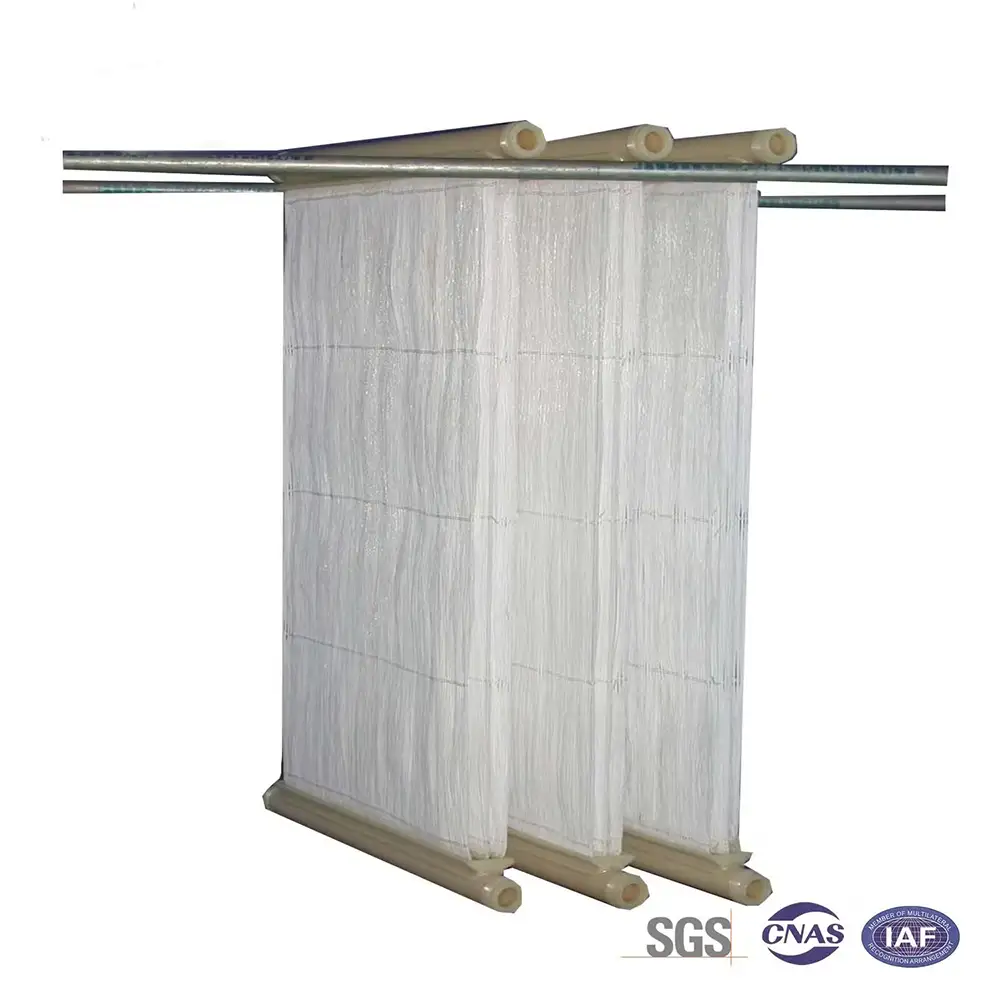

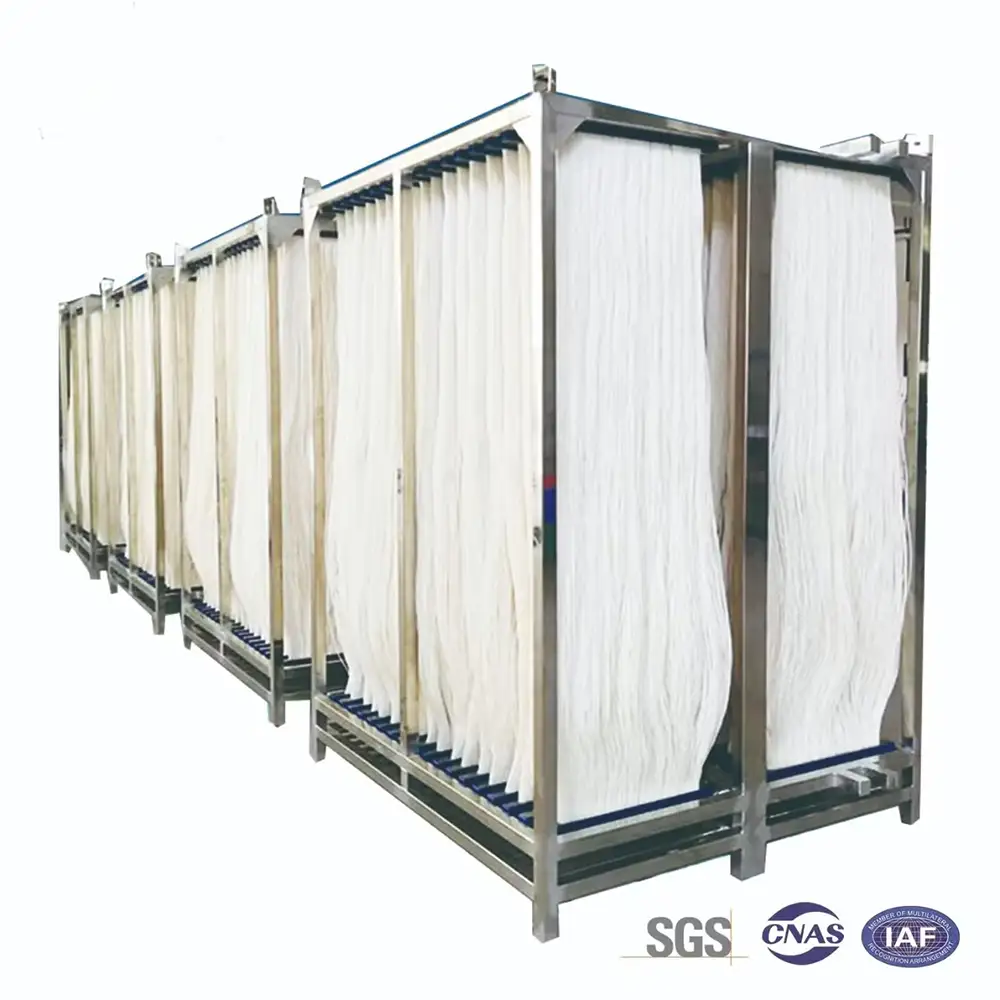

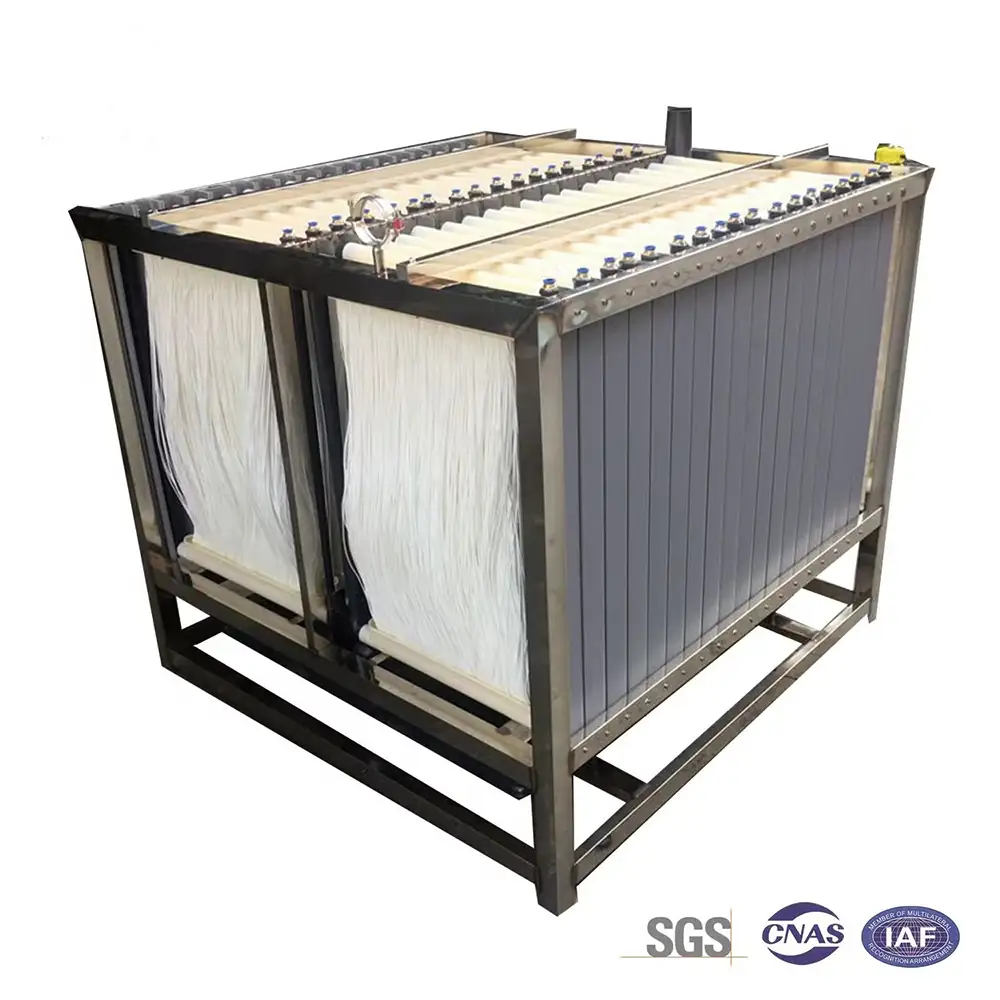

PVDF Hollow Fiber MBR Membrane

The hollow fiber configuration provides a large membrane surface area within a relatively compact module. Reinforced hollow fiber membranes can incorporate a support structure to improve mechanical strength and dimensional stability.

The hollow fiber membrane normally operates by allowing water to pass through the porous membrane wall while suspended solids and microorganisms are retained in the activated sludge. Some commercial reinforced PVDF MBR modules use an outside-in filtration direction.

The actual membrane pore size, membrane area, flux, operating pressure, temperature range, pH range, and module dimensions should be selected according to the specific membrane model and wastewater characteristics. For example, commercially available PVDF MBR products can use nominal pore sizes around 0.05–0.1 μm, but specifications vary significantly between membrane designs.

PVDF Flat Sheet MBR Membrane

Flat-sheet MBR membranes are another common configuration. A flat-sheet module consists of membrane panels assembled into a compact membrane block. This structure can provide convenient module installation, inspection, and replacement.

PVDF flat-sheet membrane modules are used in sewage treatment, industrial wastewater treatment, and decentralized wastewater systems. Commercial flat-sheet modules can use PVDF membrane material with a support layer and operate in an outside-in filtration mode.

Membrane Fouling Control

Membrane fouling is one of the most important operational considerations in an MBR system. Organic matter, suspended solids, colloids, microorganisms, and inorganic deposits can accumulate on or inside membrane structures and reduce permeability.

A properly designed MBR system normally combines several fouling-control measures, such as:

Proper Pretreatment
Controlled Mixed Liquor Conditions
Membrane Air Scouring
Appropriate Flux Selection
Periodic Physical Cleaning
Chemical Cleaning
Proper Sludge Management
Stable Operating Conditions

The exact cleaning frequency depends on influent quality, membrane type, operating flux, sludge characteristics, aeration conditions, and system design. Research and technical literature identify membrane fouling as a major operational challenge for MBR systems.

MBR Membrane Selection

Selecting the right PVDF MBR membrane requires consideration of the complete treatment system rather than membrane material alone.

Important selection parameters include:

Wastewater Flow Rate
Influent COD and BOD
Suspended Solids Concentration
MLSS Concentration
Membrane Area
Design Flux
Operating Temperature
pH Range
Membrane Pore Size
Hollow Fiber or Flat Sheet Design
Membrane Tank Dimensions
Aeration Requirements
Cleaning Method
Required Effluent Quality

For replacement projects, membrane dimensions and module connections should also be matched to the existing MBR equipment.

Maintenance and Membrane Replacement

Regular monitoring helps maintain stable MBR performance. Operators should monitor transmembrane pressure, permeate flow, water quality, aeration, sludge characteristics, and membrane permeability.

If membrane permeability gradually decreases, physical or chemical cleaning may be required. If membranes have reached the end of their useful operating life or have suffered mechanical damage, replacement modules can be supplied according to the original system dimensions.

For retrofit applications, an accurate assessment of the existing membrane module, membrane area, connection arrangement, filtration direction, and operating conditions is recommended before replacement.

Why Choose Us?

As a professional MBR membrane manufacturer and wastewater treatment equipment supplier, we provide PVDF membrane solutions for municipal sewage, industrial wastewater, water reuse, and MBR retrofit projects.

Our advantages include:

PVDF Hollow Fiber MBR Membrane
PVDF Flat Sheet MBR Membrane Options
Reinforced Membrane Structures
Custom Membrane Module Configurations
Replacement MBR Membrane Solutions
Municipal and Industrial Wastewater Applications
OEM and Custom Manufacturing
Technical Support for Membrane Selection
Export Packaging for International Projects
Complete MBR System Integration Support

We can help customers select membrane configurations according to wastewater characteristics, treatment capacity, existing equipment, required effluent quality, and project operating conditions.

Frequently Asked Questions
1. What is a PVDF MBR membrane?

A PVDF MBR membrane is a membrane filtration component made from polyvinylidene fluoride and designed for membrane bioreactor wastewater treatment systems.

2. What does MBR stand for?

MBR stands for Membrane Bioreactor. It combines biological wastewater treatment with membrane separation.

3. Why is PVDF used for MBR membranes?

PVDF offers useful mechanical and chemical properties for wastewater membrane applications and is widely used in polymeric filtration membranes.

4. What is the difference between hollow fiber and flat sheet MBR membranes?

Hollow fiber membranes consist of numerous tubular fibers assembled into modules, while flat-sheet membranes use membrane panels or sheets. The best configuration depends on plant design, capacity, operating conditions, and maintenance requirements.

5. Can PVDF MBR membranes treat municipal sewage?

Yes. PVDF MBR membrane modules are widely used in municipal sewage treatment and water reuse applications.

6. Can PVDF MBR membranes be used for industrial wastewater?

Yes. They can be used for many industrial wastewater applications, although membrane selection and pretreatment should be based on the specific wastewater composition.

7. What does an MBR membrane remove?

The membrane primarily retains suspended solids, activated sludge, microorganisms, and other particulate contaminants. Dissolved pollutants must be addressed through the biological and other treatment processes incorporated into the overall MBR system.

8. Does an MBR membrane need cleaning?

Yes. Periodic physical and/or chemical cleaning is normally required to control membrane fouling and maintain stable permeability.

9. Can the PVDF MBR membrane be customized?

Yes. Membrane area, module dimensions, membrane configuration, connection arrangement, support structure, and other specifications can be customized for specific projects.

10. Can you supply replacement MBR membranes?

Yes. Replacement PVDF hollow fiber and flat-sheet membrane modules can be supplied for suitable existing MBR systems after confirming the original membrane specifications and installation requirements.
