Polyester Conveyor Belt, Quality Polyester Canvas Conveyor Belts

EP conveyor belt ( polyester conveyor belt) is stuck together in sequence by many pieces of polyester sailcloth, which is covered by rubber and plastic owning good quality rubber cover up and down and good elasticity. Conveying small and not large massiveness materials, meanliness materials and biscuit materials. Applicable for conveying long and not very long distance materials, weight materials and materials that is vey long and its sliding rate is very fast.


Fabric Material	Fabric structure		Fabric code	No.of fabric plies	Width mm	Length m	Cover thickness mm
	Warp	Weft
							Top	Bottom
Polyester canvas	Polyester	Nylon of Polyester	EP100	2-10	350-2000	10-400	2-12	1-5
			EP150	2-10	350-2000	10-400	2-12	1-5
			EP200	2-10	350-2000	10-400	2-12	1-5
			EP250	2-10	350-2000	10-400	2-12	1-5
			EP300	2-6	350-2000	10-400	2-12	1-5
			EP400	2-6	350-2000	10-400	2-12	1-5
			EP500	2-6	350-2000	10-400	2-12	1-5
			EP600	2-4	350-2000	10-400	2-12

Features:
With the advantages of thin belt with light weight, high tensile strength, fatigue and wear resistance, erosion resistance of water/steam/chemical, good impact resistance, excellent groove formation ability, low elongation, good stability ever heated and long service life, it’s the developing trend of fabric conveyor belt. It is mainly used in harsh condition of long distance,heavy-load, high-chemical corrosive etc, it is especially suitable for transporting in moist environment.
Structure:
It uses polyester canvas as carcass, its structure is the same as General-used Conveyor Belt.
Standards:
GB/T7984-2001, DIN22102,
BS490, AS1332, RMA,
JISK6322, SABS1173 etc.
types:
Besides General-used EP conveyor belt, there are Fire-retardant type, Cold-resistant type, Wear-resistant type, Heat-resistant type, Acid and alkaline resistant type, Oil-resistant type, Antistatic electricity type, High-grade type and etc.

Polyester Conveyor Belt, Quality Polyester Canvas Conveyor Belts

A polyester conveyor belt is a durable rubber conveyor belt reinforced with polyester fabric, commonly known as an EP conveyor belt. It is designed for continuous transportation of bulk materials and packaged products in demanding industrial environments. Polyester canvas provides a useful combination of tensile strength, flexibility, dimensional stability, and resistance to elongation, making EP conveyor belts suitable for a wide range of horizontal, inclined, and material-handling conveyor systems.

Quality polyester canvas conveyor belts are widely used in mining, quarrying, aggregate processing, cement production, power generation, ports, warehouses, recycling facilities, fertilizer plants, and general manufacturing. Depending on the operating environment, the belt can be manufactured with different rubber compounds and cover properties to address abrasion, oil, heat, weather, or other application requirements.

What Is a Polyester Conveyor Belt?

A polyester conveyor belt uses polyester fabric as an important reinforcement layer within the belt carcass. EP refers to the combination of polyester in the longitudinal direction and polyamide, commonly nylon, in the transverse direction. This fabric structure provides the belt with good dimensional stability while maintaining flexibility around pulleys.

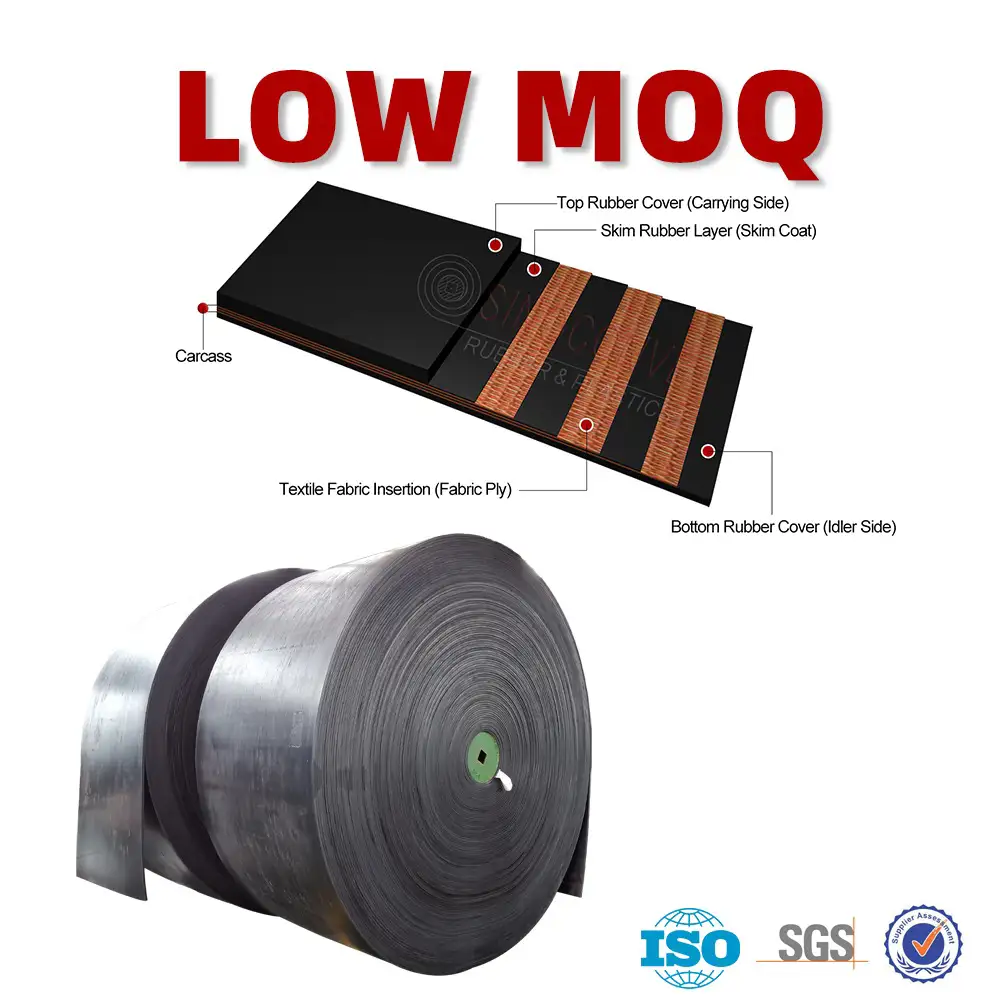

The belt normally consists of a top rubber cover, reinforced fabric carcass, bottom rubber cover, and edge construction. The rubber covers protect the internal reinforcement from impact, abrasion, moisture, and other environmental conditions. The carcass provides the tensile strength needed to transport material over the conveyor length.

Different belt constructions can be selected according to belt width, tensile requirements, conveying distance, material characteristics, pulley diameter, conveyor configuration, and operating conditions.

Key Features of Polyester Canvas Conveyor Belts

Strong Fabric Reinforcement: Polyester reinforcement provides reliable longitudinal strength and helps maintain belt dimensions during continuous operation.

Good Flexibility: EP fabric belts can flex around pulleys and operate effectively on conveyor systems requiring repeated bending.

Low Elongation: Polyester fabric generally offers good dimensional stability, helping reduce excessive belt stretch during operation.

Good Troughability: Properly designed fabric construction can provide suitable flexibility for troughed conveyor systems.

Abrasion Resistance: Appropriate rubber cover compounds help protect the belt when transporting abrasive materials such as aggregate, sand, gravel, coal, ore, and cement-related products.

Customizable Construction: Belt specifications can be selected according to the conveying application, including carcass grade, number of plies, cover thickness, rubber compound, width, and length.

Continuous Industrial Operation: Polyester conveyor belts are designed for demanding material-handling systems where dependable continuous conveying is required.

Applications of Polyester Conveyor Belts

Polyester canvas conveyor belts can be used across many industries. In mining operations, they can transport coal, ore, rock, crushed stone, and other bulk materials. Aggregate plants use them for moving sand, gravel, limestone, and processed aggregates between crushing, screening, and stockpiling equipment.

In cement plants, polyester conveyor belts can be used for transporting raw materials and other bulk products. Power plants may use suitable belt constructions for coal and material handling. Ports, terminals, warehouses, and logistics facilities can also use rubber conveyor belts for bulk and packaged material transportation.

Other applications include fertilizer production, chemical processing, recycling, agricultural material handling, manufacturing plants, and general industrial conveyors.

Polyester Conveyor Belt Construction

The reinforcement structure is an important part of belt performance. Polyester fabric provides longitudinal strength, while the transverse component contributes to flexibility and overall carcass stability.

The rubber cover is selected according to the material being transported and the surrounding environment. For example, an abrasion-resistant cover may be appropriate for abrasive bulk materials, while specialized rubber compounds may be considered for oily, hot, or outdoor operating conditions.

For applications involving unusual materials or operating conditions, the belt manufacturer should evaluate the required rubber compound and carcass construction before production.

How to Select the Right EP Conveyor Belt

Choosing the correct polyester conveyor belt requires more than selecting a belt width. Consider the following factors:

Conveyor belt width
Required tensile strength
Number of fabric plies
Conveyor length
Material type and particle size
Material temperature
Belt speed
Conveyor inclination
Pulley diameter
Loading conditions
Required cover thickness
Abrasion or impact requirements
Oil, heat, weather, or chemical exposure
Splicing method

For heavy-duty applications, the belt should be matched to the complete conveyor system. Selecting an appropriate carcass and rubber cover can help improve service life and reduce premature belt damage.

Custom Polyester Conveyor Belts

As an industrial polyester conveyor belt manufacturer and supplier, we can provide customized belt solutions for different conveyor systems. Customization may include belt width, belt length, tensile strength, fabric construction, number of plies, cover thickness, rubber grade, edge style, surface finish, and other requirements.

Depending on the application, customers can also request specialized constructions for abrasion resistance, oil resistance, heat resistance, weather resistance, or other operating environments.

OEM and custom production can be arranged according to technical drawings, conveyor specifications, sample belts, or application requirements.

Installation and Maintenance

Proper installation is essential for reliable conveyor belt operation. Before installation, inspect pulleys, idlers, frames, cleaners, and other components. The conveyor structure should be properly aligned, and the belt should be installed according to the recommended tension and splicing procedure.

During operation, regularly check belt tracking, tension, splice condition, cover wear, edge damage, and material buildup. Misalignment, excessive tension, incorrect loading, and damaged conveyor components can contribute to premature belt wear.

Keeping the conveyor system clean and maintaining proper tracking can help extend belt service life. Regular inspections also make it easier to identify small problems before they develop into major failures.

Why Choose Us?

We provide polyester conveyor belts for industrial material-handling applications with a focus on consistent construction, application matching, and customized production.

Industrial Manufacturing Experience: We understand the requirements of bulk material handling and industrial conveyor systems.
Quality Polyester Canvas: Reinforcement is selected to provide the required balance of strength, flexibility, and dimensional stability.
Application-Based Selection: Belt construction can be matched to material characteristics and operating conditions.
Custom Specifications: Width, length, tensile strength, plies, cover thickness, and rubber properties can be customized.
OEM & Custom Service: We support customized belt requirements for distributors, conveyor manufacturers, contractors, and end users.
Export-Oriented Supply: Products can be prepared for international B2B purchasing and industrial replacement requirements.
Technical Support: We can help customers identify suitable belt construction based on conveyor and material-handling conditions.
Competitive B2B Supply: Bulk orders and long-term purchasing programs can be supported according to project requirements.
FAQs
1. What is a polyester conveyor belt?

A polyester conveyor belt is a rubber conveyor belt reinforced with polyester-based fabric. EP conveyor belts are commonly used for industrial bulk material handling because of their strength, flexibility, and dimensional stability.

2. What does EP mean in a conveyor belt?

EP generally refers to a fabric reinforcement using polyester in the longitudinal direction and polyamide or nylon in the transverse direction.

3. What materials can polyester conveyor belts transport?

They can be used for many bulk and packaged materials, including aggregate, sand, gravel, coal, ore, cement-related materials, agricultural products, fertilizer, and recycled materials. Belt cover selection should match the material and environment.

4. Are EP conveyor belts suitable for heavy-duty applications?

Yes. Polyester fabric conveyor belts are available in different tensile strengths and constructions for light-, medium-, and heavy-duty conveyor systems.

5. Can the polyester conveyor belt be customized?

Yes. Width, length, tensile strength, number of plies, cover thickness, rubber compound, and other specifications can be customized according to the conveyor system.

6. Is a polyester conveyor belt abrasion resistant?

The abrasion resistance depends largely on the selected rubber cover compound and belt construction. Abrasion-resistant versions are available for suitable applications.

7. Can polyester conveyor belts be used outdoors?

Yes, suitable weather-resistant belt constructions can be used for outdoor conveying. The rubber compound should be selected according to exposure to sunlight, moisture, temperature, and weather conditions.

8. How do I choose the correct belt tensile strength?

Tensile strength should be selected according to conveyor length, belt loading, material characteristics, belt speed, conveyor configuration, and starting conditions. A conveyor specialist can calculate the appropriate requirement.

9. How can I extend conveyor belt service life?

Correct tracking and tension, proper loading, regular inspection, effective cleaning, and timely maintenance of pulleys and idlers can help reduce unnecessary belt wear.

10. Can you provide OEM polyester conveyor belts?

Yes. OEM and custom polyester conveyor belt production can be supplied according to customer specifications, drawings, samples, or conveyor application requirements.

Request a Quote

If you are looking for a polyester conveyor belt manufacturer, EP conveyor belt supplier, or quality polyester canvas conveyor belt for industrial material handling, send us your required belt width, length, tensile strength, application, material, and operating conditions. Our team can recommend a suitable belt construction and provide a customized quotation.
