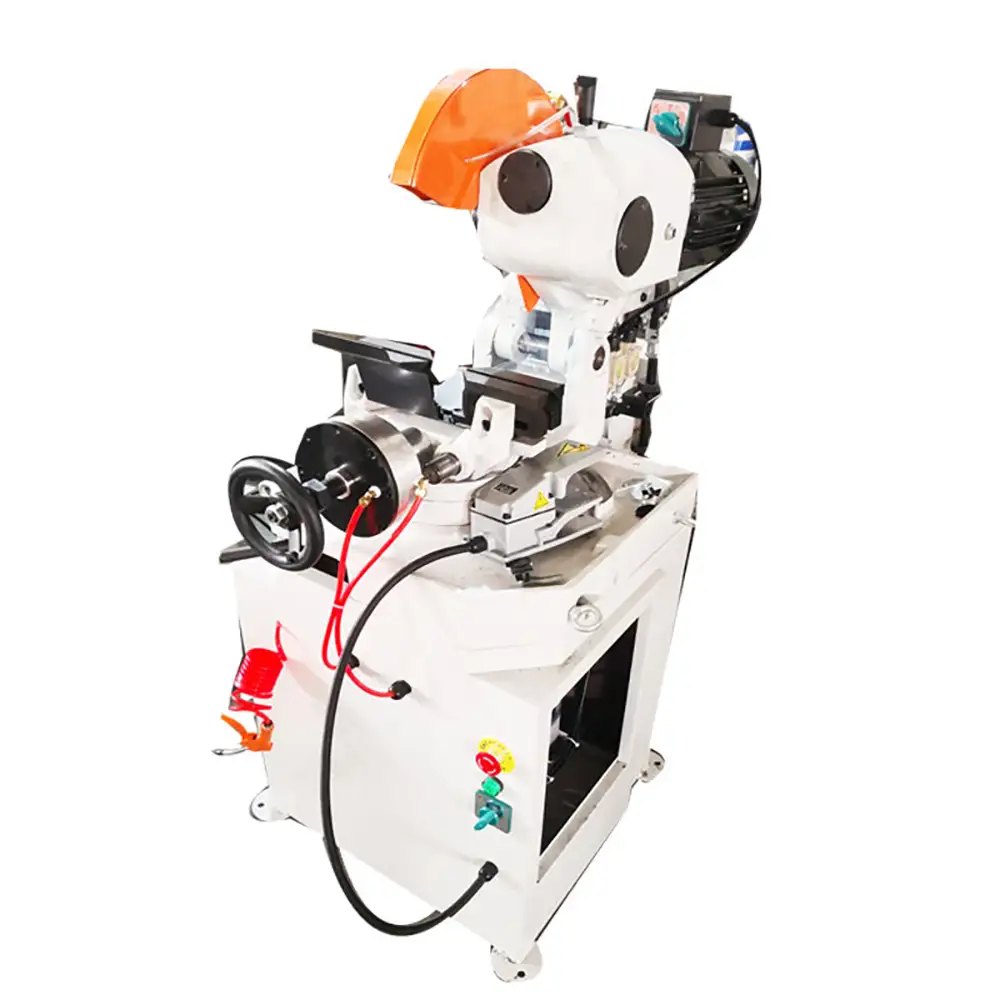

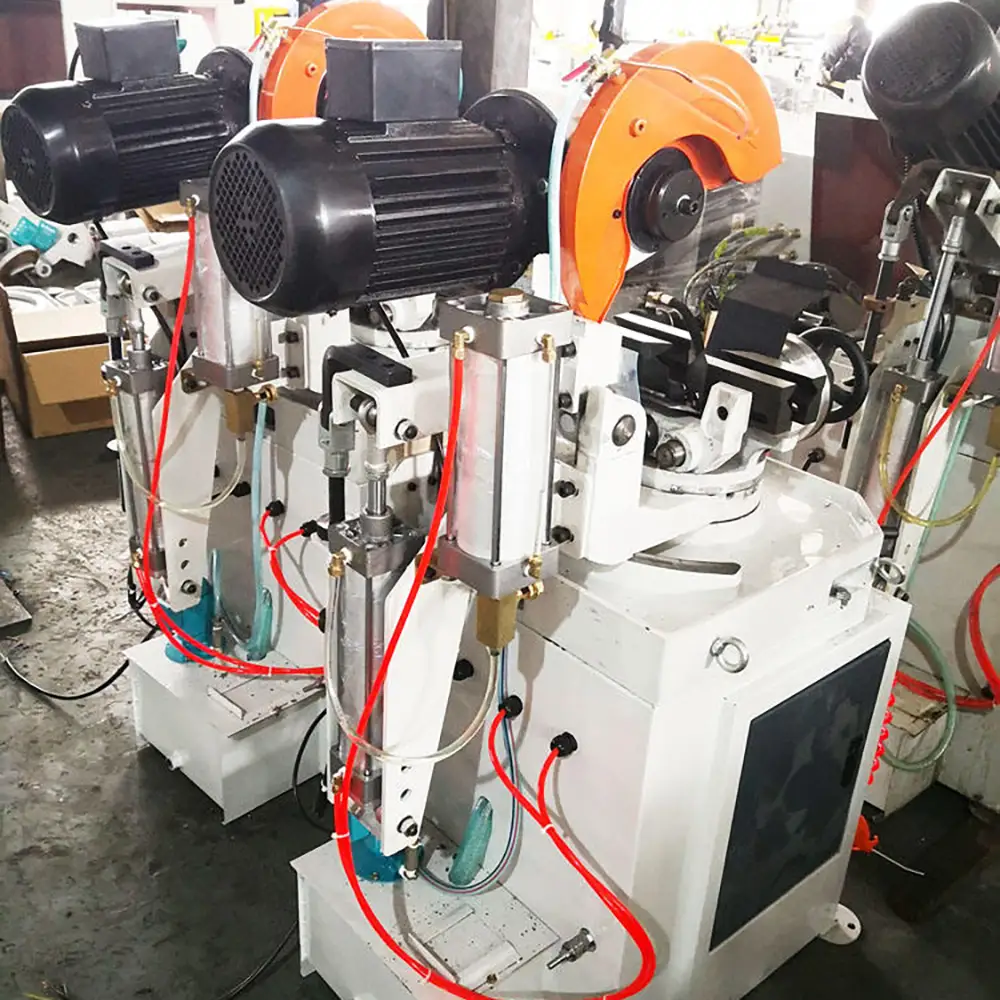

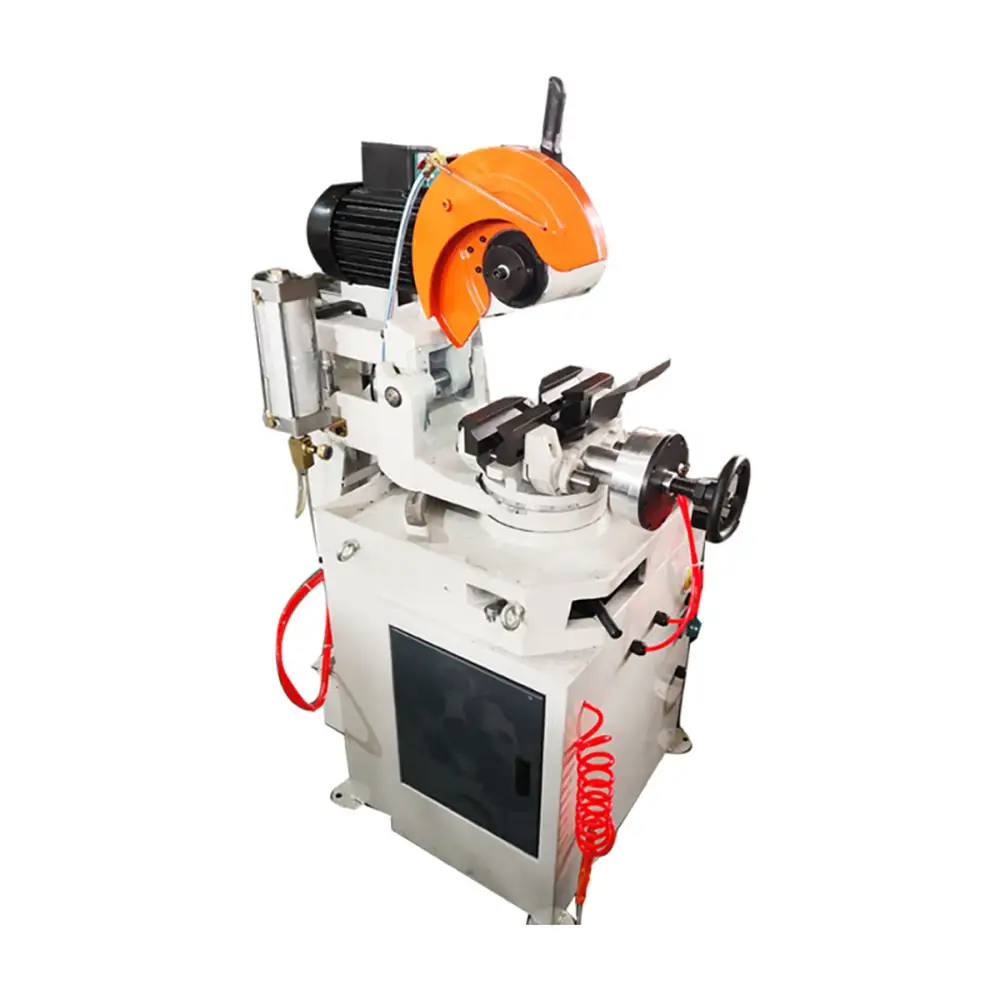

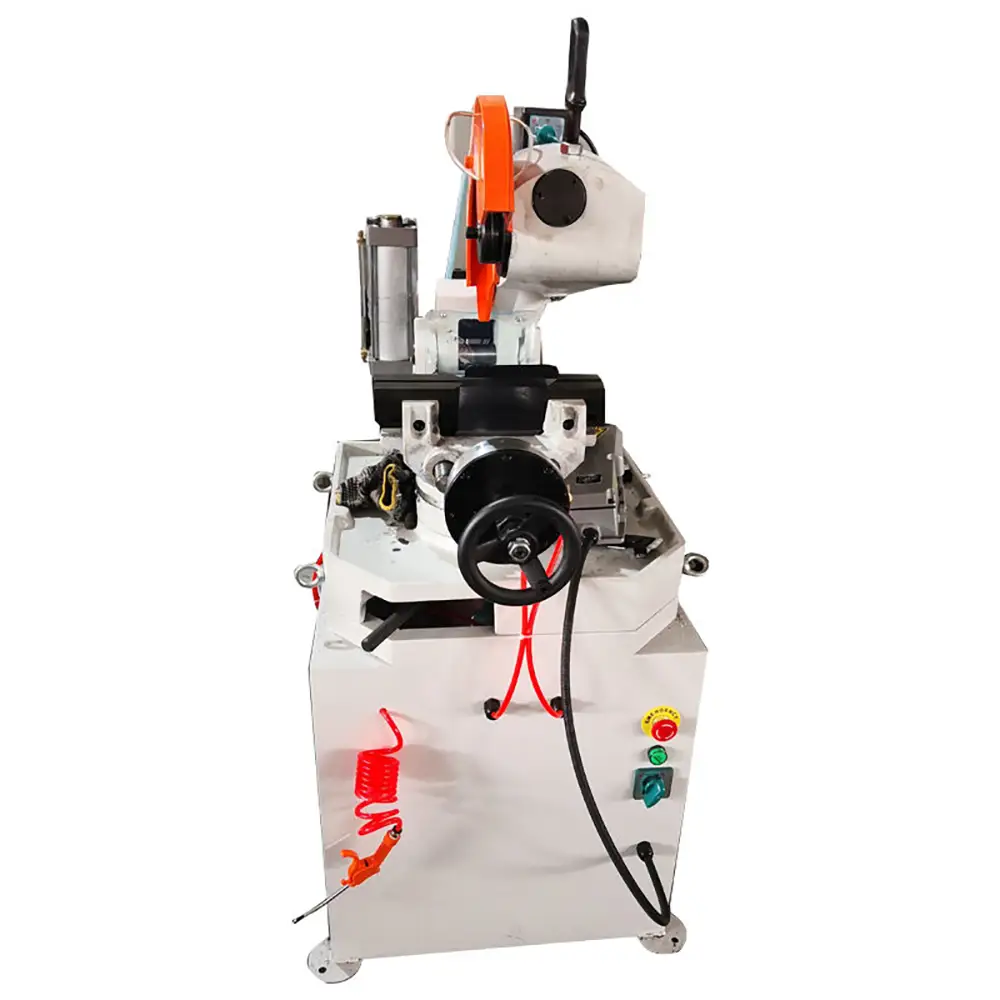

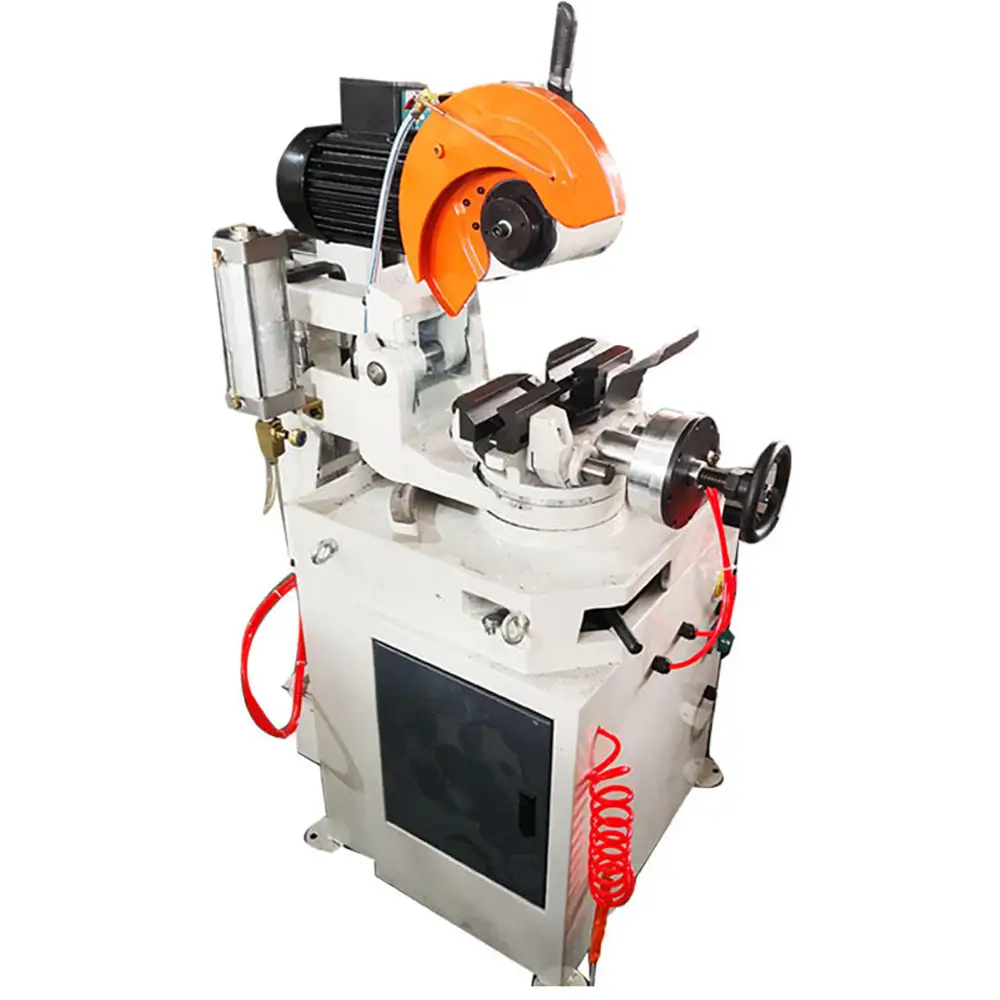

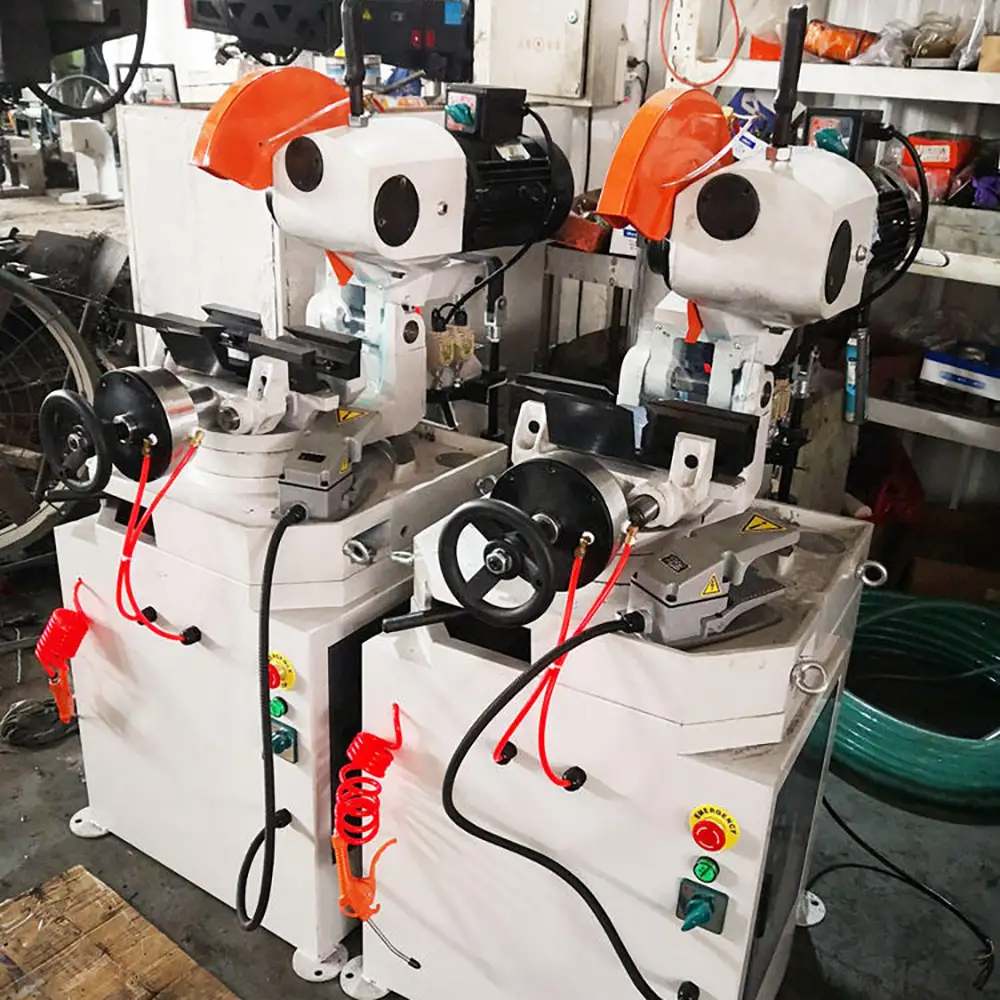

Pipe Cutting Machine Circular Sawing Metal Machine

Pipe Cutting Machine for Efficient Metal Processing

A Pipe Cutting Machine Circular Sawing Metal Machine is designed for efficient, repeatable cutting of metal pipes, tubes, profiles, and other industrial workpieces. By using a circular saw blade, the machine provides a practical solution for manufacturers that need consistent cutting performance across production batches.

Compared with manual cutting methods, an industrial pipe cutting machine can improve workflow efficiency, reduce operator workload, and provide more consistent cut lengths. Depending on the machine configuration, the system can include material feeding, positioning, hydraulic or mechanical clamping, automatic cutting, and finished-piece discharge functions.

Circular sawing is widely used for metalworking because it provides a controlled cutting process and can be configured for different pipe diameters, wall thicknesses, profiles, and production requirements. The actual cutting range and performance depend on the machine model, saw blade, material, workpiece dimensions, and selected configuration.

Model		315A/B
Sawing& cutting capacity	○	90
	□	85×85
	┗	85×85
	▭	110×75
	●	55
	■	50×50
Power mode		Manual/Pneumatic
Max gap of clamp(MM)		110
Cutting angle		45°, 90°
Main Motor(KW)		1.8/2.4
Suitable size for saw blade(mm)		250,275,300 315

Circular Sawing Technology

The core of this equipment is the circular saw cutting system. A rotating circular blade cuts through the metal workpiece while the workpiece is securely positioned and clamped. Proper clamping helps minimize movement and vibration during cutting, which is important for achieving consistent results.

Different saw blades can be selected according to the material and application. Carbon steel, stainless steel, aluminum, copper, brass, and other metals have different cutting characteristics, so blade tooth geometry, blade material, cutting speed, feed rate, and coolant requirements should be matched to the workpiece.

For production environments, the machine can be integrated with automatic feeding and positioning systems. This allows operators to load raw material and set the required cutting parameters while the machine performs repeated cutting cycles according to its configuration.

Pipe and Tube Cutting Capability

The pipe cutting machine can be used for various forms of metal stock, including:

Round metal pipes
Square tubes
Rectangular tubes
Stainless steel tubes
Carbon steel pipes
Aluminum profiles
Copper and brass tubes
Structural metal profiles
Solid metal bars, depending on machine capacity

The actual maximum cutting diameter and section size are determined by the machine specification. Before purchasing, customers should provide the material type, outside diameter or section dimensions, wall thickness, required cutting length, production volume, and desired cut quality so the appropriate configuration can be confirmed.

Automatic Feeding and Positioning

For repetitive production, automatic feeding can significantly improve material handling efficiency. An automatic pipe cutting machine may use rollers, feeding racks, grippers, or other mechanisms to move the workpiece into the cutting position.

A positioning system helps maintain consistent cutting lengths during batch production. Depending on the design, the machine may also support adjustable stops, CNC length control, servo feeding, or other positioning solutions.

Automatic operation does not necessarily mean completely unmanned production. Loading, unloading, material preparation, blade replacement, inspection, and other tasks may still require operator involvement depending on the production line configuration.

Stable Workpiece Clamping

Proper clamping is essential for safe and accurate circular sawing. The workpiece should remain stable during blade engagement and cutting.

Depending on the machine design, clamping may be hydraulic, pneumatic, mechanical, or a combination of these systems. The appropriate clamping method depends on pipe diameter, wall thickness, material, production requirements, and machine configuration.

For thin-wall tubing, excessive clamping force can deform the tube. For heavy steel pipes and solid profiles, stronger workholding may be required. Therefore, the clamping system should be selected according to the actual workpiece specifications.

Clean and Consistent Cutting

Circular saw cutting can provide consistent cut geometry when the machine is correctly configured and maintained. Blade selection is particularly important because the blade affects cutting efficiency, surface condition, burr formation, and tool life.

For applications requiring a specific finished edge, additional operations such as deburring, chamfering, washing, brushing, or end preparation may be required after cutting.

Coolant or cutting fluid may also be used depending on the machine design and material. Proper cooling can help manage heat generation, extend blade life, and improve cutting stability.

Industrial Applications

Pipe and tube cutting machines are widely used in metal fabrication and manufacturing operations.

Typical applications include:

Automotive Manufacturing: Cutting tubes and profiles for vehicle components, exhaust systems, chassis structures, brackets, and other fabricated parts.

HVAC and Refrigeration: Processing copper, aluminum, and other tubing used for heat exchangers, refrigeration systems, air-conditioning components, and piping assemblies.

Construction and Steel Fabrication: Cutting structural pipes, square tubes, rectangular tubes, and profiles for building structures, frames, handrails, and fabricated assemblies.

Furniture Manufacturing: Cutting steel and aluminum tubes for furniture frames, shelving, supports, and commercial fixtures.

Machinery Manufacturing: Preparing metal tubes and bars for machine frames, guards, components, supports, and industrial assemblies.

Electrical Equipment: Cutting metal tubing and profiles for cabinets, equipment frames, cable support structures, and electrical enclosures.

Production Efficiency

For manufacturers processing large quantities of identical or similar workpieces, an automatic or CNC pipe cutting machine can reduce repetitive manual operations.

A typical workflow includes material loading, feeding, positioning, clamping, circular sawing, workpiece release, and collection. Additional automation can be added depending on the production line.

The practical production rate depends on material size, wall thickness, cutting length, blade specification, feeding distance, clamping method, machine configuration, and operator workflow. Customers should evaluate the complete cutting cycle rather than relying only on a theoretical machine speed.

Machine Configuration and Customization

Different industries have different requirements, so pipe cutting equipment can be configured around the customer's production process.

Possible options may include automatic feeding, CNC length positioning, hydraulic clamping, multiple workpiece loading, coolant systems, chip collection, finished-piece conveyors, safety guarding, and integration with upstream or downstream equipment.

For OEM and custom projects, customers can provide drawings, material samples, pipe dimensions, cutting lengths, production targets, and desired automation level. These details allow the machine configuration and tooling to be evaluated before production.

Quality Control

Reliable pipe cutting requires consistent control throughout the production process. Machine structure, blade alignment, clamping, feeding accuracy, spindle condition, coolant management, and tooling all influence the finished workpiece.

Quality control can include checking cutting length, perpendicularity, surface condition, burr level, dimensional consistency, and workpiece deformation. Regular inspection helps identify blade wear, misalignment, vibration, or feeding problems before they affect a large production batch.

Installation and Maintenance

The machine should be installed on a suitable foundation with adequate space for material loading, finished-product handling, maintenance, and operator access. Electrical and utility connections should follow the manufacturer's requirements.

Routine maintenance may include cleaning chips and debris, checking lubrication points, inspecting clamps and feeding components, monitoring blade condition, checking coolant systems, and verifying machine alignment.

Saw blades are consumable components and should be replaced or serviced when their cutting performance declines. Using the correct blade for the material can help improve productivity and reduce unnecessary tool wear.

OEM and B2B Supply

For importers, distributors, metal fabrication companies, and industrial manufacturers, a pipe cutting machine can be supplied as a standalone machine or as part of a larger tube processing line.

OEM and ODM services can support customized feeding lengths, workpiece ranges, automation levels, electrical specifications, machine dimensions, tooling, and production-line integration.

Before confirming an order, buyers should provide complete application information so the machine capacity, blade specification, clamping method, feeding system, and automation configuration can be properly matched to the production requirements.

FAQs
1. What materials can a pipe cutting machine process?

Depending on the machine and blade configuration, it can process carbon steel, stainless steel, aluminum, copper, brass, and other metal materials.

2. What is circular sawing?

Circular sawing uses a rotating circular saw blade to cut through a secured workpiece. It is commonly used for pipes, tubes, profiles, bars, and other metal stock.

3. Can the machine cut square and rectangular tubes?

Yes. Many circular sawing machines are designed for round, square, and rectangular metal sections, subject to the specified cutting capacity.

4. Is this machine suitable for stainless steel pipes?

It can be suitable for stainless steel when the machine, saw blade, cutting parameters, and clamping system are properly selected for the specific stainless steel grade and tube dimensions.

5. Can it cut aluminum and copper tubes?

Many configurations can process non-ferrous metals, but copper and aluminum require appropriate blades, cutting parameters, and workholding.

6. Can pipe lengths be controlled automatically?

Depending on the configuration, automatic feeding, positioning, stops, or CNC length control can be used for repetitive cutting operations.

7. Does the machine require an operator?

The level of operator involvement depends on automation. Automatic machines can reduce repetitive work, but material loading, inspection, maintenance, and other tasks may still require an operator.

8. How do I select the correct saw blade?

Blade selection depends on material, pipe diameter, wall thickness, cutting speed, required edge quality, and production volume. The blade should be matched to the specific application.

9. Can thin-wall pipes be cut?

Yes, provided the machine uses suitable clamping and tooling. Thin-wall tubes require careful control of clamping force and cutting conditions to minimize deformation.

10. Does circular sawing produce burrs?

Burr levels depend on material, blade condition, tooth geometry, cutting parameters, and machine setup. Some applications may require a subsequent deburring or chamfering process.

11. Can the machine be customized?

Yes. Depending on the manufacturer and project requirements, feeding systems, clamping, positioning, automation, electrical configuration, machine dimensions, and tooling can be customized.

12. What information should I provide for a quotation?

Provide material type, pipe or tube dimensions, wall thickness, cutting length, required quantity, production volume, desired automation level, and any special cut-quality requirements.

Why Choose Us
Application-Focused Machine Selection – We match the pipe cutting solution to the actual material, dimensions, production volume, and cutting requirements.
Circular Sawing Expertise – Our equipment is designed around practical metal cutting requirements for pipes, tubes, profiles, and other workpieces.
Flexible Automation – Feeding, positioning, clamping, cutting, and material handling can be configured according to production needs.
Wide Material Compatibility – Suitable configurations can be developed for different metal materials, including steel and non-ferrous metals.
Customized Solutions – Machine dimensions, feeding systems, tooling, electrical specifications, and automation can be adjusted for different projects.
B2B Manufacturing Support – We support manufacturers, distributors, importers, and industrial buyers with project-based equipment solutions.
Production-Oriented Design – Stable feeding, workholding, blade selection, and maintenance access are considered to support repeatable production.
OEM & ODM Service – Drawings, samples, technical requirements, and production targets can be used to develop a suitable machine configuration.
