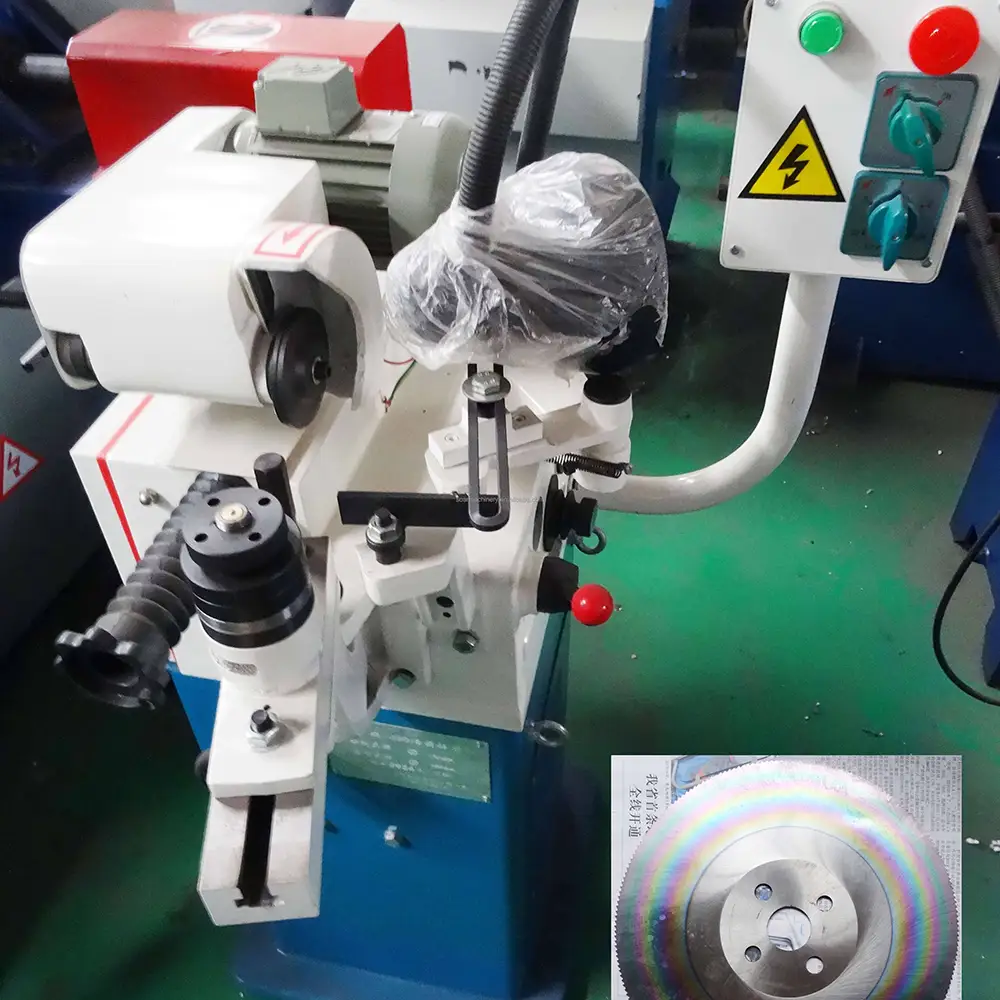

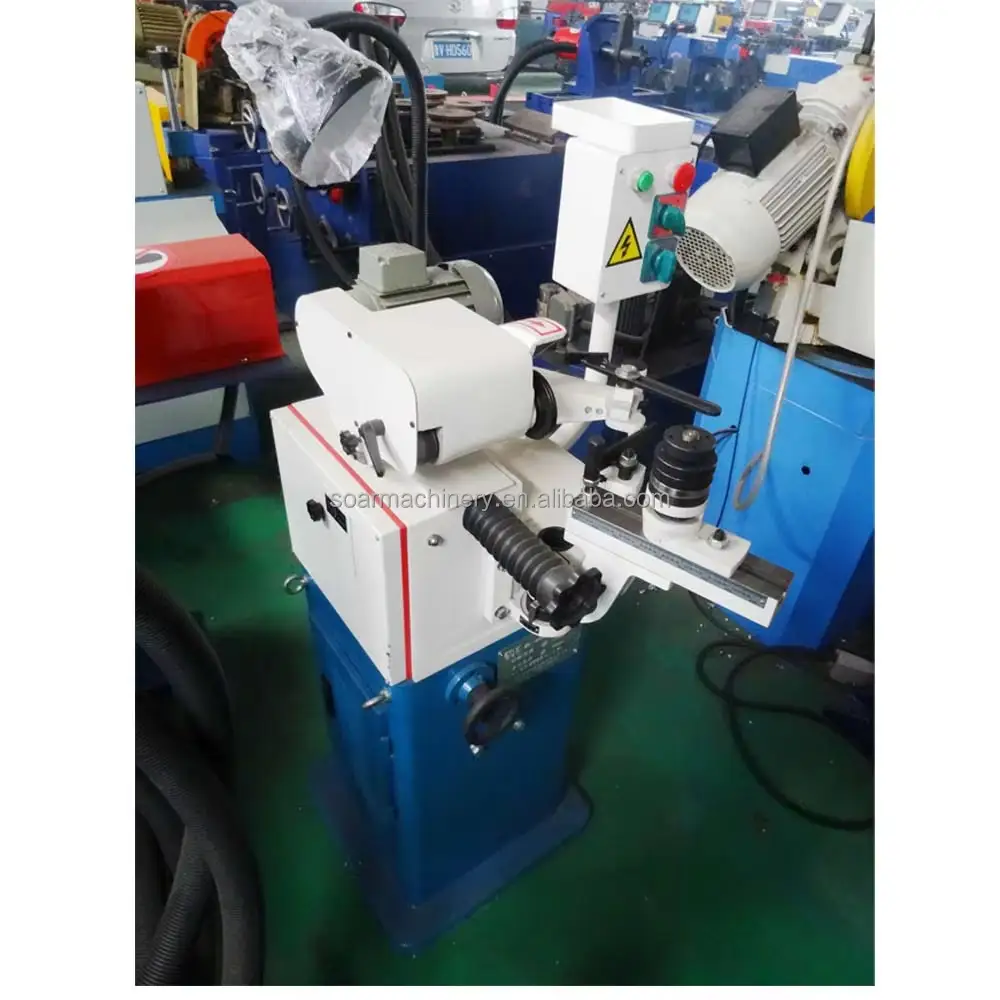

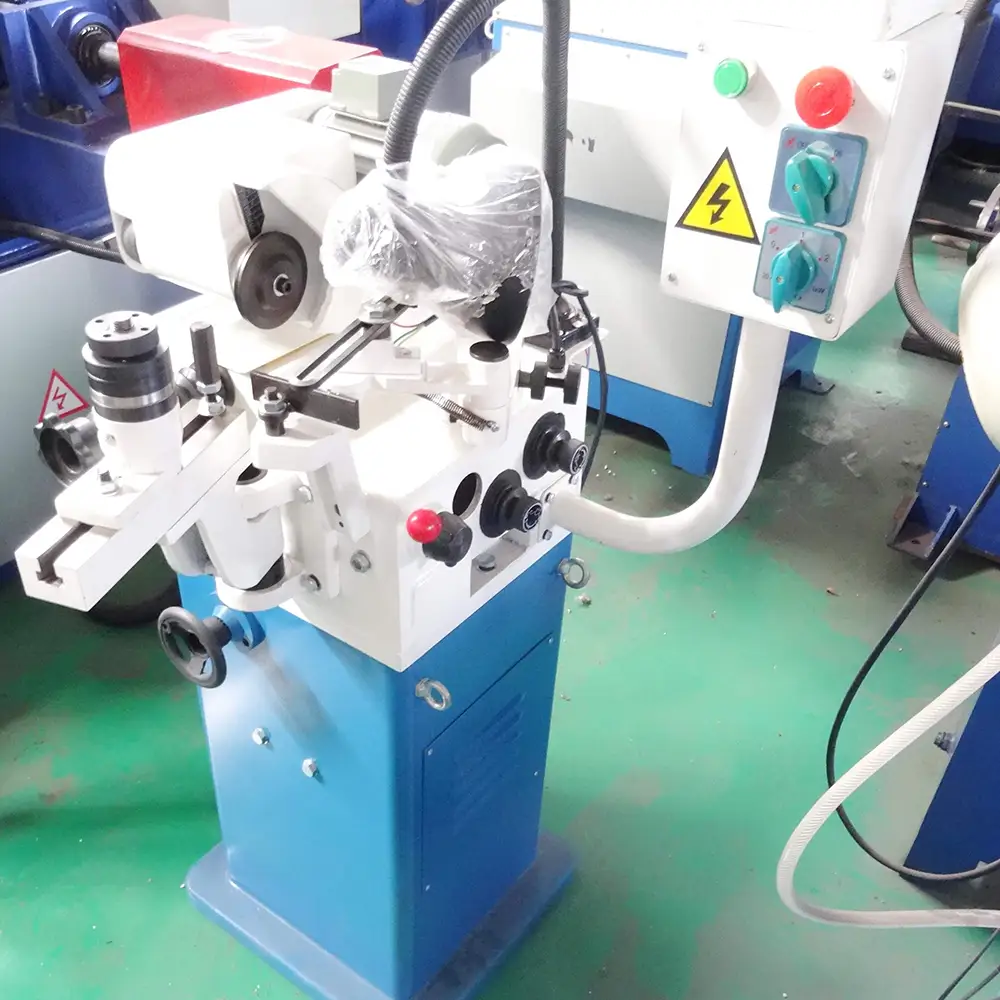

Semi Automatic Circular Saw Tooth Grinding and Chamfering Machine

The Semi Automatic Circular Saw Tooth Grinding and Chamfering Machine is designed for professional maintenance,sharpening,and finishing of circular saw blades used in metal cutting and industrial production. By combining controlled tooth grinding with chamfering operations,the machine helps restore cutting edges,maintain consistent tooth geometry,and extend the usable service life of compatible saw blades.

Circular saw blades are precision cutting tools. During continuous production,the cutting teeth gradually become worn or damaged due to friction,heat,and repeated contact with workpieces. A worn blade can require more cutting force,produce rougher cut surfaces,and increase production costs. Regular blade maintenance can help maintain cutting performance and reduce unnecessary replacement of usable blades.

The semi-automatic design provides a practical balance between operator control and machine-assisted processing. Depending on the machine configuration,the operator can position and secure the saw blade,select or adjust the required grinding parameters,and allow the machine to perform the configured tooth grinding or chamfering operation.

450 saw blade sharpening machines
Specification/Model	CT-450
Diameter of blade	Φ40mm-Φ600mm
Max distance of the tooth	25mm
Max depth of the tooth	8mm
Degree	0 - 30
Feeding speed	45-180 teeth/minute
Max thickness of the blade	15mm
Diameter of the grinding wheel	Φ150×25mm
Speed of the grinding wheel	4500RPM(60HZ)
Driving motor	1/2HP
Grinding motor	3/4HP
Size	800mm x 800mm x 1410mm
Net Weight	130kg
Gross weight	150kg

Circular Saw Tooth Grinding

Tooth grinding is the primary function of this type of equipment. Grinding removes worn material from the cutting edge and restores the intended tooth profile.

The grinding process must be matched to the saw blade geometry. Tooth pitch,blade diameter,tooth shape,tooth material,and application can all affect the appropriate grinding procedure.

A controlled grinding machine can provide more consistent tooth-to-tooth processing than manual sharpening. Repeatable positioning is especially valuable when maintaining multiple teeth around the circumference of the same blade.

The final result depends on the blade condition,grinding wheel,tooling,machine setup,and selected grinding parameters.

Saw Blade Sharpening

The machine can be used as part of a circular saw blade sharpening workflow. Proper sharpening helps maintain the cutting geometry required for efficient material removal.

Depending on the blade type,the grinding operation may involve the tooth face,tooth top,or other designated surfaces. The exact grinding process should follow the blade manufacturer's geometry and the machine's supported configuration.

For production facilities that use circular saw blades regularly, in-house sharpening can provide greater control over blade maintenance scheduling.

Chamfering Function

Chamfering is another important operation for suitable saw blade applications. A controlled chamfer can modify the edge geometry of the tooth according to the required cutting design.

Tooth chamfering may be used to support specific cutting applications and tooth geometries. The required chamfer angle and dimensions depend on the blade design,material being cut,and manufacturer's technical requirements.

Because different saw blades use different tooth profiles,the operator should confirm blade compatibility and required chamfer specifications before processing.

Semi-Automatic Operation

Semi-automatic operation reduces repetitive manual work while allowing the operator to maintain control over blade loading,setup,and inspection.

A typical workflow may include:

Inspect and clean the circular saw blade.
Install the blade on the machine fixture.
Set the required grinding and chamfering parameters.
Position the first tooth correctly.
Start the configured grinding cycle.
Process the teeth according to the selected sequence.
Inspect the finished tooth geometry.
Remove the blade and prepare it for service.

The actual operating sequence varies according to machine design.

Consistent Tooth Geometry

Uniform tooth geometry is important for circular saw performance. If individual teeth have significantly different dimensions or angles,the blade may cut unevenly or generate increased vibration.

A dedicated circular saw tooth grinding machine provides controlled positioning and repeatable grinding movement. This can help maintain consistency across the blade circumference when the machine is correctly set up.

However,achieving accurate results also depends on the condition of the blade,the precision of the fixture,the grinding wheel,the operator's setup,and correct parameter selection.

Grinding Wheel Selection

The grinding wheel is a critical component of the sharpening process. Different blade tooth materials and geometries may require different grinding wheel types.

The appropriate wheel should be selected according to the saw blade material,grinding operation,and machine specifications. Grinding wheels should also be inspected regularly for wear,damage,and loading.

Incorrect wheel selection or excessive grinding can affect tooth geometry and surface quality. Following recommended grinding procedures helps maintain stable results.

Suitable Saw Blade Applications

The machine is intended for compatible circular saw blades used in industrial cutting operations. Applications may include blades used for metal cutting,steel processing,tube and pipe fabrication,and general industrial material processing.

The exact blade range depends on the machine model and tooling. Before purchasing,customers should provide information such as blade diameter,blade thickness,tooth count,tooth geometry,tooth material,and required grinding operations.

This information allows the equipment configuration to be evaluated for the intended application.

Metal Cutting Tool Maintenance

Circular saw blade sharpening is an important part of industrial tool management. Instead of replacing a blade immediately after its cutting teeth become worn,compatible blades can potentially be restored through proper grinding and maintenance.

This can help manufacturers manage consumable costs and maintain a more organized tool maintenance schedule.

For companies operating multiple cutting machines,centralized blade maintenance can also make it easier to standardize sharpening procedures and monitor blade condition.

Improved Production Consistency

A properly maintained circular saw blade can contribute to more consistent cutting performance. Sharp and correctly shaped teeth can help reduce excessive cutting resistance and improve the overall cutting process.

The machine does not replace the need for correct cutting parameters. Blade speed,feed rate,workpiece material,coolant conditions,and machine alignment all influence actual cutting performance.

The grinding machine should therefore be considered as one part of the complete cutting-tool maintenance system.

Applications in Industrial Manufacturing

Semi-automatic circular saw tooth grinding and chamfering machines can be useful in:

Metal fabrication workshops
Steel processing plants
Pipe and tube manufacturers
Automotive component production
Machinery manufacturing
Construction material processing
Saw blade service centers
Tool maintenance departments
Industrial cutting operations
Metalworking workshops

The machine can be used as an independent maintenance unit or incorporated into a broader tool room workflow.

Quality Control

Quality control is essential when sharpening precision cutting tools. After grinding,the operator should inspect tooth shape,edge condition,consistent dimensions,and any visible grinding defects.

Where required,measurement equipment can be used to verify tooth geometry and other critical dimensions.

A consistent inspection procedure can help identify incorrect setup or excessive grinding before the blade is returned to production.

Maintenance of the Grinding Machine

Regular maintenance helps preserve machine performance. Operators should keep the grinding area clean and remove accumulated grinding dust according to the manufacturer's procedures.

The blade fixture should remain clean and properly aligned. Grinding wheels should be inspected and replaced when necessary. Moving components should be lubricated according to the recommended maintenance schedule.

Electrical,mechanical,and other machine components should also be checked periodically.

Safety Considerations

Grinding equipment can generate sparks,dust,and high-speed rotating components. Operators should receive proper training and follow the machine manufacturer's operating instructions.

Suitable eye protection and other required personal protective equipment should be used. Grinding wheels should be inspected before operation, and damaged wheels should not be used.

Guards and other safety devices should remain in place during operation. Maintenance and wheel replacement should only be performed after the machine has been safely stopped and isolated.

OEM,ODM,and Customized Solutions

Different customers may use different circular saw blade sizes,tooth geometries,and grinding requirements. For this reason,the machine can be evaluated and configured according to the customer's actual blade specifications.

For OEM and ODM projects,customers can provide blade drawings,samples,diameter,tooth count,tooth geometry,tooth material,and required grinding or chamfering operations.

This information can be used to determine suitable machine configuration,fixtures,grinding wheels,and other tooling requirements.

FAQs
1. What is a circular saw tooth grinding machine?

It is a machine designed to grind and restore the cutting teeth of compatible circular saw blades used in industrial cutting applications.

2. What does semi-automatic mean?

Semi-automatic operation means the machine assists with configured grinding operations while the operator remains responsible for blade loading,setup,and inspection.

3. Can the machine sharpen metal cutting saw blades?

It can be suitable for compatible metal-cutting circular saw blades,depending on blade material,geometry,size,and machine configuration.

4. What is the purpose of chamfering saw teeth?

Chamfering modifies the tooth edge geometry according to the required blade design and cutting application.

5. Can one machine process different saw blade sizes?

This depends on the machine's supported blade diameter range,fixture,and tooling. Blade specifications should be confirmed before purchase.

6. Can carbide-tipped saw blades be processed?

Some machines are designed for specific carbide-tipped blades,but compatibility depends on the machine's grinding system and blade geometry.

7. How often should a saw blade be sharpened?

Sharpening frequency depends on cutting material,production volume,blade condition,cutting parameters,and application. There is no universal sharpening interval.

8. Does grinding restore a damaged saw blade?

Grinding can restore compatible worn teeth,but severely damaged,cracked,or otherwise unsuitable blades may require replacement rather than sharpening.

9. Why is tooth consistency important?

Consistent tooth geometry helps support stable cutting performance and can reduce uneven cutting behavior and excessive vibration.

10. How do I choose the correct grinding wheel?

The grinding wheel should match the tooth material,the grinding operation,and the machine manufacturer's specifications.

11. Can the machine be customized?

Depending on the design,fixtures,tooling,and other configurations can be discussed for specific blade sizes and tooth geometries.

12. What information should I provide for machine selection?

Provide blade diameter,blade thickness,tooth count,tooth shape,tooth material,required grinding operations,and any chamfering requirements.

Why Choose Us
Dedicated Saw Blade Maintenance Solution – Designed specifically for circular saw tooth grinding and compatible sharpening applications.
Semi-Automatic Operation – Provides machine-assisted processing while retaining operator control over setup and inspection.
Grinding and Chamfering Functions – Combines tooth grinding with chamfering capabilities in one equipment solution.
Repeatable Tooth Processing – Controlled positioning helps support consistent processing around the saw blade.
Flexible Blade Applications – Configuration can be evaluated for different compatible circular saw blade specifications.
Industrial Tool Maintenance – Suitable for production facilities,metalworking workshops,and professional saw blade service operations.
Customized Tooling Support – Blade fixtures,grinding wheels,and machine configuration can be discussed according to application requirements.
OEM & ODM Service – Technical drawings,samples,and blade specifications can be used to develop a suitable sharpening solution.
