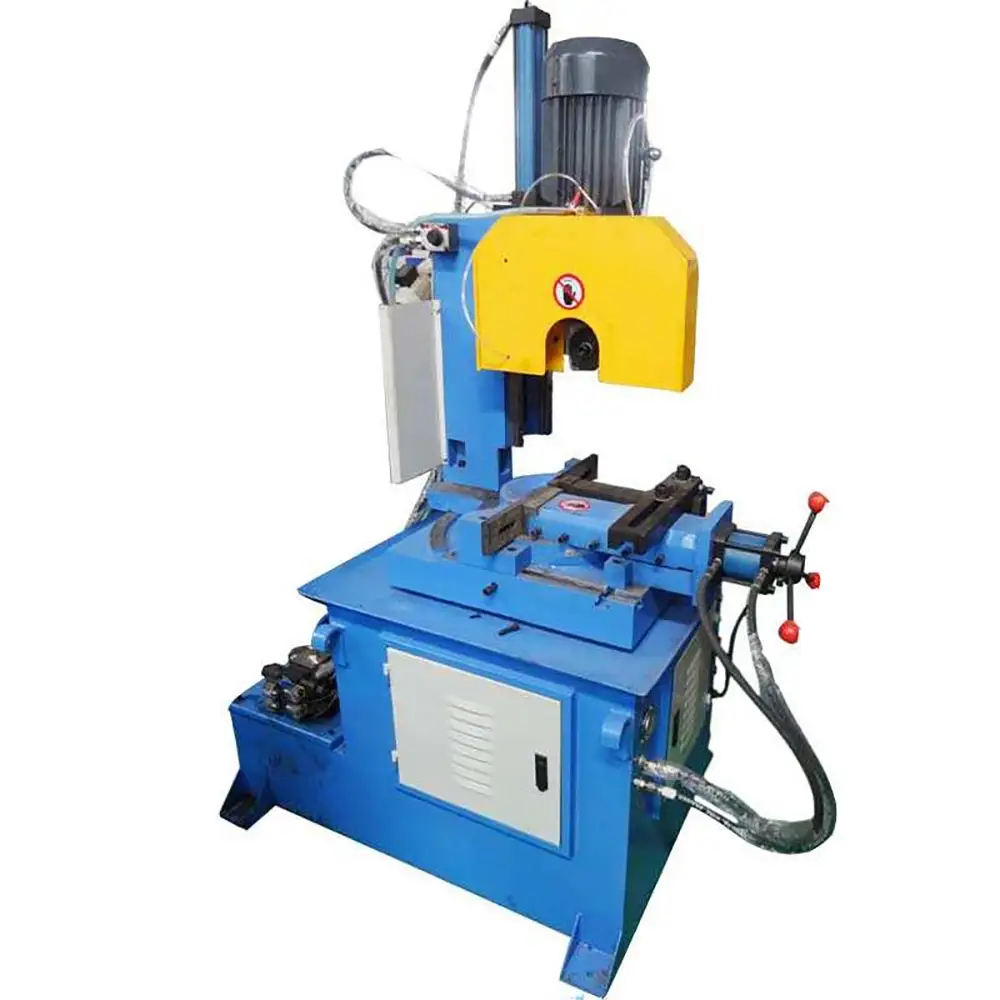

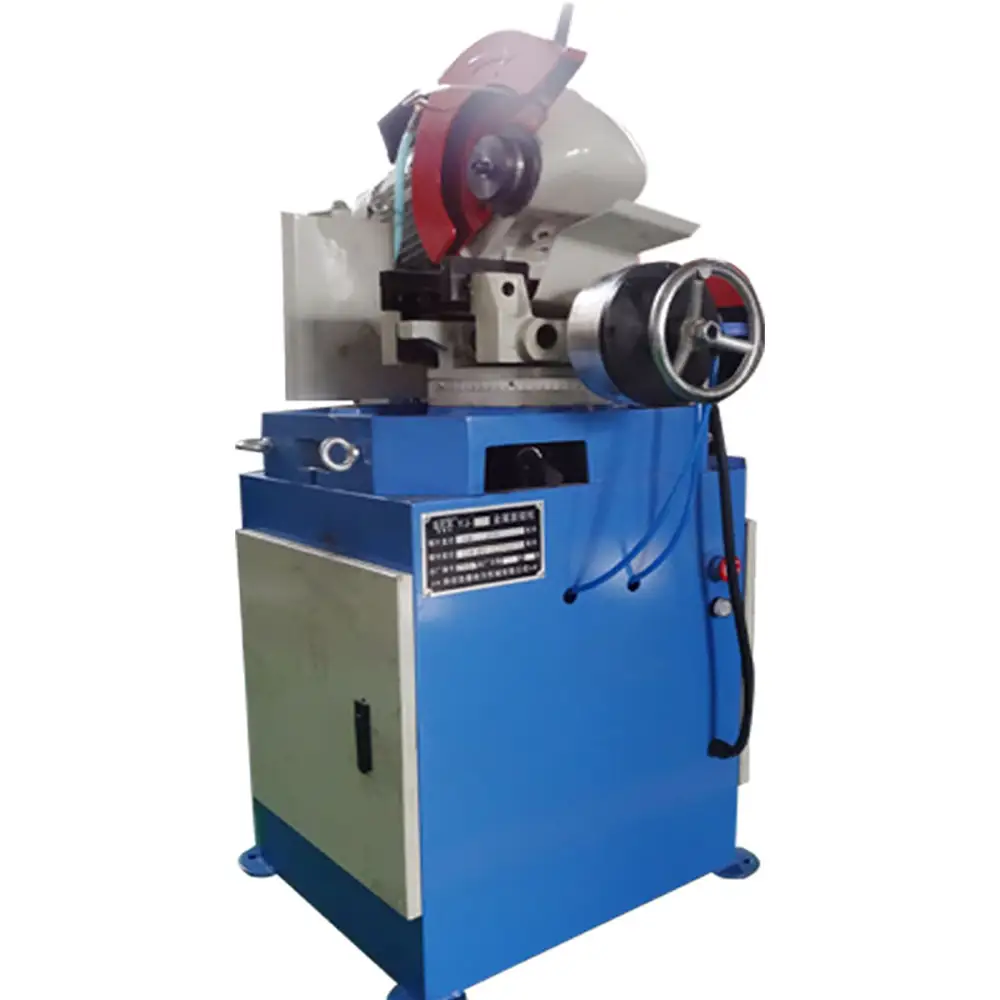

Metal Bar Cold Cutting Machine NC Circular Steel Circular Sawing Machine

 Metal Bar and Steel Rod Cutting

The machine can be configured to process different forms of solid metal stock.

Typical applications may include:

Round steel bars
Steel rods
Square steel bars
Rectangular steel bars
Stainless steel bars
Carbon steel bars
Alloy steel bars
Other compatible metal stock

The actual maximum cutting diameter or section size should be confirmed according to the selected machine.

Before purchasing, buyers should provide the material grade, bar diameter or dimensions, required cutting length, production volume, and desired cutting tolerance. This information helps determine the appropriate machine capacity and tooling.

Cold Cutting Advantages

Cold circular sawing can provide several practical advantages for industrial metal bar processing.

The mechanical cutting process allows the machine to produce repeatable cuts without depending on flame or laser heat input. This can be useful for components that require controlled dimensional preparation before machining, turning, forging, welding, or assembly.

A suitable saw blade can also provide a relatively clean cut surface, although the final edge condition depends on material, blade design, machine alignment, feed rate, cutting parameters, and blade condition.

Some applications may still require secondary operations such as deburring, chamfering, grinding, or end preparation.

NC Control and Material Feeding

NC control can help coordinate the material feeding and positioning process. Depending on the machine design, the operator can set the required feed length or cutting parameters, allowing repeated workpieces to be positioned consistently.

An NC feeding system can reduce repeated manual measuring and help improve production efficiency for batch processing.

Depending on configuration, the feeding mechanism may include rollers, grippers, hydraulic systems, mechanical feed mechanisms, or other material handling components.

NC operation should not automatically be interpreted as completely unmanned production. Operators may still be needed for raw material loading, machine setup, quality inspection, blade replacement, and finished-product handling.

Stable Bar Clamping

Secure workholding is essential for accurate circular sawing. A metal bar should remain stable while the rotating blade engages with the material.

The clamping system must provide sufficient holding force without creating unnecessary deformation. Round bars, square bars, and rectangular bars may require different workholding arrangements.

For long or heavy bars, additional material support can help reduce vibration and maintain alignment. Stable feeding and clamping can also contribute to improved blade life and more consistent cutting performance.

Cutting Accuracy and Repeatability

Consistent cutting length is important for manufacturers producing shafts, pins, fittings, machine components, structural parts, and other metal products.

NC positioning can support repeatable material feeding and cutting. Actual dimensional accuracy depends on the machine structure, feeding mechanism, blade condition, workpiece tolerance, clamping stability, alignment, and cutting parameters.

If a production application requires a specific tolerance, the target should be provided before purchasing. The machine configuration can then be evaluated according to the required cutting accuracy.

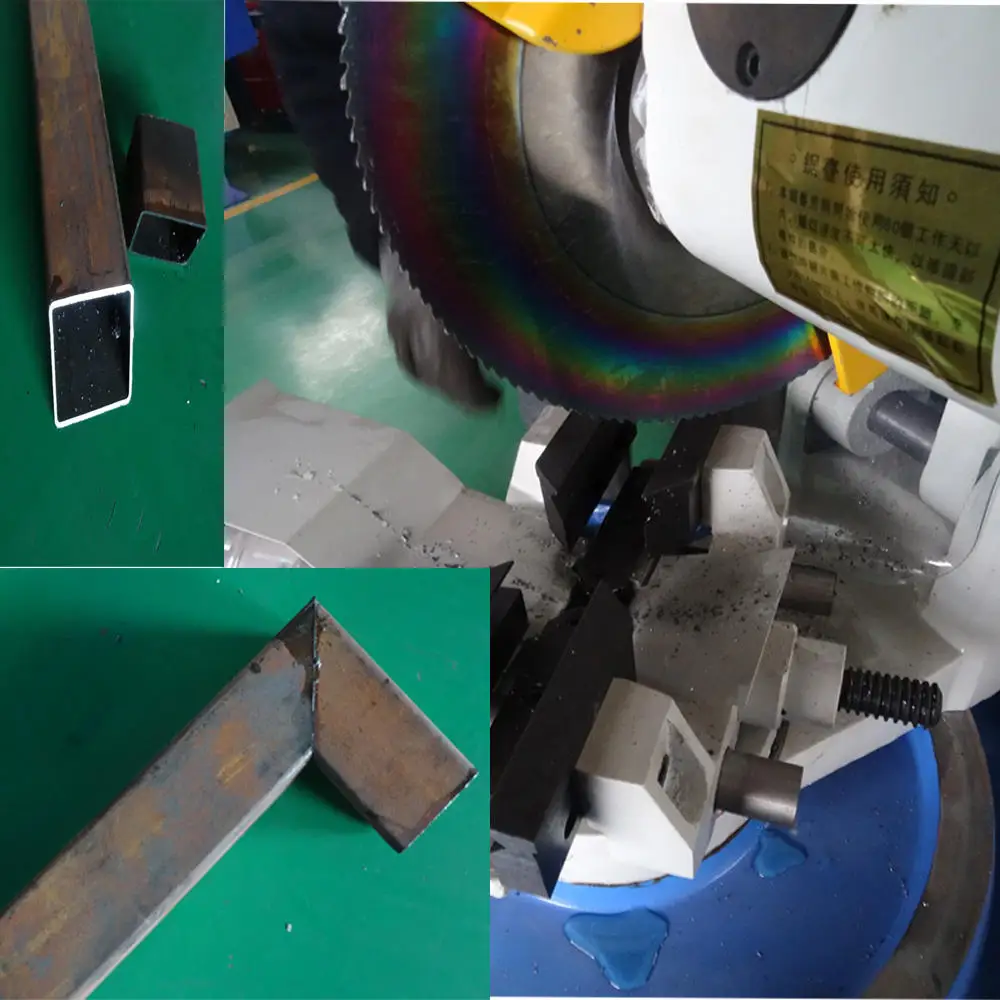

Steel and Alloy Material Processing

Steel bar cutting involves different material grades with different hardness and cutting characteristics.

Carbon Steel: Commonly used for general fabrication, machine components, structural parts, shafts, and industrial assemblies.

Stainless Steel: Used in equipment manufacturing, food-processing machinery, architectural products, automotive components, and corrosion-resistant applications.

Alloy Steel: Used for mechanical components where specific strength, wear resistance, or other material properties are required.

The cutting blade and machine parameters should be selected according to the actual material grade. A blade suitable for one steel type should not automatically be assumed suitable for every alloy.

Industrial Applications

The Metal Bar Cold Cutting Machine can serve a wide range of manufacturing industries.

Automotive Components:
Steel bars can be cut into blanks for shafts, pins, brackets, suspension components, fasteners, and other parts.

Machinery Manufacturing:
Cut metal bars can be prepared for machining, turning, milling, drilling, grinding, and assembly.

Steel Fabrication:
The machine can prepare bars and solid profiles for structural assemblies, frames, supports, brackets, and fabricated products.

Fastener Manufacturing:
Metal stock can be cut into suitable blanks for subsequent forming or machining processes, depending on the material and production requirements.

Hydraulic and Pneumatic Components:
Steel and stainless steel bar stock can be prepared for fittings, shafts, sleeves, cylinders, and other components.

General Metalworking:
Workshops can use the machine for preparing raw metal stock before secondary manufacturing processes.

High-Efficiency Batch Production

NC circular sawing is particularly useful when manufacturers need to cut large quantities of similar metal bars.

A typical production workflow includes raw material loading, feeding, positioning, clamping, circular sawing, workpiece release, and collection.

Production efficiency depends on bar diameter, material hardness, cutting length, blade specification, feeding distance, cutting cycle, loading method, and machine configuration.

For higher-volume operations, additional material racks, roller conveyors, automatic loading systems, collection tables, or downstream processing equipment can be integrated.

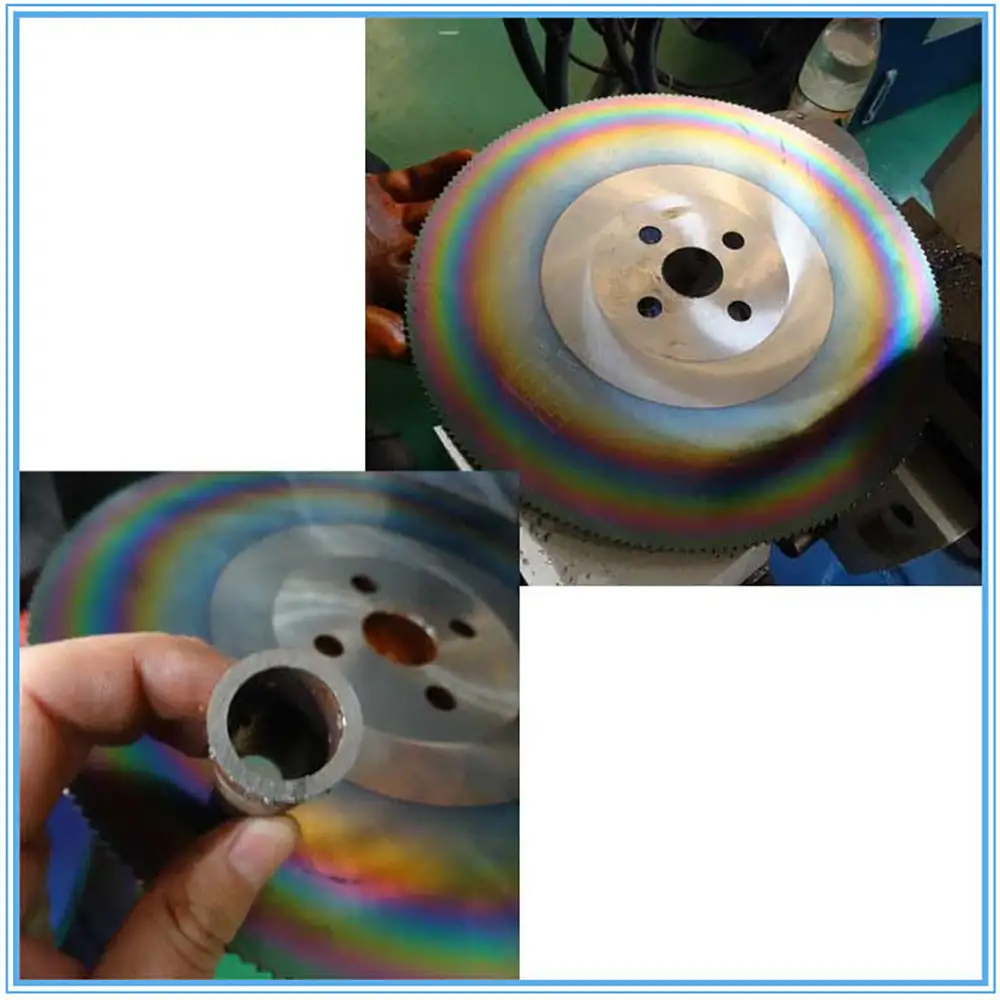

Blade Selection and Tool Life

Saw blade performance has a direct effect on cutting quality and production efficiency. Factors such as material hardness, bar diameter, tooth geometry, blade material, cutting speed, feed rate, and cooling conditions can affect blade life.

Operators should monitor cutting resistance, surface condition, cutting noise, vibration, and finished-piece quality. A worn or unsuitable blade can increase cutting time and negatively affect cut quality.

Regular blade inspection and timely replacement can help maintain stable production.

Quality Control

Quality control should cover both the machine and finished metal bars.

Typical inspection points include:

Cutting length
Cut squareness
Surface condition
Burr level
Bar deformation
Dimensional consistency

If cutting quality changes during production, possible causes may include blade wear, incorrect feeding, unstable clamping, machine misalignment, excessive vibration, or unsuitable cutting parameters.

Regular inspection helps identify problems early and maintain consistent production output.

Maintenance and Safe Operation

Routine maintenance may include removing metal chips, checking the saw blade, inspecting clamps and feeding components, lubricating applicable moving parts, checking coolant systems, and verifying machine alignment.

The machine should be installed on a suitable foundation with enough space for material loading, finished-product handling, maintenance, and operator access.

Circular saw machines involve rotating cutting tools and significant mechanical forces. Appropriate guarding, emergency-stop functions, personal protective equipment, and safe operating procedures should be used according to the machine configuration and applicable local regulations.

OEM and ODM Customization

Metal bar cutting requirements vary significantly between factories. OEM and ODM solutions can be developed around bar diameter, section dimensions, material grade, cutting length, production volume, feeding method, clamping system, blade selection, and automation level.

Customers can provide drawings, samples, material specifications, required tolerances, and production targets for machine evaluation.

For international B2B buyers, the equipment can be supplied as an individual cutting machine or integrated into a larger metal processing line.

FAQs
1. What materials can this metal bar cutting machine process?

Depending on configuration, it can process carbon steel, stainless steel, alloy steel, and other compatible metal bars and rods.

2. What is cold cutting?

Cold cutting is a mechanical cutting process that uses a cutting tool such as a circular saw blade rather than a thermal heat source.

3. What does NC mean?

NC means Numerical Control. The system can control selected machine movements or feeding functions according to programmed or preset parameters.

4. Can the machine cut round steel bars?

Yes. Round steel bars are a common application, subject to the machine's specified cutting capacity.

5. Can square steel bars be processed?

Yes, suitable configurations can process square and rectangular solid bars within the specified capacity.

6. Can stainless steel bars be cut?

Yes, when the appropriate saw blade, cutting parameters, and machine configuration are selected for the specific stainless steel grade.

7. Is this machine fully automatic?

NC control does not necessarily mean fully automatic operation. The actual automation level depends on the feeding, loading, clamping, and unloading configuration.

8. How accurate is the cutting?

Accuracy depends on machine structure, feeding system, blade condition, clamping, material tolerance, alignment, and cutting parameters. Required tolerances should be confirmed before ordering.

9. Does cold circular sawing create burrs?

Some burr formation can occur depending on the material and blade condition. Additional deburring or chamfering may be required for certain finished products.

10. Is the machine suitable for mass production?

Yes. NC feeding and repeatable circular sawing make it suitable for batch and repetitive metal bar cutting applications.

11. How do I select the saw blade?

Blade selection depends on material grade, bar diameter or section, hardness, cutting length, required edge quality, and production volume.

12. Can the machine be customized?

Yes. Cutting capacity, feeding system, clamping, blade configuration, NC functions, electrical specifications, and automation can be customized according to production requirements.

Why Choose Us
NC-Controlled Feeding – Numerical control supports repeatable positioning and consistent batch cutting.
Cold Circular Sawing – Mechanical circular sawing provides a controlled method for processing steel bars and solid metal stock.
Steel Bar Processing – The machine can be configured for round, square, rectangular, and other compatible metal bars.
Material Flexibility – Suitable configurations can be developed for carbon steel, stainless steel, alloy steel, and other compatible materials.
Stable Workholding – Proper clamping and material support help reduce movement and vibration during cutting.
Production Efficiency – Repeatable feeding and cutting can reduce manual measuring and improve workflow for batch production.
Customized Equipment – Machine capacity, feeding, clamping, tooling, electrical configuration, and automation can be adapted to specific requirements.
OEM & ODM Support – We support manufacturers, distributors, importers, and industrial buyers with customized metal cutting solutions.
