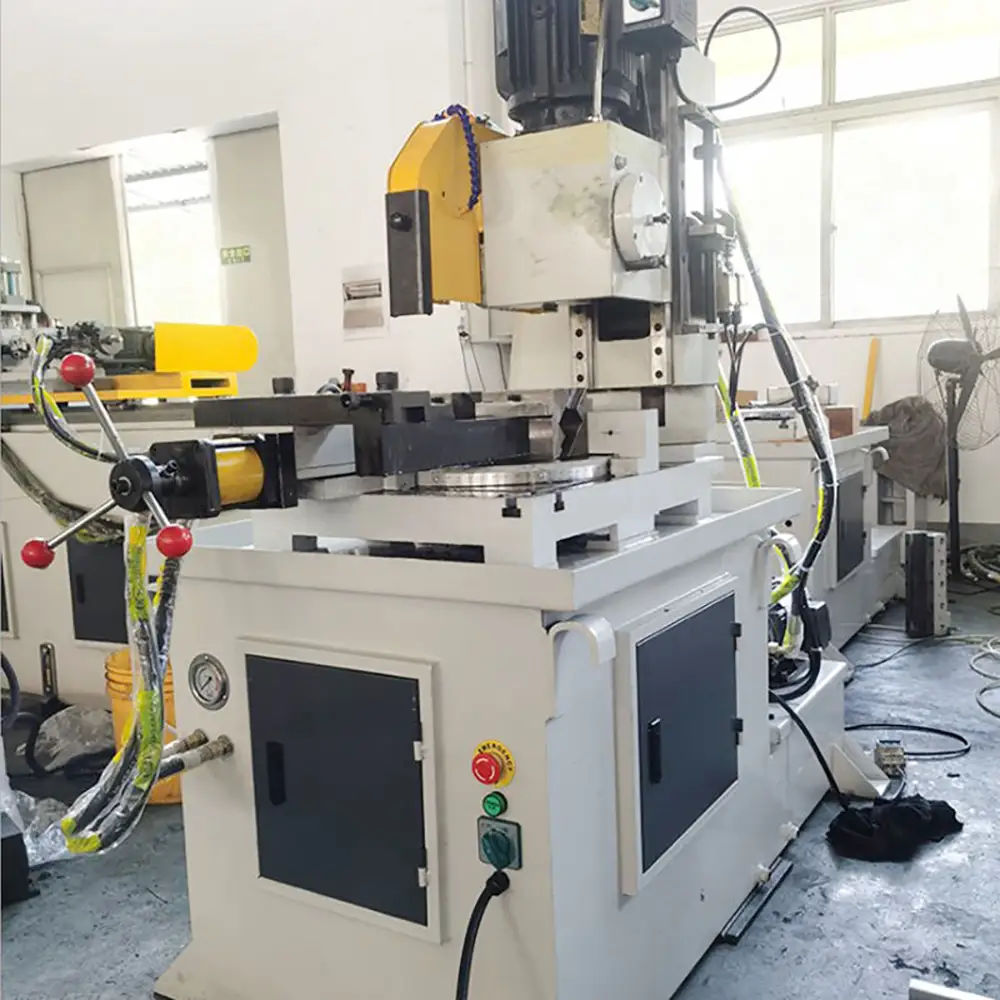

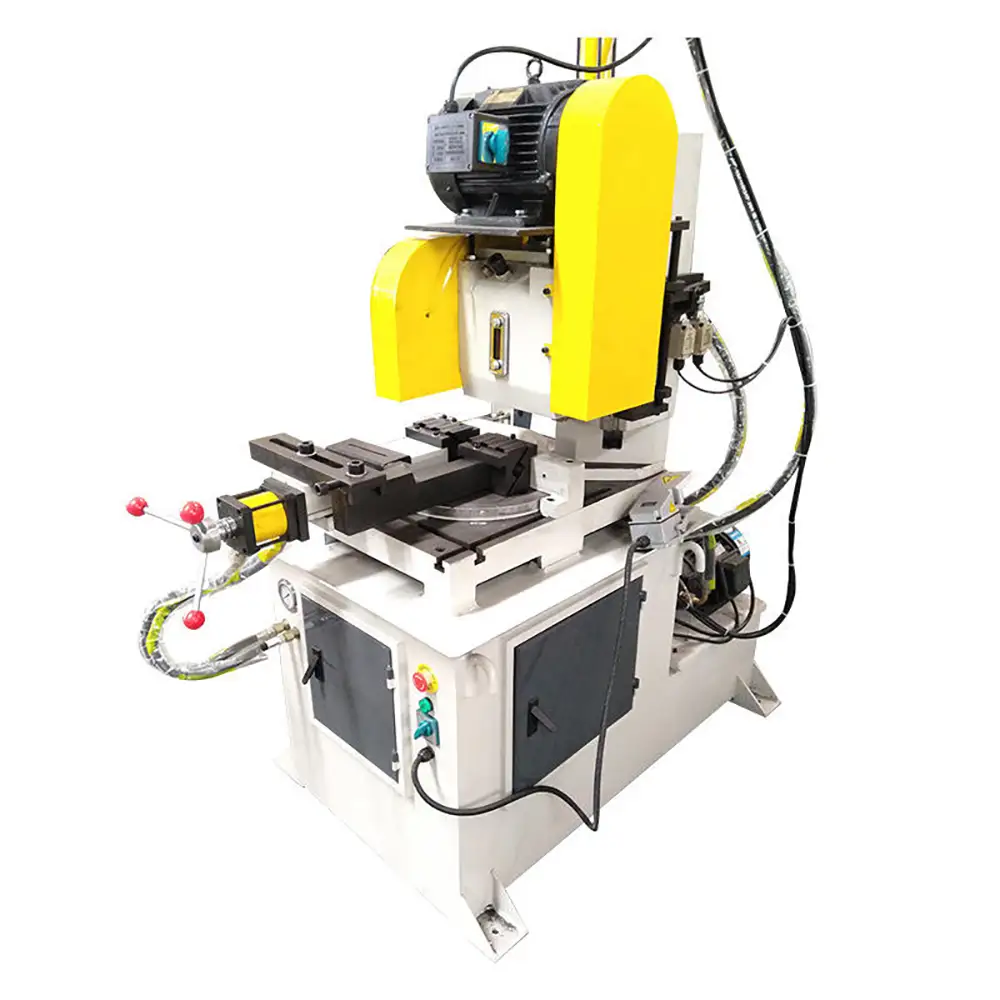

Hydraulic Semi-automatic Pipe Cutting Machine Metal Circular Saw Machine

Hydraulic Cutting and Clamping System

The hydraulic system is an important part of the machine design. Depending on the specific configuration, hydraulic power can be used for workpiece clamping, feeding, cutting-head movement, or other machine functions.

Controlled hydraulic movement helps provide smooth operation and stable contact between the cutting blade and workpiece. Proper clamping is especially important when cutting round pipes and tubes because curved surfaces can move or rotate if they are not securely supported.

For production environments, stable hydraulic operation can contribute to repeatable cutting cycles and reduce unnecessary manual adjustment.

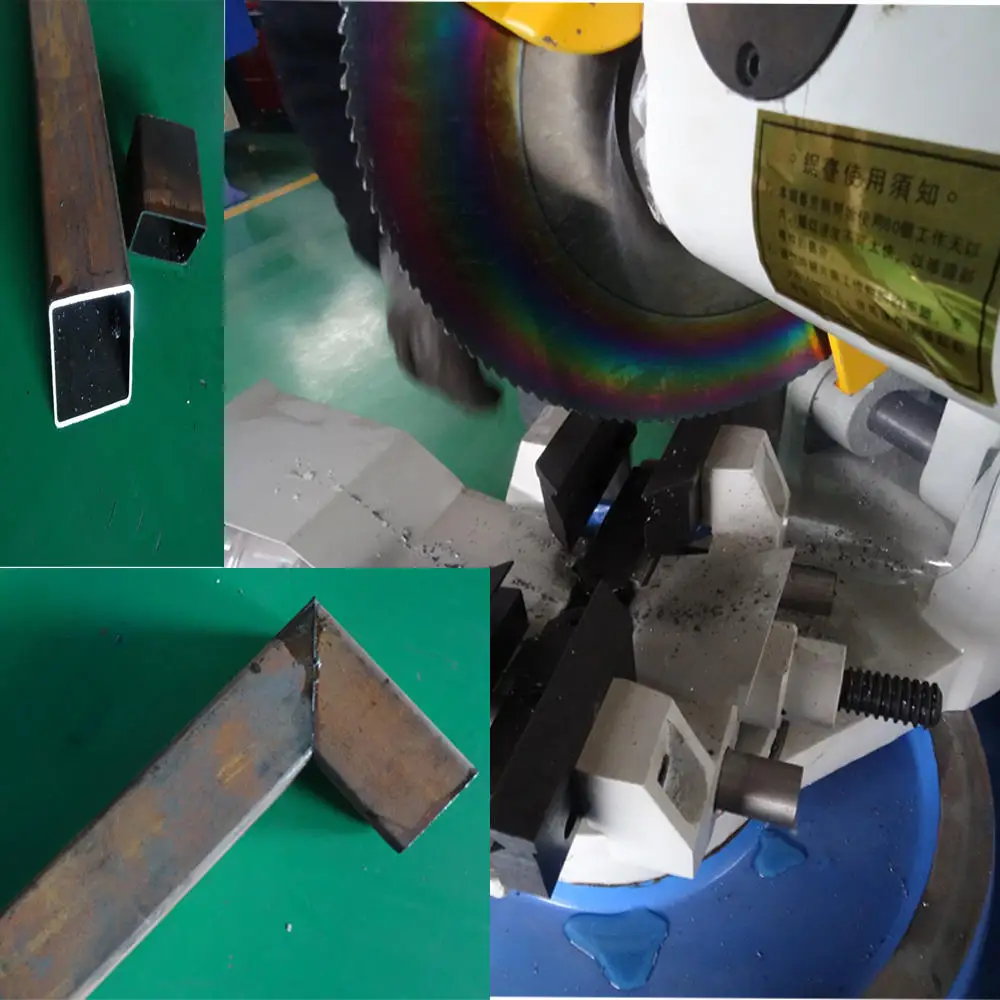

Circular Saw Cutting Technology

The machine uses a circular saw blade to cut metal workpieces. Circular sawing is widely used for pipe, tube, bar, profile, and structural metal processing because it can provide a controlled and repeatable cutting process.

Blade selection should be matched to the material, wall thickness, outside diameter, profile geometry, and required edge quality. Different applications may require different blade tooth configurations, cutting speeds, and coolant conditions.

For steel and stainless steel applications, selecting an appropriate metal-cutting blade is essential for maintaining cutting performance and extending blade service life.

Semi-Automatic Operation

Semi-automatic operation provides a practical balance between manual flexibility and production efficiency. Unlike a fully manual cutting process, the machine can automate selected cutting movements after the operator loads and positions the material.

The exact operating sequence depends on machine configuration. A typical workflow includes:

Load the pipe,tube,bar,or profile.
Position the material according to the required cutting length.
Secure the workpiece using the clamping system.
Start the cutting cycle.
The hydraulic system performs the configured machine movement.
The circular saw blade cuts through the workpiece.
Release the finished piece and prepare the next workpiece.

This workflow is suitable for small-batch, medium-volume, and repetitive production where operators need flexibility without sacrificing cutting consistency.

Pipe and Tube Cutting Applications

The Hydraulic Semi-Automatic Pipe Cutting Machine can be used for different types of metal workpieces depending on the machine model and cutting configuration.

Typical applications include:

Round steel pipe cutting
Square tube cutting
Rectangular tube cutting
Stainless steel tube cutting
Carbon steel pipe cutting
Metal bar cutting
Structural profile cutting
Fabricated metal component cutting
Machinery component preparation
Construction material processing

The actual cutting capacity depends on the machine specifications, saw blade, material grade, wall thickness, workpiece dimensions, and cutting requirements. Buyers should provide detailed workpiece information when selecting a machine.

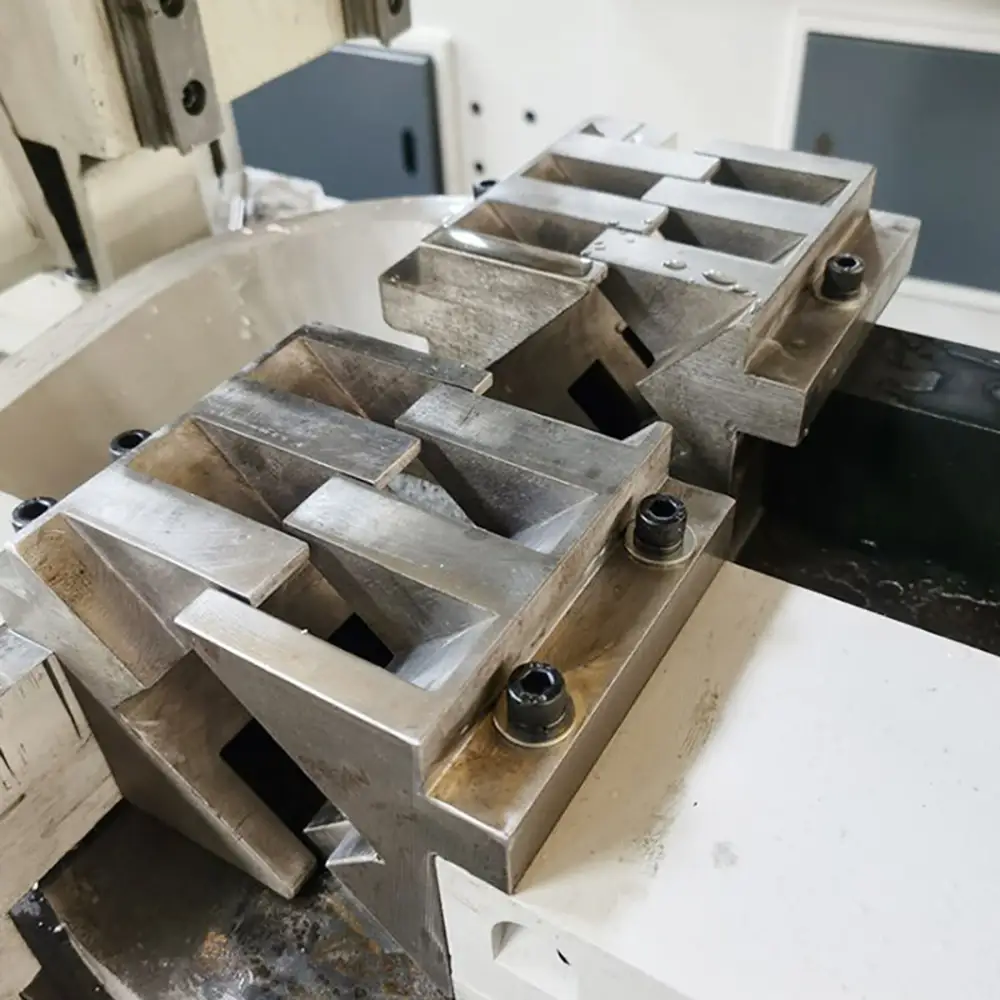

Stable Workpiece Clamping

Workpiece stability directly affects cutting quality. Round pipes can rotate during cutting if clamping is insufficient, while thin-wall tubes may deform when excessive clamping pressure is applied.

A properly designed clamping system helps hold the material securely while maintaining an appropriate balance between holding force and workpiece protection.

For different pipe sizes and shapes, suitable jaws, supports, fixtures, and tooling can be configured according to the production requirements.

Metal Cutting Performance

The circular saw process is suitable for many industrial metal-cutting applications. Depending on the machine configuration, it can process carbon steel, stainless steel, alloy steel, aluminum, and other compatible metal materials.

Material characteristics should always be considered when selecting the blade and cutting parameters. Stainless steel, aluminum, copper, brass, and carbon steel have different cutting behaviors and may require different tooling and operating conditions.

For thin-wall tubing, careful control of clamping force, blade selection, workpiece support, and cutting parameters can help reduce deformation and improve finished-edge quality.

Production Efficiency

For repetitive pipe cutting, semi-automatic operation can improve workflow efficiency by reducing the amount of manual cutting work required for every piece.

Operators can focus on loading, positioning, inspection, and material handling while the machine performs the configured cutting operation. When combined with a suitable material rack, measuring system, feeding device, or production line, the machine can become part of a broader tube-processing workflow.

Actual production output depends on material size, cutting length, blade type, operator workflow, machine configuration, and other production conditions.

Cutting Accuracy and Repeatability

Consistent positioning and stable clamping are important for achieving repeatable cutting results. Hydraulic movement can provide controlled machine operation, while circular saw cutting allows the blade to follow a defined cutting path.

For applications requiring close dimensional control, the complete production setup should be considered rather than the machine alone. Material straightness, blade condition, fixture alignment, feeding method, cutting parameters, and measurement procedures can all influence final accuracy.

Industrial Applications

Hydraulic semi-automatic pipe cutting machines are commonly suited to metal fabrication shops, machinery manufacturers, steel-processing companies, construction component suppliers, automotive component manufacturers, furniture manufacturers, equipment manufacturers, and general industrial workshops.

They can be used for preparing raw materials before welding, bending, drilling, machining, assembly, or other downstream processes.

Cut-to-length preparation is particularly useful when many components require the same or similar dimensions.

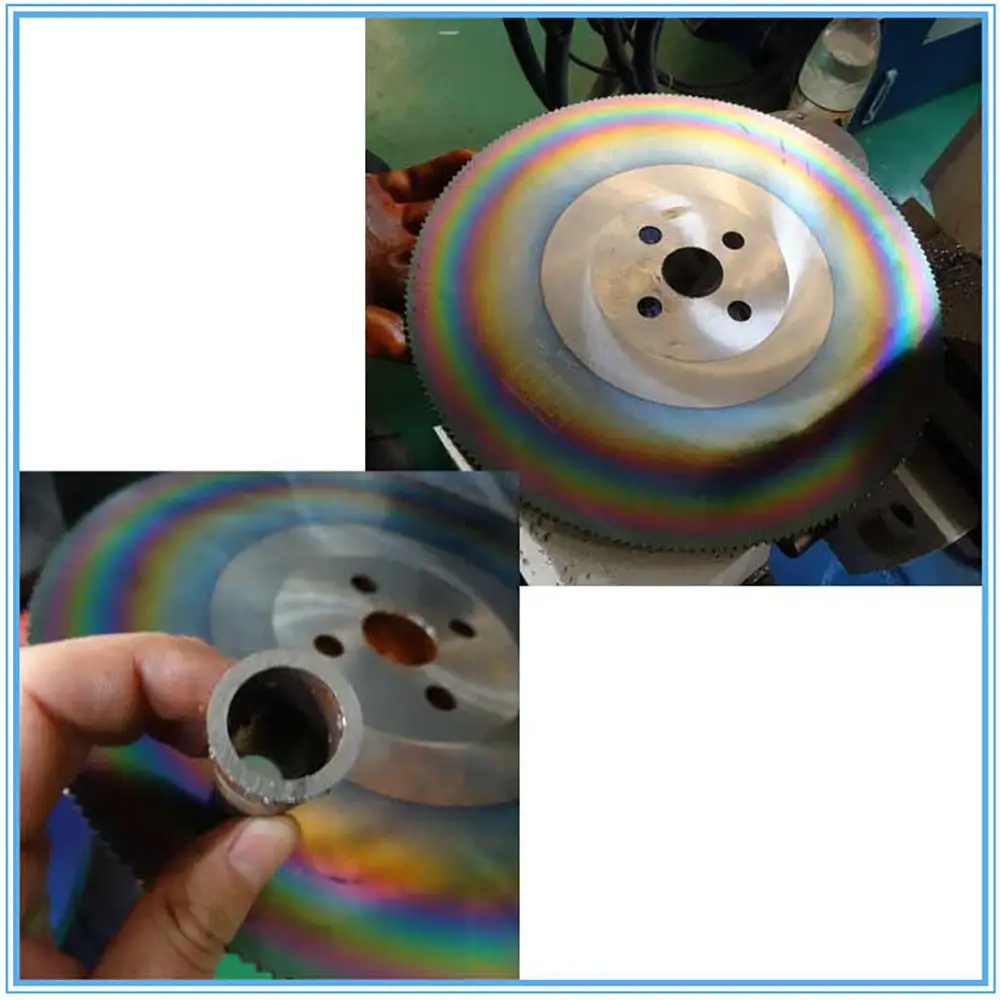

Blade Selection and Maintenance

The saw blade is a critical consumable component. Blade diameter, tooth geometry, material, thickness, and tooth pitch should be selected according to the workpiece being processed.

Regular inspection can help identify worn teeth, abnormal vibration, excessive noise, poor cutting surfaces, or other signs that maintenance is required.

Hydraulic components should also be checked periodically for leakage, pressure stability, hose condition, and proper operation. The clamping system should remain clean and correctly aligned, while the machine table and work area should be kept free from accumulated chips and debris.

Safety Considerations

Metal circular saw machines contain moving blades and high-force mechanical or hydraulic components. Operators should receive appropriate training and follow the machine manufacturer's operating procedures.

Depending on the configuration and applicable regulations, protective guards, emergency-stop devices, interlocks, or other safety features may be provided. Operators should use appropriate personal protective equipment and never bypass machine safety devices.

Before maintenance or blade replacement, the machine should be stopped and isolated according to the applicable lockout and maintenance procedures.

Customization and OEM/ODM Supply

Different customers have different requirements for pipe diameter, tube shape, cutting length, material, automation level, voltage, blade specifications, and production capacity. A hydraulic semi-automatic pipe cutting machine can therefore be configured according to the intended application.

For OEM and ODM projects, buyers can provide drawings, sample workpieces, material specifications, required cutting lengths, daily production targets, and preferred automation functions. The manufacturer can then recommend a suitable machine configuration and tooling solution.

FAQs
1. What is a hydraulic semi-automatic pipe cutting machine?

It is a metal cutting machine that combines hydraulic machine functions with semi-automatic operation and circular saw cutting for processing pipes,tubes,bars,and metal profiles.

2. What materials can the machine cut?

Depending on the model and saw blade,it may process carbon steel,stainless steel,alloy steel,aluminum,and other compatible metals. Material compatibility should be confirmed before purchase.

3. Can it cut round and square pipes?

Yes. Many configurations are designed for round,square,and rectangular tubes. Exact cutting capacity depends on the machine model.

4. What does semi-automatic mean?

Semi-automatic means that selected machine operations can be automated while the operator still performs tasks such as loading,positioning,and unloading the workpiece.

5. Why use hydraulic power?

Hydraulic systems can provide controlled force and movement for functions such as clamping,feeding,or cutting-head operation,depending on the machine design.

6. Is it suitable for stainless steel pipe?

Yes,when the machine and saw blade are properly configured for stainless steel. Stainless steel requires appropriate blade selection and cutting parameters.

7. Can it cut thin-wall tubes?

It can be suitable for thin-wall tubing when the machine has appropriate tooling and clamping. Excessive clamping force or incorrect blade selection may deform thin-wall material.

8. How do I choose the correct saw blade?

Blade selection depends on material,pipe diameter,wall thickness,profile shape,cutting length,and required edge quality. The workpiece specifications should be provided when ordering.

9. Is the machine suitable for batch production?

Yes. Semi-automatic operation is particularly useful for repetitive cutting tasks and small-to-medium production batches.

10. Can the machine be customized?

Yes. Machine configuration can be customized according to workpiece dimensions,cutting requirements,voltage,automation functions,tooling,and other production requirements.

11. How can cutting accuracy be improved?

Accurate positioning,secure clamping,proper blade selection,correct machine alignment,and regular maintenance all contribute to repeatable cutting results.

12. What information should I provide before purchasing?

Provide the material type,pipe or tube shape,outside dimensions,wall thickness,required cutting length,production quantity,and desired automation level. This information helps determine a suitable machine configuration.

Why Choose Us
Industrial Metal Cutting Design – Designed for pipe,tube,bar,and profile cutting applications in industrial production.
Hydraulic Operation – Controlled hydraulic functions can provide stable clamping and machine movement according to the selected configuration.
Semi-Automatic Workflow – Reduces repetitive manual cutting work while maintaining operator flexibility.
Circular Saw Technology – Circular sawing provides a controlled method for repeatable metal cutting.
Flexible Material Compatibility – Machine and tooling can be configured for different compatible metal materials and workpiece types.
Production-Oriented Configuration – Suitable for fabrication shops,component manufacturers,and industrial material-processing applications.
Custom Machine Solutions – Cutting capacity,tooling,voltage,feeding,and automation functions can be discussed according to project requirements.
OEM & ODM Support – Technical requirements,drawings,samples,and production targets can be used to develop an appropriate machine
