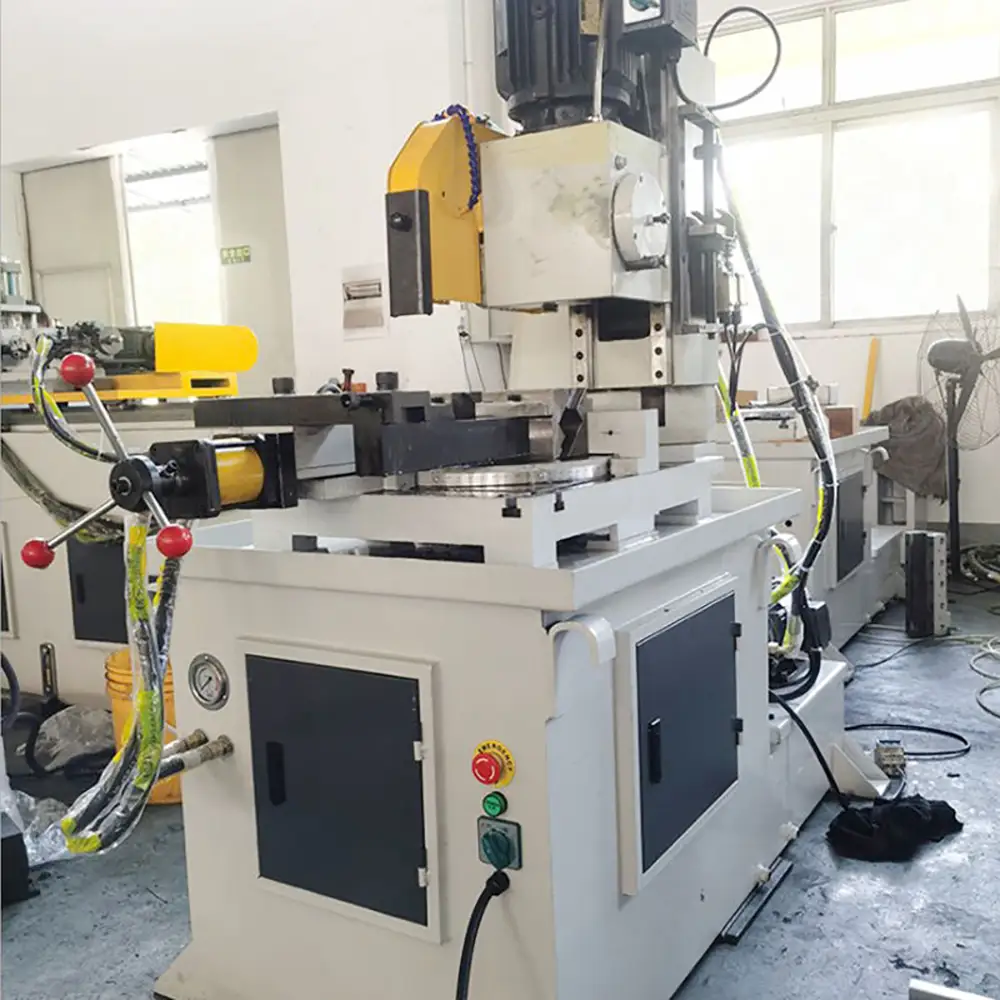

Semi Automatic Hydraulic Pipe bar square Tube Cutting Machine

Performance characteristics:
1. Suitable for sawing carbon steel, stainless steel thick-walled steel pipes, solid bars and other special-shaped materials.
2. It can be cut at 90° tangent, 90° -45° to the right, and 90°-30° to the left.
3. Stable feed with vertical slide and long tool life
4. High-efficiency mechanism transmission decelerates and eliminates springback, suitable for heavy cutting.
5. Specially designed clamps, strong supporting force, reliable and safe.
6. The slideway is automatically lubricated with oil, which is stable and has a long life.
7. The structure of the machine is firm, the vibration is small, and the life of the machine is long.
8. The coolant is automatically circulated to ensure smooth cutting surface; the life of the saw blade is long.
9. Concentrated processing of sawdust, simple and easy maintenance.
10. High-speed steel saw blade, cutting without burrs

Technical parameter

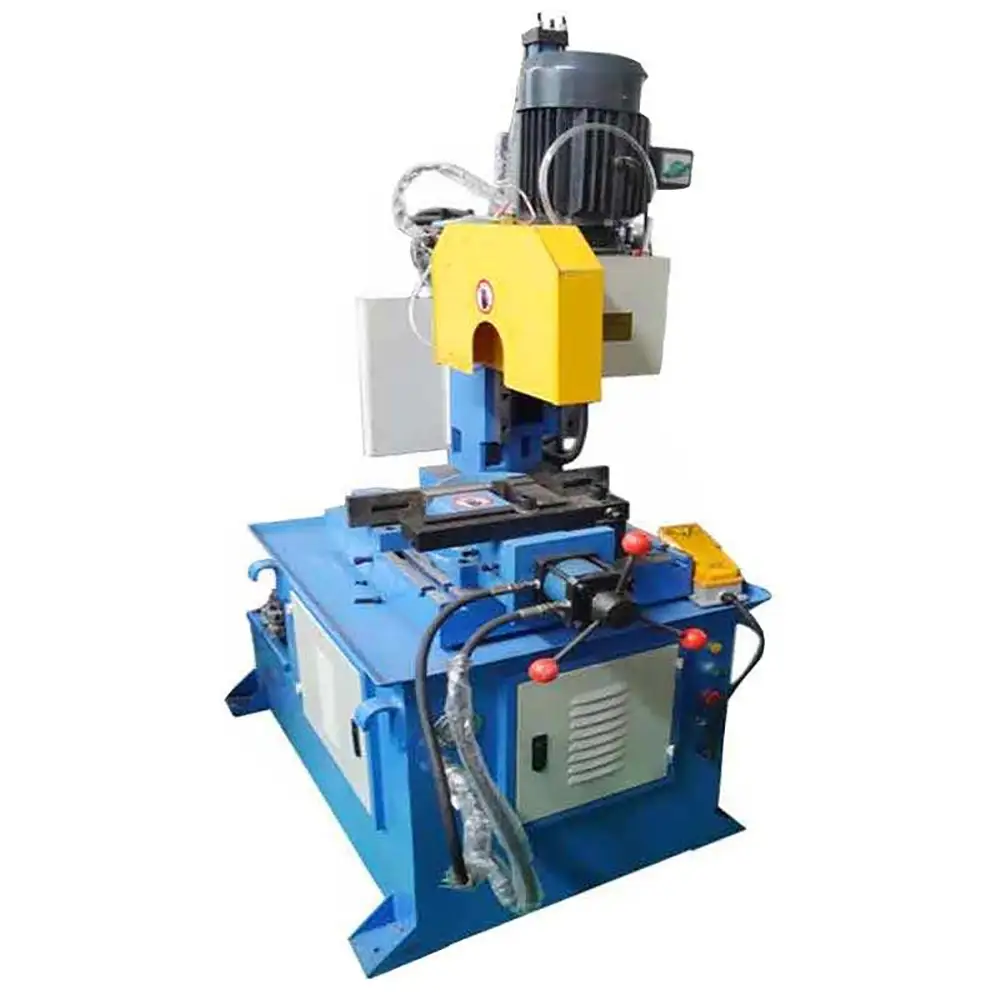

Semi-automatic hydraulic metal circular saw machine
Machine type	MC350NC
Saw blade dia.(mm)	300mm		350mm		400mm
Cutting angle(°)	45°	90°	45°	90°	45°	90°
Solid bar(mm)	50	50	50	50	50	50
Square bar (mm)	50×50	50×50	50×50	50×50	50×50	50×50
pipe(mm)	70	80	80	95	115	125

The Semi Automatic Hydraulic Pipe Bar Square Tube Cutting Machine is designed for efficient and repeatable cutting of metal pipes,bars,square tubes,and other compatible metal profiles. Combining hydraulic machine functions with semi-automatic operation,the equipment provides a practical solution for metal fabrication shops,industrial manufacturers,steel processors,and workshops that require consistent cut-to-length processing.

The machine is designed to reduce repetitive manual cutting operations while maintaining operator control over material loading,positioning,and production setup. Depending on the specific configuration,hydraulic power can be used for workpiece clamping,feeding,cutting-head movement,or other machine functions.

As a versatile metal cutting machine,it can be configured for different workpiece shapes and materials. Typical applications include round pipes,square tubes,rectangular tubes,solid bars,and selected metal profiles. Actual cutting capacity depends on the machine model,blade type,material grade,workpiece dimensions,and production requirements.

Hydraulic Metal Cutting System

The hydraulic system provides controlled force and movement for the machine's configured functions. Hydraulic actuation can be useful where stable clamping or controlled cutting movement is required.

Depending on the machine design,the hydraulic system may operate the clamping mechanism,material feeding system,cutting head,or other components. Controlled hydraulic movement helps provide a repeatable operating cycle when the hydraulic system is correctly adjusted and maintained.

For customers processing different workpiece sizes,the hydraulic system can provide a practical solution for securing material during the cutting process.

Semi-Automatic Operation

The semi-automatic design provides a balance between manual flexibility and machine-assisted production.

A typical operating cycle may include:

Load the pipe,bar,or square tube.
Position the workpiece according to the required cutting length.
Secure the material using the clamping system.
Activate the cutting cycle.
The configured hydraulic functions perform the required movement.
Complete the cut.
Release and remove the finished workpiece.

The exact sequence depends on the machine configuration.

Semi-automatic operation is particularly useful for workshops that process different workpiece dimensions and do not require completely automated material handling.

Pipe Cutting Applications

Pipe cutting is one of the main applications of this equipment. Round pipes are widely used in construction,industrial equipment,automotive components,agricultural machinery,and fabricated structures.

A dedicated pipe cutting machine provides controlled positioning and workholding compared with basic manual cutting methods. Proper clamping helps prevent the pipe from rotating or moving during cutting.

The cutting process can prepare pipe sections for welding,bending,drilling,threading,machining,or assembly.

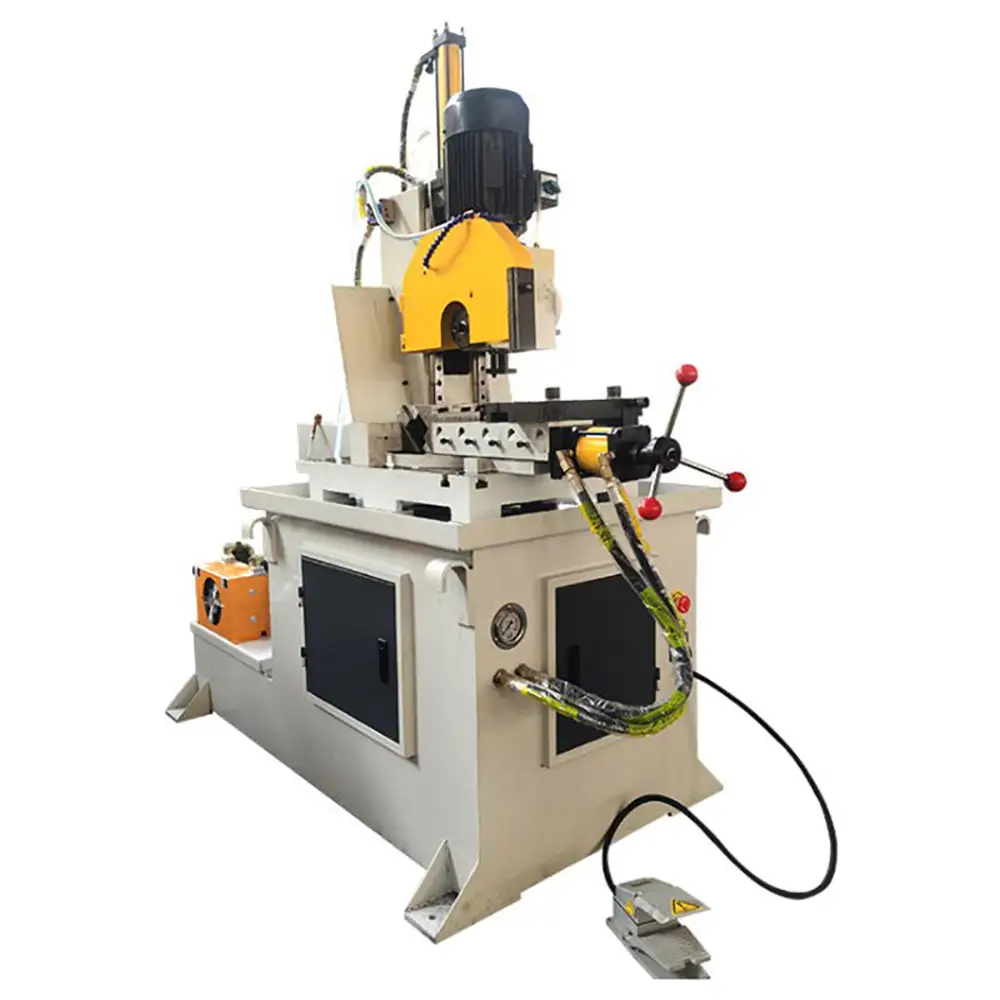

Square Tube Cutting

Square tubes require stable positioning because their four flat surfaces must remain correctly aligned during cutting.

The machine's workholding system can be configured to support square tube processing according to the required dimensions. Stable clamping helps maintain consistent positioning and can reduce movement during the cutting cycle.

Square steel tubing is commonly used for machinery frames,metal furniture,construction structures,industrial equipment,and general fabrication.

For thin-wall square tubes,appropriate clamping pressure is important to avoid deformation.

Metal Bar Cutting

In addition to pipes and tubes,the machine can be used for compatible solid metal bars. Round bars and square bars are common raw materials in machinery manufacturing,automotive components,steel fabrication,and industrial production.

When processing solid bars,the cutting tool must be selected according to the material grade and cross-sectional dimensions. Cutting parameters may also differ from those used for hollow tubing.

Customers should provide the bar diameter or dimensions and material specification when confirming machine suitability.

Material Compatibility

The machine can be configured for compatible metal materials such as carbon steel,stainless steel,alloy steel,and other industrial metals.

Different materials have different cutting characteristics. Stainless steel may require different blade geometry and cutting parameters than carbon steel. Aluminum and other non-ferrous metals may also require dedicated cutting tools.

For this reason,material grade,hardness,dimensions,and wall thickness should be considered when selecting the machine and cutting blade.

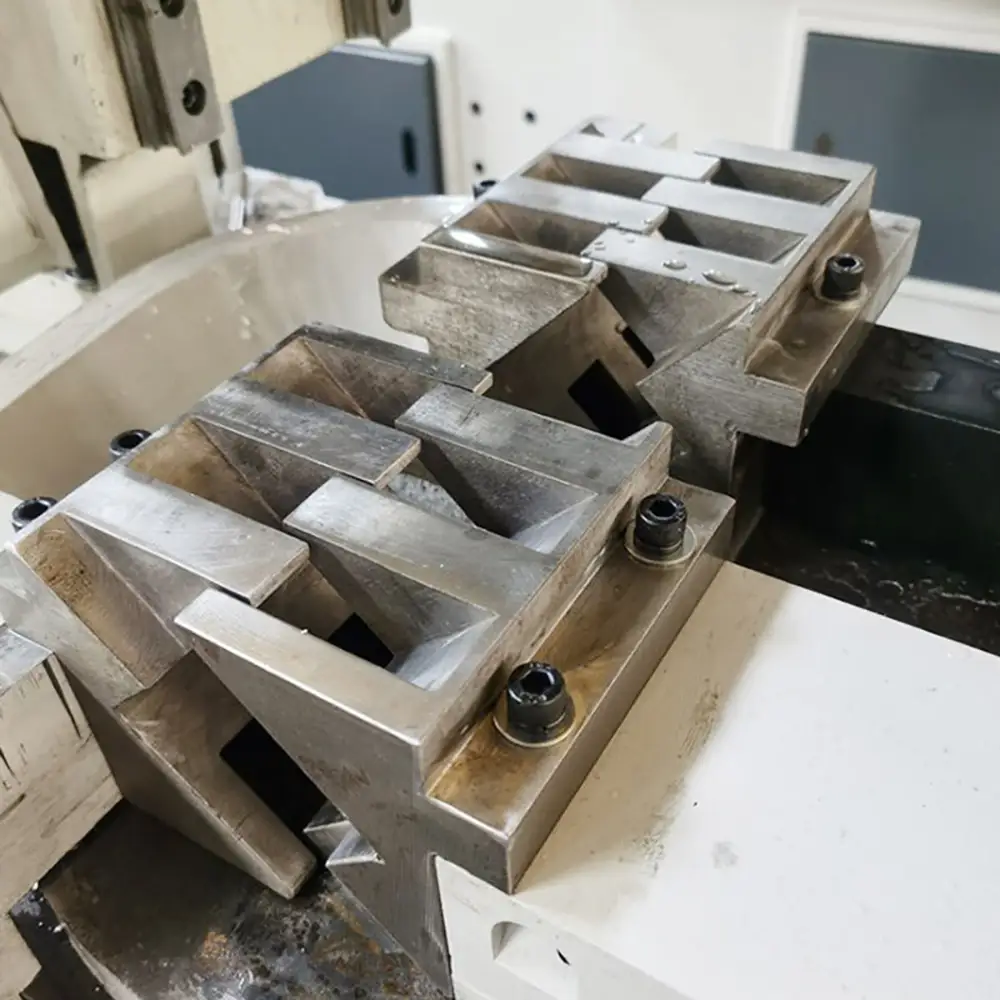

Stable Hydraulic Clamping

Workpiece clamping directly affects cutting stability and finished-part quality. A loose workpiece can move during cutting,while excessive clamping force can deform thin-wall tubing.

Hydraulic clamping can provide controlled holding force according to the machine configuration. Suitable fixtures and supports can help accommodate round,square,and rectangular workpieces.

For production involving multiple profiles,the clamping system should be selected according to the actual workpiece range.

Cutting Accuracy and Repeatability

Repeatable positioning is important when multiple pieces must be cut to the same length. The machine can provide a controlled cutting process through its feeding,positioning,clamping,and cutting mechanisms.

However,actual cutting accuracy depends on the complete setup. Material straightness,blade condition,fixture alignment,feeding accuracy,cutting parameters,and machine maintenance can all affect the final result.

For applications requiring specific dimensional tolerances,customers should provide the required tolerance so the appropriate machine configuration can be evaluated.

Circular Saw Cutting

Depending on the machine configuration,the cutting mechanism may use a circular saw blade designed for metal processing.

Circular saw cutting is suitable for many pipe,bar,and tube applications because the rotating blade can provide a controlled cutting path and repeatable results.

Blade selection is important. Tooth geometry,blade material,diameter,and tooth pitch should be matched to the workpiece material and dimensions.

A worn or incorrectly selected blade can increase cutting resistance and reduce finished-edge quality.

Production Efficiency

Semi-automatic operation can improve productivity by reducing repetitive manual cutting work. The operator can focus on loading,positioning,inspection,and material handling while the machine performs the configured cutting operation.

For batch production,consistent workpiece positioning can also reduce variation between individual components.

Actual production capacity depends on material dimensions,cutting length,blade selection,machine cycle time,operator workflow,and other production conditions.

Industrial Applications

The Semi Automatic Hydraulic Pipe Bar Square Tube Cutting Machine can be used in a variety of industries,including:

Steel fabrication
Metal fabrication
Construction equipment
Machinery manufacturing
Agricultural machinery
Automotive components
Metal furniture
Industrial equipment
Steel structures
Tube processing
General manufacturing
Maintenance workshops

The machine can operate as a standalone cutting unit or become part of a larger metal-processing workflow.

Cut-to-Length Processing

Many manufacturing processes require long raw materials to be divided into standardized lengths. A hydraulic pipe and tube cutting machine can simplify this preparation stage.

Once the required cutting length and workpiece position have been established,the operator can repeat the process for multiple pieces.

For larger production operations,material racks,feeding tables,measuring systems,and other material-handling equipment can be added depending on the machine configuration.

Quality Control

Quality control should be performed throughout the cutting process. Operators can inspect cut length,cut-end condition,workpiece deformation,and overall dimensional consistency.

For precision applications,appropriate measuring tools can verify critical dimensions.

The cutting blade,clamping system,and feeding mechanism should also be inspected regularly. Maintaining these components helps support stable production performance.

Maintenance

Routine maintenance is important for hydraulic and mechanical cutting equipment. Hydraulic hoses,fittings,cylinders,and other components should be inspected for leakage or abnormal operation.

The cutting blade should be checked for wear,damage,and tooth condition. The workholding area should remain clean so metal chips do not interfere with positioning or clamping.

Lubrication should be performed according to the manufacturer's recommended schedule.

Safety Considerations

The machine contains moving cutting tools and hydraulic components that can generate significant mechanical force. Operators should receive appropriate training before operating the equipment.

Depending on the machine design,safety guards,emergency stops,interlocks,and other protective devices may be included.

Operators should use appropriate personal protective equipment and follow the manufacturer's operating procedures. Safety devices should never be bypassed.

Before blade replacement,cleaning,or maintenance,the machine should be stopped and isolated according to applicable safety procedures.

OEM,ODM,and Customized Solutions

Different customers have different requirements for pipe diameter,bar size,square tube dimensions,cutting length,material,production volume,and automation level.

The machine can therefore be evaluated and configured according to the actual application.

For OEM and ODM projects,customers can provide workpiece drawings,samples,material grades,outside dimensions,wall thickness,required cutting lengths,and production targets.

This information helps determine suitable cutting capacity,tooling,clamping,and feeding configuration.

FAQs
1. What is a semi-automatic hydraulic pipe cutting machine?

It is a metal cutting machine that uses hydraulic power for selected machine functions while requiring the operator to perform material loading,positioning,and other manual tasks.

2. Can it cut square tubes?

Yes,compatible configurations can process square tubes. The exact size range depends on the machine model and tooling.

3. Can it cut solid metal bars?

Yes,if the machine configuration supports the required bar dimensions and material. Solid bars may require different cutting parameters from hollow tubes.

4. What materials can be processed?

Depending on the machine and blade,it can be configured for compatible carbon steel,stainless steel,alloy steel,and other metals.

5. Can it cut round pipes?

Yes. Round pipe cutting is a common application,with suitable clamping and support required to prevent workpiece movement.

6. What does semi-automatic mean?

The machine assists with the configured cutting cycle,but the operator normally loads,positions,and unloads the workpiece.

7. What is the purpose of hydraulic power?

Hydraulic power can provide controlled force for clamping,feeding,cutting-head movement,or other machine functions,depending on the design.

8. Can it process stainless steel?

Yes,when the machine and cutting blade are correctly configured for the specific stainless steel grade and dimensions.

9. Can it cut thin-wall square tubes?

Suitable configurations can process thin-wall tubes,but proper support,clamping force,and cutting-tool selection are important.

10. Is it suitable for batch production?

Yes. Semi-automatic operation is suitable for repetitive cutting and small-to-medium batch production.

11. Can the machine be customized?

Yes. Cutting capacity,clamping,feeding,tooling,voltage,and other machine functions can be discussed according to customer requirements.

12. What information is required for machine selection?

Provide material type,pipe or tube shape,diameter or dimensions,wall thickness,bar size,required cut length,production quantity,and desired automation level.

Why Choose Us
Hydraulic Cutting Technology – Controlled hydraulic operation supports stable machine movement and workholding according to configuration.
Semi-Automatic Production – Reduces repetitive manual cutting work while retaining flexible operator control.
Multi-Profile Cutting – Designed for compatible pipes,bars,square tubes,and other metal profiles.
Stable Workholding – Proper clamping and support help reduce workpiece movement during cutting.
Flexible Material Applications – Suitable configurations can be evaluated for carbon steel,stainless steel,alloy steel,and other compatible metals.
Industrial Production Design – Suitable for fabrication shops,machinery manufacturers,steel processors,and general workshops.
Customized Equipment Solutions – Cutting capacity,tooling,feeding,and clamping can be configured according to application requirements.
OEM & ODM Support – Drawings,samples,material specifications,and production requirements can be used to develop a suitable cutting machine solution.
