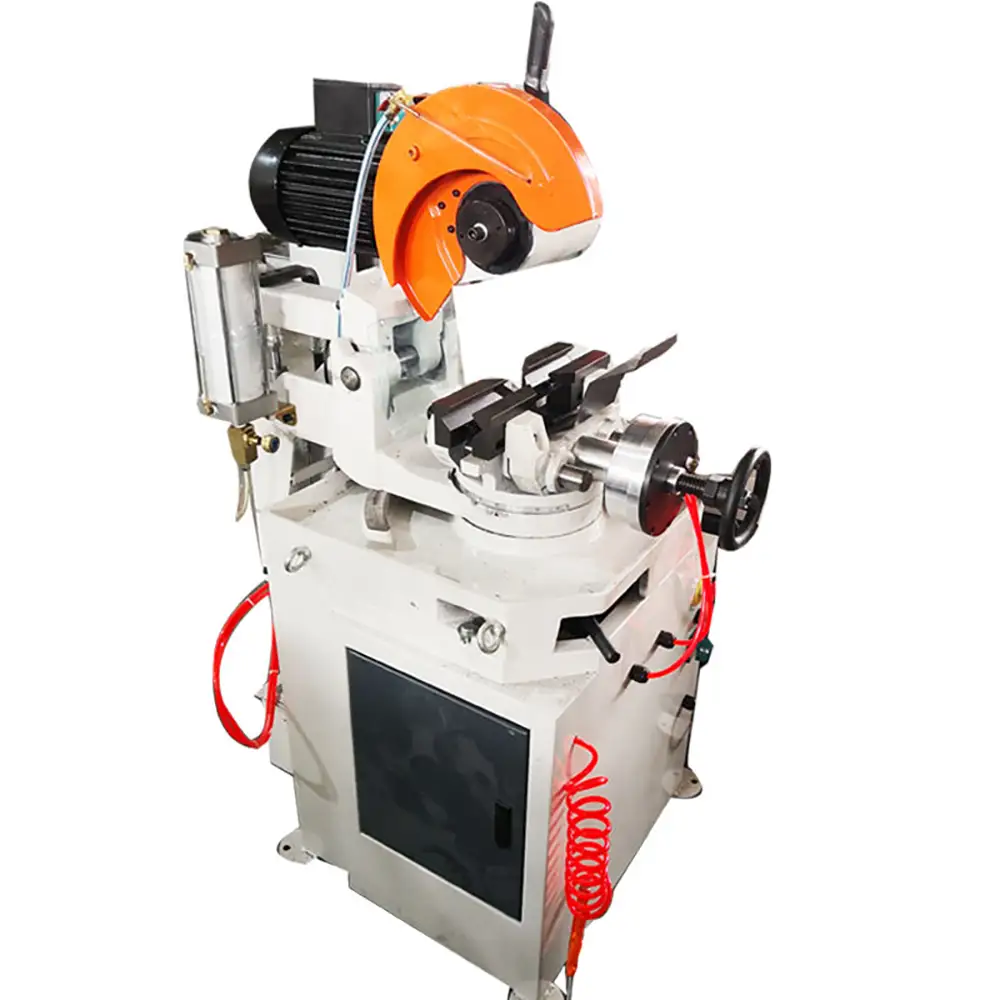

Automatic and Semi-Automatic Pneumatic Cutting Machine for Aluminum Stainless Steel Alloy Metal Parts New Condition

The Automatic and Semi-Automatic Pneumatic Cutting Machine is designed for efficient processing of aluminum,stainless steel,alloy,and other compatible metal parts. Combining pneumatic actuation with controlled cutting operations,the machine provides a practical solution for manufacturers that need repeatable cutting performance,stable workholding,and improved production efficiency.

Available in automatic and semi-automatic configurations,the equipment can be adapted to different production workflows. A semi-automatic version allows operators to load and position the workpiece while the machine performs the configured cutting operation. An automatic configuration can incorporate additional feeding,positioning,clamping,or cycling functions according to the machine design.

This type of metal cutting equipment is suitable for production workshops,metal fabrication companies,automotive component manufacturers,aluminum profile processors,machinery manufacturers,and other industrial applications where metal parts need to be cut to specified dimensions.

Model		275A/B	315A/B	350A/B
Sawing& cutting capacity	Round tube	Φ82	φ95	Φ115
	Square tube	75×75	85×85	110×110
	Profiles	75×75	85×85	110×110
	Rectangular tube	75×35	110×75	150×90
	Round bar	Φ38	φ55	Φ60
	Square solid bars	38×38	50×50	60×60
Max gap of clamp(MM)		85	110	150
Max feeding length once		700(The extra- length can be feed by another time)
Suitable size for saw blade(mm)		250-275	250- 315	250-350

Pneumatic Cutting System

Pneumatic power provides a clean and responsive method of actuating selected machine functions. Depending on the specific machine configuration,pneumatic power may be used for clamping,feeding,cutting-head movement,or other operating functions.

A pneumatic system can provide repeatable movement when the air supply is properly regulated and maintained. Stable pressure helps maintain consistent machine operation during repetitive production.

The exact pneumatic circuit,cutting mechanism,and operating sequence depend on the machine model. Customers should provide workpiece information and production requirements when selecting the appropriate configuration.

Automatic and Semi-Automatic Operation

The machine can be supplied in automatic or semi-automatic configurations depending on the required production workflow.

In a semi-automatic process,the operator generally loads the metal part,positions it in the fixture,activates the cutting cycle,and removes the finished component after processing.

In an automatic configuration,additional functions such as material feeding,positioning,clamping,and repeated cutting cycles may be integrated according to the machine design.

Automation level should be clearly specified when ordering because “automatic” can describe a particular machine function rather than completely unmanned operation.

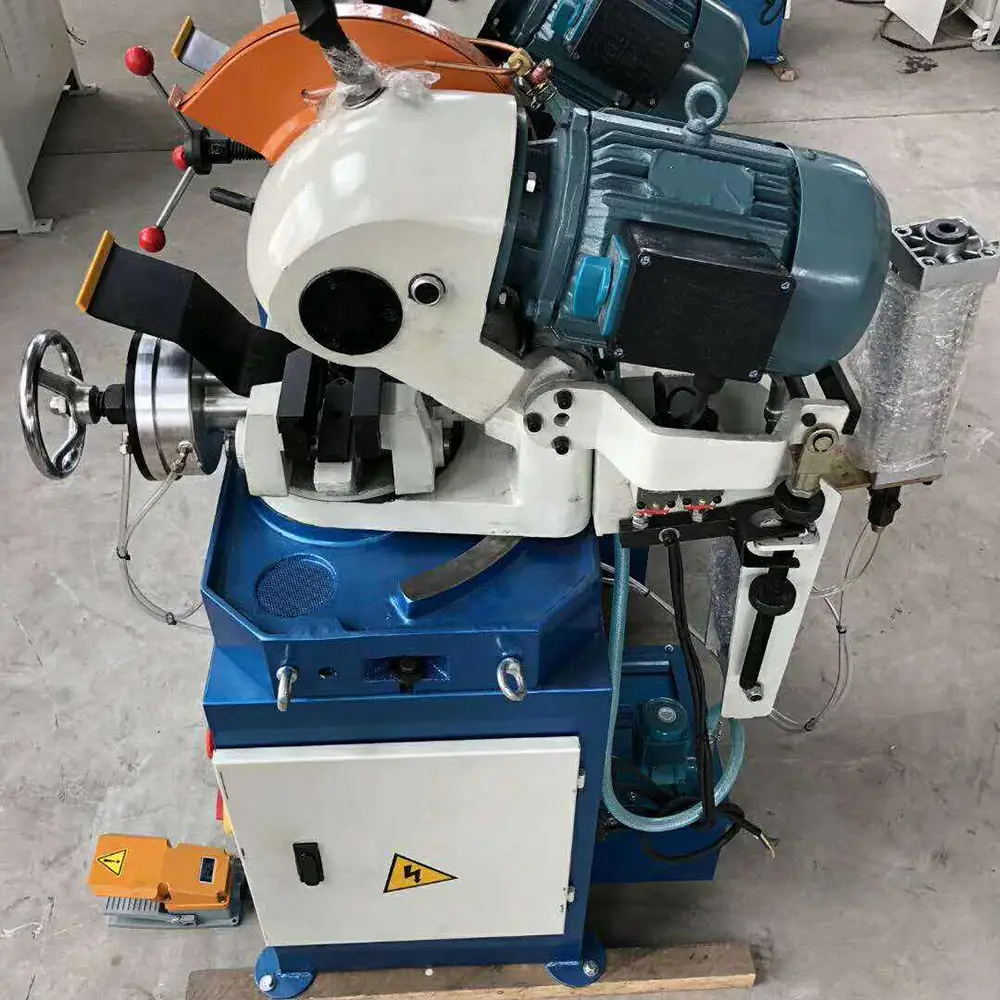

Aluminum Cutting Applications

Aluminum is lightweight and widely used in transportation,construction,windows and doors,furniture,machinery,and industrial assemblies. Its relatively soft and ductile characteristics require suitable cutting tools and workholding.

A dedicated aluminum cutting configuration can help provide controlled cutting with appropriate blade geometry,clamping,and cutting parameters.

For aluminum profiles and thin sections,stable support is particularly important to prevent movement or deformation during cutting. Tooling should also be selected according to the aluminum alloy and profile geometry.

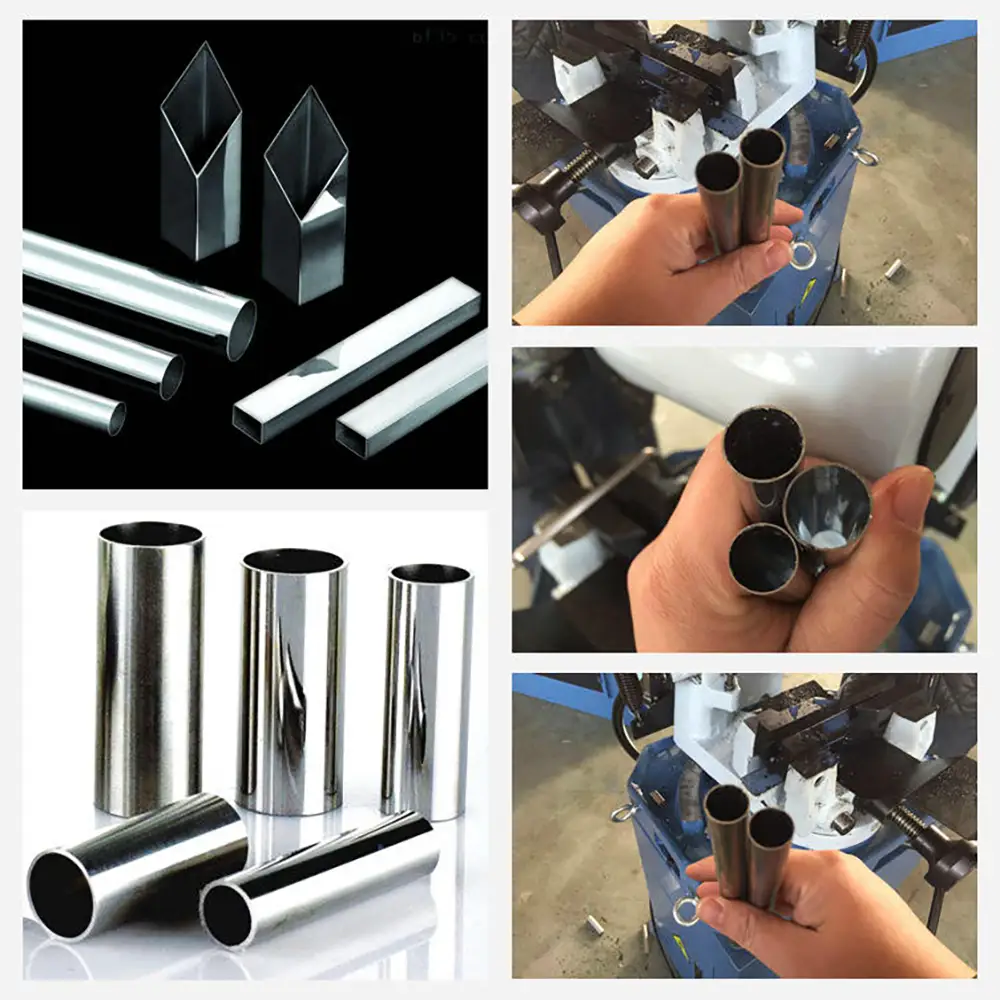

Stainless Steel Cutting

Stainless steel is commonly used for industrial equipment,food-processing machinery,architectural components,automotive parts,piping,and fabricated structures.

Compared with aluminum,stainless steel generally requires different cutting conditions and tooling. Blade tooth geometry,cutting speed,feed rate,coolant,and workholding may need to be selected specifically for the stainless steel grade and section being processed.

The machine can be configured for compatible stainless steel parts according to the required cutting range and production application.

Alloy Metal Parts Cutting

“Alloy” covers a wide range of materials with different mechanical and cutting properties. Alloy steel,aluminum alloys,and other metal alloys may require different tools and cutting parameters.

For this reason,the exact alloy grade should be provided when evaluating machine suitability. This helps determine appropriate cutting tools,clamping methods,and machine configuration.

The machine can be used for compatible alloy components in machinery,automotive,industrial equipment,and general metal fabrication applications.

Stable Workpiece Clamping

Secure workholding is essential for accurate metal cutting. A workpiece that moves during cutting can produce dimensional variation,poor edge quality,or excessive tool wear.

Depending on the machine design,pneumatic clamping can provide controlled holding force during the cutting cycle. Manual,hydraulic,or other clamping solutions may also be available for different configurations.

For thin aluminum profiles or lightweight components,clamping force should be sufficient to prevent movement without unnecessarily deforming the workpiece.

Metal Parts Processing

The machine can be used for cutting different types of metal components,including profiles,rods,tubes,plates,extrusions,and fabricated parts,subject to the machine's cutting mechanism and capacity.

Typical processing steps include loading,positioning,clamping,cutting,and unloading. Additional operations such as drilling,deburrring,chamfering,milling,or assembly can follow the cutting process.

By standardizing the cutting stage,manufacturers can improve material preparation for subsequent production operations.

Cutting Accuracy and Repeatability

Repeatability is important when producing multiple components with the same dimensions. Controlled feeding,stable clamping,and consistent cutting movement can help reduce variation between workpieces.

Actual cutting accuracy depends on many factors,including machine structure,tool condition,material characteristics,fixture alignment,feeding accuracy,and cutting parameters.

For precision applications,customers should provide the required dimensional tolerance so that the machine configuration can be evaluated accordingly.

Production Efficiency

Pneumatic cutting equipment can help reduce repetitive manual operations and improve workflow efficiency. Semi-automatic operation is useful for flexible production,while automatic configurations can reduce operator involvement in repetitive cutting cycles.

The actual production rate depends on workpiece dimensions,material,cut length,feeding method,clamping time,cutting parameters,and operator workflow.

For high-volume applications,the machine can potentially be integrated with feeding racks,automatic material handling systems,or other production equipment.

Applications

The Automatic and Semi-Automatic Pneumatic Cutting Machine can be used in many industries,including:

Aluminum profile processing
Stainless steel fabrication
Automotive component manufacturing
Machinery manufacturing
Metal furniture production
Construction material processing
Industrial equipment manufacturing
Electrical equipment components
HVAC components
General metal fabrication
Metal parts production
Custom manufacturing

The machine can be used as a standalone cutting unit or incorporated into a larger production line.

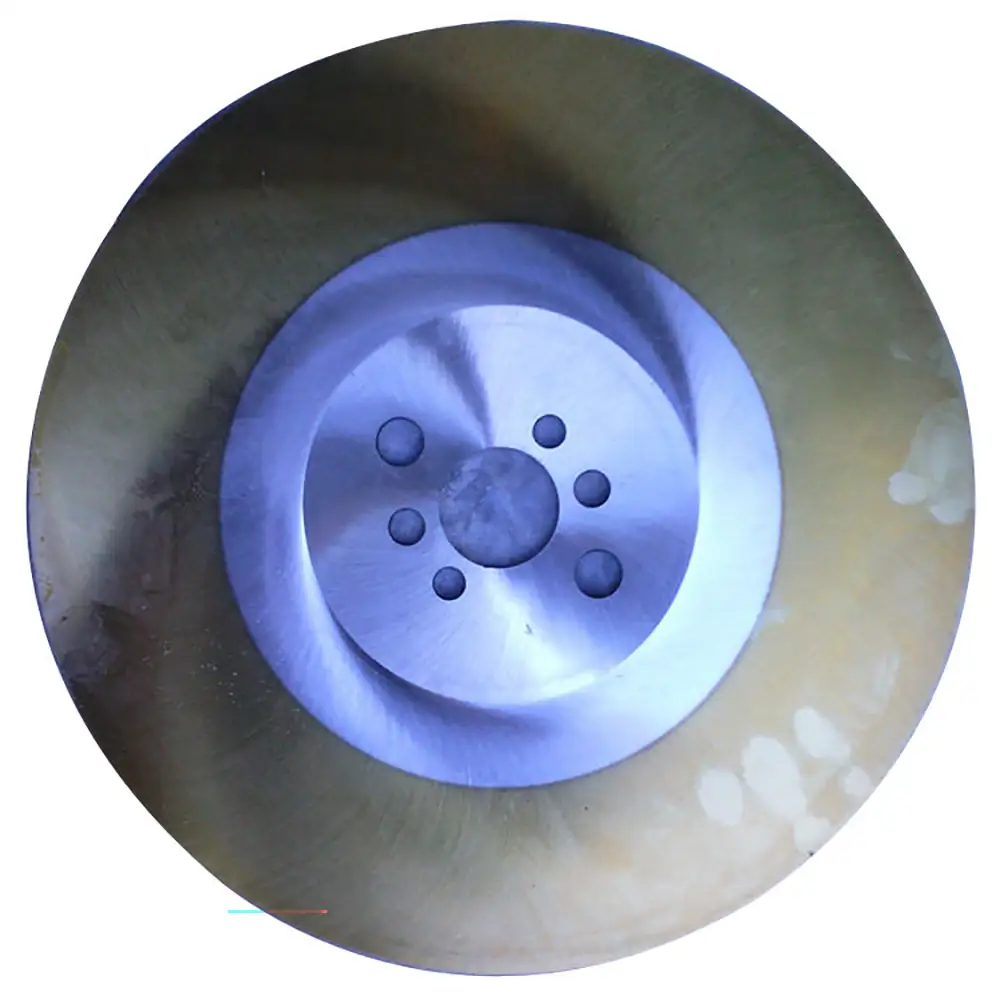

Cutting Tool Selection

Correct cutting-tool selection is essential when processing different metal materials. Aluminum,stainless steel,carbon steel,and alloy materials have different cutting characteristics.

For aluminum,tools designed for non-ferrous metal cutting can help manage chip evacuation and cutting performance. Stainless steel generally requires tooling capable of handling its higher cutting resistance and work-hardening characteristics.

Tool selection should consider material grade,workpiece thickness,profile shape,cutting length,and required edge quality.

Quality Control

A consistent quality-control process helps ensure that finished parts meet production requirements. Operators can inspect cut length,profile condition,edge quality,and visible deformation after cutting.

For precision components,calipers,micrometers,or other suitable measuring equipment can be used to verify critical dimensions.

Regular inspection of the blade,fixture,feeding system,and pneumatic components can also help maintain stable machine performance.

Maintenance

Routine maintenance helps extend machine service life and maintain consistent operation. Operators should inspect pneumatic hoses,fittings,filters,regulators,and cylinders for leakage or abnormal operation.

The cutting tool should be checked for wear and replaced or serviced when required. The workholding area should be kept clean so that chips and debris do not interfere with positioning or clamping.

Lubrication and mechanical inspections should follow the manufacturer's recommended maintenance schedule.

Safety Considerations

Metal cutting machines contain moving cutting tools and mechanical or pneumatic components that can create significant hazards. Operators should be trained and follow the manufacturer's operating instructions.

Depending on the configuration,the machine may incorporate guards,emergency-stop devices,interlocks,and other protective features. Operators should use appropriate personal protective equipment.

Safety devices should never be bypassed. Before maintenance,cleaning,or tool replacement,the machine should be stopped and isolated according to applicable procedures.

New Condition and Industrial Supply

The machine is supplied as new industrial equipment and can be configured according to the customer's production requirements. Buyers should provide details about the material,workpiece dimensions,cutting length,production quantity,and required automation level.

This information helps determine whether an automatic or semi-automatic configuration is more appropriate for the intended application.

OEM,ODM,and Custom Solutions

Different manufacturers may require different cutting capacities,workholding systems,pneumatic functions,feeding methods,and machine layouts.

For OEM and ODM projects,customers can provide drawings,samples,material grades,profile dimensions,required cutting tolerances,and production targets. Based on these requirements,the machine configuration and tooling can be evaluated for the application.

This makes the equipment suitable for both standard industrial production and customized metal-part processing projects.

FAQs
1. What is a pneumatic cutting machine?

A pneumatic cutting machine uses compressed air to actuate selected cutting,clamping,feeding,or positioning functions,depending on its design.

2. Can it cut aluminum?

Yes,compatible configurations can be used for aluminum profiles,parts,and other aluminum components. Proper tooling and clamping are important.

3. Can it cut stainless steel?

Yes,when the machine and cutting tool are configured for the specific stainless steel material and workpiece dimensions.

4. What is the difference between automatic and semi-automatic operation?

Semi-automatic machines normally require more operator involvement for loading and positioning,while automatic configurations can integrate additional feeding,positioning,and repeated cycling functions.

5. Can it process alloy steel?

Potentially,depending on the alloy grade,section size,and cutting-tool configuration. The exact material specification should be confirmed before selection.

6. What metal parts can be cut?

Depending on the machine design,it may process profiles,rods,tubes,extrusions,plates,and other compatible metal components.

7. Is pneumatic clamping available?

Some configurations use pneumatic clamping. The available clamping system depends on the machine model and application.

8. Is it suitable for high-volume production?

Automatic configurations can be suitable for repetitive production. Actual output depends on material size,cut length,feeding,and machine cycle requirements.

9. Does aluminum require a special blade?

Aluminum typically benefits from tooling designed for non-ferrous metal cutting. The correct blade depends on the alloy,profile,and cutting requirements.

10. How do I select the machine?

Provide material type,alloy grade if applicable,workpiece shape,dimensions,wall thickness,required cutting length,production quantity,and desired automation level.

11. Can the machine be customized?

Yes. Feeding,clamping,cutting capacity,pneumatic functions,automation,and machine layout can be discussed according to project requirements.

12. Is the machine supplied new?

Yes,the machine described here is positioned as new-condition industrial equipment. Exact configuration and included components should be confirmed in the quotation.

Why Choose Us
Flexible Automation Options – Automatic and semi-automatic configurations support different production workflows.
Pneumatic Operation – Controlled pneumatic functions can provide repeatable machine movement and workholding.
Multi-Material Capability – Configurations can be evaluated for aluminum,stainless steel,alloys,and other compatible metals.
Stable Workholding – Appropriate clamping helps reduce workpiece movement during cutting.
Industrial Production Design – Suitable for fabrication shops,component manufacturers,and general metalworking applications.
Production Efficiency – Helps reduce repetitive manual cutting operations and streamline material preparation.
Customized Configuration – Cutting capacity,tooling,clamping,feeding,and automation can be adapted to customer requirements.
OEM & ODM Support – Drawings,samples,material specifications,and production targets can be used to develop a suitable cutting solution.
