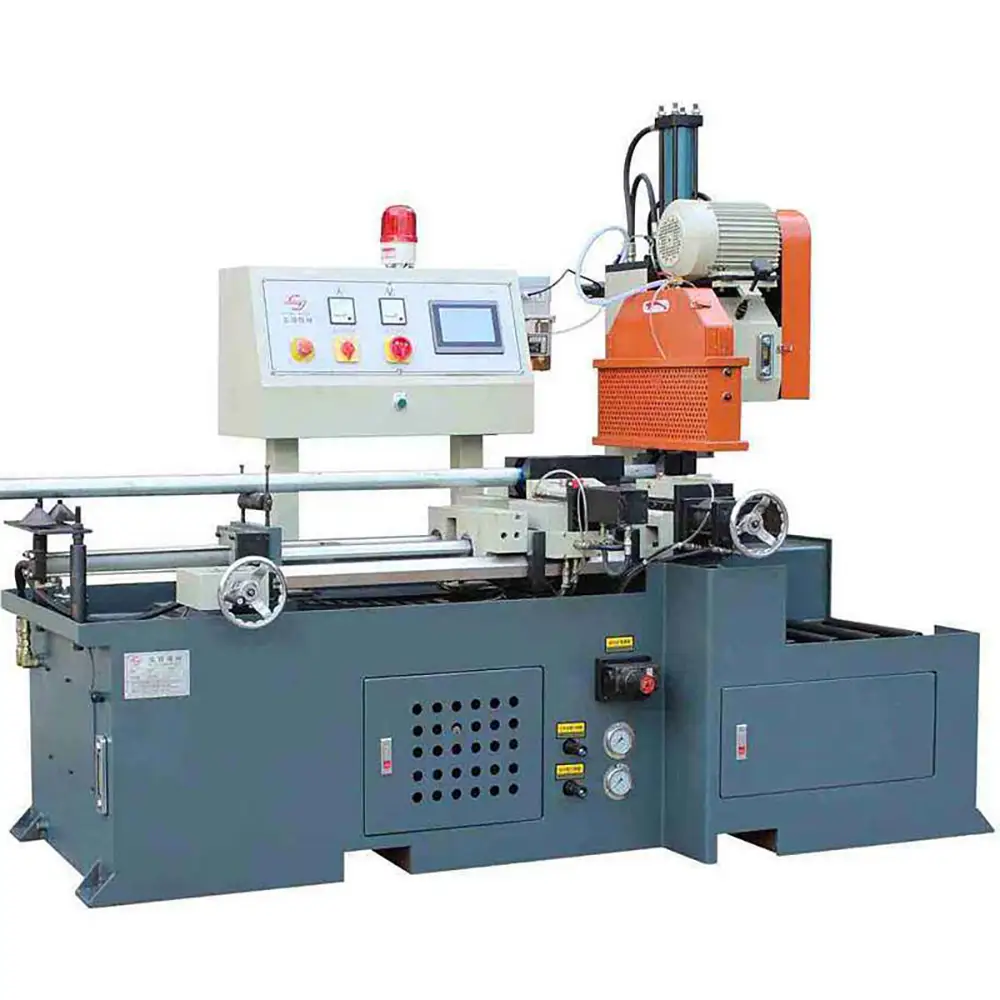

Automatic square and Round Tube Cold Cutting Circular Saw Machine Cnc Metal Tube Cutting Machine

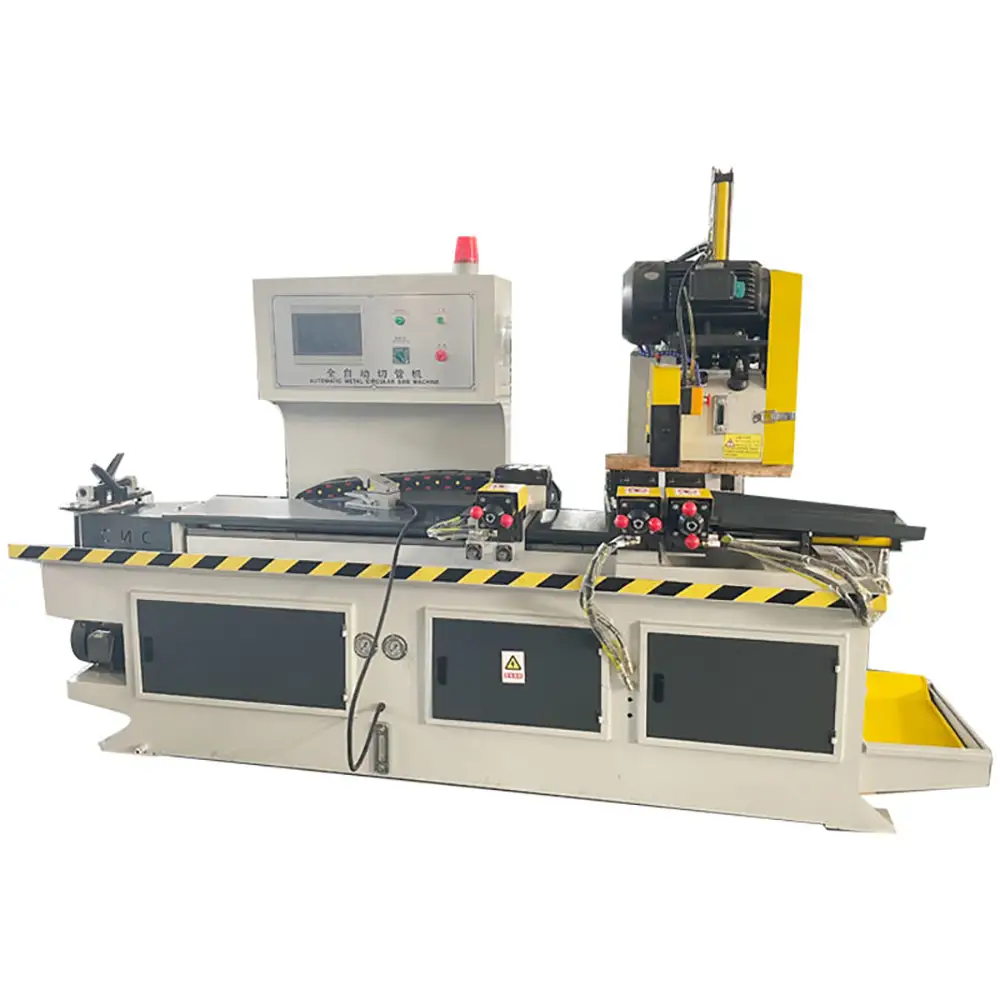

Automatic CNC Tube Cutting Machine for Square and Round Tubes

The Automatic Square and Round Tube Cold Cutting Circular Saw Machine is designed for efficient and repeatable cutting of square tubes, round tubes, and other metal profiles used in industrial manufacturing. Combining automatic feeding, CNC-controlled positioning, and circular saw cutting technology, the machine provides a practical solution for manufacturers that need consistent tube lengths and reliable production performance.

Unlike manual tube cutting equipment, an automatic CNC metal tube cutting machine can reduce repetitive operator work while improving material positioning and cutting consistency. The system can be configured for different tube dimensions, materials, cutting lengths, production volumes, and automation requirements.

Cold cutting with a circular saw is widely used for metal tube processing because it provides controlled cutting with a relatively clean finished edge when the correct blade, cutting parameters, clamping system, and workpiece configuration are used.

The actual cutting capacity and production speed depend on the machine model, tube size, wall thickness, material, saw blade, cutting length, feeding method, and other configuration factors.

model		425cnc
power Mode		Hydraulic
Sawing& cutting capacity	○	φ130
	□	130×130
	┗	130×110
	▭	150×90
	●	φ 76
	■	65×65
Suitable size of saw blade	Saw diameter	φ250-450mm
	Hole diameter	Φ32mm
	pin hole	2XΦ11X65mmPCD
Power of the motor	Main motor	2.4/3kw
	Servo motor	1kw
	Oil pump	2.2kw, 25-35kg/c㎡
	Cooling motor	0.09kw
weight		1400 KG
over size		2950x1550x2100 mm

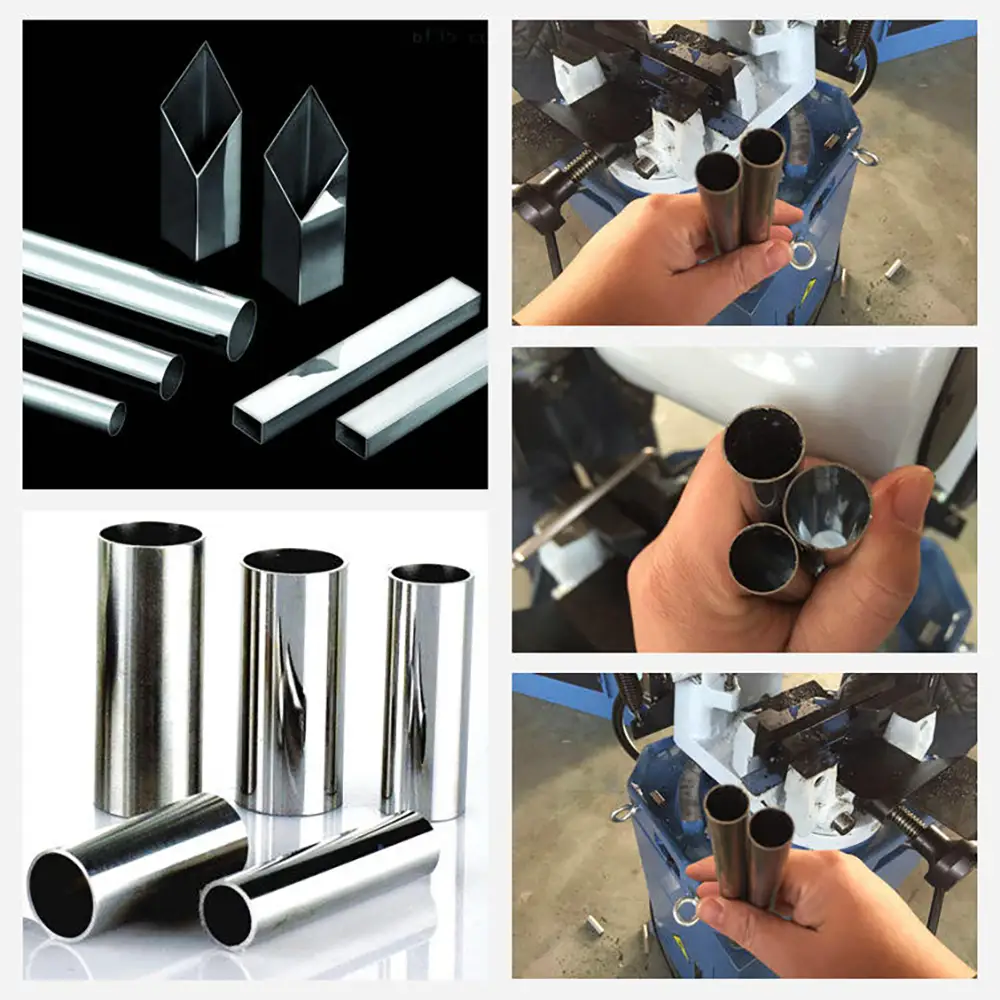

Square and Round Tube Cutting

One of the main advantages of this equipment is its ability to process different tube profiles. Depending on the machine configuration, it can be used for:

Round steel tubes
Square steel tubes
Rectangular tubes
Stainless steel tubes
Carbon steel tubes
Aluminum tubes
Other metal profiles

Square and round tubes have different clamping and cutting characteristics. Round tubes require stable radial positioning, while square and rectangular tubes need appropriate support and alignment to maintain consistent cutting.

The machine's workholding system should therefore be matched to the actual workpiece dimensions. For thin-wall tubes, controlled clamping force is particularly important because excessive pressure can deform the tube before or during cutting.

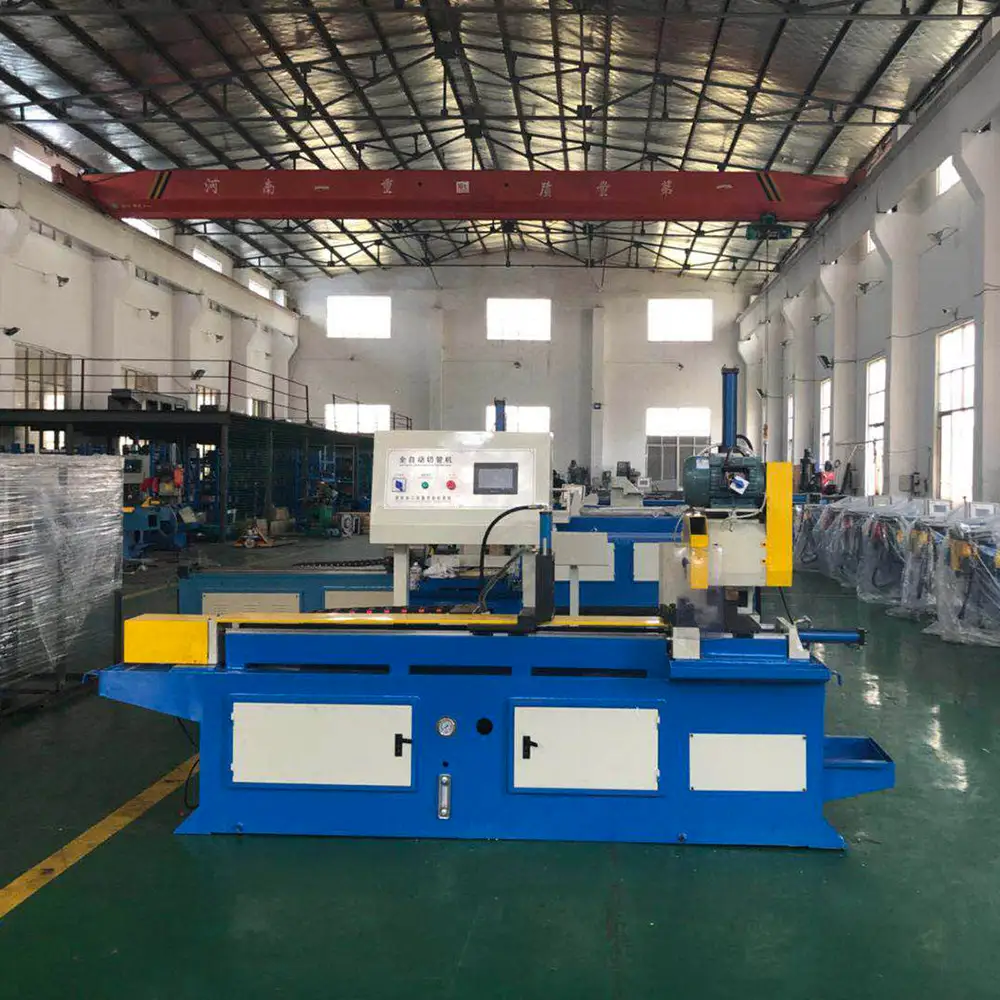

Cold Cutting Circular Saw Technology

The machine uses a rotating circular saw blade to perform cold cutting of metal tubes. The workpiece is positioned and secured before the blade enters the material.

Cold saw cutting can offer advantages for industrial tube processing, including controlled cutting, repeatable dimensions, and reduced thermal influence compared with some thermal cutting methods. The actual surface finish and burr condition depend on the material, blade type, tooth geometry, cutting parameters, machine rigidity, and maintenance condition.

Blade selection is an important part of the cutting process. Different materials require different blade specifications. Carbon steel, stainless steel, aluminum, copper, and other alloys do not necessarily use the same blade or cutting parameters.

For applications requiring a specific finished edge, additional deburring, chamfering, brushing, washing, or end-finishing processes may be integrated after cutting.

CNC Control and Automatic Feeding

The CNC control system can coordinate feeding, positioning, cutting cycles, and other machine functions according to the machine configuration.

Automatic feeding helps reduce manual measurement and repeated positioning operations. A feeding system may use rollers, grippers, servo mechanisms, or other material-handling components depending on the equipment design.

Once the required cutting length and other parameters are established, the machine can perform repeated cutting cycles with consistent positioning.

Automatic operation should not automatically be interpreted as completely unmanned production. Operators may still be required for raw material loading, finished-piece collection, quality inspection, blade replacement, machine setup, and routine maintenance.

Precision and Repeatability

For tube manufacturing and metal fabrication, consistent cutting length is often as important as cutting speed. A CNC-controlled positioning system can help maintain repeatable dimensions during batch production.

Actual cutting accuracy depends on the machine structure, feeding mechanism, positioning system, blade condition, workpiece tolerance, clamping stability, material properties, and production settings.

Before selecting a machine, buyers should specify the required cutting length tolerance and finished-piece requirements. This information allows the feeding and positioning system to be evaluated against the application.

Wide Range of Industrial Applications

Automatic square and round tube cutting machines are used in many manufacturing sectors.

Automotive Manufacturing:
Tube cutting is used for vehicle frames, exhaust components, brackets, structural parts, supports, and other fabricated assemblies.

Steel Furniture:
Round, square, and rectangular tubes can be cut for chairs, tables, shelving, cabinets, storage systems, and commercial furniture.

Construction and Structural Fabrication:
Metal tubes and profiles are commonly used for frames, supports, railings, structural assemblies, and building components.

Machinery Manufacturing:
Cut tubes and profiles can be used to manufacture machine frames, protective structures, brackets, supports, and equipment components.

HVAC and Industrial Equipment:
Metal tubes can be prepared for heat exchangers, equipment frames, piping assemblies, and other fabricated systems.

Electrical and Solar Equipment:
Square and rectangular metal profiles can be used for equipment frames, electrical structures, mounting systems, and solar support components.

Efficient Batch Production

Automatic feeding and CNC positioning make the machine suitable for repetitive production. Instead of manually measuring and cutting every individual tube, the operator can establish the required parameters and allow the automatic cutting cycle to handle repeated workpieces.

Production efficiency depends on tube dimensions, cutting length, material, blade performance, loading method, feeding distance, machine configuration, and operator workflow.

For high-volume manufacturing, additional material handling equipment can be considered, including automatic loading systems, roller conveyors, collection tables, chip management, and downstream deburring equipment.

Workholding and Cutting Stability

Stable clamping helps control vibration and movement during cutting. This is particularly important when processing long tubes, thin-wall tubing, or materials that are susceptible to deformation.

The cutting head, spindle, blade, and workholding system should operate as a coordinated system. Machine rigidity and correct alignment can contribute to stable cutting performance and consistent finished parts.

For round tubes, the clamping system should prevent rotation during cutting. For square and rectangular tubes, the workpiece should be properly aligned to maintain the desired cutting geometry.

Material Compatibility

The machine can be configured for different metal materials depending on the cutting system and blade specification.

Carbon steel is widely used for structural and general fabrication applications. Stainless steel requires suitable cutting tools and parameters because of its material properties. Aluminum and other non-ferrous metals generally require blades and cutting conditions designed for their specific characteristics.

Customers should provide the exact material grade, outside dimensions, wall thickness, and cutting requirements before ordering. This helps determine suitable blades, clamping methods, feeding systems, and machine configuration.

Quality Control and Maintenance

Consistent tube cutting requires regular inspection of the machine and cutting tools. Operators should monitor blade wear, feeding accuracy, clamping condition, machine alignment, lubrication, and coolant or cutting-fluid systems when applicable.

Finished tubes can be inspected for length, perpendicularity, burr level, deformation, surface condition, and dimensional consistency.

Regular cleaning and maintenance can help remove chips and debris from the working area and keep moving components operating properly. Saw blades should be replaced or serviced when cutting performance decreases.

Custom CNC Tube Cutting Solutions

Different factories have different production requirements. The machine can therefore be configured according to the customer's tube sizes, materials, cutting lengths, production volume, and automation level.

Potential customization may include automatic feeding, CNC length positioning, hydraulic or pneumatic clamping, multiple-tube loading, coolant systems, chip collection, safety guarding, conveyors, and integration with other tube-processing equipment.

For OEM and ODM projects, customers can provide drawings, samples, material specifications, cutting-length requirements, and expected production quantities. These details help determine an appropriate machine configuration.

FAQs
1. What tubes can this CNC cutting machine process?

Depending on configuration, it can process round, square, rectangular, and other metal tubes. Exact capacity depends on the machine model.

2. What is cold cutting?

Cold cutting uses a mechanical cutting tool, such as a circular saw blade, rather than a thermal cutting process. It can provide controlled and repeatable tube cutting with limited thermal influence.

3. Can it cut both square and round tubes?

Yes. The machine is designed for square and round tube applications, subject to the specified machine capacity and suitable clamping/tooling.

4. Can it cut stainless steel?

Suitable configurations can cut stainless steel tubes when the correct blade, cutting parameters, and workholding system are selected.

5. Can aluminum tubes be processed?

Yes, depending on the machine configuration. Aluminum requires appropriate blade selection and cutting parameters because its cutting characteristics differ from steel.

6. Is the feeding system automatic?

The machine is designed for automatic feeding according to its configuration. The specific feeding mechanism and automation level should be confirmed for the required application.

7. Is this a CNC tube cutting machine?

Yes. The CNC system can control positioning and cutting operations according to the machine configuration and programmed requirements.

8. Can it cut thin-wall tubes?

It can be configured for thin-wall tube applications, but clamping force, blade selection, support, vibration control, and cutting parameters must be properly matched to prevent deformation.

9. Does the machine produce burrs?

Some burr formation may occur depending on material, blade condition, tooth geometry, cutting parameters, and machine setup. Deburring can be added when the application requires a specific edge condition.

10. Can the cutting length be customized?

Yes. CNC positioning and automatic feeding systems can be configured around the required cutting lengths and production process.

11. Is the machine suitable for mass production?

It is suitable for repetitive and batch tube cutting applications. Actual production capacity depends on tube dimensions, cutting length, material, blade, feeding method, and machine configuration.

12. What information is needed for a machine quotation?

Provide the tube material, shape, outside dimensions, wall thickness, required cutting lengths, tolerance, production quantity, and desired automation level. Drawings or samples are also helpful.

Why Choose Us
CNC-Controlled Cutting – CNC positioning supports consistent and repeatable tube cutting for industrial production.
Square & Round Tube Processing – The equipment can be configured for different tube profiles and dimensions.
Automatic Feeding – Automatic material feeding reduces repetitive manual positioning and improves workflow efficiency.
Cold Circular Sawing – Mechanical circular saw cutting provides a controlled method for processing metal tubes and profiles.
Flexible Material Options – Suitable machine and blade configurations can be developed for steel, stainless steel, aluminum, and other metals.
Production-Oriented Design – Feeding, clamping, positioning, cutting, and material handling can be matched to the customer's manufacturing process.
Customized Equipment – Machine configuration, tooling, feeding systems, electrical specifications, and automation can be customized according to project requirements.
OEM & ODM Support – We support manufacturers, distributors, importers, and industrial buyers with customized tube cutting equipment solutions.
