IC&Uasb Anaerobic Tower/Biogas Plant/Sewage Treatment Project/Anaerobic Reactor

The biodegradation of the IC reactor is divided into two stages. The first reaction zone at the bottom is at high load, and the second reaction zone at the top is at low load. The influent enters the first reaction zone from the bottom and is fully mixed with anaerobic activated sludge. Most of the organic matter is degraded into biogas in this zone, and the generated biogas is collected by the gas collection hood of the three-phase separator and rises along the biogas riser, At the same time as it rises, it also lifts the mixed liquid in the first reaction zone to the gas-liquid separator at the top.

       The biogas is discharged from the top, and the separated mud water mixture returns to the bottom of the first reaction zone along the mud water return pipe. It is fully mixed with the granular sludge and influent at the bottom, achieving internal circulation of the sludge. The result of internal circulation not only makes the first reaction zone have a high microbial biomass, a long sludge age, and a high upflow rate, It is generally 10-20m/h, allowing the granular sludge to fully reach a fluidized state, greatly improving the organic matter degradation rate

The IC&UASB Anaerobic Tower / Biogas Plant / Sewage Treatment Project / Anaerobic Reactor is an industrial wastewater treatment solution designed for suitable organic wastewater, sewage treatment applications, and integrated biogas projects. Based on high-rate anaerobic treatment technology, IC and UASB reactors provide a practical biological treatment approach for wastewater containing biodegradable organic matter.

Anaerobic treatment operates in an oxygen-free environment, where specialized microorganisms break down organic compounds through a series of biological reactions. Under suitable conditions, part of the biodegradable organic matter can be converted into methane-rich biogas. The collected gas can then be conditioned and used for appropriate energy applications.

The IC and UASB anaerobic reactor technologies can be evaluated for food processing, beverage production, fermentation, starch processing, agricultural processing, livestock-related wastewater, and other industrial wastewater streams with suitable biodegradable organic loading.

IC Anaerobic Reactor

The IC Anaerobic Reactor is a high-rate anaerobic treatment system that uses internal circulation to promote contact between wastewater and active anaerobic biomass.

Wastewater enters the reactor and passes through a concentrated biological treatment zone. Biogas generated during anaerobic degradation can contribute to internal circulation and mixing within the reactor. The design allows active microorganisms to be retained while treated water moves toward the outlet.

The actual treatment performance depends on wastewater characteristics, organic loading, temperature, pH, hydraulic conditions, biomass concentration, and other operating parameters. A detailed wastewater analysis is therefore important when selecting an IC reactor.

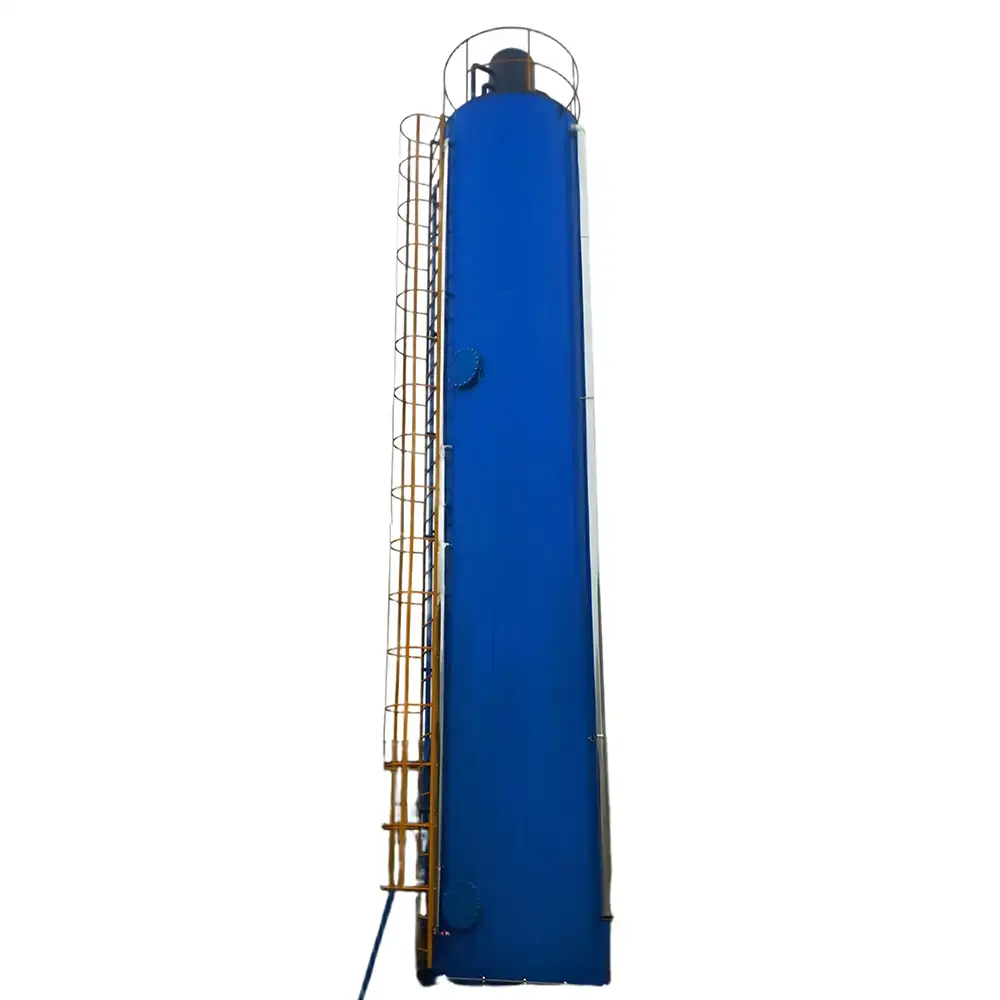

UASB Anaerobic Reactor

The UASB Reactor, or Upflow Anaerobic Sludge Blanket reactor, is a widely used anaerobic wastewater treatment technology.

In a UASB system, wastewater flows upward through an anaerobic sludge blanket containing active microorganisms. Biodegradable organic matter comes into contact with the biomass and is converted through anaerobic biological reactions.

A gas-liquid-solid separation system can help separate treated water, biological solids, and generated biogas. Proper sludge retention and hydraulic distribution are important for maintaining stable operation.

UASB reactors can be incorporated into industrial wastewater treatment plants and sewage treatment projects where anaerobic biological treatment is appropriate.

IC And UASB Anaerobic Tower Selection

IC and UASB reactors use different internal process designs and hydraulic characteristics. The appropriate reactor depends on the wastewater type, organic loading, flow rate, temperature, suspended solids, available installation area, and required treatment process.

IC reactors can be considered where high-rate anaerobic treatment and internal circulation are advantageous. UASB reactors can be suitable for wastewater applications where an anaerobic sludge blanket process provides an appropriate treatment environment.

Project-specific engineering evaluation is recommended rather than selecting a reactor solely according to wastewater volume.

Anaerobic Wastewater Treatment

Anaerobic treatment is particularly relevant for wastewater containing biodegradable organic compounds. Industries such as food processing, beverage manufacturing, breweries, fermentation, starch production, sugar processing, and agricultural processing can generate wastewater with significant organic loads.

Depending on the wastewater characteristics, pretreatment may be required before the anaerobic reactor. Screening, equalization, cooling, pH adjustment, solid-liquid separation, or other conditioning processes can help create more stable influent conditions.

Wastewater containing toxic substances, excessive suspended solids, extreme pH, high salinity, or difficult-to-degrade compounds may require additional treatment or specialized process design.

Biogas Plant Integration

The anaerobic reactor can serve as a core component of an integrated Biogas Plant. Organic wastewater enters the anaerobic treatment system, where microorganisms convert biodegradable organic matter into treated effluent and biogas under suitable conditions.

A complete biogas plant may include wastewater collection, screening, equalization, anaerobic digestion, biogas purification, gas storage, and gas utilization equipment.

Biogas commonly contains methane and carbon dioxide as well as water vapor and other trace components. Hydrogen sulfide and moisture may need to be controlled before the gas is supplied to engines, boilers, or other utilization equipment.

Biogas Recovery And Energy Utilization

One of the important advantages of anaerobic wastewater treatment is the potential recovery of biogas.

The biogas generated during anaerobic digestion can be collected from the reactor and routed to a gas treatment system. Depending on gas composition and intended use, desulfurization, dehydration, filtration, pressure regulation, or other conditioning may be required.

Conditioned biogas can potentially be used for boiler fuel, gas engine power generation, combined heat and power systems, or other suitable applications.

Actual biogas production depends on the biodegradable organic load, wastewater composition, process temperature, biological activity, and reactor operating conditions.

Sewage Treatment Project

The IC&UASB anaerobic reactor can be integrated into suitable Sewage Treatment Projects as an anaerobic biological treatment stage.

For industrial or organic sewage, anaerobic treatment can be combined with aerobic biological treatment and advanced polishing processes. A typical complete treatment system may include screening, equalization, anaerobic treatment, aerobic treatment, clarification, filtration, disinfection, and sludge handling.

The required process sequence depends on the influent wastewater quality and the final treated-water discharge or reuse requirements.

High-Rate Anaerobic Treatment

High-rate anaerobic reactors are designed to maintain a concentrated population of active microorganisms within the reactor. Effective biomass retention can allow suitable organic wastewater to be treated within a relatively compact reactor system.

Stable operation depends on maintaining suitable biological conditions. Operators may need to monitor pH, temperature, alkalinity, organic loading, hydraulic conditions, nutrient balance, gas production, and other process indicators.

Startup and microbial acclimation are also important when commissioning an anaerobic reactor, particularly for industrial wastewater with changing characteristics.

Compact Vertical Tower Configuration

The vertical anaerobic tower configuration makes efficient use of available installation space. This can be beneficial for industrial plants where land is limited or where wastewater treatment equipment needs to be integrated into an existing facility.

The reactor can be installed alongside pretreatment, post-treatment, sludge handling, and biogas processing equipment.

Actual tower height, diameter, working volume, internal components, and installation requirements depend on the treatment capacity and project design.

Reduced Aeration Requirements

Anaerobic biological treatment does not require continuous oxygen supply for the anaerobic reaction itself. This distinguishes it from conventional aerobic treatment systems that rely on mechanical aeration to support microorganisms.

However, anaerobic treatment does not necessarily replace all downstream biological treatment. Depending on the required effluent quality, an aerobic polishing stage or advanced treatment may still be necessary.

Overall energy requirements should therefore be evaluated based on the complete treatment plant, including pumps, pretreatment, post-treatment, sludge management, and biogas conditioning.

Suitable Industrial Applications

The IC&UASB anaerobic reactor can be evaluated for various industrial wastewater applications, including food and beverage plants, breweries, fermentation facilities, starch factories, agricultural processing plants, sugar-related industries, livestock wastewater projects, and other organic wastewater treatment applications.

Different industries produce wastewater with different COD, BOD, suspended solids, pH, temperature, nutrient, and chemical characteristics.

Wastewater testing is recommended to determine biodegradability and identify potential pretreatment requirements before finalizing the reactor configuration.

Complete Anaerobic Treatment Solution

An anaerobic reactor is only one part of a complete wastewater and biogas system. For industrial projects, supporting equipment can include influent screening, equalization tanks, feed pumps, pH control, heat exchange or cooling equipment, biogas purification, gas storage, sludge handling, and downstream wastewater treatment.

The complete process should be designed around the customer's treatment objectives and operating conditions.

This integrated approach allows the anaerobic reactor to function as part of a broader wastewater treatment and resource recovery system.

B2B Project-Based Configuration

Industrial wastewater treatment projects vary in capacity, wastewater composition, installation environment, discharge requirements, and biogas utilization objectives.

Customers can provide daily and peak wastewater flow, COD, BOD, suspended solids, pH, temperature, wastewater source, available land, discharge requirements, and desired treatment process.

For biogas projects, information about gas utilization, such as boiler fuel or power generation, can also help determine the appropriate gas purification and storage configuration.

Based on these technical details, the IC or UASB anaerobic reactor and supporting equipment can be evaluated for the project.

Key Features
IC High-Rate Anaerobic Reactor Technology
UASB Anaerobic Sludge Blanket Technology
Vertical Anaerobic Tower Design
Industrial Anaerobic Wastewater Treatment
Suitable For Biodegradable Organic Wastewater
Potential Biogas Recovery
Compact Treatment Footprint
Reduced Aeration Requirement In Anaerobic Stage
Flexible Biogas Plant Integration
Suitable For Sewage Treatment Projects
Project-Based Treatment Configuration
Main Applications

The IC&UASB Anaerobic Tower can be considered for:

Industrial Wastewater Treatment
Sewage Treatment Projects
Biogas Plants
Food Processing Wastewater
Beverage Industry Wastewater
Brewery Wastewater
Fermentation Wastewater
Starch Processing Wastewater
Agricultural Wastewater
Livestock Wastewater
High-Organic-Load Wastewater
Anaerobic Biogas Recovery Projects
FAQs
1. What Is An IC Anaerobic Reactor?

An IC anaerobic reactor is a high-rate anaerobic wastewater treatment system that uses internal circulation and active anaerobic biomass to treat suitable biodegradable organic wastewater.

2. What Does UASB Mean?

UASB means Upflow Anaerobic Sludge Blanket. It is an anaerobic biological treatment process in which wastewater flows upward through an active sludge blanket.

3. What Is An Anaerobic Tower?

An anaerobic tower is a vertical reactor used for anaerobic biological treatment. Its vertical configuration can provide a compact solution for suitable industrial wastewater treatment applications.

4. What Is The Difference Between IC And UASB?

Both technologies use anaerobic microorganisms to treat biodegradable organic matter, but their internal hydraulic circulation and reactor designs are different. Selection depends on wastewater characteristics and project requirements.

5. Can The Reactor Be Used In A Biogas Plant?

Yes. An IC or UASB reactor can function as a major biological treatment component in a biogas plant, with generated biogas collected and treated for suitable utilization.

6. What Wastewater Is Suitable For Anaerobic Treatment?

Suitable wastewater may include food, beverage, fermentation, starch, agricultural, livestock, and other biodegradable organic wastewater. Actual suitability should be confirmed through wastewater analysis.

7. Can It Be Used For A Sewage Treatment Project?

Yes. The anaerobic reactor can be integrated into suitable sewage treatment projects together with pretreatment, aerobic treatment, clarification, filtration, disinfection, and sludge management.

8. Does The Anaerobic Reactor Need Aeration?

No continuous aeration is required for the anaerobic biological reaction itself. However, additional aerobic treatment may be required depending on the final effluent quality requirements.

9. Does The Biogas Need Purification?

Depending on gas composition and the intended application, biogas may require desulfurization, dehydration, filtration, or other conditioning before use.

10. What Information Is Needed For Reactor Selection?

Important information includes wastewater flow, COD, BOD, suspended solids, pH, temperature, wastewater source, biodegradability, treatment objectives, available space, and required effluent quality.

Why Choose Us
IC And UASB Reactor Technology

We provide anaerobic reactor solutions based on IC and UASB technologies for suitable industrial wastewater, sewage treatment, and biogas applications.

Application-Based Process Selection

IC and UASB systems have different process characteristics. We evaluate wastewater quality, organic loading, hydraulic conditions, site requirements, and treatment objectives when recommending a suitable configuration.

Integrated Biogas Solutions

For projects with biogas recovery requirements, the anaerobic reactor can be integrated with gas purification, dehydration, storage, and energy utilization equipment.

Complete Wastewater Treatment Integration

The anaerobic tower can be combined with screening, equalization, pH adjustment, aerobic treatment, clarification, filtration, disinfection, and sludge treatment equipment.

Factory-Direct B2B Cooperation

We support industrial companies, wastewater treatment contractors, engineering firms, distributors, and international project customers with technical communication and equipment configuration.

Project Engineering Support

Customers can provide wastewater analysis, flow data, site information, and treatment objectives for project evaluation and development of an appropriate anaerobic treatment solution.
