Anaerobic Tower/Corrosion Resistance/Weather Resistance /IC&Uasb Can Be Customized/Reactor

UASB reactor, also known as upflow anaerobic sludge bed. The operating principle is that sewage enters the bottom sludge layer and the upper middle sludge suspension layer through a water distribution device, and reacts with anaerobic microorganisms to generate biogas. The gas, liquid, and solid mixture is separated through the upper three-phase separator, and the sludge returns to the sludge flotation zone. The separated sewage is discharged into the system, while the biogas produced by the anaerobic reactor is recovered. An anaerobic nitrification device that combines the sludge zone at the bottom and the three-phase separation zone of gas, liquid, and solid in the middle and upper parts.

The Anaerobic Tower / Corrosion Resistance / Weather Resistance / IC&UASB Can Be Customized / Reactor is an industrial anaerobic wastewater treatment solution designed for suitable organic wastewater, sewage treatment, and biogas recovery applications. The reactor can be configured around IC or UASB anaerobic treatment principles according to wastewater characteristics, treatment capacity, installation conditions, and project requirements.

Anaerobic reactors provide biological treatment in an oxygen-free environment. Specialized microorganisms break down biodegradable organic matter through a series of biological reactions, with methane-rich biogas potentially generated during the process. The treated wastewater can then proceed to downstream biological or advanced treatment stages according to the required effluent quality.

For outdoor industrial wastewater treatment projects, reactor material selection and protective design are important considerations. A corrosion-resistant and weather-resistant configuration can help the equipment withstand the environmental conditions associated with outdoor installation, while the actual material and coating selection should be determined according to wastewater chemistry and local climate.

PH	6--8	B\C	≥0.3
Inflow suspended solids	≤1500mg\L	Influent ammonia nitrogen concentration	≤2000mg/L
Effective water depth	5-8m	COD concentration of influent water	≥1500mg/L
Effective water depth	<0.8m/h	UASB sludge yield	0.05-0.10kgVSS/kgCOD
Total depth of sedimentation zone	≥1.0m	Sedimentation zone surface load	≤0.8m
The distance between the perforated water pipe and the pool bottom	200mm	Outlet weir load	6.12m/(h·m)
Use for	Mineral, Printing, Chemical, Dyeing, Starch	Certificate	SGS, ISO

Corrosion Resistant Anaerobic Tower

Industrial wastewater can contain substances that influence equipment corrosion, including organic acids, salts, dissolved gases, chemicals, and other process-related compounds. Selecting appropriate construction materials and protective systems is therefore important when designing an anaerobic reactor.

The anaerobic tower can be configured with materials, coatings, liners, or other protective measures appropriate for the intended application. The specific corrosion protection approach should be selected according to wastewater composition, pH, temperature, chemical exposure, and operating conditions.

Corrosion resistance is not determined by the reactor structure alone. Internal components, pipelines, valves, gas collection systems, fasteners, and other wetted parts may also require appropriate material selection.

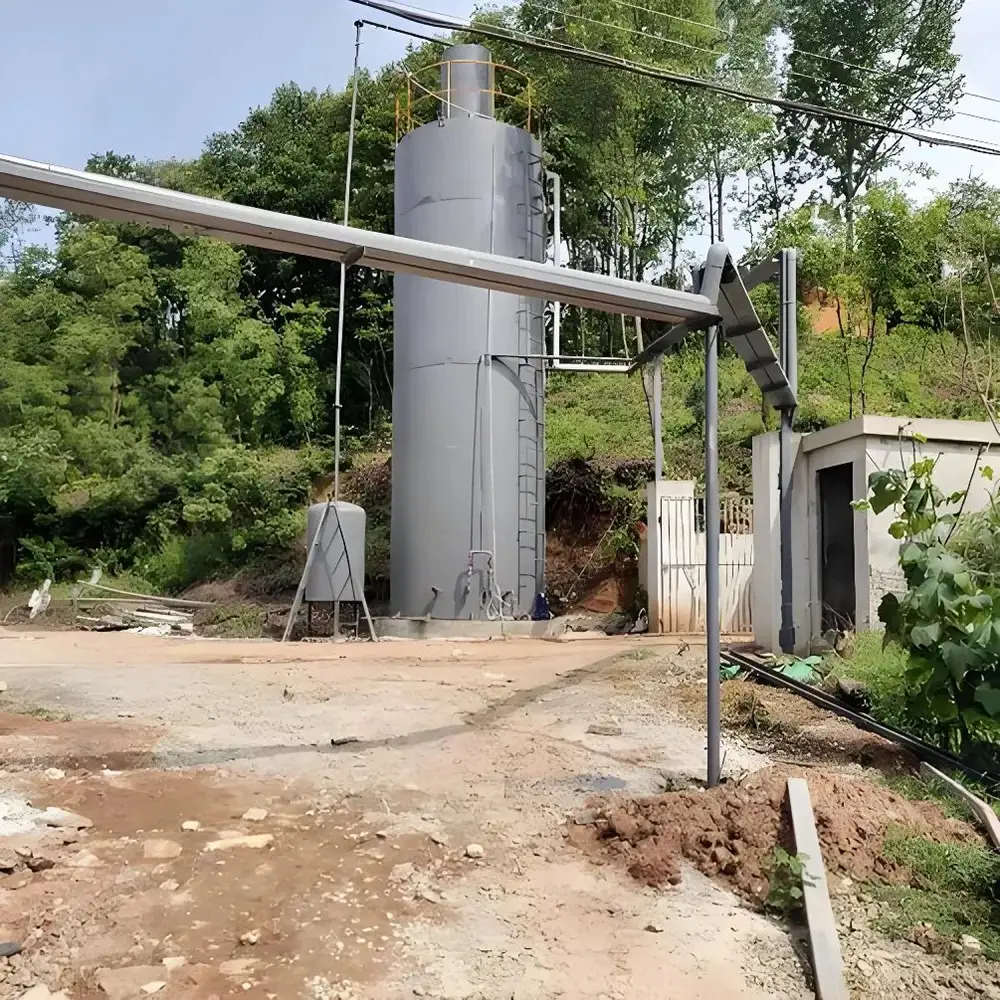

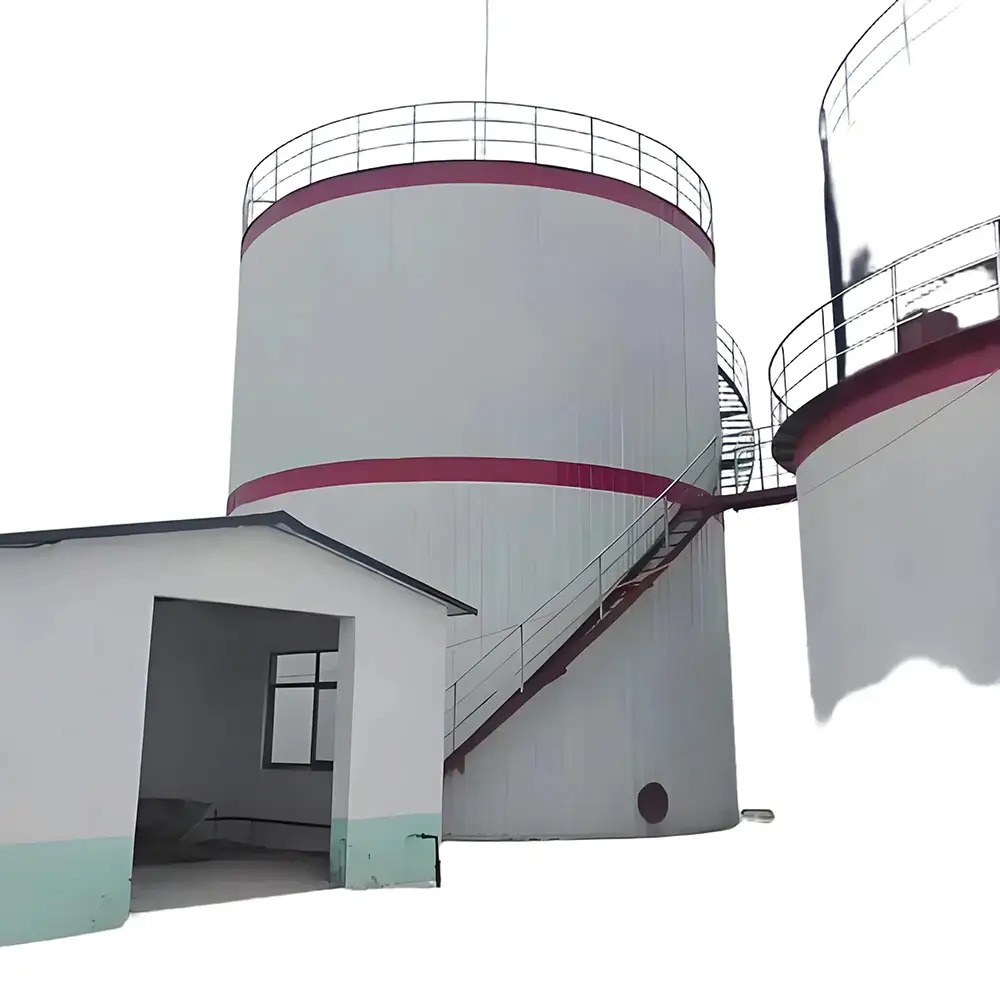

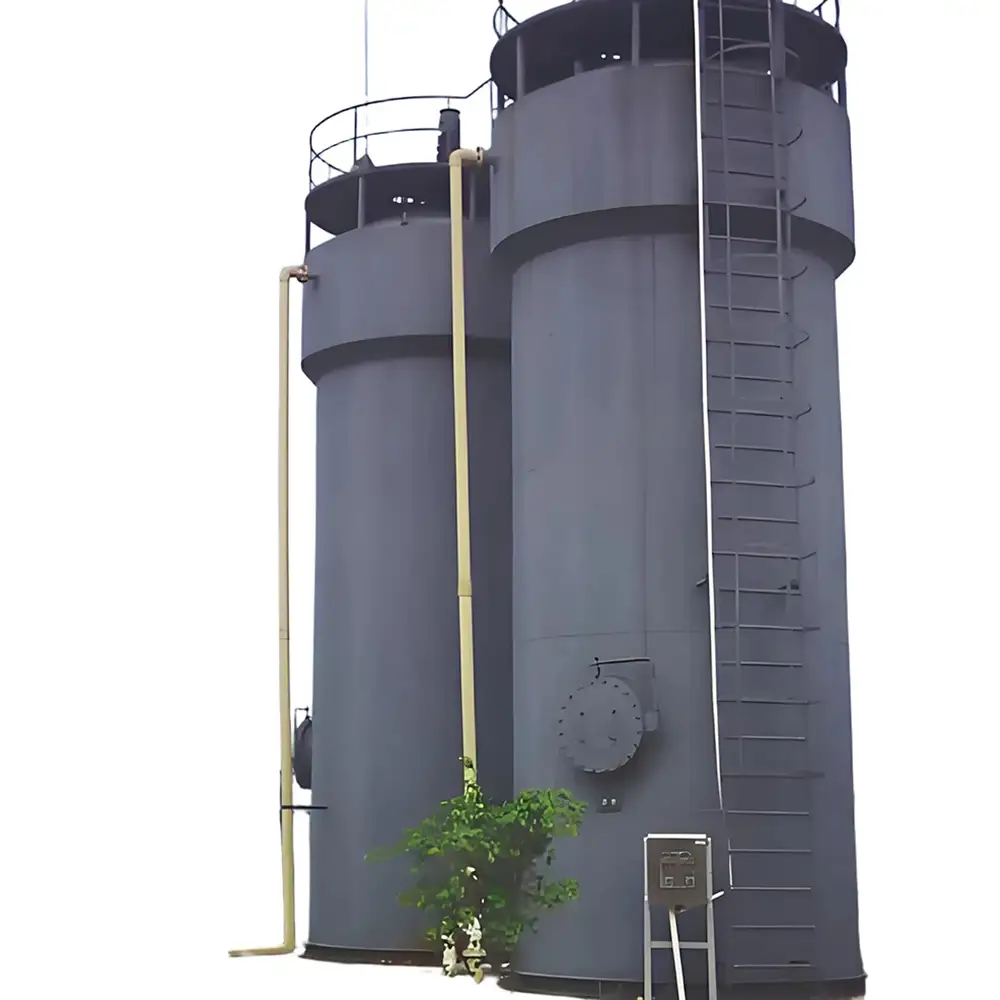

Weather Resistant Design For Outdoor Installation

Anaerobic treatment towers are often installed outdoors as part of industrial wastewater treatment or biogas projects. Outdoor equipment can be exposed to sunlight, rain, humidity, temperature fluctuations, wind, and other environmental conditions.

A weather-resistant equipment configuration can help protect suitable external components from normal environmental exposure. Depending on the project, protective coatings, corrosion-resistant materials, weatherproof electrical enclosures, insulation, drainage arrangements, and other design measures can be considered.

The appropriate outdoor protection level depends on the local climate and installation environment.

IC Anaerobic Reactor Configuration

The IC Anaerobic Reactor is a high-rate anaerobic treatment technology that uses internal circulation to promote contact between wastewater and active anaerobic biomass.

Wastewater passes through the biological treatment zones while biogas generation can contribute to hydraulic circulation within the reactor. The process is designed to maintain active biomass and support biological degradation of suitable organic compounds.

IC technology can be considered for industrial wastewater with appropriate biodegradable organic loading. Actual treatment performance depends on COD composition, biodegradability, temperature, pH, hydraulic conditions, biomass activity, and other process parameters.

UASB Anaerobic Reactor Configuration

The UASB Reactor, or Upflow Anaerobic Sludge Blanket reactor, uses an anaerobic sludge blanket containing active microorganisms to treat suitable wastewater.

Wastewater flows upward through the biological treatment zone, allowing biodegradable organic compounds to come into contact with the microorganisms. A gas-liquid-solid separation system can help separate treated water, biological solids, and biogas.

UASB technology can be considered for a wide range of industrial wastewater applications where an anaerobic sludge blanket process is suitable.

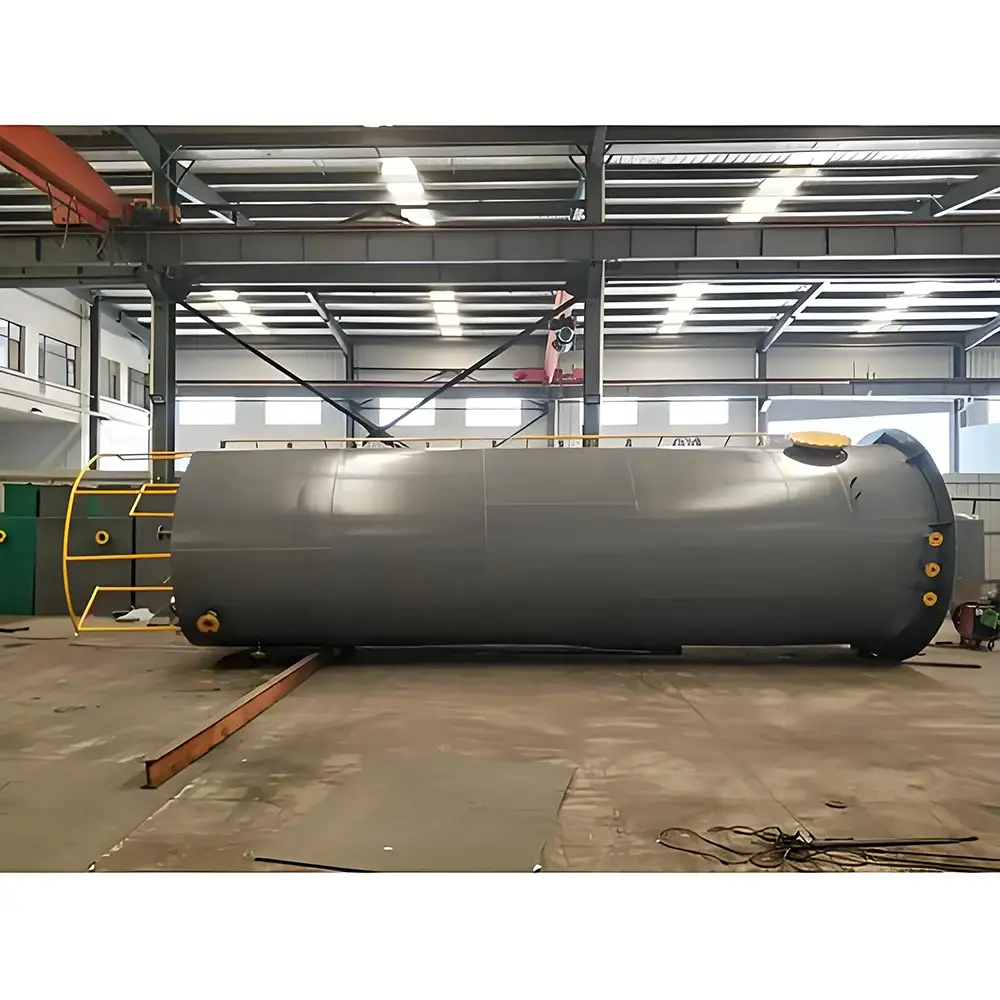

Customizable Anaerobic Reactor

Different industrial wastewater projects have different requirements. The anaerobic tower can therefore be evaluated and configured according to the customer's actual application.

Potential customization areas include reactor dimensions, working volume, internal distribution systems, gas collection components, inlet and outlet arrangements, access structures, external protective systems, insulation, monitoring instruments, and supporting equipment.

For IC or UASB applications, internal hydraulic and biomass-management components should be selected according to the intended process design.

Industrial Wastewater Treatment

The anaerobic tower can be evaluated for suitable high-organic-load industrial wastewater. Potential applications include food processing, beverage manufacturing, brewery wastewater, fermentation wastewater, starch processing, sugar-related wastewater, agricultural processing, and other biodegradable industrial wastewater streams.

Industrial wastewater characteristics can vary significantly. COD, BOD, suspended solids, pH, temperature, salinity, nutrient concentration, toxic compounds, and biodegradability all influence anaerobic treatment suitability.

Pretreatment may be required for wastewater containing excessive solids, fats, chemicals, or other substances that could interfere with stable biological operation.

Anaerobic Treatment And Biogas Recovery

Anaerobic biological treatment can provide both wastewater treatment and potential biogas recovery. During anaerobic digestion, biodegradable organic matter is progressively converted into simpler compounds, with methane produced during the final biological stages under suitable conditions.

The generated biogas can be collected from the reactor and directed to a purification or conditioning system.

Depending on gas composition and intended use, biogas may require hydrogen sulfide removal, dehydration, filtration, pressure control, or other treatment before being supplied to boilers, gas engines, CHP systems, or other utilization equipment.

High-Rate Anaerobic Treatment

High-rate anaerobic reactors are designed to retain a concentrated population of active microorganisms while allowing wastewater to pass through the treatment zone.

Maintaining suitable biomass concentration and biological activity is important for stable treatment. Process conditions such as pH, temperature, alkalinity, organic loading, hydraulic conditions, nutrient balance, and gas production should be monitored during operation.

The reactor configuration should be selected according to actual wastewater conditions rather than relying only on nominal wastewater flow.

Compact Vertical Reactor Structure

The vertical tower design can make efficient use of available installation space. This can be useful for industrial facilities where land is limited or where a wastewater treatment system needs to be integrated into an existing plant.

A compact vertical reactor can be combined with pretreatment and downstream treatment equipment without requiring the entire treatment system to occupy a large horizontal area.

The final tower dimensions and structural configuration depend on treatment capacity, process design, site conditions, and applicable engineering requirements.

Suitable Outdoor Industrial Applications

The corrosion-resistant and weather-resistant reactor concept can be considered for outdoor industrial wastewater treatment projects where equipment is exposed to environmental conditions.

Potential applications include food factories, beverage plants, agricultural processing facilities, fermentation plants, livestock wastewater projects, organic wastewater treatment facilities, and integrated biogas projects.

The actual material selection should always consider both wastewater chemistry and local environmental conditions.

Complete Wastewater Treatment Integration

The anaerobic tower can operate as part of a complete industrial wastewater treatment plant. A typical treatment process may include screening, equalization, solid-liquid separation, pH adjustment, anaerobic treatment, aerobic polishing, clarification, filtration, disinfection, and sludge treatment.

The exact process depends on influent wastewater characteristics and final discharge or reuse requirements.

For biogas projects, additional systems may include gas purification, dehydration, gas storage, pressure regulation, and energy utilization.

Corrosion Protection And Maintenance

Even corrosion-resistant equipment requires appropriate maintenance. Operators should periodically inspect external surfaces, internal components, pipe connections, valves, gas collection systems, protective coatings, and other critical parts.

Cleaning and inspection intervals should be established according to wastewater characteristics and operating conditions.

For aggressive wastewater environments, material compatibility should be reviewed during the equipment selection stage to reduce potential maintenance issues during long-term operation.

Customized B2B Project Solutions

Industrial customers may require different reactor sizes, materials, protection levels, automation systems, and auxiliary equipment.

Customers can provide wastewater flow, COD, BOD, suspended solids, pH, temperature, wastewater source, installation location, climate conditions, treatment objectives, and available space.

For biogas applications, the intended gas utilization method can also be provided. This information helps determine appropriate gas purification, storage, and utilization equipment.

Based on these technical requirements, a suitable IC or UASB anaerobic reactor configuration can be evaluated for the project.

Key Features
Corrosion Resistant Anaerobic Tower Configuration
Weather Resistant Outdoor Installation Options
IC High-Rate Anaerobic Reactor Technology
UASB Anaerobic Sludge Blanket Technology
Customizable Reactor Configuration
Suitable For Industrial Organic Wastewater
Potential Biogas Recovery
Compact Vertical Tower Design
Flexible Pretreatment And Post-Treatment Integration
Suitable For Outdoor Wastewater Treatment Projects
Project-Based Material And Equipment Selection
Main Applications

The Anaerobic Tower can be considered for:

Industrial Wastewater Treatment
Anaerobic Sewage Treatment
Biogas Projects
Food Processing Wastewater
Beverage Industry Wastewater
Brewery Wastewater
Fermentation Wastewater
Agricultural Wastewater
Livestock Wastewater
Organic Wastewater Treatment
High-Organic-Load Wastewater
Outdoor Anaerobic Treatment Plants
FAQs
1. What Is A Corrosion Resistant Anaerobic Tower?

It is an anaerobic wastewater treatment reactor configured with suitable materials, coatings, liners, or protective measures to address corrosion risks associated with the wastewater and operating environment.

2. Is The Anaerobic Tower Suitable For Outdoor Installation?

Yes. The tower can be configured for outdoor installation, with appropriate weather protection and material selection based on the local climate and project environment.

3. Can The Reactor Use IC Technology?

Yes. The reactor can be configured around IC high-rate anaerobic treatment principles when the wastewater and project conditions are suitable.

4. Can It Use UASB Technology?

Yes. UASB configuration can be evaluated for suitable industrial wastewater applications where an upflow anaerobic sludge blanket process is appropriate.

5. Can The Anaerobic Reactor Be Customized?

Yes. Reactor dimensions, internal components, materials, protective systems, gas collection components, instrumentation, and supporting equipment can be evaluated according to project requirements.

6. What Wastewater Can The Reactor Treat?

Potential applications include food, beverage, fermentation, agricultural, livestock, starch, sugar, and other biodegradable industrial wastewater. Actual suitability depends on wastewater analysis.

7. Can The Reactor Produce Biogas?

Anaerobic treatment can generate biogas when suitable biodegradable organic matter is present. Actual gas production and composition depend on wastewater characteristics and operating conditions.

8. How Is Corrosion Protection Selected?

Material and protective system selection depends on wastewater pH, chemical composition, temperature, salinity, dissolved gases, operating conditions, and environmental exposure.

9. Does The Reactor Require Pretreatment?

Some wastewater streams require screening, equalization, solid-liquid separation, pH adjustment, cooling, or other pretreatment before anaerobic treatment. The requirements depend on the wastewater characteristics.

10. What Information Is Needed For A Customized Reactor?

Customers should provide wastewater flow, COD, BOD, suspended solids, pH, temperature, wastewater source, installation environment, treatment objectives, available space, and desired biogas utilization.

Why Choose Us
Corrosion Protection Consideration

We evaluate wastewater chemistry and operating conditions when recommending suitable reactor materials, coatings, liners, and protective components for industrial applications.

IC And UASB Technology

We support anaerobic reactor configurations based on IC and UASB technologies for suitable industrial wastewater and biogas treatment applications.

Weather Resistant Outdoor Solutions

For outdoor projects, equipment configuration can be evaluated according to local climate, installation environment, external exposure, and required protection measures.

Flexible Customization

Reactor dimensions, internal structures, gas collection systems, protective materials, instrumentation, and supporting equipment can be evaluated according to the customer's project.

Factory-Direct  Cooperation

We support industrial plants, engineering companies, wastewater treatment contractors, distributors, and international project customers with technical communication and equipment configuration.

Integrated Biogas And Wastewater Solutions

The anaerobic reactor can be integrated with wastewater pretreatment, downstream treatment, biogas purification, gas storage, sludge management, and energy utilization equipment.
