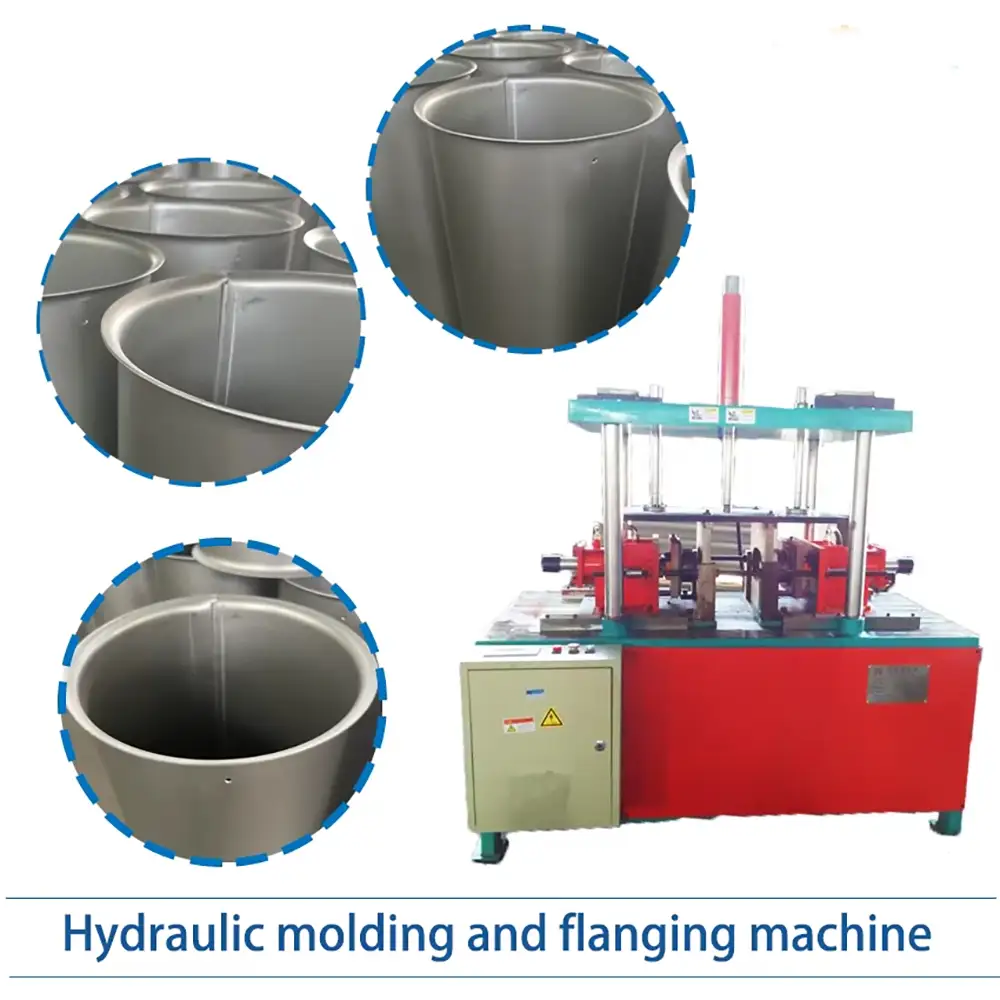

Hydraulic Muffler End Flanging Forming Machine Motorcycle Car Exhaust Silencer Molding Flanging Manufacturing Machines

Professional Muffler Forming Solution: Designed for exhaust muffler and silencer production, supporting flanging, expanding, reducing, and forming in one machine.

Powerful Hydraulic System:

Stable hydraulic pressure ensures smooth and precise forming without pipe deformation or wrinkling.
High Compatibility: Suitable for various pipe materials such as stainless steel, iron, and aluminum, and for different shapes like round, oval, and special pipes.
Custom Mold Available: Molds can be tailored to different muffler end shapes and production requirements, perfect for automotive exhaust manufacturing lines.
Durable & Easy Operation: Heavy-duty structure with user-friendly control panel for efficient and reliable long-term operation.
The electrical components utilised in the equipment are of the Chint brand. The main unit is equipped with a power motor rated at 5.5 kW.
This apparatus incorporates multiple protective features, including foot-operated switches for electrical controls and an emergency stop button.
All control circuits are fitted with overload and circuit-breaking protection.
Automated operation is achieved through a PLC controller.

The positioning mechanism possesses sufficient structural integrity, ensuring precise and reliable positioning whilst facilitating maintenance.

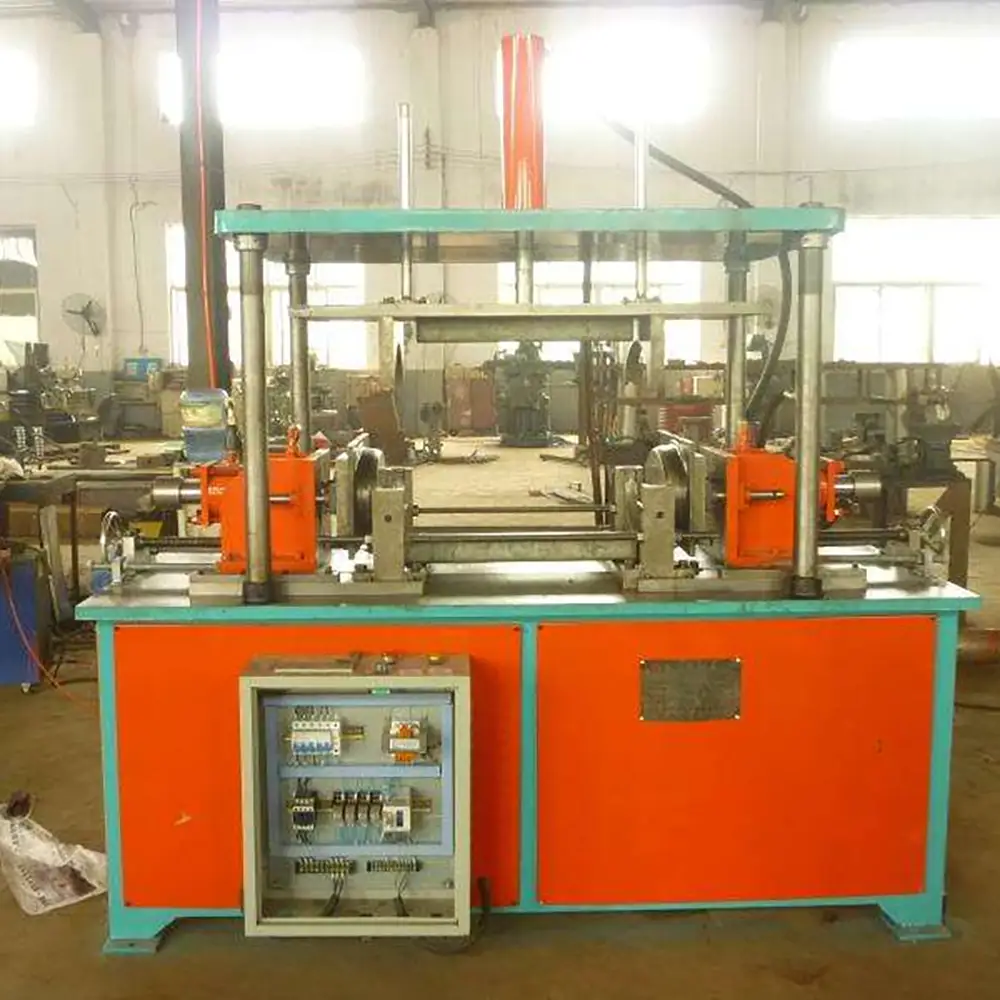

Hydraulic Muffler End Flanging Forming Machine for Exhaust Silencer Manufacturing

The Hydraulic Muffler End Flanging Forming Machine is designed for manufacturers producing motorcycle mufflers,car exhaust silencers,automotive exhaust components,and other cylindrical metal exhaust products. The machine uses hydraulic forming force to shape the end of a suitable muffler shell and create a controlled flange or formed edge for subsequent assembly and welding operations.

Muffler manufacturing requires accurate forming because the shell ends must often match other exhaust components during assembly. A dedicated end flanging machine can help standardize the forming process and reduce variation associated with manual forming.

The machine can be configured for different muffler diameters,end profiles,material thicknesses,and flange geometries according to the customer's product requirements. Actual forming force,workpiece size,cycle time,and production capacity depend on the specific machine design,hydraulic system,tooling,and workpiece characteristics.

Hydraulic Muffler End Forming

Hydraulic forming uses controlled pressure to apply force to the metal workpiece through specially designed tooling. In muffler manufacturing,this force can be used to form the end of a cylindrical shell into the required profile.

The hydraulic system can provide a controlled forming movement,which is useful when processing metal components that require repeatable deformation.

The required forming force depends on several factors,including:

Material Type

Material Thickness

Muffler Diameter

End Profile

Flange Dimensions

Forming Depth

Tooling Design

For new muffler products,testing representative samples is recommended to determine the appropriate tooling and forming parameters.

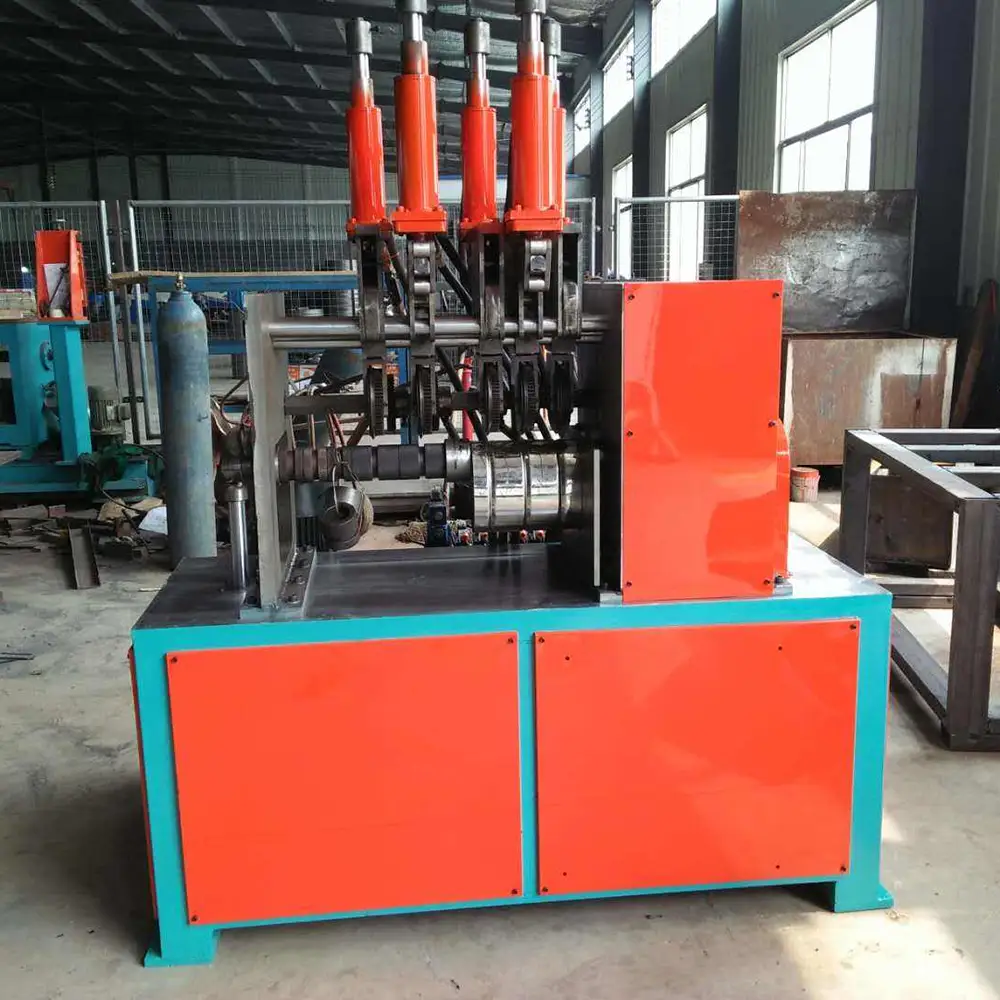

Muffler End Flanging Process

End flanging is a forming operation that creates a lip,edge,or flange around the end of a cylindrical metal component.

For exhaust mufflers,the formed end may provide a connection surface for another shell section,internal component,cover,or exhaust assembly part.

A typical operation may include positioning the muffler shell,aligning it with the forming die,clamping the workpiece,and activating the hydraulic forming cycle. The tooling then shapes the metal into the required end profile.

The exact process depends on the machine configuration and muffler design.

Proper alignment is important because an incorrectly positioned shell can produce an uneven flange or inconsistent end geometry.

Motorcycle Exhaust Silencer Manufacturing

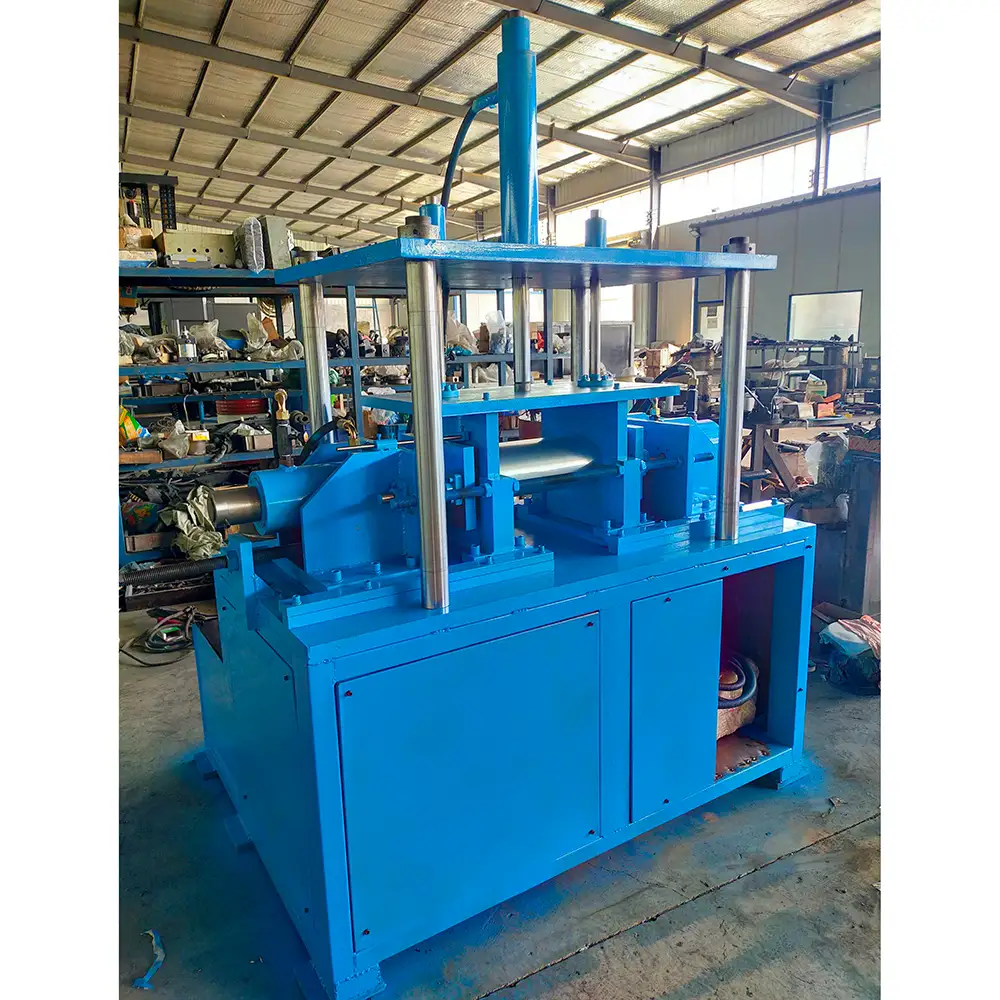

Motorcycle exhaust systems often use relatively compact cylindrical mufflers with different shell lengths,diameters,and end configurations.

The hydraulic muffler forming machine can be configured for suitable motorcycle exhaust silencer components where the workpiece dimensions are within the machine's operating range.

Potential motorcycle applications include:

Motorcycle Muffler Shells

Motorcycle Silencers

Exhaust Canisters

Motorcycle Exhaust Components

Performance Exhaust Components

Custom Motorcycle Exhaust Parts

Different motorcycle models may use different muffler dimensions and end profiles. Dedicated tooling can therefore be developed for specific product designs.

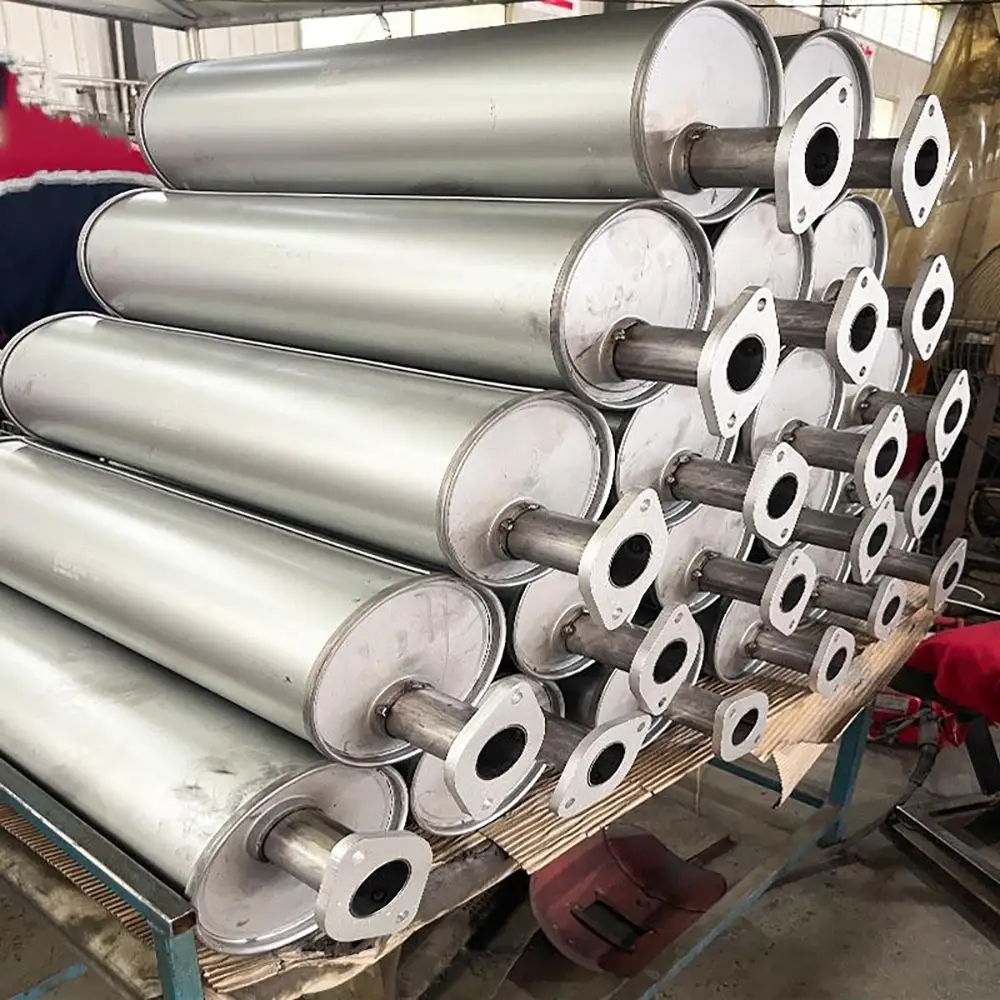

Car Exhaust Muffler Manufacturing

The machine can also be used for suitable automotive exhaust mufflers and silencer components.

Car exhaust systems can contain mufflers,resonators,pipe sections,and other formed metal components. Depending on the product design,the muffler shell may require end forming or flanging before final assembly.

The machine can support production workflows involving:

Car Muffler Shells

Automotive Silencers

Exhaust Resonators

Muffler End Covers

Exhaust System Components

Automotive Exhaust Parts

The actual application depends on the workpiece dimensions,material,and forming requirements.

Muffler Molding and Forming

The terms molding,forming,and flanging may describe different stages of metal shaping depending on the muffler manufacturing process.

In this machine application,forming refers to controlled deformation of the metal workpiece through dedicated tooling. Flanging specifically creates a defined edge or flange profile.

The tooling can be designed around the required final geometry. Depending on the product,the process may involve radial forming,axial forming,edge flanging,or other specialized end-forming methods.

Customers should provide technical drawings or samples when a specific muffler profile needs to be reproduced.

Custom Forming Dies

Forming dies are critical components because they determine the final shape of the muffler end.

Custom dies can be designed according to:

Muffler Diameter

Shell Diameter

Material Thickness

Flange Width

Flange Depth

End Shape

Forming Angle

Connection Profile

For manufacturers producing several exhaust models,interchangeable tooling can be considered where supported by the machine design.

Customers can provide 2D drawings,3D CAD files,samples,or finished muffler dimensions to support tooling development.

Suitable Exhaust Materials

The machine can be configured for suitable metal materials commonly used in exhaust manufacturing.

Typical materials may include:

Stainless Steel

Carbon Steel

Mild Steel

Aluminized Steel

Other Compatible Sheet Metal

Stainless steel exhaust components may require different forming parameters from mild steel because of differences in strength,ductility,and springback.

Material thickness also affects the required hydraulic forming force and tooling design.

For new material grades or unusual geometries,production trials can help verify forming quality before full-scale manufacturing.

Controlled Hydraulic Forming

Hydraulic operation allows the forming cycle to be controlled according to the machine configuration.

Controlled movement can help operators achieve more consistent forming results than completely manual methods.

However,final dimensional consistency depends on the entire production system,including hydraulic stability,tooling precision,workpiece positioning,material consistency,and operator setup.

For high-volume production,the machine can be combined with suitable feeding,clamping,and material-handling equipment where required.

Production Efficiency

A dedicated muffler end flanging machine can reduce repetitive manual forming operations and help organize the exhaust manufacturing workflow.

For repeated products,the same tooling and forming procedure can be used across production batches. This can help reduce setup variation and simplify quality control.

Actual production output depends on the complete cycle,including workpiece loading,alignment,clamping,forming,unloading,and tooling changes.

Manufacturers should evaluate productivity based on the complete production process rather than hydraulic power alone.

Flange Quality and Dimensional Control

Muffler end dimensions are important because the formed component may need to connect with other exhaust parts.

Quality inspection can include:

Flange Diameter

Flange Width

Forming Depth

End Roundness

Overall Length

Workpiece Alignment

Surface Condition

First-piece inspection is recommended when changing tooling or introducing a new muffler model.

Regular dimensional checks can also help identify tooling wear or changes in forming conditions.

Where required,the completed exhaust assembly may undergo additional welding inspection or leak testing after subsequent production processes.

Applications for Automotive and Motorcycle Exhaust

The hydraulic muffler end flanging machine can be used by a wide range of manufacturers,including:

Automotive Exhaust Manufacturers

Motorcycle Exhaust Manufacturers

Muffler Factories

Silencer Manufacturers

Automotive Parts Suppliers

Motorcycle Parts Suppliers

Exhaust System Fabricators

Custom Exhaust Manufacturers

Metal Fabrication Companies

OEM Exhaust Component Manufacturers

It can be used for standard replacement components as well as customized exhaust products.

Maintenance and Safety

Routine maintenance should include inspection of the hydraulic oil,hoses,fittings,cylinders,pump system,forming dies,fixtures,and electrical components according to the manufacturer's recommendations.

Forming dies should be kept clean and inspected for wear. Damaged tooling can affect flange geometry and workpiece quality.

Operators should receive appropriate training before operating the equipment. The working area should remain clear and suitable protective measures should be used.

Emergency stops,guards,electrical protection,and other safety features depend on the actual machine configuration and should be checked according to applicable requirements.

Custom & OEM Manufacturing Solutions

Exhaust manufacturers often have different muffler sizes,materials,and end profiles. A standard machine configuration may therefore require customized tooling or workholding.

OEM and ODM solutions can include custom forming dies,fixtures,hydraulic configurations,workpiece positioning systems,control functions,and production-line integration.

For an accurate machine proposal,customers should provide muffler diameter,length,material type,material thickness,end profile,flange dimensions,production volume,and drawings or samples.

This information helps determine the appropriate machine and tooling configuration.

Why Choose Us

Hydraulic End Flanging — Controlled hydraulic forming supports repeatable muffler and exhaust end processing.

Motorcycle & Car Applications — Designed for suitable motorcycle mufflers,car silencers,resonators,and related exhaust components.

Dedicated Forming Tooling — Custom dies can be developed for different muffler diameters,end profiles,and flange geometries.

Flexible Material Processing — Suitable configurations can support stainless steel,carbon steel,mild steel,aluminized steel,and other compatible materials.

Repeatable Manufacturing — Dedicated forming procedures can help reduce variation between production workpieces.

Production Line Integration — The machine can be used as a standalone workstation or incorporated into an exhaust manufacturing process.

Custom & OEM Support — Machine configuration,tooling,and fixtures can be developed according to customer drawings and samples.

B2B Industrial Supply — Suitable for exhaust manufacturers,automotive suppliers,motorcycle parts factories,distributors,and international industrial buyers.

FAQs

1. What is a hydraulic muffler end flanging machine?

It is a hydraulic metal forming machine designed to shape the end of a suitable muffler shell and create a defined flange or formed edge.

2. What is muffler end flanging used for?

It creates a controlled edge or connection surface that can be used during muffler assembly,welding,or connection with other exhaust components.

3. Can it process motorcycle exhaust silencers?

Yes. The machine can be configured for suitable motorcycle muffler and silencer components according to their dimensions and forming requirements.

4. Can it process car mufflers?

Yes. Suitable automotive muffler shells,silencers,resonators,and related components can be processed when their dimensions fall within the machine's forming range.

5. What materials can be formed?

Depending on the configuration,the machine can process suitable stainless steel,carbon steel,mild steel,aluminized steel,and other compatible metals.

6. Can custom forming dies be supplied?

Yes. Custom dies can be developed according to muffler diameter,flange dimensions,end profile,material thickness,and other product requirements.

7. Is the machine fully automatic?

Not necessarily. The operating method depends on the specific configuration. Manual,semi-automatic,and automated options may be available.

8. What affects the required hydraulic forming force?

Material strength,material thickness,muffler diameter,forming depth,flange geometry,and tooling design all influence the required forming force.

9. Can one machine produce different muffler sizes?

Different sizes may be processed with suitable tooling and fixtures. The practical size range depends on the machine structure and configuration.

10. How can muffler forming quality be controlled?

Important factors include workpiece alignment,tooling accuracy,hydraulic stability,material consistency,forming parameters,and dimensional inspection.

11. Can the machine be used for custom exhaust products?

Yes. Custom tooling and machine configurations can be developed for specific muffler and exhaust component designs.
