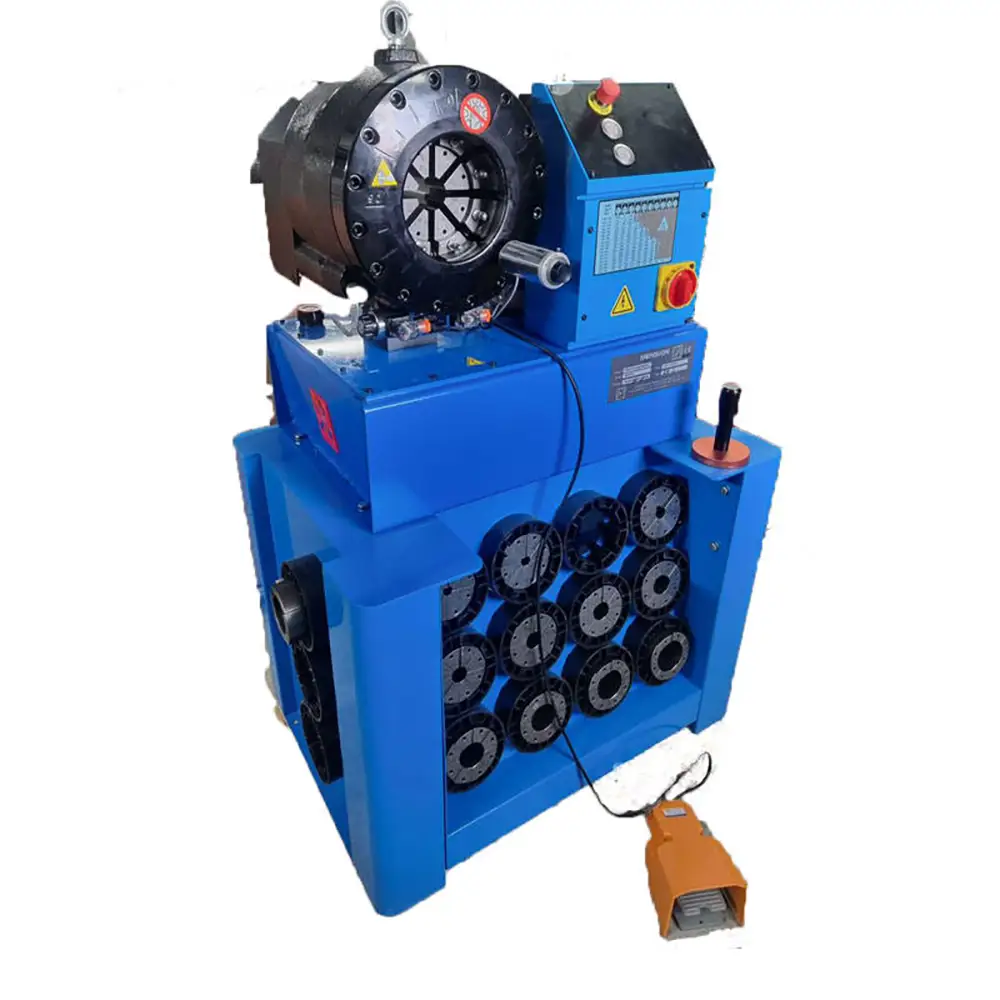

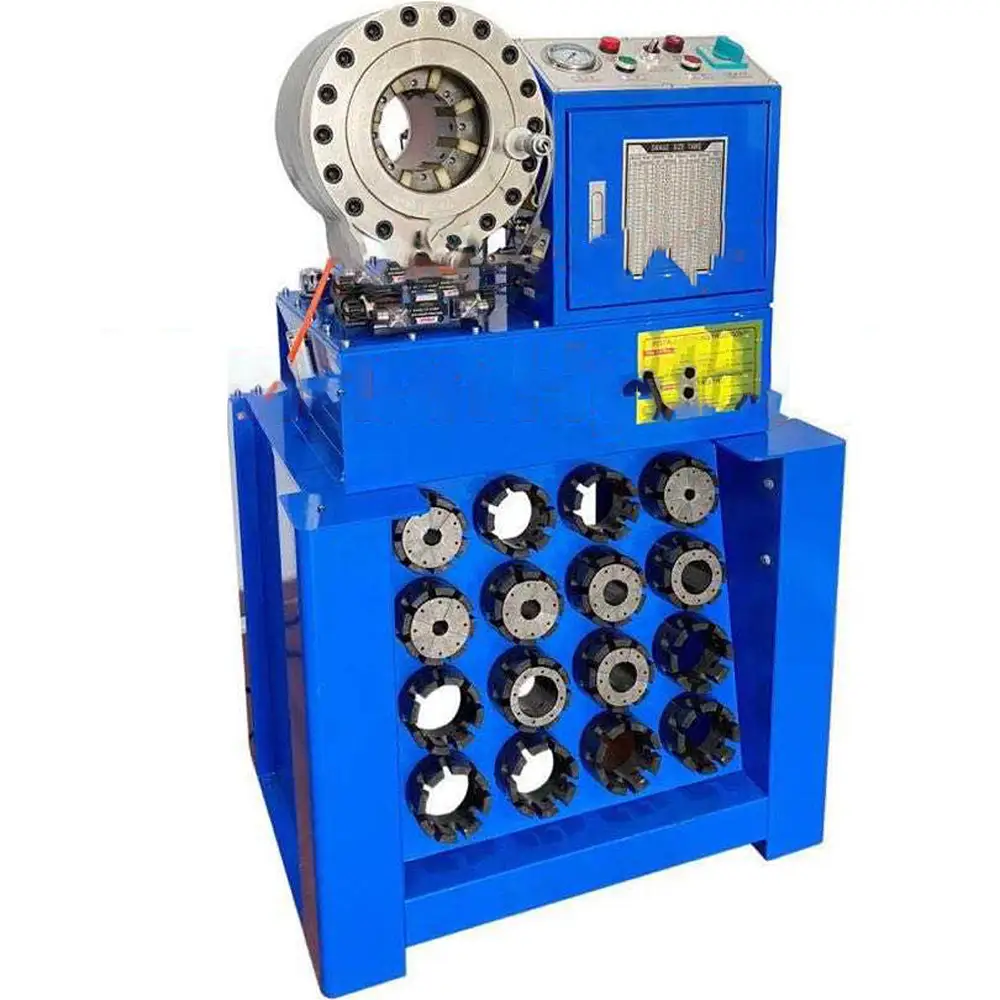

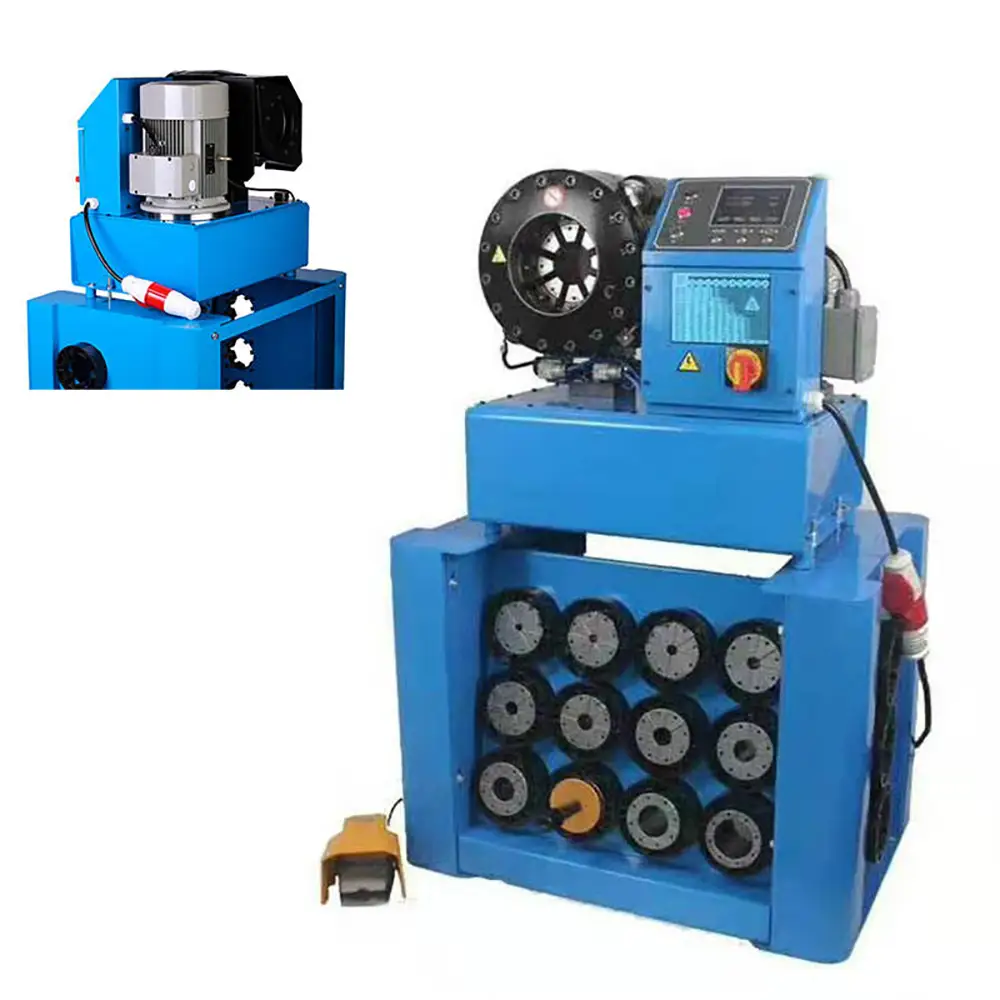

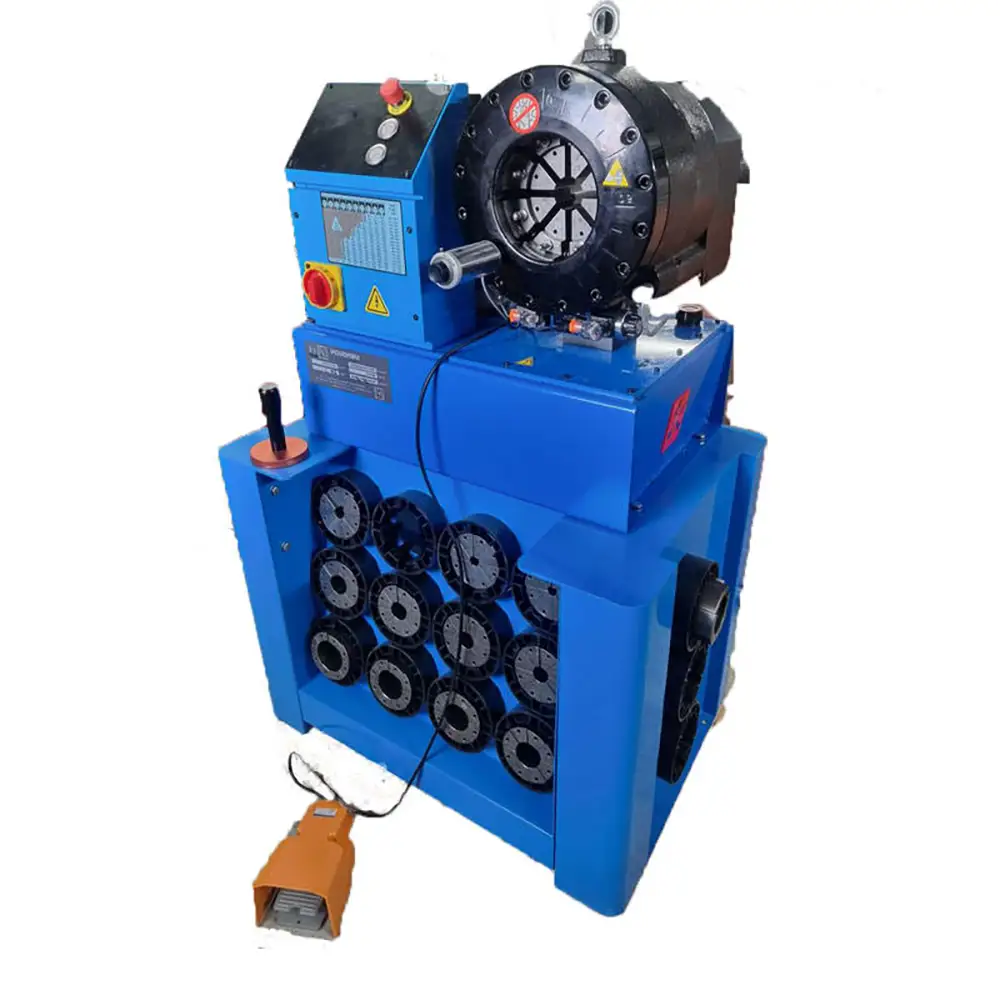

Hydraulic Hose Crimping Machine for PVC Rubber Hose Hose Pressing End Forming PVC

Hydraulic Hose Crimping Machine for PVC and Rubber Hose

The Hydraulic Hose Crimping Machine is designed for controlled crimping,pressing,and end forming of suitable PVC,rubber,and other flexible hoses. It provides a practical solution for manufacturers and hose assembly businesses that need to secure hose ends to fittings,connectors,and other components.

Hose crimping is an important process in the production of hydraulic hoses,industrial hoses,automotive hoses,air hoses,water hoses,and other flexible hose assemblies. A properly controlled crimping process can help establish a secure connection between the hose and fitting while providing consistent finished dimensions.

The hydraulic system generates controlled forming force through a crimping die assembly. The hose and fitting are positioned inside the tooling,and the dies move inward to compress the hose around the fitting according to the selected process parameters.

Actual hose diameter,material compatibility,crimping force,and finished dimensions depend on the machine configuration,die set,hose construction,fitting design,and application requirements.

Hydraulic Hose Crimping Technology

Hydraulic crimping uses hydraulic pressure to generate the force required to compress the hose and fitting assembly.

Compared with manual pressing methods,hydraulic operation can provide more controlled and repeatable forming force. This makes it suitable for production environments where multiple hose assemblies need to be processed with consistent results.

The crimping dies are normally selected according to the hose and fitting dimensions. Different hose sizes may require different die sets.

For manufacturers processing multiple hose specifications,interchangeable dies can provide greater flexibility.

The correct crimping diameter should be determined according to the hose and fitting manufacturer's specifications rather than using a universal setting.

PVC Hose Crimping Applications

PVC hoses are widely used in water handling,air transfer,agricultural equipment,industrial machinery,and general fluid applications.

Depending on the hose construction and fitting type,the machine can be configured for suitable PVC hose crimping or pressing applications.

Typical PVC hose applications may include:

Water hoses

Air hoses

Agricultural hoses

Industrial PVC tubing

Pneumatic hose assemblies

Equipment connection hoses

General-purpose flexible hoses

PVC has different forming characteristics from rubber and reinforced hydraulic hose. Tooling and crimping parameters should therefore be selected according to the actual hose construction.

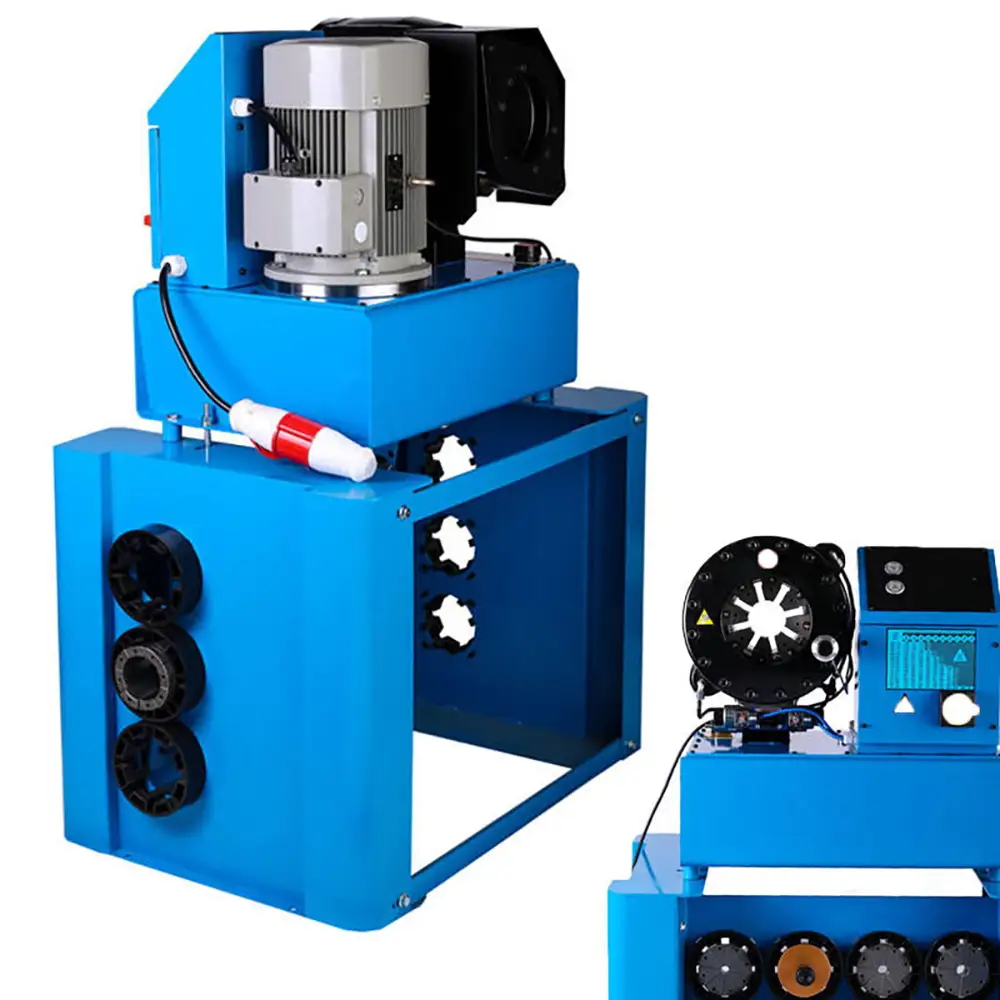

Rubber Hose Crimping

Rubber hoses are commonly used in hydraulic,automotive,industrial,and machinery applications.

The machine can be configured for suitable rubber hose assemblies when the hose structure and fitting are compatible with the selected crimping system.

Rubber hoses may contain textile or wire reinforcement,depending on their pressure rating and intended application.

The required crimping process depends on:

Hose material

Reinforcement type

Hose inner diameter

Hose outer diameter

Fitting design

Fitting material

Required crimp diameter

Application pressure

Customers should provide hose samples or technical specifications when selecting the machine for specialized rubber hose production.

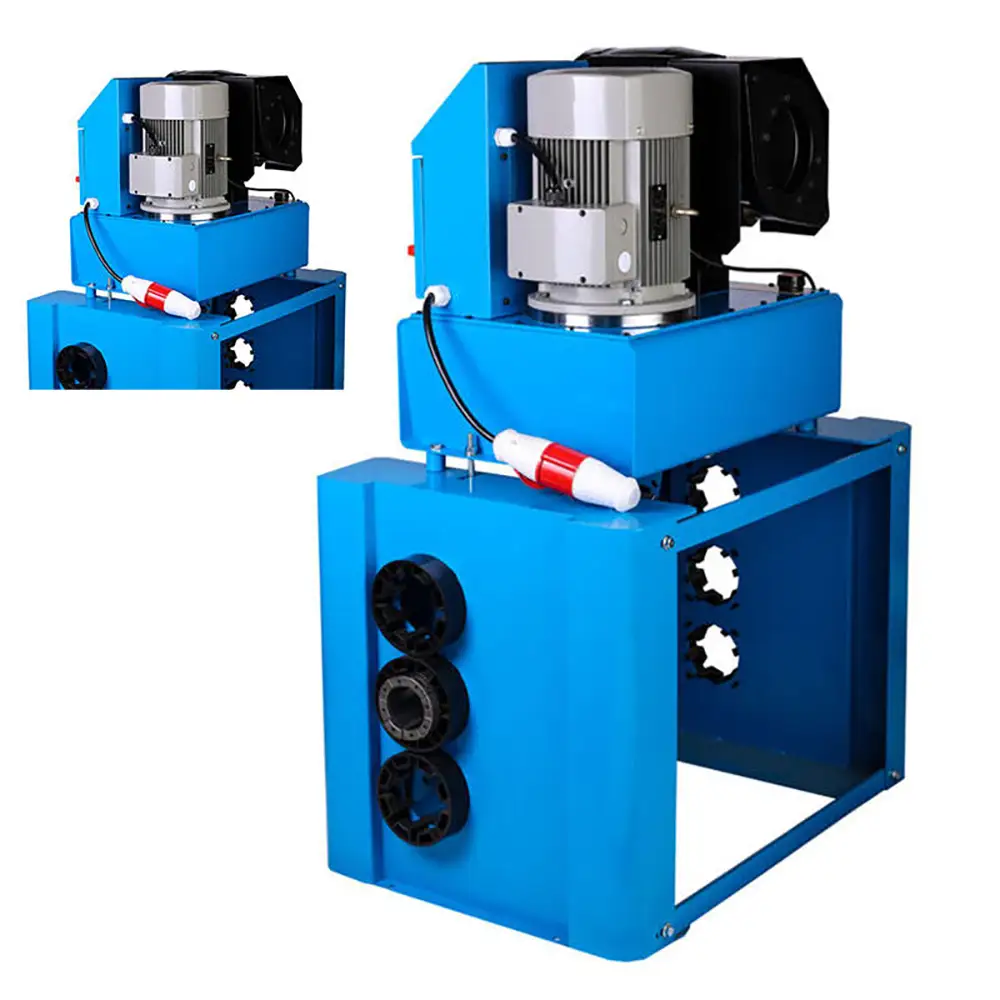

Hose Pressing and End Forming

Hose pressing and hose end forming are related processes used to prepare hose ends for assembly with fittings or connectors.

Depending on the tooling,the machine may perform controlled compression around the hose end or fitting. In some applications,end forming can help establish the required connection geometry before additional assembly operations.

The actual forming method depends on the hose construction and fitting design.

For certain applications,the process may include positioning the fitting inside the hose before crimping. The dies then compress the hose and fitting together to create the required connection.

Proper positioning is important because incorrect insertion depth or alignment can affect the finished assembly.

Hose Assembly Applications

Hydraulic hose crimping machines are widely used in hose assembly operations.

Potential applications include:

Hydraulic hose assemblies

Industrial hose assemblies

Pneumatic hoses

Automotive hoses

Construction equipment hoses

Agricultural machinery hoses

Mining equipment hoses

Air compressor hoses

Water delivery hoses

General machinery hose connections

The machine can function as part of a complete hose assembly workflow that may include hose cutting,skiving,fitting insertion,crimping,cleaning,testing,and final inspection.

Hose Crimping Dies

The die set is a critical component of a hydraulic hose crimping machine.

Different hose diameters and fitting types generally require corresponding die dimensions. The correct die should provide controlled compression without damaging the hose or fitting.

Depending on the machine design,quick-change or interchangeable die systems may be available.

For manufacturers producing multiple hose sizes,this can make the machine more flexible.

Custom dies may also be developed for special hose constructions,non-standard fittings,or specific finished dimensions.

Customers should provide hose specifications and fitting drawings when requesting custom tooling.

Crimping Quality and Consistency

Crimping quality depends on more than hydraulic pressure alone.

Important factors include:

Hose material

Hose construction

Hose diameter

Fitting geometry

Die size

Crimp diameter

Crimping force

Hose insertion depth

Die alignment

Tooling condition

A properly established crimping process should produce a secure connection while maintaining the required hose and fitting geometry.

For critical hydraulic applications,finished assemblies should be inspected and tested according to the applicable hose and fitting requirements.

Production Efficiency

Hydraulic hose crimping equipment can help manufacturers reduce manual pressing work and improve production consistency.

Once the correct die and process parameters have been established,operators can repeat similar crimping cycles for the same hose and fitting combination.

Actual production output depends on hose size,crimping cycle,loading and unloading time,die changes,operator workflow,and machine configuration.

For high-volume hose assembly,the machine can be integrated into a production line with automatic hose cutting,marking,testing,and other equipment.

Suitable Hose Materials

The machine can potentially be configured for several flexible hose materials,including:

PVC

Rubber

Thermoplastic hose

Reinforced rubber hose

Hydraulic hose

Industrial composite hose

Other compatible flexible tubing

Not every hose type is suitable for every crimping method. Hose construction,reinforcement,and fitting design must be evaluated before selecting the machine.

For thermoplastic and PVC hoses,the appropriate forming temperature and tooling requirements may differ from those used for rubber hydraulic hoses.

Sample testing is recommended for non-standard hose applications.

Industrial and Automotive Applications

Hose assemblies are used across many industries.

The machine may be suitable for manufacturers serving:

Hydraulic equipment

Construction machinery

Agricultural machinery

Automotive components

Industrial equipment

Pneumatic systems

Mining machinery

Marine equipment

Fluid handling systems

General machinery manufacturing

For automotive applications,the specific hose construction and fitting system should be confirmed before production.

Maintenance and Safety

Routine maintenance is important for stable hydraulic crimping performance.

Operators should inspect hydraulic oil,hoses,fittings,pumps,cylinders,die sets,and electrical components according to the manufacturer's maintenance recommendations.

Crimping dies should be kept clean and inspected for wear. Damaged or worn dies may affect crimp dimensions and connection quality.

During operation,operators should keep hands away from the moving die area and follow appropriate machine safety procedures.

Emergency-stop functions,guards,and other safety features depend on the machine configuration.

Custom and OEM Hose Crimping Solutions

Hose manufacturers and distributors may require different crimping ranges,die sets,control systems,and machine configurations.

OEM and ODM solutions can therefore be developed according to customer requirements.

Possible customization may include:

Custom die sets

Multiple hose size ranges

Hydraulic system configuration

Semi-automatic operation

Automatic positioning

Digital control

Hose support fixtures

Special fitting tooling

Customized worktables

Customers can provide hose samples,fitting drawings,outer diameters,inner diameters,material specifications,and required crimp dimensions for evaluation.

This allows the manufacturer to recommend a suitable hose crimping configuration.

Why Choose Us

Hydraulic Crimping Force — Provides controlled mechanical force for suitable PVC,rubber,and flexible hose assembly applications.

PVC & Rubber Hose Applications — Designed for processing compatible hose materials used in industrial and fluid-handling applications.

Hose Pressing & End Forming — Supports controlled pressing and end-forming operations according to the selected tooling.

Interchangeable Die Options — Different hose sizes can be accommodated with suitable die sets when supported by the machine configuration.

Consistent Production — Repeatable hydraulic forming can help improve consistency across similar hose assemblies.

Wide Industrial Applications — Suitable for hydraulic,automotive,agricultural,construction,pneumatic,and general industrial hose assembly.

Custom Tooling Support — Special dies and fixtures can be developed for non-standard hoses and fittings.

OEM & ODM Service — Machine configuration and tooling can be customized according to customer hose specifications,drawings,and production requirements.

FAQs

1. What is a hydraulic hose crimping machine?

A hydraulic hose crimping machine uses hydraulic force to compress a hose and fitting assembly with suitable dies to create a controlled crimped connection.

2. Can it crimp PVC hoses?

Yes,when the PVC hose construction,fitting,and tooling are compatible with the machine's crimping process.

3. Can it crimp rubber hoses?

Yes. Suitable rubber hoses can be processed when the hose construction and fitting are matched to the machine and die set.

4. Can it process hydraulic hoses?

Yes,provided the machine is configured for the specific hydraulic hose construction,diameter,fitting,and required crimping specification.

5. What is hose end forming?

Hose end forming refers to shaping or compressing a hose end or hose-and-fitting assembly to achieve the required connection geometry.

6. How do I select the correct crimping die?

The die should be selected according to the hose outside diameter,fitting design,required crimp diameter,and manufacturer's specifications.

7. Can one machine process different hose sizes?

Potentially. Machines with interchangeable die sets can process multiple hose sizes within their designed operating range.

8. Can it be used for automotive hoses?

Yes. Suitable automotive hose assemblies can be processed when the hose material,fitting,and machine tooling are compatible.

9. What materials can the machine process?

Depending on the configuration,it may process PVC,rubber,thermoplastic,and other compatible flexible hose materials.

10. What affects crimping quality?

Hose material,reinforcement,fitting design,die size,crimp diameter,hydraulic force,insertion depth,and tooling condition all affect the finished crimp.

11. Can custom tooling be supplied?

Yes. Custom crimping dies,fixtures,and fitting tools can be developed according to customer hose and fitting specifications.

12. What information is needed for a quotation?

Provide hose material,inner diameter,outer diameter,wall thickness,reinforcement type,fitting dimensions,required crimp diameter,and production volume. Samples or drawings are also helpful.
