Spiral Roller Grooving Machine for Sheet Metal Pipe Making Featuring Automation Gearbox for Stainless Steel Aluminum

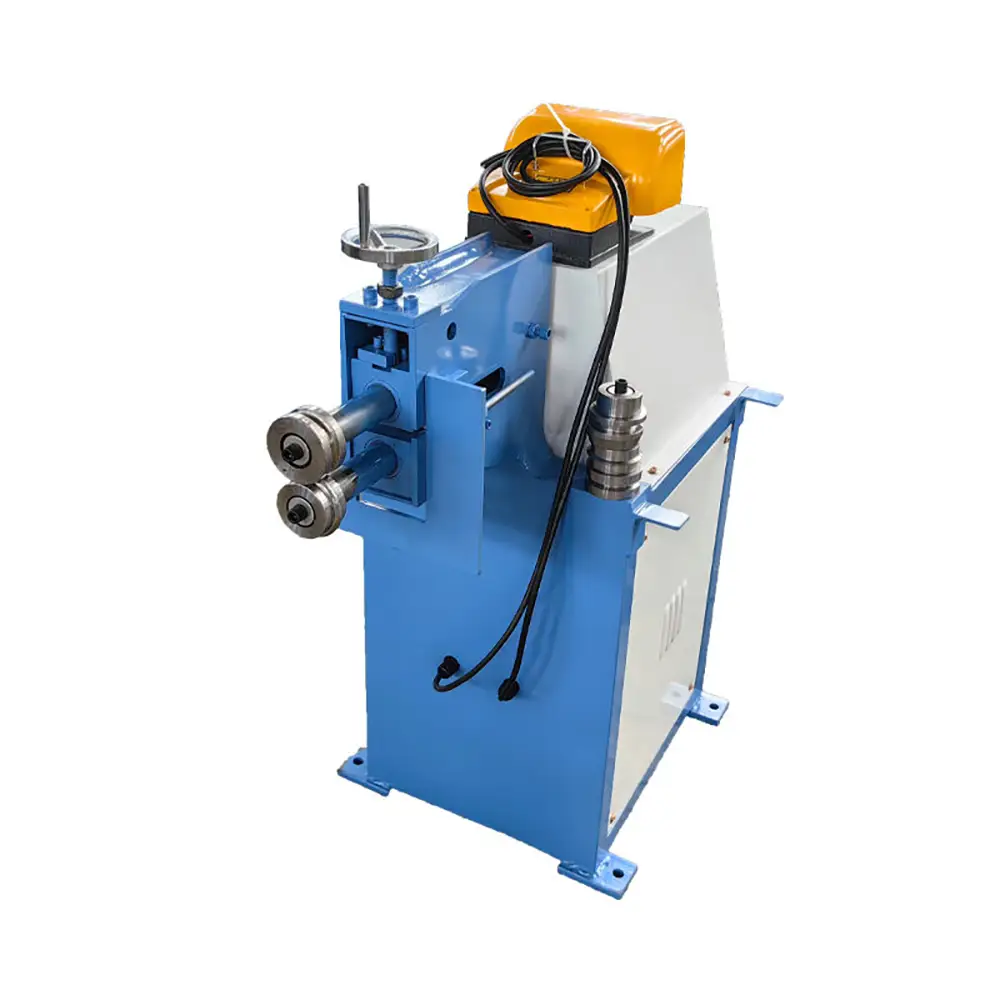

Spiral Roller Grooving Machine for Sheet Metal Pipe Making

The Spiral Roller Grooving Machine is designed for forming and grooving sheet metal used in spiral pipes,spiral ducts,and other cylindrical metal duct products. Featuring a gearbox-driven forming system and an automation-oriented operating design,the machine provides a practical solution for manufacturers processing stainless steel,aluminum,galvanized steel,and other suitable sheet materials.

Spiral pipe production requires controlled sheet forming to create a continuous helical structure. The sheet is progressively shaped by forming rollers and guided into the required spiral pipe diameter and profile. A properly designed grooving and forming system can help maintain consistent dimensions while supporting efficient production.

The machine can be configured according to the required pipe diameter,sheet thickness,material type,spiral pitch,and finished profile. Actual production capability depends on the machine model,roller design,gearbox,drive system,material properties,and tooling configuration.

Spiral Roller Grooving Technology

Roller forming is a continuous metalworking process in which sheet metal passes through a series of forming rollers. Each roller applies controlled deformation until the material reaches the required profile.

For spiral duct production,the forming process must maintain synchronized material feeding and roller movement. The gearbox-driven transmission helps coordinate the mechanical movement of the forming system.

The grooving function can create or shape the required groove or profile in the sheet material according to the machine design. The groove can contribute to the structure and connection characteristics of the finished spiral pipe.

Different duct designs may require different roller profiles. Therefore,tooling should be selected according to the required finished product.

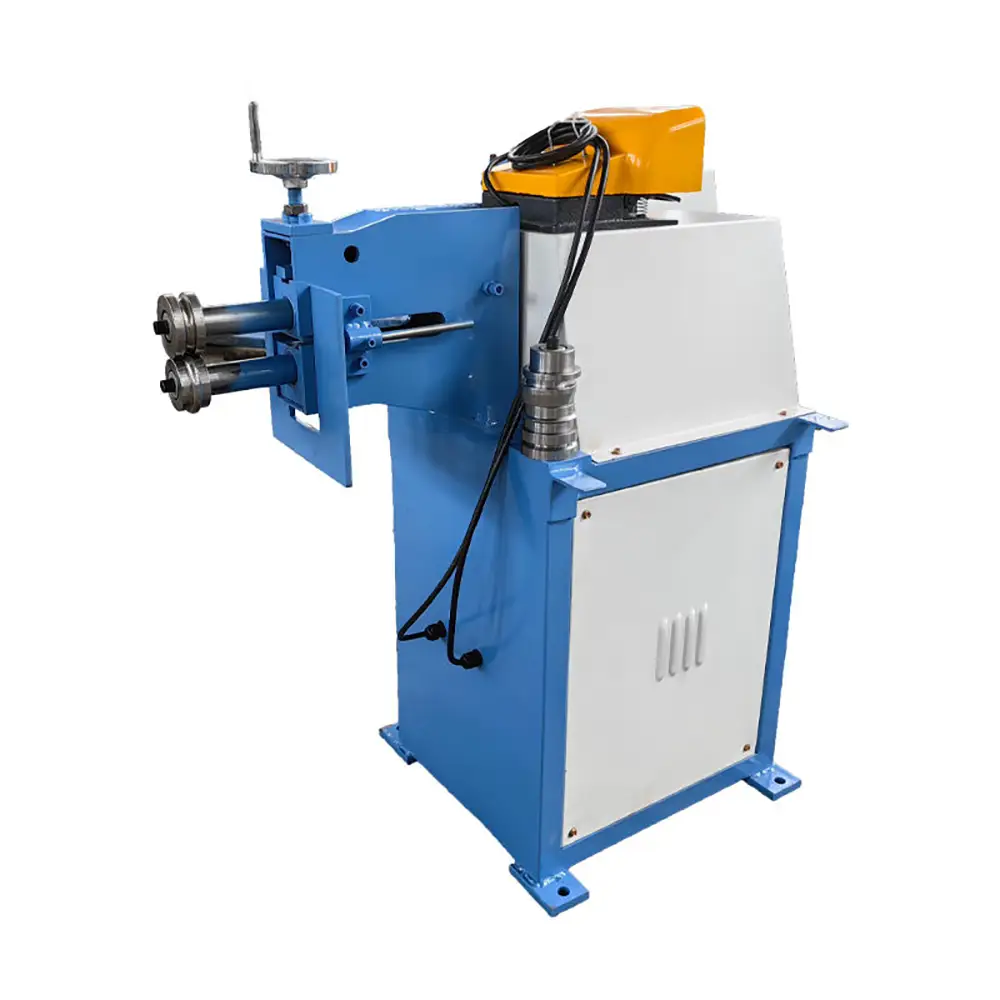

Sheet Metal Spiral Pipe Making

Spiral pipes are commonly manufactured by forming a continuous strip of sheet metal into a cylindrical or helical duct.

The machine can be used for suitable sheet materials such as:

Galvanized steel

Stainless steel

Aluminum

Mild steel

Other compatible sheet metals

The sheet is fed into the forming section,where rollers gradually shape the material. The forming process continues along the helical path until the required pipe diameter and length are achieved.

The final pipe can then be cut to the required length and prepared for installation or further processing.

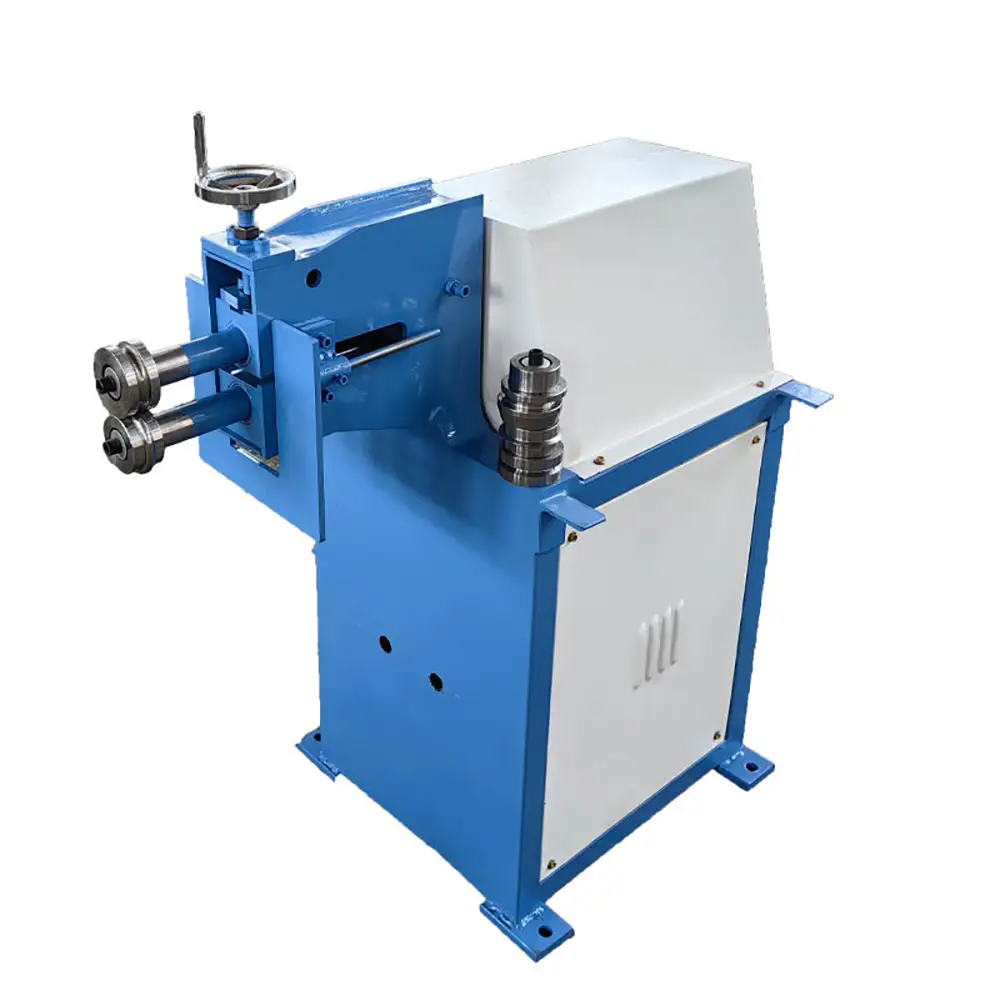

Stainless Steel Spiral Pipe Production

Stainless steel is widely used in applications where corrosion resistance,cleanability,and durability are important.

A spiral pipe forming machine can be configured for suitable stainless steel sheet,provided the roller system and machine drive are appropriate for the material.

Stainless steel generally has different forming characteristics from galvanized steel or aluminum. Its strength and work-hardening behavior may require appropriate forming pressure,roller geometry,and production parameters.

For food processing,commercial kitchens,chemical facilities,and other environments where corrosion resistance is important,stainless steel spiral ducting may be selected for suitable applications.

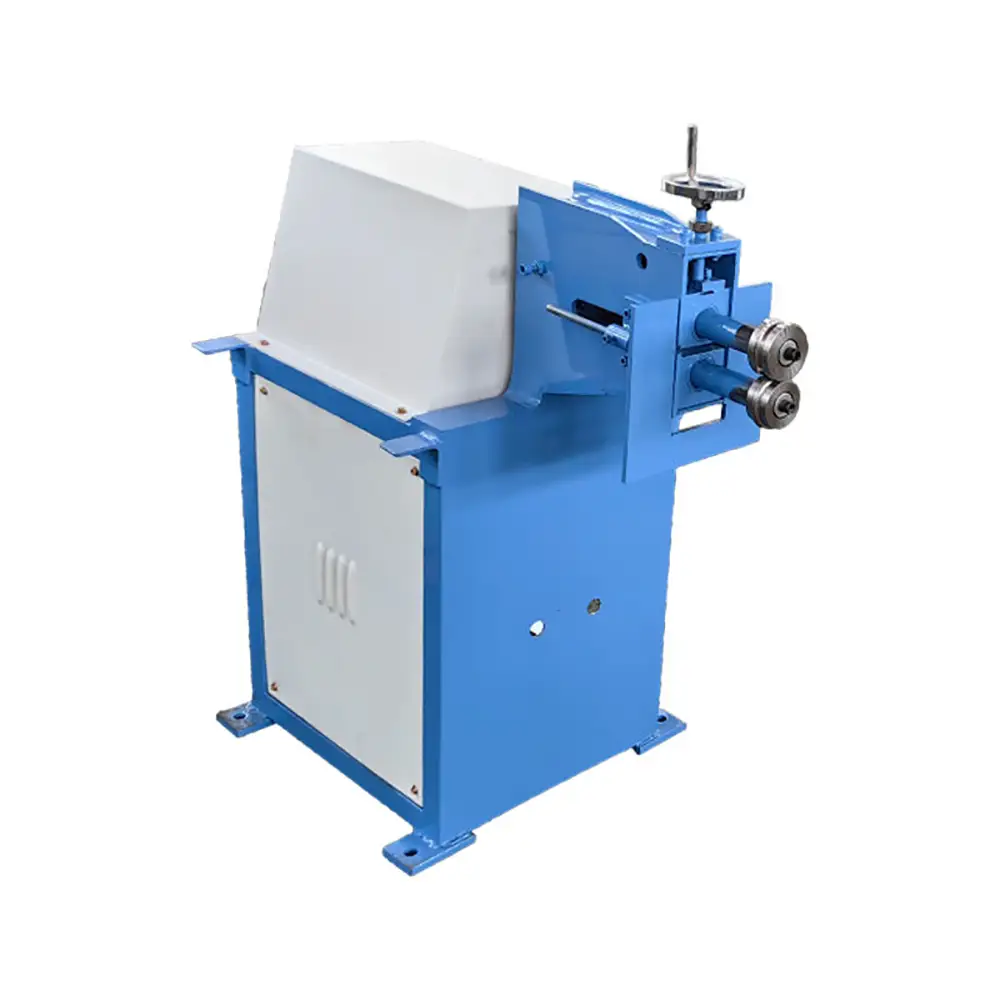

Aluminum Spiral Duct Manufacturing

Aluminum is lightweight and relatively easy to form,making it useful for selected duct and ventilation applications.

The spiral roller grooving machine can be configured for suitable aluminum sheet according to the required pipe diameter,material thickness,and profile.

Because aluminum can be more susceptible to surface marking during forming,the roller condition and tooling design are important.

For visible ductwork or applications where surface appearance is important,customers should consider suitable roller materials,finishes,and forming parameters.

Gearbox-Driven Forming System

The gearbox is an important part of the mechanical transmission system. It transfers motor power to the forming mechanism and helps provide controlled mechanical movement.

A properly selected gearbox can provide stable torque and synchronized movement for continuous sheet forming.

The exact gearbox type,transmission ratio,motor power,and drive configuration vary by machine model and should be confirmed according to the required production range.

Gearbox-driven operation can also support stable production during longer forming cycles compared with manually controlled forming processes.

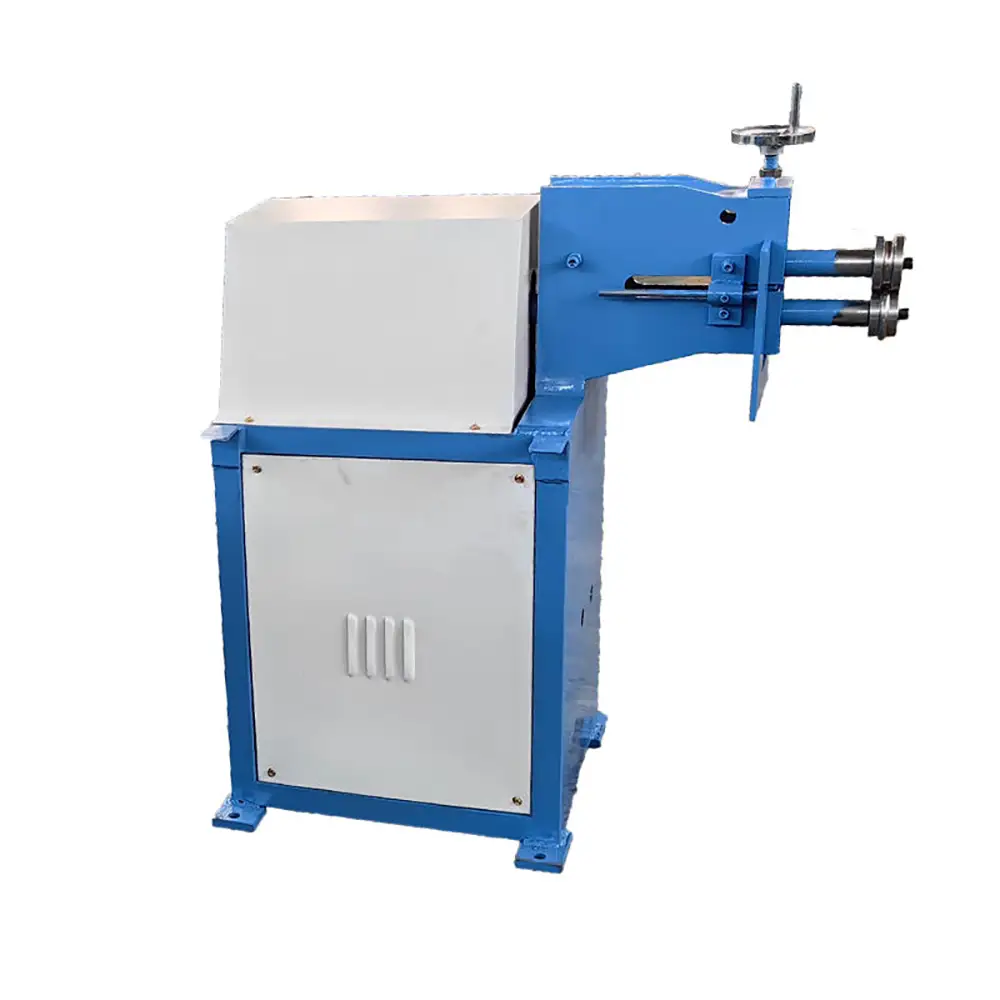

Automated Production Operation

The automation-oriented design can reduce repetitive manual adjustments during spiral pipe production.

Depending on the machine configuration,automated functions may include material feeding,forming speed control,pipe forming coordination,cutting,and other production operations.

The exact automation level varies by model. Some systems may require operator loading and setup even when the forming process itself is mechanically controlled.

For higher production volumes,automated or semi-automated operation can help improve workflow consistency and reduce operator workload.

Spiral Duct Applications

Spiral pipes and ducts are widely used in air movement and ventilation systems.

Potential applications include:

HVAC ductwork

Industrial ventilation

Commercial buildings

Factory ventilation

Workshop exhaust systems

Warehouse ventilation

Air distribution systems

Dust collection systems

Agricultural ventilation

Industrial air handling

The appropriate material and pipe dimensions should be selected according to the environmental conditions and system requirements.

For corrosive environments,stainless steel or other corrosion-resistant materials may be considered. For lightweight ducting,aluminum can be suitable for selected applications.

Pipe Diameter and Sheet Thickness

Spiral duct machines can be designed for different pipe diameter and sheet thickness ranges.

The actual forming capacity depends on several factors,including:

Pipe diameter

Sheet thickness

Material strength

Sheet width

Spiral pitch

Roller geometry

Motor and gearbox capacity

Machine structure

A thicker or stronger sheet may require greater forming force. Smaller pipe diameters may also require different roller configurations from larger duct sizes.

Customers should provide their target pipe diameter range and sheet thickness when requesting a quotation.

Production Quality

Consistent spiral pipe quality depends on stable material feeding,roller alignment,gearbox transmission,and appropriate forming parameters.

Important quality considerations include:

Pipe diameter

Circularity

Spiral pitch

Groove profile

Seam consistency

Surface condition

Pipe length

Dimensional repeatability

Rollers should be inspected regularly for wear or damage because worn tooling can affect the finished pipe profile.

For new materials or unusual specifications,sample testing can help determine suitable forming parameters.

Efficient Sheet Metal Processing

Continuous spiral forming can provide an efficient method for producing long lengths of duct material.

Instead of forming individual sections one at a time,the machine progressively shapes a continuous sheet strip into a spiral pipe.

This can reduce repetitive manual forming operations and support batch production.

Actual production speed depends on material,thickness,pipe diameter,forming profile,machine configuration,and operator workflow.

For high-volume duct manufacturing,the machine can be integrated with automatic material feeding,cutting,and downstream handling equipment.

Maintenance and Safety

Regular maintenance helps maintain reliable forming performance.

Operators should inspect forming rollers,gearbox,motor,drive components,bearings,fasteners,and electrical systems according to the manufacturer's maintenance schedule.

Rollers should be kept clean and free from excessive material buildup. Lubrication should be performed where required by the equipment design.

During operation,operators should keep hands away from rotating rollers and moving sheet metal. Guards and emergency-stop functions should be used according to the actual machine configuration.

Operators should also receive appropriate training before operating the equipment.

Custom and OEM Spiral Pipe Solutions

Different duct manufacturers may require different pipe diameters,materials,groove profiles,and automation levels.

The machine can therefore be customized around specific production requirements.

OEM and ODM options may include:

Custom forming rollers

Different pipe diameter ranges

Stainless steel forming configuration

Aluminum forming configuration

Automatic material feeding

Automatic cutting

Customized gearbox and drive systems

Digital control systems

Production line integration

Customers can provide material specifications,pipe diameter range,sheet thickness,spiral pitch,and production volume for machine selection.

This information helps determine the appropriate roller tooling,drive system,and automation configuration.

Why Choose Us

Spiral Roller Forming — Designed for continuous forming of suitable sheet metal into spiral pipes and ducts.

Grooving Function — Supports controlled groove or profile forming according to the selected machine configuration.

Stainless Steel & Aluminum Processing — Can be configured for suitable stainless steel,aluminum,galvanized steel,and other sheet materials.

Gearbox-Driven Transmission — Provides controlled mechanical power and stable forming movement.

Automation-Oriented Operation — Can support automated or semi-automated production functions depending on the model.

Wide Duct Applications — Suitable for HVAC,industrial ventilation,workshop exhaust,dust collection,and air distribution applications.

Custom Tooling — Forming rollers and related components can be developed according to pipe diameter,material,and profile requirements.

OEM & ODM Support — Machine configuration and production-line integration can be customized according to customer requirements.

FAQs

1. What is a spiral roller grooving machine?

It is a metal forming machine that uses rollers to shape sheet metal into spiral pipes or ducts while forming the required groove or profile.

2. What materials can it process?

Depending on the machine configuration,it can process galvanized steel,stainless steel,aluminum,mild steel,and other compatible sheet metals.

3. Can it form stainless steel spiral ducts?

Yes,when the machine and forming rollers are properly configured for the selected stainless steel grade and sheet thickness.

4. Can it process aluminum sheet?

Yes. Suitable aluminum sheet can be formed when the roller tooling and machine parameters are matched to the material.

5. What is the role of the gearbox?

The gearbox transfers motor power to the forming system and helps provide controlled torque and synchronized mechanical movement.

6. Is the machine fully automatic?

The automation level depends on the specific model. Some configurations may include automated feeding,forming,and cutting functions,while others require operator setup and loading.

7. What products can be made with this machine?

Typical products include spiral ducts,ventilation pipes,HVAC ducts,industrial air ducts,and other suitable cylindrical sheet metal products.

8. What affects the pipe forming quality?

Material type,sheet thickness,pipe diameter,roller alignment,roller geometry,feeding stability,gearbox transmission,and machine settings all affect the finished product.

9. Can the pipe diameter be customized?

Yes. Machine configuration and forming rollers can be selected according to the required pipe diameter range.

10. Can the machine be integrated into a production line?

Yes. Depending on the configuration,it can be integrated with material feeding,cutting,handling,and other duct production equipment.

11. Can custom rollers be supplied?

Yes. Custom forming rollers can be designed according to the required pipe profile,material,and dimensions.

12. What information is needed for a quotation?

Provide the material type,pipe diameter range,sheet thickness,spiral pitch,required groove profile,production volume,and preferred automation level. Drawings or samples are also helpful.
