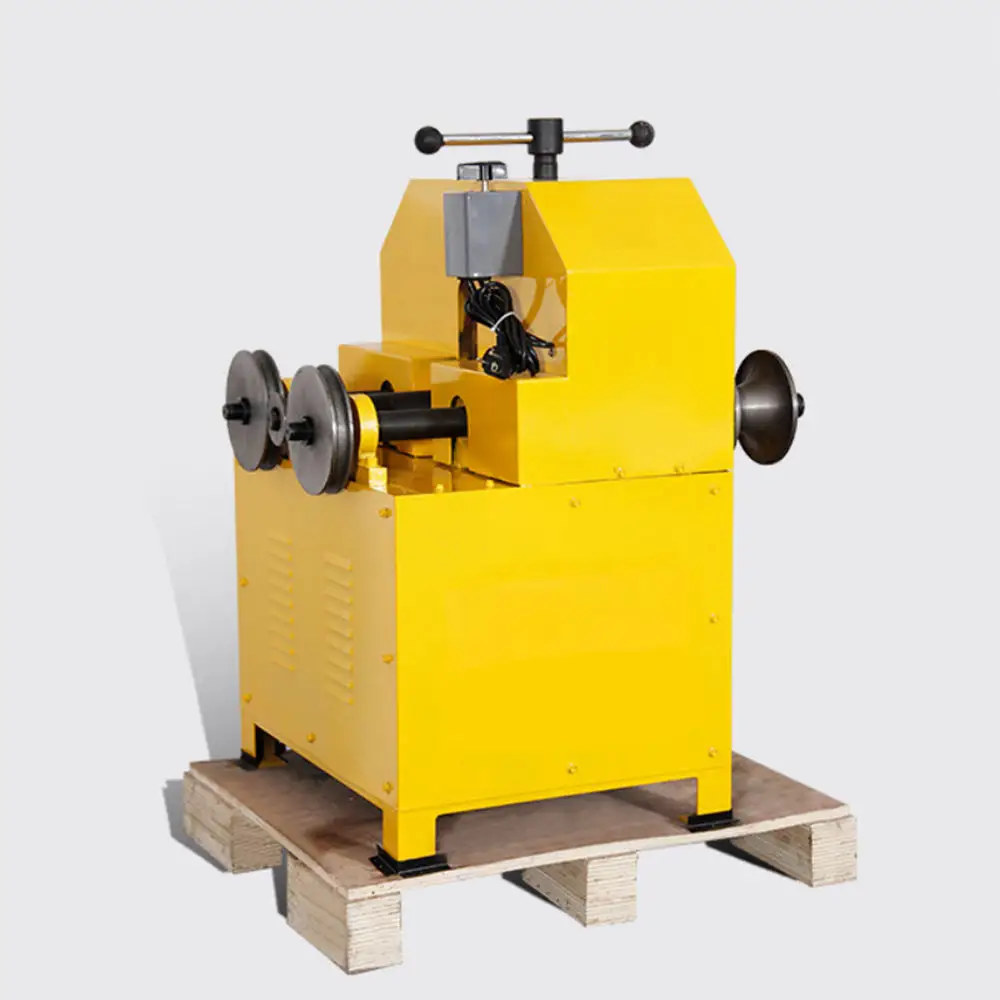

Electric Greenhouse Arc Bending Machine Multifunctional Electric Pipe Bending Machine

Electric Greenhouse Arc Bending Machine for Pipe and Tube Forming

The Electric Greenhouse Arc Bending Machine is a multifunctional pipe bending solution designed for forming metal pipes and tubes into smooth arcs and curved sections used in greenhouse frames,agricultural structures,and general metal fabrication.

Greenhouse construction often requires long metal pipes to be bent into repeatable curved shapes. These curved tubes form the structural framework for greenhouse roofs,tunnels,arches,and other agricultural structures. A dedicated electric pipe bending machine can help reduce manual bending work and improve consistency between individual frame components.

In addition to greenhouse applications,the machine can be used for suitable steel,galvanized steel,stainless steel,and other metal tubes depending on the machine configuration and tooling. Its multifunctional design makes it useful for workshops and agricultural equipment manufacturers that require flexible pipe forming capability.

Actual bending capacity depends on tube diameter,wall thickness,material strength,bending radius,tooling,and machine configuration.

Model	HHW-76B	Motor power	3KW

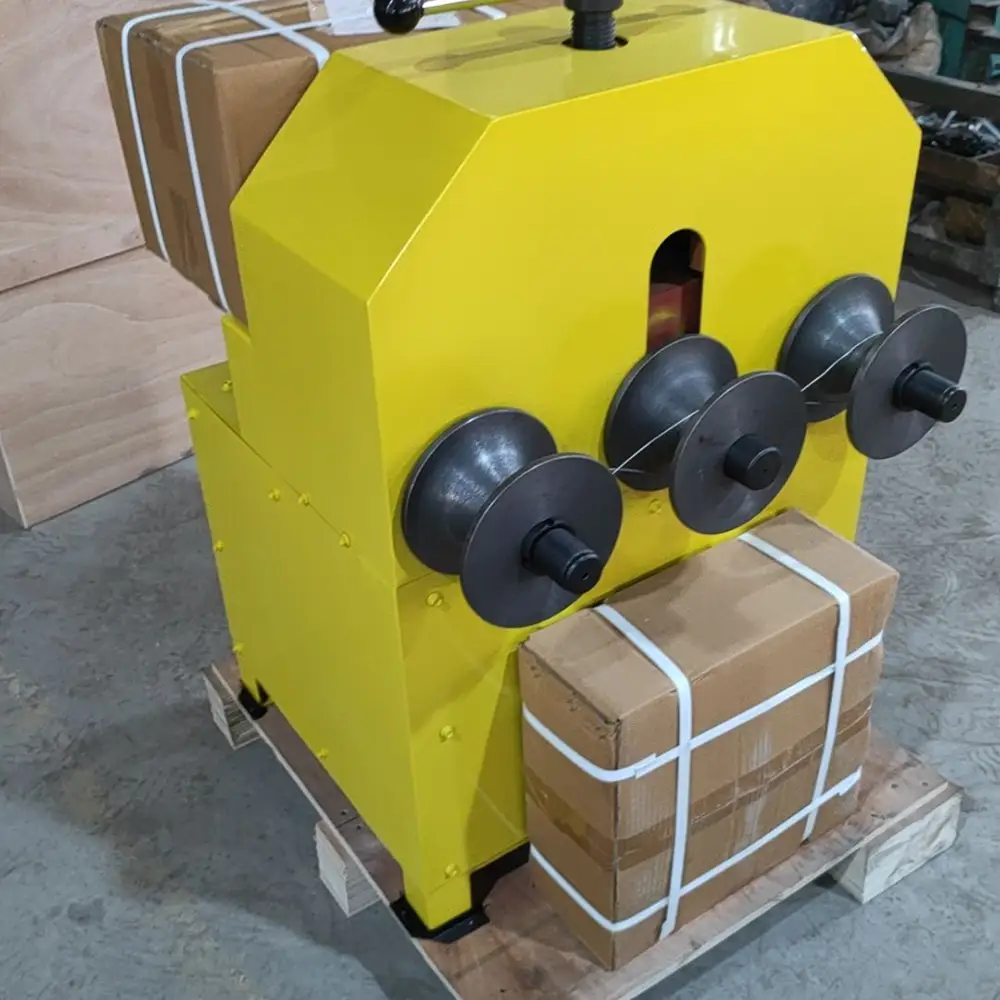

Voltage	220V or 380V	Packing method	Wooden box pallet
Size	73x63x102CM	Weight	250KG

Electric Greenhouse Arc Bending System

The electric drive system provides the mechanical force required to bend the pipe through a controlled forming process. Compared with purely manual pipe bending methods,the electric system can reduce operator effort and provide more consistent movement during repeated bending operations.

For greenhouse production,the ability to reproduce similar arc shapes is particularly important because multiple frame sections often need to match each other during assembly.

The machine may be used to produce semicircular arches,curved roof sections,and other greenhouse frame geometries depending on the available tooling and bending method.

The actual arc radius and forming range should be confirmed according to the selected machine model.

Greenhouse Pipe Bending Applications

Greenhouse pipe bending is one of the primary applications for this type of equipment.

Typical greenhouse components may include:

Greenhouse roof arches

Tunnel greenhouse frames

Agricultural shelter frames

Plastic greenhouse supports

Vegetable greenhouse structures

Flower-growing greenhouse frames

Nursery structures

Garden greenhouse frames

Agricultural tunnels

Custom curved metal structures

The machine can help transform straight metal pipes into curved structural members that can later be assembled into complete greenhouse frames.

For commercial greenhouse production,consistent bending dimensions can simplify installation and reduce adjustment work during frame assembly.

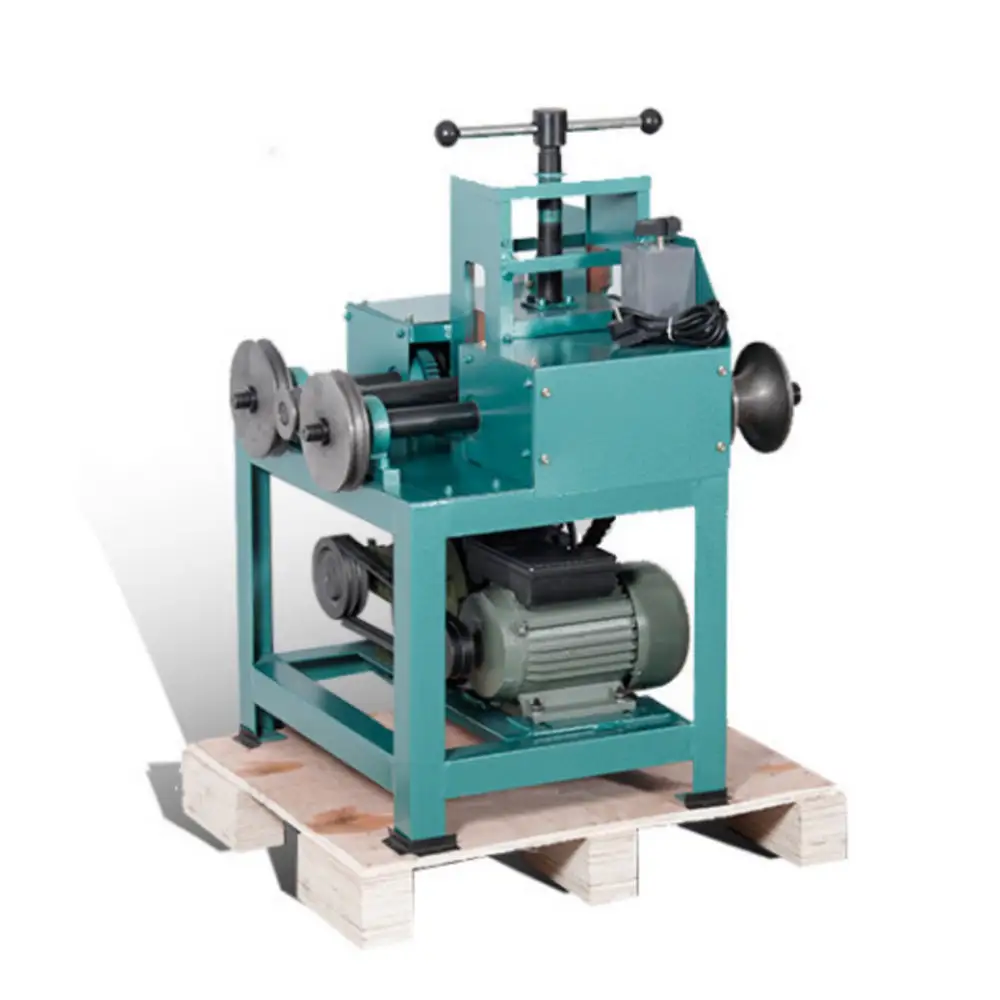

Multifunctional Electric Pipe Bending

The multifunctional design allows the machine to be used for applications beyond greenhouse construction.

Suitable metal tubes may also be processed for:

Handrails

Guardrails

Fence structures

Furniture frames

Agricultural machinery

Metal arches

Equipment frames

Construction components

Custom steel structures

Decorative metal products

The actual range of applications depends on the machine's rated capacity and available bending tooling.

This flexibility can make the equipment useful for manufacturers who produce greenhouse frames as well as other curved metal products.

Steel and Galvanized Pipe Bending

Greenhouse structures commonly use steel or galvanized steel tubing because these materials can provide suitable structural strength and durability for outdoor agricultural environments.

The bending process must account for the characteristics of the selected material. Galvanized pipe can require careful handling to minimize unnecessary surface damage to the protective coating.

Steel tube bending may require different force and tooling from lighter metal tubing. The appropriate machine configuration should therefore be selected according to the tube material,diameter,and wall thickness.

Customers should provide complete pipe specifications before purchasing to ensure that the bending equipment is suitable for the intended application.

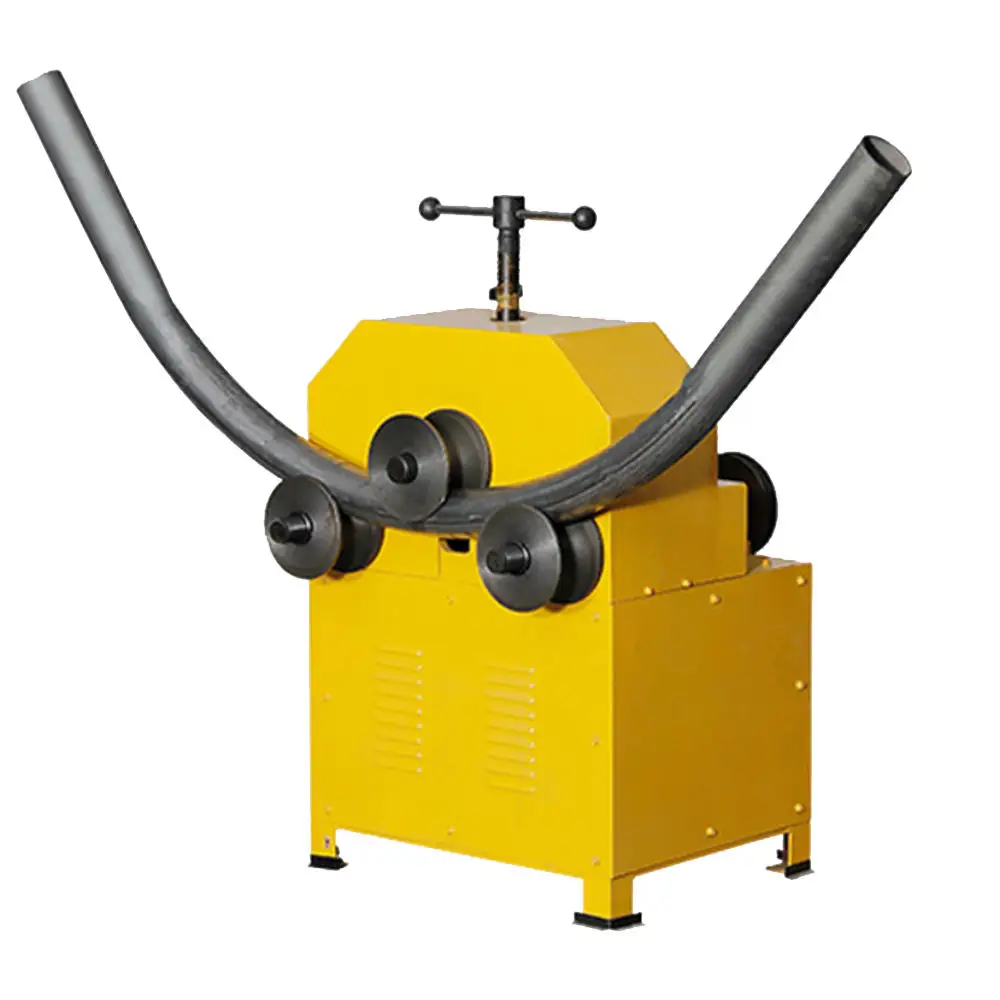

Creating Smooth Greenhouse Arcs

The quality of a greenhouse frame depends partly on the consistency of its curved components.

During bending,the pipe is progressively formed into the required radius. Proper tooling and controlled movement help reduce sudden deformation and can support a more uniform arc.

Important factors include pipe diameter,wall thickness,bending speed,tool alignment,and material characteristics.

For greenhouse frames requiring multiple identical arches,the operator should establish a suitable bending procedure and verify the first pieces before continuing larger production batches.

Bending Radius and Frame Geometry

The required greenhouse arc radius depends on the overall structure,greenhouse width,roof height,and frame design.

Different greenhouse designs may require different arc geometries. A tunnel greenhouse may use a relatively continuous curved frame,while another greenhouse structure may use a different roof profile.

Because of these differences,the bending tooling should be selected according to the finished frame dimensions rather than assuming one universal arc size.

Customers can provide greenhouse drawings,frame dimensions,or sample curved pipes to help determine the appropriate bending configuration.

Production Efficiency

Electric pipe bending can improve production efficiency by reducing manual bending operations.

For repeated greenhouse frame production,the machine can be used to process a series of pipes using a consistent bending procedure. This can help reduce variation between frame sections and simplify downstream assembly.

Actual production capacity depends on pipe dimensions,bending angle,arc radius,loading method,machine configuration,and operator workflow.

For small and medium greenhouse manufacturers,the machine can provide a practical forming solution without requiring a large automated tube production line.

Applications in Agricultural Construction

Greenhouse arc bending equipment can support various agricultural construction projects.

Potential applications include:

Vegetable greenhouses

Flower greenhouses

Nursery greenhouses

Agricultural tunnels

Seedling shelters

Crop protection structures

Garden greenhouses

Small farm structures

Commercial greenhouse frames

Custom agricultural shelters

The machine can also be useful for agricultural equipment suppliers and greenhouse contractors who need to produce curved pipe components locally.

Bending Quality and Dimensional Consistency

The quality of the finished arc depends on the complete forming system.

Pipe material,diameter,wall thickness,bending radius,tooling condition,machine rigidity,and electric drive performance can all influence the result.

Metal tubes may also experience springback after bending. Operators may need to compensate for this characteristic depending on the material and required finished geometry.

For greenhouse production,the first formed pipe should be checked against the frame drawing before continuing the production batch.

Workshop and On-Site Flexibility

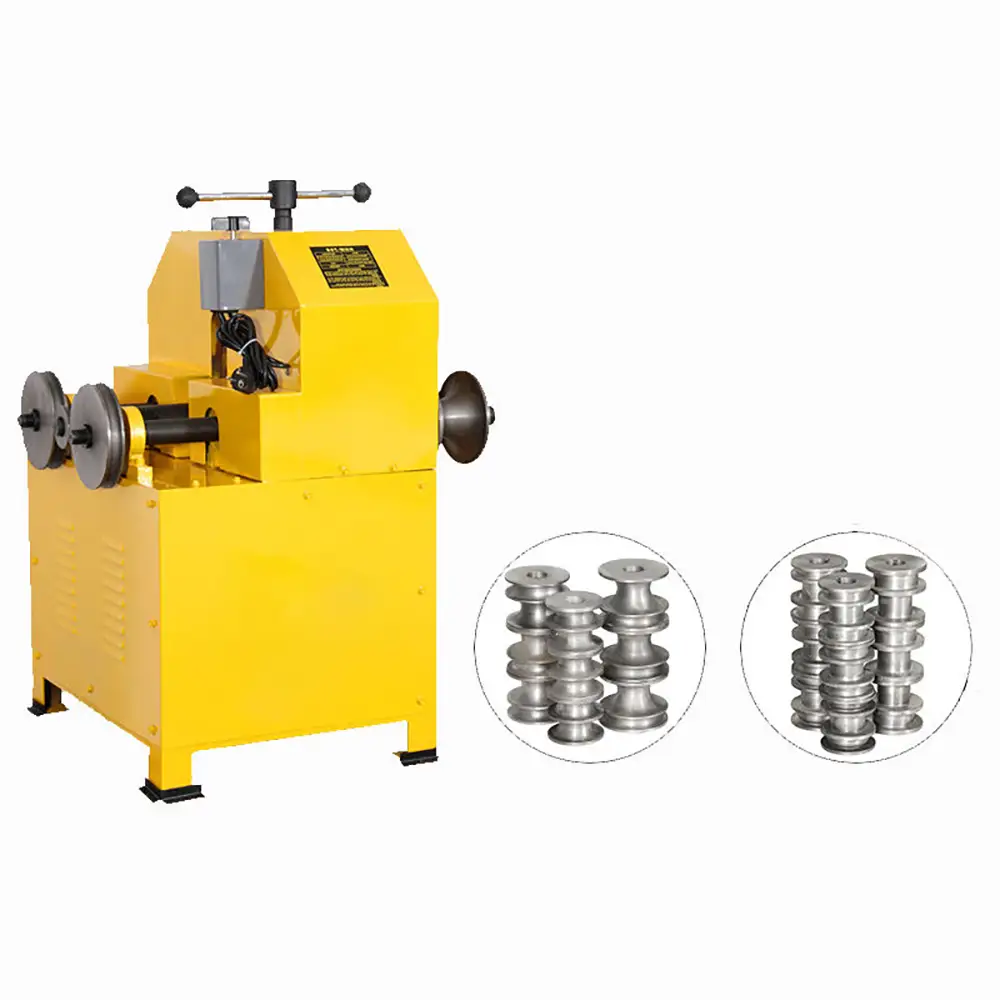

The electric greenhouse pipe bender can be suitable for agricultural equipment workshops,greenhouse manufacturing facilities,and general metalworking environments.

Depending on the machine's size and weight,it may be possible to move the equipment between work areas. However,actual portability should be confirmed according to the specific model.

For installation-site work,operators should ensure a stable working surface and suitable electrical power supply.

Maintenance and Safety

Regular maintenance can help maintain bending consistency and machine reliability.

Operators should inspect electrical connections,drive components,forming rollers,bending dies,and other mechanical parts regularly. Moving components should be maintained according to the manufacturer's recommendations.

The bending area should remain clear while the machine is operating. Operators should keep hands away from moving components and wear suitable protective equipment.

Depending on the machine configuration,safety features may include emergency-stop functions,protective covers,and electrical protection. The actual safety configuration should be confirmed for the selected model.

OEM and Custom Greenhouse Bending Solutions

Greenhouse manufacturers may have different frame widths,arc heights,pipe sizes,and structural designs. The machine can therefore be evaluated according to specific greenhouse requirements.

Customization may include bending tooling,roller dimensions,electric drive configuration,controls,workpiece supports,and other machine components.

For OEM and ODM projects,customers should provide pipe diameter,wall thickness,material,required arc radius,greenhouse width,frame height,and expected production volume.

Greenhouse drawings and sample frames can also help determine the appropriate bending solution.

Why Choose Us

Electric Arc Bending – Provides controlled electric forming for greenhouse pipes and other suitable metal tubes.

Greenhouse Frame Applications – Designed for producing curved arches and structural components for agricultural greenhouse construction.

Multifunctional Pipe Processing – Can be evaluated for greenhouse frames,handrails,guardrails,furniture,and other metal structures.

Suitable for Steel and Galvanized Tubes – Configurations can be selected according to material,diameter,and wall thickness.

Consistent Arc Forming – Controlled bending can help produce more uniform curved frame components.

Flexible Production – Suitable for greenhouse manufacturers,agricultural equipment suppliers,and metal fabrication workshops.

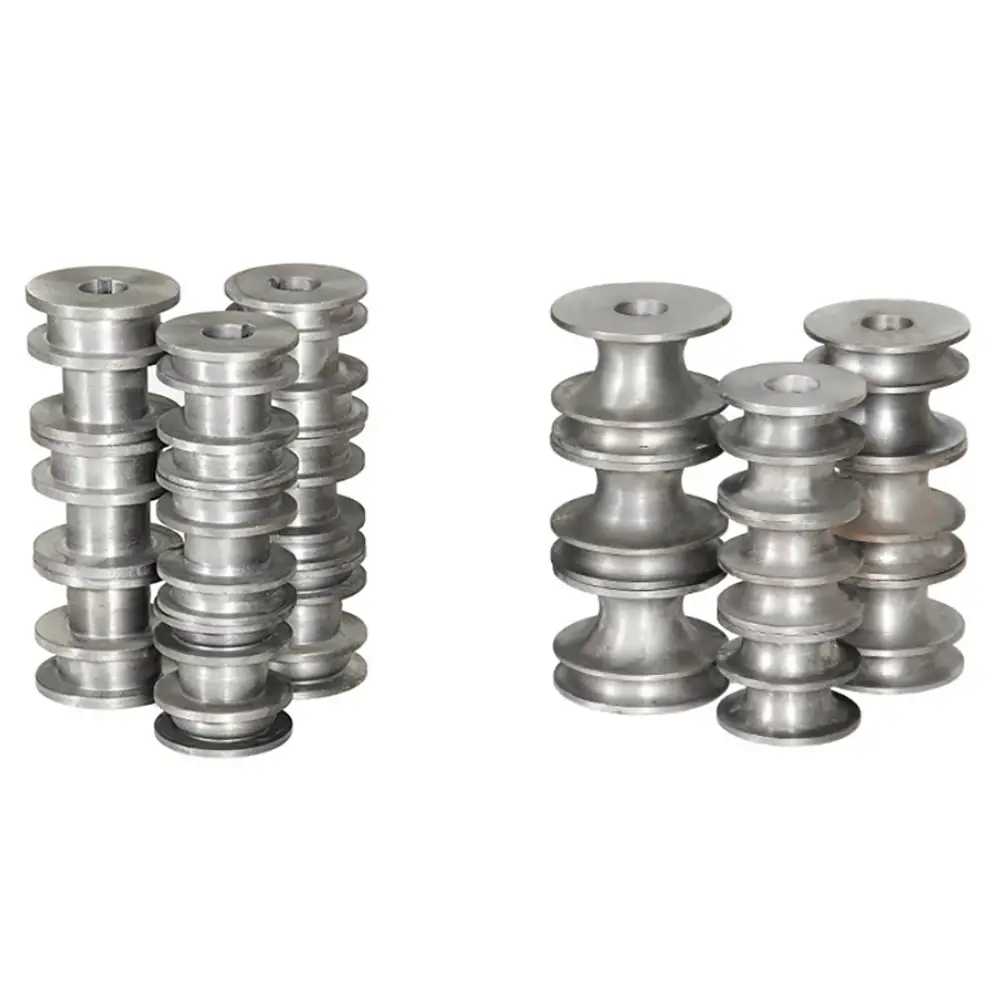

Custom Tooling Support – Bending rollers and related tooling can be selected according to required pipe dimensions and arc geometry.

OEM & ODM Service – Machine configuration can be adapted to customer drawings,samples,production volume,and specific greenhouse frame requirements.

FAQs

1. What is an electric greenhouse arc bending machine?

It is a pipe bending machine designed to form suitable metal tubes into curved arcs used primarily for greenhouse frames and other agricultural structures.

2. What pipes can it bend?

Depending on the machine configuration,it can process suitable steel,galvanized steel,stainless steel,and other compatible metal pipes and tubes.

3. Can it bend galvanized steel pipe?

Yes. Suitable galvanized steel pipes can be processed when the machine tooling and capacity match the pipe dimensions.

4. What is the main application?

The primary application is forming curved pipes for greenhouse arches,tunnel frames,and other agricultural structures.

5. Can it be used for products other than greenhouses?

Yes. Depending on its capacity,the machine can also be used for handrails,guardrails,furniture frames,fences,and other curved metal structures.

6. Is the machine fully automatic?

Not necessarily. The electric drive provides powered bending,but the actual automation level depends on the specific machine configuration.

7. Can it produce repeated greenhouse arches?

Yes. When the same pipe specifications and bending parameters are used,the machine can help produce consistent curved frame sections.

8. What affects the bending radius?

Pipe diameter,wall thickness,material properties,tooling,and machine configuration all influence the achievable bending radius.

9. Can different pipe sizes be processed?

Yes,provided the pipe dimensions are within the machine's rated range. Different sizes may require different rollers or bending tooling.

10. Can custom bending rollers be supplied?

Yes. Custom rollers and related tooling can be evaluated according to pipe dimensions and required greenhouse arc geometry.

11. What information is needed for machine selection?

Provide pipe material,outside diameter,wall thickness,required arc radius,greenhouse width,frame height,and expected production volume.

12. Can the machine be customized?

Yes. Depending on the manufacturer and model,custom options may include tooling,electric drive components,controls,work supports,and other configuration features.
