Automatic Spiral Blade Welding Machine | Auger Flight Welder for Screw Conveyor & Solar Helical Pile

Automatic Spiral Blade Welding Machine | Auger Flight Welder for Screw Conveyor & Solar Helical Pile

The Automatic Spiral Blade Welding Machine is a specialized welding system designed for efficient and consistent fabrication of spiral blades, auger flights, screw conveyor components, and helical pile products. Also known as an Auger Flight Welder, Spiral Flight Welding Machine, or Screw Flight Welding Machine, this equipment helps manufacturers automate the welding process between spiral flight blades and central shafts or related structural components.

Compared with conventional manual welding, an automatic auger flight welding machine provides more consistent welding movement, controlled rotation, and repeatable welding quality. It is suitable for manufacturers producing screw conveyors, agricultural augers, drilling tools, earth augers, foundation piles, solar helical piles, and other spiral conveying or ground anchoring products.

The machine can be configured for different workpiece dimensions and production requirements. By combining controlled workpiece rotation with synchronized welding movement, the system helps create continuous and uniform welds along spiral flight assemblies. This makes it particularly useful for applications where dimensional consistency, production efficiency, and repeatable welding quality are important.

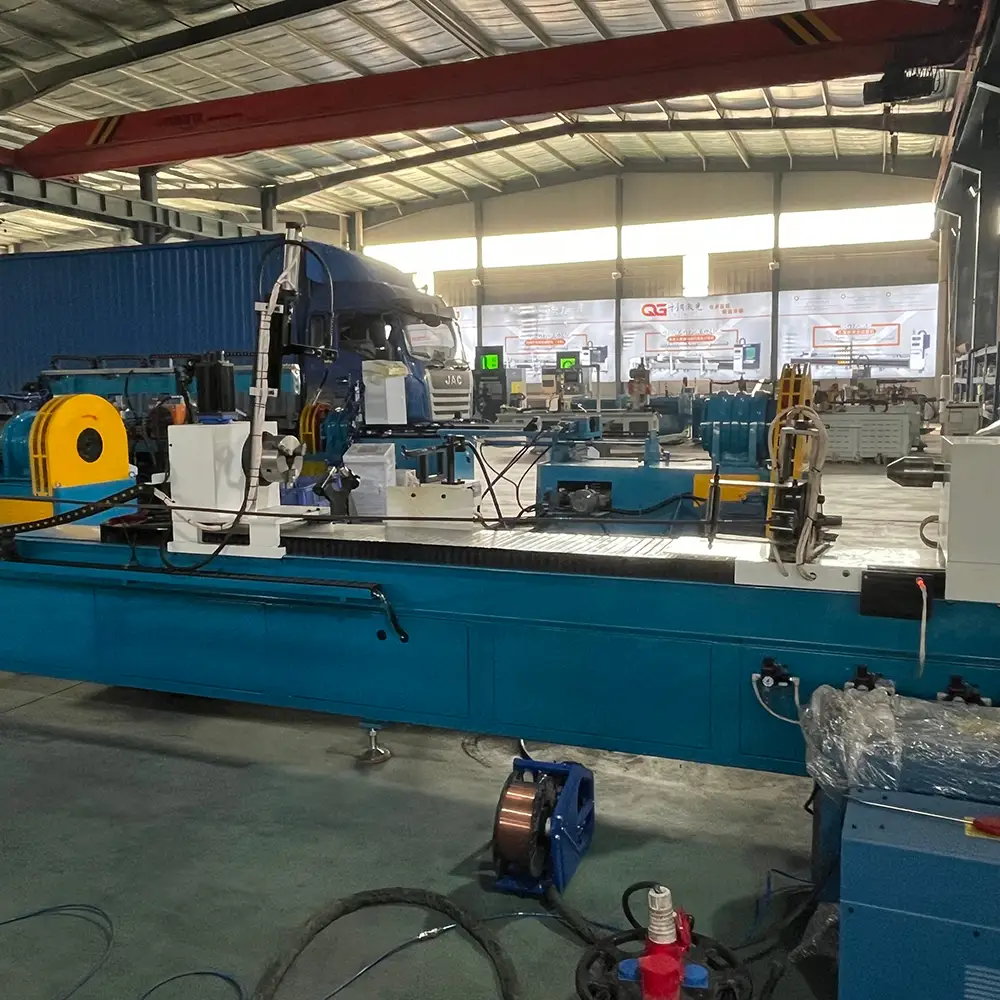

What Is an Auger Flight Welder?

An Auger Flight Welder is an automated welding machine developed specifically for welding spiral flight assemblies. An auger flight consists of a helical blade formed around a central shaft or tube. During fabrication, the spiral blade must maintain the correct position and welding relationship with the shaft throughout the entire assembly.

Traditional manual welding can require significant operator skill and considerable production time. An automatic spiral blade welding machine uses mechanical positioning, controlled rotation, and welding coordination to simplify this process.

The workpiece rotates according to the programmed or adjusted operating parameters while the welding torch moves along the required welding path. This allows manufacturers to produce long spiral flight assemblies with more consistent weld geometry and reduced manual intervention.

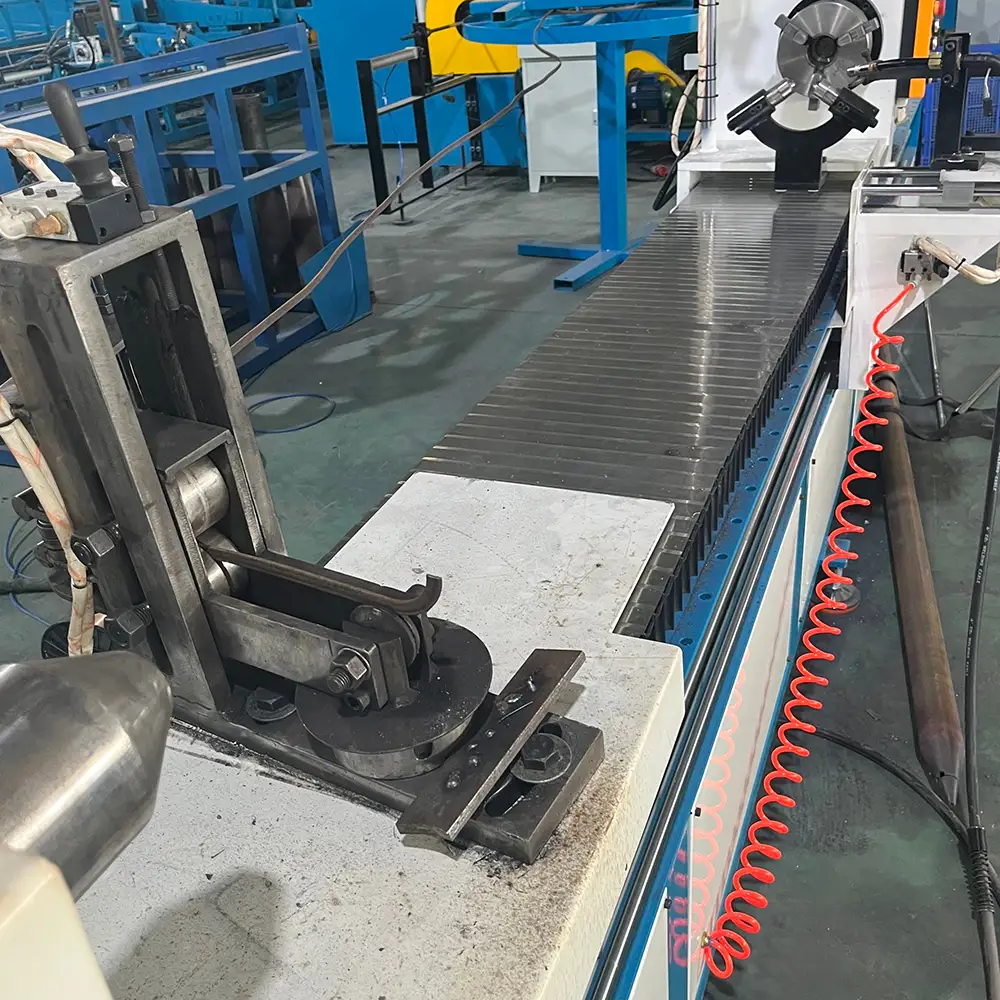

Designed for Screw Conveyor Manufacturing

Screw conveyors are widely used for transporting bulk materials in industries such as agriculture, food processing, mining, construction materials, chemical processing, and general material handling.

The quality of the spiral flight assembly directly affects the operating performance and durability of a screw conveyor. An automatic Screw Conveyor Welding Machine can help manufacturers improve production consistency when fabricating conveyor screws.

The equipment can be used for various screw conveyor components, including:

Screw Conveyor Flights
Continuous Screw Flights
Conveyor Screw Assemblies
Auger Shafts
Tubular Screw Conveyors
Agricultural Augers
Industrial Conveying Screws
Custom Spiral Conveyor Components

For high-volume production, automated welding can also help reduce repetitive manual welding operations and improve production efficiency.

Suitable for Solar Helical Pile Production

The machine can also be used in the production of solar helical piles, ground screws, and related foundation components used for solar mounting systems.

Solar helical piles generally require spiral blades to be securely welded to a central steel shaft. The blade geometry and weld quality can influence the mechanical performance of the finished pile. Using an automated welding process helps manufacturers maintain consistent welding parameters and repeatable production results.

Depending on the machine configuration, it can support different helical pile sizes, blade dimensions, shaft diameters, and production requirements. This makes the equipment suitable for manufacturers producing foundation components for solar farms, photovoltaic mounting structures, light construction, fencing, agricultural structures, and other applications.

Automatic Spiral Blade Welding Process

The automatic welding process generally involves several coordinated operations.

First, the central shaft, pipe, or workpiece is positioned and securely clamped on the machine. The spiral blade or auger flight is then positioned according to the required pitch and assembly configuration.

After setup, the welding system begins controlled rotation of the workpiece. The welding torch follows the required welding path while the workpiece rotates at a controlled speed. The synchronization between rotation and welding movement allows the operator to produce a continuous weld along the spiral assembly.

The actual welding process and parameters can be selected according to the material, thickness, joint design, wire type, shielding gas, and production requirements.

This automated approach can help reduce inconsistent weld spacing, unnecessary stops and starts, and excessive dependence on manual positioning.

Key Features
Automatic Welding Operation

The automatic operating system reduces repetitive manual welding work and helps maintain a consistent welding path during spiral blade fabrication.

Controlled Workpiece Rotation

The rotating mechanism provides controlled movement of the auger or shaft during welding. Stable rotation is important for maintaining a consistent welding position.

Adjustable Welding Parameters

Welding speed, rotation speed, and other operating parameters can be adjusted according to the workpiece and welding requirements.

Wide Application Range

The machine can be used for screw conveyor flights, auger assemblies, drilling tools, helical piles, solar ground screws, and other spiral products.

Consistent Production

Once the machine has been properly set up, repeatable operating parameters can help manufacturers maintain more consistent production between workpieces.

Reduced Manual Labor

Automation reduces the amount of repetitive positioning and welding work required from operators, making the production process more efficient.

Applications

The Automatic Spiral Blade Welding Machine can be used across multiple industries and manufacturing applications, including:

Screw Conveyor Manufacturing:
For producing continuous screw flights, conveyor screws, and auger assemblies used in bulk material handling.

Agricultural Machinery:
For manufacturing grain augers, feed conveyors, agricultural screw conveyors, and other farming equipment components.

Drilling Equipment:
For producing earth augers, drilling screws, foundation drilling components, and related spiral tools.

Solar Mounting Systems:
For welding spiral blades to shafts used in solar helical piles and photovoltaic ground screw systems.

Construction Equipment:
For manufacturing ground anchors, helical piles, foundation screws, and other spiral steel components.

Industrial Equipment:
For custom augers, screw mechanisms, spiral conveying components, and specialized machinery.

Why Choose Our Automatic Spiral Blade Welding Machine?
1. Designed for Spiral Products

The machine is developed around the specific requirements of spiral flight and auger welding rather than general-purpose welding alone.

2. Improved Production Efficiency

Automated rotation and welding movement can reduce repetitive manual operations and help manufacturers increase production efficiency.

3. Repeatable Welding

Controlled machine movement helps maintain a more consistent welding process from one workpiece to the next when appropriate parameters are established.

4. Flexible Production

The equipment can be configured or adjusted for different auger, screw conveyor, and helical pile production requirements.

5. Suitable for B2B Manufacturing

The machine is designed for industrial users, machinery manufacturers, screw conveyor producers, drilling equipment manufacturers, and solar foundation component suppliers.

6. Custom Machine Solutions

Different industries may require different shaft diameters, flight sizes, welding methods, workpiece lengths, and automation levels. Machine configurations can be discussed according to specific production requirements.

How to Select the Right Auger Flight Welder

Before purchasing an automatic spiral blade welding machine, buyers should consider several important specifications.

Workpiece Diameter:
Determine the minimum and maximum outside diameter of the auger or flight assembly.

Shaft Diameter:
The shaft or pipe diameter should be compatible with the machine's clamping and rotation system.

Flight Diameter:
Different screw conveyor and helical pile applications require different flight diameters.

Workpiece Length:
Long auger flights may require a suitable supporting structure and sufficient machine travel.

Material Thickness:
Blade and shaft thickness can influence welding current, wire size, welding speed, and machine configuration.

Welding Method:
Select the appropriate welding process according to production requirements, material, joint design, and desired productivity.

Production Volume:
For continuous industrial production, automation and cycle time should be considered when selecting the machine configuration.

Maintenance and Operation

Proper maintenance helps keep the automatic auger welding machine operating reliably. Operators should regularly inspect the rotating mechanism, clamps, welding torch, cables, electrical components, transmission system, and other moving parts.

The welding area should be kept clean to reduce contamination and help maintain stable welding conditions. Consumables should be selected and replaced according to the welding process and manufacturer's recommendations.

Operators should also follow appropriate welding safety procedures, including proper ventilation, personal protective equipment, electrical safety, and protection from welding arc radiation and hot metal.

Customization for Different Applications

Every auger and helical pile manufacturer may have different production requirements. The machine can therefore be evaluated according to the required flight diameter, shaft diameter, workpiece length, blade thickness, welding method, automation level, and production capacity.

For customers producing multiple specifications, machine adjustment and production flexibility are especially important. Providing detailed product drawings, dimensions, material information, and target production requirements allows the machine configuration to be matched more accurately to the intended application.

Whether the goal is manufacturing screw conveyors, agricultural augers, drilling augers, solar helical piles, ground screws, or custom spiral components, an automatic spiral blade welding system can provide a practical solution for improving welding consistency and production efficiency.

Frequently Asked Questions
1. What is an Automatic Spiral Blade Welding Machine?

It is an automated welding machine designed to weld spiral flight blades to shafts, tubes, or other components used in augers, screw conveyors, drilling tools, and helical piles.

2. What is an Auger Flight Welder used for?

An Auger Flight Welder is primarily used to fabricate auger flights and spiral assemblies. Typical applications include screw conveyors, agricultural augers, drilling augers, ground screws, and solar helical piles.

3. Can this machine weld screw conveyor flights?

Yes. The machine is designed for spiral flight welding and can be used for screw conveyor flight and auger assembly production when the workpiece dimensions and welding requirements match the machine configuration.

4. Can it be used for solar helical piles?

Yes. It can be used for welding spiral blades to steel shafts used in solar helical piles and ground screw foundation products. The exact machine configuration should be selected according to the pile dimensions and production requirements.

5. What materials can be welded?

Common applications involve carbon steel and other weldable steel materials. The appropriate welding process, wire, shielding gas, and parameters depend on the specific material and joint design.

6. Is the welding process fully automatic?

The level of automation depends on the machine configuration. Automatic rotation and coordinated welding movement can significantly reduce manual operations, while loading, unloading, setup, and parameter adjustment may still require operator involvement.

7. Can the machine handle different auger sizes?

Many configurations can accommodate different workpiece dimensions within their designed operating range. Buyers should provide the required minimum and maximum shaft and flight dimensions for proper machine selection.

8. What information is needed for a machine quotation?

Useful information includes shaft diameter, flight diameter, flight thickness, workpiece length, material, welding method, required production capacity, and product drawings or photos.

9. Can the machine be customized?

Machine configuration can be discussed according to specific production requirements. Customization may involve workpiece dimensions, rotation capacity, welding equipment, automation level, control system, and supporting components.

10. How does automatic welding improve auger production?

Automation can reduce repetitive manual welding and positioning operations while providing controlled movement and repeatable welding conditions. Actual production improvements depend on the workpiece, machine configuration, welding process, and operating parameters.

Prev：CNC Longitudinal Seam Welding Machine for Exhaust Pipe & Cylinder Production

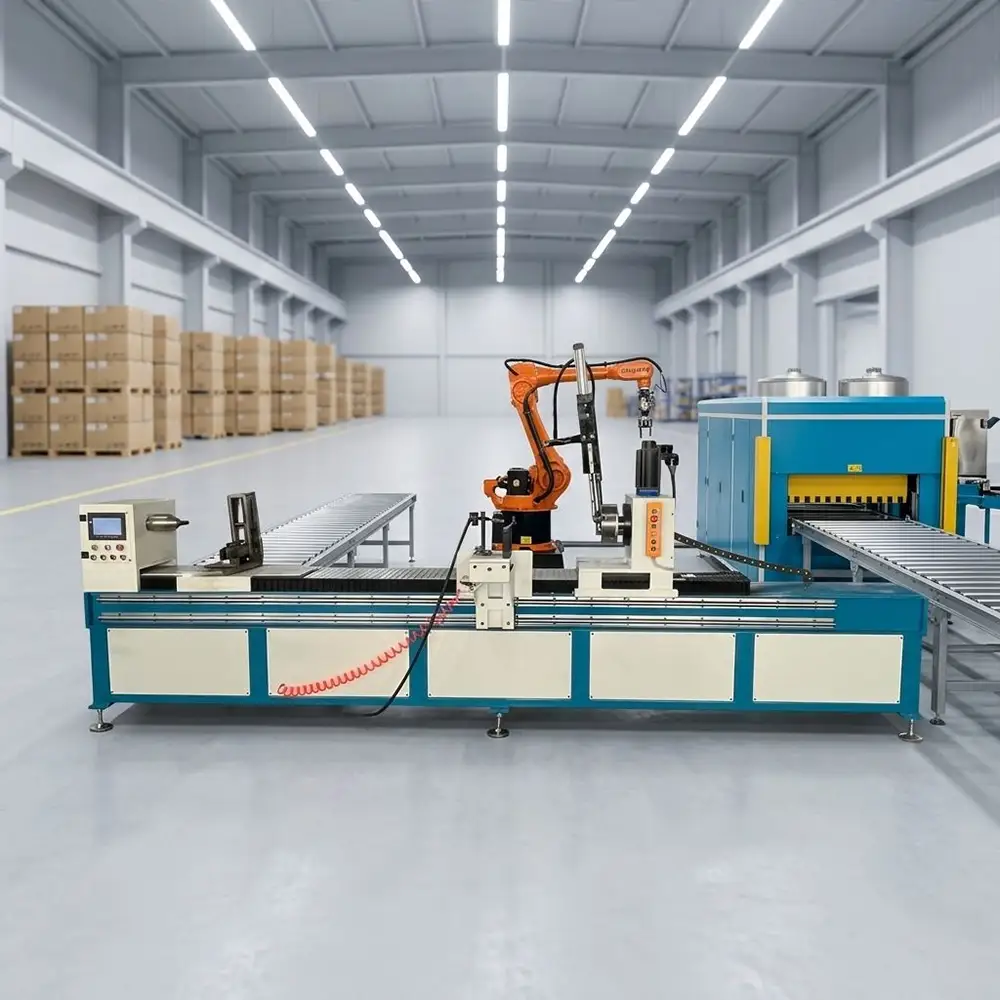

Next：Auger Flight Welder | Spiral Blade Welding Machine for Power Tower Helical Anchor Pile
