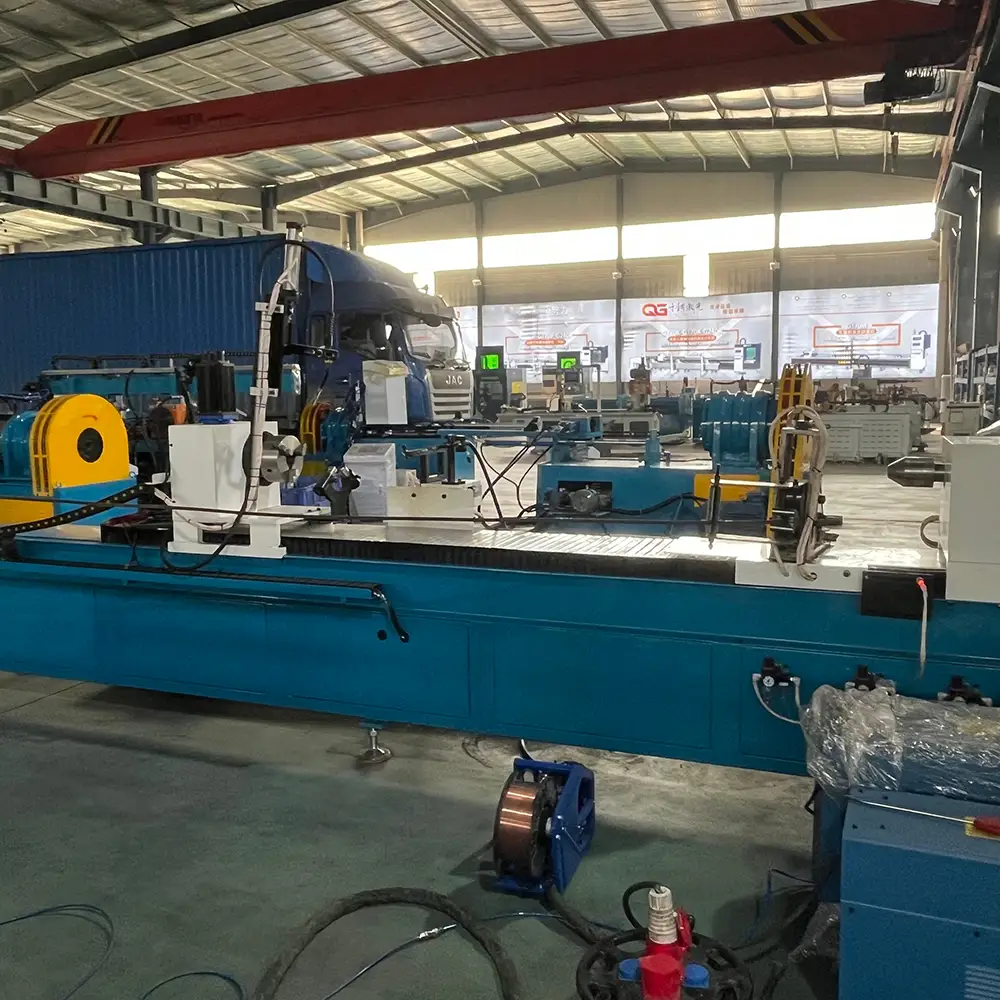

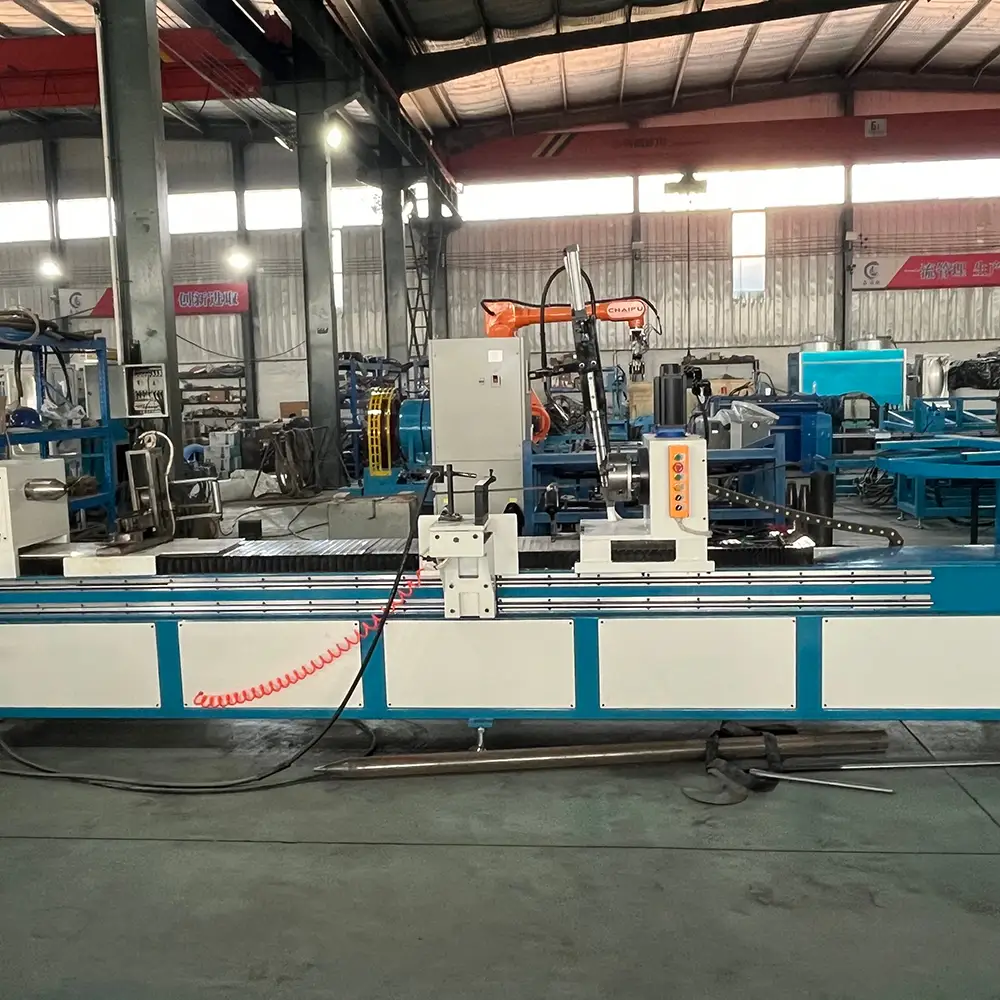

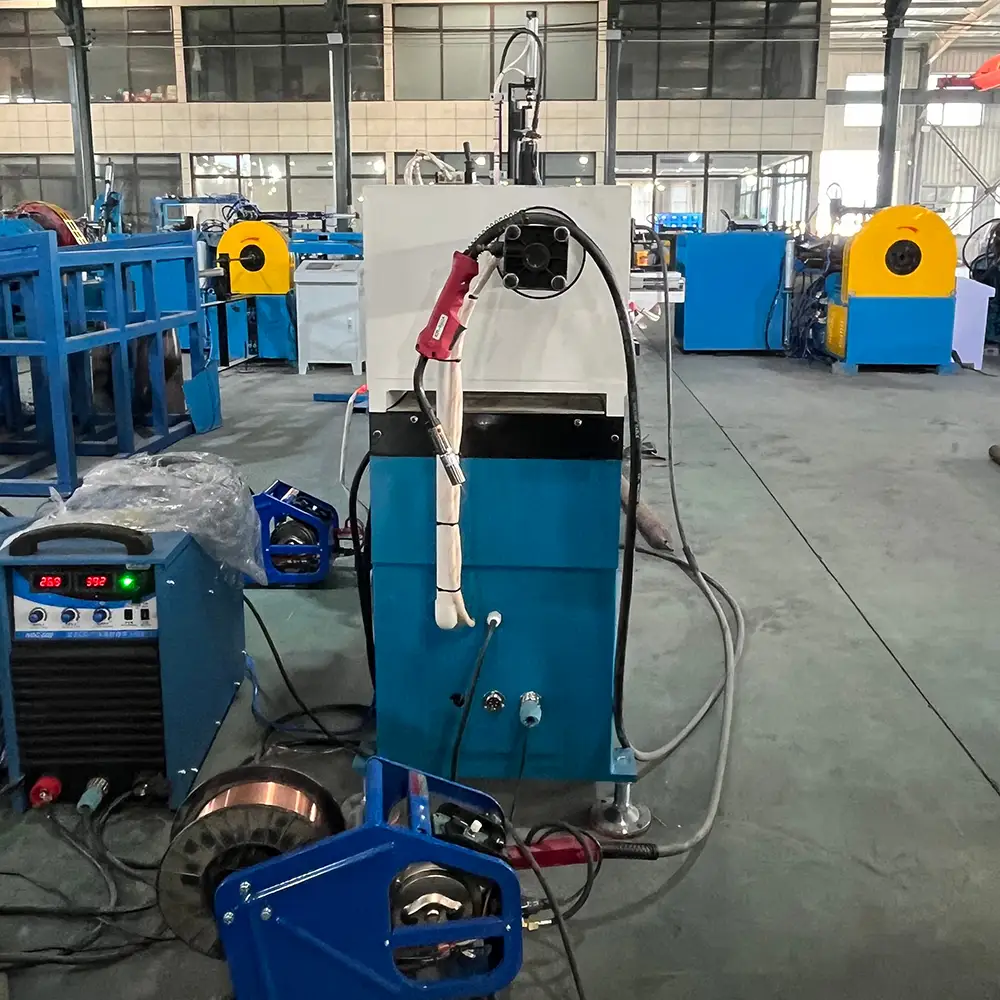

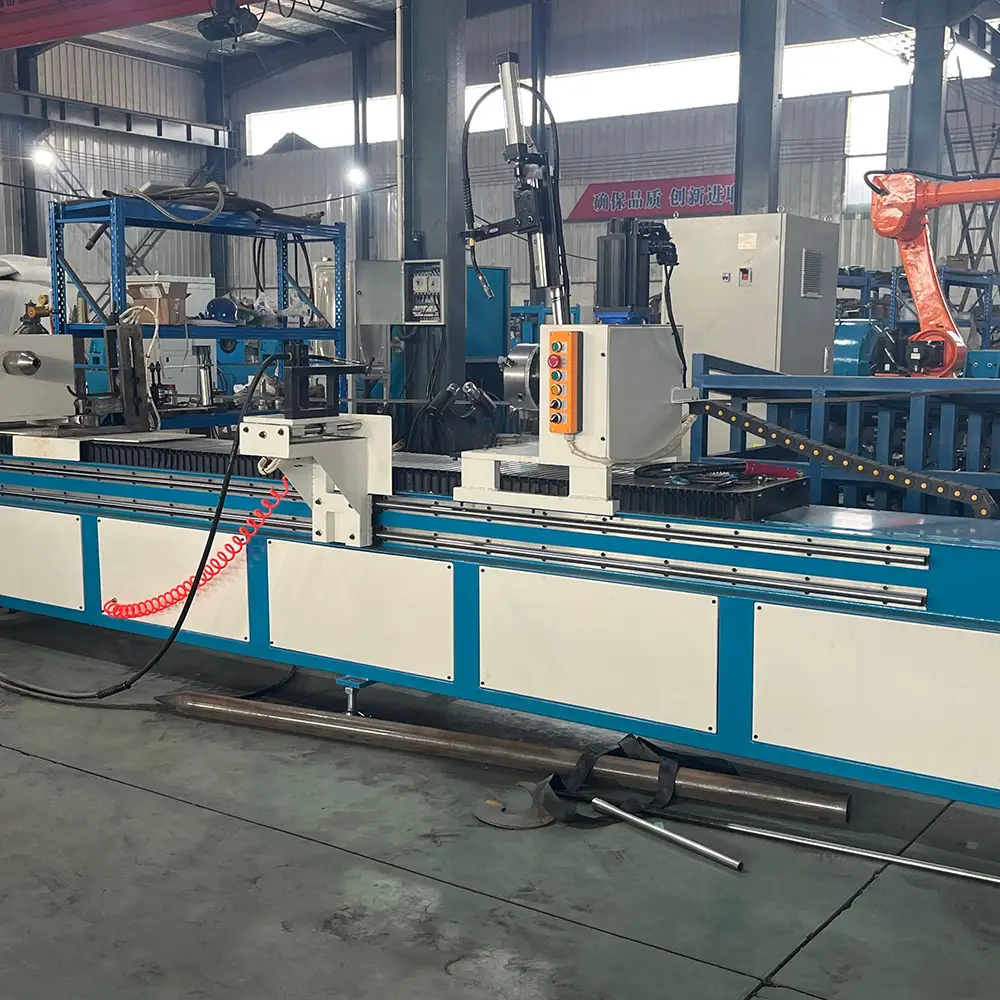

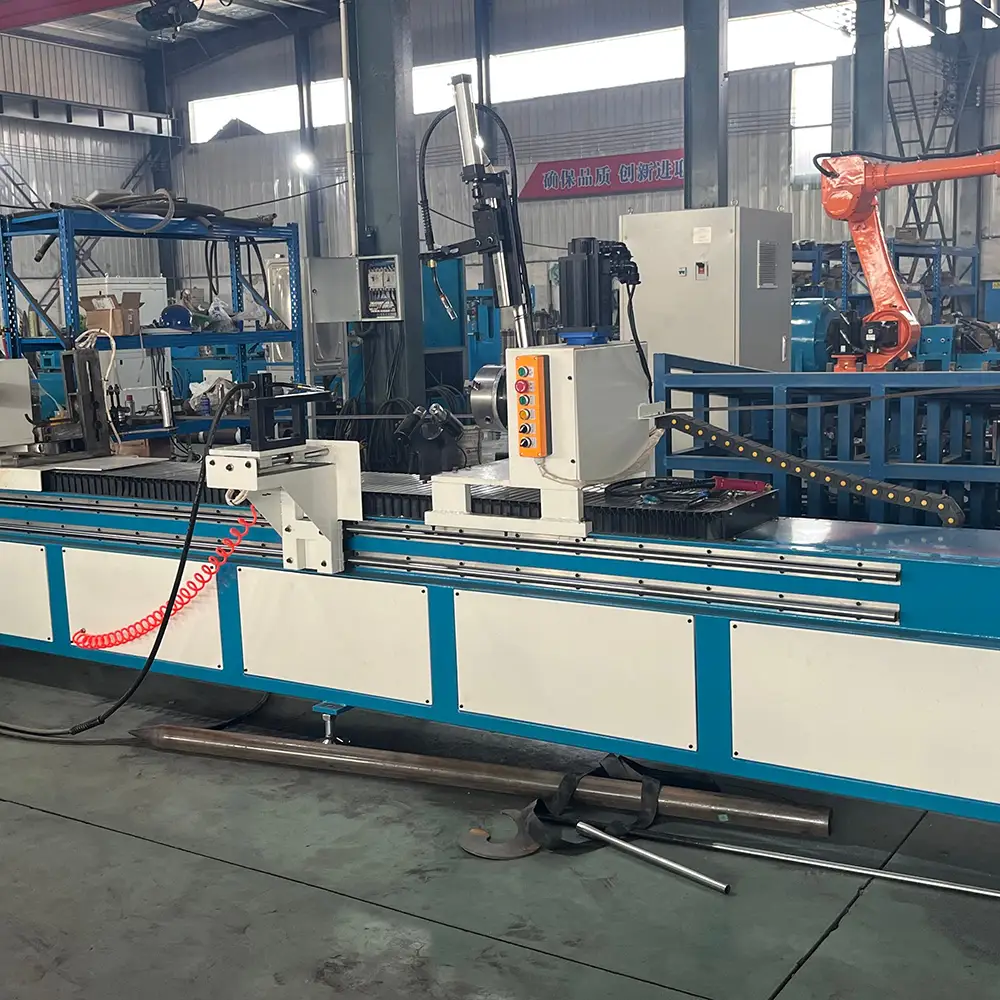

Auger Flight Welder | Spiral Blade Welding Machine for Power Tower Helical Anchor Pile

    Automatic program control, realize automatic continuous welding of auger flight and central shaft.
    Equipped with automatic seam tracking system to ensure consistent welding trajectory.
    Stable welding arc, smooth and neat weld seam, high forming quality.
    Greatly reduce dependence on skilled welders, lower labor costs.
    Servo drive system, accurate positioning, adjustable welding speed.
    Wide processing range, suitable for screw conveyor and solar helical pile production.
    Simple operation interface, easy parameter setting, short training cycle.
    High welding efficiency, support mass continuous production.
    Solid machine frame, anti-deformation, long service life.
    Flexible customization available according to customer workpiece specifications.


Auger Flight Welder for Spiral Blade Welding and Helical Anchor Pile Production

The Auger Flight Welder is a specialized welding solution designed for manufacturing spiral auger flights, helical blades, helical anchor piles, ground screws, and other spiral steel components. By combining controlled rotation with welding operations, the machine helps manufacturers produce consistent spiral blade assemblies for construction, foundation, agricultural, drilling, and industrial applications.

Auger flights are typically formed from spiral steel blades that must be accurately positioned and welded onto a central shaft or pipe. Maintaining consistent pitch, blade alignment, and weld positioning is important for the performance and appearance of the finished auger or helical pile.

The Spiral Blade Welding Machine provides a dedicated production solution for this process, helping reduce repetitive manual positioning and improve manufacturing consistency.

Specialized Auger Flight Welding

The main purpose of an auger flight welder is to join spiral flighting to a central shaft or tube. During production, the flight must follow a controlled helical path around the shaft while welding secures the components together.

A dedicated welding machine can coordinate the rotation and positioning required during this process. This allows manufacturers to produce spiral blade assemblies with more consistent pitch and alignment than conventional manual welding methods.

The machine can be considered for different auger and helical product designs depending on the workpiece dimensions, blade configuration, shaft diameter, welding method, and machine setup.

Spiral Blade Welding Machine

The spiral blade is the working component of an auger, screw conveyor, drilling tool, or helical foundation product. Its geometry affects how the finished component interacts with soil, bulk materials, or other working environments.

A spiral blade welding machine is designed to simplify the assembly of these components.

Potential applications include:

Auger Flights
Spiral Blades
Helical Anchor Piles
Ground Screws
Helical Piles
Screw Conveyor Components
Earth Drilling Augers
Foundation Screw Piles
Agricultural Augers
Industrial Spiral Components

The machine configuration should be selected according to the actual blade dimensions and product requirements.

Helical Anchor Pile Manufacturing

Helical anchor piles and ground screws are used in foundation and structural applications where a helical plate is welded around a central steel shaft. The spiral blade helps the pile penetrate the ground while providing load-bearing functionality.

Manufacturing these products requires accurate positioning of the helical plate along the shaft. The Helical Anchor Pile Welding Machine can help streamline this production process by controlling the rotation and welding sequence.

For manufacturers producing foundation piles for power towers, solar structures, telecommunications towers, utility infrastructure, and other projects, automated or semi-automated welding can improve production workflow and repeatability.

Power Tower Foundation Applications

Power towers and utility structures often require reliable foundation systems. Depending on the engineering design and ground conditions, helical piles and screw-based foundation components can be used as part of foundation solutions.

The auger flight welder can support the production of spiral foundation components by providing a controlled method for attaching helical plates to steel shafts.

Finished products may be used for:

Power Tower Foundations
Utility Tower Foundations
Transmission Structures
Telecommunications Towers
Solar Mounting Foundations
Light Pole Foundations
Sign Structures
Temporary Structures
General Foundation Systems

Actual application suitability depends on the engineered pile design, material specifications, installation method, and project requirements.

Controlled Spiral Formation and Welding

One of the most important requirements in auger flight manufacturing is maintaining a consistent relationship between the spiral blade and the central shaft.

During production, the workpiece must rotate while the flighting follows its intended helical path. The welding process then secures the blade to the shaft.

Controlled movement can help improve consistency in:

Flight Pitch
Blade Alignment
Shaft Rotation
Welding Position
Spiral Geometry
Overall Product Appearance

The exact level of automation depends on the machine configuration.

Efficient Auger Flight Fabrication

Traditional manual auger flight fabrication can involve repeated measuring, positioning, clamping, rotating, and welding. These operations can require significant operator attention, particularly when producing long or large-diameter spiral components.

A dedicated auger flight welding machine provides a more organized production workflow.

The general manufacturing process may include:

1. Shaft Preparation

A steel shaft, pipe, or tube is prepared according to the product design.

2. Spiral Flight Preparation

The required spiral blade or auger flight is prepared according to the specified dimensions.

3. Positioning

The flight is positioned against the shaft at the required starting point.

4. Controlled Rotation

The shaft and flight are rotated in coordination to maintain the desired spiral path.

5. Welding

The flight is welded to the shaft along the required connection.

6. Inspection

The finished auger or helical pile is inspected for blade alignment, weld quality, dimensions, and overall geometry.

Applications in Construction and Foundation Manufacturing

Helical anchor pile production is an important application for this type of equipment. Manufacturers can use the machine to produce spiral foundation components for construction and infrastructure projects.

Depending on engineering requirements, products may be used for foundations supporting towers, solar structures, utility equipment, signage, and other structures.

The equipment can also support general steel fabrication companies that manufacture customized auger flights and spiral components for contractors and equipment manufacturers.

Agricultural and Industrial Auger Applications

Auger flights are not limited to foundation products. Spiral flighting is widely used in agricultural and industrial equipment.

Potential applications include:

Grain Augers
Feed Conveyors
Screw Conveyors
Material Handling Equipment
Drilling Equipment
Earth Augers
Agricultural Machinery
Mining Equipment
Construction Machinery
Industrial Processing Equipment

For these applications, the flight geometry and welding requirements vary according to the product design.

Screw Conveyor Flight Welding

Screw conveyors use spiral flights to move bulk materials through a tube, trough, or processing system. Consistent flight positioning is important for efficient material movement.

An auger flight welding system can be used to manufacture screw conveyor components by welding spiral flighting to a central shaft.

Depending on the production requirements, manufacturers can evaluate the machine for different conveyor diameters, shaft configurations, flight dimensions, and material types.

Material Compatibility

The machine can be used with suitable steel components according to the welding process and machine configuration.

Common materials may include:

Carbon Steel
Mild Steel
Structural Steel
Stainless Steel
Other Weldable Steel Materials

Material thickness, blade dimensions, shaft diameter, welding process, and required weld strength should be considered when selecting the appropriate equipment.

Advantages for B2B Manufacturers

For manufacturers producing augers, helical piles, ground screws, or spiral steel components, a dedicated welding machine can provide several production advantages.

Controlled positioning can reduce manual alignment work, while repeatable rotation can help standardize spiral geometry.

Other potential benefits include:

Improved Production Consistency
Reduced Manual Positioning
Better Spiral Alignment
More Efficient Welding Workflow
Repeatable Flight Pitch
Suitable for Custom Designs
Reduced Setup Repetition
Support for Industrial Production

Actual performance depends on machine configuration, operator setup, product dimensions, and welding parameters.

Custom Auger Flight and Helical Pile Production

Different customers may require different auger diameters, shaft sizes, flight pitches, blade thicknesses, and overall lengths. For this reason, customization is an important consideration when purchasing an auger flight welder.

Manufacturers should provide product drawings or samples when requesting a machine solution.

Important information includes shaft diameter, flight diameter, flight thickness, pitch, total length, material type, welding requirements, and expected production volume.

This information helps determine whether a specific machine configuration is appropriate for the intended application.

Quality Control

Quality control is important when manufacturing structural or load-bearing helical products. Manufacturers should establish inspection procedures appropriate for their products and engineering requirements.

Inspection may include:

Flight Pitch
Blade Alignment
Shaft Straightness
Weld Appearance
Weld Continuity
Overall Dimensions
Component Positioning

For foundation products, welding and dimensional requirements should follow the applicable engineering specifications and project standards.

Why Choose Us?
1. Specialized Auger Flight Welding

The machine is designed specifically for welding spiral flights to shafts and tubes.

2. Controlled Rotation

Coordinated rotation helps maintain the required helical path during production.

3. Improved Flight Alignment

Controlled positioning can help achieve more consistent spiral blade alignment.

4. Helical Pile Applications

Suitable for manufacturers producing helical anchor piles, ground screws, and foundation components.

5. Power Tower Foundation Production

The machine can support manufacturing of spiral foundation components for power and utility structures.

6. Broad Auger Applications

Suitable for construction, agriculture, screw conveyors, drilling, and industrial auger production.

7. Reduced Manual Positioning

Dedicated equipment can reduce repetitive manual alignment and rotation operations.

8. Custom Product Capability

Machine configuration can be evaluated according to customer-specific auger and helical product designs.

9. B2B Manufacturing Solution

Designed for professional factories producing augers, helical piles, spiral blades, and customized steel components.

10. OEM Production Support

Product drawings, dimensions, materials, welding requirements, and production volume can be evaluated for customized solutions.

FAQs
1. What Is an Auger Flight Welder?

An auger flight welder is a specialized machine used to weld spiral flighting or helical blades onto a central shaft, pipe, or tube to produce augers and other spiral components.

2. What Products Can This Machine Manufacture?

It can be used for auger flights, helical anchor piles, ground screws, screw conveyor components, drilling augers, agricultural augers, and other spiral steel products.

3. Can It Weld Helical Anchor Piles?

Yes. The machine is suitable for manufacturing helical anchor piles and ground screw components when the product dimensions are within the machine's processing range.

4. Can It Be Used for Power Tower Foundations?

It can support the manufacturing of helical foundation components used in power tower and utility infrastructure applications. The final pile design should follow the applicable engineering requirements.

5. What Is the Function of the Spiral Blade?

The spiral blade creates the helical working surface of an auger, screw conveyor, ground screw, or helical pile.

6. Can It Produce Screw Conveyor Flights?

Yes. The machine can be considered for screw conveyor flight fabrication, subject to the required flight diameter, shaft dimensions, pitch, material, and welding configuration.

7. What Materials Can Be Welded?

Suitable materials may include carbon steel, mild steel, structural steel, stainless steel, and other weldable metals depending on the welding system.

8. Can the Machine Produce Different Flight Pitches?

The available flight pitch range depends on the machine design and configuration. Customers should provide the required pitch when requesting a quotation.

9. Can It Manufacture Custom Helical Piles?

Yes. Custom production can be evaluated according to shaft diameter, blade diameter, blade thickness, pitch, length, and other product specifications.

10. Is the Machine Suitable for Mass Production?

Yes. A dedicated auger flight welding machine can help standardize repetitive welding and positioning operations for industrial production.

11. What Information Is Needed for Machine Selection?

Provide the shaft diameter, flight diameter, blade thickness, pitch, total product length, material, welding requirements, and expected production volume.

12. Can the Machine Be Used for Agricultural Augers?

Yes. Agricultural augers and material-handling components are among the potential applications for spiral flight welding equipment.

13. Can You Support OEM Production?

Yes. OEM requirements can be evaluated based on customer drawings, samples, product dimensions, material specifications, and production requirements.
