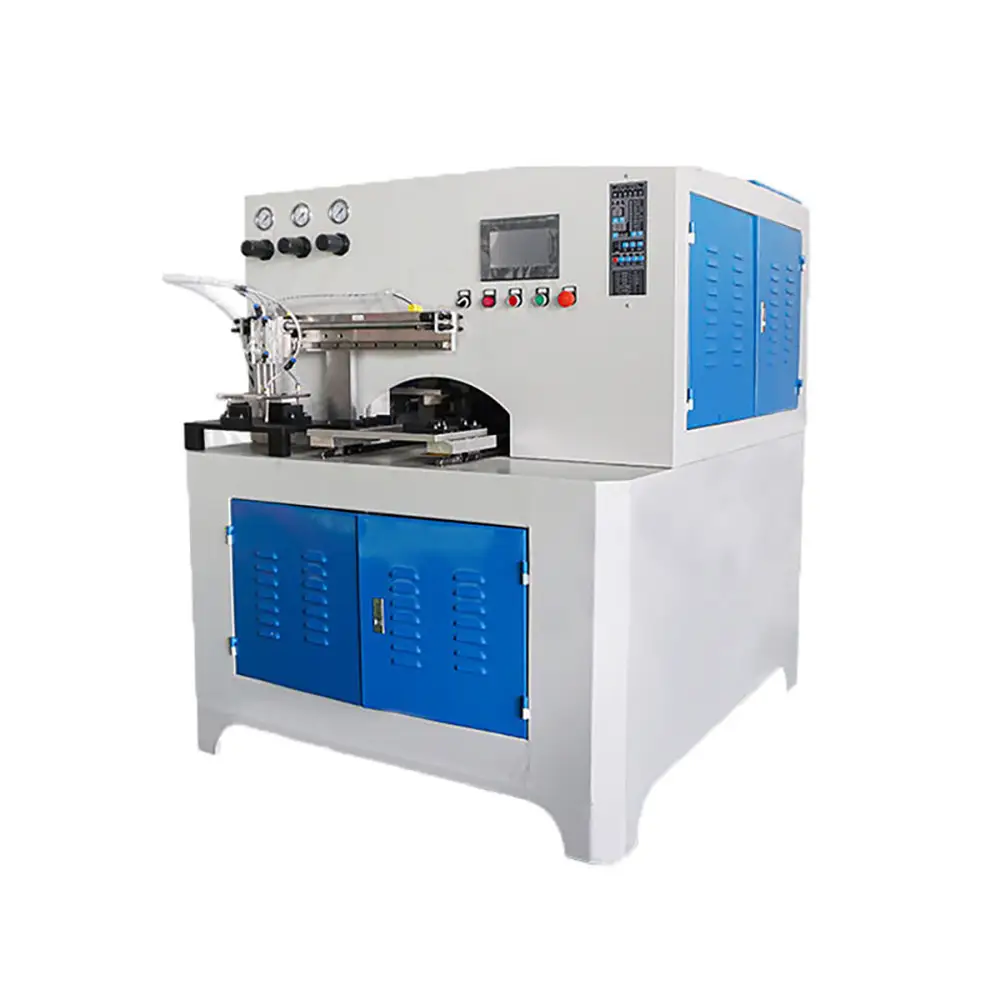

 Automatic Mesh Rolling and Welding Machine for Heavy-Duty Air Filter Making

The Automatic Mesh Rolling and Welding Machine is an industrial production solution designed for manufacturers of heavy-duty air filters, filter mesh components, automotive filters, industrial filtration products, and related metal mesh assemblies. By integrating mesh rolling, forming, welding, and other production operations into an automated workflow, the machine helps improve manufacturing efficiency, dimensional consistency, and production repeatability.

Air filter manufacturing often requires precise processing of metal mesh, wire mesh, perforated materials, and other structural filter components. These materials need to be shaped, joined, and formed accurately so they can be assembled into reliable filter products. Manual production can require significant labor and may result in variations between individual components.

An Air Filter Making Machine provides a more standardized production process. Depending on the machine configuration, it can automatically feed mesh material, perform rolling or forming operations, weld designated areas, and produce consistent filter mesh components for subsequent assembly.

This equipment is suitable for manufacturers seeking to improve automation in heavy-duty filter production while reducing repetitive manual operations.

Automatic Air Filter Making Machine

The primary purpose of an Automatic Air Filter Making Machine is to streamline the manufacturing process for metal mesh and structural components used in air filtration products.

The machine can be configured according to the required filter design, mesh specifications, material dimensions, welding pattern, and production volume.

Typical production operations may include:

Mesh Feeding
Mesh Rolling
Mesh Forming
Mesh Welding
Edge Welding
Filter Frame Processing
Automatic Cutting
Component Positioning
Finished Product Discharge

The exact functions depend on the selected machine model and production configuration.

For manufacturers producing large quantities of standardized filter components, automated processing can help maintain consistent production cycles and reduce the amount of manual handling required.

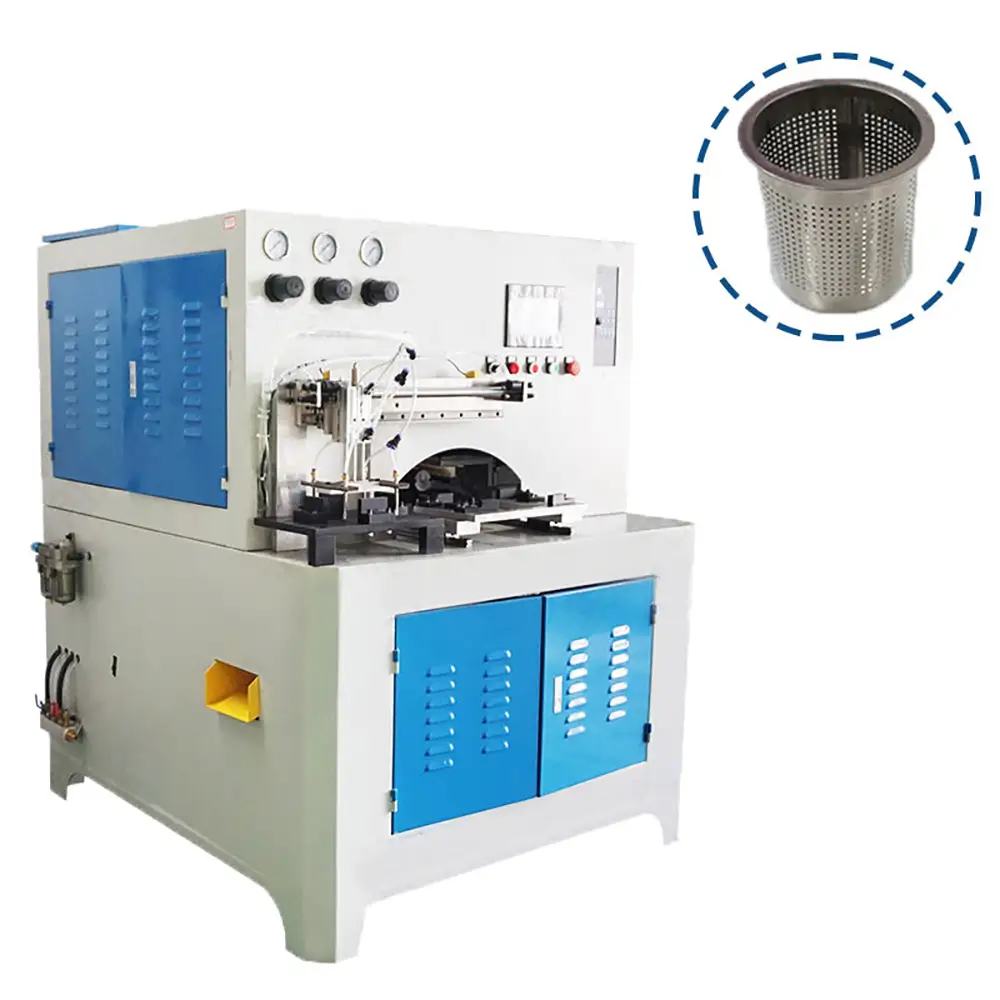

Heavy-Duty Air Filter Production

Heavy-duty air filters are commonly used in demanding environments where filtration components need to withstand vibration, dust, temperature variations, airflow, and continuous operation.

Applications may include:

Heavy-Duty Trucks
Construction Equipment
Agricultural Machinery
Mining Equipment
Industrial Engines
Generators
Compressors
Commercial Vehicles
Industrial Air Filtration Systems

The metal mesh used in these filters can provide structural support and help maintain the shape of the filtration media.

The Heavy-Duty Air Filter Making Machine is designed to help manufacturers efficiently produce mesh components used in these applications.

The appropriate machine configuration should be selected according to the filter dimensions, mesh material, wire diameter, mesh opening, welding requirements, and production capacity.

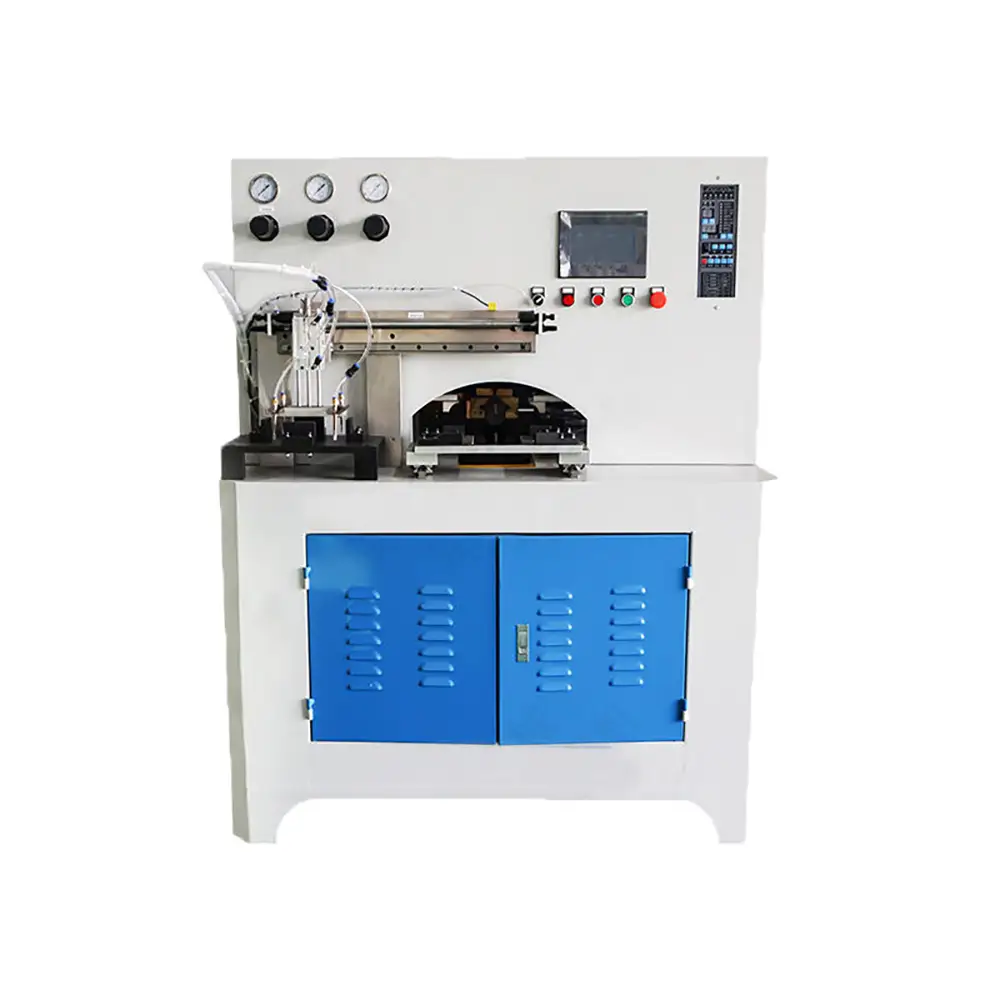

Mesh Rolling Machine

The mesh rolling function is an important part of the production process.

A Mesh Rolling Machine can form flat mesh material into cylindrical, oval, or other specified shapes depending on the machine design and tooling.

Accurate rolling is important because the finished mesh must maintain the correct diameter, length, shape, and alignment for subsequent welding and filter assembly.

The rolling system can be designed with controlled feeding and forming mechanisms to help achieve repeatable dimensions during continuous production.

For cylindrical air filters, the mesh may be rolled around a defined diameter before the edges are joined through an appropriate welding process.

Different tooling configurations can be used for different filter dimensions.

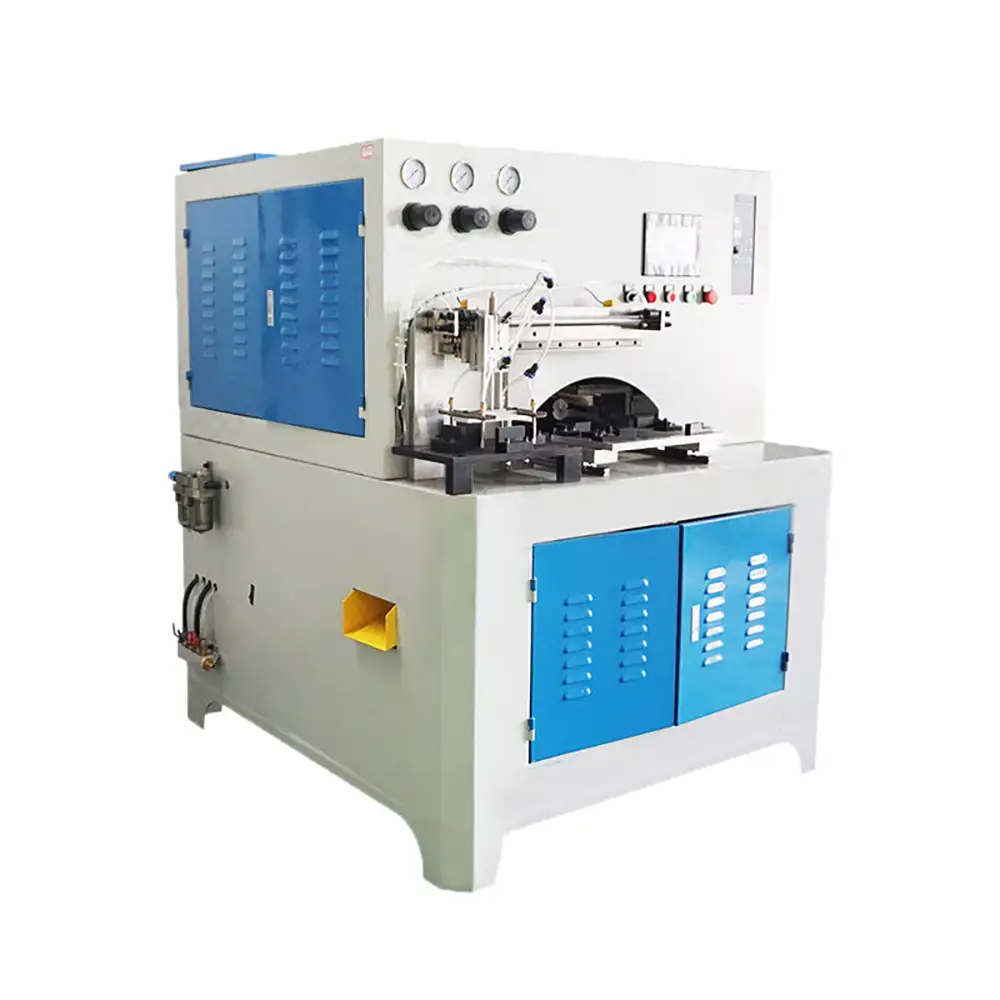

Mesh Welding Machine

After rolling or forming, the mesh edges may need to be joined securely.

A Mesh Welding Machine can provide controlled welding for compatible metal mesh materials. The welding process can help create consistent joints while maintaining the required shape of the filter mesh component.

Depending on the application, welding may be used for:

Mesh Seams
Filter Shells
Metal Frames
Reinforcement Structures
Mesh Edges
Support Components

Welding parameters should be selected according to the material, wire diameter, mesh structure, joint configuration, and required production speed.

Automated welding can help reduce variations caused by manual positioning and welding.

Consistent Filter Mesh Dimensions

Dimensional consistency is important in filter manufacturing because mesh components must fit correctly with filtration media, end caps, sealing elements, and other components.

An automated production machine can help standardize:

Mesh Width
Mesh Length
Filter Diameter
Rolling Radius
Welding Position
Component Alignment
Production Cycle

Consistent processing can simplify downstream assembly and reduce the need for repeated manual adjustments.

For high-volume manufacturing, standardized production parameters can also help manufacturers establish more predictable production cycles.

Suitable for Different Filter Designs

Air filters come in many different shapes and sizes. Depending on the machine configuration and tooling, the equipment can be adapted to different filter specifications.

Possible applications include cylindrical filter mesh, rolled mesh shells, metal mesh supports, and other fabricated filter components.

Custom tooling can be developed when a particular product requires a special diameter, length, mesh pattern, or welding configuration.

Before ordering, manufacturers should provide detailed drawings or samples of the filter mesh component so the machine configuration can be evaluated.

Automatic Material Feeding

Automatic feeding can help maintain a continuous production workflow.

The mesh material is positioned and transferred through the machine according to programmed production parameters. Controlled feeding can reduce manual intervention and help maintain consistent material positioning.

For continuous production environments, automatic feeding can also improve operator efficiency by reducing repetitive material handling.

Depending on the system, sensors and control mechanisms may be used to monitor material positioning and machine operation.

Improved Production Efficiency

The biggest advantage of automation is the ability to reduce repetitive manual processes.

Instead of manually measuring, rolling, positioning, and welding each filter mesh component, the automated system can perform multiple stages according to programmed parameters.

This can help manufacturers:

Reduce Manual Labor
Improve Production Consistency
Increase Production Efficiency
Reduce Repetitive Operations
Standardize Product Dimensions
Improve Material Handling
Simplify Production Management

Actual production capacity depends on filter dimensions, mesh specifications, welding requirements, machine configuration, operator workflow, and production cycle time.

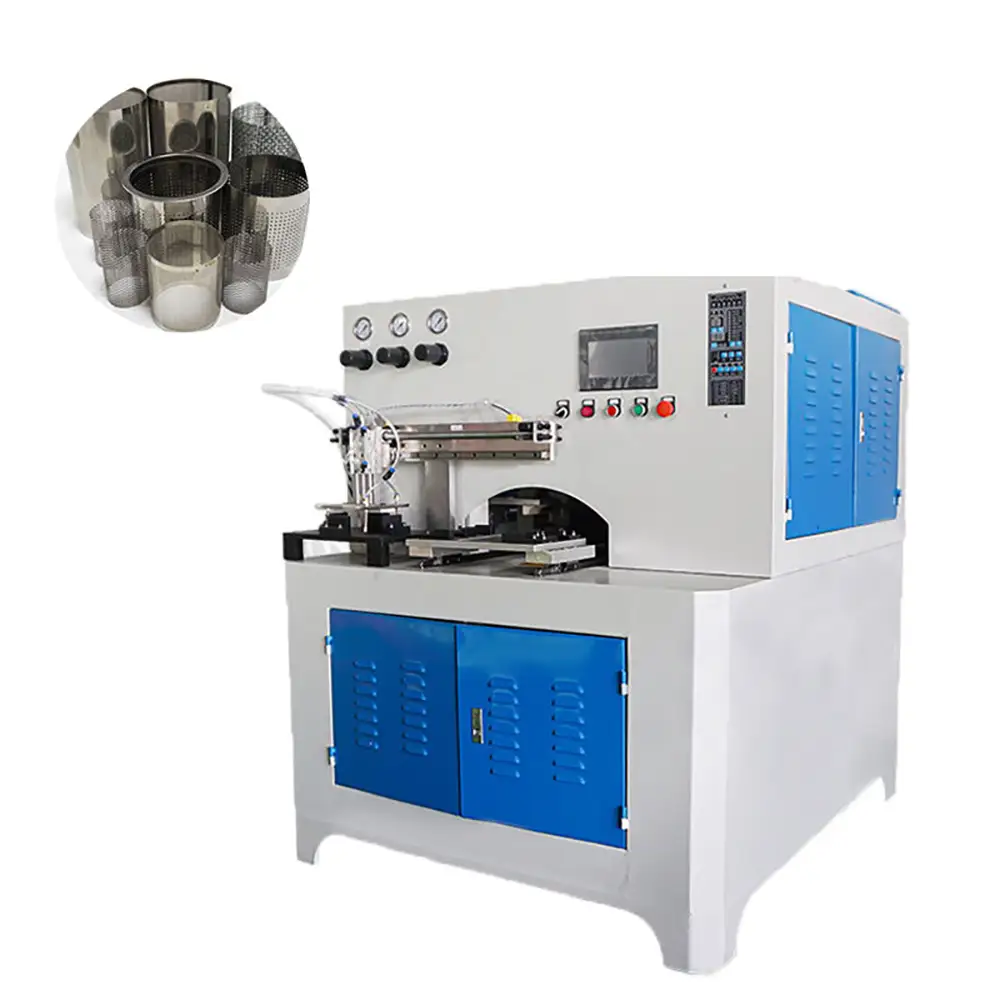

Industrial Air Filter Manufacturing Applications

The machine is suitable for businesses involved in manufacturing filtration products and metal mesh components.

Typical users include:

Automotive Filter Manufacturers
Produce mesh components for vehicle and engine air filtration products.

Heavy Equipment Filter Manufacturers
Support production of filters for construction, mining, and agricultural machinery.

Industrial Filtration Companies
Manufacture structural mesh components used in industrial air filtration systems.

Metal Mesh Manufacturers
Process and form mesh materials into customized filter components.

OEM Filter Suppliers
Produce filter components according to customer drawings and specifications.

Custom Filter Fabricators
Manufacture different filter sizes and designs using interchangeable tooling.

User-Friendly Control System

Modern automatic filter-making machinery can be equipped with digital control systems that allow operators to adjust production parameters.

Depending on the configuration, the control interface may provide settings for feeding speed, rolling parameters, welding time, welding current, forming dimensions, production quantity, and other functions.

Programs can be developed for different filter specifications, allowing operators to switch between production requirements more efficiently.

Proper operator training and process validation are recommended before continuous production.

Durable Industrial Construction

A heavy-duty production machine should be built around a stable frame and reliable transmission, forming, feeding, and welding components.

The machine structure should be selected according to production intensity and expected operating conditions.

Industrial-grade components can help support long-term operation when the equipment is correctly installed, operated, maintained, and serviced.

Regular inspection of welding electrodes, feeding mechanisms, forming rollers, electrical components, and other wear parts is recommended.

Why Choose Our Air Filter Making Machine?
1. Automated Production

Automates key mesh rolling and welding operations to reduce repetitive manual work.

2. Consistent Filter Components

Controlled feeding, rolling, forming, and welding help maintain repeatable dimensions and production quality.

3. Heavy-Duty Applications

Suitable for filter components used in trucks, agricultural machinery, construction equipment, industrial engines, and other demanding applications.

4. Flexible Mesh Processing

The machine can be configured for different mesh materials, dimensions, and filter designs.

5. Reduced Manual Handling

Automatic material feeding and processing can reduce repetitive operator intervention.

6. Customizable Tooling

Different forming and rolling tools can be selected according to filter diameter, length, and product design.

7. Efficient Welding

Automated mesh welding provides controlled joining of compatible metal mesh components.

8. B2B Manufacturing Solution

Suitable for OEM filter manufacturers, automotive suppliers, industrial filtration companies, and metal mesh processing businesses.

FAQ
1. What Is an Air Filter Making Machine?

An air filter making machine is industrial equipment designed to automate selected manufacturing processes for air filter components, including mesh feeding, rolling, forming, welding, and other operations.

2. What Does a Mesh Rolling Machine Do?

A mesh rolling machine forms flat metal mesh into a specified cylindrical, oval, or other shape according to the tooling and machine configuration.

3. Can the Machine Weld Filter Mesh?

Yes. A suitable configuration can perform automated welding of compatible metal mesh seams, edges, frames, or reinforcement components.

4. Is It Suitable for Heavy-Duty Air Filters?

Yes. The machine is designed for production applications involving heavy-duty filter mesh components, including filters used in automotive, agricultural, construction, and industrial equipment.

5. What Materials Can Be Used?

Depending on the welding and forming configuration, materials may include stainless steel, galvanized steel, carbon steel, and other compatible metal mesh materials.

6. Can It Produce Different Filter Sizes?

Yes, different filter dimensions can generally be accommodated through suitable tooling, forming parameters, and machine configuration.

7. Can the Machine Be Customized?

Yes. Customization can include rolling diameter, mesh width, welding configuration, feeding system, tooling, control system, and other production requirements.

8. Does It Require an Operator?

An operator is generally required for material loading, machine monitoring, quality inspection, product changeover, and routine operation. The amount of manual intervention depends on the automation level.

9. How Do I Select the Right Machine?

Provide the filter drawing or sample, mesh material, mesh specification, wire diameter, filter dimensions, welding requirements, and expected production capacity. These details can be used to determine the appropriate configuration.

10. Can It Be Used for OEM Filter Production?

Yes. The machine can be configured for OEM manufacturing applications where filter mesh components need to meet specific dimensions and production requirements.
