Tea Strainer Filter Cartridge Filter Automatic Rolling Welding Machine Welder

 Automatic Tea Strainer & Cartridge Filter Rolling Welding Machine

The Automatic Tea Strainer Filter Cartridge Filter Rolling Welding Machine is a specialized production solution designed for manufacturers of tea strainers, stainless steel filter cartridges, metal mesh filters, cylindrical filter elements, and other rolled mesh filtration products. By combining automatic material feeding, rolling, forming, and welding operations, the machine helps manufacturers improve production efficiency, dimensional consistency, and repeatability.

Tea strainers and cartridge filters are commonly manufactured from stainless steel mesh, perforated metal, expanded metal, or other filtration materials. Many of these products require the flat material to be accurately rolled into a cylindrical or customized shape before the edges are joined through welding.

Manual rolling and welding can be time-consuming and may result in variations in diameter, alignment, and seam quality. An Automatic Filter Rolling Welding Machine provides a more standardized production process, helping manufacturers reduce repetitive manual operations and improve manufacturing consistency.

The machine is suitable for filter manufacturers, stainless steel product manufacturers, kitchenware suppliers, industrial filtration companies, hardware factories, and OEM production businesses.

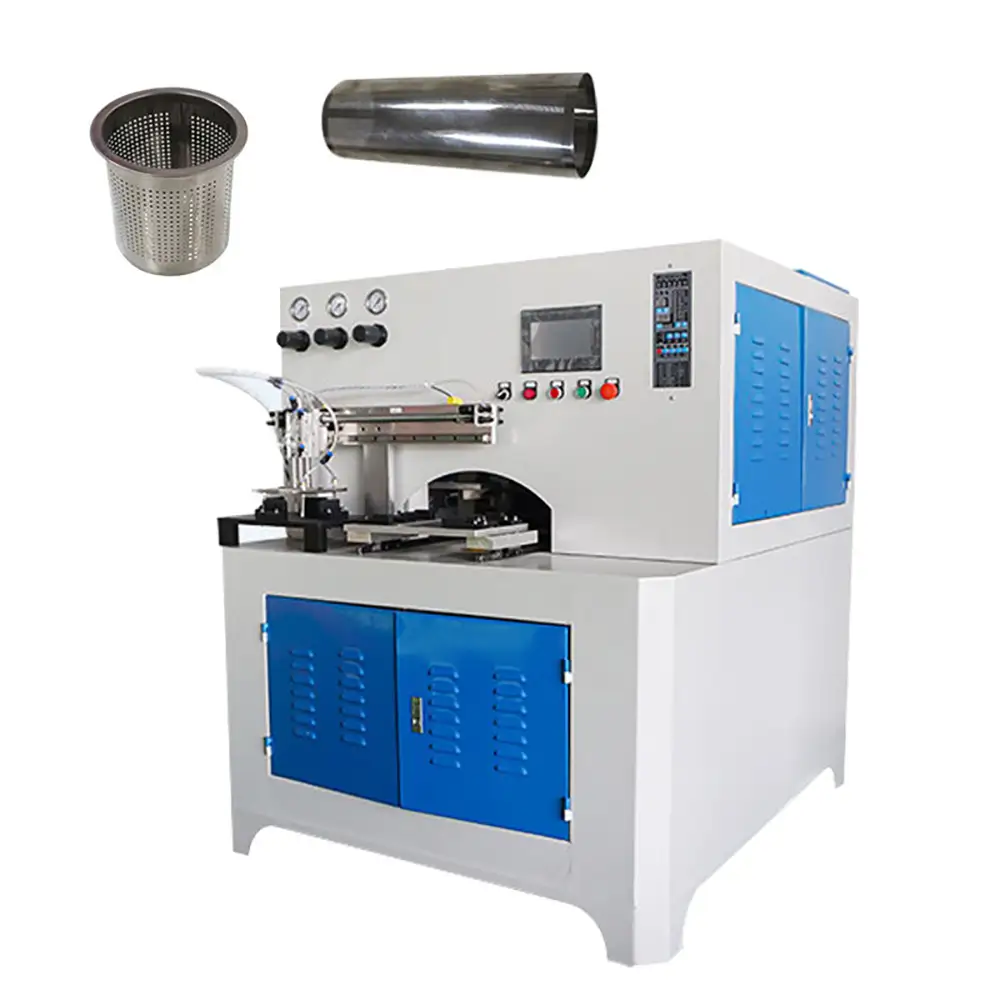

Automatic Filter Rolling Machine

The rolling process is one of the most important stages in manufacturing cylindrical filter products.

An Automatic Filter Rolling Machine is designed to feed and form mesh or sheet material into a predetermined cylindrical diameter. Controlled rollers help guide the material and maintain the required shape throughout the forming process.

Depending on the machine configuration, different tooling and forming parameters can be used for different filter diameters and product dimensions.

The rolling process can be applied to:

Tea Strainer Mesh
Stainless Steel Filter Mesh
Cartridge Filter Mesh
Cylindrical Filter Screens
Wire Mesh
Perforated Metal
Expanded Metal
Metal Filter Sheets

Consistent rolling is particularly important because the finished cylindrical component must match the required dimensions for subsequent welding and assembly.

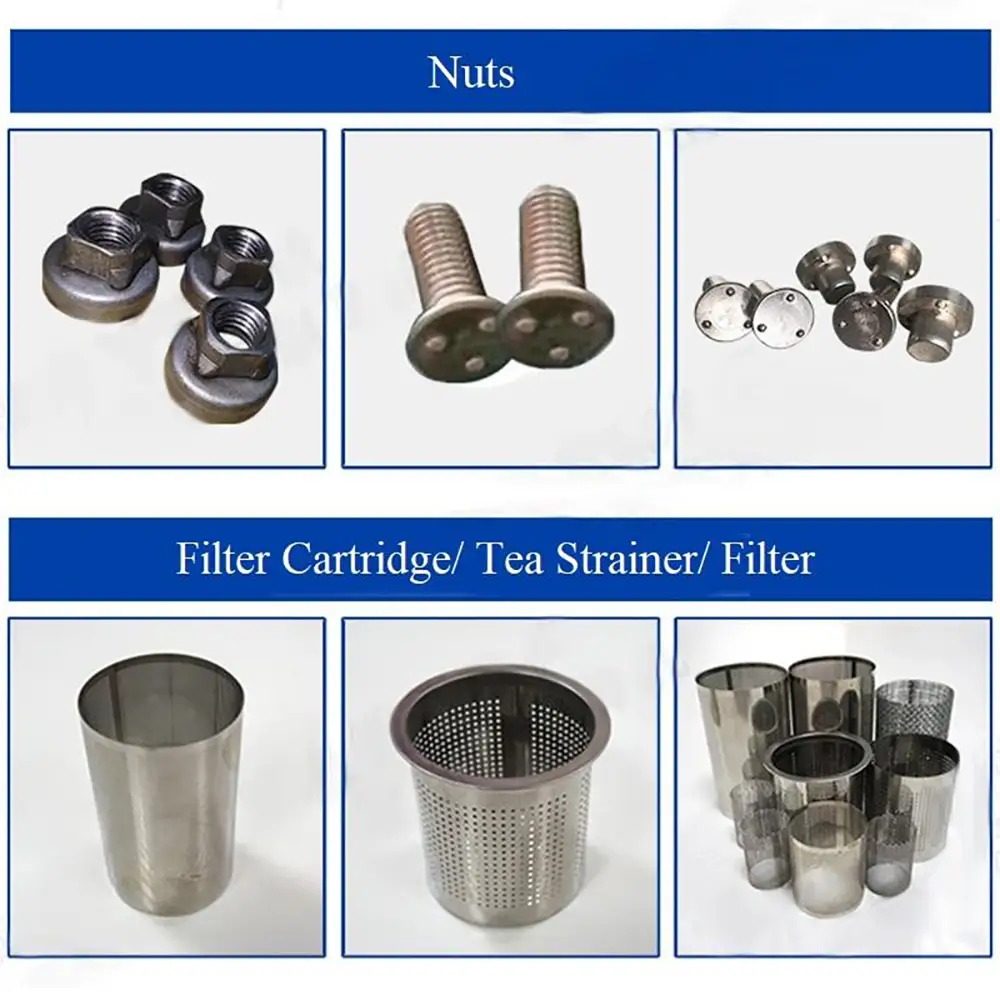

Tea Strainer Manufacturing

Tea strainers are widely used in homes, restaurants, cafes, hotels, beverage businesses, and commercial kitchens.

Many tea strainers use stainless steel mesh because it provides a combination of corrosion resistance, durability, and filtration performance.

The Tea Strainer Filter Making Machine can be used to manufacture cylindrical or rolled mesh components for tea strainers and similar kitchen filtration products.

The production process may include:

Mesh Material Feeding
Automatic Rolling
Diameter Forming
Edge Alignment
Seam Welding
Cutting or Separation
Final Inspection

Additional processes such as handle attachment, end-cap assembly, polishing, or packaging can be performed separately depending on the final product design.

Cartridge Filter Manufacturing

Cartridge filters are widely used in water treatment, industrial filtration, food processing, chemical processing, air filtration, and other applications.

A typical filter cartridge may contain a cylindrical filtration medium supported by an internal or external structure.

Depending on the product design, metal mesh can be rolled into a cylindrical filter element and welded along the seam.

The Cartridge Filter Making Machine is designed to help automate this type of manufacturing process.

It can be configured according to:

Filter Diameter
Filter Length
Mesh Material
Mesh Opening
Wire Diameter
Sheet Thickness
Welding Method
Production Capacity

Manufacturers can therefore select the machine configuration based on their specific filter designs.

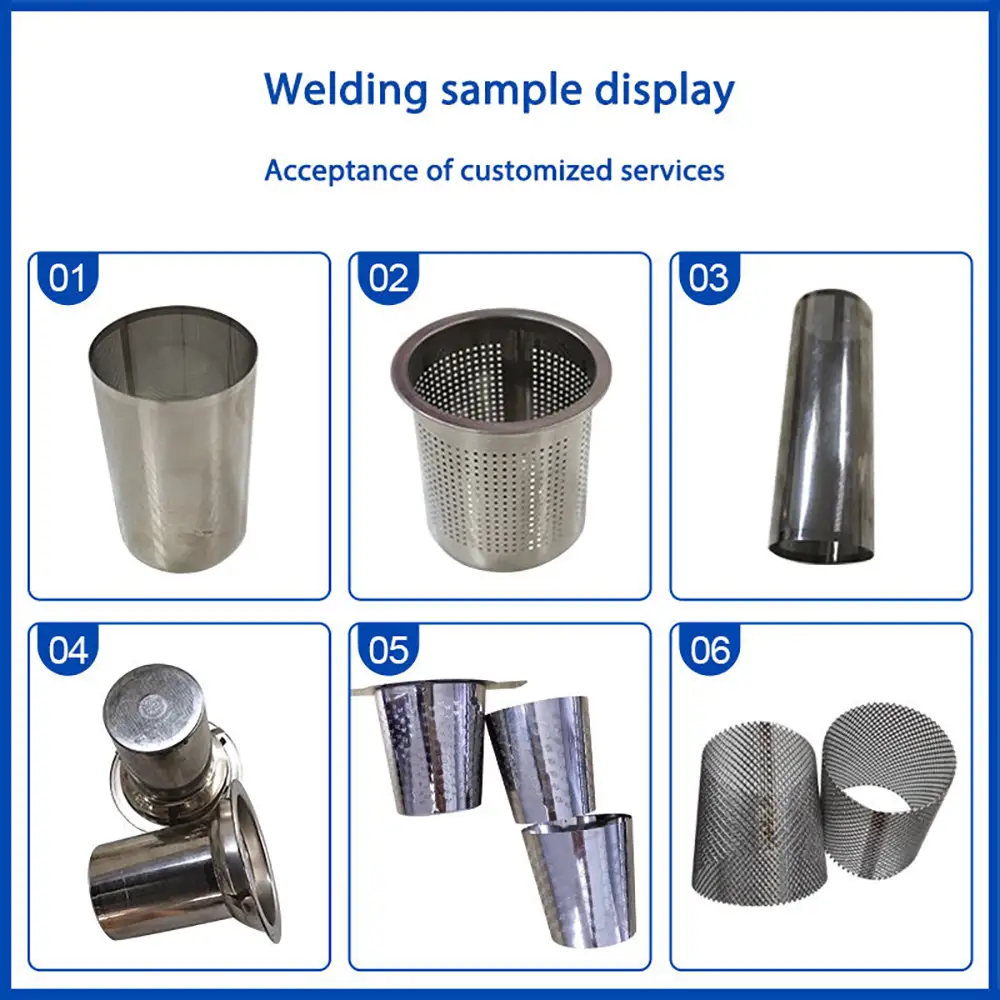

Stainless Steel Filter Welding

Stainless steel is commonly used for reusable tea strainers and many industrial filter components because of its corrosion resistance and durability.

A suitable Stainless Steel Filter Welding Machine can join the edges of rolled mesh to create a continuous cylindrical structure.

Automated welding can help maintain consistent seam positioning and reduce variations between products.

Welding parameters should be selected according to the stainless steel grade, material thickness, mesh structure, joint design, and production requirements.

The final weld should be inspected according to the product's intended application and applicable quality requirements.

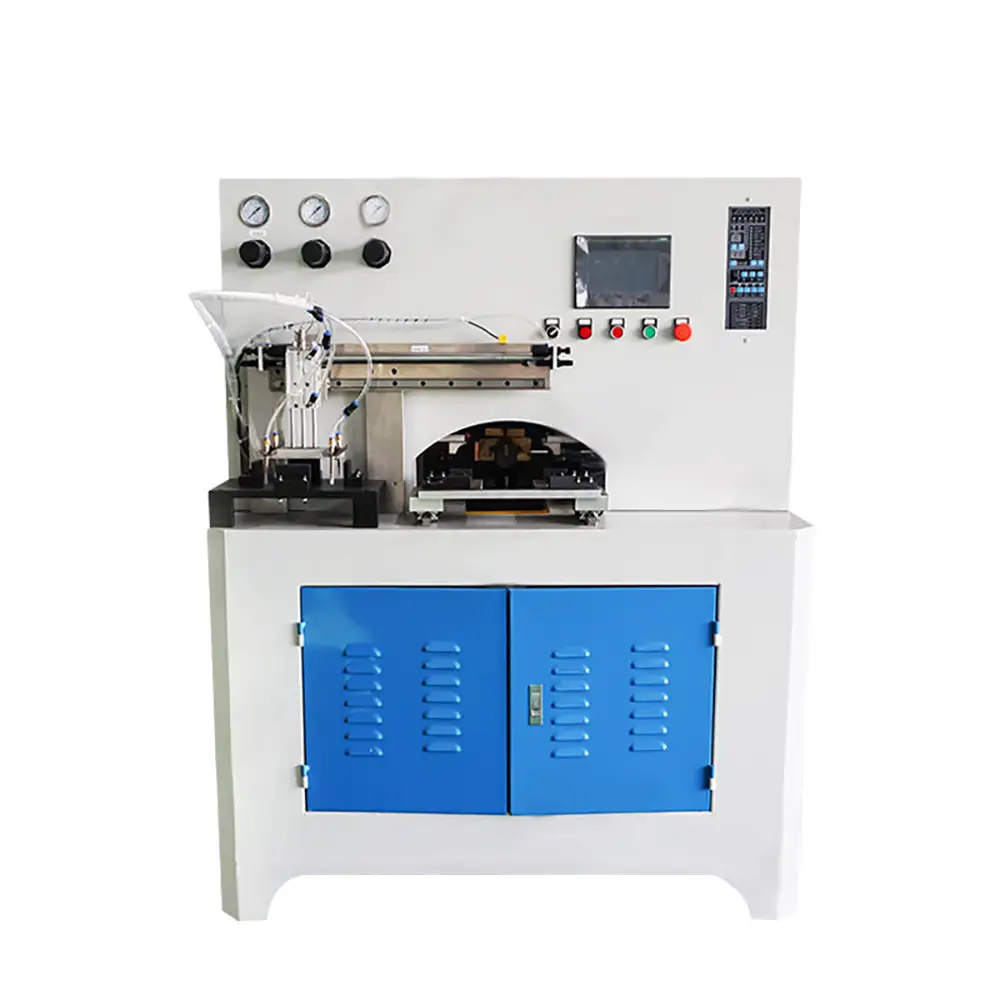

Automatic Filter Cartridge Welding Machine

The welding stage connects the rolled material after forming.

An Automatic Filter Cartridge Welding Machine can be designed to automatically position the rolled mesh and perform seam welding according to preset production parameters.

Depending on the equipment configuration, welding may be performed using resistance welding, laser welding, or another suitable process.

The appropriate welding method depends on the material, mesh structure, thickness, required seam strength, production speed, and product design.

Automated welding provides an important advantage for high-volume manufacturing because it can reduce repetitive manual positioning and improve process repeatability.

Consistent Cylindrical Filter Dimensions

Dimensional accuracy is important for filter products because the finished component may need to fit inside a housing, connect to an end cap, or work with additional filtration layers.

The rolling system should therefore maintain consistent:

Outer Diameter
Inner Diameter
Length
Roundness
Seam Position
Mesh Alignment

A stable forming process can simplify downstream assembly and help manufacturers maintain consistent product specifications.

For OEM customers, consistent dimensions can also make it easier to meet customer drawings and production tolerances.

Suitable for Different Filter Materials

Depending on the machine configuration, the equipment can process various metal mesh and sheet materials.

Common materials may include:

Stainless Steel Mesh
Suitable for tea strainers, reusable kitchen filters, and many industrial filter applications.

Galvanized Steel Mesh
Can be used for certain industrial filtration and structural applications.

Carbon Steel Mesh
Suitable for applications where corrosion resistance is not the primary requirement.

Perforated Metal
Can be formed into cylindrical filter screens and protective structures.

Expanded Metal
May be used for selected filtration and support applications.

The actual material compatibility should be confirmed according to machine specifications and the forming and welding process.

High-Efficiency Filter Production

Automation can help manufacturers increase production efficiency by reducing manual rolling and welding operations.

Instead of individually measuring, forming, aligning, and welding every filter component, the machine can perform multiple steps according to programmed settings.

This can help:

Reduce Repetitive Labor
Improve Production Consistency
Increase Manufacturing Efficiency
Reduce Material Handling
Standardize Filter Dimensions
Improve Production Repeatability
Support Larger Production Volumes

Actual output depends on product dimensions, mesh specifications, welding requirements, machine configuration, and operator workflow.

Flexible Production for OEM Manufacturing

OEM filter manufacturers often need to produce multiple filter sizes and designs for different customers.

An automatic rolling and welding system can support this requirement through adjustable tooling and production parameters.

Different programs can be established for different product specifications, allowing operators to switch between models more efficiently.

Custom tooling can also be considered when a filter requires a special diameter, length, shape, or welding configuration.

For OEM projects, providing product drawings, samples, mesh specifications, and production requirements helps determine the most appropriate machine design.

Easy Operation and Process Control

Modern filter production machines can be equipped with digital controls that allow operators to adjust important production parameters.

Depending on the model, the control system may include settings for:

Rolling Speed
Welding Time
Welding Current
Feeding Speed
Product Length
Rolling Diameter
Production Quantity

Stored programs can simplify production changeovers when manufacturing different filter models.

Operator training is recommended to ensure correct setup, material handling, welding adjustment, and routine maintenance.

Applications

The Automatic Filter Rolling Welding Machine can be used in a wide range of manufacturing industries.

Tea And Kitchenware

Produce mesh components for tea strainers, tea infusers, reusable filters, and kitchen filtration products.

Industrial Filtration

Manufacture cylindrical metal mesh filter elements for industrial filtration systems.

Water Filtration

Produce suitable metal support structures and filter components for water treatment applications.

Food Processing

Support manufacturing of stainless steel filtration components for suitable food-processing equipment.

Chemical Industry

Produce compatible metal filter components used in chemical processing and fluid filtration.

OEM Manufacturing

Provide automated production capabilities for custom filter manufacturers and private-label suppliers.

Why Choose Our Filter Rolling & Welding Machine?
1. Automatic Production

Automates important rolling, forming, and welding processes to reduce repetitive manual work.

2. Suitable for Tea Strainers

Designed for manufacturing rolled stainless steel mesh components used in tea strainers and similar products.

3. Cartridge Filter Applications

Suitable for cylindrical cartridge filter mesh and other rolled filter components.

4. Consistent Forming

Controlled rolling helps maintain consistent filter diameter and product dimensions.

5. Automated Welding

Automatic seam welding can improve production repeatability and reduce manual positioning.

6. Flexible Materials

Suitable configurations can process stainless steel mesh, wire mesh, perforated metal, and other compatible materials.

7. OEM-Friendly

Adjustable parameters and tooling can support different filter dimensions and customer specifications.

8. Efficient B2B Solution

Suitable for filter manufacturers, kitchenware factories, industrial filtration companies, and OEM suppliers.

FAQ
1. What Is a Filter Rolling Welding Machine?

It is an automated machine designed to roll flat mesh or sheet material into a cylindrical shape and weld the seam to produce filter components.

2. Can It Make Tea Strainers?

Yes. A suitable configuration can manufacture rolled stainless steel mesh components for tea strainers, tea infusers, and similar products.

3. Can It Produce Cartridge Filters?

Yes. The machine can be configured for suitable cylindrical cartridge filter mesh and related metal filter components.

4. What Materials Can Be Processed?

Depending on the machine configuration, materials may include stainless steel mesh, carbon steel mesh, galvanized steel, perforated metal, and other compatible materials.

5. Can It Weld Stainless Steel Mesh?

Yes. A suitable welding configuration can be used for stainless steel mesh. Welding parameters depend on mesh type, wire diameter, material thickness, and joint design.

6. Can Different Filter Diameters Be Produced?

Yes. Different diameters can generally be produced by adjusting the forming system or using suitable tooling.

7. Can the Machine Be Customized?

Yes. Customization may include filter diameter, length, feeding system, rolling tooling, welding method, control system, and production capacity.

8. Is the Machine Suitable for OEM Production?

Yes. The machine is suitable for manufacturers producing different filter specifications according to customer drawings or samples.

9. How Fast Can the Machine Produce Filters?

Production speed depends on filter dimensions, material, rolling length, welding process, cycle time, and machine configuration. The actual output should be confirmed according to the target product.

10. What Information Is Needed for Machine Selection?

Manufacturers should provide the filter drawing or sample, material type, mesh specification, wire diameter, filter diameter, filter length, welding requirements, and expected production capacity.
