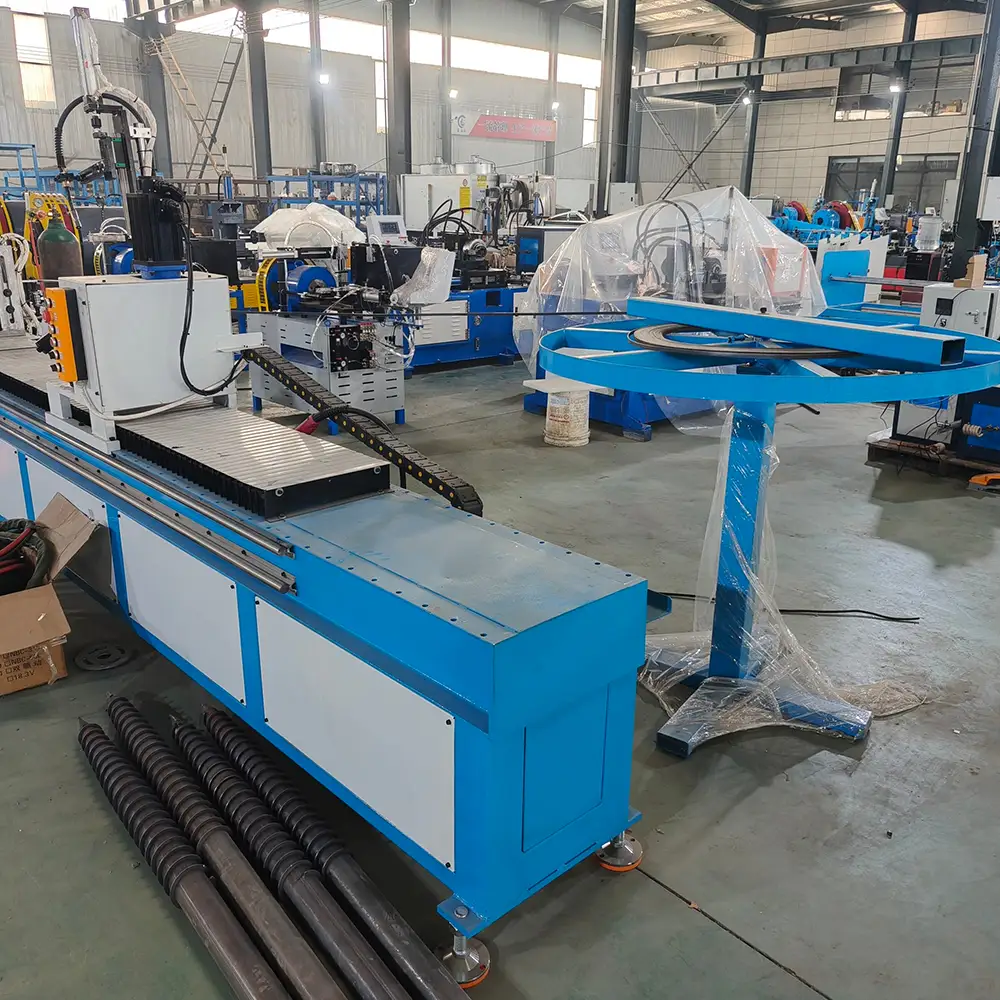

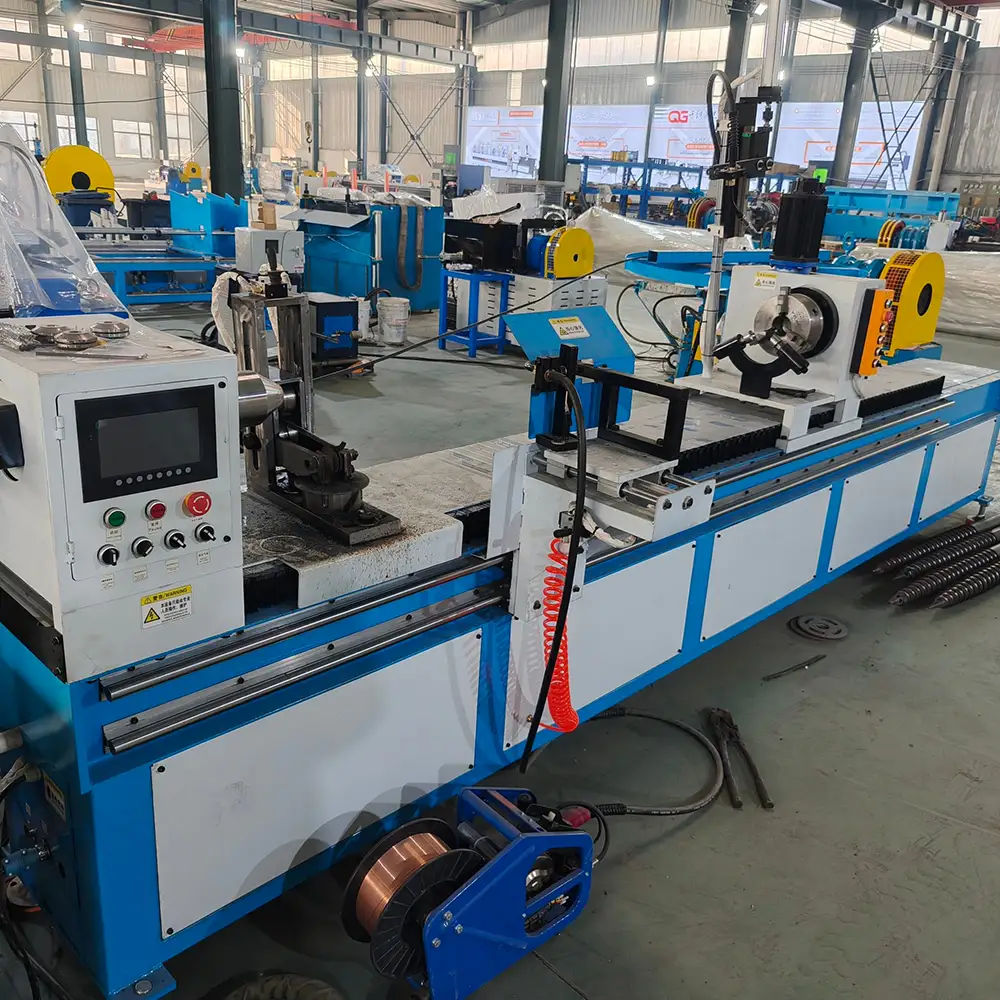

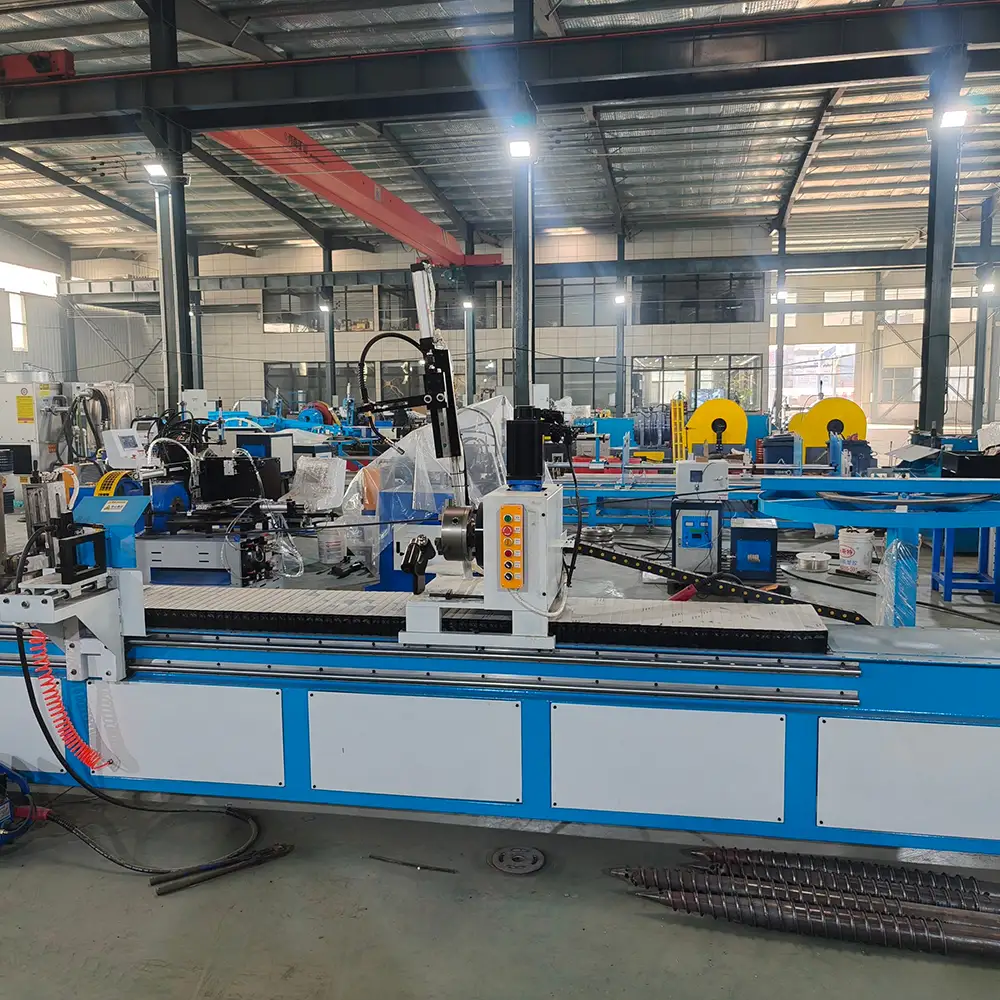

The Precision-Controlled Spiral Conveyor Blade Welding Machine is a specialized industrial welding solution designed for manufacturing spiral blades, auger flights, screw conveyor components, ground piles, mixing equipment, conveying systems, and other products requiring continuous helical welding.

Spiral blades and auger flights are widely used in material conveying, agricultural machinery, construction equipment, foundation systems, mixing machinery, mining equipment, and industrial processing. Because the spiral geometry directly affects product performance, accurate positioning and consistent welding are important during production.

Traditional manual fabrication of spiral conveyor blades can require considerable labor. Operators may need to repeatedly position, rotate, align, and weld the workpiece while maintaining a consistent spiral pitch. This can make production time-consuming and introduce variations between finished products.

A dedicated Spiral Conveyor Blade Welding Machine provides a more controlled approach. Through coordinated workpiece rotation, blade positioning, and welding movement, the machine can help manufacturers achieve more consistent spiral geometry and welding results.

item	value
Pipe diameter	40-219mm
Blade requirements	Between 3mm*20mm
Distance	20-100MM
Pipe length range	1-4m
Maximum blade winding and welding range	3m
Maximum Welding Speed	10-15mm/s
Welding angle	75°-85°
Weight	1300kg

What Is a Spiral Conveyor Blade Welding Machine?

A spiral conveyor blade welding machine is industrial equipment designed to weld spiral flights or helical blades onto a shaft, pipe, core, or other supporting structure.

The machine can be configured for different spiral products depending on the customer's application. Typical components may include spiral flighting, screw conveyor blades, auger flights, helical pile components, mixing blades, and other continuous spiral structures.

The actual welding process and machine configuration depend on material type, blade thickness, shaft diameter, spiral pitch, product length, welding method, and production requirements.

Precision control is particularly important because the welding operation must follow the helical geometry of the workpiece.

Main Applications

This equipment can be considered for manufacturing applications such as:

Screw conveyor blades
Spiral conveyor flights
Auger flights
Ground pile components
Helical pile components
Continuous flight augers
Mixing screw blades
Industrial mixing equipment
Material conveying systems
Agricultural augers
Mining conveyor components
Construction machinery components
Rail and conveying equipment
Custom spiral blade assemblies

For manufacturers serving different industries, interchangeable tooling and programmable parameters can help accommodate different spiral product specifications, depending on machine configuration.

Key Features
1. Precision-Controlled Spiral Welding

The machine is designed to coordinate welding movement with the rotation and positioning of the spiral workpiece. This helps maintain a more consistent welding path along the helical blade.

2. Suitable for Auger Flight Production

Auger flights and screw conveyor blades require consistent pitch and positioning. A dedicated welding system can provide a more standardized manufacturing process than fully manual fabrication.

3. Programmable Operation

Depending on the CNC or control configuration, production parameters can be programmed for specific workpiece dimensions and welding sequences.

4. Continuous Welding Capability

For long spiral components, continuous or sequential welding can be performed along the required helical path according to the selected machine configuration and welding process.

5. Adjustable Workpiece Parameters

Machine setup can be adapted according to shaft diameter, flight dimensions, spiral pitch, product length, blade thickness, and other production specifications.

6. Industrial Production Design

The equipment is designed for manufacturers that need repeatable production rather than occasional manual fabrication. It can be incorporated into a dedicated auger or conveyor component production line.

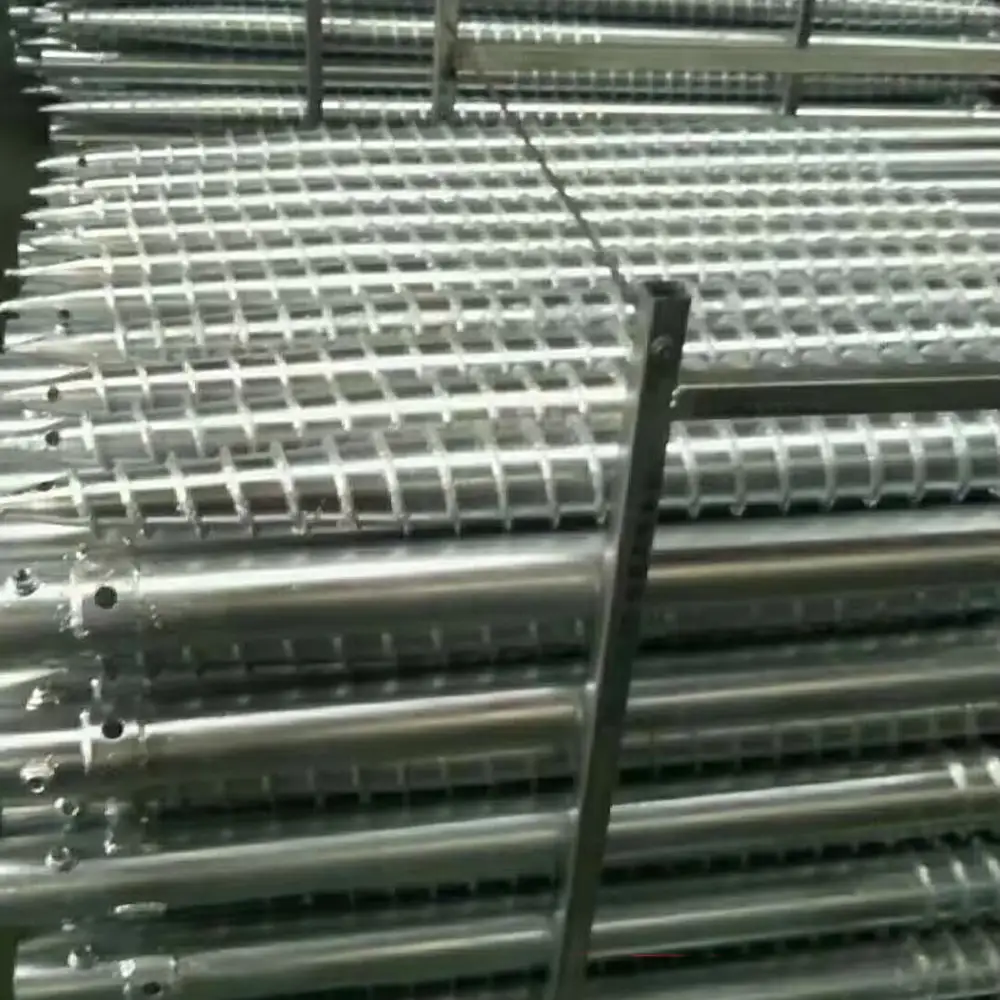

Applications in Ground Pile Manufacturing

Ground piles and helical piles use spiral components to create the required geometry for installation and load transfer. Manufacturing consistency is therefore an important consideration.

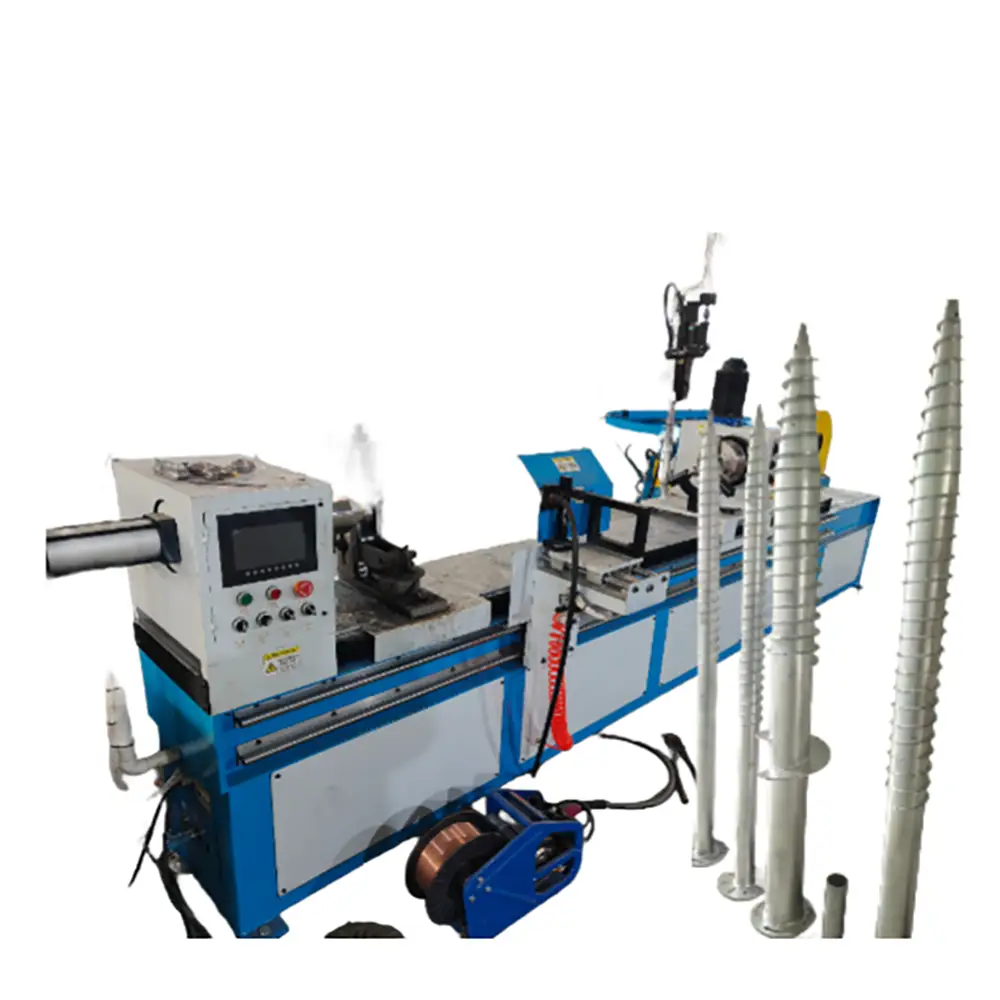

A Helical Pile Welding Machine can be used to support the fabrication of spiral components for ground pile applications. The blade needs to be positioned correctly relative to the pile shaft, while the weld must provide the required connection according to the engineering and manufacturing specifications.

For ground pile production, machine selection should consider blade diameter, shaft diameter, blade thickness, pitch, material grade, product length, and required welding method.

The welding parameters should be established through testing and according to the applicable product specifications.

Screw Conveyor and Auger Production

Screw conveyors are commonly used to move bulk materials such as grains, powders, aggregates, chemicals, food ingredients, and industrial materials.

The spiral flight determines how material moves along the conveyor. Variations in flight pitch, diameter, alignment, or deformation can affect the finished conveyor's operating characteristics.

Using an Auger Flight Welding Machine can help manufacturers standardize the welding and assembly process. A controlled rotation and welding system can reduce repetitive manual positioning and support more consistent production.

The machine may be used for new conveyor production, replacement flights, custom augers, and OEM component manufacturing.

Mixing and Processing Equipment

Spiral blades are also used in industrial mixers and processing systems. Depending on the equipment design, helical blades can move, mix, or transport materials within a processing chamber.

For these applications, manufacturers may require specific blade geometry, pitch, material, and weld configuration.

A precision-controlled welding machine can help manufacturers reproduce the required spiral shape across multiple production batches.

Rail and Conveying Applications

Spiral and conveying components may also be incorporated into specialized transportation, conveying, and industrial equipment. When a custom spiral blade or conveying rail component is required, dedicated welding equipment can provide a repeatable fabrication process.

Because rail-related and industrial conveying products can have specialized engineering requirements, the machine should be configured according to the actual component drawing and manufacturing specifications.

Advantages of Automated Spiral Blade Welding

One of the primary advantages is repeatability.

Manual spiral welding requires operators to continuously control the workpiece position and welding path. For long flights or large-diameter augers, maintaining consistent geometry can become increasingly demanding.

An automated or precision-controlled machine can coordinate several movements, reducing repetitive manual positioning.

Another benefit is production efficiency. Once the correct tooling and parameters have been established, the machine can follow a repeatable production sequence for multiple workpieces.

Automation can also support consistent weld appearance and positioning, although final weld quality depends on material preparation, welding parameters, operator setup, machine condition, and the selected welding process.

Why Choose Us?
1. Specialized Spiral Welding Solutions

We focus on application-specific industrial welding equipment and understand the unique requirements involved in spiral flight and auger production.

2. Precision-Oriented Machine Configuration

Spiral products require accurate coordination between rotation, blade position, pitch, and welding movement. Machine configuration can be evaluated according to the customer's product specifications.

3. Custom Tooling

Different auger and conveyor products require different fixtures and support systems. Custom tooling can be considered according to shaft diameter, blade dimensions, product length, and other requirements.

4. OEM Manufacturing Support

We work with manufacturers, machinery companies, distributors, and OEM customers that require equipment for continuous production of spiral components.

5. Flexible Industrial Applications

The machine can be evaluated for screw conveyors, augers, ground piles, helical piles, mixers, conveying systems, and custom spiral products.

6. Production Efficiency

A controlled welding process can reduce repetitive manual operations and help establish a more standardized production workflow.

7. Export B2B Service

For international customers, we support machine configuration discussions, technical specifications, documentation, packaging, and other equipment procurement requirements.

How to Choose the Right Auger Flight Welding Machine

Before purchasing a Spiral Flight Welding Machine, manufacturers should prepare detailed product information.

Shaft Diameter: The shaft or central pipe diameter determines fixture and machine requirements.

Flight Diameter: The outside diameter of the spiral flight should be confirmed.

Pitch: Spiral pitch is one of the most important parameters for machine configuration.

Blade Thickness: Different flight thicknesses can require different welding parameters and machine capabilities.

Material: Carbon steel, stainless steel, and other alloys may require different welding procedures.

Product Length: Long auger flights may require additional support structures.

Welding Process: The appropriate welding process should be selected according to material, thickness, production requirements, and joint design.

Production Volume: High-volume OEM manufacturing may justify a higher level of automation than low-volume custom production.

Providing drawings or samples before ordering can significantly improve the accuracy of machine configuration.

Typical Production Workflow

A typical production process may include:

Preparing the shaft or central tube.
Preparing the spiral flight or blade.
Positioning the flight around the shaft.
Securing the workpiece in the machine fixture.
Setting the required spiral pitch and welding parameters.
Starting the controlled rotation and welding sequence.
Monitoring the welding process.
Inspecting the finished spiral assembly.
Performing dimensional and weld-quality checks.
Completing any required finishing operations.

The exact workflow depends on the machine design and finished product.

Maintenance and Quality Control

Regular maintenance is important for maintaining welding consistency. Operators should inspect welding equipment, mechanical drive systems, fixtures, clamps, electrical connections, control components, and other wear parts according to the manufacturer's maintenance recommendations.

The workpiece fixture should remain clean and properly aligned. Any excessive mechanical play can potentially affect spiral positioning and welding accuracy.

Quality control should include dimensional inspection of spiral diameter, pitch, shaft alignment, blade position, and overall product length.

Weld inspection should be performed according to the requirements of the final product. Depending on the application, this may include visual inspection, dimensional inspection, sample destructive testing, or other appropriate testing methods.

Conclusion

The Precision-Controlled Spiral Conveyor Blade Welding Machine provides a specialized manufacturing solution for companies producing auger flights, screw conveyor blades, ground piles, helical piles, mixing blades, and other spiral components.

By coordinating workpiece rotation, blade positioning, and welding movement, the equipment can help manufacturers establish a more repeatable production process. It can reduce repetitive manual positioning and support consistent spiral fabrication when correctly configured and operated.

For manufacturers purchasing an Auger Flight Welder, Spiral Blade Welding Machine, or Screw Conveyor Blade Welding Equipment, the most important considerations include product dimensions, pitch, material, blade thickness, shaft diameter, production volume, welding process, and automation requirements.

A detailed product drawing or sample is recommended when evaluating machine configuration for OEM and industrial production.

Frequently Asked Questions
1. What is a Spiral Conveyor Blade Welding Machine?

It is specialized equipment designed to weld spiral flights or helical blades onto shafts, pipes, or other supporting structures.

2. What products can the machine manufacture?

Typical applications include auger flights, screw conveyor blades, ground piles, helical piles, mixing blades, agricultural augers, and custom spiral components.

3. Can it weld screw conveyor blades?

Yes. Screw conveyor flight production is one of the primary applications for this type of specialized equipment.

4. Can it be used for ground pile production?

It can be configured for suitable ground pile and helical pile manufacturing applications, subject to product dimensions and welding requirements.

5. Can different spiral pitches be produced?

Different pitches may be supported depending on machine configuration and control system. The required pitch should be provided before machine selection.

6. What materials can be welded?

Material compatibility depends on the welding process and machine configuration. Carbon steel and stainless steel are common industrial materials, but the actual application should be evaluated before ordering.

7. Can the machine handle different blade thicknesses?

Different blade thicknesses may require different welding parameters and machine configurations. Customers should provide the required material thickness.

8. Is CNC control available?

Precision CNC or programmable control can be included depending on the machine configuration and production requirements.

9. Can the machine be customized?

Yes. Fixtures, supports, tooling, control parameters, and other machine features may be customized according to the customer's spiral product.

10. What information is needed for a quotation?

Please provide shaft diameter, flight diameter, spiral pitch, blade thickness, material, product length, welding requirements, and expected production capacity. Drawings or samples are highly recommended.
