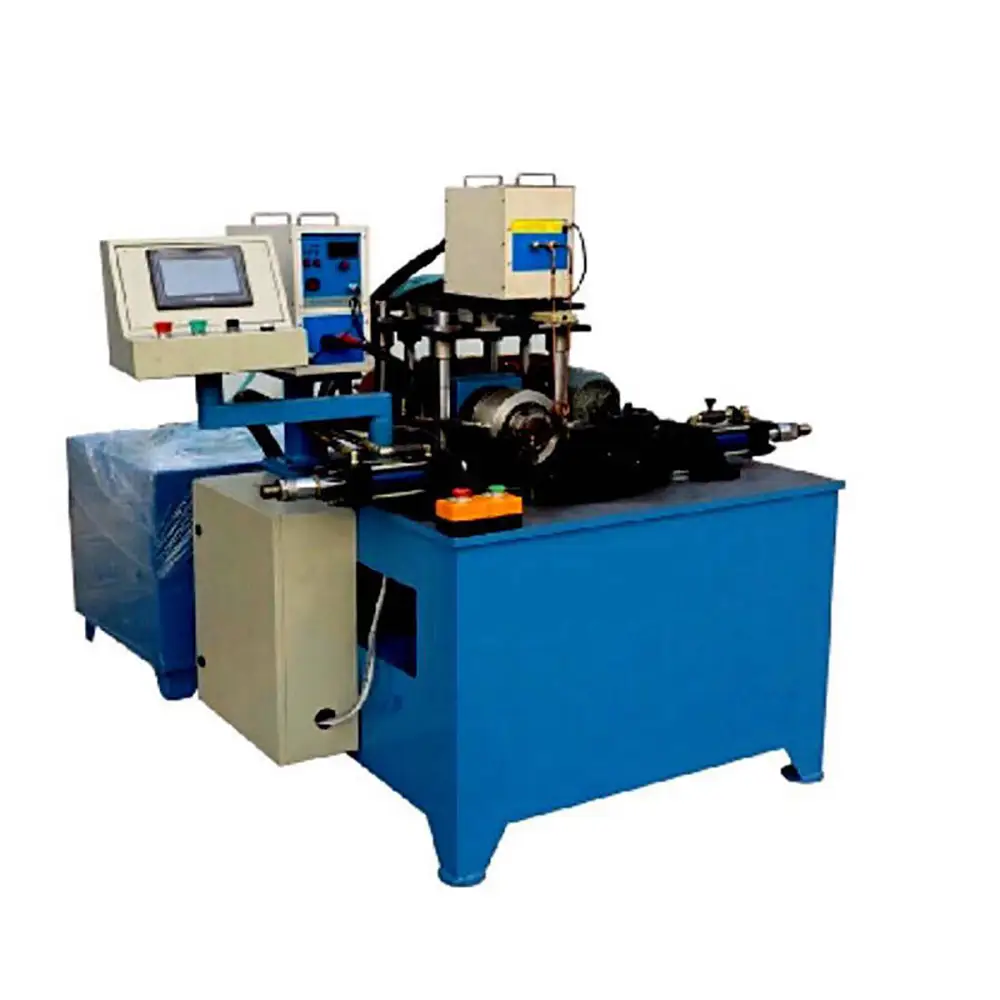

Automatic Spinning Machine Closing and Rolling Groove Machine

 Automatic Spinning Machine Closing and Rolling Groove Machine for Metal Tubes

The Automatic Spinning Machine Closing and Rolling Groove Machine is a specialized metal tube processing solution designed for tube end closing,spinning,groove rolling,and related end forming operations. By combining controlled spinning movement with mechanical forming,the machine can process suitable metal tubes and pipes into specific end shapes required for assembly,sealing,connection,and downstream manufacturing.

This type of equipment is suitable for manufacturers working with metal tubes in applications such as automotive components,exhaust systems,heat exchangers,air conditioning equipment,furniture,appliances,industrial equipment,and general metal fabrication.

The actual forming process depends on the tube material,diameter,wall thickness,tooling design,and machine configuration. Customers should confirm the required tube dimensions and final shape before selecting the appropriate machine.

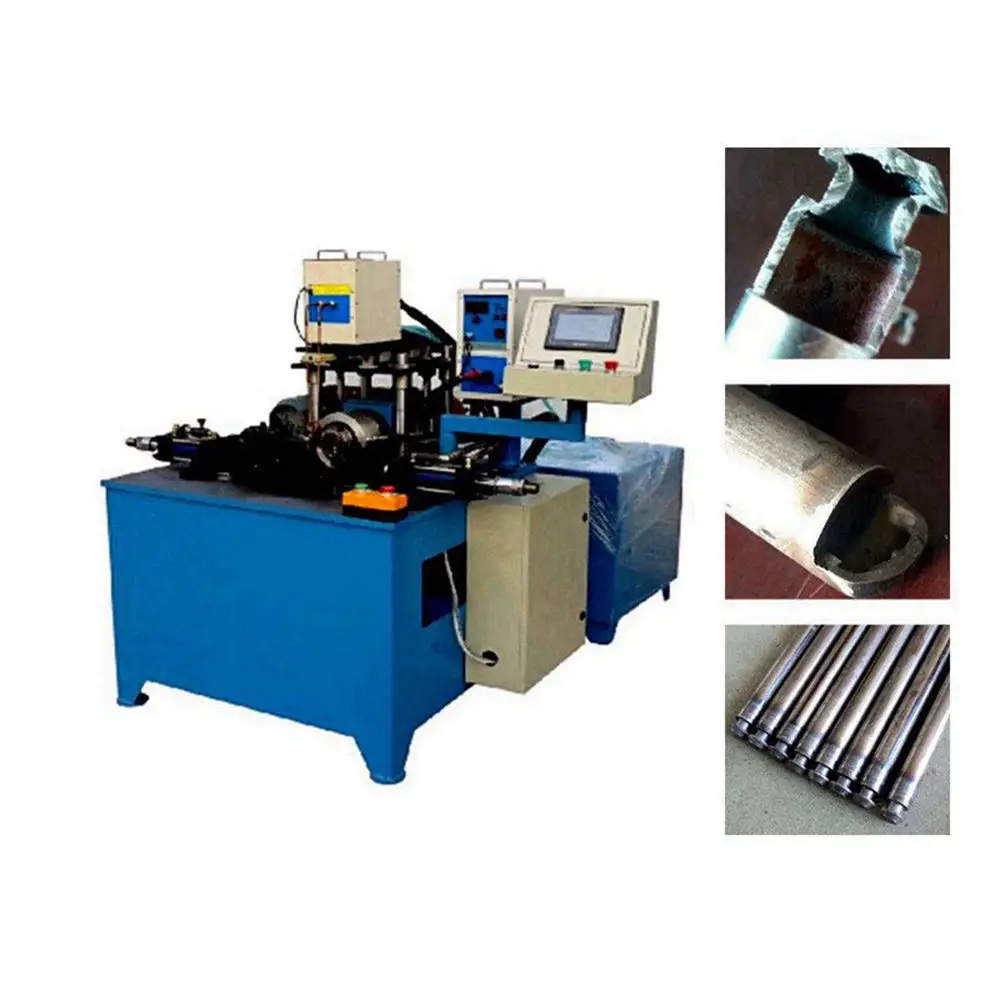

Automatic Tube Spinning and End Forming

Spinning is a metal forming process in which tooling progressively shapes the end or section of a rotating workpiece. Compared with simple pressing,the controlled forming action can provide a gradual deformation process that is useful for producing repeatable tube-end geometries.

For tube processing,the machine can be configured for operations such as end closing,reduction,flaring,necking,beading,and other forms of end shaping,depending on the tooling.

Automatic operation can reduce repetitive manual handling and provide a more consistent processing sequence. The actual automation level depends on the machine configuration and may include automatic feeding,clamping,forming,and unloading functions.

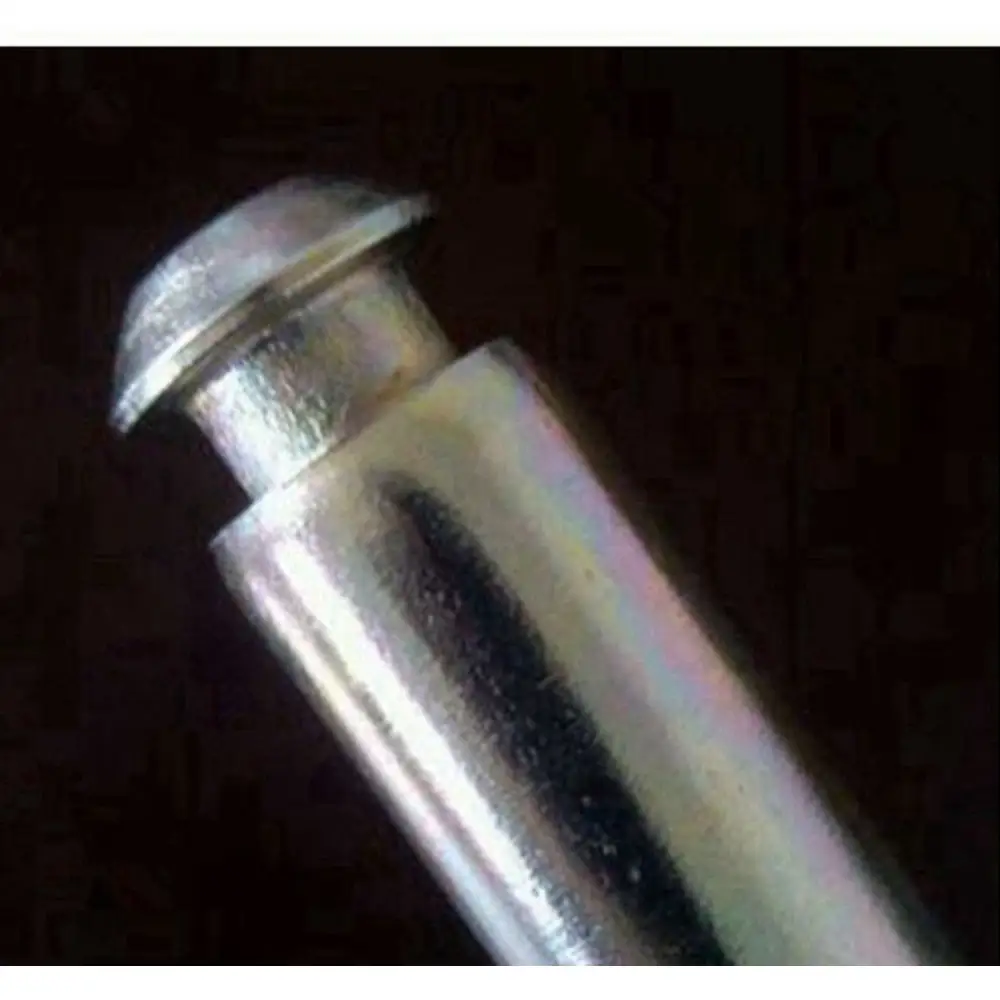

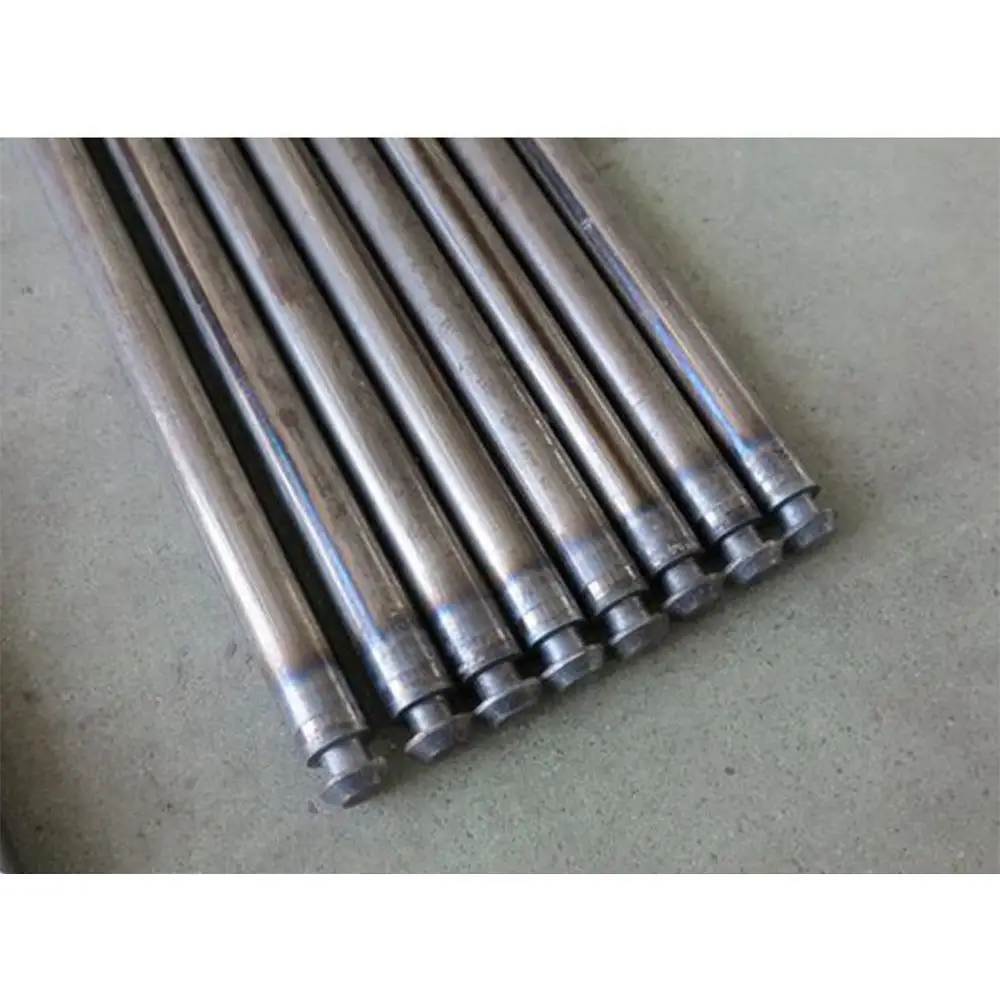

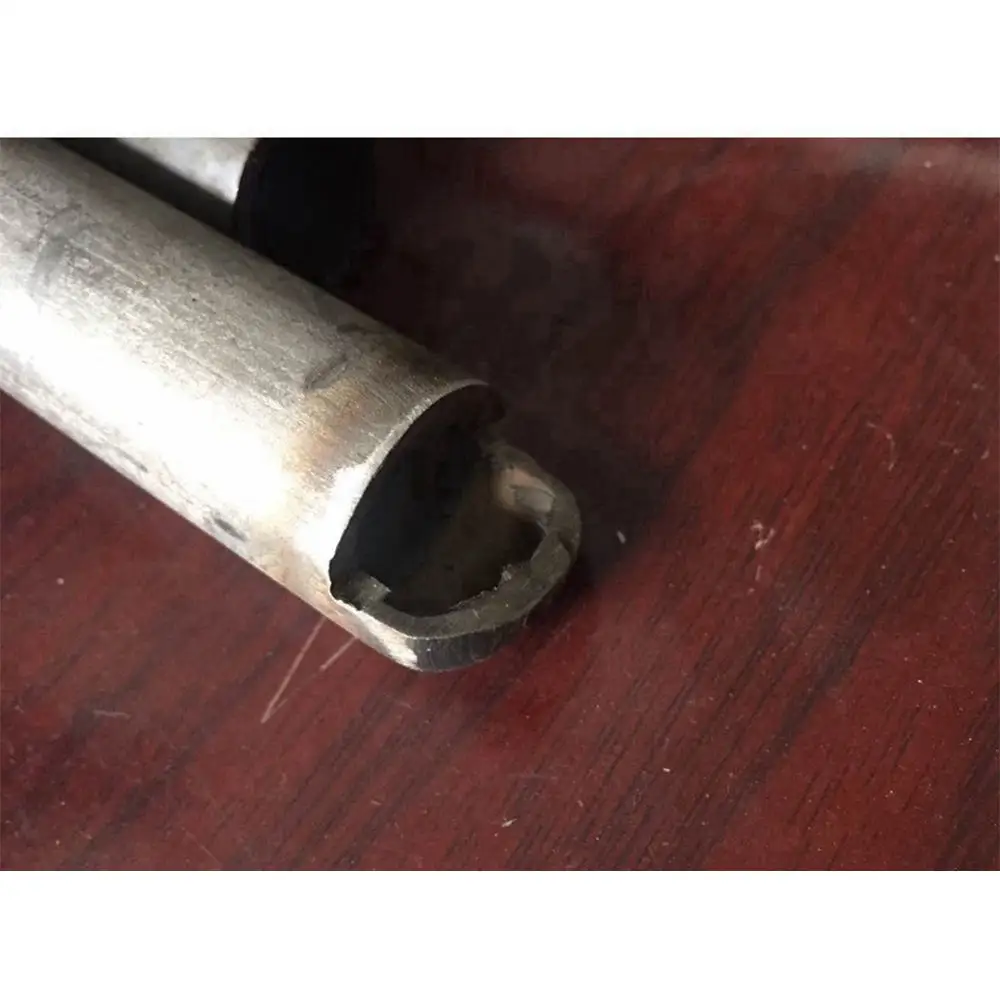

Tube End Closing and Closing Forming

Tube end closing is commonly required when an open tube needs to be partially or fully reduced at one end. The process can be used to create a smaller diameter section,closed end,or shaped transition before another manufacturing operation.

The machine can be equipped with dedicated forming tools according to the desired end geometry. Tool design is important because different tube materials and wall thicknesses require different forming approaches.

Typical applications may include:

Metal tube end closing

Pipe end reducing

Tube necking

Tube end shrinking

End diameter reduction

Tube end shaping

Partial tube closing

Formed tube transitions

The final shape should be confirmed through drawings or samples when special end geometries are required.

Rolling Groove Machine Function

The rolling groove function is designed to create a circumferential groove or recessed profile on a suitable metal tube or pipe.

Tube grooves can be used for mechanical connection,positioning,sealing,assembly,or other functional purposes. In some applications,a groove provides a defined location for a coupling,sealing component,clamp,or connecting element.

Compared with cutting a groove into the tube,rolling forms the profile through controlled deformation. This can help maintain material continuity while producing the required external geometry.

The exact groove diameter,width,depth,and position depend on the tooling and machine setup. Customers should provide groove drawings or dimensional requirements when requesting a quotation.

Metal Tube and Pipe Applications

The Automatic Spinning Machine Closing and Rolling Groove Machine can be configured for suitable metal tubes and pipes used in different industries.

Common materials may include:

Carbon steel

Mild steel

Stainless steel

Aluminum

Copper

Brass

Alloy steel

Different materials have different forming characteristics. Aluminum and copper are generally easier to deform than many steel grades,but they may require different tooling and process parameters. Stainless steel may require greater forming force and careful control to avoid surface damage.

Material hardness,tube wall thickness,outer diameter,and required deformation should all be considered when selecting the machine.

Automotive and Exhaust Tube Processing

Tube end forming and groove rolling are widely used in automotive component manufacturing. Exhaust tubes,pipe connections,and other tubular components may require end reduction,beading,closing,or groove forming before welding or assembly.

The machine can help prepare tube ends for subsequent processes such as welding,clamping,assembly,or connection.

For exhaust applications,tooling can be designed around the required tube diameter and end geometry. However,the actual tooling arrangement should be selected according to the product drawing and material specifications.

Heat Exchanger and HVAC Tube Applications

Metal tube forming is also important in heat exchanger,refrigeration,and HVAC component production.

Tube ends may need to be reduced,closed,flared,or otherwise formed before joining or assembly. Groove rolling may also be used where a defined mechanical connection or positioning profile is required.

Copper,aluminum,and stainless steel tubes may all be used in these industries,with the appropriate tooling and process parameters.

For production applications requiring repeatable tube dimensions,the machine can be integrated into a larger tube processing line.

Tooling and Forming Dies

Tooling is one of the most important factors in tube spinning,closing,and groove rolling.

Different products require different dies,rollers,mandrels,clamping systems,and forming profiles. A properly designed tool helps control deformation and reduces the risk of wrinkles,cracks,excessive thinning,or unwanted surface marks.

For custom products,customers should provide:

Tube outside diameter

Tube inside diameter

Wall thickness

Material

Tube length

End forming dimensions

Groove dimensions

Required production volume

Based on this information,the appropriate tooling and machine configuration can be evaluated.

Production Efficiency and Repeatability

An automatic tube end forming machine can improve production efficiency by reducing repetitive manual forming operations.

A controlled sequence can help maintain consistency between workpieces,particularly when the same tube specification is processed repeatedly. Depending on the configuration,the machine may incorporate automatic feeding,workpiece positioning,hydraulic or mechanical forming,clamping,and unloading.

Actual production speed depends on tube dimensions,forming complexity,material characteristics,tooling,and machine configuration.

For high-volume production,the machine can be integrated with feeding equipment or other tube processing machinery to create a more efficient production workflow.

Quality and Forming Accuracy

Forming quality depends on the relationship between the machine,tooling,and workpiece.

Important factors include tube material,wall thickness,diameter,forming force,spinning speed,roller position,die geometry,clamping stability,and lubrication.

Before mass production,trial forming is recommended for new tube sizes or complex geometries. The formed tube should be inspected for dimensional accuracy,surface condition,cracks,wrinkles,and excessive deformation.

For precision applications,customers should provide technical drawings and dimensional tolerances so the machine and tooling can be evaluated accordingly.

Maintenance and Safe Operation

The machine should be maintained according to the manufacturer's operating instructions.

Routine maintenance may include checking forming tools,rollers,clamping components,drive systems,hydraulic components where applicable,electrical connections,and lubrication points.

Operators should keep hands away from rotating and forming components and use appropriate guards and emergency-stop functions where provided. Safety equipment and protective measures should comply with the machine configuration and applicable local requirements.

Regular inspection of tooling can also help maintain stable forming quality and reduce unexpected production interruptions.

OEM and Custom Tube Forming Solutions

Different industries require different tube-end geometries and production methods. The machine can therefore be configured according to the customer's workpiece and manufacturing requirements.

Possible customization areas may include forming tools,groove rollers,clamping systems,feeding arrangements,control systems,hydraulic capacity,and automation functions.

For OEM and ODM projects,customers can provide product drawings,samples,photos,material information,and required production quantities. These details help determine the appropriate machine structure and tooling solution.

The equipment is suitable for manufacturers,metalworking factories,automotive suppliers,HVAC component producers,exhaust manufacturers,distributors,and industrial machinery buyers seeking a dedicated tube end forming solution.

Why Choose Us

Automatic Tube Forming – Designed to support repeatable tube processing with a controlled forming sequence.

Multiple End Forming Functions – Suitable for closing,reducing,necking,shaping,and other tube-end forming operations depending on tooling.

Rolling Groove Capability – Can create circumferential grooves on suitable metal tubes for connection,sealing,positioning,and assembly applications.

Flexible Material Compatibility – Can be configured for suitable carbon steel,stainless steel,aluminum,copper,and other metal tubes.

Application-Specific Tooling – Forming dies,rollers,and fixtures can be selected according to the required tube geometry.

Industrial Production Use – Suitable for automotive,exhaust,HVAC,heat exchanger,furniture,appliance,and general metal fabrication applications.

Consistent Processing – Controlled machine movement and workpiece clamping can help improve repeatability in production.

OEM & ODM Support – Machine configuration and tooling can be customized according to tube dimensions,material,forming requirements,and production volume.

FAQs

1. What is an automatic spinning machine?

An automatic spinning machine uses controlled rotational and forming movement to shape suitable metal workpieces. For tubes,it can be configured for end forming and related applications.

2. What does a tube closing machine do?

A tube closing machine reduces or closes the end of a metal tube to create a specified end geometry.

3. What is rolling groove forming?

Rolling groove forming creates a circumferential groove on a tube through controlled mechanical deformation rather than conventional cutting.

4. What materials can the machine process?

Depending on the machine and tooling,it can process suitable carbon steel,stainless steel,aluminum,copper,brass,and other metal tubes.

5. Can it process stainless steel tubes?

Yes. Stainless steel tubes can be processed when the machine force,tooling,and forming parameters are appropriate for the material and dimensions.

6. Can it process copper and aluminum tubes?

Yes. Copper and aluminum tubes can be suitable for spinning,end forming,and groove rolling when the tooling and process parameters are correctly selected.

7. Can the machine close the tube completely?

The machine can be configured for different levels of tube-end reduction or closing. The final result depends on tooling design,material,and tube dimensions.

8. Can it make a groove on the tube?

Yes. A suitable rolling tool can form a circumferential groove at the specified position when the tube dimensions and material are within the machine's operating range.

9. What determines the forming capacity?

Tube diameter,wall thickness,material strength,required deformation,tooling design,forming force,and machine configuration all affect forming capacity.

10. Is automatic feeding available?

Automatic feeding can be included on selected machine configurations. The exact feeding and loading method should be confirmed according to the production requirements.

11. Can the machine be customized?

Yes. Tooling,clamping systems,feeding arrangements,groove rollers,controls,and other machine features can be customized depending on the application.

12. What information is needed for a quotation?

Provide the tube material,outside diameter,wall thickness,length,end-forming drawing,groove dimensions,required production quantity,and desired automation level. Samples are also helpful for tooling evaluation.
