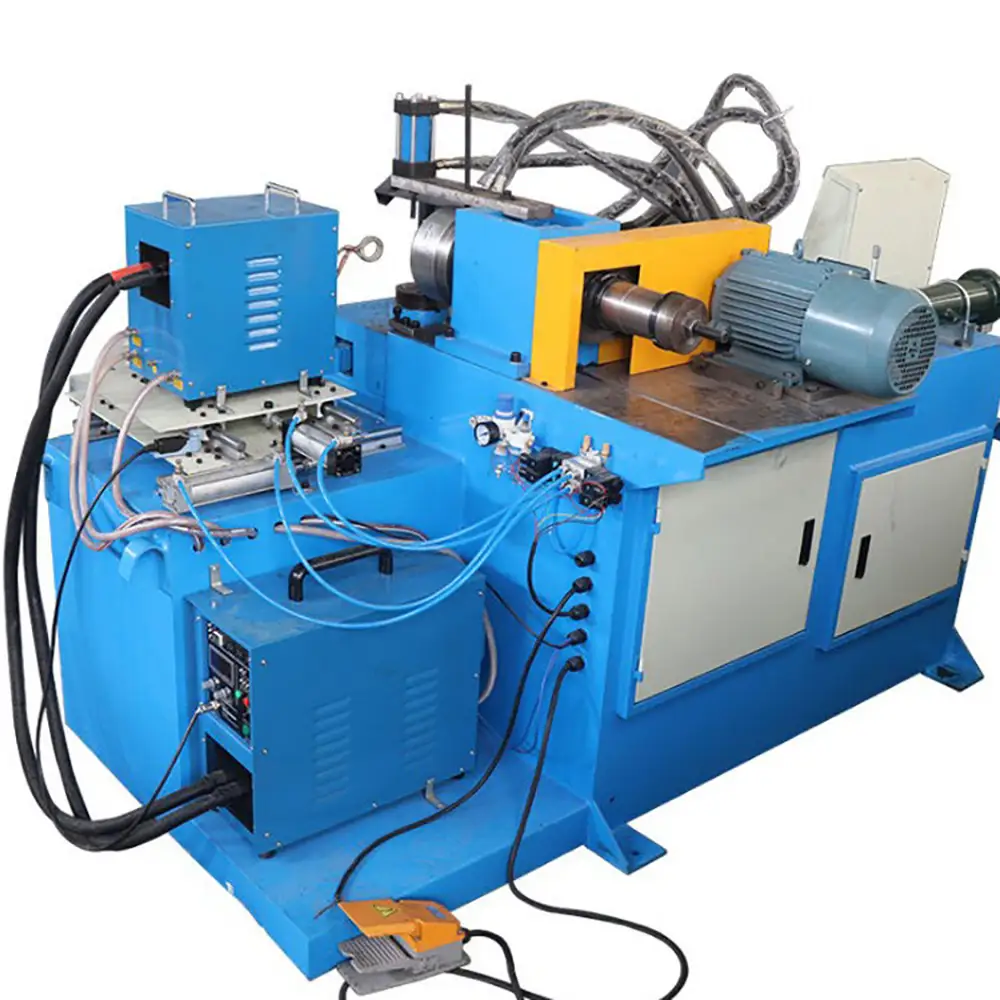

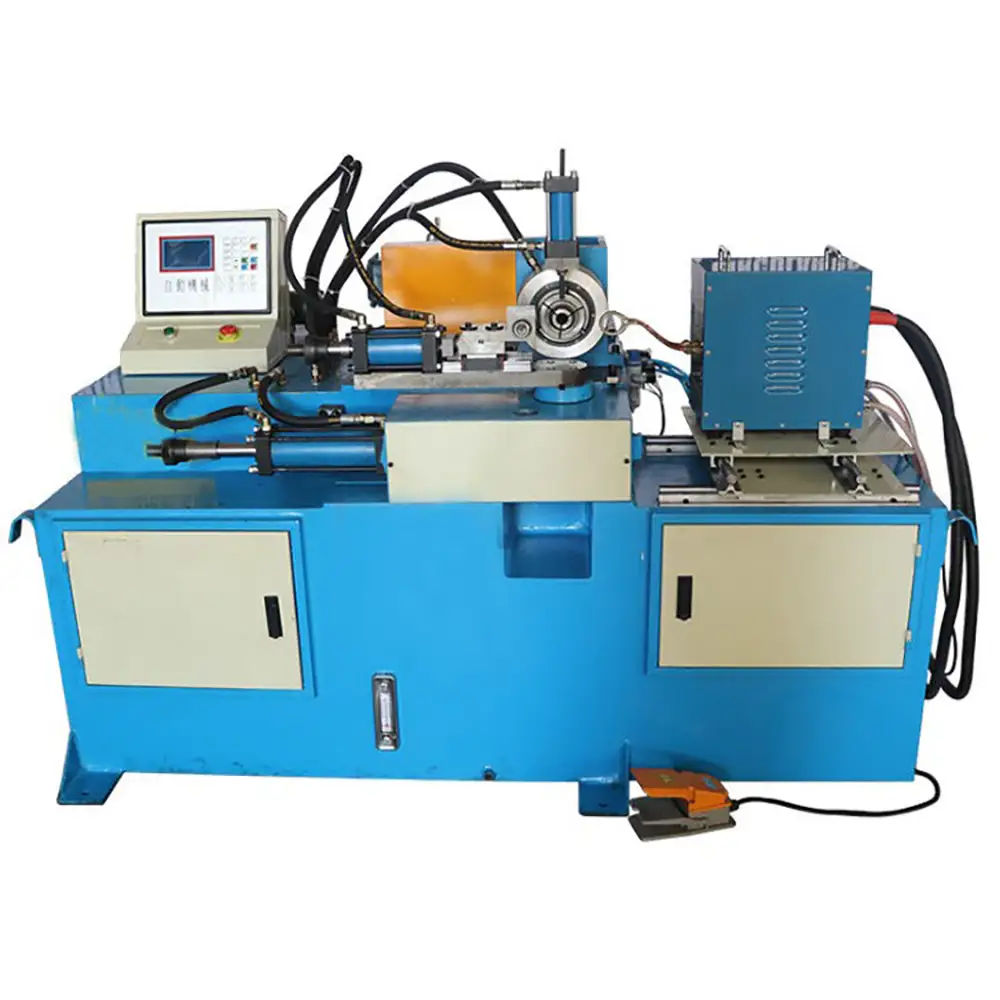

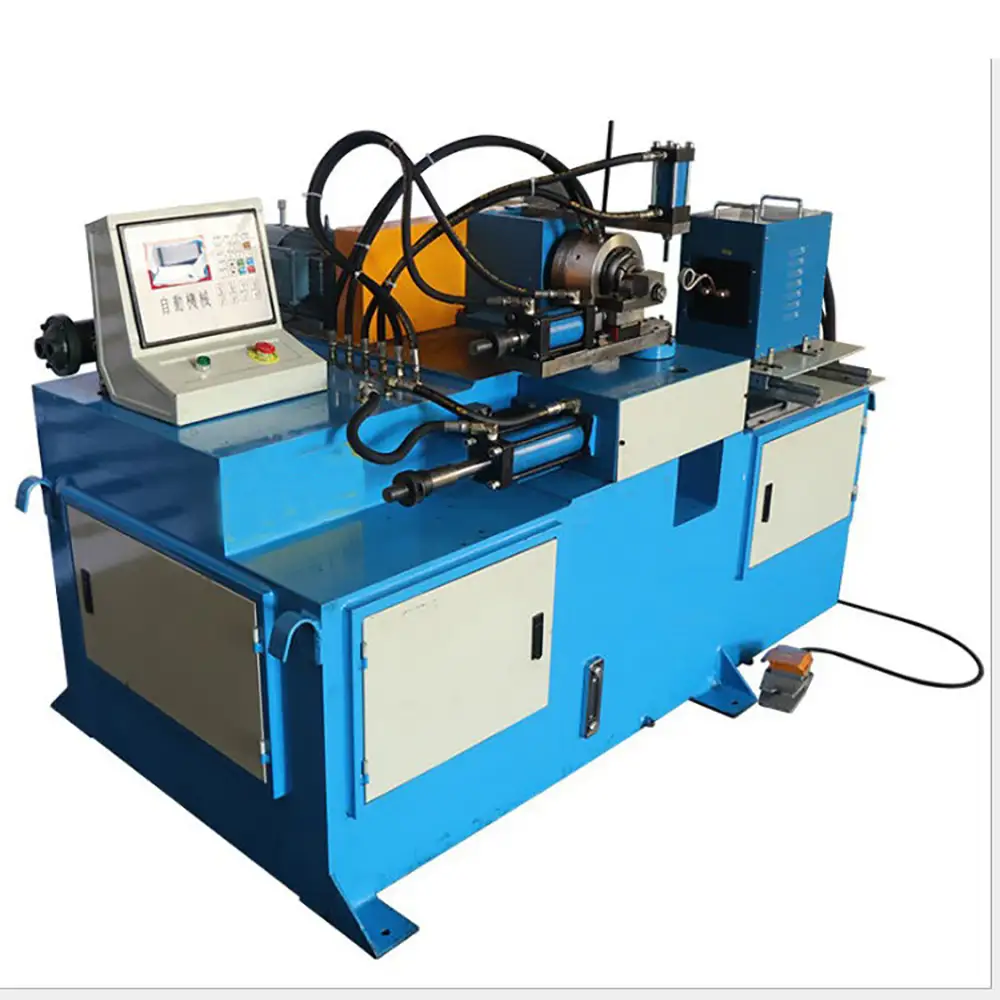

Automatic Hydraulic High Frequency Stainless Steel Round Tubehead Heating Spinning Closing Sealing Machine

1 Suitable for carbon steel, stainless steel copper and other metal pipes
2 High frequency heating, automatic rotary sealing
3 Sealing,positioning and Brake stop accomplish at one time
4 Pneumatically control the movement of high frequency heater


Item	Specification
Processing range of diameter	8-40mm
Thickness of pipe	1-3mm
Pipe length	50-6000mm
Processing speed	85 degreed/S
Main motor	1.5kw
Pump motor	3kw
High frequency heater	15kw
Machine measure	1900x900x1600mm
Weight	680kg

Automatic Hydraulic High Frequency Stainless Steel Round Tube End Heating Spinning Closing Sealing Machine

The Automatic Hydraulic High Frequency Stainless Steel Round Tube End Heating Spinning Closing Sealing Machine is an advanced tube end processing solution designed for manufacturers that require controlled heating,spinning,closing,sealing,and forming of stainless steel round tubes. By combining high frequency heating technology with hydraulic forming and automatic machine operation,the equipment can support efficient and repeatable tube end processing for a wide range of industrial applications.

The machine is particularly suitable for stainless steel round tubes that require localized heating before spinning or closing. Heating the tube end can improve material formability and reduce the forming force required for certain applications. The hydraulic system then provides controlled forming pressure,while the spinning or closing mechanism shapes the heated tube end according to the selected tooling and production requirements.

Depending on the machine configuration,the equipment can perform tube end closing,reducing,necking,spinning,sealing,shrinking,beading,or other customized end-forming operations. The actual forming process depends on the tube material,diameter,wall thickness,required end shape,and tooling configuration.

High Frequency Tube End Heating

High frequency heating is one of the key functions of this machine. Instead of heating the complete tube,the system can concentrate thermal energy around the required forming area.

Localized heating can help improve the formability of stainless steel and other suitable conductive metals before mechanical forming. This is useful when a tube end needs to be reduced,closed,spun,or shaped into a specific geometry.

The heating temperature and heating time should be adjusted according to the material,wall thickness,tube diameter,and forming requirements. Stainless steel grades can have different thermal and forming characteristics,so process parameters should be established through application testing.

The high frequency heating system can also help reduce unnecessary heating of the rest of the workpiece. This localized process can support more controlled tube-end production when properly configured.

Hydraulic Tube End Forming

The hydraulic system provides controlled forming force during the tube-end processing cycle. Hydraulic forming is commonly used where stable and substantial force is required to close,reduce,or reshape metal tubing.

For stainless steel round tubes,the hydraulic system can work together with dedicated forming dies,clamping fixtures,and spinning components. The actual hydraulic pressure and forming force should be selected according to the tube dimensions,material properties,and desired end geometry.

Proper synchronization between heating,clamping,spinning,and hydraulic forming is important for achieving consistent results. Machine control parameters should therefore be matched to the specific production application.

Stainless Steel Round Tube Processing

Stainless steel round tube is a major application for this equipment. Stainless steel tubes are widely used in applications where corrosion resistance,appearance,durability,and structural performance are important.

Typical stainless steel tube applications include:

Automotive Components

Exhaust System Components

Furniture Frames

Stainless Steel Handrails

Kitchen Equipment

Heat Exchanger Components

HVAC Components

Industrial Equipment

Decorative Metal Products

Tubular Structural Components

The machine can be configured for different stainless steel tube sizes and end-forming requirements. Customers should provide tube outside diameter,wall thickness,length,material grade,and finished end dimensions when selecting the appropriate machine configuration.

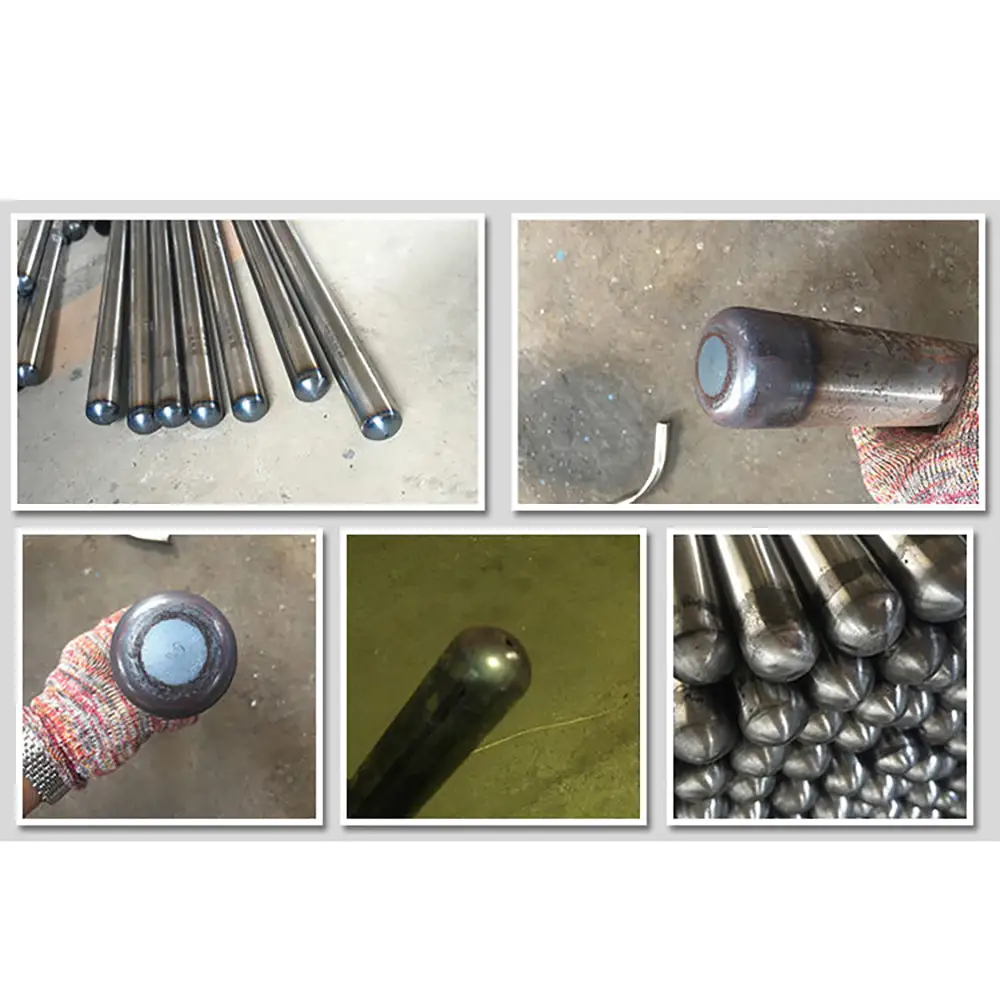

Tube Spinning and Closing

Spinning is a mechanical forming process that uses controlled rotation and forming tooling to reshape the tube end. It can be used to gradually reduce or close a tube end while maintaining controlled material flow.

Compared with simple cutting or manual forming,spinning can provide a more controlled method for producing shaped tube ends. When combined with localized high frequency heating,it may be possible to process applications where cold forming would require excessive force.

Tube closing can create partially or substantially closed ends depending on the tooling and process design. The final geometry should always be determined by the customer's product drawing and required application.

Tube End Sealing and Reducing

The machine can be used for various tube-end operations,including end sealing,end closing,end reducing,necking,shrinking,and forming.

Tube end sealing applications can be found in components where the tube opening needs to be reduced or closed for subsequent assembly,connection,or functional requirements.

Tube reducing decreases the diameter of a selected section of the tube. Necking creates a smaller-diameter section near the tube end,while shrinking can reduce the circumference of a selected area.

The appropriate forming method depends on the desired geometry and material characteristics. Specialized dies and fixtures can be supplied or developed for different tube-end shapes.

Automatic Production Process

The automatic configuration can help integrate multiple processing stages into a repeatable production cycle. Depending on the machine design,the process may include tube positioning,clamping,high frequency heating,spinning,hydraulic forming,and finished-part release.

Automation can reduce repetitive manual handling and help improve production consistency. However,actual automation level depends on the machine configuration and control system.

For higher-volume production,the machine can be integrated into a broader manufacturing line or supported with automatic feeding and unloading equipment where required.

Tooling and Forming Dies

Tooling is a critical part of tube-end forming equipment. Different products require different forming dies according to tube diameter,wall thickness,material,and final geometry.

Tooling can be designed for operations such as:

Tube End Closing

Tube End Sealing

Diameter Reducing

Tube Necking

Tube Shrinking

Spinning Forming

Beading

Custom End Shaping

Customers should provide technical drawings or finished samples when requesting customized tooling. This allows the forming sequence and die geometry to be evaluated before production.

Production Quality and Repeatability

Consistent tube-end forming requires stable material positioning,appropriate heating parameters,controlled forming force,and properly maintained tooling.

The automatic hydraulic system can help provide repeatable forming conditions. High frequency heating can also provide more localized and controllable heating compared with less focused heating methods.

However, final quality depends on tube material,dimensions,heating temperature,forming speed,tooling condition,clamping,and machine setup.

For precision applications,customers should specify dimensional tolerances,surface requirements,and finished tube-end geometry before ordering.

Industrial Applications

The machine can be used in a variety of industrial sectors that process stainless steel and other metal tubes.

Potential applications include:

Automotive Parts Manufacturing

Exhaust Tube Production

Stainless Steel Furniture

HVAC Equipment

Refrigeration Components

Heat Exchanger Manufacturing

Kitchen Equipment

Architectural Metal Products

Industrial Tubing

Metal Fabrication

For exhaust and automotive components,tube-end forming can be used to prepare tube sections for subsequent assembly,welding,or connection.

Maintenance and Safety

High frequency heating,hydraulic forming,and spinning involve heat,electrical energy,moving components,and mechanical force. Operators should follow the manufacturer's operating instructions and applicable workplace safety requirements.

Routine maintenance should include inspection of hydraulic oil,hoses,seals,clamping components,forming dies,spinning components,and electrical connections. The high frequency heating system should also be inspected according to the manufacturer's maintenance schedule.

Forming tools should be kept clean and checked for wear because damaged tooling can affect tube-end dimensions and surface quality.

Operators should use suitable protective equipment and maintain appropriate guarding and emergency-stop functions according to the machine configuration.

OEM and Custom Tube End Forming Solutions

Different tube products often require different end geometries and processing sequences. The machine can therefore be configured according to specific production requirements.

OEM and ODM options may include custom forming dies,hydraulic systems,high frequency heating systems,clamping fixtures,spinning tooling,automatic feeding,and control configurations.

For an accurate quotation,customers should provide tube material,material grade,outside diameter,wall thickness,tube length,required end shape,production volume,and product drawings or samples.

This information helps determine the appropriate heating and forming configuration for the intended application.

Why Choose Us

Automatic Hydraulic Forming
Controlled hydraulic forming supports repeatable tube-end processing for industrial production.

High Frequency Localized Heating
Heating can be concentrated around the tube end to improve formability for suitable materials.

Stainless Steel Tube Processing
Designed for stainless steel round tubes and other suitable conductive metal tubing.

Spinning and Closing Functions
Supports tube-end spinning,closing,reducing,necking,and other forming operations according to tooling.

Flexible Sealing and End Forming
Suitable for customized tube-end sealing,shrinking,and shaping requirements.

Production-Oriented Automation
Automatic operation can reduce repetitive manual handling and support consistent production cycles.

Customized Tooling
Forming dies,fixtures,and machine configurations can be adapted to specific tube dimensions and end shapes.

OEM and ODM Support
Suitable for manufacturers,distributors,metal fabricators,and industrial buyers requiring customized tube processing equipment.

FAQs

1. What is an automatic hydraulic tube end forming machine?

It is a machine designed to automatically process the ends of metal tubes using hydraulic forming force,tooling,and related mechanisms for closing,reducing,sealing,or shaping.

2. What does high frequency heating do?

High frequency heating provides localized heat to the tube end,which can improve the formability of suitable conductive metals before mechanical forming.

3. Can it process stainless steel round tubes?

Yes. The machine is designed for stainless steel round tube applications when the tube dimensions,material grade,and tooling are within the configured operating range.

4. Can the machine close the tube end?

Yes. With suitable forming tooling,the machine can perform tube-end closing or partial closing operations according to the required product geometry.

5. Can it seal a stainless steel tube?

It can perform tube-end sealing or closing processes when the required sealing geometry is achievable with the selected tooling and forming sequence.

6. What other tube-end operations are possible?

Depending on the configuration,the machine may support reducing,necking,shrinking,spinning,beading,and customized end forming.

7. Why use heating before tube forming?

Heating can increase material formability and reduce the mechanical force required for certain forming operations. The appropriate temperature depends on the material and application.

8. Can it process materials other than stainless steel?

Depending on the heating and forming configuration,it may process suitable carbon steel,copper,aluminum,brass,and alloy steel tubes. Material compatibility should be confirmed before ordering.

9. Is the machine fully automatic?

The machine is designed for automatic operation,but the exact automation level depends on the selected configuration,feeding system,control system,and production requirements.

10. Can custom dies be made?

Yes. Custom forming dies can be developed according to tube dimensions and the required finished end shape. Product drawings or samples are recommended.

11. What affects tube-end forming quality?

Material grade,tube diameter,wall thickness,heating parameters,hydraulic pressure,forming speed,tooling design,clamping,and machine setup can all affect the final result.

12. What information is needed for a quotation?

Provide tube material and grade,outside diameter,wall thickness,tube length,required end shape,production volume,and product drawings or samples. Photos of the existing process can also help with machine selection.
