Weichai, Yuchai, Silent 50-1000kw Gas/Biogas Generator

Environmental conditions and requirements for biogas
The biogas generator set can operate stably and reliably under environmental conditions of -40ºC~+40ºC, relative humidity <90% (at 25ºC), and altitude ≤1000m. Under standard environmental conditions (atmospheric pressure 100KPa, ambient temperature: 25ºC, relative humidity 30%), the gas quality meets the standard conditions and can output rated power. Unit requirements for biogas

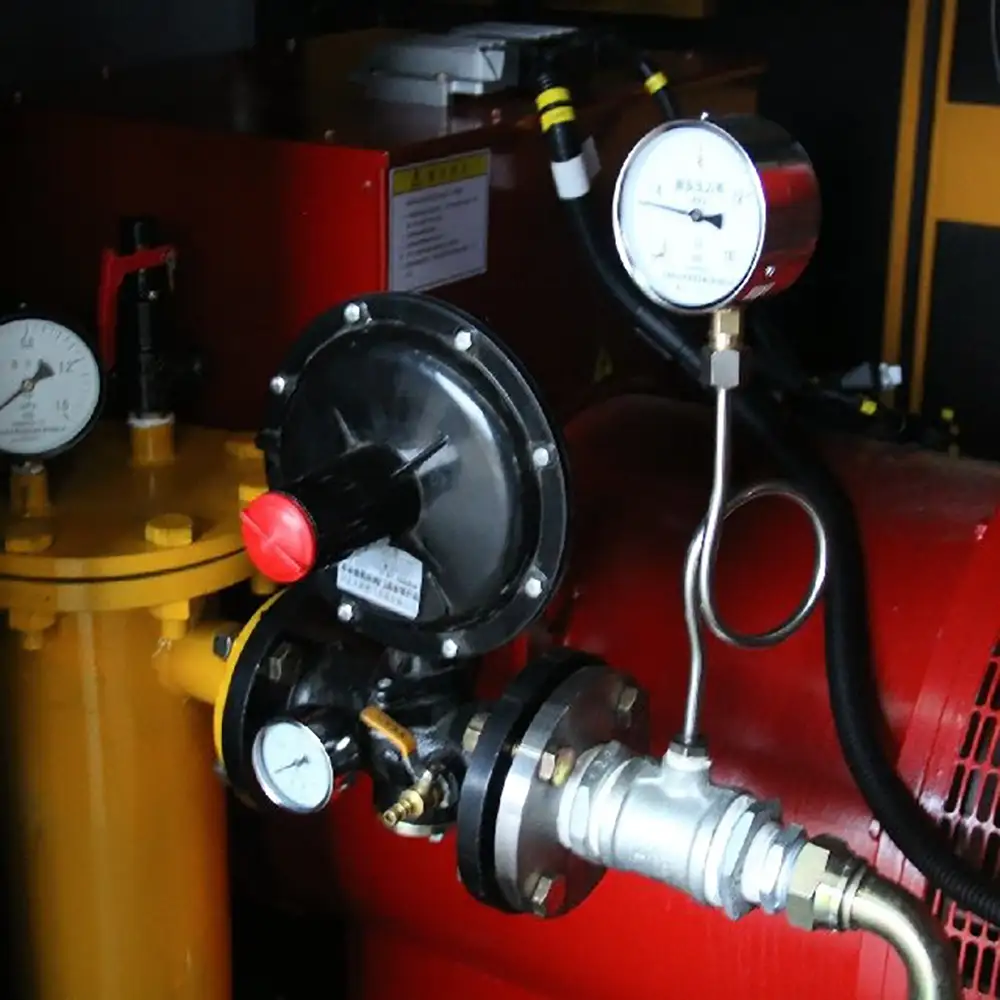

Within 1m of the unit's gas inlet pressure regulating valve,
1. Biogas temperature ≤40ºC;
2. Biogas pressure 3~10kPa, pressure change rate ≤1kPa/min;
3. The volume content of methane in biogas is not less than 40%, and the change rate is ≤2%/min;
4. H2S ≤20mg/Nm3;
5. NH3 ≤20mg/Nm3;
6. Impurity particle size ≤5μm, impurity content ≤30mg/Nm3;
7. Moisture content in biogas ≤40g/Nm3.
Special instructions are required for biogas with a methane volume content of ≤50%.
If the sulfur and ammonia content in the combustible gas is high, it will not only seriously corrode the spark plug electrode, but also increase the acid value in the engine oil, corrode the internal parts of the unit, and easily generate sediment, increasing corrosion and wear to the engine.

The Weichai, Yuchai, Silent 50-1000kW Gas/Biogas Generator is a flexible gas engine generator solution designed for customers requiring reliable electricity generation from compatible gaseous fuels. Available across a broad power range from 50kW to 1000kW, the generator can be configured with suitable Weichai or Yuchai gas engines according to the required output, fuel characteristics, operating conditions, and project requirements.

Gas generators are widely used for industrial power generation, agricultural biogas projects, wastewater treatment plants, natural gas applications, food-processing facilities, commercial facilities, and renewable energy projects. A silent enclosure can help reduce operating noise and provide a more practical solution for installations where acoustic control and equipment protection are important.

The actual generator configuration depends on the selected engine, alternator, control system, fuel type, gas quality, and installation environment.

50-1000kW Gas Generator Range

The 50-1000kW range provides flexibility for different electrical power requirements. Smaller configurations can be suitable for farms, commercial facilities, workshops, and distributed energy applications, while larger configurations can support industrial facilities, biogas plants, wastewater treatment projects, and larger power-generation systems.

Available power configurations may include 50kW, 100kW, 150kW, 200kW, 300kW, 400kW, 500kW, 600kW, 800kW, and 1000kW or other project-specific ratings depending on the selected generator platform.

The appropriate output should be selected according to the facility's electrical load, gas availability, operating schedule, and required power-generation mode.

Weichai Gas Generator Configuration

The Weichai Gas Generator configuration is designed for applications requiring a gas-fueled engine platform. Depending on the selected model, the generator set can be configured for compatible natural gas, biogas, or other suitable gaseous fuels.

Weichai gas engines can be integrated with an alternator and control system to create a complete gas generator set. The engine model should be matched to the fuel composition, gas pressure, power requirement, and intended operating conditions.

For biogas projects, gas quality is particularly important because methane concentration, hydrogen sulfide, moisture, and other components can vary significantly between different digestion systems.

Yuchai Gas Generator Configuration

The Yuchai Gas Generator option provides another engine platform for customers requiring gas-fueled power generation. Yuchai gas engine configurations can be evaluated for suitable natural gas and biogas applications according to the required generator output and project conditions.

The final selection between different engine platforms depends on factors such as required power, fuel characteristics, operating environment, maintenance requirements, project budget, and local service considerations.

Customers can provide electrical load information and fuel-gas analysis for technical evaluation before selecting the appropriate configuration.

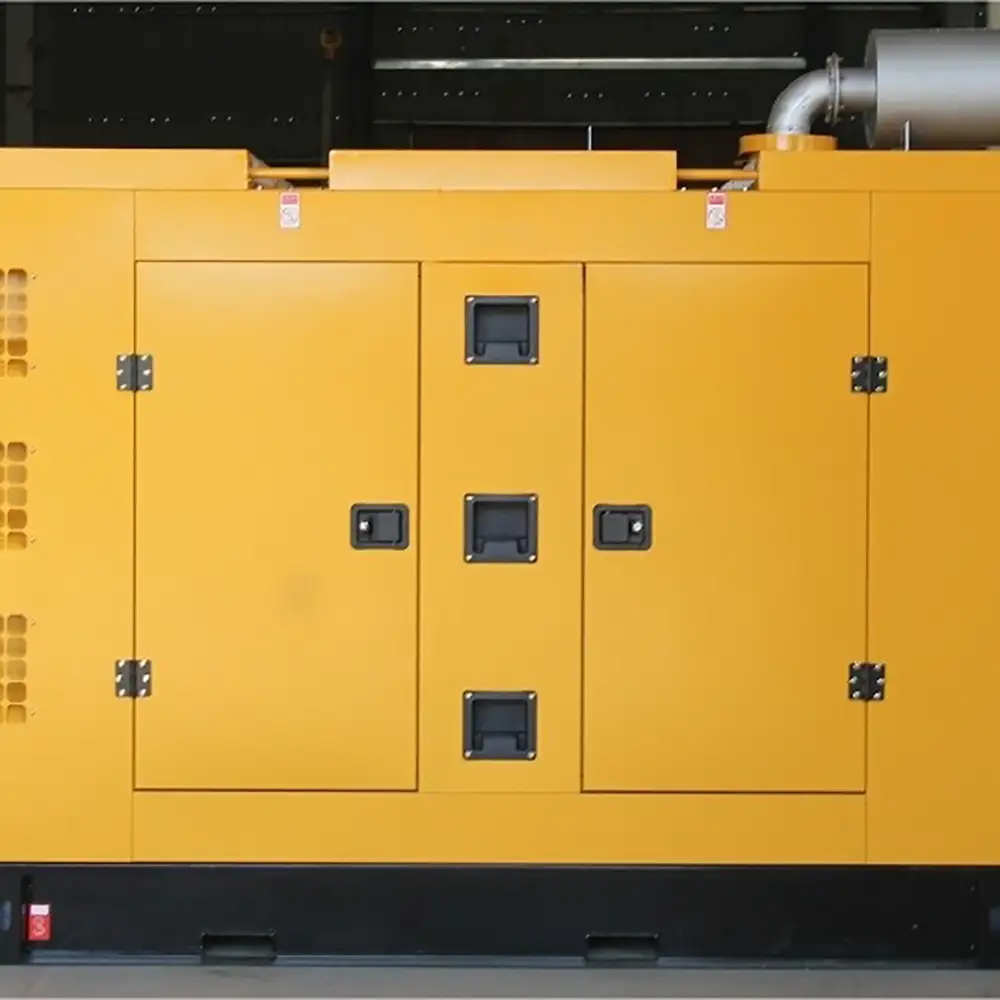

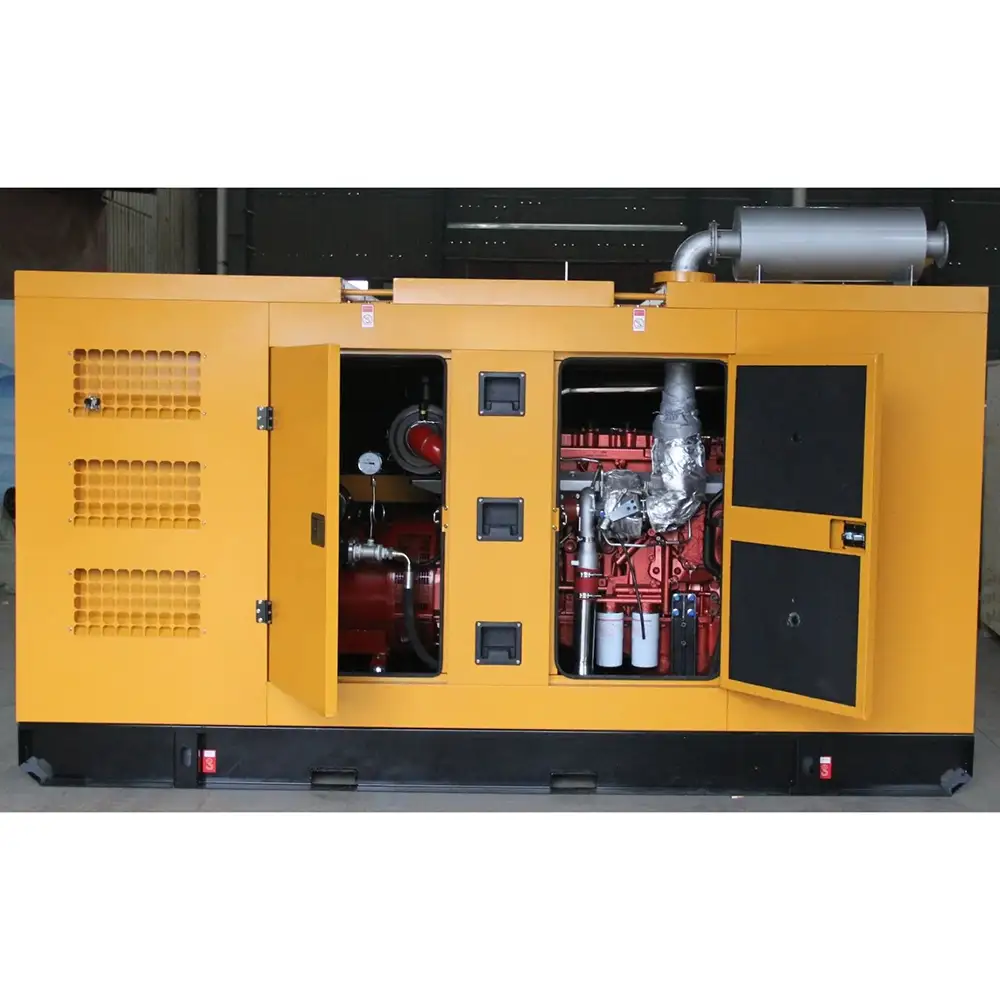

Silent Gas Generator Enclosure

The silent configuration is designed to help control generator operating noise while providing an enclosed structure around the generator equipment.

A sound-attenuated enclosure may incorporate acoustic materials, ventilation arrangements, access doors, exhaust components, and other features required for generator operation. The enclosure design needs to balance noise control with sufficient airflow and heat dissipation.

Actual noise levels depend on the engine, alternator, exhaust system, enclosure design, installation environment, and operating conditions. Therefore, project-specific acoustic requirements should be confirmed before production.

Natural Gas Power Generation

Natural gas can be used as a fuel for compatible gas generator systems where an appropriate gas supply is available.

Natural gas generator sets can provide electricity for industrial facilities, commercial buildings, distributed energy projects, workshops, agricultural operations, and other applications.

Gas pressure, gas composition, supply stability, and local fuel requirements should be evaluated when selecting the engine and fuel system.

Biogas Power Generation

The generator can also be configured for suitable biogas applications. Biogas is commonly generated through anaerobic digestion of livestock manure, wastewater sludge, food waste, agricultural residues, and other organic materials.

Because untreated biogas may contain moisture, hydrogen sulfide, particulates, and other impurities, gas cleaning and conditioning may be required before the gas enters the engine.

A suitable biogas system may include gas filtration, moisture removal, desulfurization, pressure regulation, and safety equipment according to the actual gas composition.

Methane-Rich Gas Applications

Methane is the primary combustible component in many biogas streams. A gas generator can convert the energy contained in methane-rich gas into electrical power.

The exact methane concentration can vary depending on the feedstock, anaerobic digestion process, gas storage system, and operating conditions. The generator should therefore be selected based on actual gas analysis rather than a generic assumption about biogas quality.

For projects with variable gas quality, appropriate gas treatment and monitoring equipment can help provide a more suitable fuel supply to the engine.

Stable On-Site Power Generation

Gas generators can provide on-site electricity for facilities with a suitable gas supply. Generated power can be used for pumps, motors, lighting, ventilation, compressors, wastewater treatment equipment, refrigeration, agricultural equipment, and other electrical loads.

For biogas facilities, electricity generated from digester gas can potentially be used by the same plant that produces the gas, creating an integrated waste-treatment and energy-recovery system.

The generator operating mode should be determined according to gas availability, electrical demand, and the project's power-management system.

Industrial And Agricultural Applications

The 50-1000kW gas generator range can support a wide variety of B2B applications.

Agricultural facilities may use biogas generators to recover energy from livestock manure and other organic waste. Wastewater treatment plants can use digester gas for electricity generation. Food-processing facilities may also use biogas generated from organic residues.

Industrial users with access to natural gas can use compatible gas generator sets for distributed electricity generation or other suitable power applications.

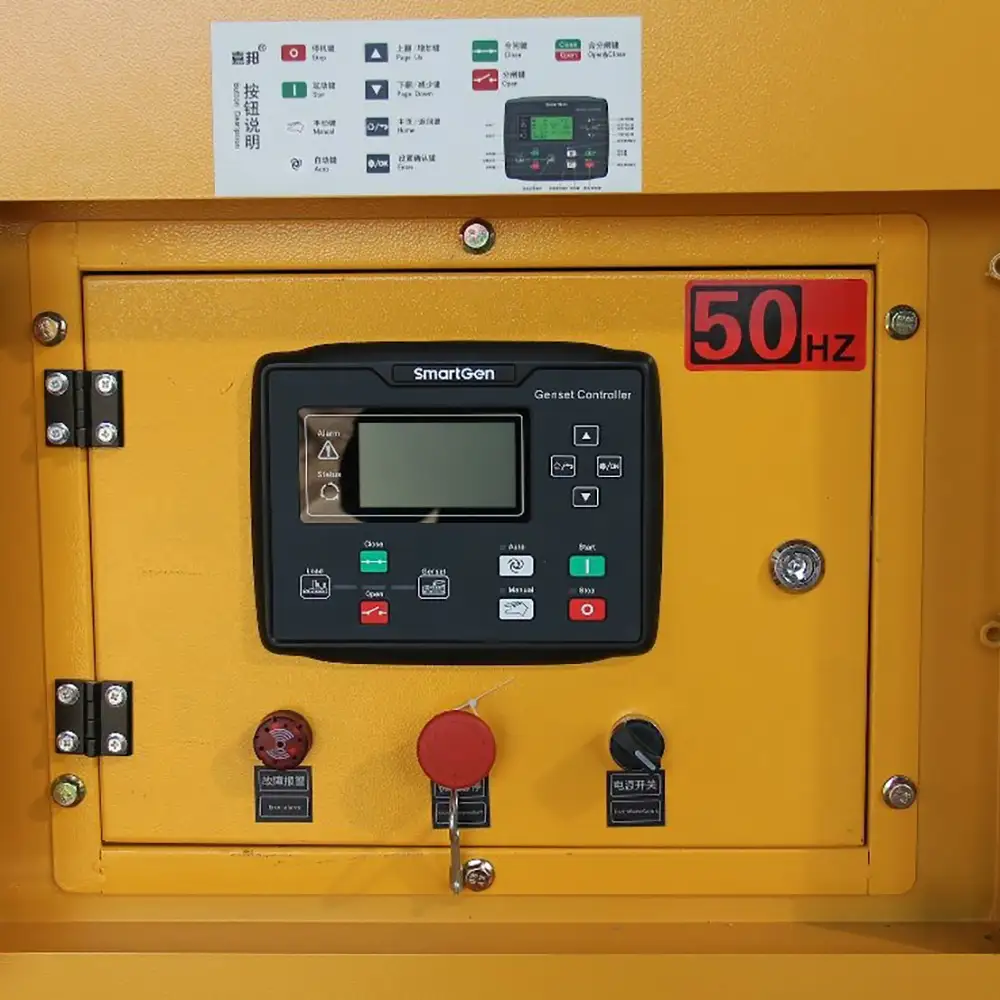

Automatic Control System

A complete generator set can be equipped with a control system for monitoring and managing engine and generator operation.

Depending on the selected configuration, the controller can monitor parameters such as electrical output, engine temperature, oil pressure, operating status, alarms, and other relevant conditions.

Automatic start, stop, protection, monitoring, and synchronization functions may be available depending on the generator configuration and project requirements.

Flexible Generator Configurations

The generator can be configured with different engine models, alternators, control systems, cooling arrangements, exhaust systems, fuel-gas components, and enclosure options.

For projects requiring multiple generator sets, several units can potentially be integrated into a larger power-generation system with suitable synchronization and load-management equipment.

This modular approach can provide flexibility when electrical demand changes or when the project requires staged power generation.

Fuel Gas Quality Considerations

Gas generator performance depends strongly on fuel quality. Natural gas and biogas have different characteristics and should not automatically be treated as interchangeable fuels.

For biogas applications, important parameters may include methane concentration, hydrogen sulfide content, moisture, gas pressure, gas flow, and other impurities. These factors should be considered when selecting the engine and gas-treatment equipment.

Providing a recent gas analysis report can help determine a more suitable generator configuration.

B2B Project Configuration

The 50-1000kW gas generator range is suitable for international industrial buyers, agricultural projects, wastewater treatment plants, energy developers, EPC contractors, distributors, and other B2B customers.

Customers can provide required power output, fuel type, gas analysis, electrical load characteristics, installation location, operating hours, and acoustic requirements.

Based on this information, the generator set, engine platform, enclosure, gas-conditioning equipment, control system, and auxiliary components can be evaluated for the intended application.

Export-Ready Gas Generator Solution

For international projects, generator equipment may require export packaging, technical documentation, wiring information, operating manuals, installation instructions, and other project documentation.

Proper transportation, installation, ventilation, exhaust routing, fuel-gas connection, electrical protection, and commissioning are important for safe and reliable operation.

Technical support can be provided according to the selected generator configuration and project requirements.

Key Features
50-1000kW Gas Generator Range
Weichai Gas Engine Configuration
Yuchai Gas Engine Configuration
Silent And Sound-Attenuated Enclosure Options
Natural Gas Generator Applications
Biogas Generator Applications
Methane-Rich Gas Power Generation
Automatic Generator Control
Flexible Engine And Alternator Selection
Suitable For Industrial And Agricultural Projects
Gas Cleaning System Compatibility
B2B Project Configuration And Export Support
Main Applications
Natural Gas Power Generation
Biogas Power Plants
Livestock Farms
Agricultural Biogas Projects
Wastewater Treatment Plants
Food Processing Facilities
Organic Waste Treatment
Industrial Power Generation
Commercial Power Generation
Distributed Energy Systems
Methane Gas Power Generation
Renewable Energy Projects
FAQs
1. What Is A 50-1000kW Gas Generator?

It is a gas engine generator set available in different power configurations from approximately 50kW to 1000kW for compatible gaseous fuels such as natural gas or suitable biogas.

2. Can Weichai And Yuchai Engines Be Used For Gas Generators?

Yes. Suitable Weichai and Yuchai gas engine configurations can be selected according to the required power output, fuel characteristics, and project requirements.

3. Can The Generator Run On Biogas?

Yes, when the selected engine is designed or configured for suitable biogas. Actual compatibility depends on methane concentration, hydrogen sulfide, moisture, gas pressure, and other fuel characteristics.

4. Can It Run On Natural Gas?

Yes. Compatible configurations can be used for natural gas power generation where the gas supply meets the engine's fuel requirements.

5. What Does Silent Gas Generator Mean?

A silent gas generator normally uses a sound-attenuated enclosure and related acoustic design to help reduce operating noise. Actual noise performance depends on the complete generator and installation environment.

6. Does Biogas Need To Be Cleaned Before Entering The Engine?

In many applications, yes. Biogas may contain moisture, hydrogen sulfide, particulates, and other impurities. Gas treatment requirements depend on the actual gas analysis and engine requirements.

7. What Biogas Sources Can Be Used?

Potential sources include livestock manure, wastewater sludge, food waste, agricultural residues, and other organic materials processed through suitable anaerobic digestion systems.

8. How Do I Select The Correct Generator Size?

Generator selection should consider electrical load, required operating mode, gas flow, fuel composition, operating hours, installation conditions, and future power requirements.

9. Can Multiple Generator Sets Be Used Together?

Yes. Multiple units can potentially be integrated into a synchronized power-generation system when appropriate synchronization, protection, and load-management equipment is provided.

10. What Information Should I Provide For A Quotation?

Useful information includes required power output, natural gas or biogas type, gas analysis, gas flow and pressure, electrical voltage and frequency, operating hours, installation conditions, and any noise-control requirements.

Why Choose Us
Multiple Gas Engine Options

We support gas generator configurations using suitable Weichai and Yuchai engine platforms, allowing customers to evaluate different options according to their project requirements.

Wide 50-1000kW Power Range

The broad power range provides flexible choices for small distributed power projects, agricultural applications, wastewater facilities, and larger industrial installations.

Silent Generator Solutions

Sound-attenuated enclosure options can be evaluated for projects where operating noise, equipment protection, and installation environment are important considerations.

Biogas Application Support

We consider fuel composition, gas cleaning, moisture removal, desulfurization, gas pressure, and other factors when evaluating biogas generator applications.

B2B Project-Oriented Service

We support industrial buyers, EPC contractors, agricultural projects, wastewater facilities, energy developers, and distributors with application-based generator configuration.

Export And Technical Support

We provide technical documentation, machine testing, export packaging, shipping coordination, installation guidance, commissioning support, and after-sales technical assistance for overseas projects.
