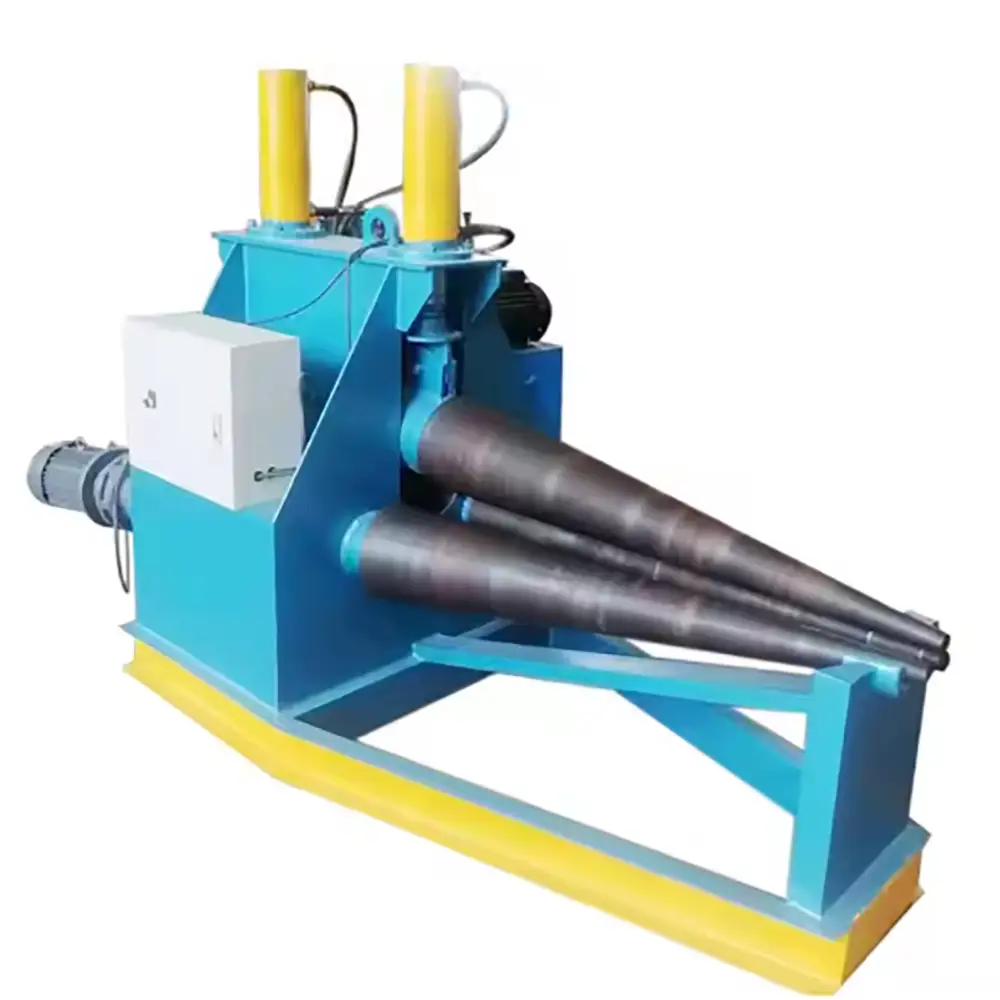

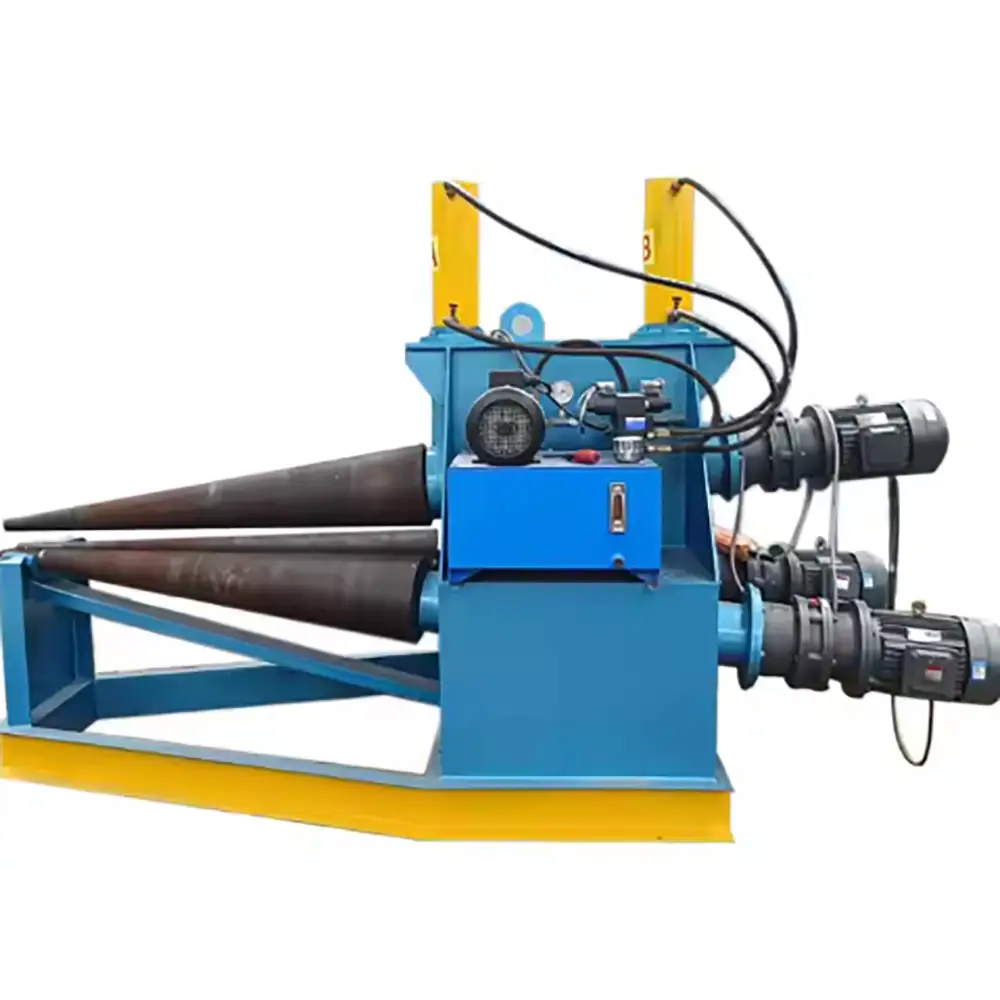

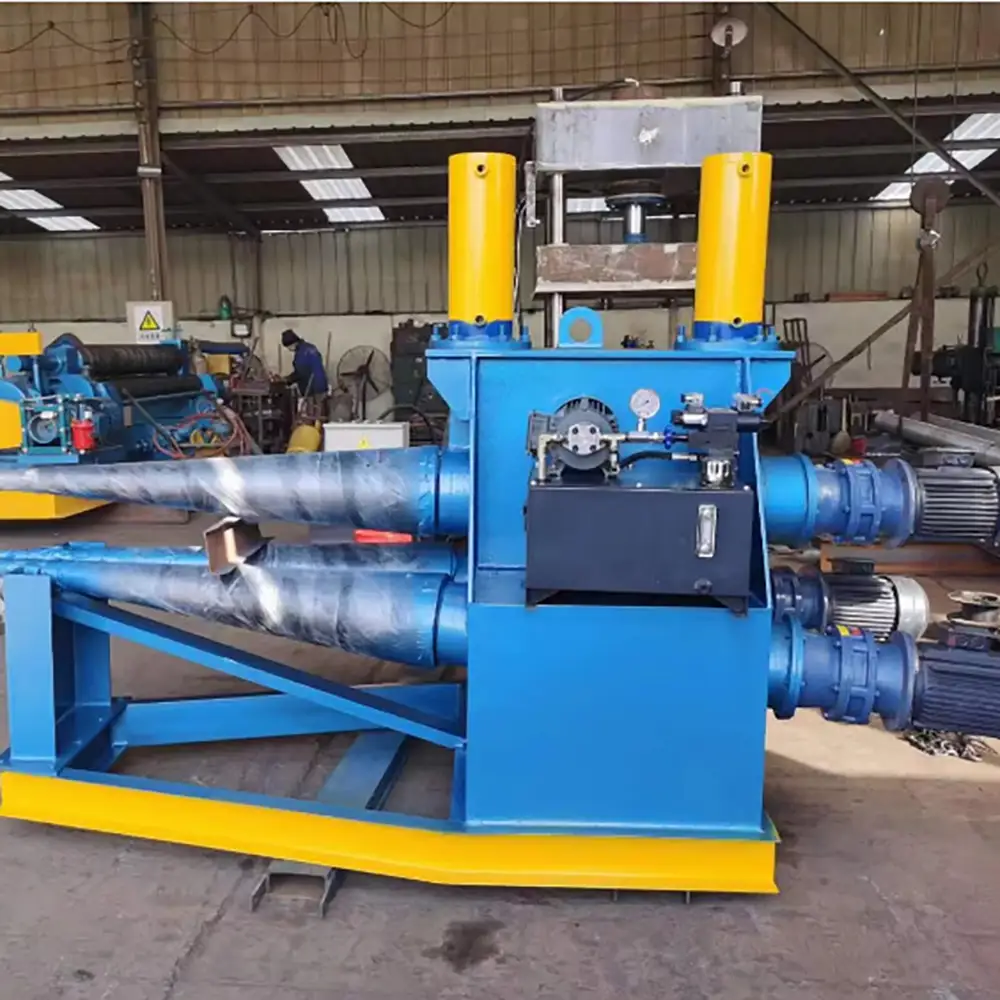

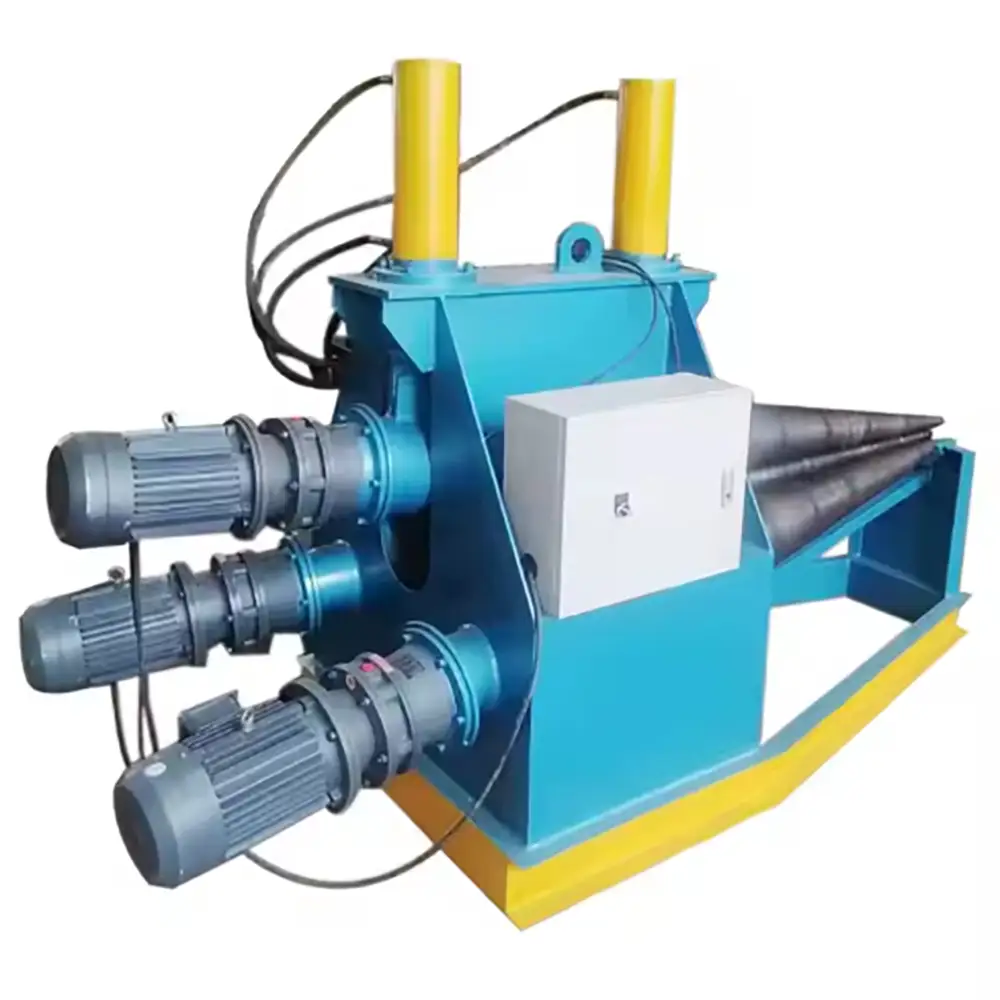

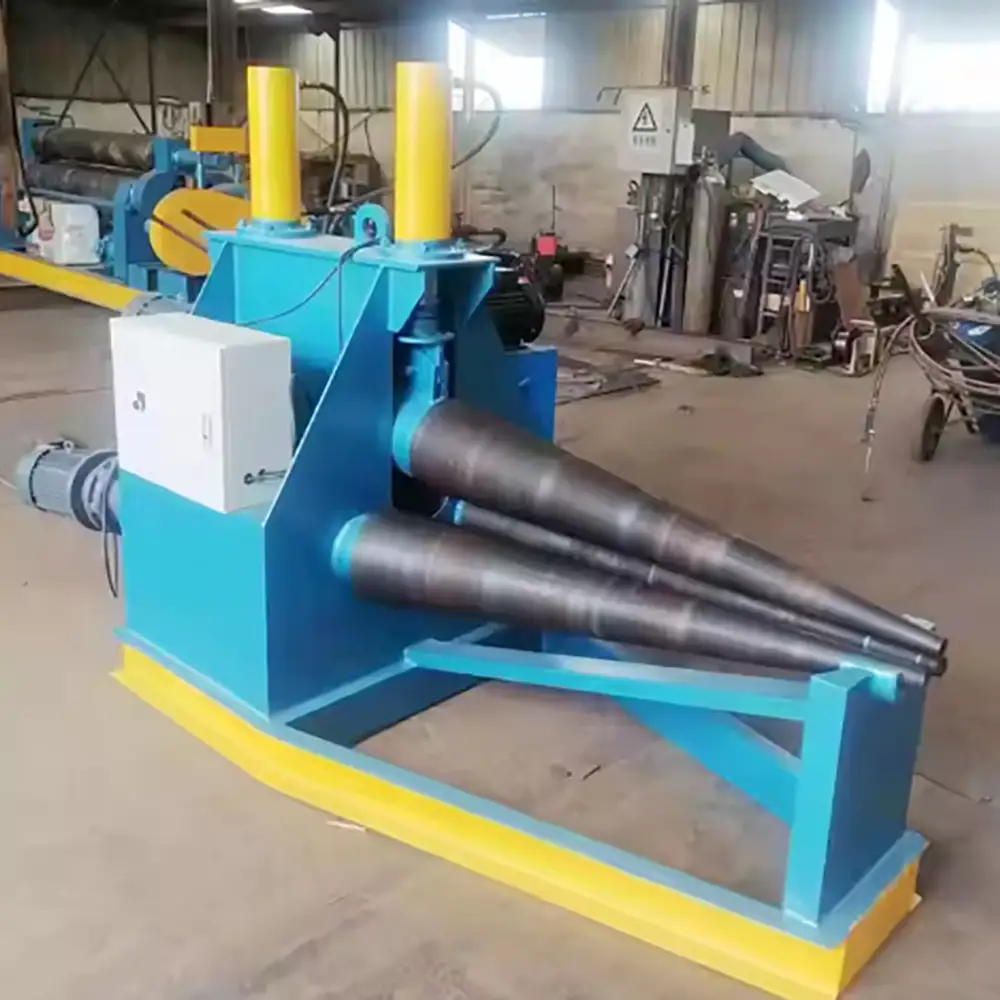

Tank Vessel Fabrication Machine Hydraulic Cone Roller for Oil Gas Chemical Industry Applications

 The Tank Vessel Fabrication Machine Hydraulic Cone Roller for Oil Gas Chemical Industry Applications is an industrial metal forming solution designed for manufacturers producing tanks, pressure vessel components, conical shells, reducers, transition sections, and other large fabricated metal structures. By combining hydraulic plate rolling technology with cone-forming capability, this machine helps manufacturers efficiently transform flat metal plates into tapered and conical sections required for vessel fabrication.

Tank and vessel manufacturing often involves complex forming requirements. Many industrial vessels contain cylindrical shells, conical ends, tapered transitions, hopper sections, or specially shaped components. Producing these components accurately requires controlled plate deformation and reliable forming performance. A hydraulic cone roller provides the controlled rolling force required to progressively form metal plates into conical geometries while supporting consistent production for demanding industrial applications.

Hydraulic Cone Rolling for Tank Vessel Fabrication

The machine is designed primarily for rolling steel plates into conical or tapered sections used in tank and vessel construction. Hydraulic systems provide controlled movement and forming pressure, allowing the operator to adjust the working process according to plate thickness, material, cone diameter, and forming requirements.

During production, a prepared plate blank is positioned between the forming rolls. The rolling process gradually introduces curvature into the workpiece until the desired conical geometry is achieved. Depending on the machine configuration and production process, pre-bending, multi-pass rolling, and final adjustment may be required to obtain the specified shape.

This forming method is suitable for manufacturers producing pressure vessel components, storage tanks, process equipment, chemical containers, oil and gas equipment, and other fabricated structures.

Conical Shell and Tapered Section Forming

A major application of the hydraulic cone roller is forming conical shells. Conical sections are commonly used in tank bottoms, vessel transitions, hoppers, reducers, process equipment, and other fabricated assemblies.

The tapered geometry of a cone requires different forming behavior across the width of the plate. The machine therefore needs to provide controlled rolling conditions to accommodate the changing diameter from one side of the workpiece to the other.

For demanding fabrication projects, the actual machine configuration should be selected according to the required maximum plate width, thickness, material yield strength, minimum and maximum cone diameter, cone angle, and production volume.

Suitable Materials

The Tank Vessel Fabrication Machine can be configured for various metal materials commonly used in industrial fabrication. Typical materials may include carbon steel, mild steel, stainless steel, low-alloy steel, and aluminum alloys, depending on machine capacity and customer requirements.

Material selection directly affects forming force and springback. Stainless steel and high-strength materials can require greater forming pressure than standard mild steel. For this reason, manufacturers should provide detailed material specifications when selecting the hydraulic cone roller.

For stainless steel tank production, proper roll surface protection and production procedures can also help reduce surface marking and maintain finished-product quality.

Applications in the Oil and Gas Industry

Oil and gas fabrication frequently involves large tanks, separators, process vessels, storage equipment, piping components, and transition sections. Conical and tapered components can be found in many types of fabricated equipment.

The hydraulic cone roller can support the forming stage for components such as conical vessel sections, tank bottoms, transition pieces, reducers, and other custom-fabricated parts.

For oil and gas projects, the final fabricated vessel may require additional welding, inspection, machining, heat treatment, testing, and certification according to the applicable project specifications and local regulations. The cone roller is primarily a metal-forming machine and should be integrated into the customer's complete fabrication workflow.

Chemical Industry Tank Fabrication

Chemical processing equipment often requires corrosion-resistant materials and carefully formed vessel components. Stainless steel and specialized alloys are frequently used for tanks, reactors, hoppers, separators, and process vessels.

The hydraulic cone roller provides a practical solution for forming tapered and conical plate sections before welding and assembly. Its application can help fabrication companies produce repeatable components for chemical tanks and process equipment.

Because chemical-service vessels may have strict material, dimensional, surface-finish, and inspection requirements, machine selection should be based on the actual engineering drawings and production specifications.

Pressure Vessel Manufacturing

Pressure vessel fabrication requires controlled forming processes because dimensional accuracy, weld preparation, and final geometry can affect downstream assembly and inspection.

The machine can be used for forming conical sections that are later welded to cylindrical shells or other vessel components. Proper plate preparation and rolling procedures help reduce excessive deformation and support more efficient fit-up during subsequent fabrication.

The actual suitability of a machine for pressure vessel production depends on the required material grade, plate dimensions, vessel diameter, cone geometry, production standards, and applicable regulatory requirements.

Heavy-Duty Hydraulic Forming

Hydraulic drive systems are suitable for applications where substantial forming force and controlled movement are required. Compared with small workshop rolling equipment, industrial hydraulic cone rollers can be configured for significantly larger plate dimensions and heavier fabrication applications.

The machine structure, roll diameter, hydraulic capacity, drive system, and control configuration should be selected according to the required production range. For large tank and vessel manufacturers, customized configurations can help optimize the machine for specific plate sizes and forming requirements.

Production Efficiency

A dedicated cone rolling machine can improve production efficiency when a fabrication shop regularly manufactures tapered sections. Instead of relying on general-purpose forming equipment and extensive manual correction, a properly configured hydraulic cone roller provides a more controlled forming process.

Repeatable forming parameters can help operators maintain consistency across production batches. This can reduce unnecessary rework and improve the efficiency of subsequent welding, assembly, grinding, and inspection operations.

For high-volume production, CNC or digitally assisted controls may also be available depending on the machine configuration. Automation level should be selected according to production requirements and operator preferences.

Quality Control

Quality control begins with accurate plate preparation. Before rolling, the plate should be cut according to the approved engineering drawing, with correct dimensions, cone angle, material grade, and edge preparation.

After forming, manufacturers can inspect the conical section using appropriate measuring tools and inspection procedures. Dimensional checks may include large-end diameter, small-end diameter, cone angle, roundness, plate alignment, and overall geometry.

For pressure vessel and chemical equipment applications, additional inspection and testing should follow the applicable fabrication standards and customer specifications.

Maintenance and Operation

Regular maintenance helps preserve machine performance and service life. Hydraulic oil, lubrication points, electrical systems, hydraulic connections, rolls, bearings, and safety devices should be inspected according to the manufacturer's maintenance recommendations.

Operators should also verify that the plate dimensions and material are within the machine's rated working range before forming. Overloading the equipment can affect forming accuracy and may cause unnecessary mechanical stress.

Safety procedures should include proper operator training, emergency-stop functionality, guarding where applicable, safe workpiece handling, and compliance with relevant workplace requirements.

Custom Hydraulic Cone Roller Solutions

Different tank and vessel manufacturers have different production requirements. A standard machine may therefore be configured with different working widths, maximum rolling thicknesses, roll diameters, drive systems, hydraulic systems, controls, and automation options.

For custom projects, buyers can provide plate material, maximum thickness, maximum width, minimum cone diameter, maximum cone diameter, cone angle, and target production capacity. These parameters allow the manufacturer to recommend a suitable machine configuration.

OEM and Custom & OEM solutions are also available for customers requiring specialized tank fabrication equipment, customized controls, or integration into an existing production line.

Why Choose Us

Industrial Cone Rolling Expertise
We provide hydraulic cone rolling solutions for demanding metal fabrication applications.

Tank And Vessel Applications
Our equipment can be configured for conical sections used in tanks, pressure vessels, process equipment, and industrial fabrication.

Hydraulic Forming Technology
Controlled hydraulic movement provides strong and stable forming capability for suitable plate materials.

Customized Machine Configuration
Working width, forming capacity, roll configuration, control systems, and other parameters can be customized according to project requirements.

Wide Material Compatibility
Machine configurations can be designed for carbon steel, stainless steel, aluminum, and other suitable metals.

B2B Export Support
We support international buyers with technical communication, machine configuration, documentation, and export coordination.

OEM & Custom Solutions
Customers can request customized equipment according to engineering drawings, production processes, and application requirements.

Complete Fabrication Process Support
The machine can be incorporated into broader tank and vessel manufacturing workflows involving cutting, rolling, welding, inspection, and finishing.

FAQs

1. What is a hydraulic cone roller?

A hydraulic cone roller is a metal forming machine designed to roll flat plates into conical or tapered shapes. It uses controlled rolling force to progressively form the workpiece.

2. What is this machine used for?

It is primarily used for forming conical and tapered metal sections for tanks, pressure vessels, chemical equipment, oil and gas equipment, hoppers, reducers, and industrial fabricated structures.

3. Can it roll carbon steel plates?

Yes. The machine can be configured for carbon steel and mild steel, provided the material thickness and strength are within the machine's rated capacity.

4. Can it process stainless steel?

Yes, suitable configurations can process stainless steel. The required forming capacity depends on stainless steel grade, thickness, width, and cone dimensions.

5. Can this machine manufacture complete pressure vessels?

The machine performs the plate-forming stage. Complete pressure vessel manufacturing also involves plate cutting, welding, inspection, testing, finishing, and compliance with applicable standards.

6. Can it form tank cone bottoms?

Yes. Conical tank bottoms and other tapered vessel components are common applications for hydraulic cone rolling equipment.

7. Can it form reducers and transition sections?

Yes. The machine can be used to form suitable conical reducers, transition sections, and other tapered components from plate blanks.

8. Is this a pipe bending machine?

Not primarily. A cone roller forms sheet or plate blanks into conical sections. It should not be confused with a tube or finished-pipe bending machine.

9. How do I select the correct machine size?

Important parameters include material type, maximum plate thickness, maximum plate width, minimum and maximum cone diameter, cone angle, and required production volume.

10. Is CNC control available?

CNC or digitally assisted control options may be available depending on the machine configuration. The appropriate automation level depends on production requirements.

11. Can the machine be customized?

Yes. Working dimensions, hydraulic capacity, control systems, roll configuration, and other features can be customized according to the customer's application.

12. What information should I provide for a quotation?

Provide material type and strength, maximum plate thickness, plate width, cone diameter range, cone angle, drawings if available, and expected production requirements. This information helps determine the appropriate machine configuration.
